Industrielle kabelnippler
Viser 17 resultater

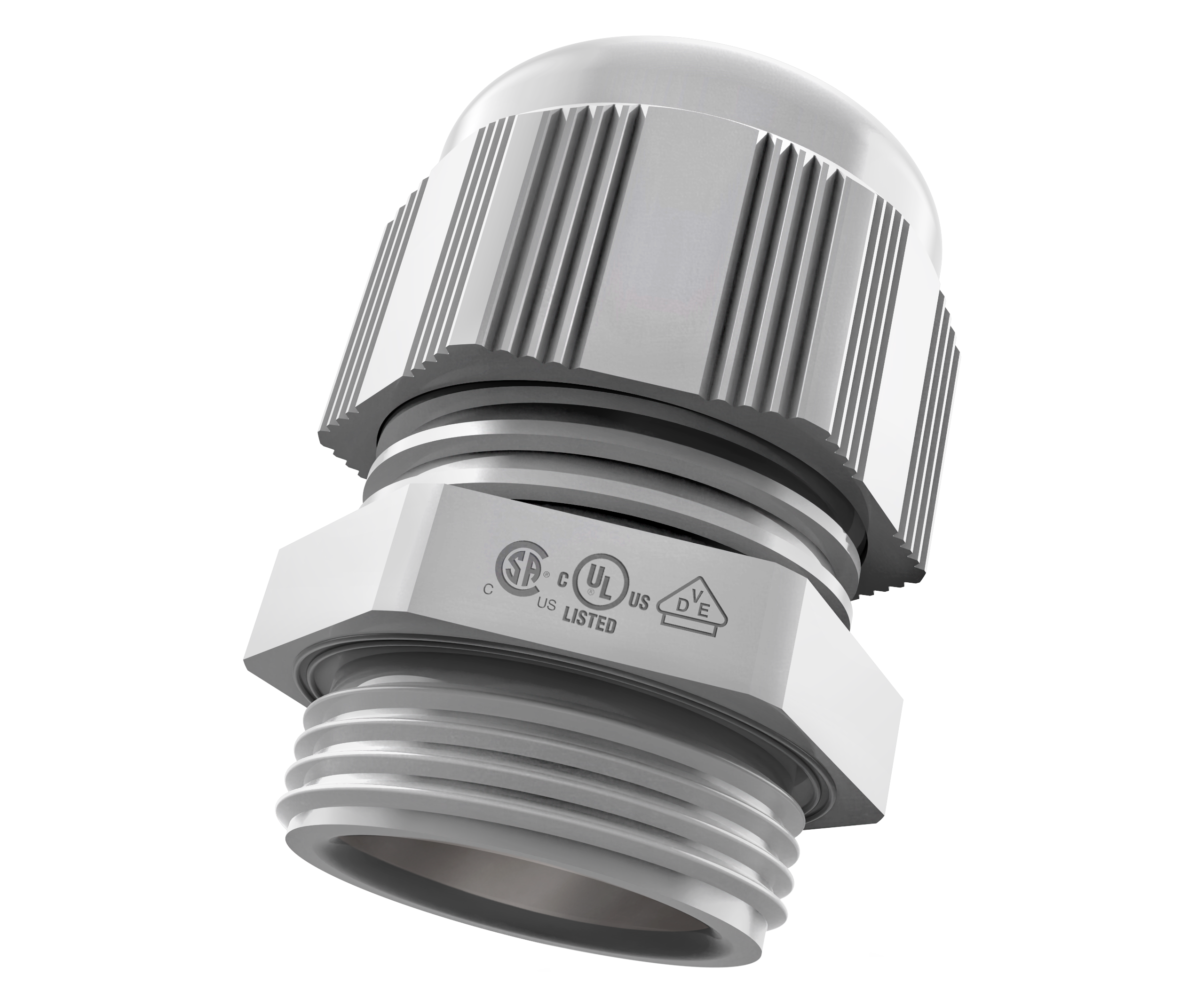

207 varianterStandard kabelnippel i plast
Silver grey (RAL 7001) Light grey (RAL 7035) Black (RAL 9005), We recommend the use of lock nuts and gaskets to ensure IP rating for rough surfaces or through holes. Accessories must be ordered separately. Some approvals do not cover all sizes. Other colours on request: Blue, Red, White Other sealing materials upon request: NBR, Silicone, FKM Viton, Non-Armoured, Locknuts Dome plugs Reducing seals Flat cable seals Multihole seals Gaskets (Washers), Metric, PG, NPT, PF/G (GAS), Neoprene (Chloroprene), 1, 4, 4X, 12, 13, Polyamide 6 V2 acc. to UL 94, Permanent -20 °C to +100 °C Intermittent -40 °C to +150 °C, IP68 - 5 Bar 30 min, IP66

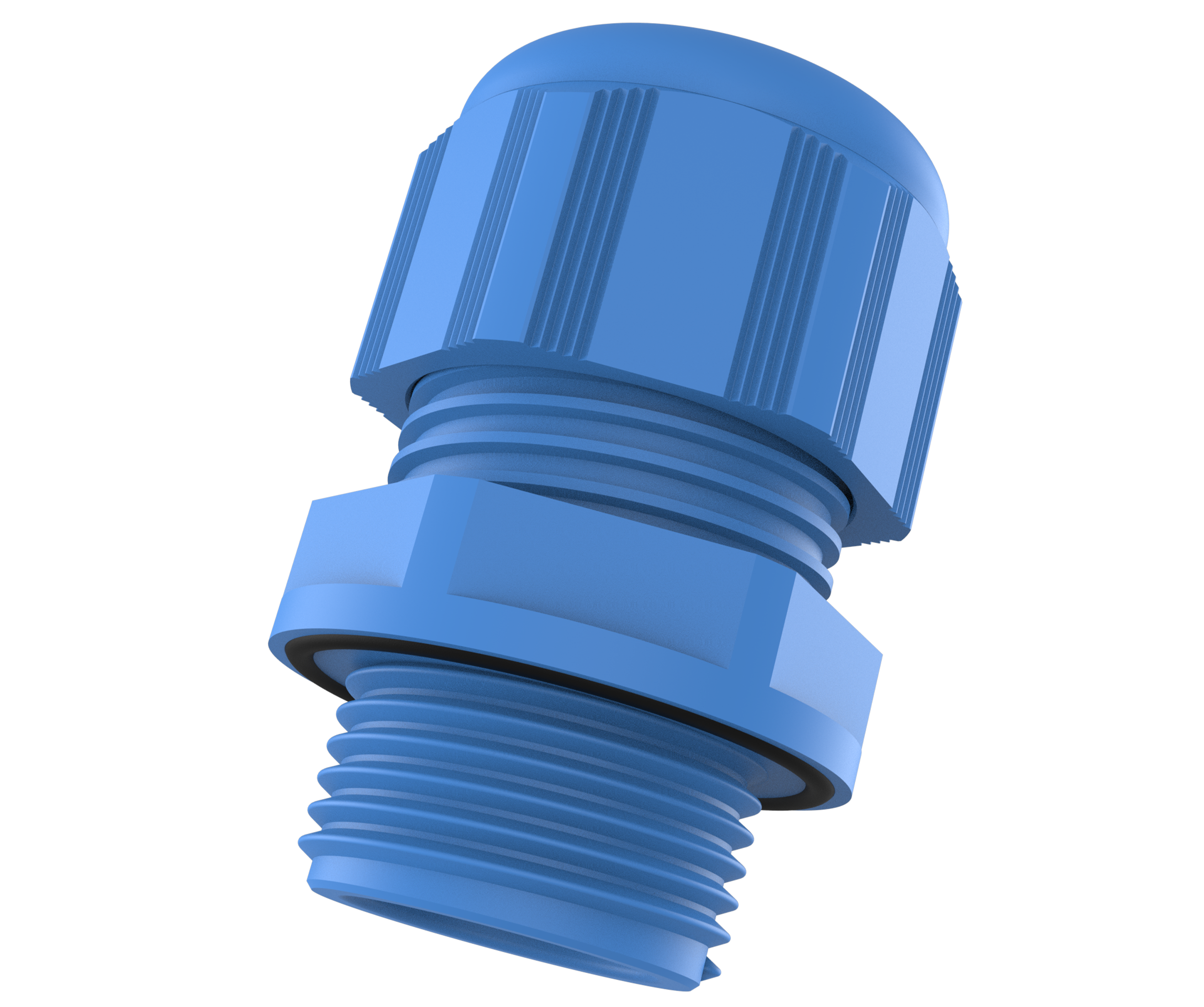

16 varianterHøyytelse kabelnippel
Silver grey (RAL 7001) Light grey (RAL 7035) Black (RAL 9005), Accessories must be ordered separately. Other colours on request: Blue, Red, White Other sealing materials upon request: NBR, Silicone, FKM Viton, Non-Armoured, Lock nuts Dome plugs Gaskets (Washers), Metric, Type B acc. to EN 62444, 1, 4, 4X, 12, 13, Polyamide 6 V0 acc. to UL 94, Permanent -40 °C to +100 °C Intermittent -60 °C to +150 °C, Neoprene (Chloroprene), IP68 - 10 Bar 30 min, IP69, IP66

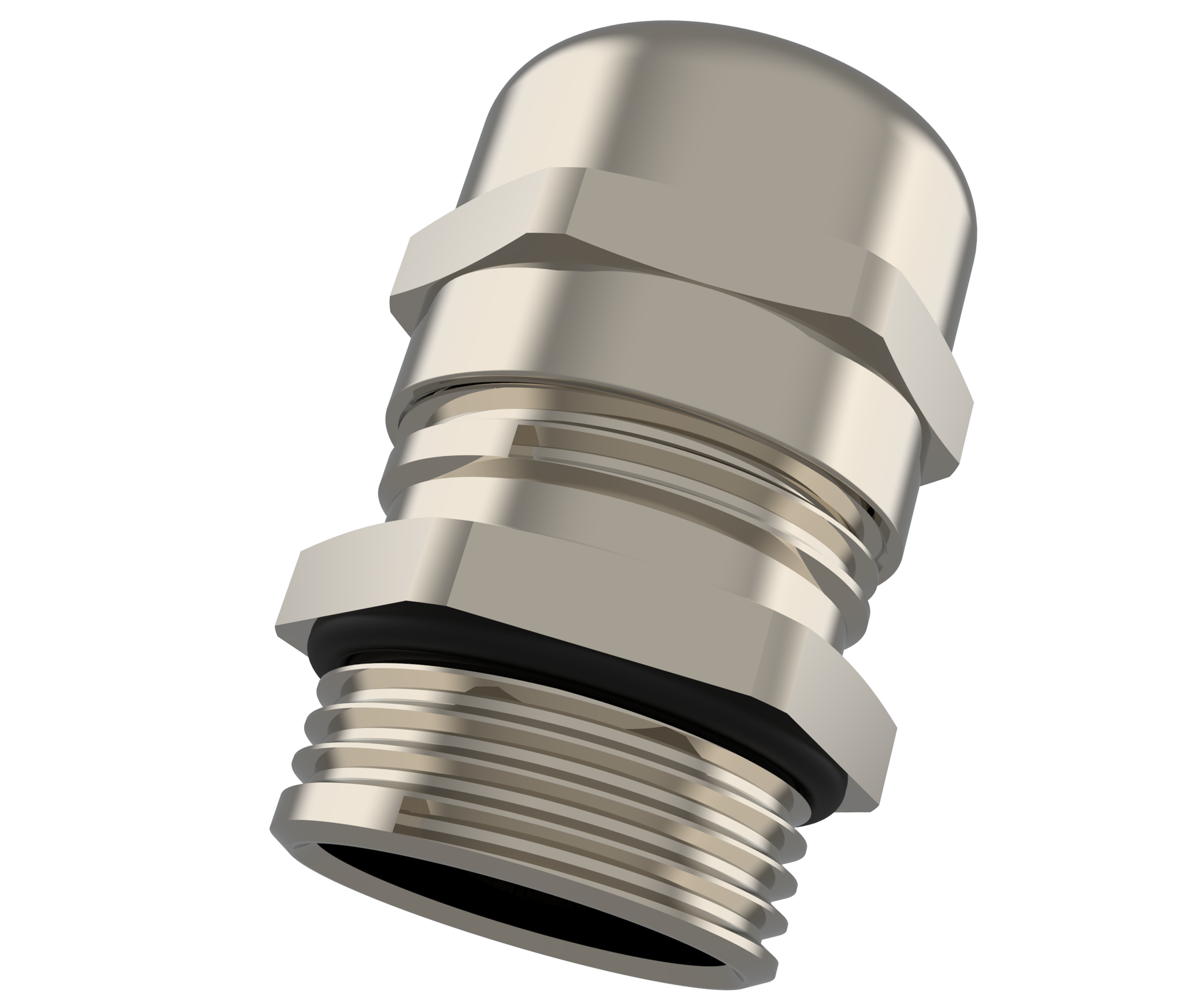

244 varianterStandard kabelnippel i messing
In compliance with DIN EN 62444. Some approvals do not cover all sizes. O-ring available in Metric and PG outer threads. All accessories must be ordered separately., Non-Armoured, Lock nuts Dome plugs Reducing seals Flat cable seals Multihole seals Gaskets (Washers), Metric, PG, NPT, Neoprene (Chloroprene), NBR, 1, 4, 4X, 12, 13, Nickel Plated Brass, Permanent -20 °C to +100 °C Intermittent -40 °C to +150 °C, Polyamide 6 V2 acc. to UL 94, IP68 - 5 Bar 30 min, IP69, IP66

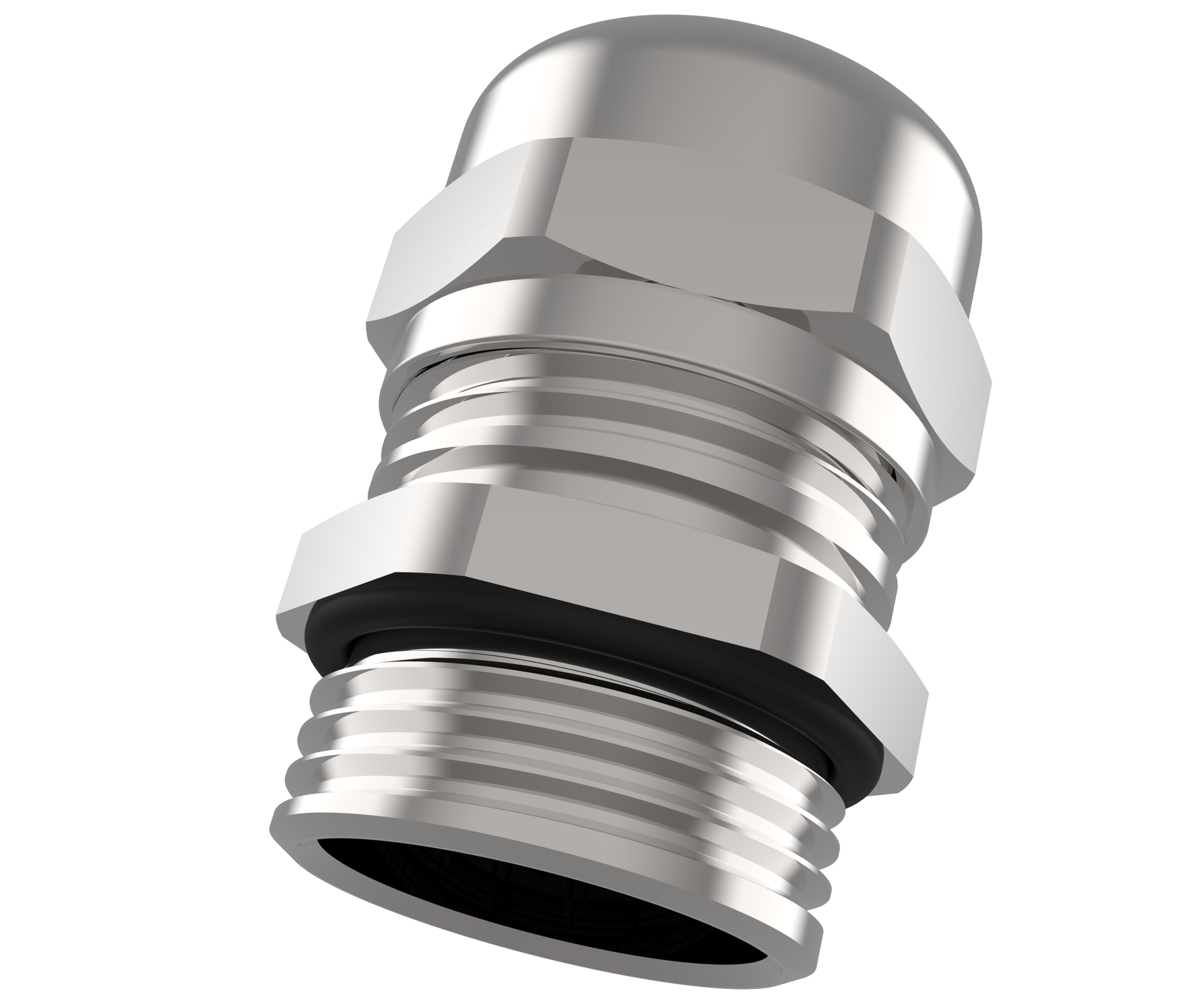

240 varianterStandard kabelnippel i rustfritt stål
Some approvals do not cover all sizes. O-ring available in Metric and PG outer threads. All accessories must be ordered separately. Stainless Steel (1.4404/316L) grades available upon request, Non-Armoured, Lock nuts Dome plugs Reducing seals Flat cable seals Multihole seals Gaskets (Washers), Metric, PG, NPT, Neoprene (Chloroprene), NBR, 1, 4, 4X, 12, 13, Stainless Steel (1.4305/303), Permanent -20 °C to +100 °C Intermittent -40 °C to +150 °C, Polyamide 6 V2 acc. to UL 94, IP68 - 5 Bar 30 min, IP69, IP66

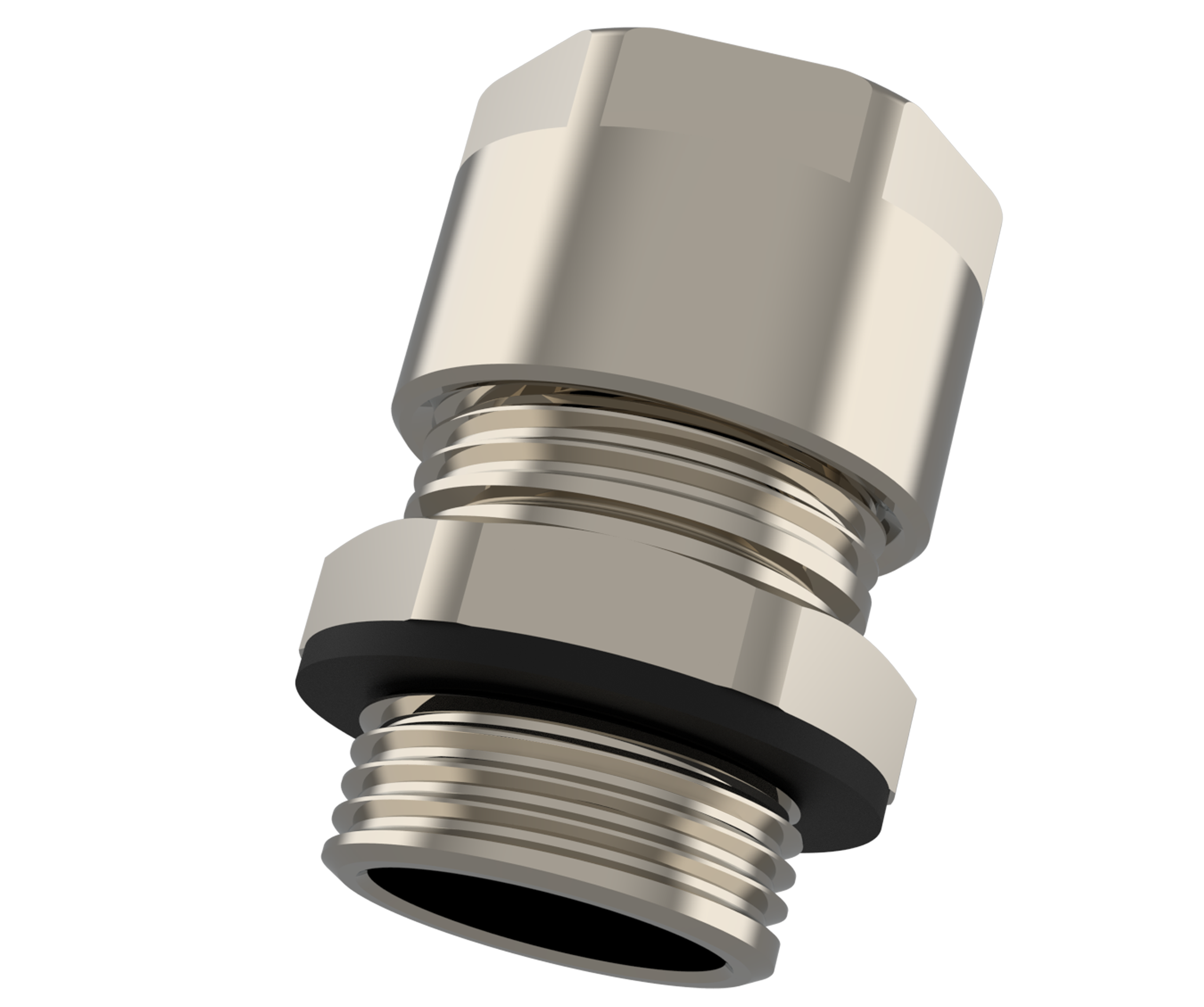

80 varianterIndustriell Crux kabelnippel
Kabelnippel for industrielle applikasjoner med krav til bredt temperaturområde og bredt klemområde. Enkel montering og høy strekkavlastning for standard industrielle applikasjoner.

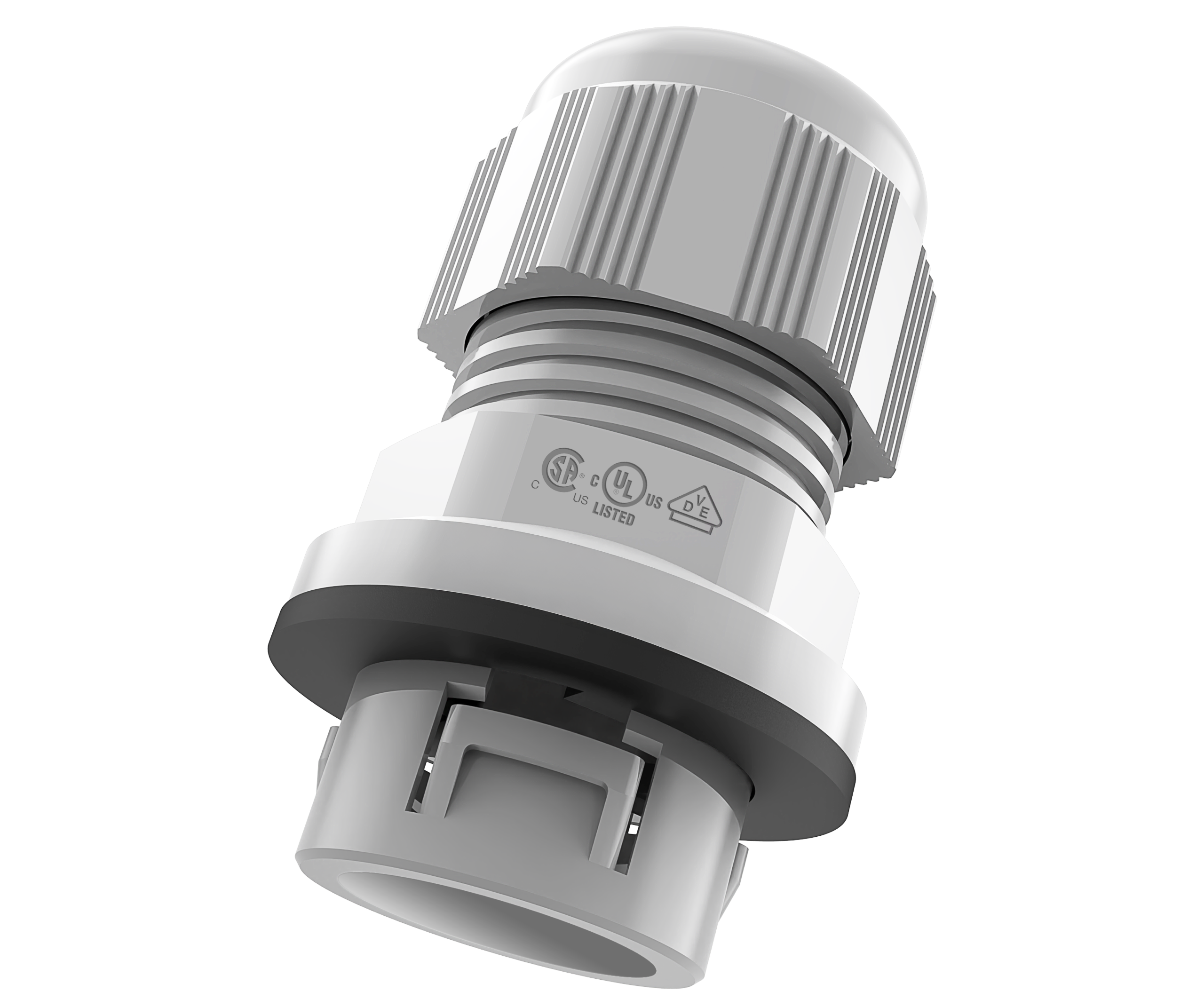

78 varianterSnap-in kabelnippel, plast
Silver grey (RAL 7001) Light grey (RAL 7035) Black (RAL 9005), Accessories must be ordered separately. Other colours on request: Blue, Red, White Other sealing materials upon request: NBR, Silicone, FKM Viton, Non-Armoured, Dome plugs Reducing seals Flat cable seals Multihole seals Disassembly tools (one piece included per Minimum Order Quantity), Non-Threaded, 4X, Polyamide 6 V2 acc. to UL 94, Permanent -20 °C to +100 °C Intermittent -40 °C to +150 °C, Neoprene (Chloroprene), IP68 - 5 Bar 30 min, IP66

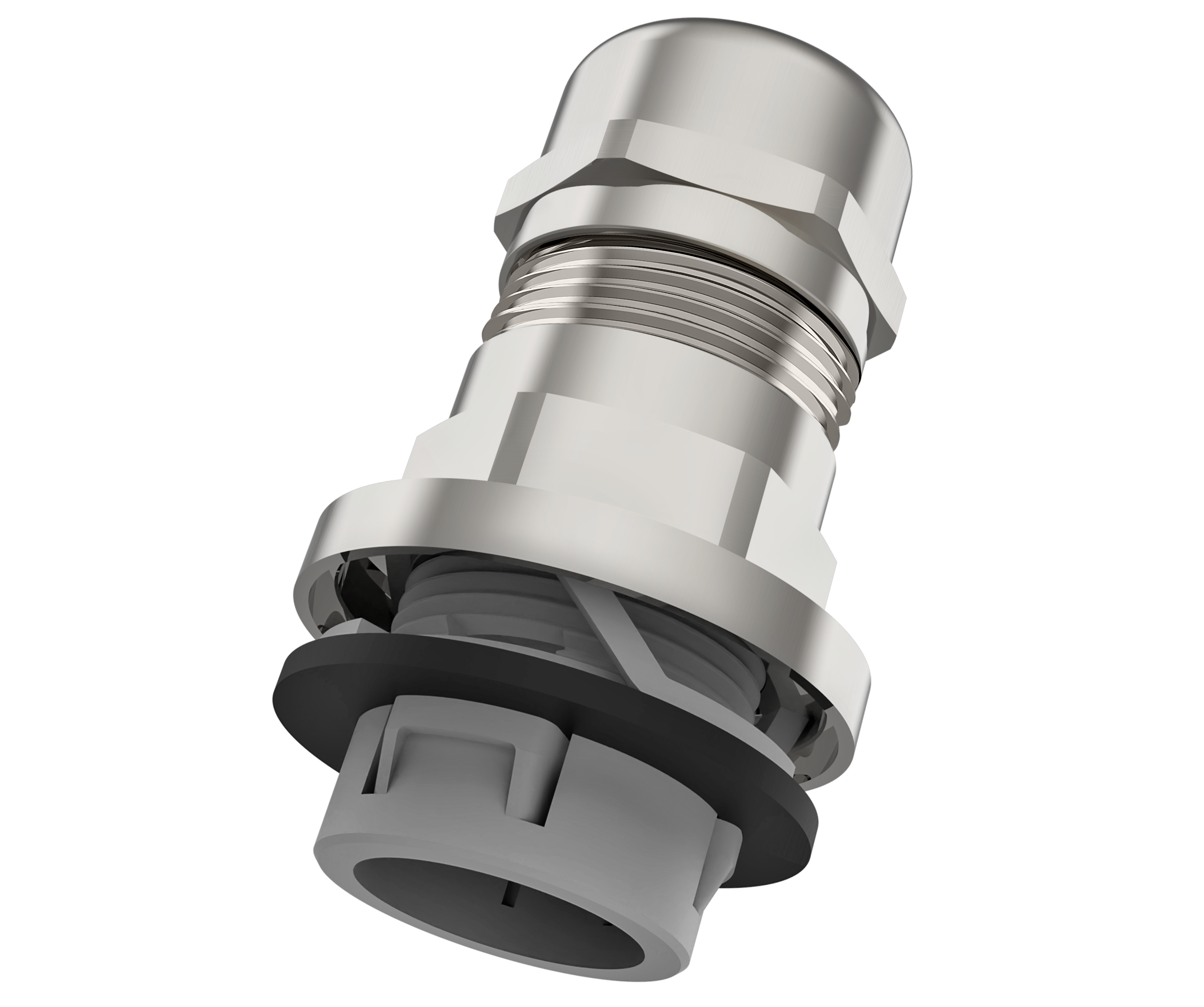

30 varianterSnap-in kabelnippel, metall
Rask og enkel montering: trykk inn kabelnippel og drei kroppen med klokken – montert på sekunder uten låsemutter. Egnet for gjennomgangshull med veggtykkelse 0,5–4,0 mm; enkel demontering med separat verktøy.

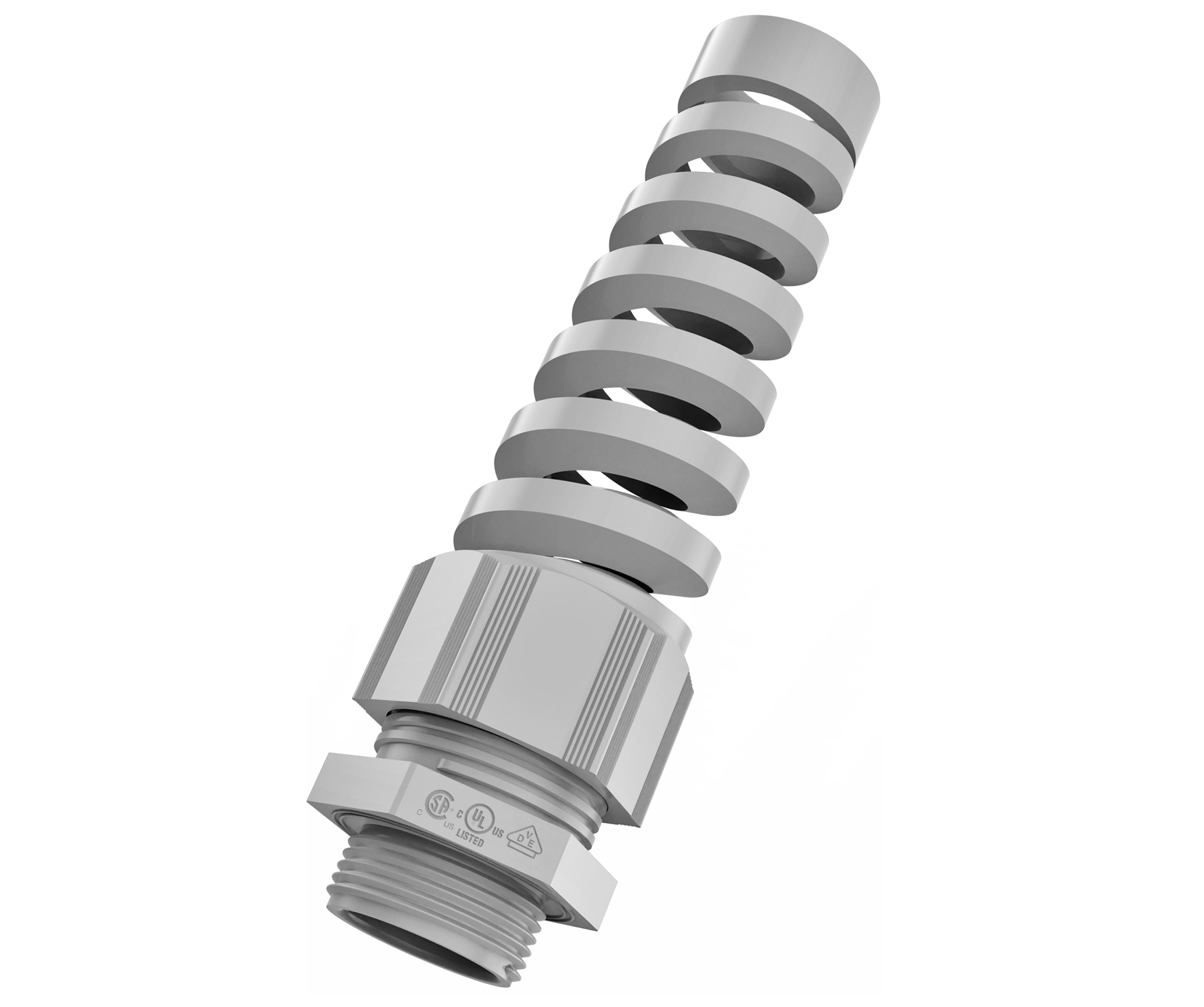

100 varianterKabelnippel med bøyebeskyttelse, plast
Silver grey (RAL 7001) Light grey (RAL 7035) Black (RAL 9005), We recommend the use of lock nuts and gaskets to ensure IP rating for rough surfaces or through holes. Accessories must be ordered separately. Some approvals do not cover all sizes. Other colours on request: Blue, Red, White Other sealing materials upon request: NBR, Silicone, FKM Viton, Non-Armoured, Lock nuts Reducing seals Flat cable seals Multihole seals Gaskets (Washers), Metric, PG, NPT, PF/G (GAS), Neoprene (Chloroprene), 1, 4, 4x, 12, 13, Polyamide 6 V2 acc. to UL 94, Permanent -20 °C to +100 °C Intermittent -40 °C to +150 °C, IP68 - 5 Bar 30 min, IP66

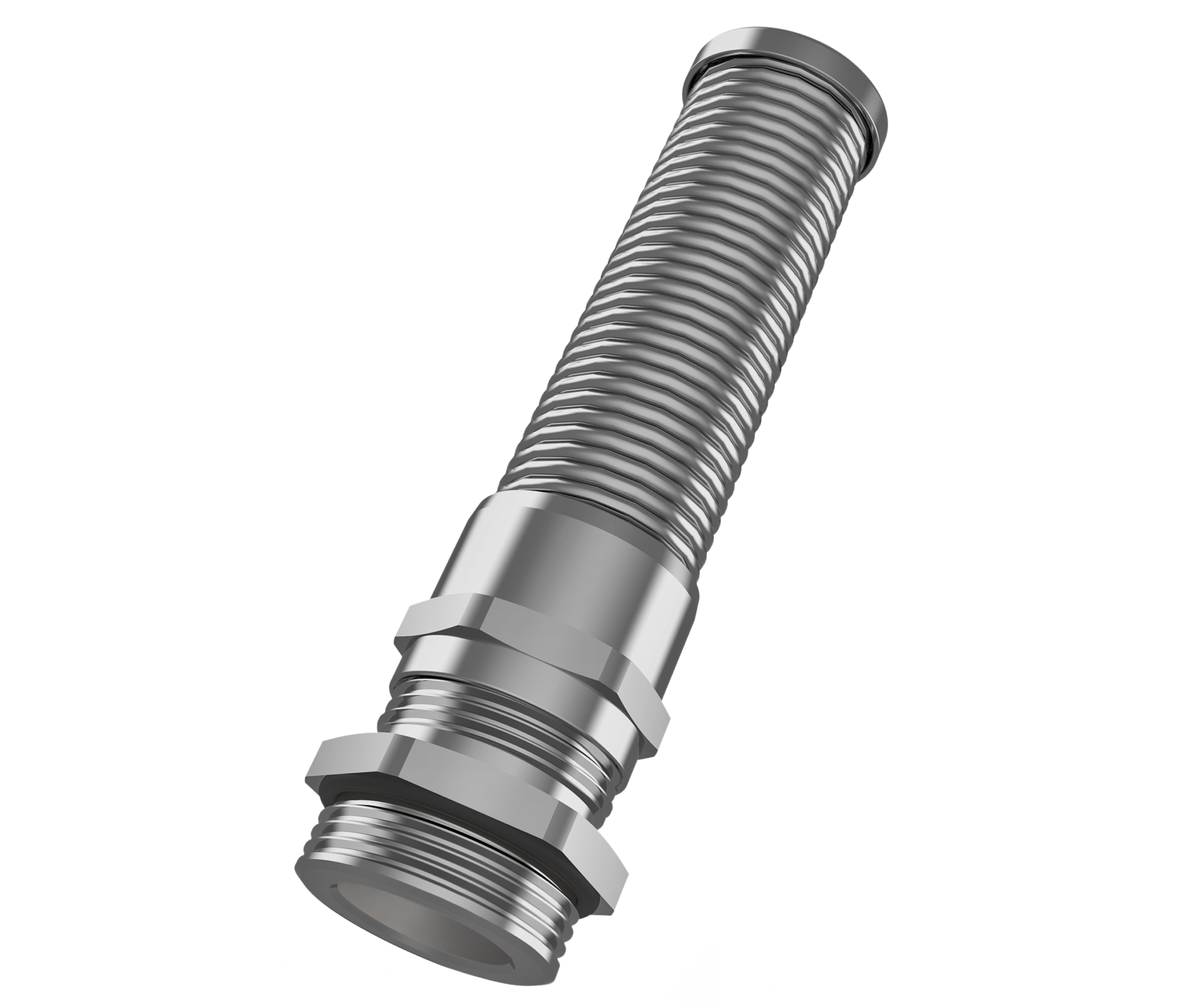

36 varianterKabelnippel med bøyebeskyttelse, metall
Kabelnippel i metall med integrert bøyebeskyttelse som hindrer for sterk bøying av kabelen. UL- og VDE-godkjent med høy strekkavlastning og tetning for standard industrielle applikasjoner.
20 varianterRJ 45 kabelnippel, plast
Silver grey (RAL 7001) Light grey (RAL 7035) Black (RAL 9005), We recommend the use of lock nuts and gaskets to ensure IP rating for rough surfaces or through holes. Accessories must be ordered separately. Other colours on request: Blue, Red, White Other sealing materials upon request: NBR, Silicone, FKM Viton, Non-Armoured, Lock nuts Dome plugs Gaskets (Washers), Metric, PG, NPT, Neoprene (Chloroprene), 4X, Polyamide 6 V2 acc. to UL 94, Permanent -20 °C to +100 °C Intermittent -40 °C to +150 °C, IP68 - 5 Bar 30 min, IP66

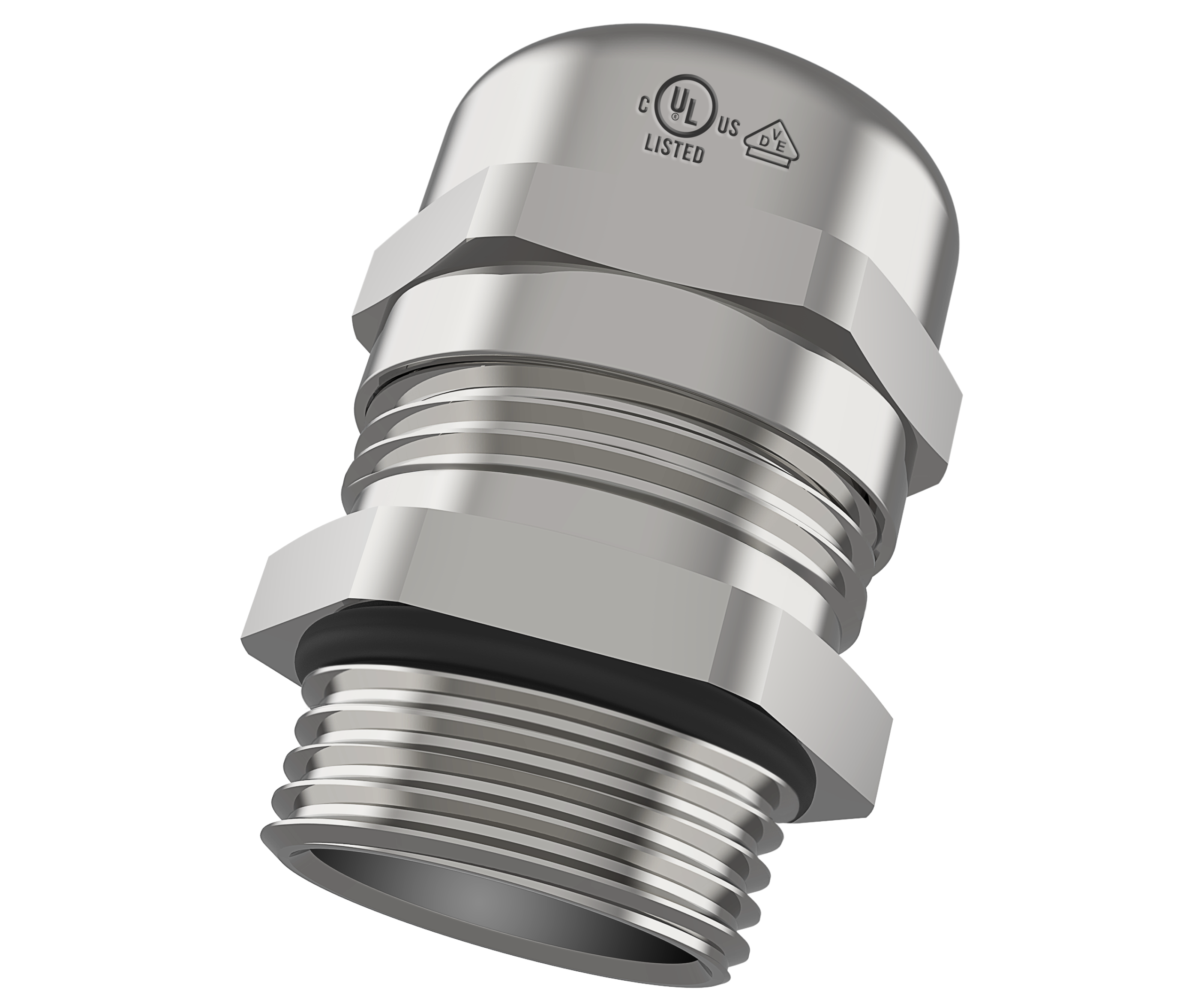

26 varianterRJ 45 kabelnippel, metall
▪ Accessories must be ordered separately ▪ Other materials available on request: Stainless Steel 303, 316L, Non armoured with pre-assembled RJ 45 connector., ▪ Locknut ▪ Multihole seal ▪ Gasket (Washer), Metric, 4X, Chloroprene, NBR, Nickel Plated Brass, Permanent -20 °C to +100 °C Intermittent -40 °C to +150 °C, PA 6 (Polyamide 6), IP68 - 5 Bar 30 min, IP66

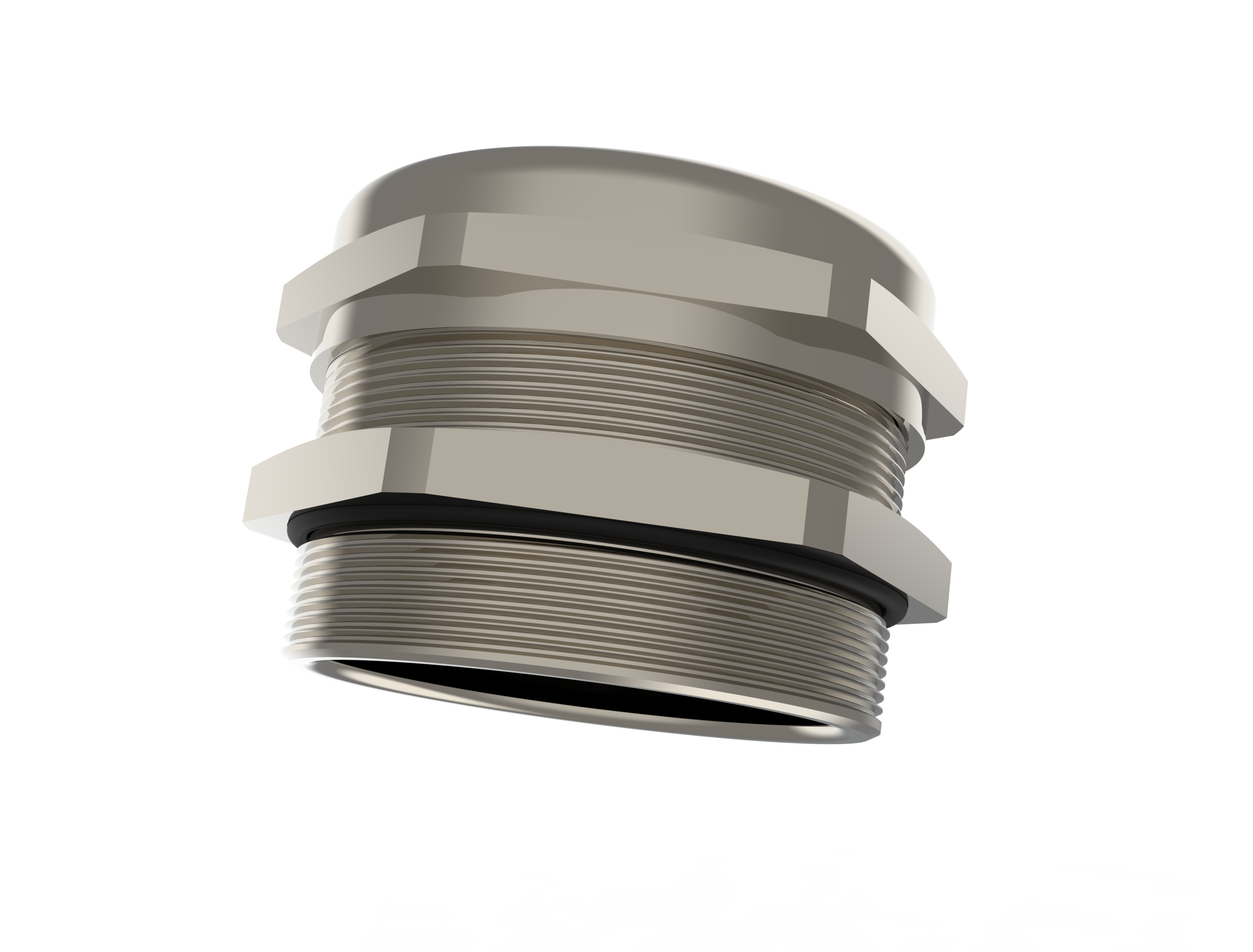

16 varianterKompresjonskabelnippel i messing
O-ring available in Metric threads. Accessories must be ordered separately., Non-Armoured, Locknuts Gaskets, Metric, Chloroprene, NBR, Nickel Plated Brass, Permanent -20 °C to +100 °C Intermittent -40 °C to +150 °C, IP68 - 5 Bar 30 min, IP66

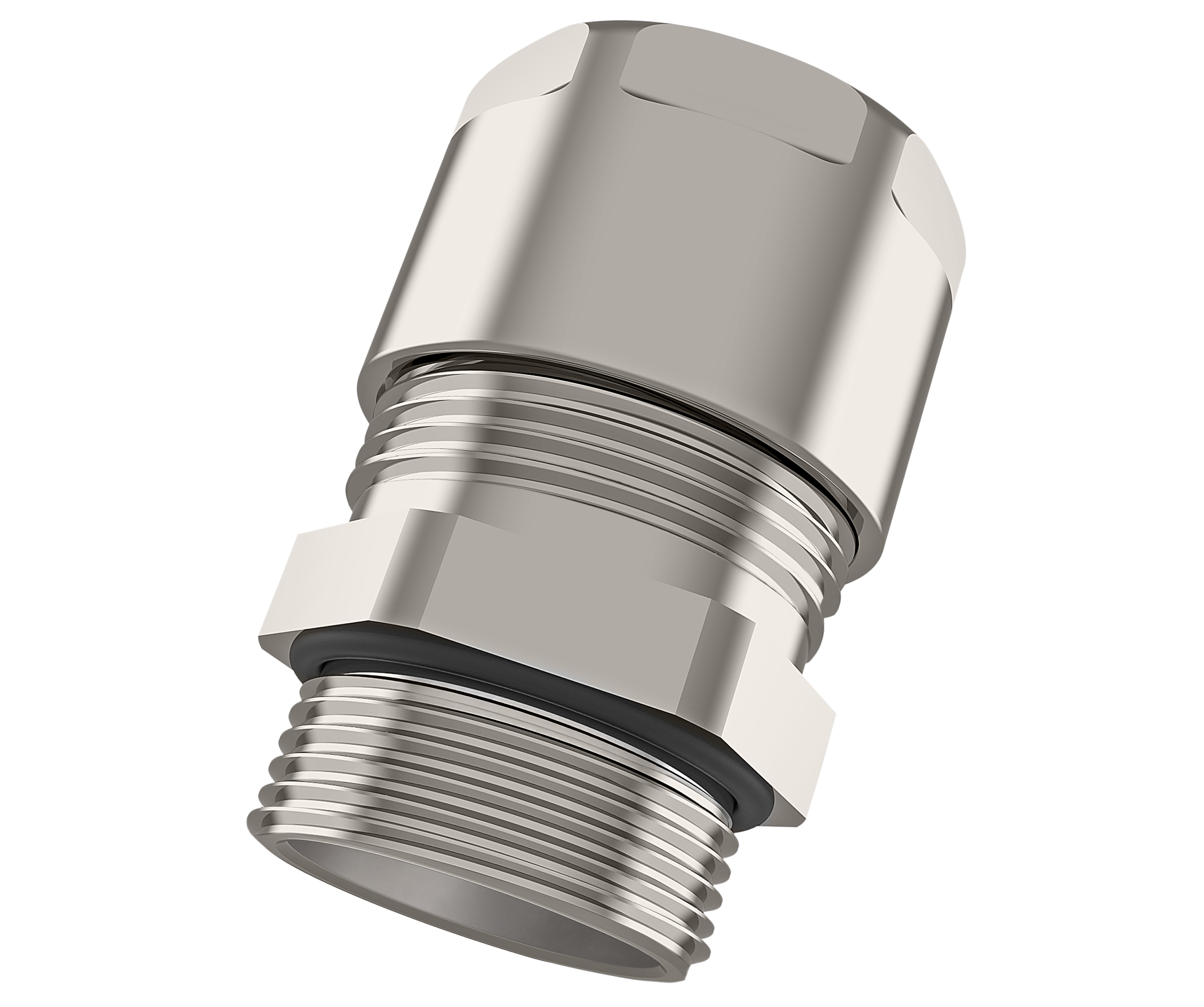

10 varianterNeoglands kabelnippel i messing
In compliance with DIN EN 62444. Accessories must be ordered separately., Non-Armoured, Lock nuts Gaskets (Washers), Metric, Chloroprene, NBR, Nickel Plated Brass, -40 °C to +100 °C, IP68 - 5 Bar 30 min, IP66

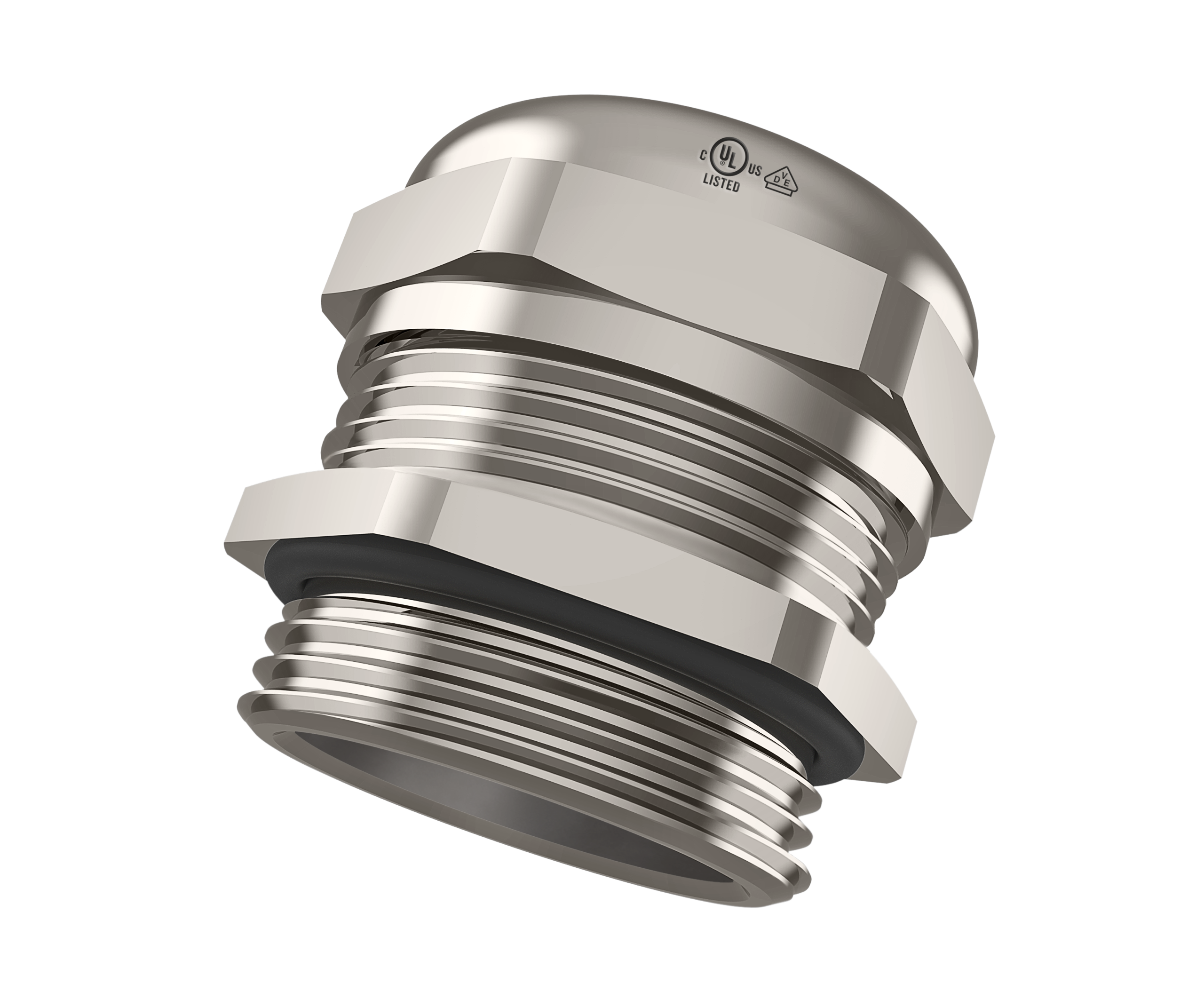

32 varianterKabelnippel med dobbel tetning
Accessories must be ordered separately., Non-Armoured, Locknuts Dome plugs Gaskets (Washers), Metric, PG, Nickel Plated Brass, NBR: -20 °C to +100 °C Silicone: -60 °C to +140 °C, NBR,Silicone, IP68 - 5 Bar 30 min, IP66

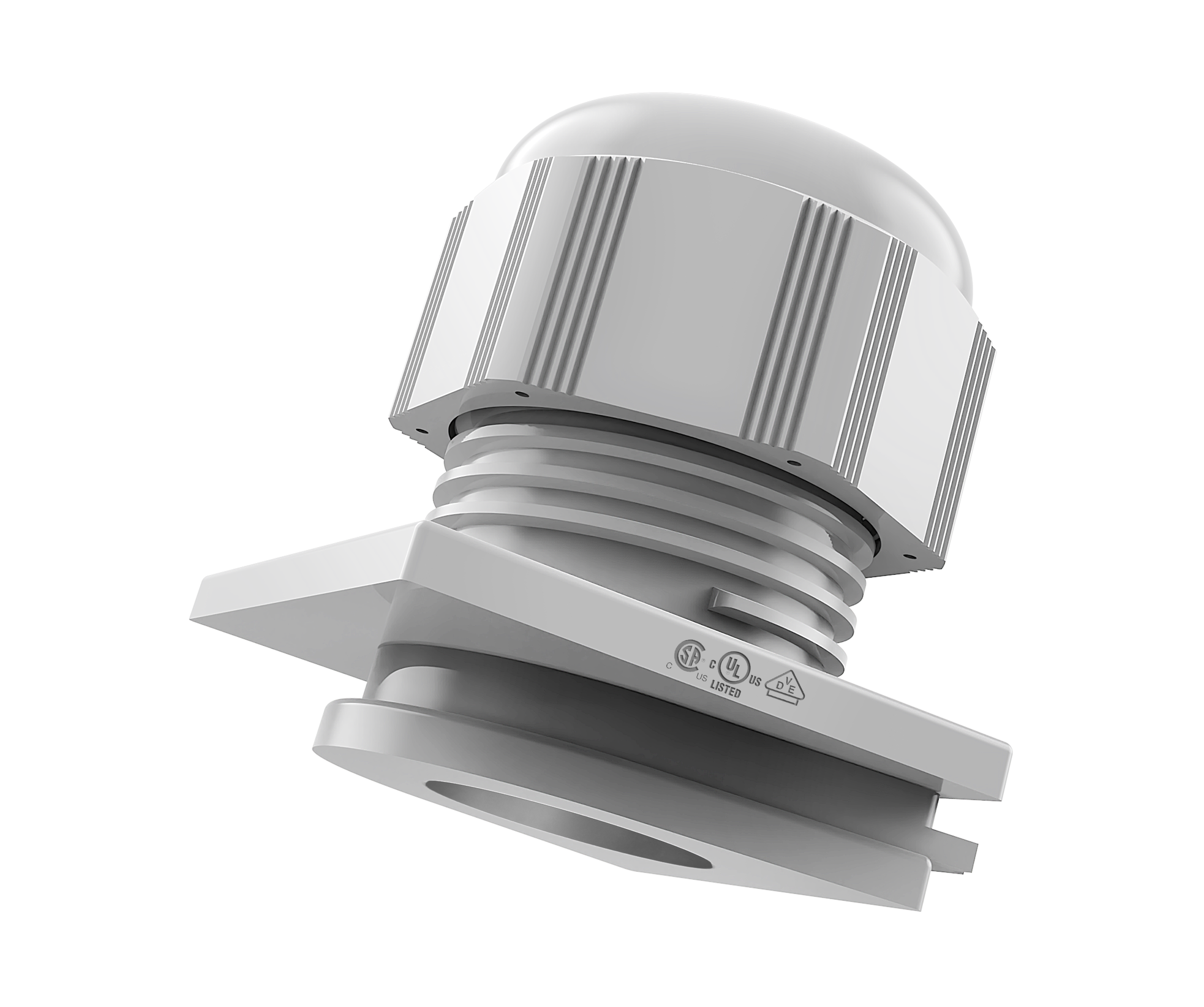

8 varianterQuickfit kabelnippel
Silver grey (RAL 7001) Light grey (RAL 7035) Black (RAL 9005), Using O-rings, the available wall thickness is reduced (design Type B) Accessories must be ordered separately., Non-Armoured, Reducing seals Flat cable seals Multihole seals, Non-Threaded, Neoprene (Chloroprene), NBR, Polyamide 6 V2 acc. to UL 94, Permanent -20 °C to +100 °C Intermittent -40 °C to +150 °C, IP68 - 5 Bar 30 min, IP66

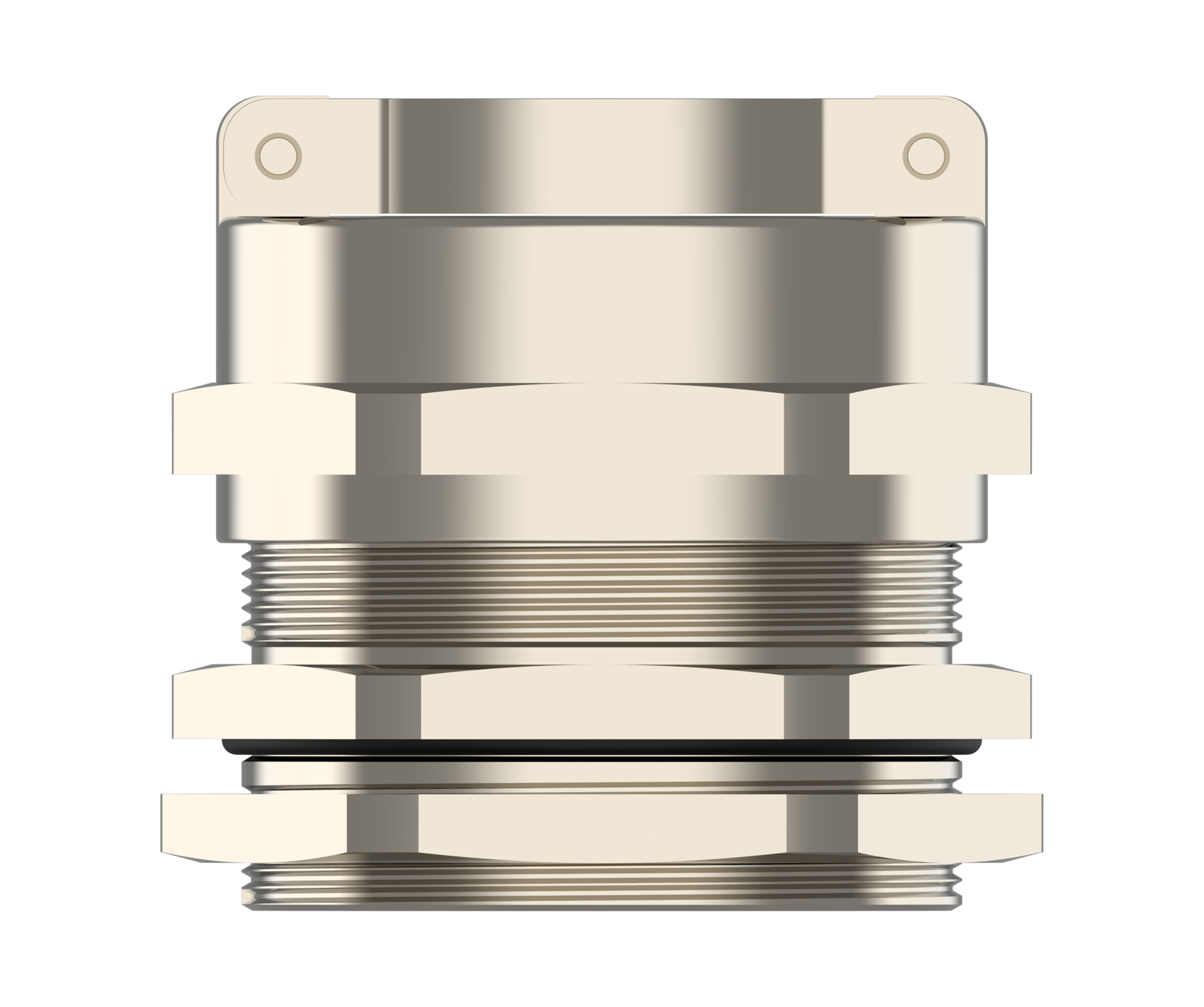

4 varianterKabelnippel med ekstern strekkavlastning
In compliance with DIN EN 62444. All accessories must be ordered separately., Non-Armoured, Gaskets (Washers) Serrated Washers Earthtag, Metric, Neoprene (Chloroprene), NBR, Nickel Plated Brass, Permanent -20 °C to +100 °C Intermittent -40 °C to +150 °C, Polyamide 6 V2 acc. to UL 94, IP68 - 5 Bar 30 min, IP66

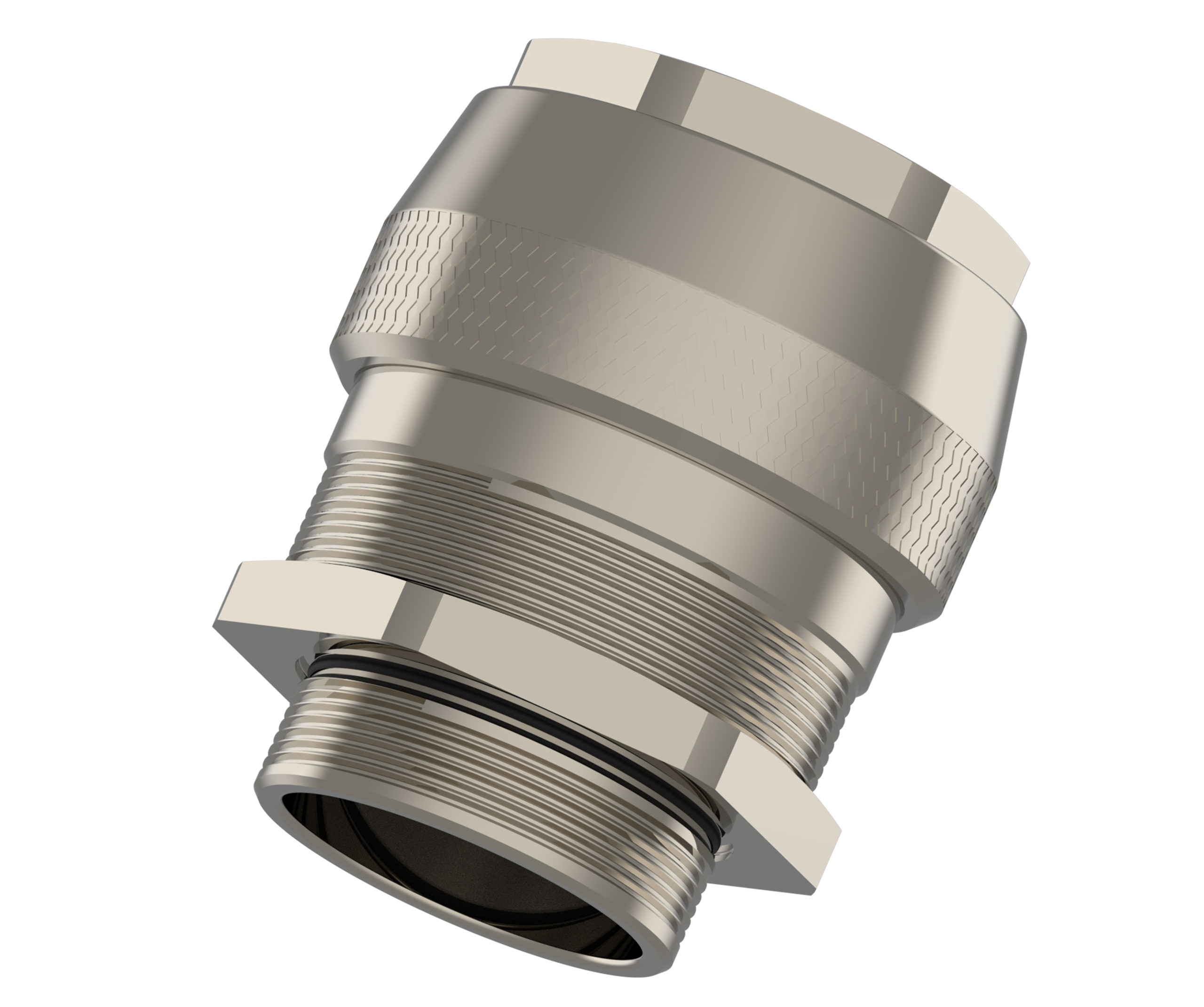

6 varianterKabelnippel med konisk bur-system
▪ Accessories must be ordered separately, Non-Armoured, Locknut Gasket (Washer), Metric, NPT, 4X, CR (Chloroprene), CR, Nickel Plated Brass, Stainless Steel, Aluminium, Permanent -40 °C to +100 °C Intermittent -40 °C to +120 °C, Polyamide 6 V2 acc. to UL 94, IP68 - 5 Bar 30 min, IP66
Industrielle kabelnippler i messing, rustfritt stål og polyamid for gjennomføring av uarmerte kabler i industrielle installasjoner. Leveres med metriske og PG-gjenger fra M12 til M63, med IP-klassifisering fra IP54 til IP68. Egnet for maskiner, elektriske skap, pumper og motorer i produksjon og prosessindustri.
