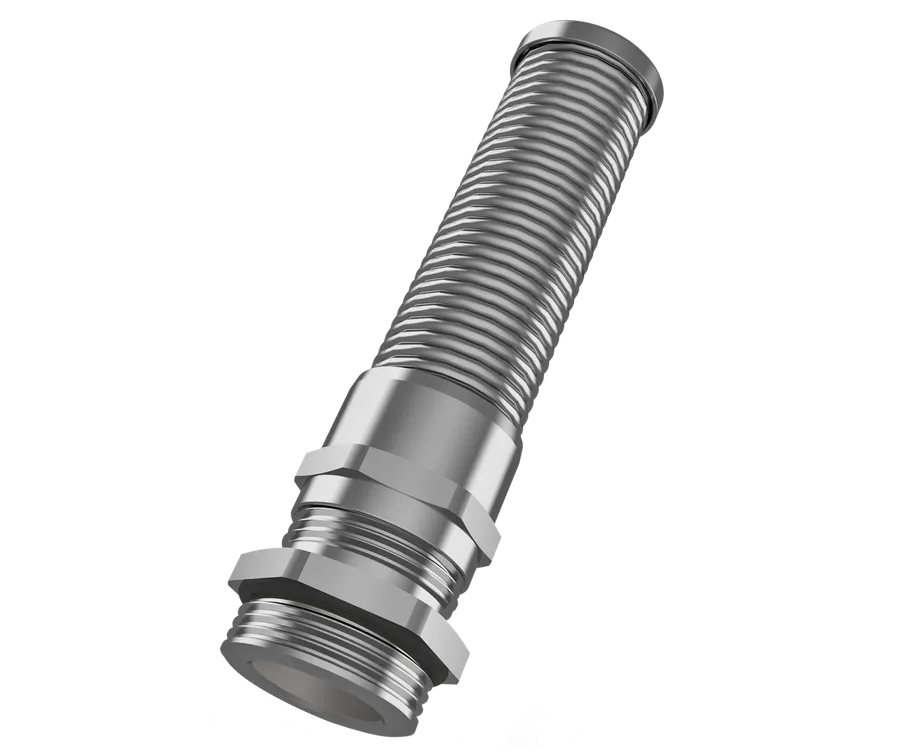

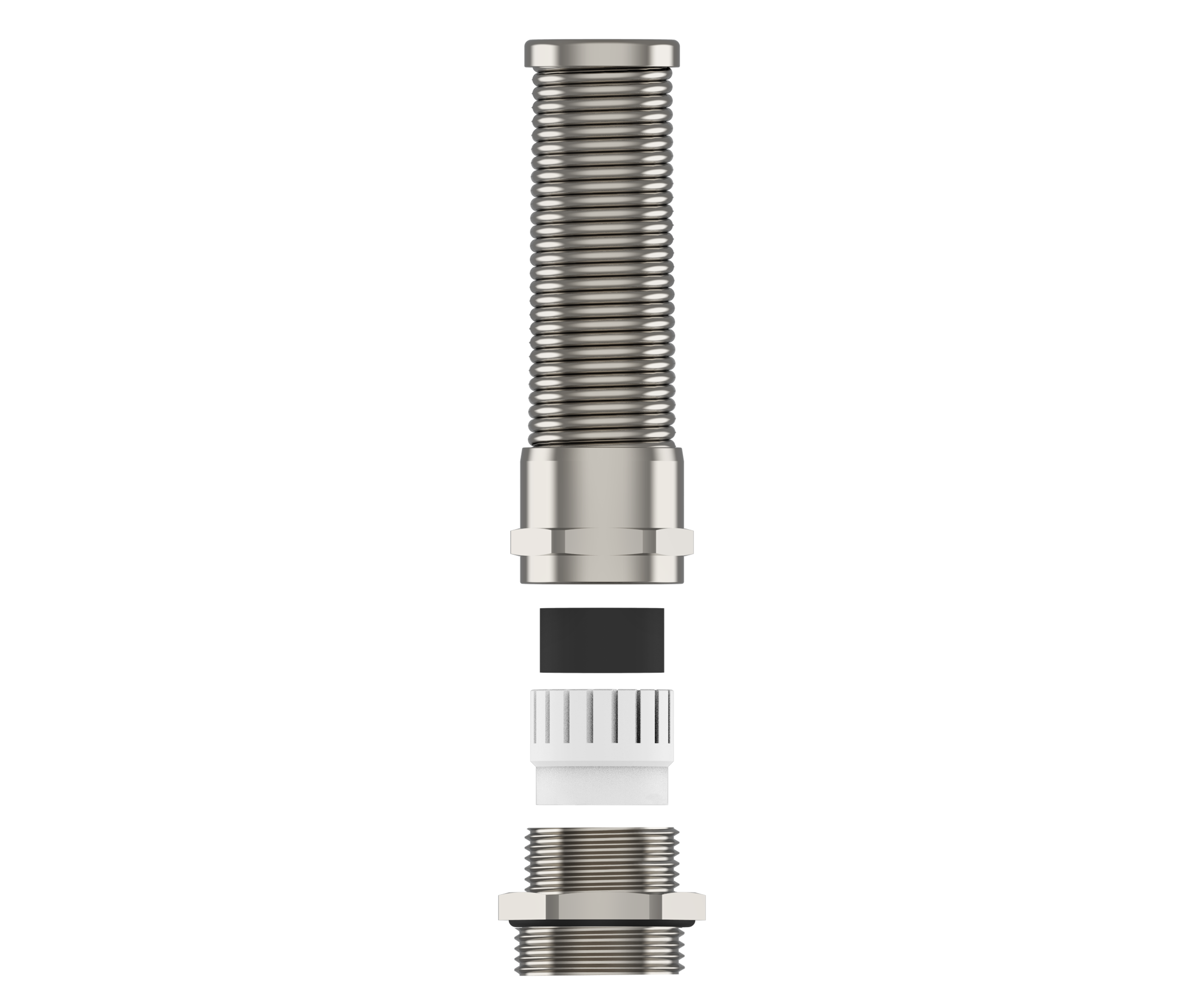

Kabelnippel med bøyebeskyttelse, metall
○Kabelnippel i metall med integrert bøyebeskyttelse som hindrer for sterk bøying av kabelen. UL- og VDE-godkjent med høy strekkavlastning og tetning for standard industrielle applikasjoner.
Spesifikasjoner

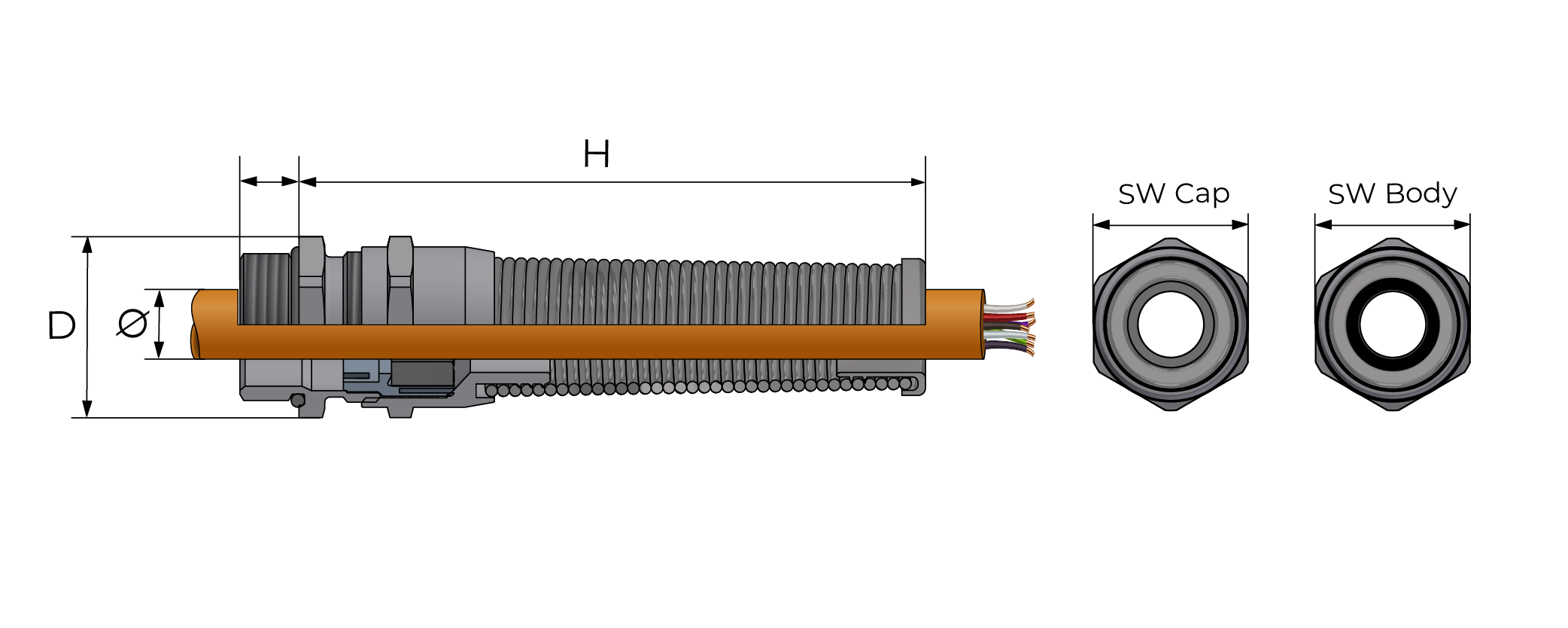

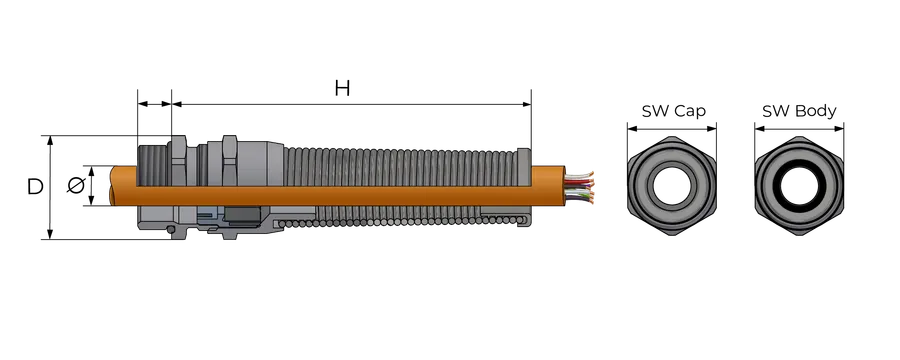

| Gjengestørrelse | Klemområdet | Gjengelengde | Nøkkelvidde | Diameter | Maks høyde 'H' | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 3,0 - 6,5 | 6 | 14/14 | 15.5 | 60 | — | BMBCSP-0S | Get File | |
| M16x1,5 | 3,0 - 7,0 | 6.5 | 20/20 | 22 | 77 | — | BMBDSP-01 | Get File | |
| M16x1,5 | 5,0 - 10,0 | 6.5 | 20/20 | 22 | 78 | — | BMBCSP-01 | Get File | |
| M20x1,5 | 5,0 - 9,0 | 8 | 22/22 | 24.5 | 87 | — | BMBDSP-02 | Get File | |
| M20x1,5 | 6,0 - 12,0 | 8 | 22/22 | 24.5 | 86.5 | — | BMBCSP-02 | Get File | |
| M20x1,5 | 10,0 - 14,0 | 8 | 24/24 | 26.5 | 91.5 | — | BMBCSP-02S | Get File | |
| M25x1,5 | 7,0 - 12,0 | 8 | 24/27 | 30 | 91.5 | — | BMBDSP-03 | Get File | |
| M25x1,5 | 10,0 - 14,0 | 8 | 24/27 | 30 | 91.5 | — | BMBCSP-03 | Get File | |
| M32x1,5 | 9,0 - 16,0 | 9 | 30/34 | 37.5 | 96 | — | BMBDSP-04 | Get File | |
| M32x1,5 | 13,0 - 18,0 | 9 | 30/34 | 37.5 | 96 | — | BMBCSP-04 | Get File |
