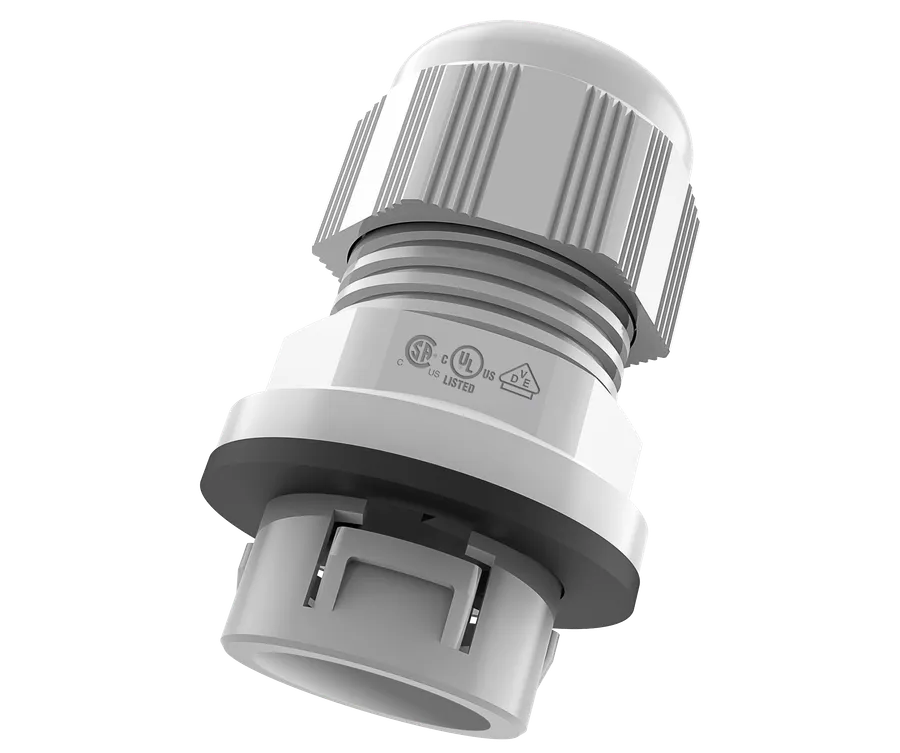

Snap-in kabelnippel, plast
○Rask og enkel montering: trykk inn kabelnippel og drei kroppen med klokken – montert på sekunder uten låsemutter
○Egnet for gjennomgangshull med veggtykkelse 0,5–4,0 mm; enkel demontering med separat verktøy.
Spesifikasjoner
| Klemområdet | Nøkkelvidde | Diameter | Maks høyde 'H' | SL | SD Ø | Seal Type | Snap Size | Wall Hole Ø | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2,0 - 6,5 | 15/15 | 20.9 | 38.1 | 9 | 11.9 | Double | 12 | 12,2 - 12,4 | — | BMOS-1S-DS | — | |
| 2,0 - 6,5 | 15/15 | 20.9 | 38.1 | 9 | 11.9 | Double | 12 | 12,2 - 12,4 | — | BMOS-0S-DS | — | |
| 2,0 - 6,5 | 15/15 | 20.9 | 38.1 | 9 | 11.9 | Double | 12 | 12,2 - 12,4 | — | BMOS-2S-DS | — | |
| 2,0 - 8,0 | 19/19 | 23.9 | 39.1 | 9.2 | 15 | Double | 16 | 16,2 - 16,4 | — | BMOS-EU-11-DS | — | |
| 2,0 - 8,0 | 19/19 | 23.9 | 39.1 | 9.2 | 15 | Double | 16 | 16,2 - 16,4 | — | BMOS-EU-01-DS | — | |
| 2,0 - 8,0 | 19/19 | 23.9 | 39.1 | 9.2 | 15 | Double | 16 | 16,2 - 16,4 | — | BMOS-EU-21-DS | — | |
| 3,0 - 6,5 | 15/15 | 20.9 | 38.1 | 9 | 11.9 | Single | 12 | 12,2 - 12,4 | — | BMOS-1S | — | |
| 3,0 - 6,5 | 15/15 | 20.9 | 38.1 | 9 | 11.9 | Single | 12 | 12,2 - 12,4 | — | BMOS-0S | — | |
| 3,0 - 6,5 | 15/15 | 20.9 | 38.1 | 9 | 11.9 | Single | 12 | 12,2 - 12,4 | — | BMOS-2S | — | |
| 3,0 - 10,0 | 22/22 | 26.5 | 44.5 | 9 | 15.9 | Double | 16 | 16,2 - 16,4 | — | BMOS-DS-11 | — | |
| 3,0 - 10,0 | 22/22 | 26.5 | 44.5 | 9 | 15.9 | Double | 16 | 16,2 - 16,4 | — | BMOS-DS-01 | Get File | |
| 3,0 - 10,0 | 22/22 | 26.5 | 44.5 | 9 | 15.9 | Double | 16 | 16,2 - 16,4 | — | BMOS-DS-21 | Get File | |
| 3,0 - 13,0 | 25/25 | 30.3 | 43.5 | 9 | 19.9 | Double | 20 | 20,2 - 20,4 | — | BMOS-EU-DS-12 | — | |
| 3,0 - 13,0 | 25/25 | 30.3 | 43.5 | 9 | 19.9 | Double | 20 | 20,2 - 20,4 | — | BMOS-EU-DS-02 | Get File | |
| 3,0 - 13,0 | 25/25 | 30.3 | 43.5 | 9 | 19.9 | Double | 20 | 20,2 - 20,4 | — | BMOS-EU-DS-22 | Get File | |
| 4,0 - 8,0 | 19/19 | 23.9 | 39.1 | 9.2 | 15 | Single | 16 | 16,2 - 16,4 | — | BMOS-EU-11 | — | |
| 4,0 - 8,0 | 19/19 | 23.9 | 39.1 | 9.2 | 15 | Single | 16 | 16,2 - 16,4 | — | BMOS-EU-01 | — | |
| 4,0 - 8,0 | 19/19 | 23.9 | 39.1 | 9.2 | 15 | Single | 16 | 16,2 - 16,4 | — | BMOS-EU-21 | — | |
| 5,0 - 12,0 | 24/24 | 30.3 | 43.5 | 9 | 19.9 | Double | 20 | 20,2 - 20,4 | — | BMOS-DS-12 | — | |
| 5,0 - 12,0 | 24/24 | 30.3 | 43.5 | 9 | 19.9 | Double | 20 | 20,2 - 20,4 | — | BMOS-DS-02 | Get File | |
| 5,0 - 10,0 | 22/22 | 26.5 | 44.5 | 9 | 15.9 | Single | 16 | 16,2 - 16,4 | — | BMOS-11 | — | |
| 5,0 - 10,0 | 22/22 | 26.5 | 44.5 | 9 | 15.9 | Single | 16 | 16,2 - 16,4 | — | BMOS-01 | Get File | |
| 5,0 - 10,0 | 22/22 | 26.5 | 44.5 | 9 | 15.9 | Single | 16 | 16,2 - 16,4 | — | BMOS-21 | Get File | |
| 5,0 - 12,0 | 24/24 | 30.3 | 43.5 | 9 | 19.9 | Double | 20 | 20,2 - 20,4 | — | BMOS-DS-22 | Get File | |
| 6,0 - 12,0 | 24/24 | 30.3 | 43.5 | 9 | 19.9 | Single | 20 | 20,2 - 20,4 | — | BMOS-12 | — | |
| 6,0 - 12,0 | 24/24 | 30.3 | 43.5 | 9 | 19.9 | Single | 20 | 20,2 - 20,4 | — | BMOS-02 | Get File | |
| 6,0 - 12,0 | 24/24 | 30.3 | 43.5 | 9 | 19.9 | Single | 20 | 20,2 - 20,4 | — | BMOS-22 | Get File | |
| 7,0 - 13,0 | 25/25 | 30.3 | 43.5 | 9 | 19.9 | Single | 20 | 20,2 - 20,4 | — | BMOS-EU-12 | — | |
| 7,0 - 13,0 | 25/25 | 30.3 | 43.5 | 9 | 19.9 | Single | 20 | 20,2 - 20,4 | — | BMOS-EU-02 | Get File | |
| 7,0 - 13,0 | 25/25 | 30.3 | 43.5 | 9 | 19.9 | Single | 20 | 20,2 - 20,4 | — | BMOS-EU-22 | Get File | |
| 8,0 - 17,0 | 29/29 | 36.3 | 45.5 | 9 | 24.9 | Double | 25 | 25,2 - 25,4 | — | BMOS-EU-DS-13 | Get File | |
| 8,0 - 17,0 | 29/29 | 36.3 | 45.5 | 9 | 24.9 | Double | 25 | 25,2 - 25,4 | — | BMOS-EU-DS-03 | Get File | |
| 8,0 - 17,0 | 29/29 | 36.3 | 45.5 | 9 | 24.9 | Double | 25 | 25,2 - 25,4 | — | BMOS-EU-DS-23 | Get File | |
| 11,0 - 17,0 | 29/29 | 36.3 | 45.5 | 9 | 24.9 | Single | 25 | 25,2 - 25,4 | — | BMOS-EU-13 | — | |
| 11,0 - 17,0 | 29/29 | 36.3 | 45.5 | 9 | 24.9 | Single | 25 | 25,2 - 25,4 | — | BMOS-EU-03 | Get File | |
| 11,0 - 17,0 | 29/29 | 36.3 | 45.5 | 9 | 24.9 | Single | 25 | 25,2 - 25,4 | — | BMOS-EU-23 | Get File | |
| 11,0 - 21,0 | 36/36 | 43.2 | 50.3 | 10.7 | 31.9 | Double | 32 | 32,2 - 32,4 | — | BMOS-EU-DS-14 | — | |
| 11,0 - 21,0 | 36/36 | 43.2 | 50.3 | 10.7 | 31.9 | Double | 32 | 32,2 - 32,4 | — | BMOS-EU-DS-04 | Get File | |
| 11,0 - 21,0 | 36/36 | 43.2 | 50.3 | 10.7 | 31.9 | Double | 32 | 32,2 - 32,4 | — | BMOS-EU-DS-24 | Get File | |
| 15,0 - 21,0 | 36/36 | 43.2 | 50.3 | 10.7 | 31.9 | Single | 32 | 32,2 - 32,4 | — | BMOS-EU-14 | — | |
| 15,0 - 21,0 | 36/36 | 43.2 | 50.3 | 10.7 | 31.9 | Single | 32 | 32,2 - 32,4 | — | BMOS-EU-04 | Get File | |
| 15,0 - 21,0 | 36/36 | 43.2 | 50.3 | 10.7 | 31.9 | Single | 32 | 32,2 - 32,4 | — | BMOS-EU-24 | Get File | |
| 16,0 - 28,0 | 46/46 | 55.2 | 58 | 13.2 | 39.9 | Double | 40 | 40,2 - 40,4 | — | BMOS-EU-DS-15 | — | |
| 16,0 - 28,0 | 46/46 | 55.2 | 58 | 13.2 | 39.9 | Double | 40 | 40,2 - 40,4 | — | BMOS-EU-DS-05 | Get File | |
| 16,0 - 28,0 | 46/46 | 55.2 | 58 | 13.2 | 39.9 | Double | 40 | 40,2 - 40,4 | — | BMOS-EU-DS-25 | Get File | |
| 19,0 - 28,0 | 46/46 | 55.2 | 58 | 13.2 | 39.9 | Single | 40 | 40,2 - 40,4 | — | BMOS-EU-15 | — | |
| 19,0 - 28,0 | 46/46 | 55.2 | 58 | 13.2 | 39.9 | Single | 40 | 40,2 - 40,4 | — | BMOS-EU-05 | Get File | |
| 19,0 - 28,0 | 46/46 | 55.2 | 58 | 13.2 | 39.9 | Single | 40 | 40,2 - 40,4 | — | BMOS-EU-25 | Get File |
