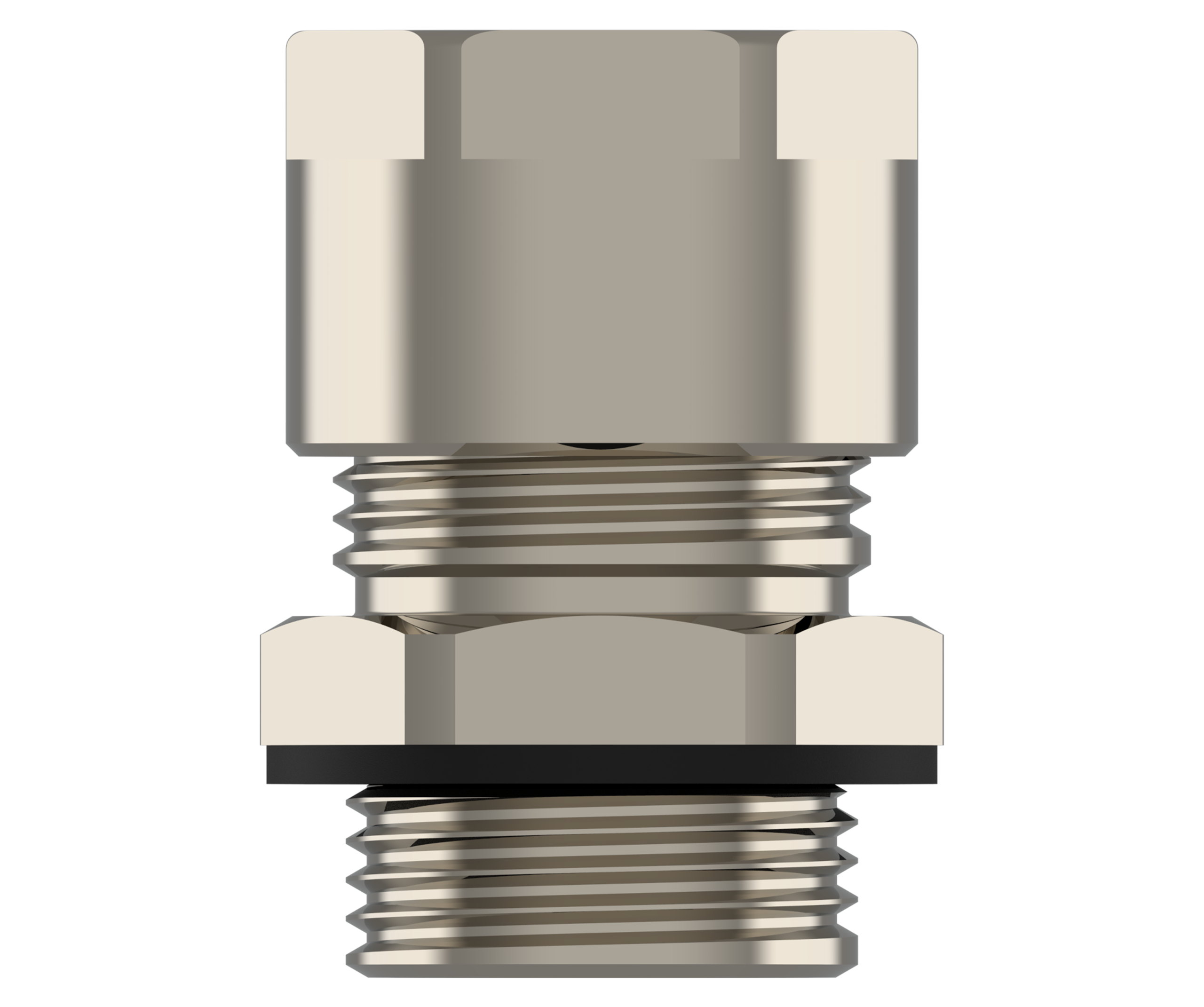

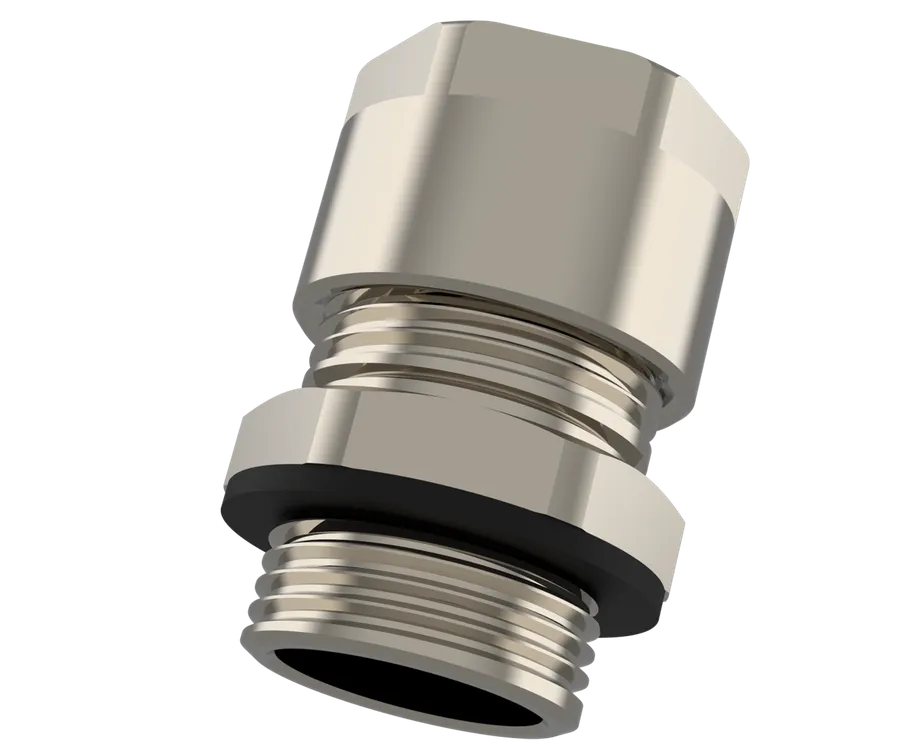

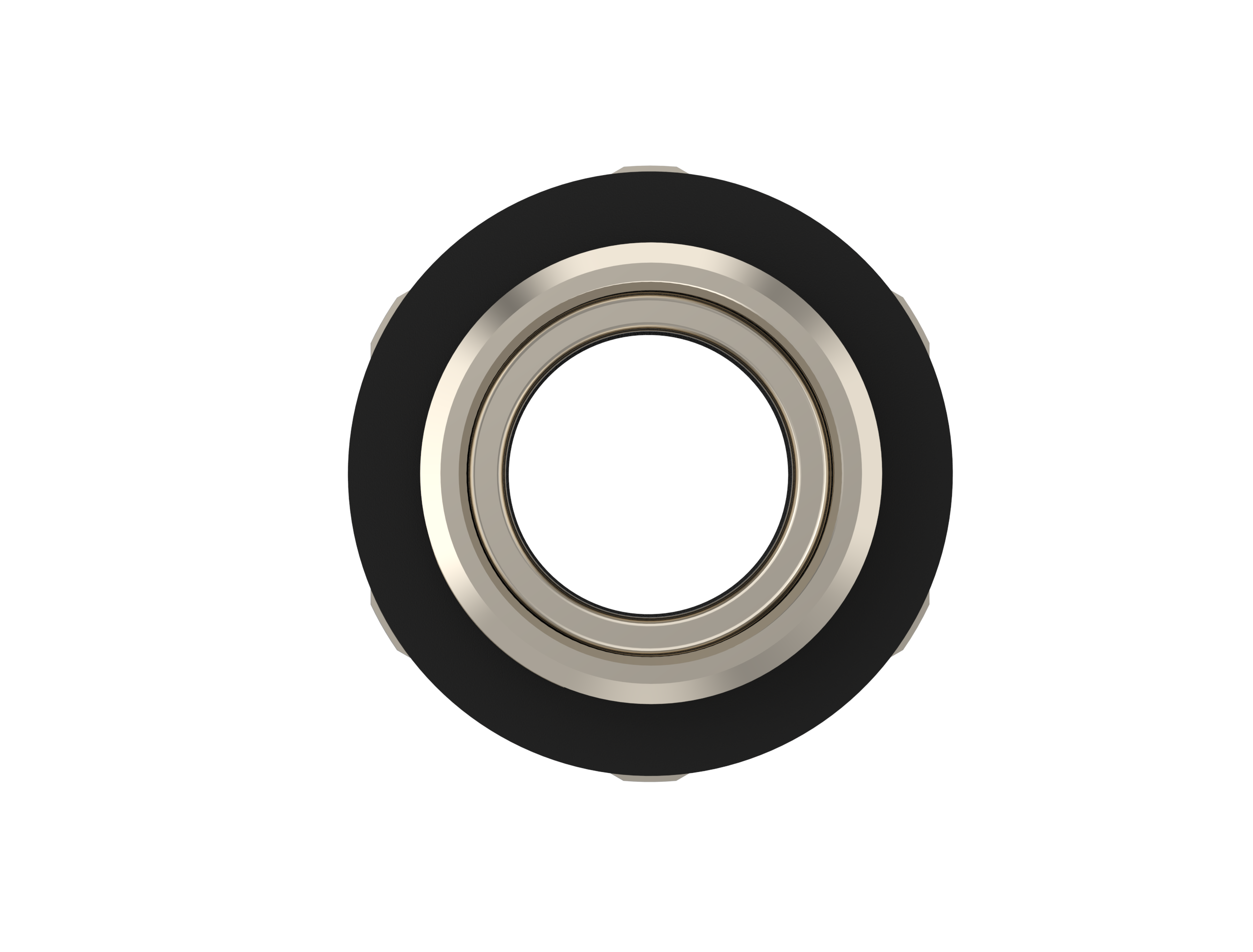

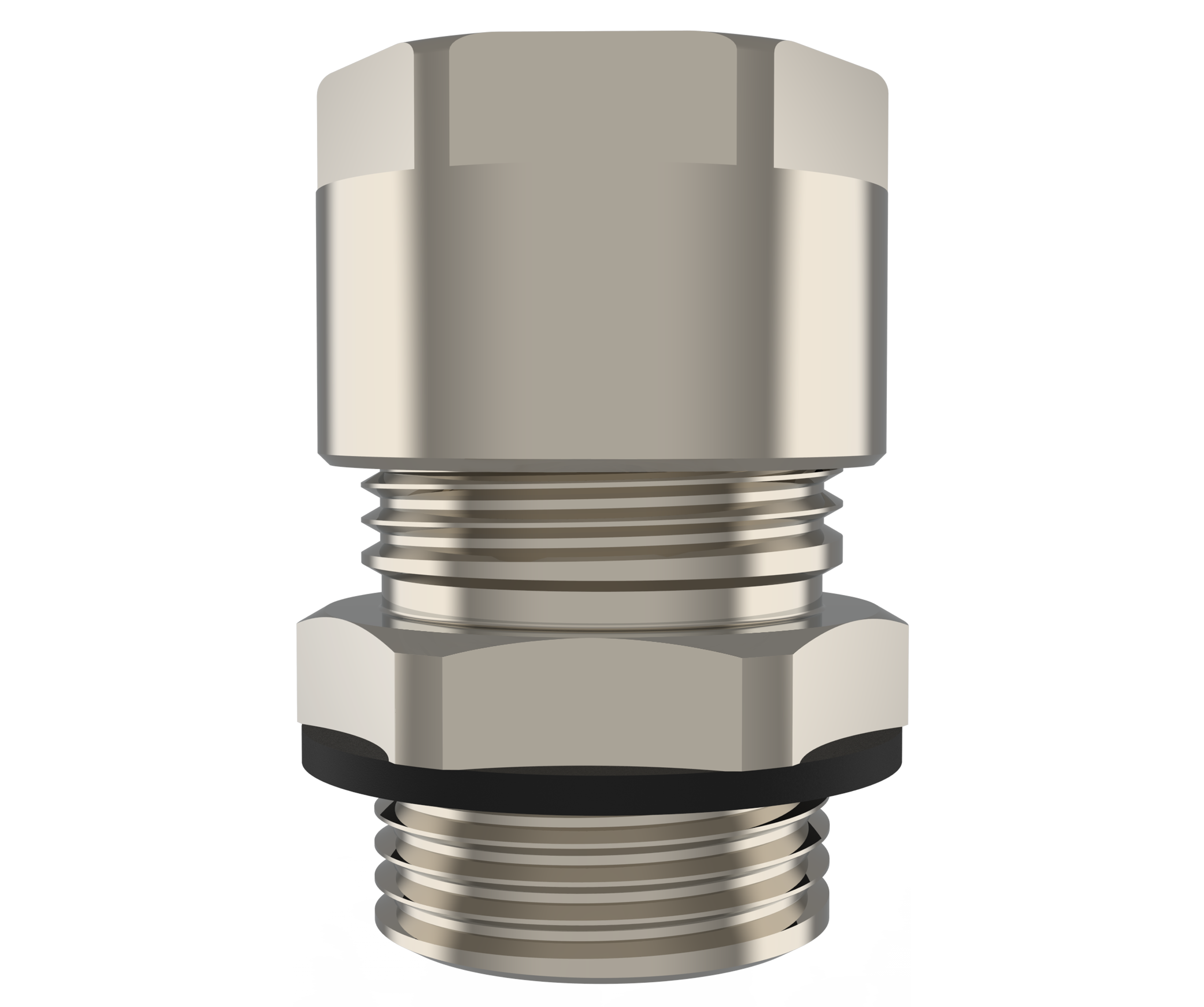

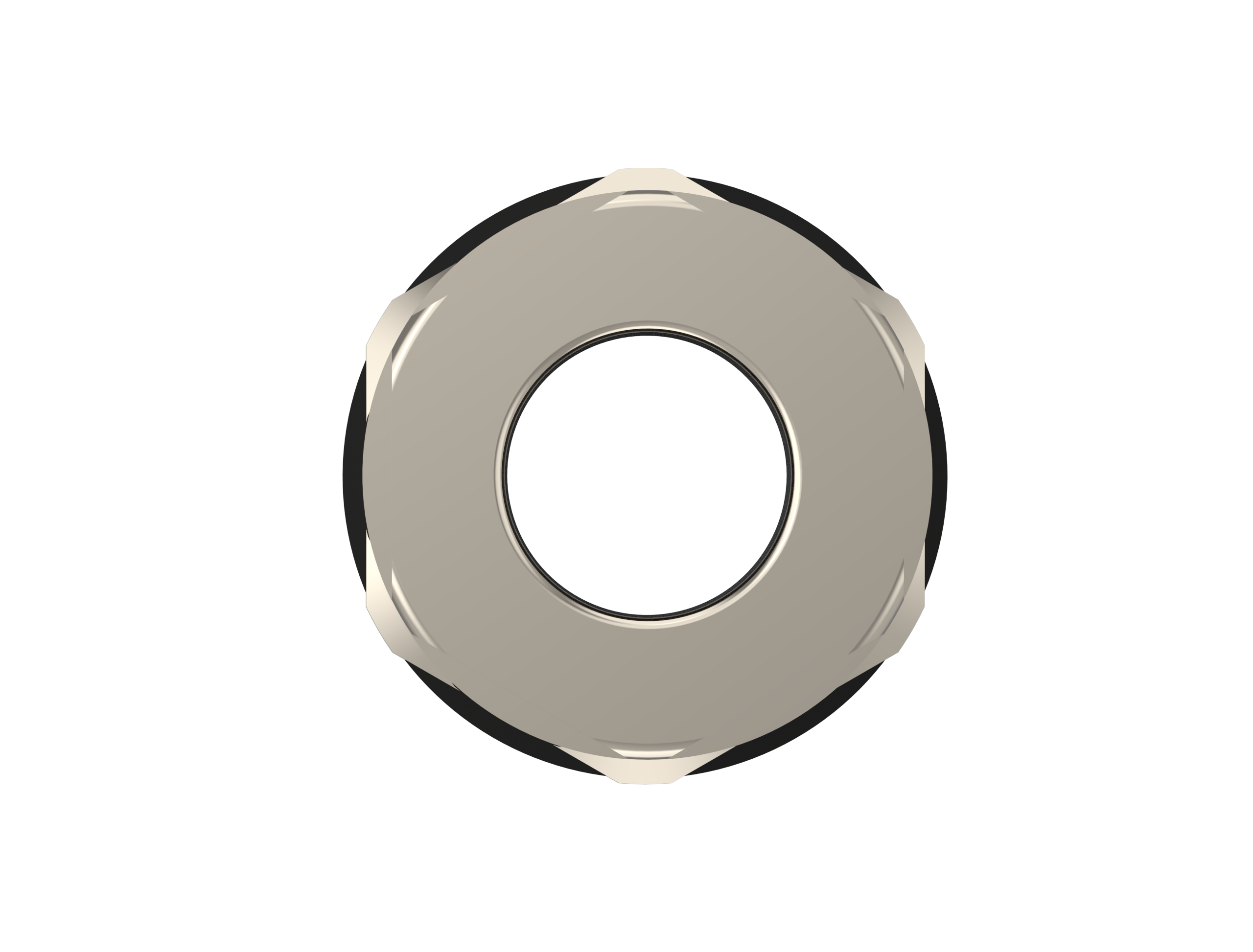

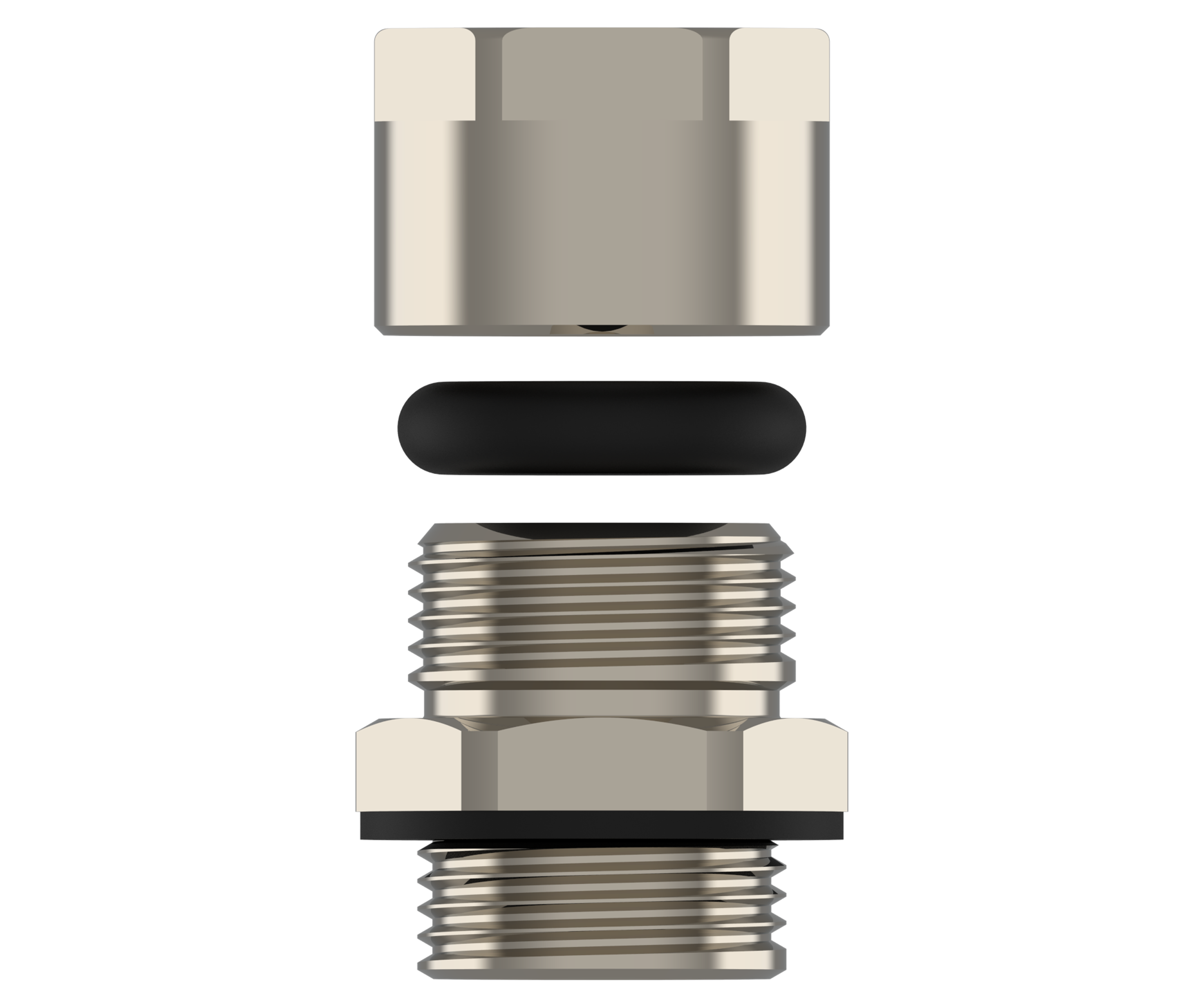

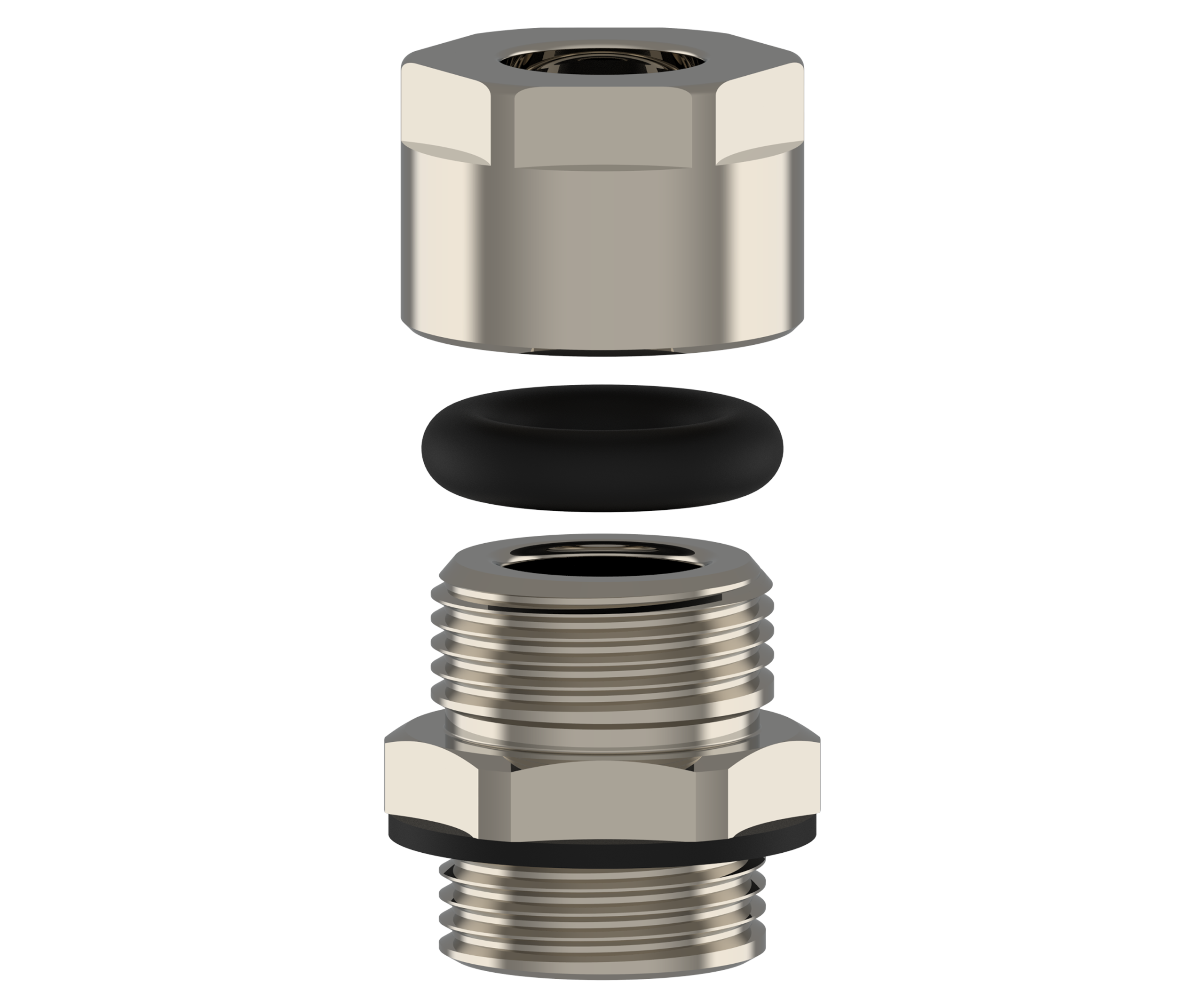

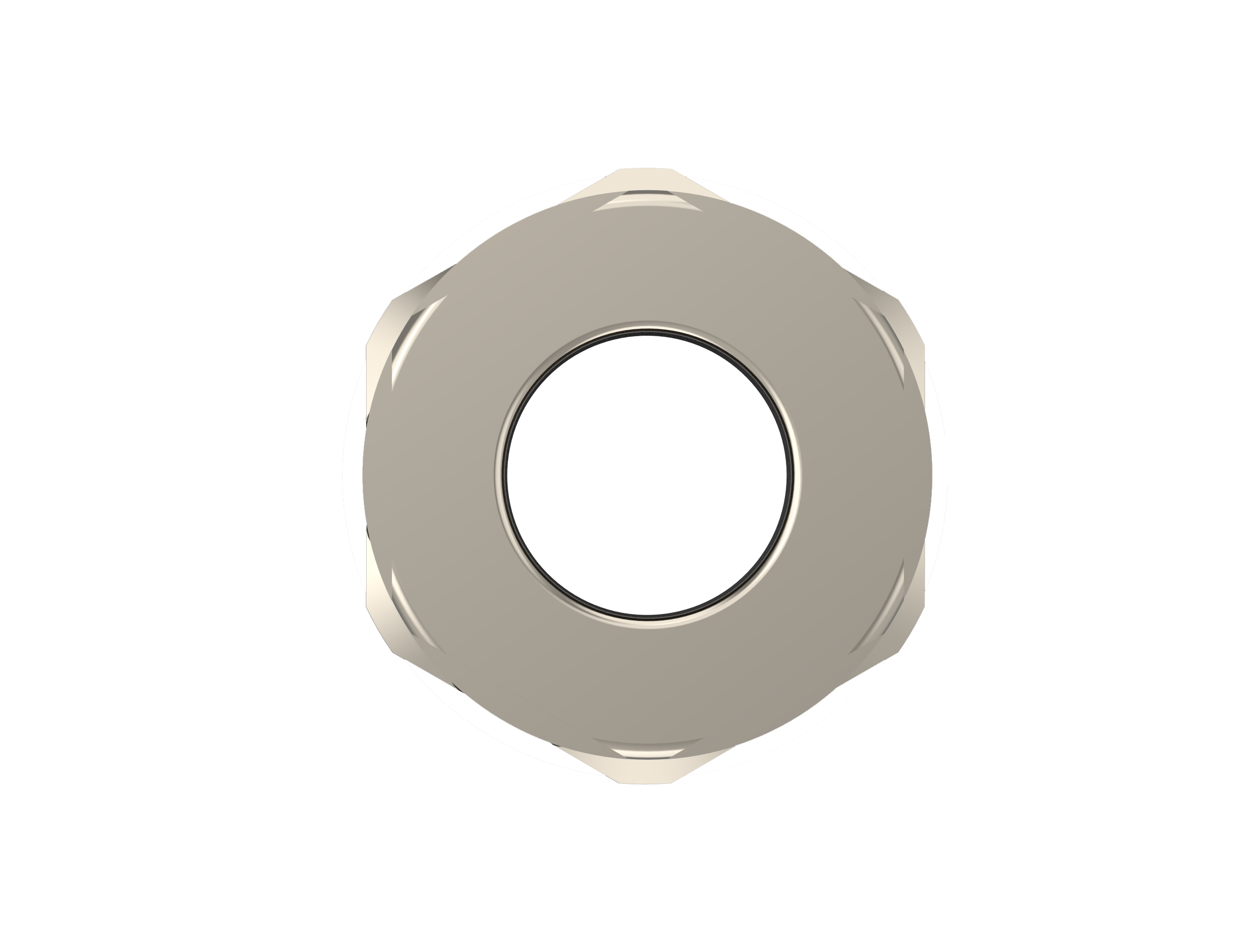

Industriell Crux kabelnippel
○Kabelnippel for industrielle applikasjoner med krav til bredt temperaturområde og bredt klemområde
○Enkel montering og høy strekkavlastning for standard industrielle applikasjoner.
Spesifikasjoner

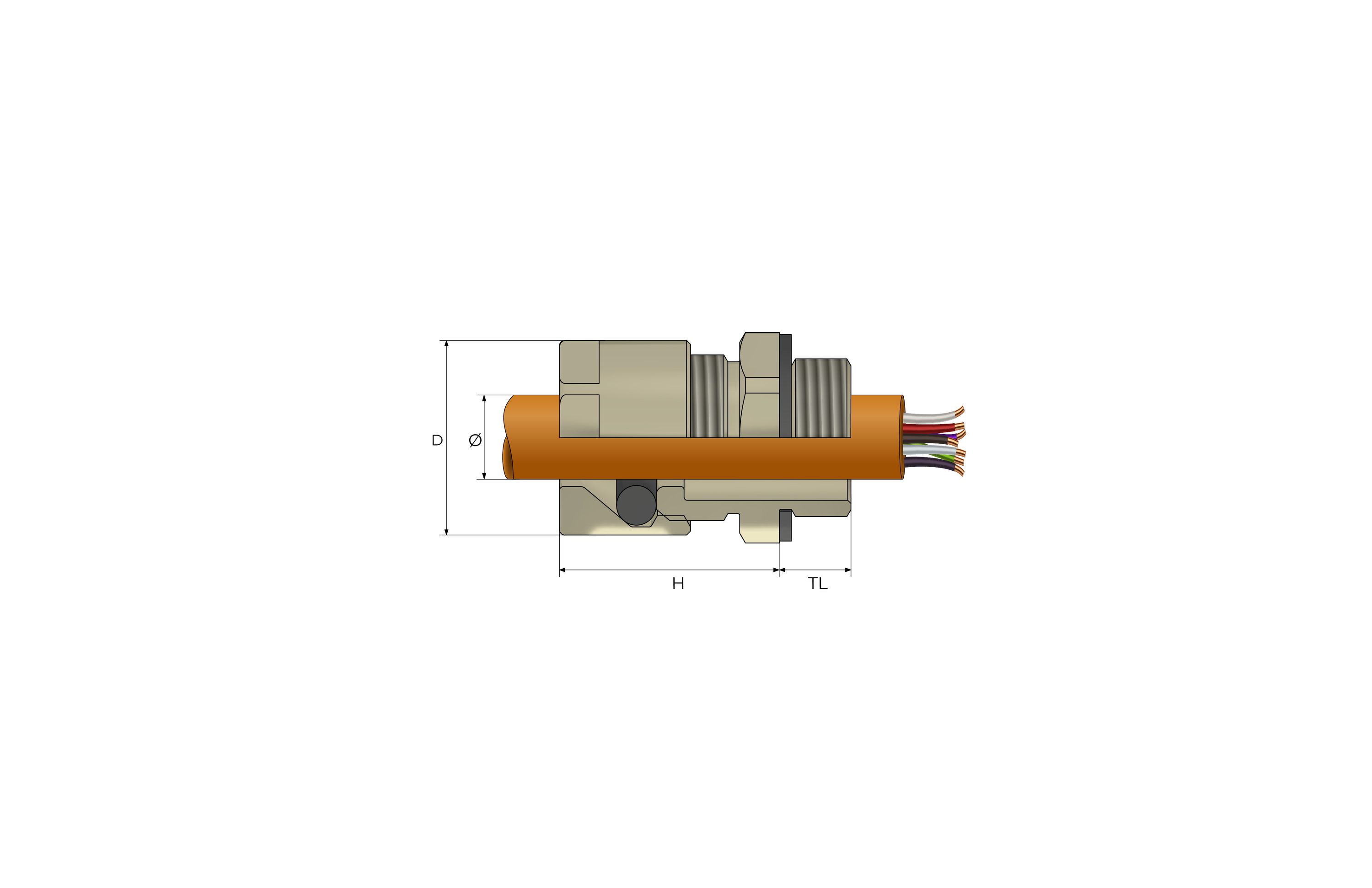

| Gjengestørrelse | Klemområdet | Gjengelengde | Nøkkelvidde | Diameter | Maks høyde 'H' | Varenummer | BIMED Kode | 3D File |
|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 2,0-8,0 | 9 | 16/16 | 18 | 29.3 | — | CRX-E0SM | — |
| M16x1,5 | 2,0-8,0 | 9 | 20/16 | 22 | 28.2 | — | CRX-E01SM | — |
| M16x1,5 | 5,0-12,0 | 9 | 20/22 | 22 | 28.2 | — | CRX-E01M | — |
| M20x1,5 | 2,0-8,0 | 9 | 24/16 | 26.5 | 28.2 | — | CRX-E1XSM | — |
| M20x1,5 | 5,0-12,0 | 9 | 24/22 | 26.5 | 29.2 | — | CRX-E1SM | Get File |
| M20x1,5 | 8,0-16,0 | 9 | 24/24 | 26.5 | 32.3 | — | CRX-E1M | — |
| M25x1,5 | 8,0-16,0 | 9.0 | 30/24 | 33 | 32.3 | — | CRX-E2SM | — |
| M25x1,5 | 12,0-20,0 | 9 | 30/30 | 33 | 35.6 | — | CRX-E2M | — |
| M32x1,5 | 12,0-20,0 | 9.0 | 36/30 | 39.8 | 35.6 | — | CRX-E3SM | — |
| M32x1,5 | 15,5-26,0 | 9 | 36/36 | 39.8 | 38.6 | — | CRX-E3M | — |
| M40x1,5 | 15,5-26,0 | 9.0 | 46/36 | 51 | 38.6 | — | CRX-E4SM | — |
| M40x1,5 | 19,0-33,0 | 9 | 46/46 | 51 | 44.5 | — | CRX-E4M | — |
| M50x1,5 | 26,0-41,0 | 9 | 55/55 | 61 | 49.3 | — | CRX-E5M | — |
| M50x1,5 | 19,0-33,0 | 9.0 | 55/46 | 61 | 44.5 | — | CRX-E5SM | — |
| M63x1,5 | 26,0-41,0 | 9.0 | 67/55 | 73 | 49.3 | — | CRX-E6SM | — |
| M63x1,5 | 33,0-52,0 | 9 | 67/65 | 73 | 55.5 | — | CRX-E6M | — |
| M75x1,5 | 33,0-52,0 | 9.0 | 80/65 | 89 | 55.5 | — | CRX-E7SM | — |
| M75x1,5 | 48,0-65,0 | 9 | 80/80 | 89 | 59.5 | — | CRX-E7M | — |
| M80x1,5 | 48,0-65,0 | 9 | 95/80 | 105 | 59.5 | — | CRX-E80SM | — |
| M80x1,5 | 60,0-78,0 | 9 | 105/95 | 118 | 67 | — | CRX-E80M | — |
| M90x1,5 | 48,0-65,0 | 9.0 | 105/80 | 118 | 59.5 | — | CRX-E8SM | — |
| M90x1,5 | 60,0-78,0 | 9 | 105/95 | 118 | 67 | — | CRX-E8M | — |
| M100x1,5 | 60,0-78,0 | 9.0 | 120/95 | 134 | 67 | — | CRX-E9SM | — |
| M100x1,5 | 71,0-89,0 | 9 | 120/106 | 134 | 60 | — | CRX-E9M | — |
| M110x1,5 | 71,0-89,0 | 9 | 120/106 | 134 | 60 | — | CRX-E10SM | — |
| M110x1,5 | 85,0-104,0 | 9 | 120/115 | 134 | 75 | — | CRX-E10M | — |
| M115x1,5 | 72,0-89,0 | 9 | 120/106 | 134 | 60 | — | CRX-E11SM | — |
| M115x1,5 | 85,0-104,0 | 9 | 120/115 | 134 | 75 | — | CRX-E11M | — |
