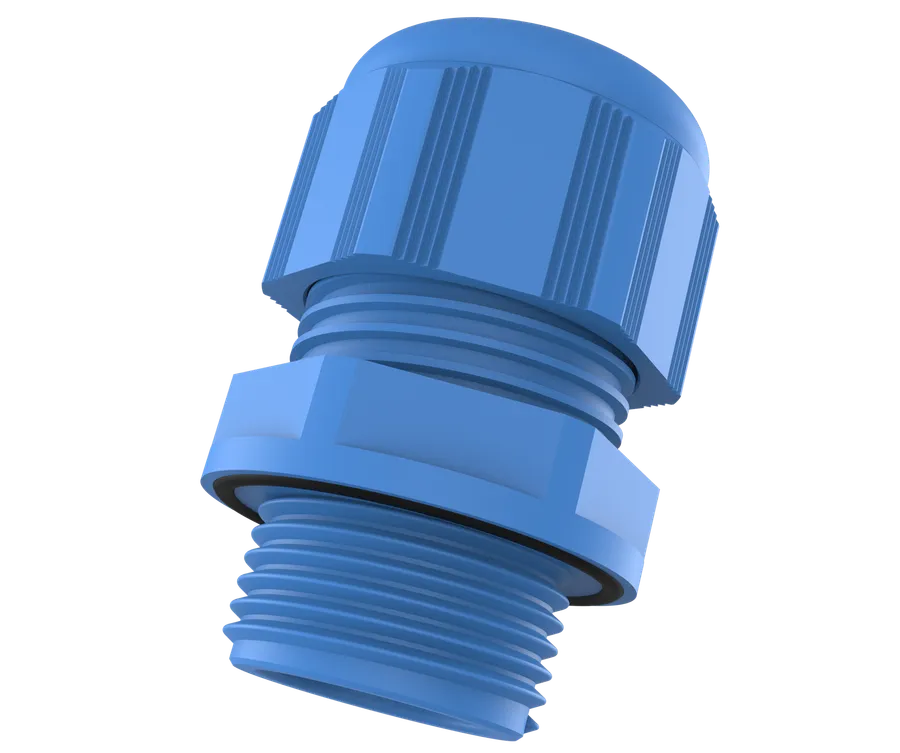

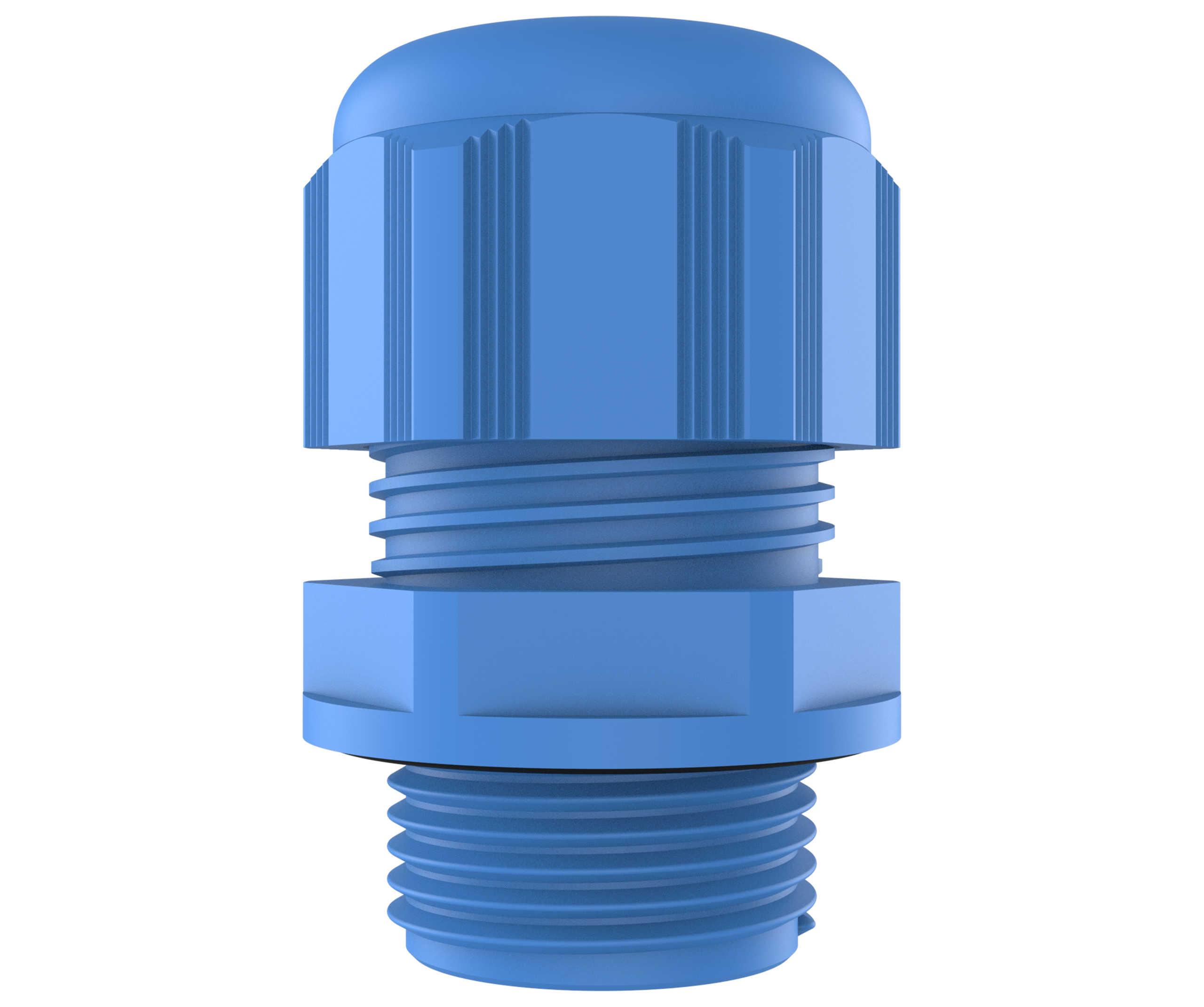

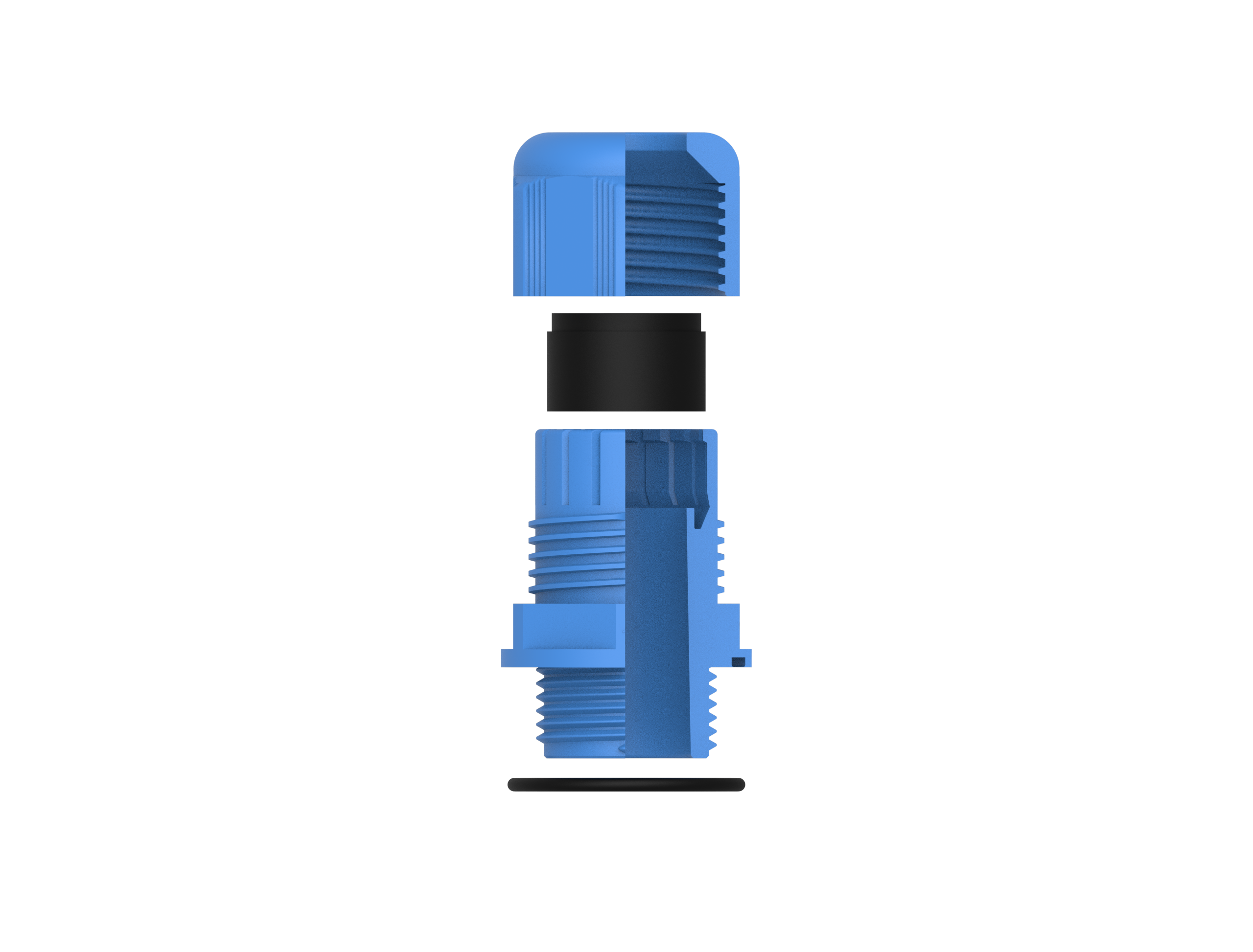

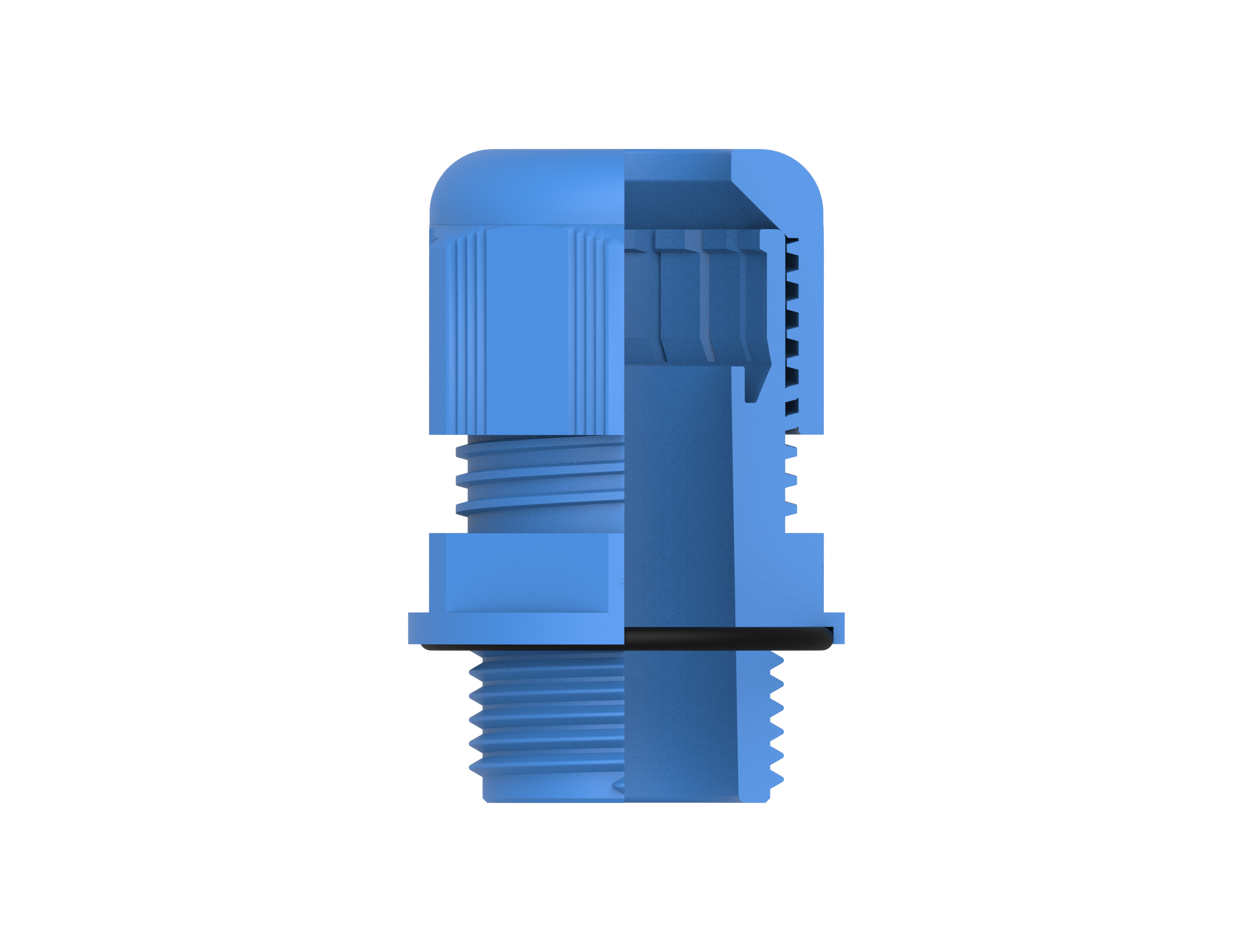

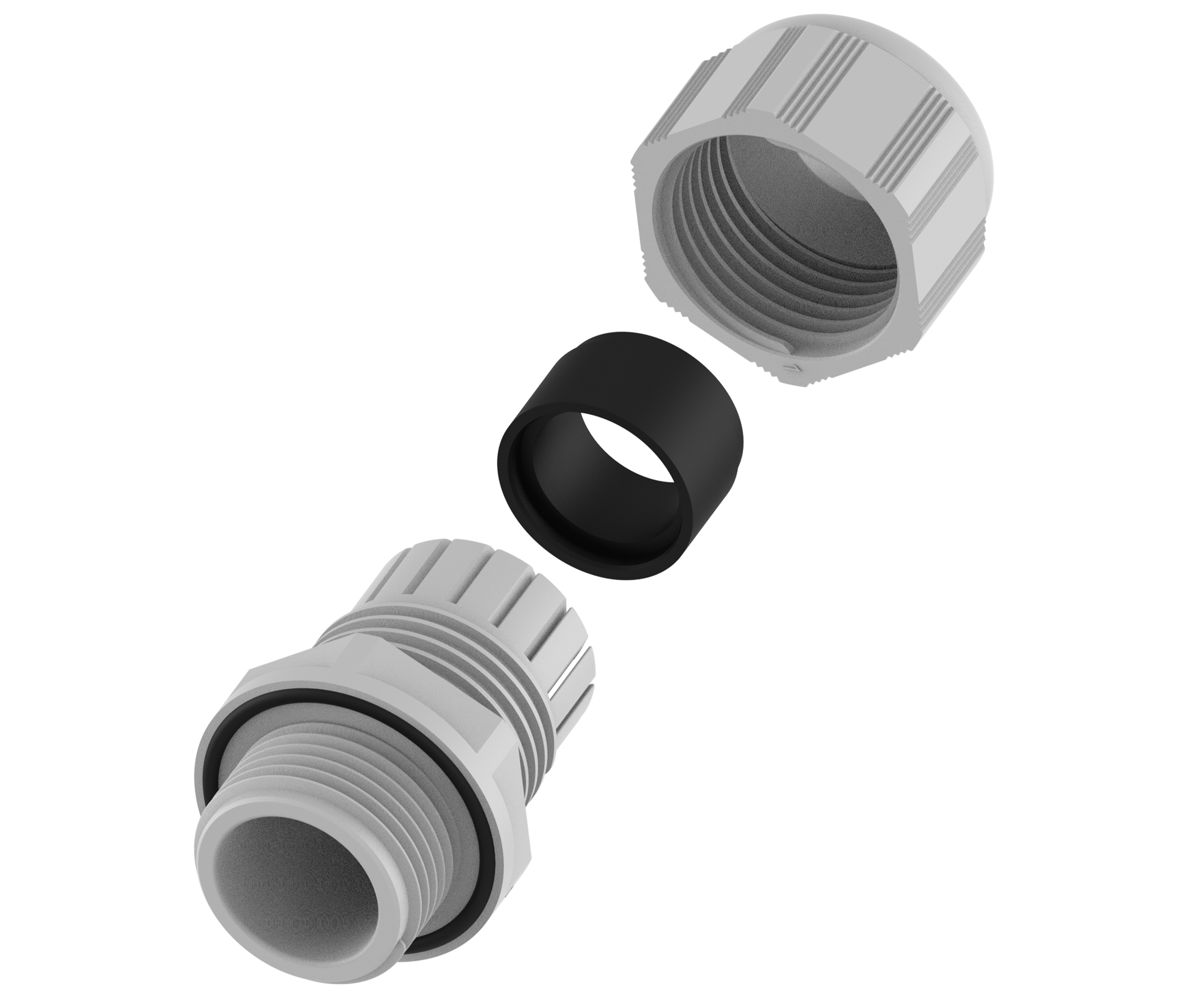

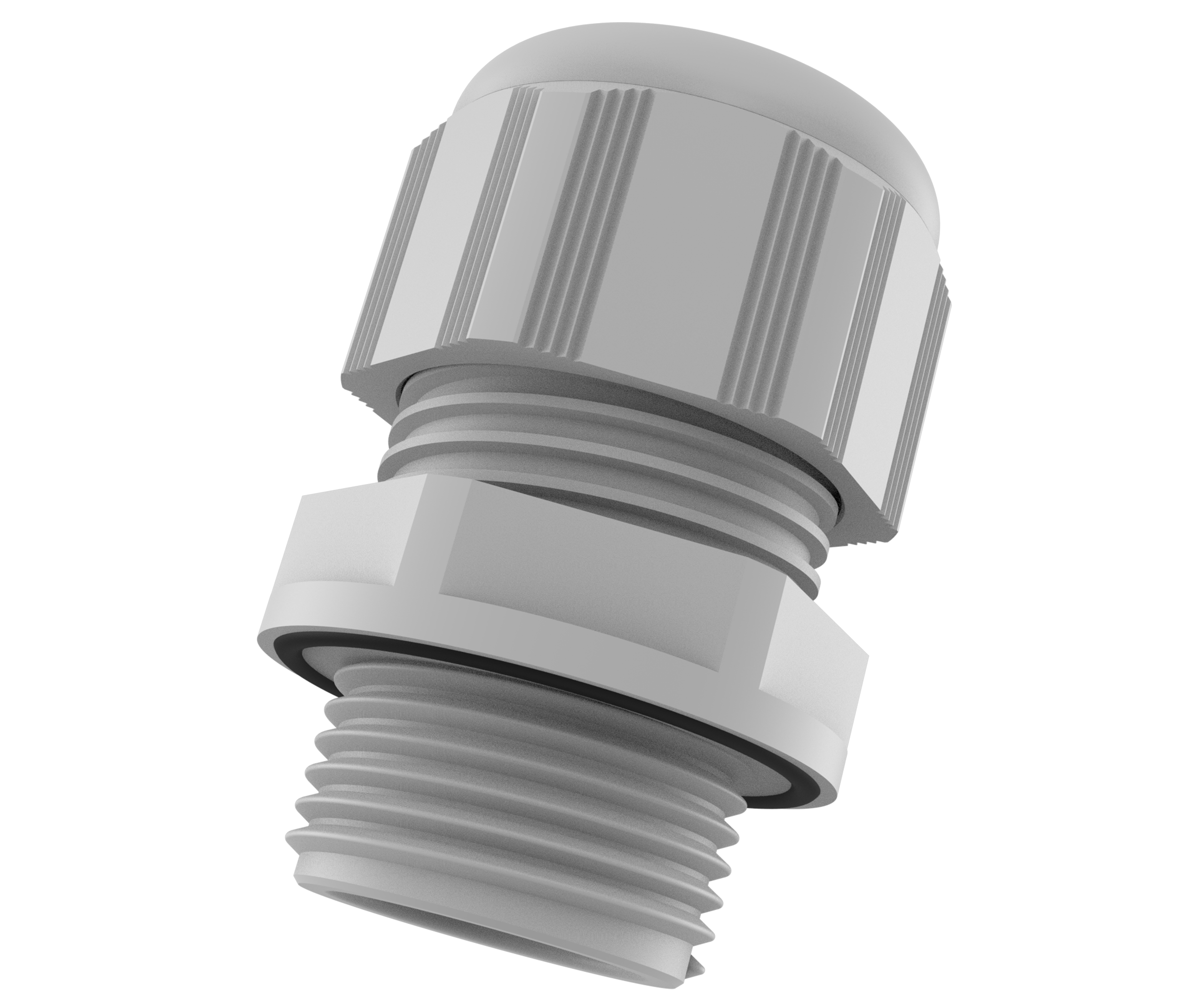

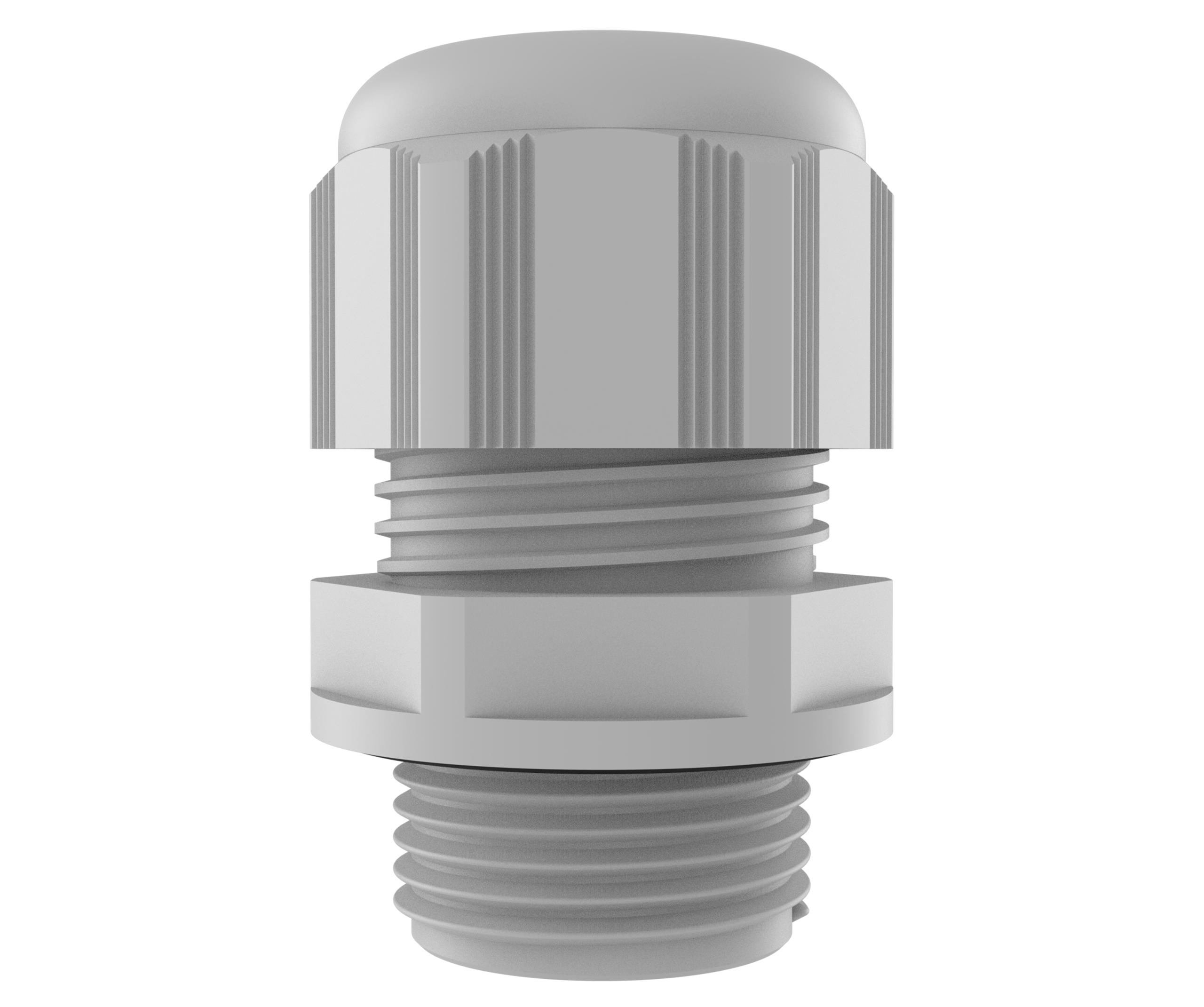

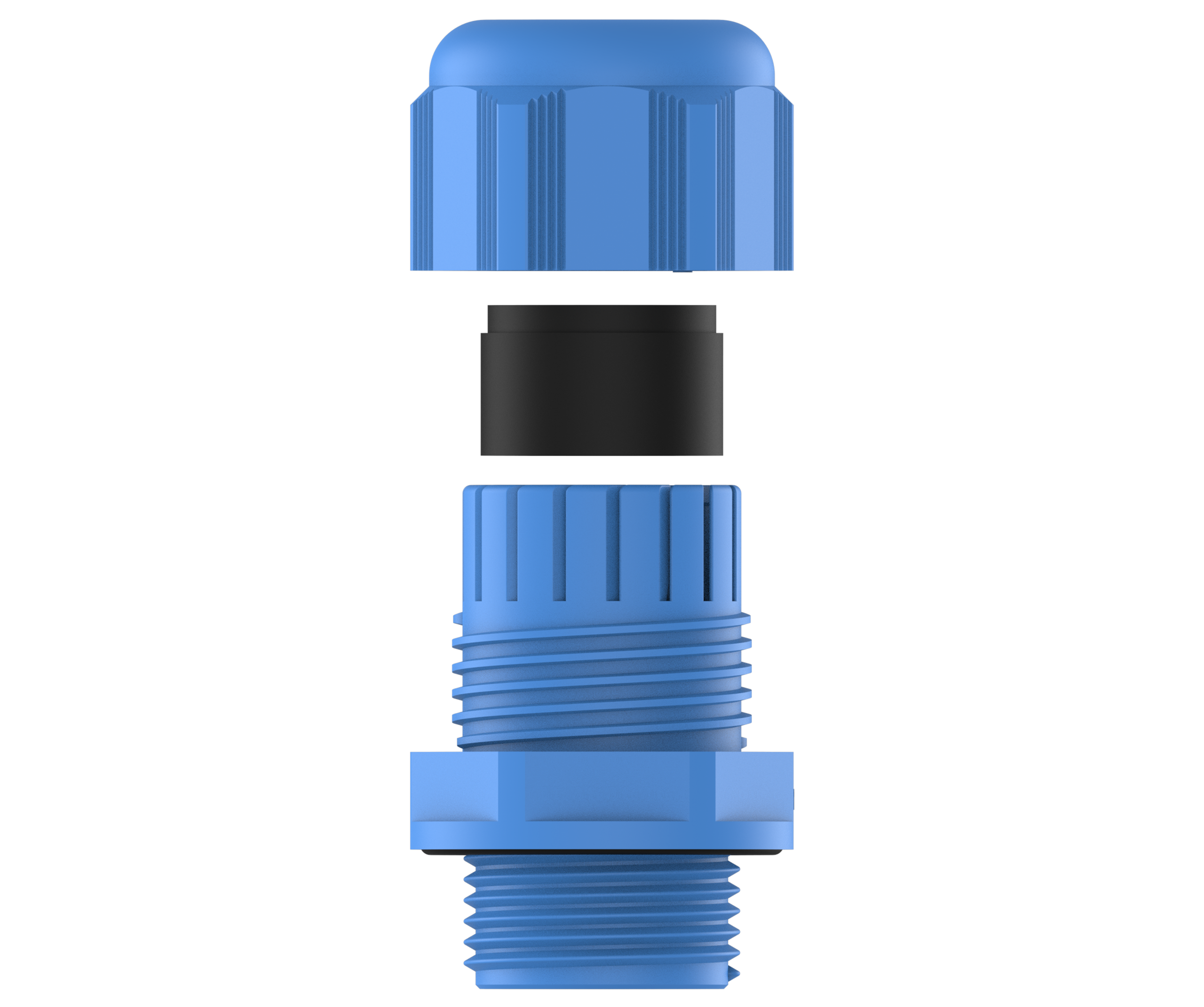

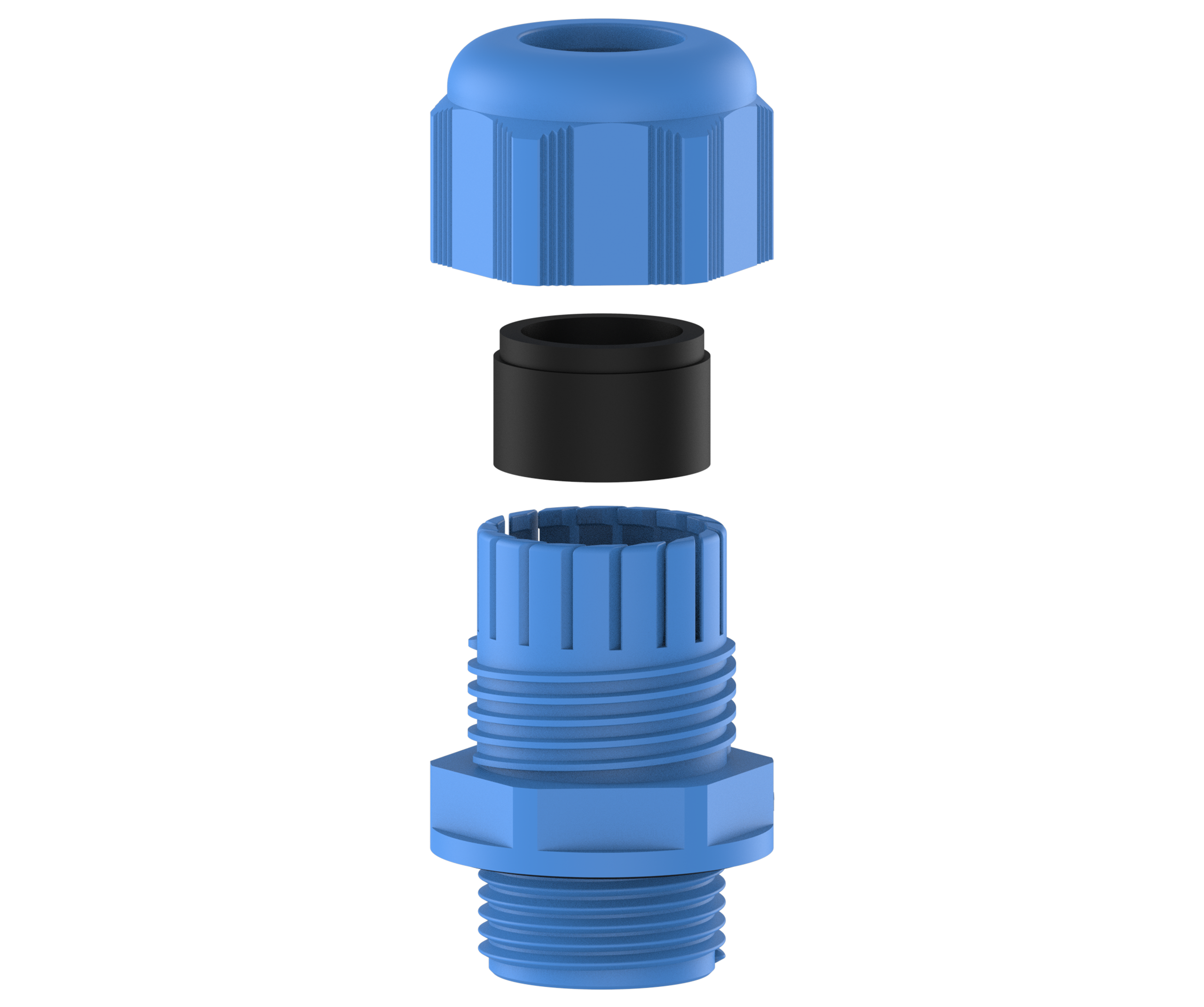

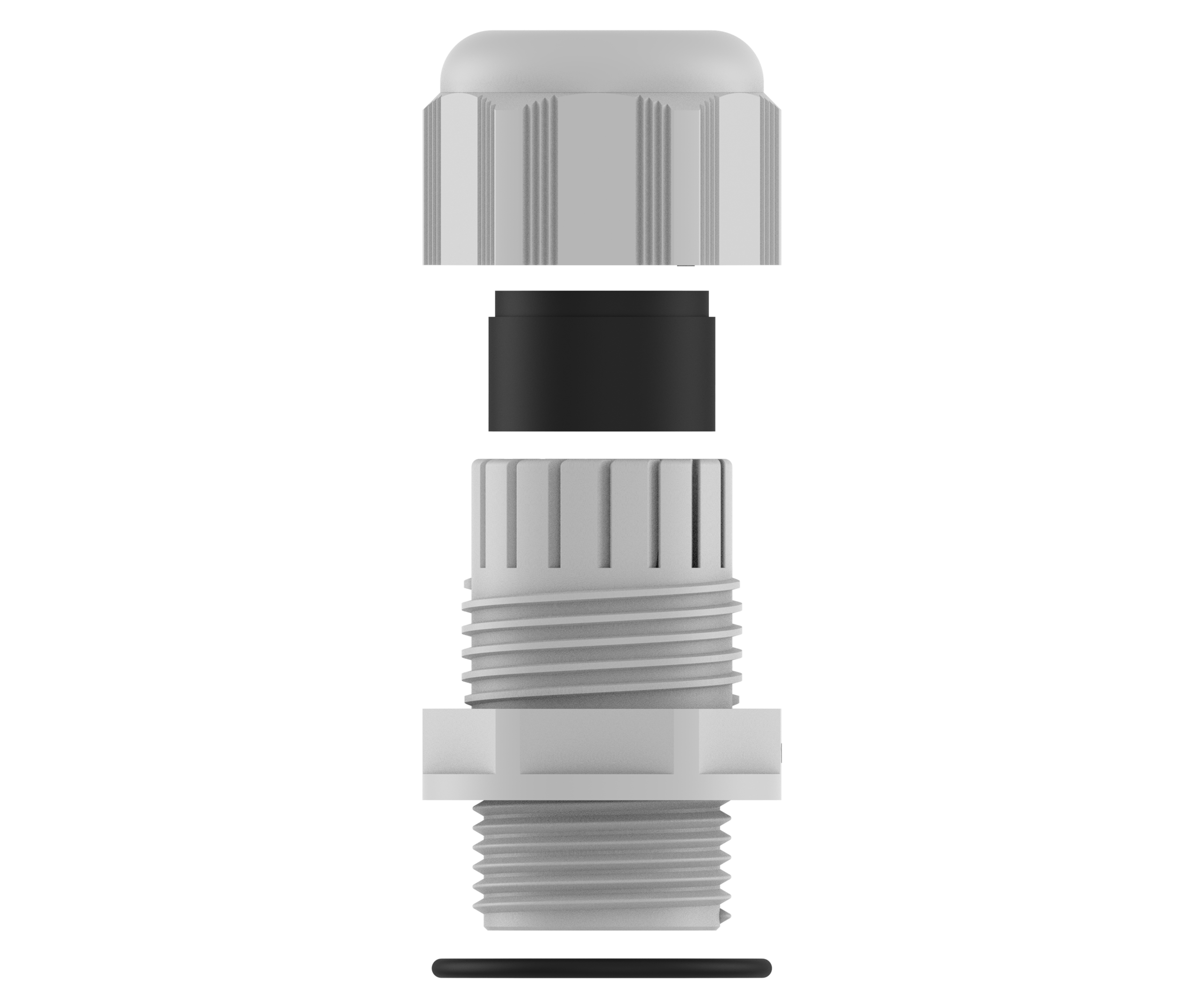

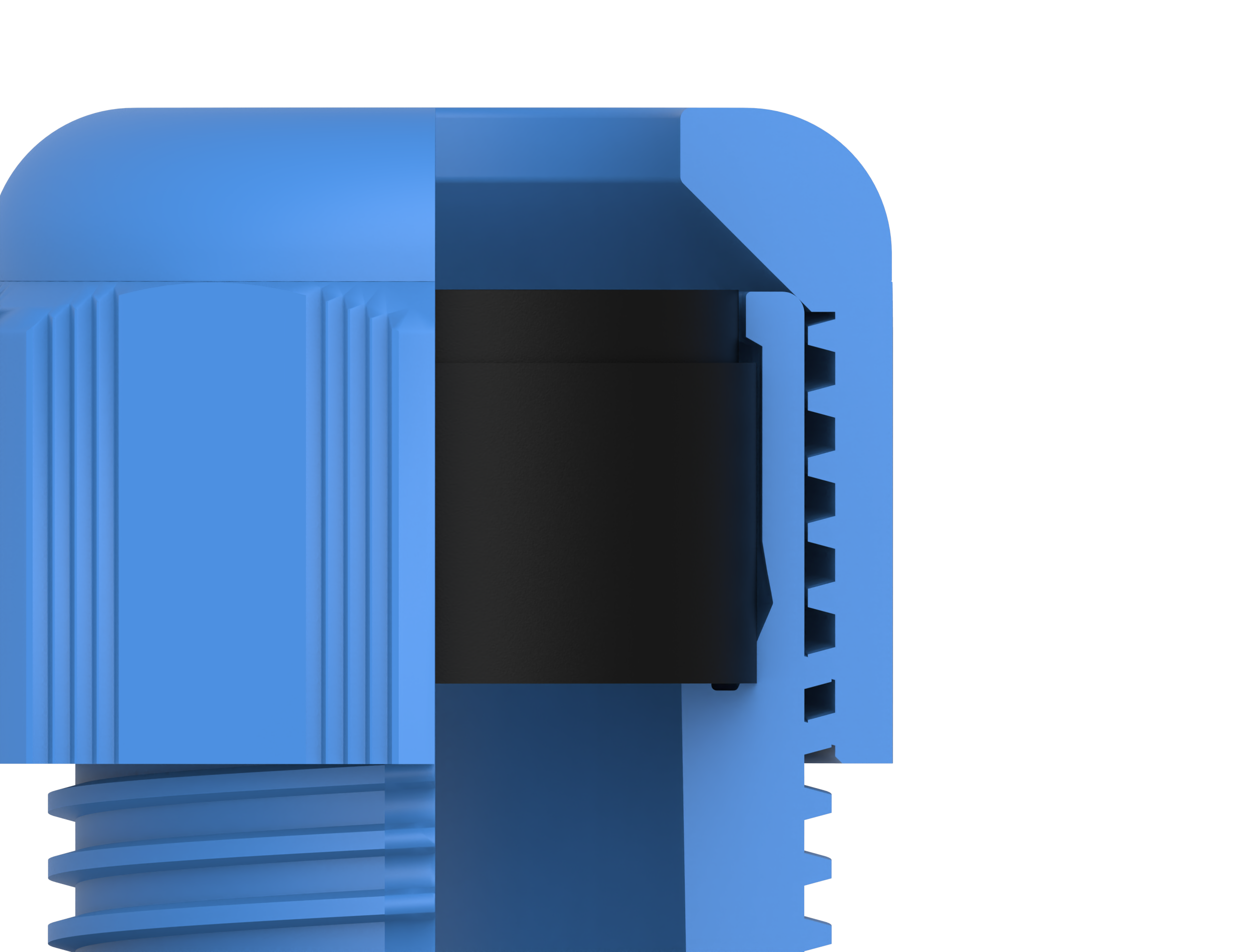

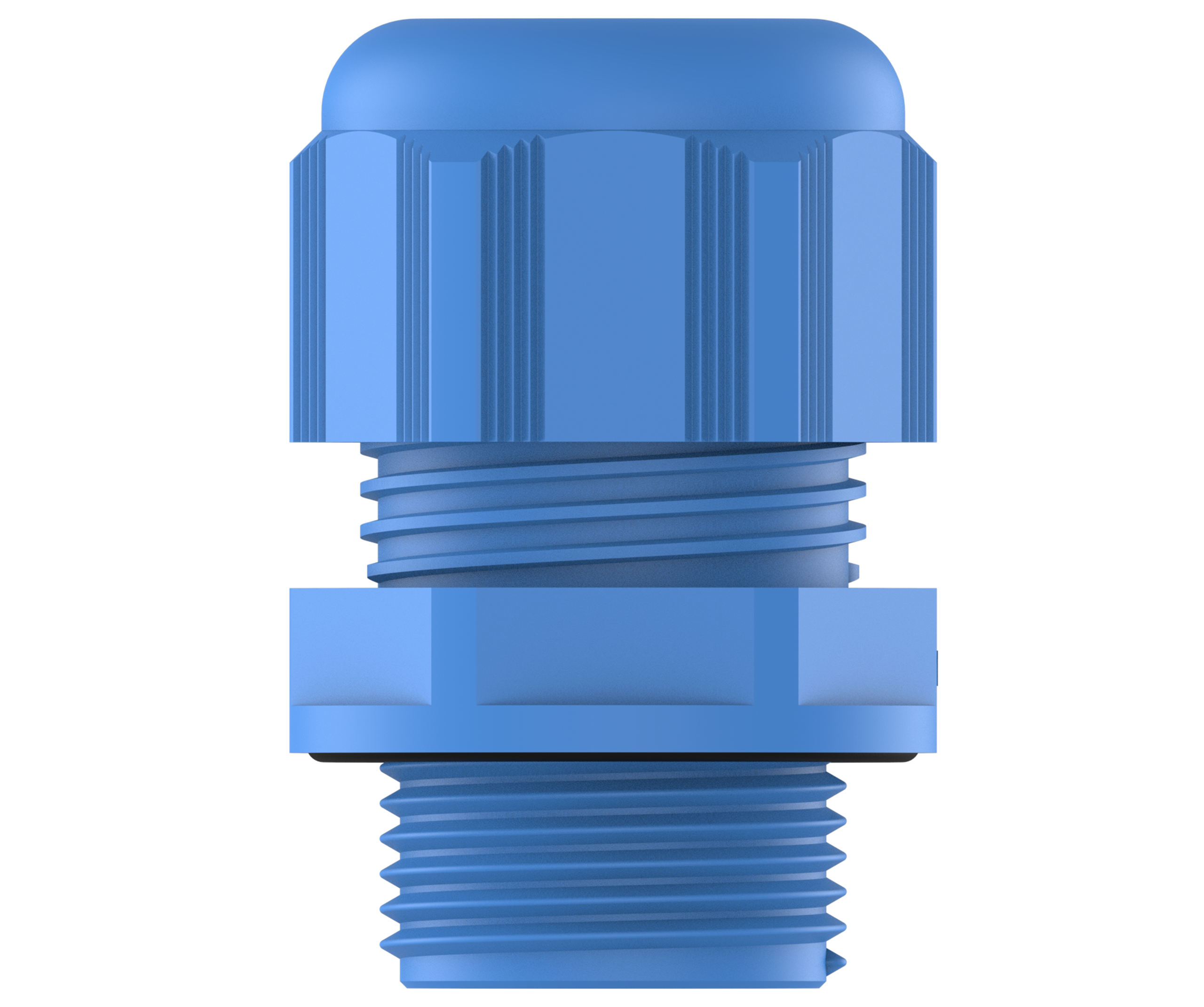

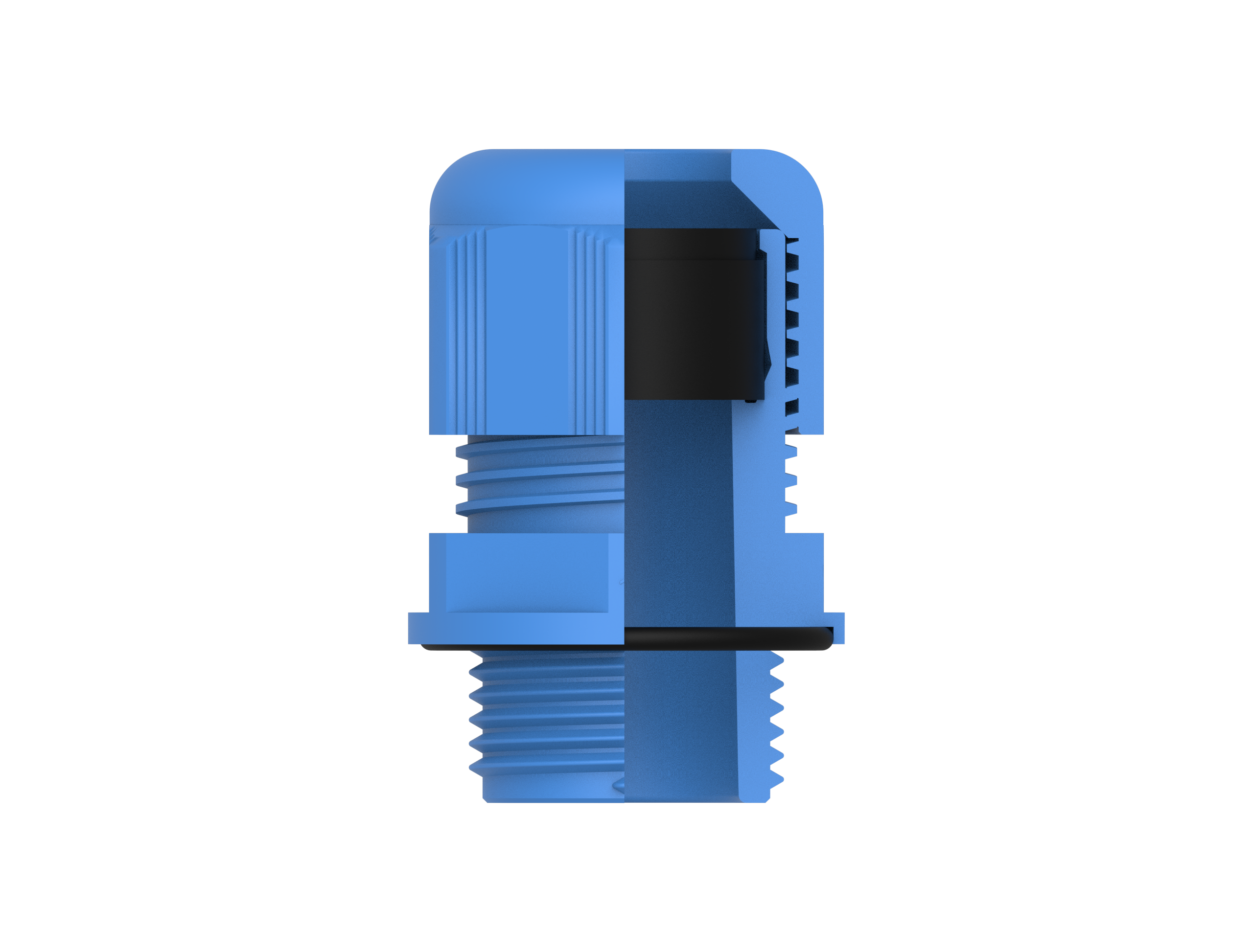

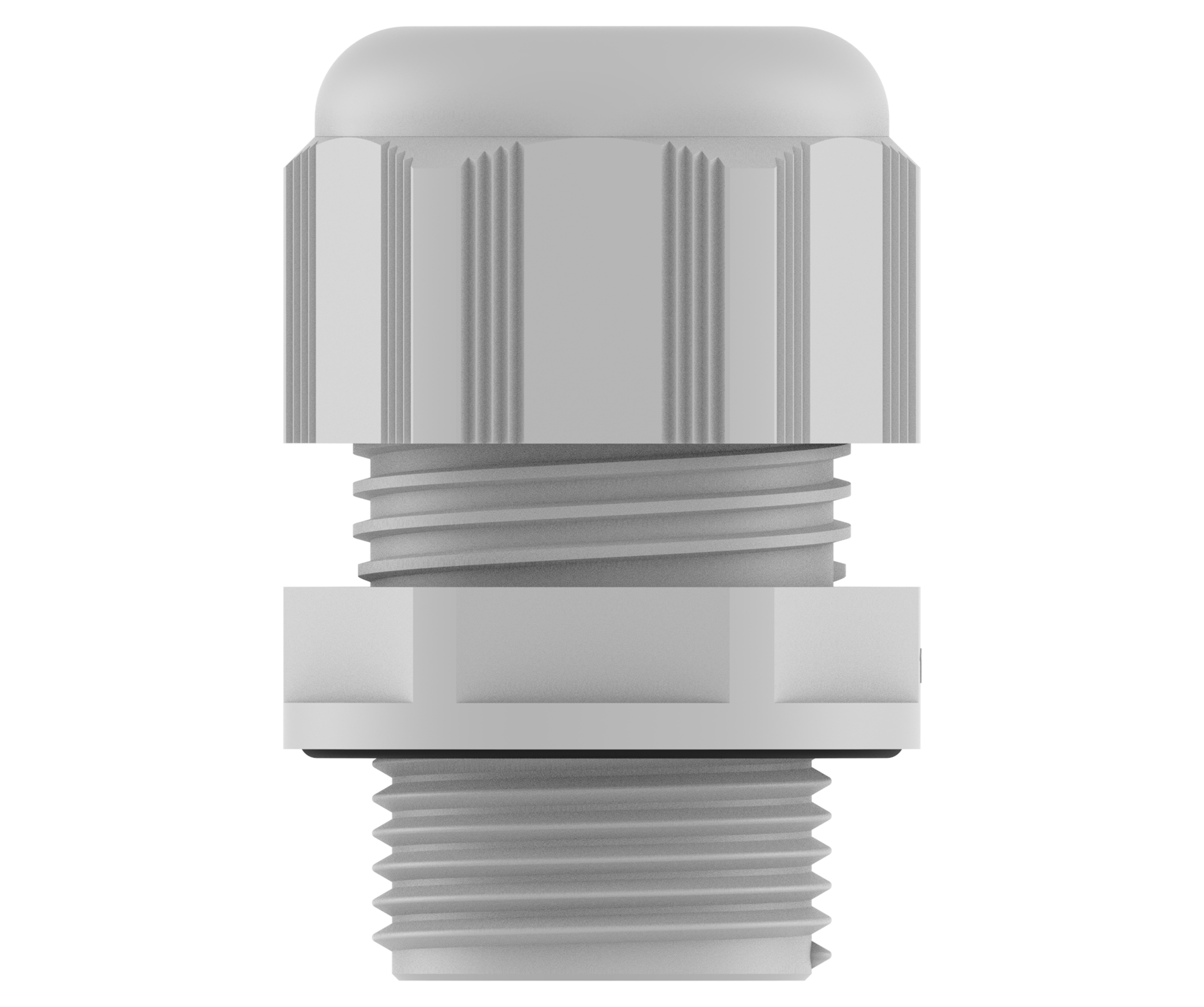

Høyytelse kabelnippel
○Kabelnippel for standard industrielle applikasjoner med krav til høy ytelse. UL94 V-0 (flammehemming), IP68-10bar og IP69 beskyttelsesgrad, og Type B strekkavlastning i henhold til EN62444.
Spesifikasjoner

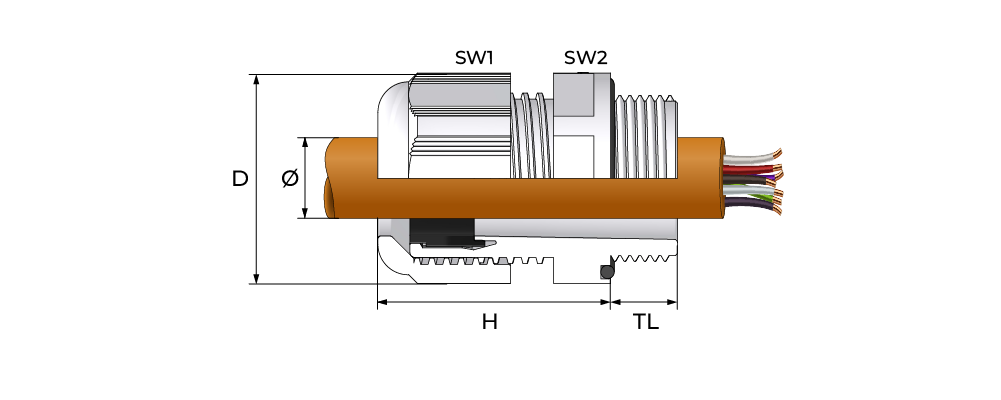

| Gjengestørrelse | Klemområdet | Gjengelengde | Nøkkelvidde | Nøkkelvidde | Diameter | Maks høyde 'H' | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|
| M16x1,5 | 5,0 - 10,0 | 10 | 19 | 19 | 21 | 28 | — | BHPM-11 | — | |
| M16x1,5 | 5,0 - 10,0 | 10 | 19 | 19 | 21 | 28 | — | BHPM-01 | — | |
| M16x1,5 | 5,0 - 10,0 | 10 | 19 | 19 | 21 | 28 | — | BHPM-21 | — | |
| M20x1,5 | 7,0 - 13,0 | 10 | 25 | 25 | 27.5 | 31.3 | — | BHPM-12 | — | |
| M20x1,5 | 7,0 - 13,0 | 10 | 25 | 25 | 27.5 | 31.3 | — | BHPM-02 | — | |
| M20x1,5 | 7,0 - 13,0 | 10 | 25 | 25 | 27.5 | 31.3 | — | BHPM-22 | — | |
| M25x1,5 | 11,0 - 17,0 | 10 | 29 | 29 | 31.5 | 35.5 | — | BHPM-13 | — | |
| M25x1,5 | 11,0 - 17,0 | 10 | 29 | 29 | 31.5 | 35.5 | — | BHPM-03 | — | |
| M25x1,5 | 11,0 - 17,0 | 10 | 29 | 29 | 31.5 | 35.5 | — | BHPM-23 | — | |
| M32x1,5 | 15,0 - 21,0 | 10 | 36 | 36 | 39.8 | 39.8 | — | BHPM-14 | — | |
| M32x1,5 | 15,0 - 21,0 | 10 | 36 | 36 | 39.8 | 39.8 | — | BHPM-04 | — | |
| M32x1,5 | 15,0 - 21,0 | 10 | 36 | 36 | 39.8 | 39.8 | — | BHPM-24 | — |
