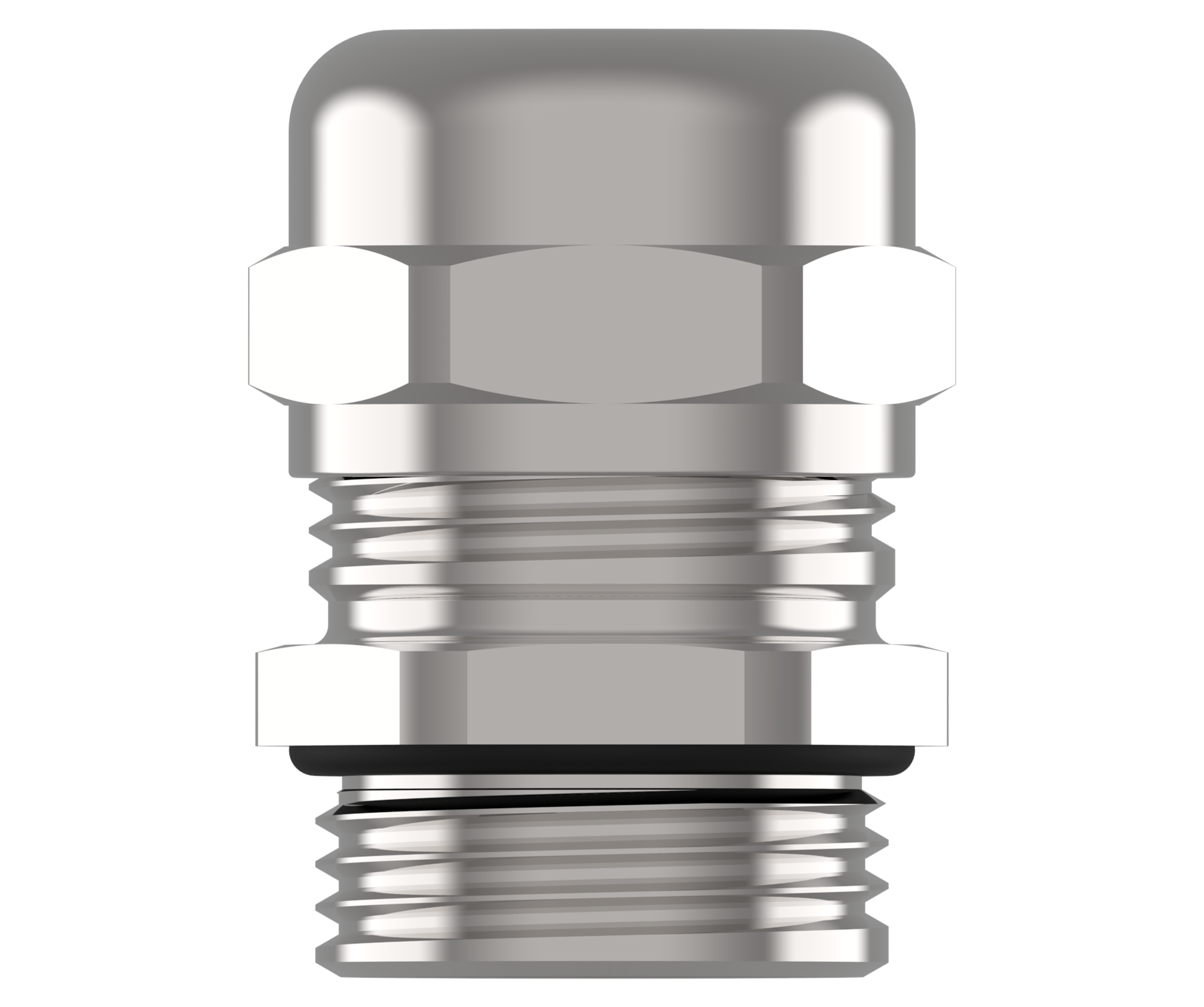

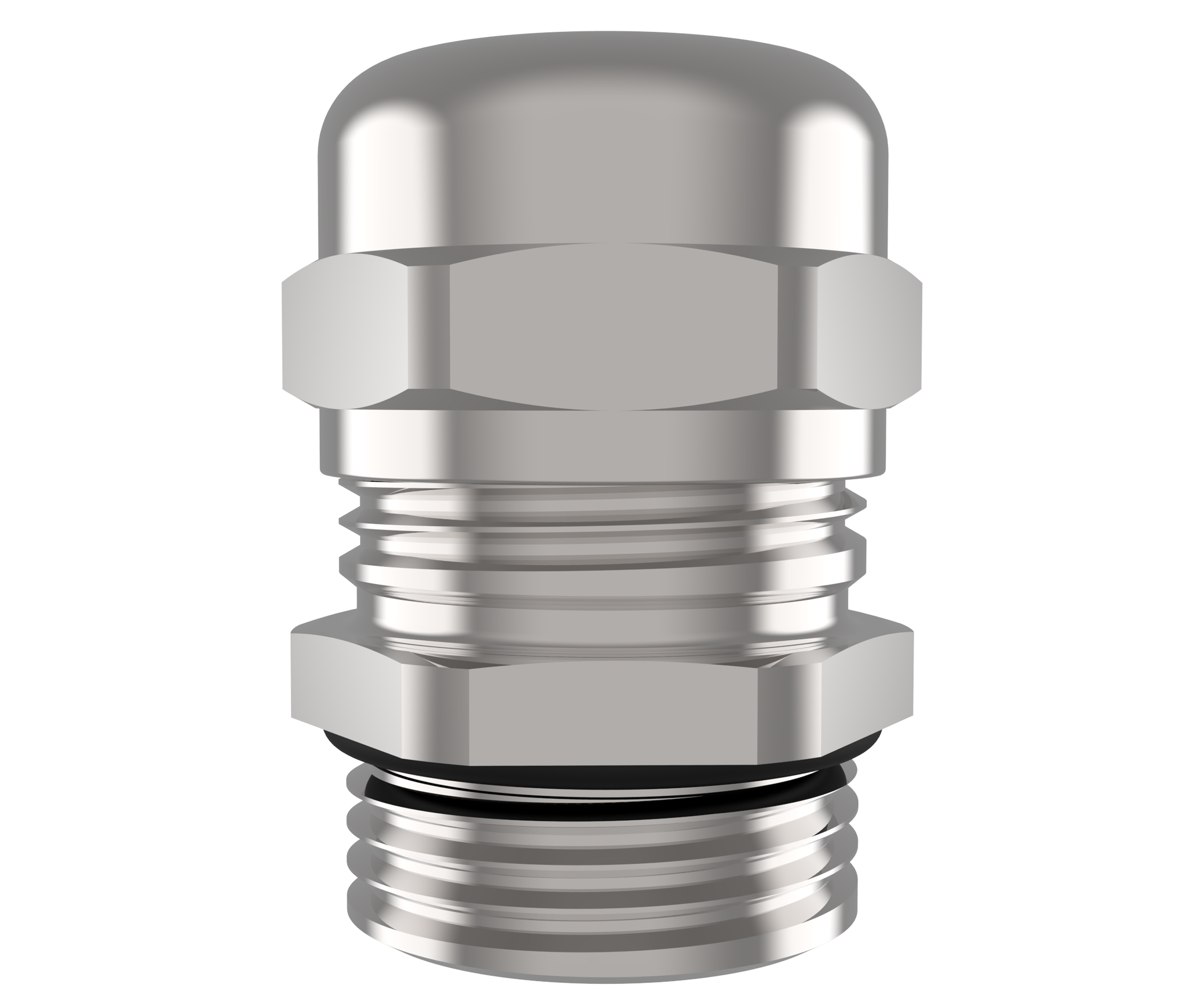

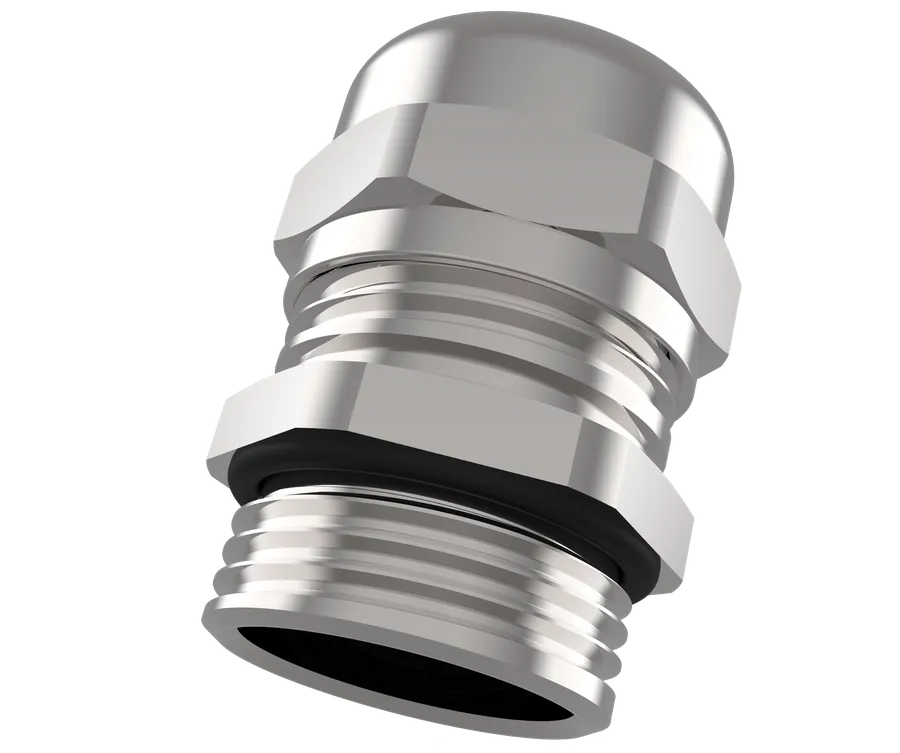

Standard kabelnippel i rustfritt stål

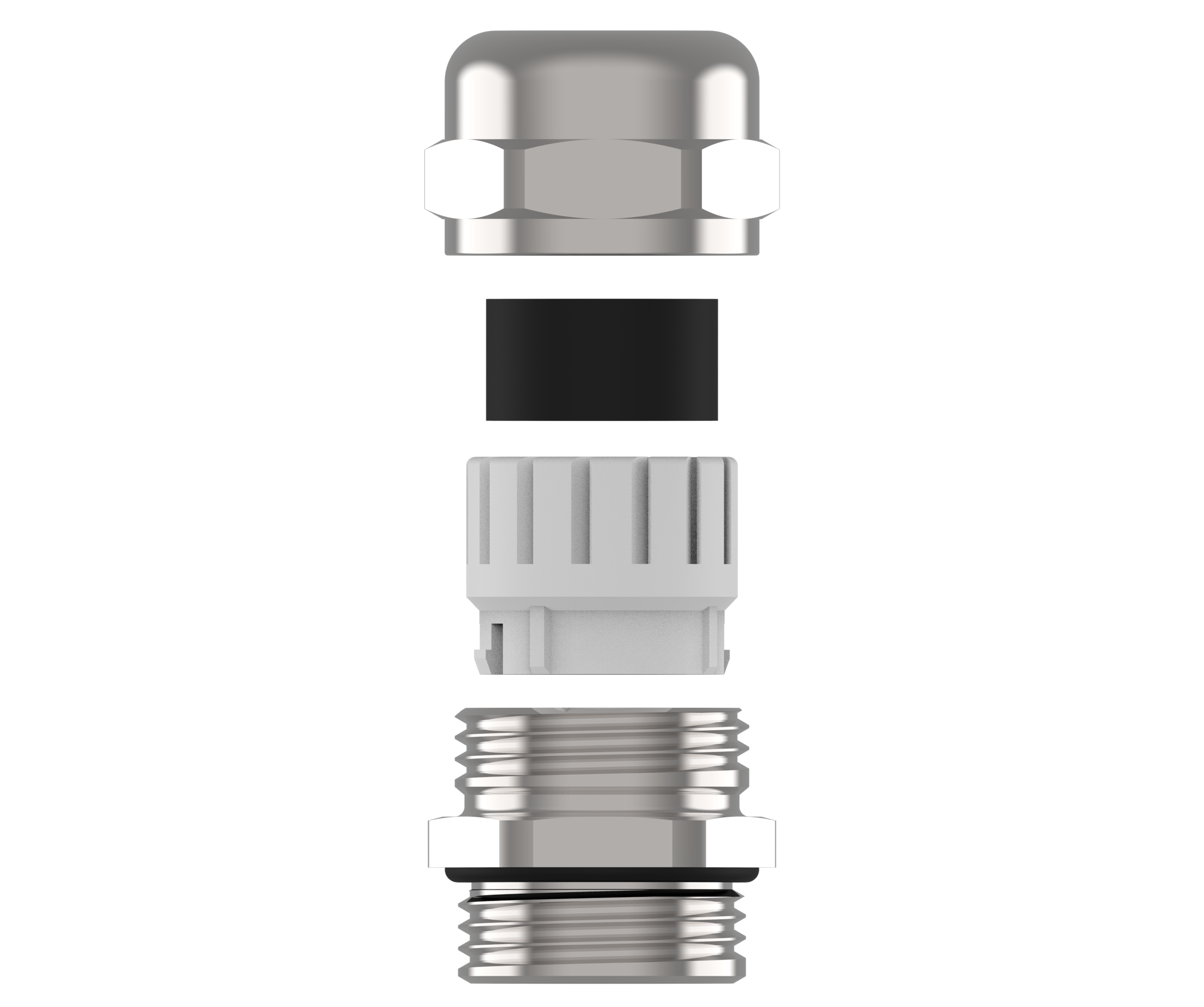

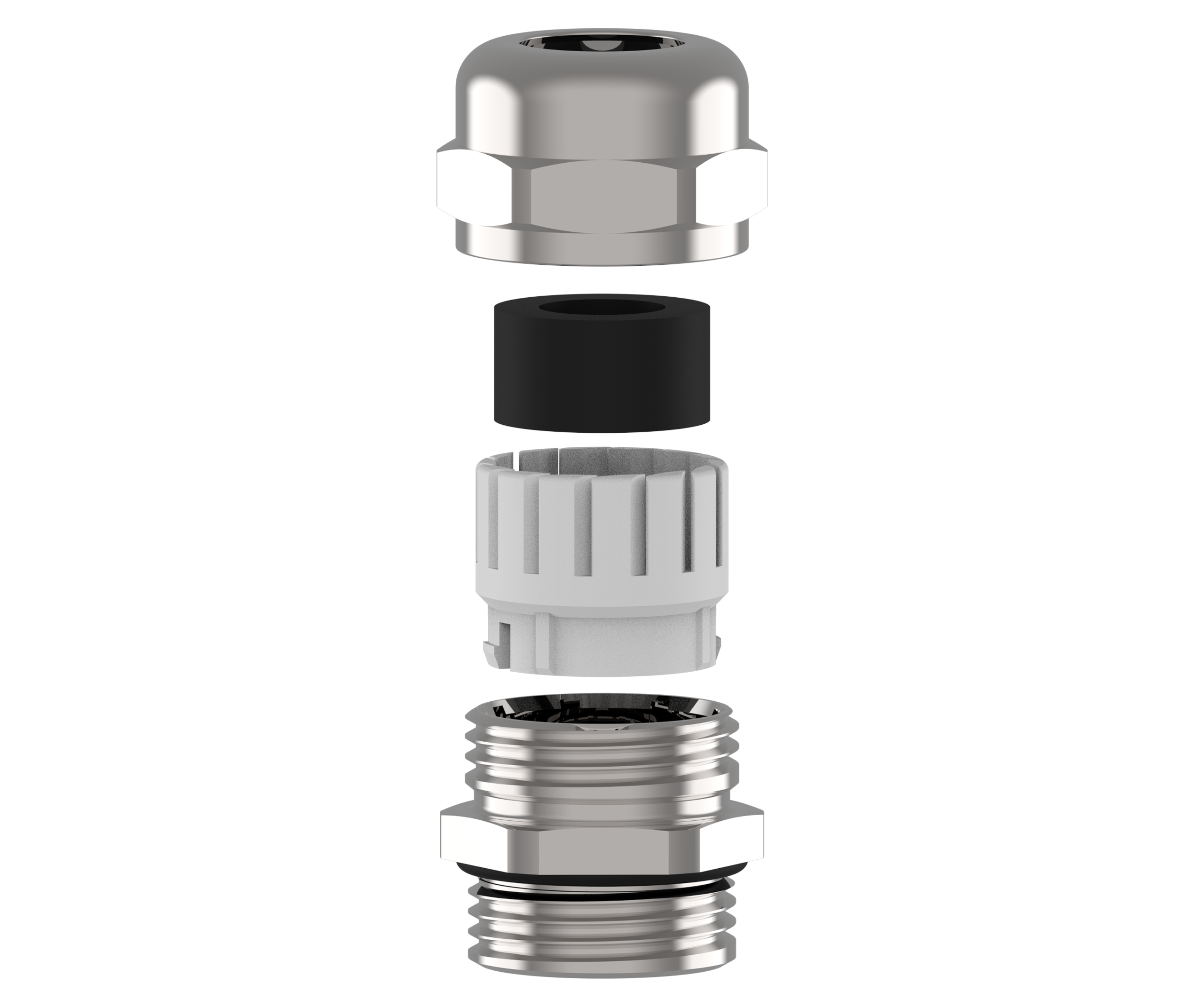

○Kabelnippel i rustfritt stål for korrosive miljøer, utendørs, næringsmiddelindustri og farmasøytisk industri. UL- og VDE-godkjent; enkel montering: installer kabelnippel – før inn kabel – stram kappe.
Spesifikasjoner
| Gjengestørrelse | Klemområdet | Gjengelengde | Nøkkelvidde | Diameter | Maks høyde 'H' | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 2,0 - 5,0 | 6 | 14/14 | 15.5 | 24 | — | BMSD-0S | — | |
| M12x1,5 | 2,0 - 5,0 | 12 | 14/14 | 15.5 | 24 | — | BMSE-0SR | — | |
| M12x1,5 | 3,0 - 6,5 | 6 | 14/14 | 15.5 | 24 | — | BMSC-0S | Get File | |
| M12x1,5 | 3,0 - 6,5 | 12 | 14/14 | 15.5 | 24 | — | BMSE-ES | — | |
| M16x1,5 | 2,0 - 6,0 | 7 | 17/19 | 21 | 25.5 | — | BMSD-01 | — | |
| M16x1,5 | 2,0 - 6,0 | 12 | 17/19 | 21 | 25.5 | — | BMSE-01R | — | |
| M16x1,5 | 3,0 - 7,0 | 7 | 22/22 | 24 | 28 | — | BMSD-E1 | — | |
| M16x1,5 | 3,0 - 7,0 | 12 | 22/22 | 24.5 | 30.5 | — | BMSE-E1R | — | |
| M16x1,5 | 4,0 - 8,0 | 7 | 17/19 | 21 | 25.5 | — | BMSC-01 | Get File | |
| M16x1,5 | 4,0 - 8,0 | 12 | 17/19 | 21 | 25.5 | — | BMSE-01 | — | |
| M16x1,5 | 5,0 - 10,0 | 7 | 22/22 | 24 | 30 | — | BMSC-E1 | — | |
| M16x1,5 | 5,0 - 10,0 | 12 | 22/22 | 24 | 30 | — | BMSE-E1 | — | |
| M20x1,5 | 5,0 - 9,0 | 8 | 22/22 | 24.5 | 26.5 | — | BMSD-02 | Get File | |
| M20x1,5 | 5,0 - 9,0 | 12 | 22/22 | 24.5 | 28 | — | BMSE-E2R | — | |
| M20x1,5 | 6,0 - 12,0 | 8 | 22/22 | 24.5 | 26.5 | — | BMSC-02 | Get File | |
| M20x1,5 | 6,0 - 12,0 | 12 | 22/22 | 24.5 | 28 | — | BMSE-E2 | — | |
| M20x1,5 | 7,0 - 13,0 | 8 | 24/24 | 26.5 | 30.5 | — | BMSC-E2S | — | |
| M20x1,5 | 10,0 - 14,0 | 8 | 24/24 | 26.5 | 30 | — | BMSC-02S | Get File | |
| M20x1,5 | 10,0 - 14,0 | 12 | 24/24 | 26.5 | 30 | — | BMSE-02S | — | |
| M25x1,5 | 7,0 - 12,0 | 8 | 24/27 | 30 | 30 | — | BMSD-03 | — | |
| M25x1,5 | 7,0 - 12,0 | 12 | 24/27 | 30 | 30 | — | BMSE-03R | — | |
| M25x1,5 | 9,0 - 16,0 | 8 | 30/30 | 33 | 35 | — | BMSD-03S | — | |
| M25x1,5 | 9,0 - 16,0 | 12 | 30/30 | 33 | 35 | — | BMSE-03SR | Get File | |
| M25x1,5 | 10,0 - 14,0 | 8 | 24/27 | 30 | 30 | — | BMSC-03 | Get File | |
| M25x1,5 | 10,0 - 14,0 | 12 | 24/27 | 30 | 30 | — | BMSE-03 | — | |
| M25x1,5 | 11,0 - 17,0 | 8 | 27/27 | 30 | 32.5 | — | BMSC-E3 | — | |
| M25x1,5 | 11,0 - 17,0 | 12 | 27/27 | 30 | 32.5 | — | BMSE-E3 | — | |
| M25x1,5 | 13,0 - 18,0 | 8 | 30/30 | 33 | 35 | — | BMSC-03S | Get File | |
| M25x1,5 | 13,0 - 18,0 | 12 | 30/30 | 33 | 35 | — | BMSE-03S | — | |
| M32x1,5 | 9,0 - 16,0 | 9 | 30/36 | 39.8 | 35 | — | BMSD-04 | Get File | |
| M32x1,5 | 9,0 - 16,0 | 15 | 30/36 | 39.8 | 35 | — | BMSE-04R | — | |
| M32x1,5 | 12,0 - 20,0 | 9 | 41/41 | 45.5 | 39.5 | — | BMSD-04S | — | |
| M32x1,5 | 12,0 - 20,0 | 15 | 41/41 | 45.5 | 39.5 | — | BMSE-04SR | — | |
| M32x1,5 | 13,0 - 18,0 | 9 | 30/36 | 39.8 | 35 | — | BMSC-04 | Get File | |
| M32x1,5 | 13,0 - 18,0 | 15 | 30/36 | 39.8 | 35 | — | BMSE-04 | — | |
| M32x1,5 | 15,0 - 21,0 | 8 | 36/36 | 39 | 38 | — | BMSC-E4 | — | |
| M32x1,5 | 15,0 - 21,0 | 15 | 36/36 | 39 | 38 | — | BMSE-E4 | — | |
| M32x1,5 | 18,0 - 25,0 | 9 | 41/41 | 45.5 | 39.5 | — | BMSC-04S | Get File | |
| M32x1,5 | 18,0 - 25,0 | 15 | 41/41 | 45.5 | 39.5 | — | BMSE-04S | — | |
| M40x1,5 | 12,0 - 20,0 | 9 | 41/46 | 51 | 40.5 | — | BMSD-05 | — | |
| M40x1,5 | 12,0 - 20,0 | 15 | 41/46 | 51 | 40.5 | — | BMSE-05R | — | |
| M40x1,5 | 16,0 - 23,0 | 9 | 46/46 | 51.4 | 45.5 | — | BMSD-E5 | — | |
| M40x1,5 | 16,0 - 23,0 | 15 | 46/46 | 51.4 | 45.5 | — | BMSE-E5R | — | |
| M40x1,5 | 19,0 - 28,0 | 9 | 46/46 | 51.4 | 45.5 | — | BMSC-E5 | — | |
| M40x1,5 | 19,0 - 28,0 | 15 | 46/46 | 51.4 | 45.5 | — | BMSE-E5 | Get File | |
| M40x1,5 | 18,0 - 25,0 | 9 | 41/46 | 51 | 40.5 | — | BMSC-05 | Get File | |
| M40x1,5 | 18,0 - 25,0 | 15 | 41/46 | 51 | 40.5 | — | BMSE-05 | Get File | |
| M40x1,5 | 22,0 - 32,0 | 9 | 50/50 | 55.5 | 50 | — | BMSC-05S | — | |
| M40x1,5 | 22,0 - 32,0 | 15 | 50/50 | 55.5 | 50 | — | BMSE-05S | — | |
| M50x1,5 | 20,0 - 26,0 | 9 | 50/55 | 61 | 50 | — | BMSD-06 | — | |
| M50x1,5 | 20,0 - 26,0 | 15 | 50/55 | 61 | 50 | — | BMSE-06R | — | |
| M50x1,5 | 22,0 - 32,0 | 9 | 50/55 | 61 | 50 | — | BMSC-06 | Get File | |
| M50x1,5 | 22,0 - 32,0 | 15 | 50/55 | 61 | 50 | — | BMSE-06 | — | |
| M50x1,5 | 27,0 - 38,0 | 9 | 60/60 | 66.5 | 54 | — | BMSC-E6 | — | |
| M50x1,5 | 27,0 - 38,0 | 15 | 60/60 | 66.5 | 54 | — | BMSE-E6 | — | |
| M50x1,5 | 34,0 - 44,0 | 9 | 65/65 | 71 | 55 | — | BMSC-06S | — | |
| M50x1,5 | 34,0 - 44,0 | 15 | 65/65 | 71 | 55 | — | BMSE-06S | — | |
| M63x1,5 | 29,0 - 35,0 | 10 | 65/70 | 77 | 56 | — | BMSD-E7 | — | |
| M63x1,5 | 29,0 - 35,0 | 14 | 65/70 | 77 | 55 | — | BMSD-07 | — | |
| M63x1,5 | 29,0 - 35,0 | 18 | 65/70 | 77 | 55 | — | BMSE-07R | — | |
| M63x1,5 | 34,0 - 44,0 | 10 | 65/70 | 77 | 56 | — | BMSC-E7 | — | |
| M63x1,5 | 34,0 - 44,0 | 14 | 65/70 | 77 | 55 | — | BMSC-07 | Get File | |
| M63x1,5 | 34,0 - 44,0 | 18 | 65/70 | 77 | 55 | — | BMSE-07 | — | |
| M63x1,5 | 37,0 - 53,0 | 10 | 75/75 | 83 | 52.5 | — | BMSC-07S | — | |
| M63x1,5 | 37,0 - 53,0 | 18 | 75/75 | 83 | 52.5 | — | BMSE-07S | — |
