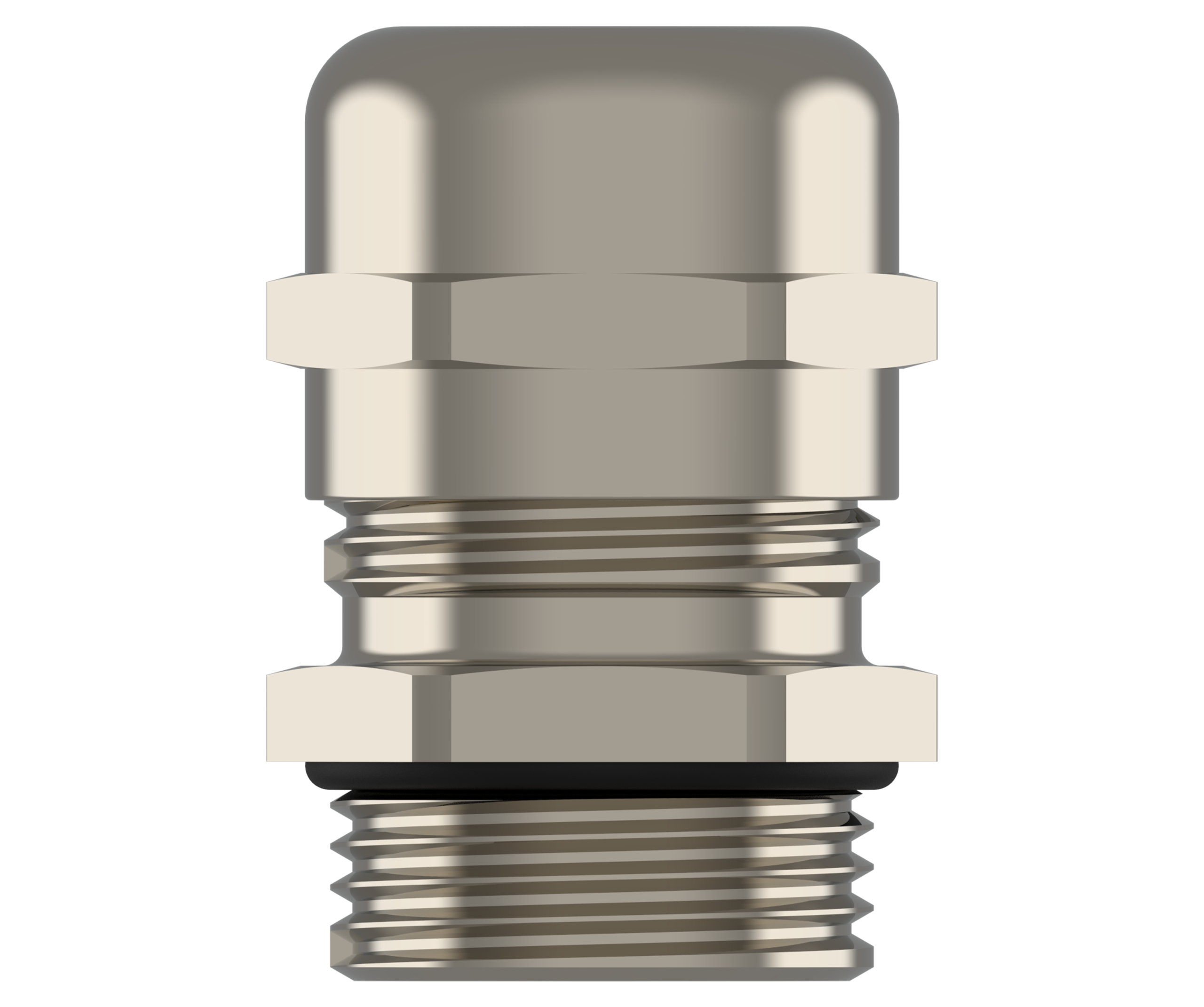

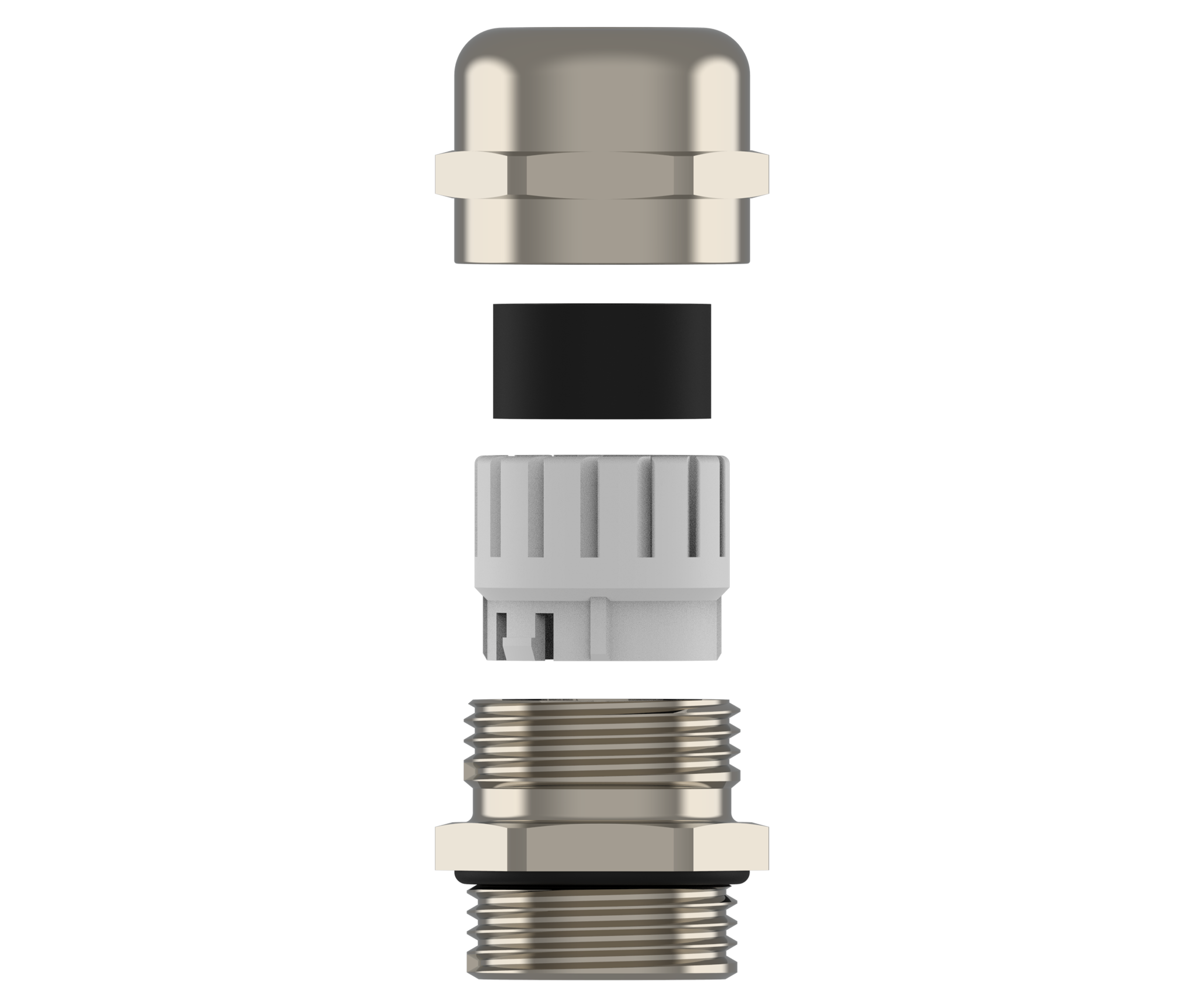

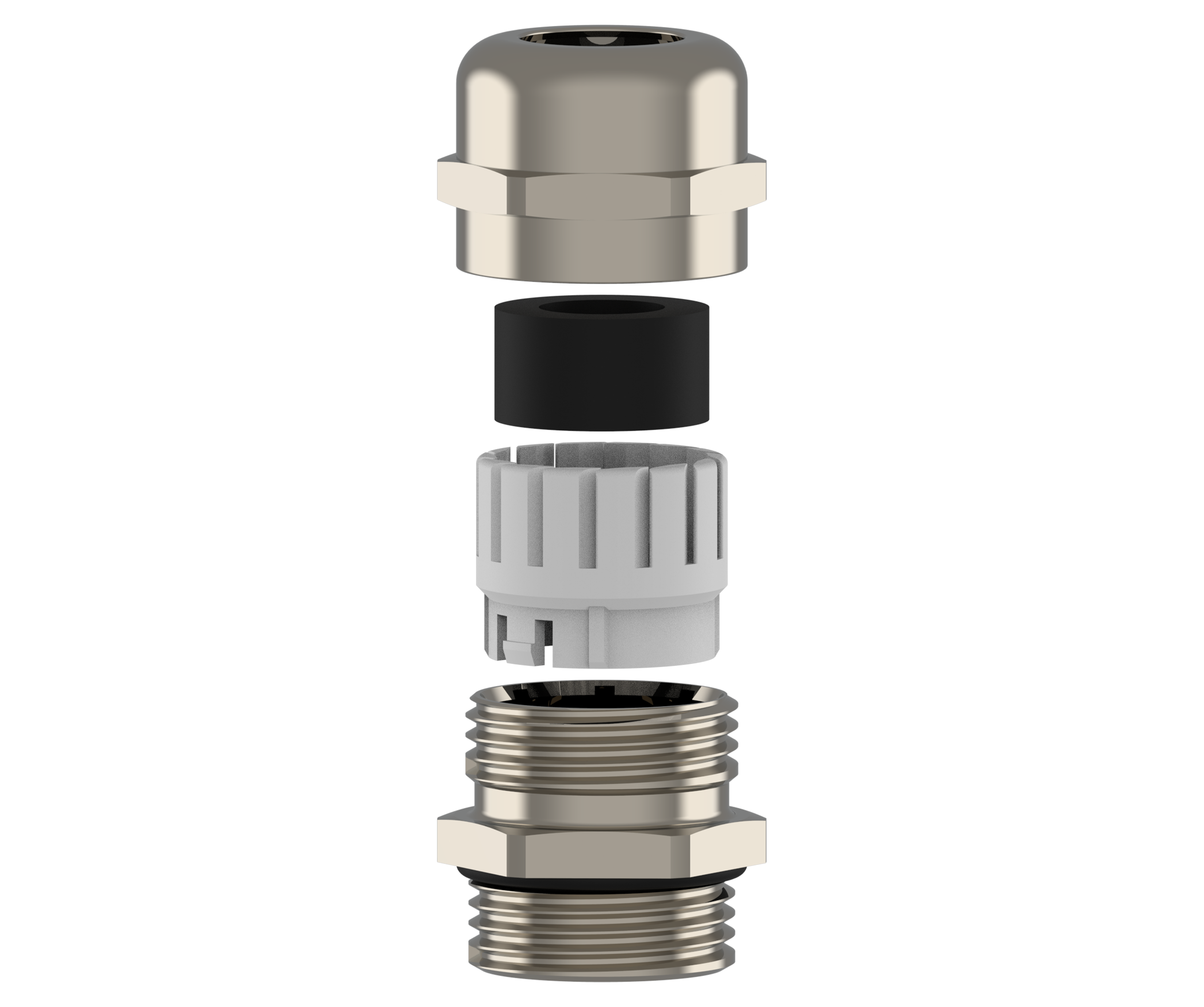

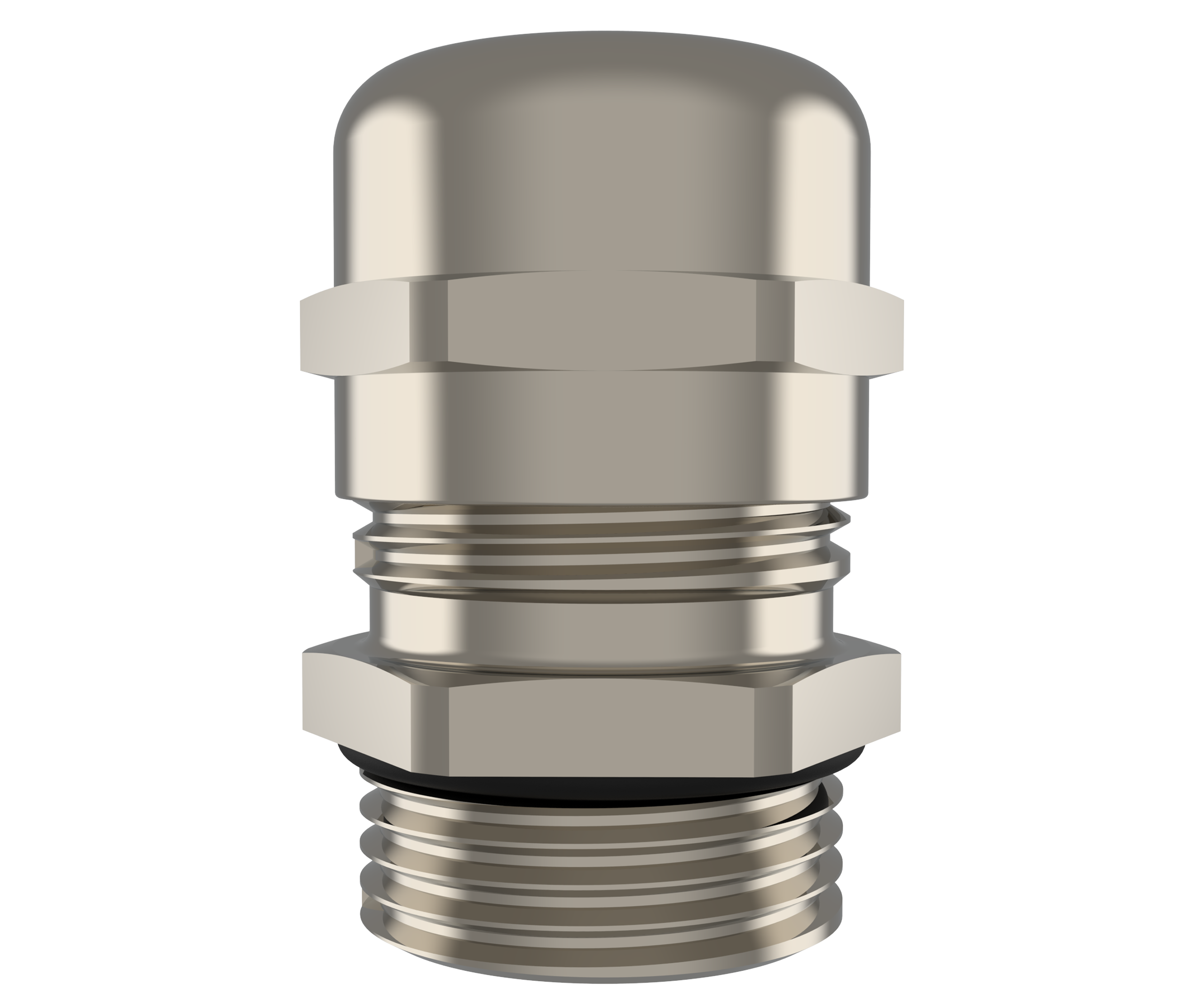

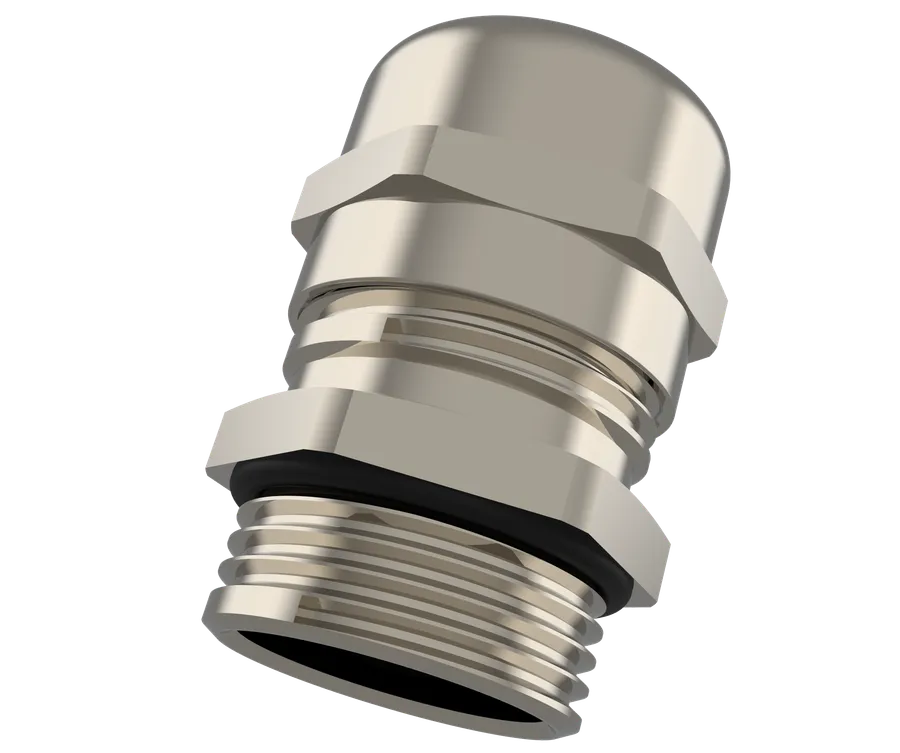

Standard kabelnippel i messing
○Kabelnippel i messing for standard industrielle applikasjoner. UL- og VDE-godkjent med enkel montering og høy strekkavlastning.
Spesifikasjoner

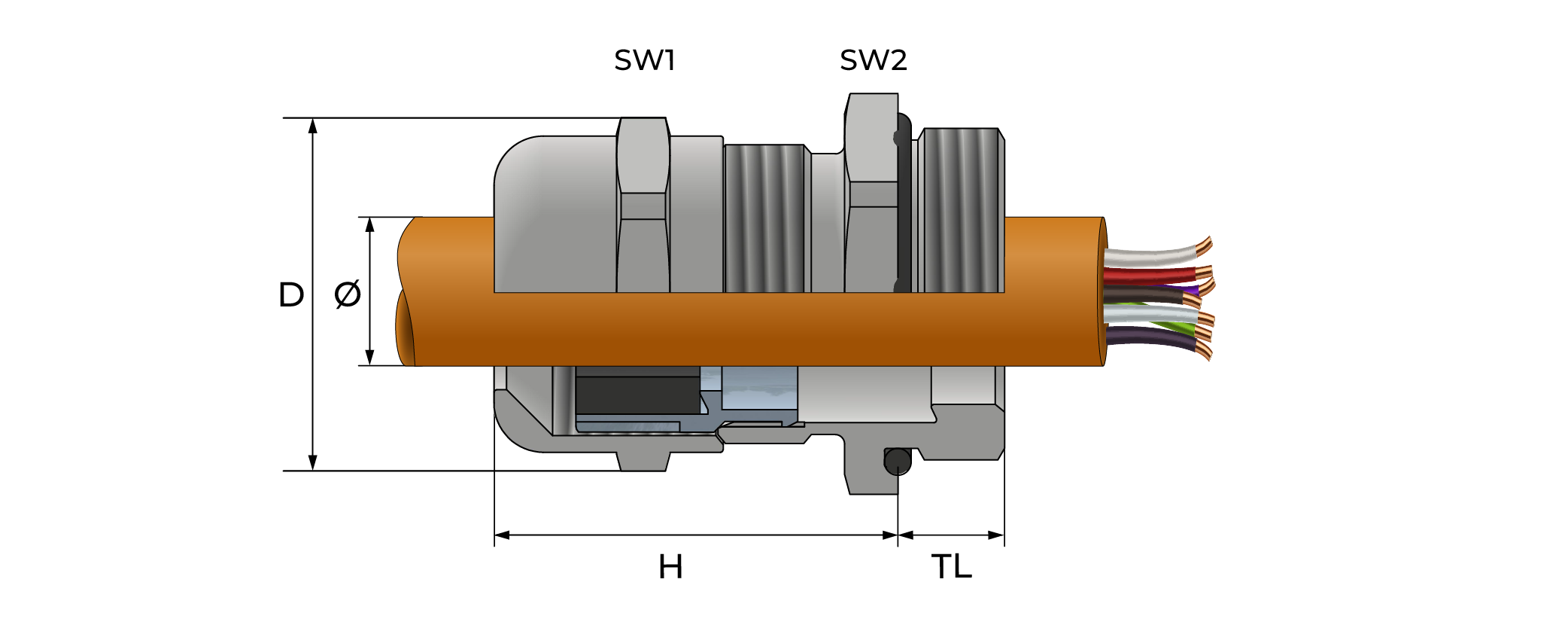

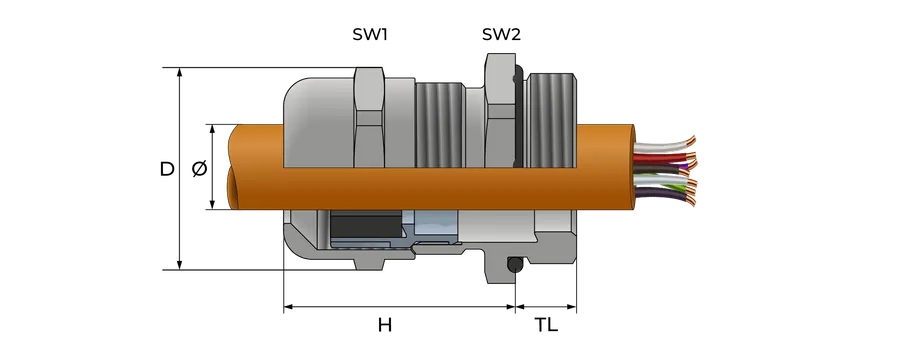

| Gjengestørrelse | Klemområdet | Gjengelengde | Nøkkelvidde | Diameter | Maks høyde 'H' | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 2,0 - 5,0 | 6 | 14/14 | 15.5 | 24 | — | BMBD-0S | — | |
| M12x1,5 | 2,0 - 5,0 | 12 | 14/14 | 15.5 | 24 | — | BMBE-0SR | — | |
| M12x1,5 | 3,0 - 6,5 | 6 | 14/14 | 15.5 | 24 | — | BMBC-0S | Get File | |
| M12x1,5 | 3,0 - 6,5 | 12 | 14/14 | 15.5 | 24 | — | BMBE-0S | Get File | |
| M16x1,5 | 2,0 - 6,0 | 7 | 17/18 | 20 | 25.5 | — | BMBD-01 | — | |
| M16x1,5 | 2,0 - 6,0 | 12 | 17/18 | 20 | 25.5 | — | BMBE-01R | — | |
| M16x1,5 | 3,0 - 7,0 | 7 | 20/20 | 22 | 30 | — | BMBD-E1 | — | |
| M16x1,5 | 3,0 - 7,0 | 12 | 20/20 | 22 | 30 | — | BMBE-E1R | — | |
| M16x1,5 | 4,0 - 8,0 | 7 | 17/18 | 20 | 25.5 | — | BMBC-01 | Get File | |
| M16x1,5 | 4,0 - 8,0 | 12 | 17/18 | 20 | 25.5 | — | BMBE-01 | — | |
| M16x1,5 | 5,0 - 10,0 | 6.5 | 20/20 | 22 | 31.5 | — | BMBC-01S | Get File | |
| M16x1,5 | 5,0 - 10,0 | 7 | 20/20 | 22 | 30 | — | BMBC-E1 | — | |
| M16x1,5 | 5,0 - 10,0 | 12 | 20/20 | 22 | 31.5 | — | BMBE-01S | Get File | |
| M20x1,5 | 5,0 - 9,0 | 8 | 22/22 | 24.5 | 28 | — | BMBD-E2 | Get File | |
| M20x1,5 | 5,0 - 9,0 | 12 | 22/22 | 24.5 | 28 | — | BMBE-E2R | — | |
| M20x1,5 | 6,0 - 12,0 | 8 | 22/22 | 24.5 | 26.5 | — | BMBC-02 | Get File | |
| M20x1,5 | 6,0 - 12,0 | 12 | 22/22 | 24.5 | 26.5 | — | BMBE-02 | Get File | |
| M20x1,5 | 7,0 - 13,0 | 8 | 24/24 | 26.5 | 30.5 | — | BMBC-E2S | — | |
| M20x1,5 | 10,0 - 14,0 | 8 | 24/24 | 26.5 | 30 | — | BMBC-02S | Get File | |
| M20x1,5 | 10,0 - 14,0 | 12 | 24/24 | 26.5 | 30 | — | BMBE-02S | Get File | |
| M25x1,5 | 13,0 - 18,0 | 12 | 30/30 | 33 | 35 | — | BMBE-03S | Get File | |
| M25x1,5 | 7,0 - 12,0 | 8 | 24/27 | 30 | 30 | — | BMBD-03 | — | |
| M25x1,5 | 7,0 - 12,0 | 12 | 24/27 | 30 | 30 | — | BMBE-03R | — | |
| M25x1,5 | 9,0 - 16,0 | 8 | 30/30 | 33 | 35 | — | BMBD-03S | — | |
| M25x1,5 | 9,0 - 16,0 | 12 | 30/30 | 33 | 35 | — | BMBE-03SR | — | |
| M25x1,5 | 10,0 - 14,0 | 8 | 24/27 | 30 | 30 | — | BMBC-03 | Get File | |
| M25x1,5 | 10,0 - 14,0 | 12 | 24/27 | 30 | 30 | — | BMBE-03 | Get File | |
| M25x1,5 | 11,0 - 17,0 | 8 | 27/27 | 30 | 32.5 | — | BMBC-E3 | — | |
| M25x1,5 | 11,0 - 17,0 | 12 | 27/27 | 30 | 32.5 | — | BMBE-E3 | — | |
| M25x1,5 | 13,0 - 18,0 | 8 | 30/30 | 33 | 35 | — | BMBC-03S | Get File | |
| M32x1,5 | 9,0 - 16,0 | 9 | 30/34 | 37.5 | 35 | — | BMBD-04 | — | |
| M32x1,5 | 9,0 - 16,0 | 15 | 30/34 | 37.5 | 35 | — | BMBE-04R | — | |
| M32x1,5 | 12,0 - 20,0 | 9 | 40/40 | 44.5 | 46 | — | BMBD-04S | — | |
| M32x1,5 | 12,0 - 20,0 | 15 | 40/40 | 44.5 | 46 | — | BMBE-04SR | — | |
| M32x1,5 | 13,0 - 18,0 | 9 | 30/34 | 37.5 | 35 | — | BMBC-04 | Get File | |
| M32x1,5 | 13,0 - 18,0 | 15 | 30/34 | 37.5 | 35 | — | BMBE-04 | Get File | |
| M32x1,5 | 15,0 - 21,0 | 8 | 34/34 | 37 | 38 | — | BMBC-E4 | — | |
| M32x1,5 | 15,0 - 21,0 | 15 | 34/34 | 37 | 38 | — | BMBE-E4 | — | |
| M32x1,5 | 18,0 - 25,0 | 9 | 40/40 | 44.5 | 46 | — | BMBC-04S | Get File | |
| M32x1,5 | 18,0 - 25,0 | 15 | 40/40 | 44.5 | 46 | — | BMBE-04S | Get File | |
| M40x1,5 | 12,0 - 20,0 | 9 | 40/43 | 48.5 | 40.5 | — | BMBD-05 | — | |
| M40x1,5 | 12,0 - 20,0 | 15 | 40/43 | 48.5 | 40.5 | — | BMBE-05R | — | |
| M40x1,5 | 18,0 - 25,0 | 9 | 40/43 | 48.5 | 40.5 | — | BMBC-05 | Get File | |
| M40x1,5 | 18,0 - 25,0 | 15 | 40/43 | 48.5 | 40.5 | — | BMBE-05 | Get File | |
| M40x1,5 | 16,0 - 23,0 | 9 | 43/43 | 48.5 | 45.5 | — | BMBD-E5 | — | |
| M40x1,5 | 16,0 - 23,0 | 15 | 43/43 | 48.5 | 45.5 | — | BMBE-E5R | — | |
| M40x1,5 | 19,0 - 28,0 | 9 | 43/43 | 48.5 | 45.5 | — | BMBC-E5 | Get File | |
| M40x1,5 | 19,0 - 28,0 | 15 | 43/43 | 48.5 | 45.5 | — | BMBE-E5 | — | |
| M40x1,5 | 22,0 - 32,0 | 9 | 50/50 | 55.5 | 54.5 | — | BMBC-05S | Get File | |
| M40x1,5 | 22,0 - 32,0 | 15 | 50/50 | 55.5 | 54.5 | — | BMBE-05S | Get File | |
| M50x1,5 | 20,0 - 26,0 | 9 | 50/55 | 61 | 50 | — | BMBD-06 | — | |
| M50x1,5 | 20,0 - 26,0 | 15 | 50/55 | 61 | 50 | — | BMBE-06R | — | |
| M50x1,5 | 22,0 - 32,0 | 9 | 50/55 | 61 | 50 | — | BMBC-06 | Get File | |
| M50x1,5 | 22,0 - 32,0 | 15 | 50/55 | 61 | 50 | — | BMBE-06 | Get File | |
| M50x1,5 | 27,0 - 38,0 | 9 | 58/58 | 64 | 54 | — | BMBC-E6 | — | |
| M50x1,5 | 27,0 - 38,0 | 15 | 58/58 | 64 | 54 | — | BMBE-E6 | — | |
| M50x1,5 | 34,0 - 44,0 | 9 | 64/64 | 70 | 55 | — | BMBC-06S | Get File | |
| M50x1,5 | 34,0 - 44,0 | 15 | 64/64 | 70 | 55 | — | BMBE-06S | Get File | |
| M63x1,5 | 29,0 - 35,0 | 10 | 64/68 | 75 | 56 | — | BMBD-E7 | — | |
| M63x1,5 | 29,0 - 35,0 | 14 | 64/68 | 75 | 55 | — | BMBD-07 | — | |
| M63x1,5 | 29,0 - 35,0 | 18 | 64/68 | 75 | 55 | — | BMBE-07R | — | |
| M63x1,5 | 34,0 - 44,0 | 10 | 64/68 | 75 | 56 | — | BMBC-E7 | — | |
| M63x1,5 | 34,0 - 44,0 | 15 | 64/68 | 75 | 56 | — | BMBE-E7 | — | |
| M63x1,5 | 34,0 - 44,0 | 14 | 64/68 | 75 | 55 | — | BMBC-07 | Get File | |
| M63x1,5 | 34,0 - 44,0 | 18 | 64/68 | 75 | 55 | — | BMBE-07 | Get File | |
| M63x1,5 | 37,0 - 53,0 | 10 | 75/75 | 83 | 52.5 | — | BMBC-07S | Get File | |
| M63x1,5 | 37,0 - 53,0 | 18 | 75/75 | 83 | 53 | — | BMBE-07S | Get File |
