Jernbane kabelnippler
Viser 5 resultater

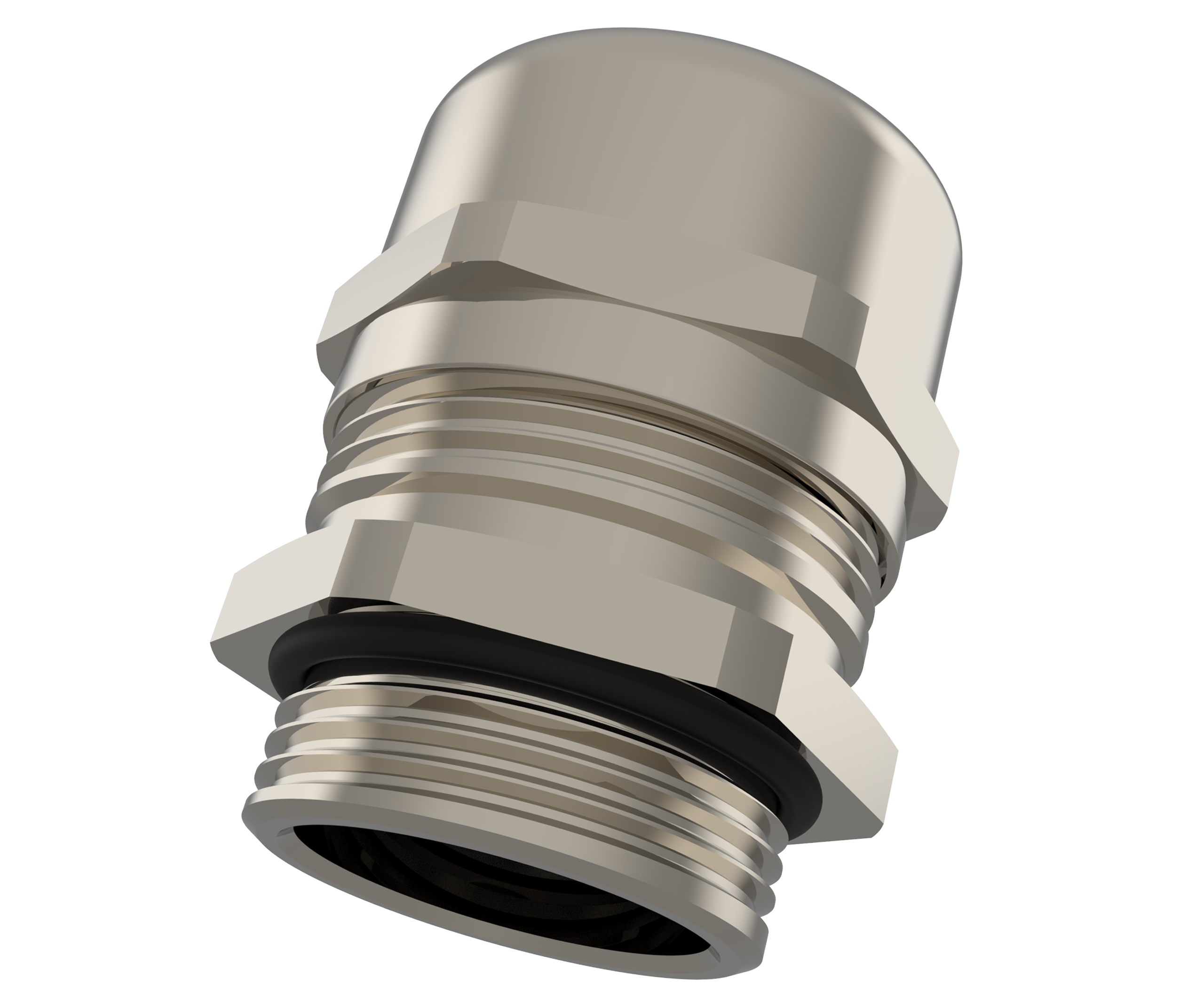

32 varianterJernbane standard metallkabelnippel
▪ Accessories must be ordered separately ▪ Other materials available on request: Stainless Steel 303, 316L, Non-Armoured, ▪ Locknut ▪ Dome plug ▪ Serrated washer ▪ Earthtag, Metric, Nickel Plated Brass, -40 °C to +100 °C, R22/HL3 acc. to EN45545-2 R23/HL3 acc. to EN45545-2, Special EPDM, Polyamide 6 V0 acc. to UL 94, IP68 - 5 Bar 30 min, IP69, IP66

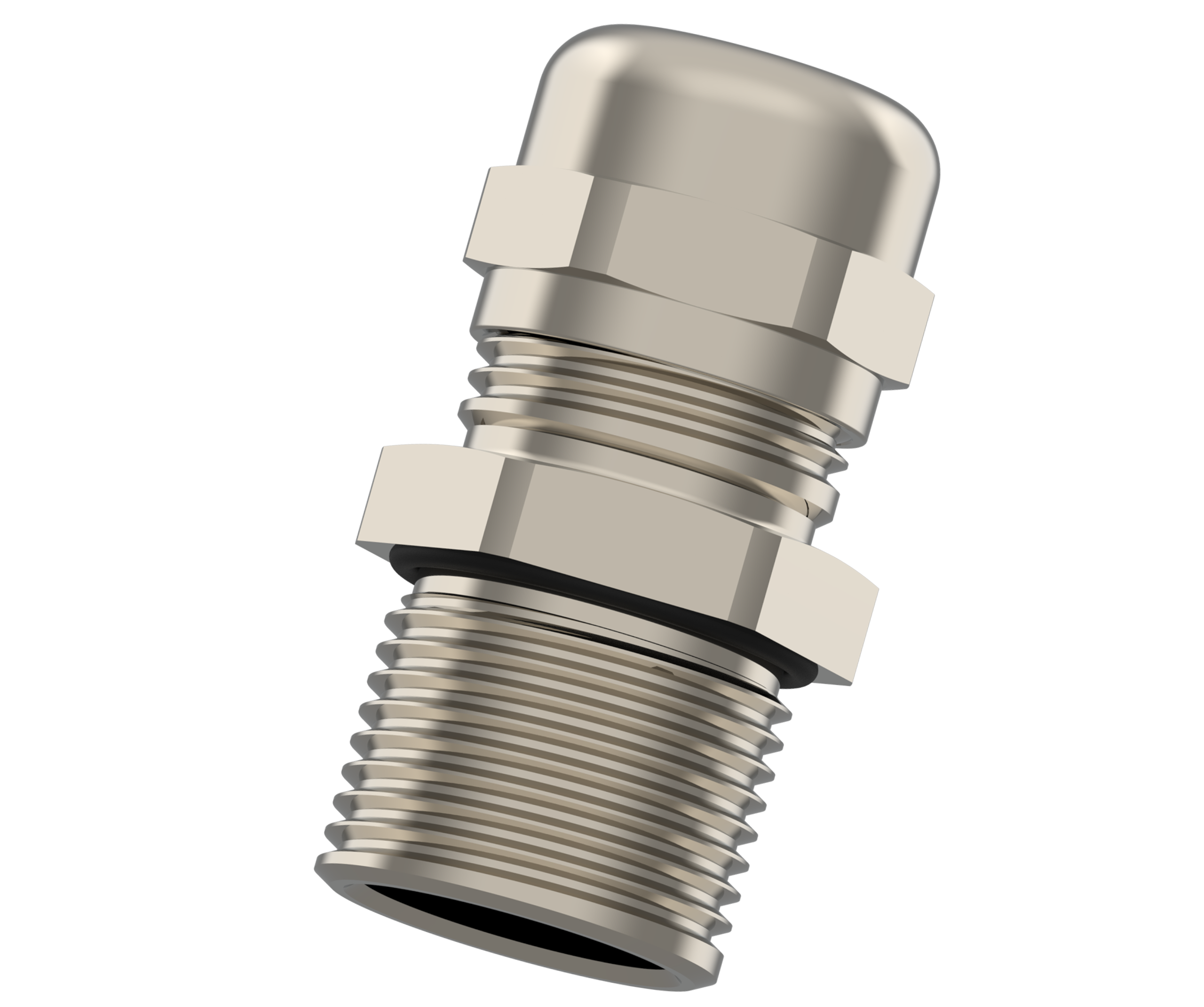

22 varianterJernbane Octans kabelnippel
▪ Accessories must be ordered separately ▪ Other materials available on request: Stainless Steel 303, 316L, Non-Armoured, ▪ Locknut ▪ Dome plug ▪ Serrated washer ▪ Earthtag, Metric, Nickel Plated Brass, -40 °C to +100 °C, R22/HL3 acc. to EN45545-2 R23/HL3 acc. to EN45545-2, Special EPDM, Polyamide 6 V0 acc. to UL 94, IP68 - 5 Bar 30 min, IP69, IP66

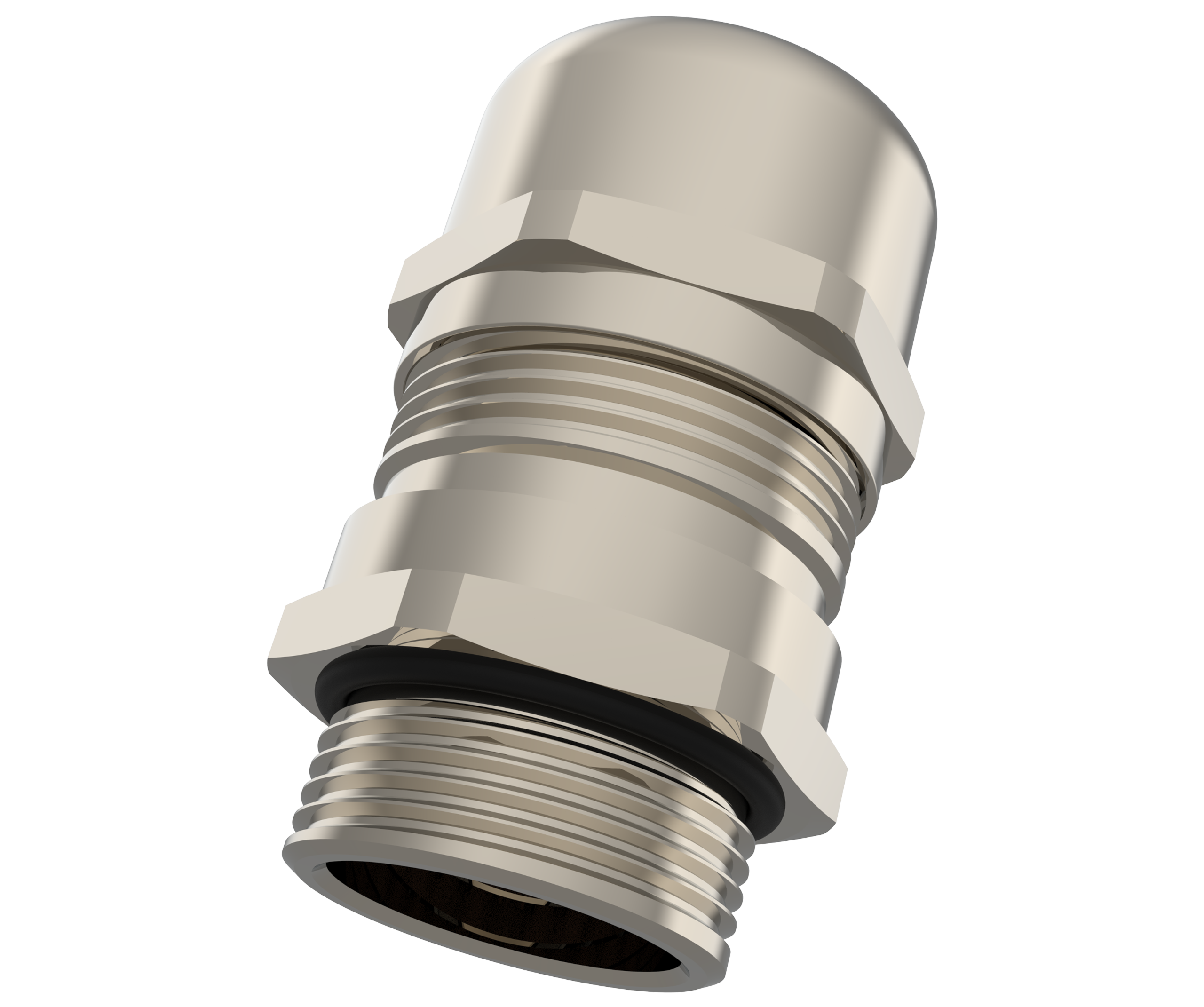

14 varianterJernbane EMC-4 kabelnippel
In compliance with DIN EN 62444. We recommend the use of threaded holes and/or the use of special EMC lock nuts to ensure high quality EMC contact quality. O-ring available in Metric as a standard. All accessories must be ordered separately., Shielded, Locknuts Dome Plug, Metric, Nickel Plated Brass, -40 °C to +100 °C, R22/HL3 acc. to EN45545-2 R23/HL3 acc. to EN45545-2, Special EPDM, Special Copper Alloy, Polyamide 6 V0 acc. to UL 94, IP68 - 5 Bar 30 min, IP69, IP66

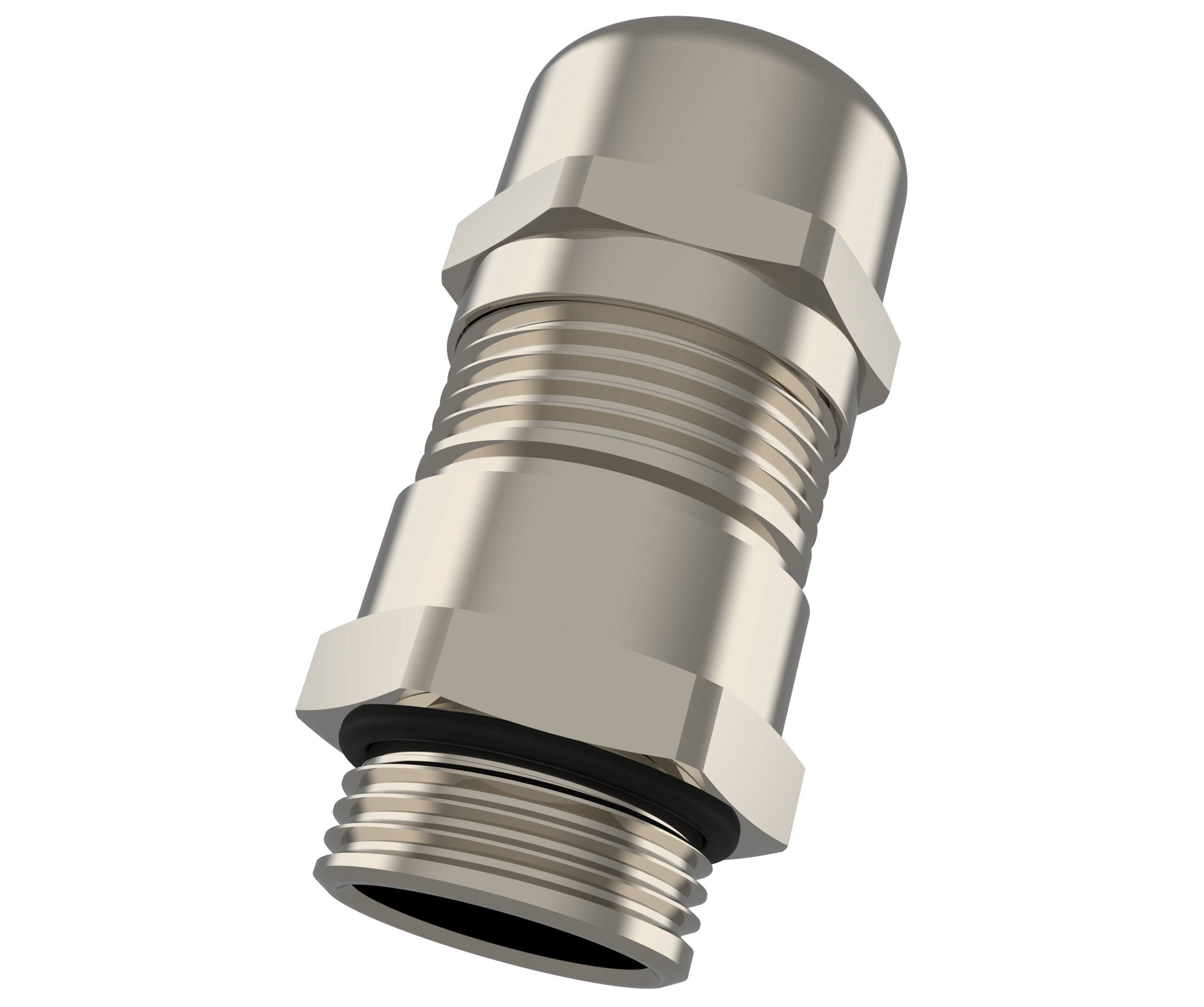

20 varianterJernbane Servo Ampacity kabelnippel
O-ring is available in Metric thread As a standard. Accessories must be ordered separately., Shielded, EMC Locknuts Dome plugs Gaskets (Washers), Metric, NPT, Nickel Plated Brass, -40 °C to +100 °C, R22/HL3 acc. to EN45545-2 R23/HL3 acc. to EN45545-2, Special EPDM, Special Copper Alloy, Polyamide 6 V0 acc. to UL 94, IP68 - 5 Bar 30 min, IP66

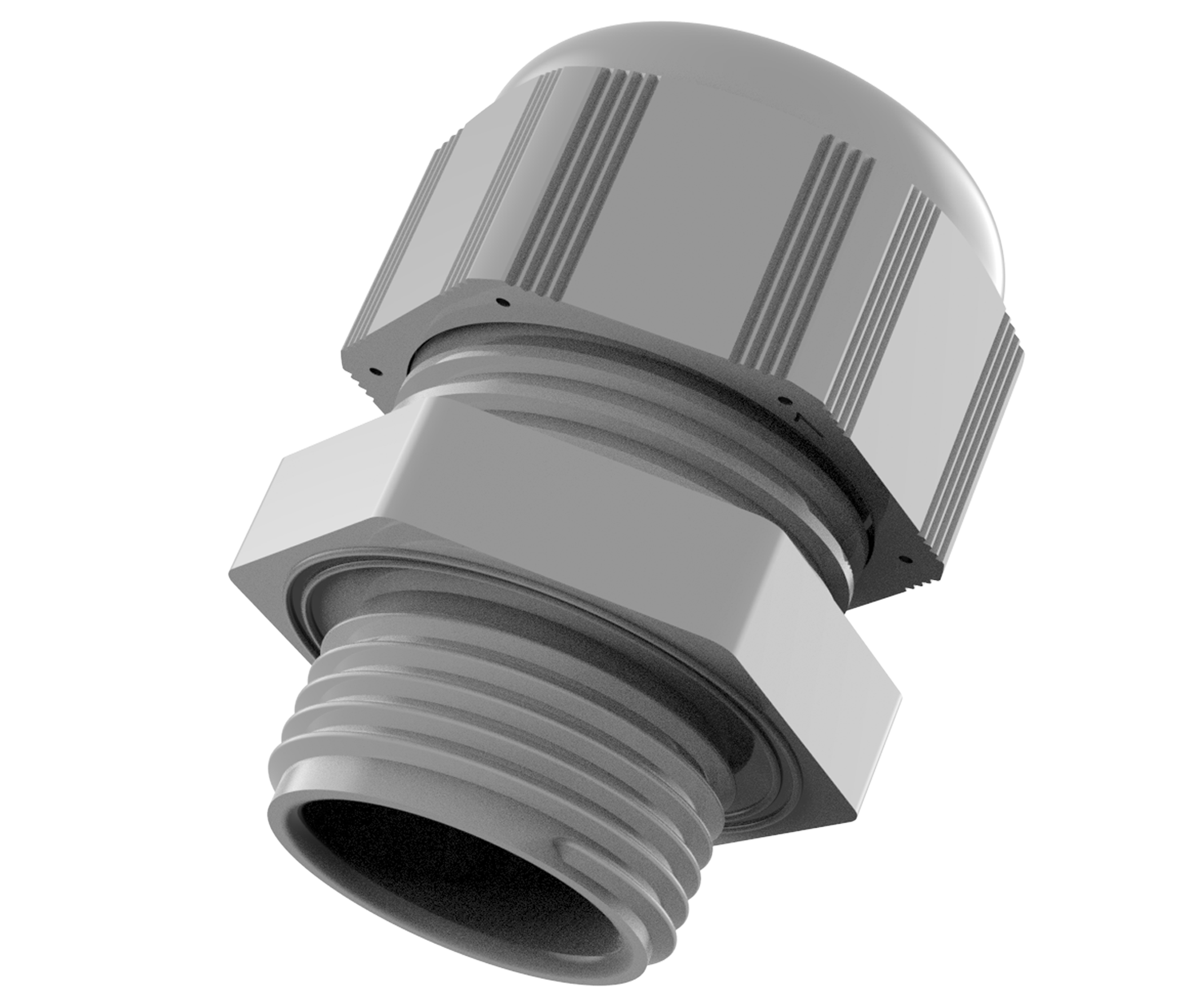

55 varianterJernbane plast kabelnippel
▪ Accessories must be ordered separately ▪ Other materials available on request: Stainless Steel 303, 316L, Non-Armoured, ▪ Locknut ▪ Dome plug ▪ Serrated washer ▪ Earthtag, Metric, Nickel Plated Brass, -40 °C to +100 °C, R22/HL3 acc. to EN45545-2 R23/HL3 acc. to EN45545-2, Special EPDM, Polyamide 6 V0 acc. to UL 94, IP68 - 5 Bar 30 min, IP69, IP66
Kabelnippler godkjent for jernbaneapplikasjoner i henhold til EN 45545-standarden for brannsikkerhet i skinnegående kjøretøy. Materialene tilfredsstiller kravene til røykutvikling, giftighet og flammespredning for bruk i tog, trikk og t-baner. Leveres i halogenfrie materialer for personsikkerhetsapplikasjoner der krav til røykfrihet er kritisk.
