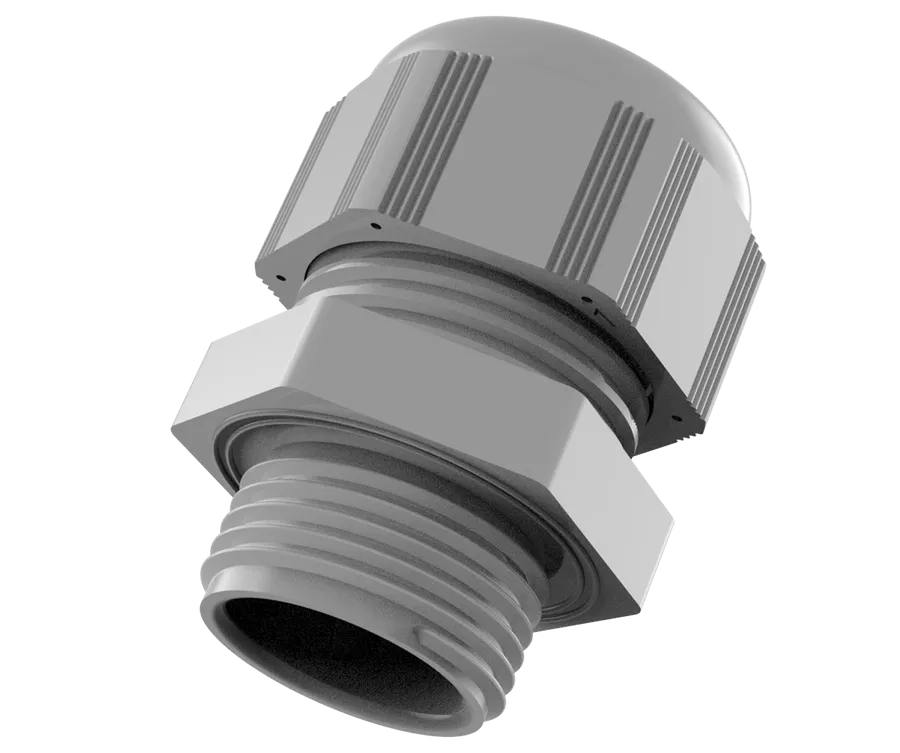

Jernbane plast kabelnippel
○Kabelnippel i plast for jernbaneapplikasjoner med høy strekkavlastning og oppdaterte internasjonale godkjenninger
○Enkel montering.

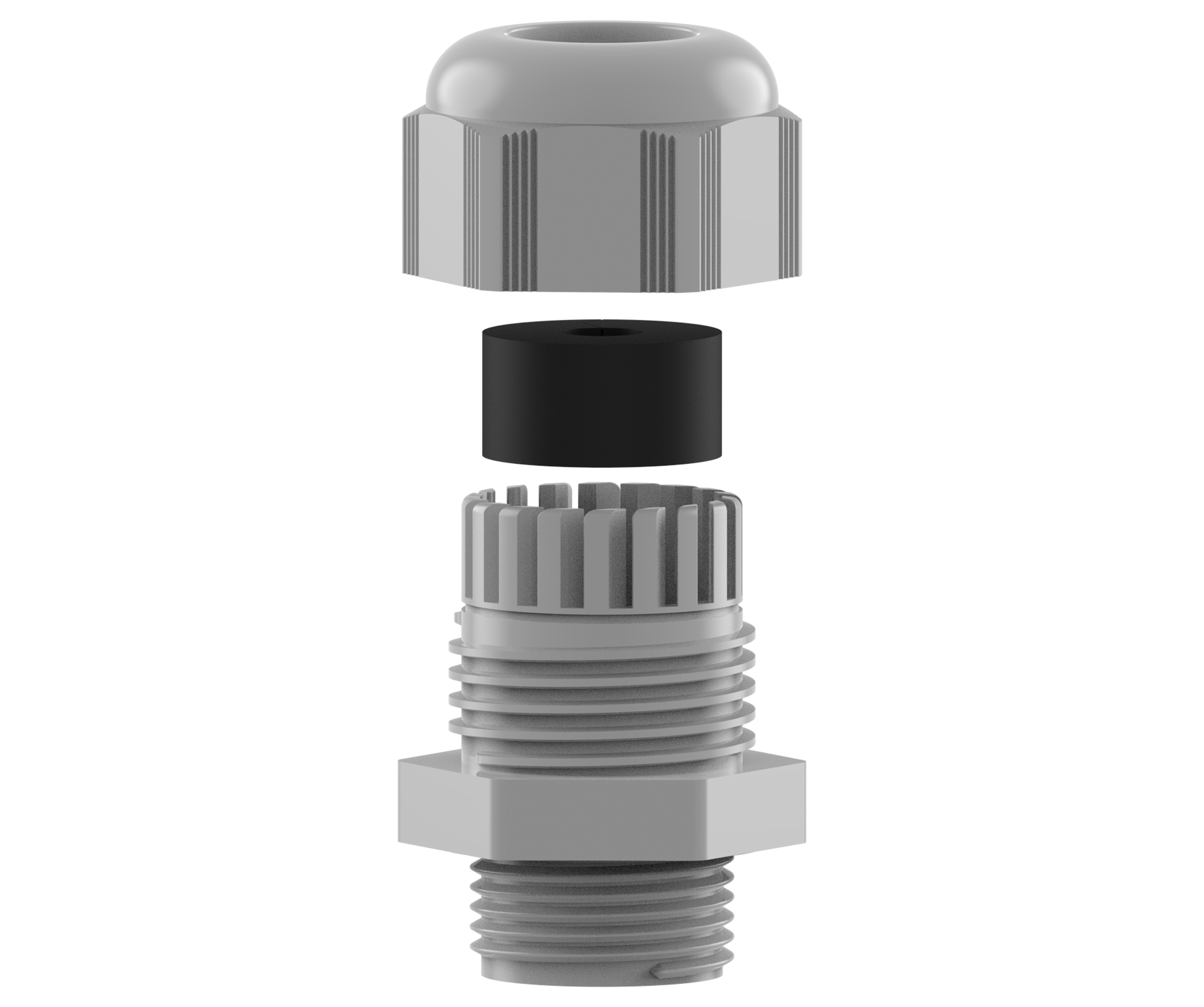

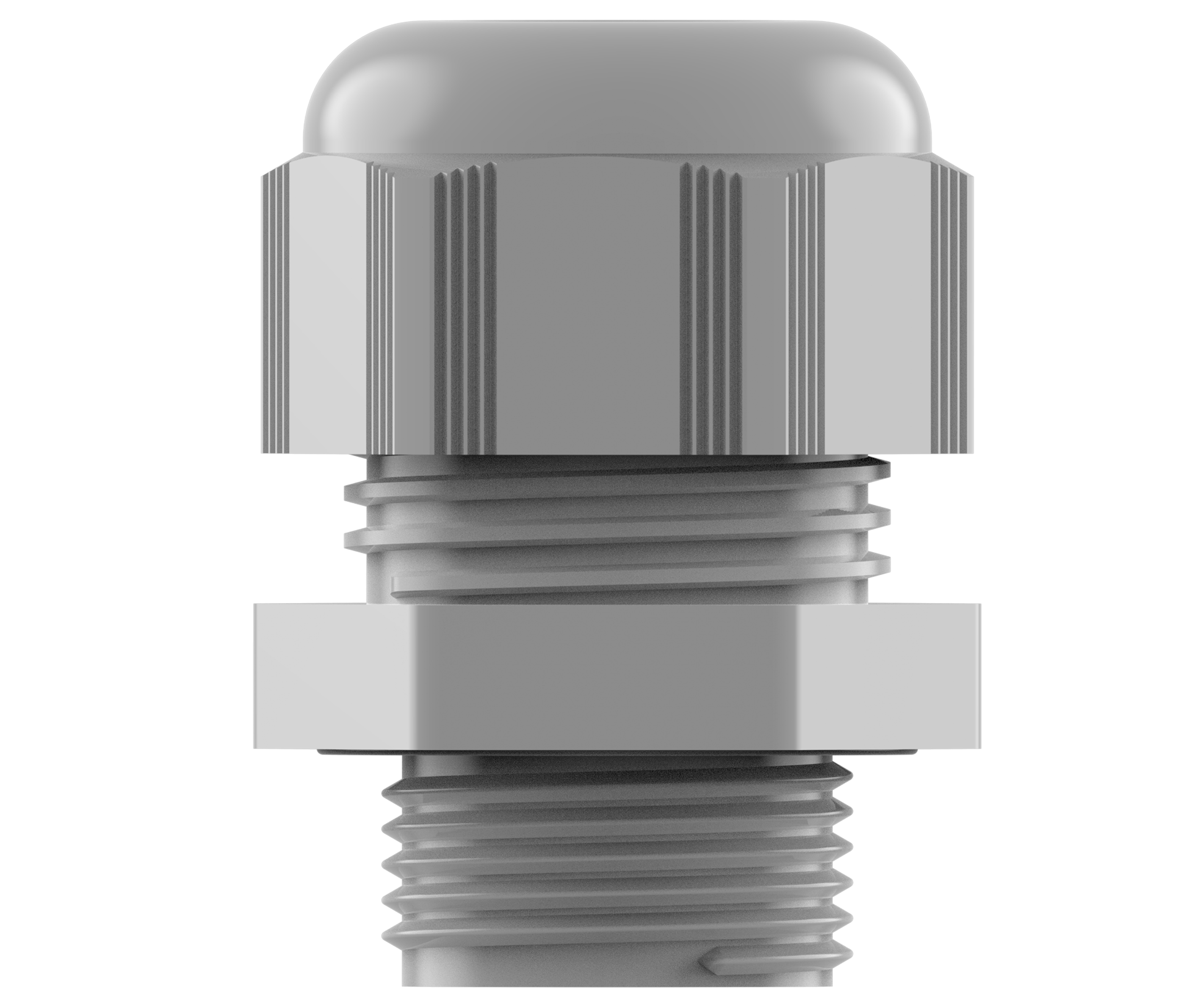

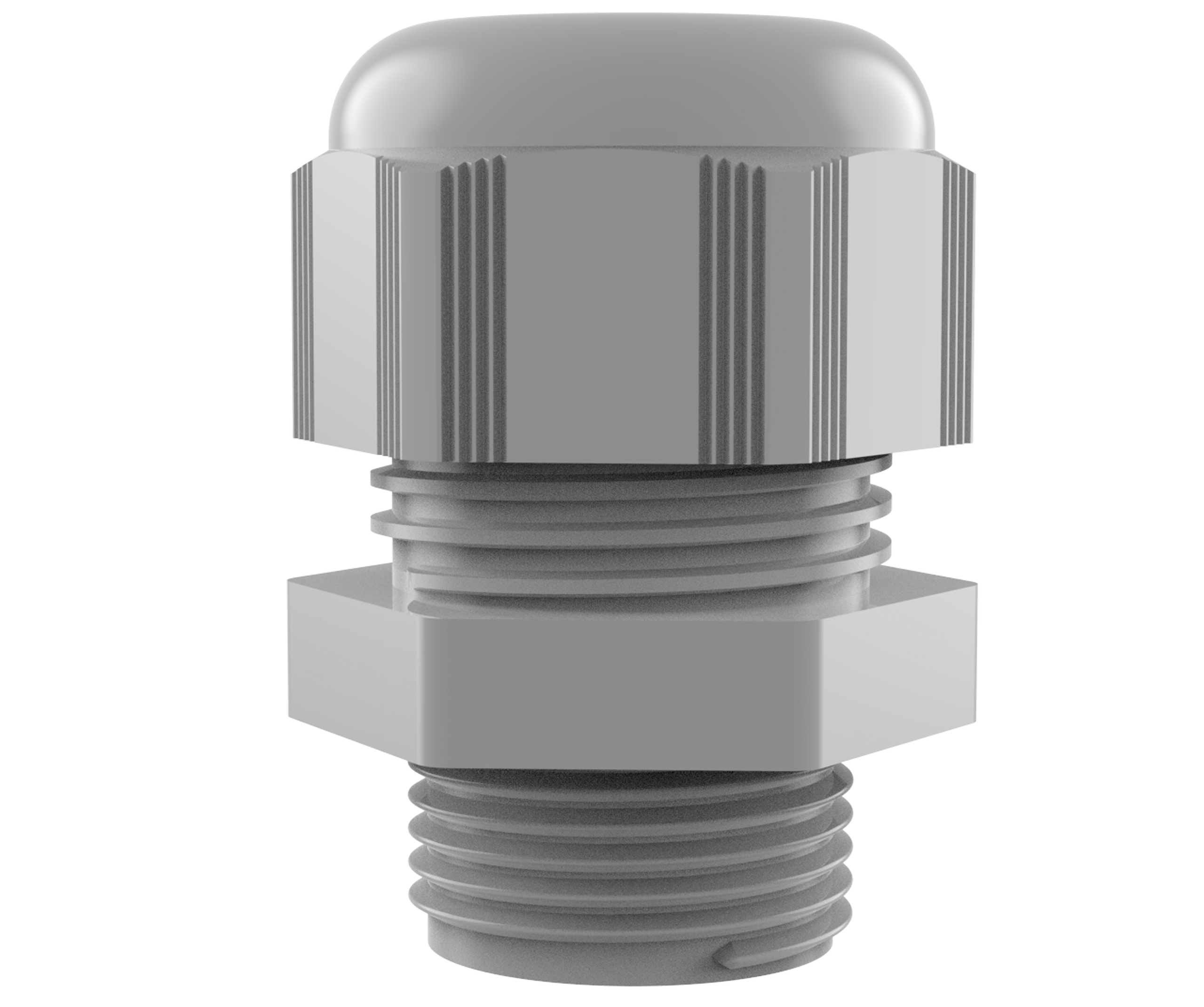

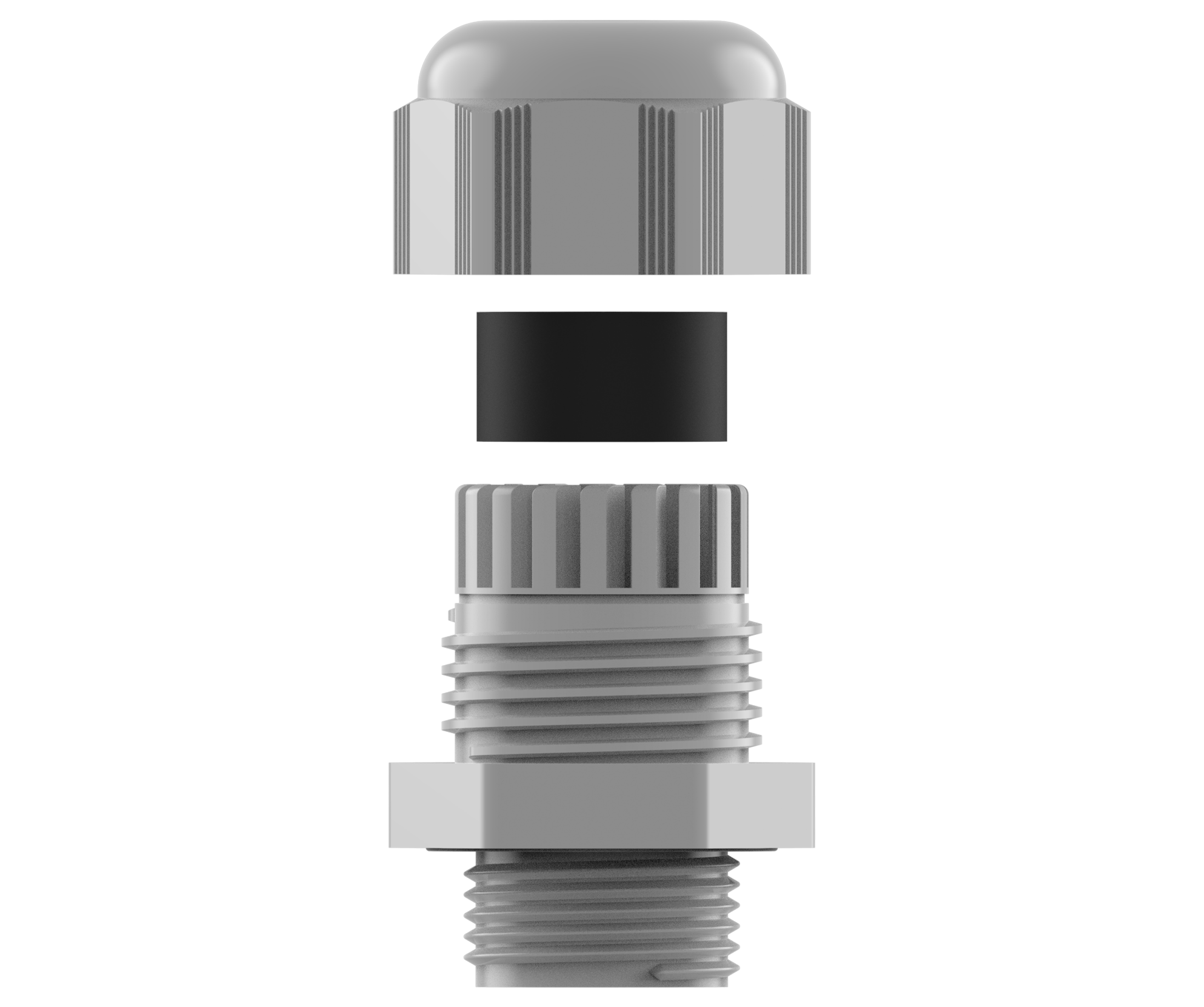

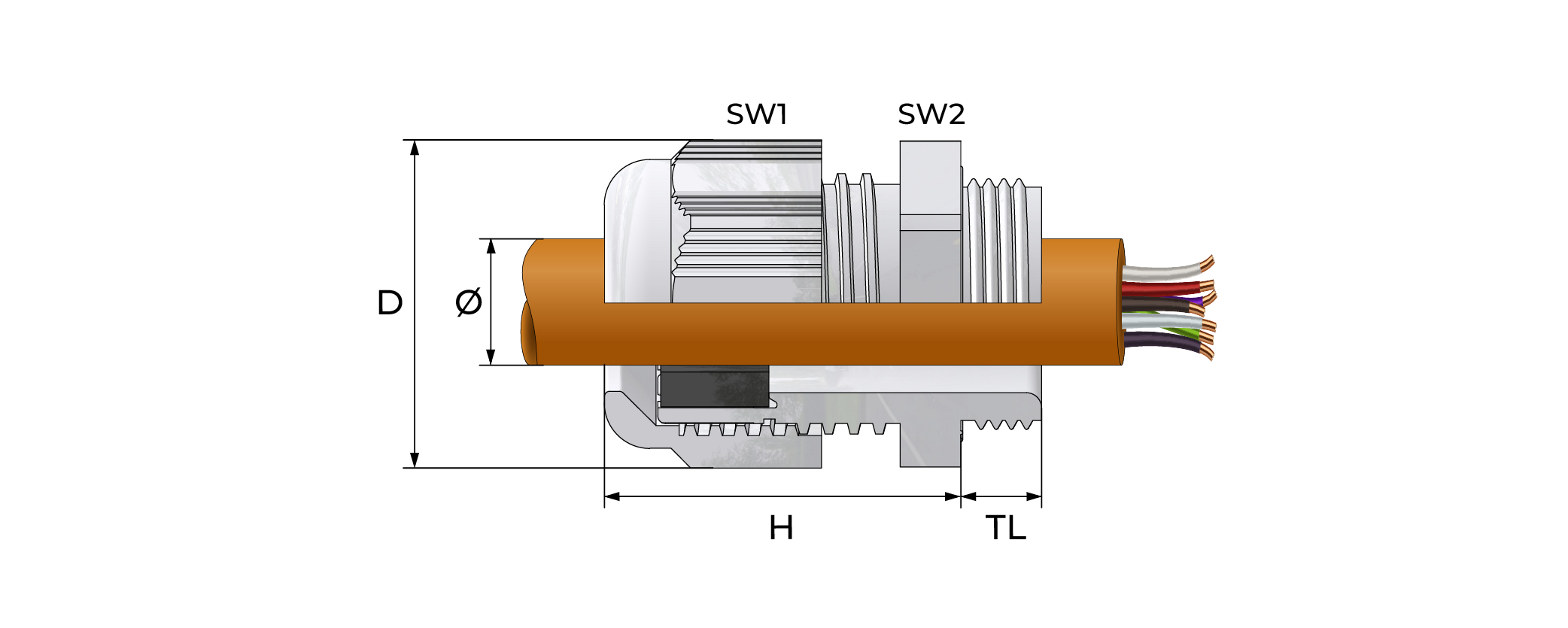

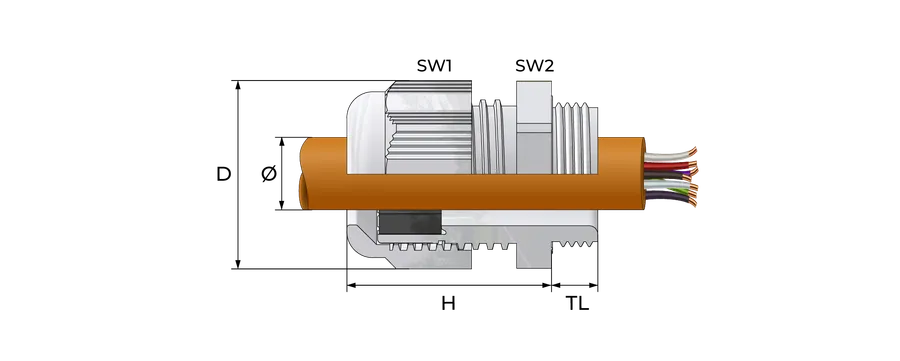

Spesifikasjoner
| Gjengestørrelse | Klemområdet | Gjengelengde | Nøkkelvidde | Diameter | Maks høyde 'H' | Varenummer | BIMED Kode | 3D File |
|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 3,0 - 6,5 | 8 | 15/15 | 17 | 25.3 | — | R-BM-1S | — |
| M12x1,5 | 3,0 - 6,5 | 8 | 15/15 | 17 | 25.3 | — | R-BM-2S | — |
| M16x1,5 | 4,0 - 8,0 | 8 | 19/19 | 21.7 | 27.4 | — | R-BM-EN-11 | — |
| M16x1,5 | 4,0 - 8,0 | 8 | 19/19 | 21.7 | 27.4 | — | R-BM-EN-21 | — |
| M16x1,5 | 4,0 - 8,0 | 10 | 19/19 | 21.7 | 27.4 | — | R-BM-EN-11M | — |
| M16x1,5 | 4,0 - 8,0 | 10 | 19/19 | 21.7 | 27.4 | — | R-BM-EN-21M | — |
| M16x1,5 | 5,0 - 10,0 | 10 | 22/22 | 25 | 32.2 | — | R-BM-11 | — |
| M16x1,5 | 5,0 - 10,0 | 10 | 22/22 | 25 | 32.2 | — | R-BM-21 | — |
| M16x1,5 | 5,0 - 10,0 | 15 | 22/22 | 25 | 32.2 | — | R-BM-11L | — |
| M16x1,5 | 5,0 - 10,0 | 15 | 22/22 | 25 | 32.2 | — | R-BM-21L | — |
| M20x1,5 | 6,0 - 12,0 | 15 | 24/24 | 27 | 32.4 | — | R-BM-22L | — |
| M20x1,5 | 10,0 - 14,0 | 10 | 27/27 | 30.9 | 31.9 | — | R-BM-13 | — |
| M20x1,5 | 6,0 - 12,0 | 10 | 24/24 | 27 | 32.4 | — | R-BM-12 | — |
| M20x1,5 | 6,0 - 12,0 | 10 | 24/24 | 27 | 32.4 | — | R-BM-22 | — |
| M20x1,5 | 6,0 - 12,0 | 15 | 24/24 | 27 | 32.4 | — | R-BM-12L | — |
| M20x1,5 | 10,0 - 14,0 | 10 | 27/27 | 30.9 | 31.9 | — | R-BM-23 | — |
| M20x1,5 | 10,0 - 14,0 | 15 | 27/27 | 30.9 | 31.9 | — | R-BM-14 | — |
| M20x1,5 | 10,0 - 14,0 | 15 | 27/27 | 30.9 | 31.9 | — | R-BM-24 | — |
| M25x1,5 | 13,0 - 18,0 | 10 | 33/33 | 37.2 | 38.4 | — | R-BM-15 | — |
| M25x1,5 | 13,0 - 18,0 | 10 | 33/33 | 37.2 | 38.4 | — | R-BM-25 | — |
| M25x1,5 | 13,0 - 18,0 | 15 | 33/33 | 37.2 | 38.4 | — | R-BM-16 | — |
| M25x1,5 | 13,0 - 18,0 | 15 | 33/33 | 37.2 | 38.4 | — | R-BM-26 | — |
| M32x1,5 | 18,0 - 25,0 | 15 | 42/42 | 47.1 | 43.3 | — | R-BM-17 | — |
| M32x1,5 | 18,0 - 25,0 | 15 | 42/42 | 47.1 | 43.3 | — | R-BM-27 | — |
| M40x1,5 | 22,0 - 32,0 | 18 | 53/53 | 59.6 | 52.4 | — | R-BM-18 | — |
| M40x1,5 | 22,0 - 32,0 | 18 | 53/53 | 59.6 | 52.4 | — | R-BM-28 | — |
