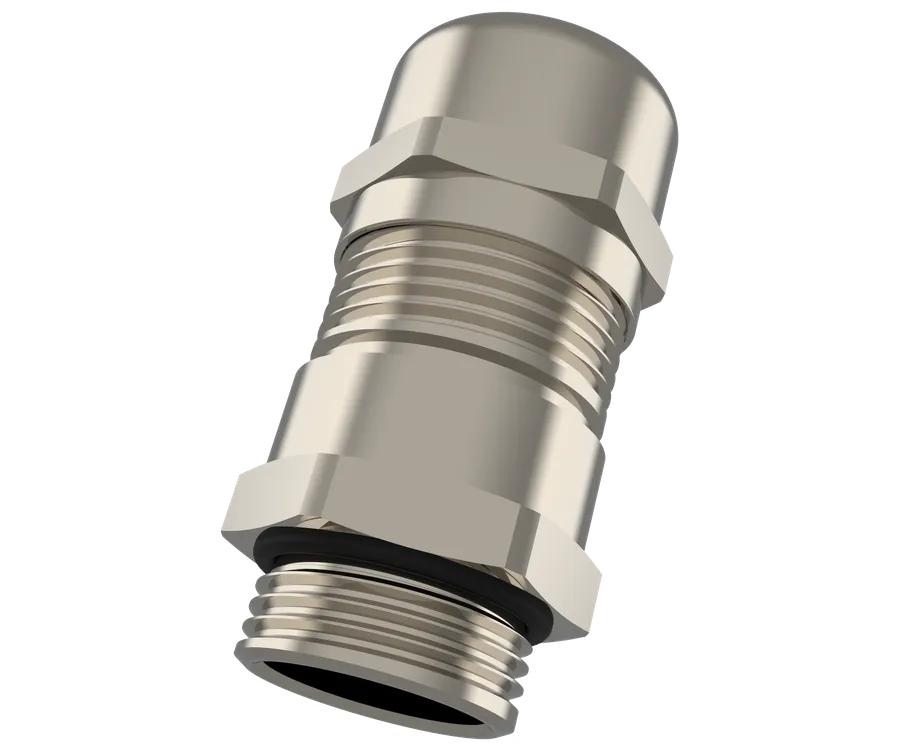

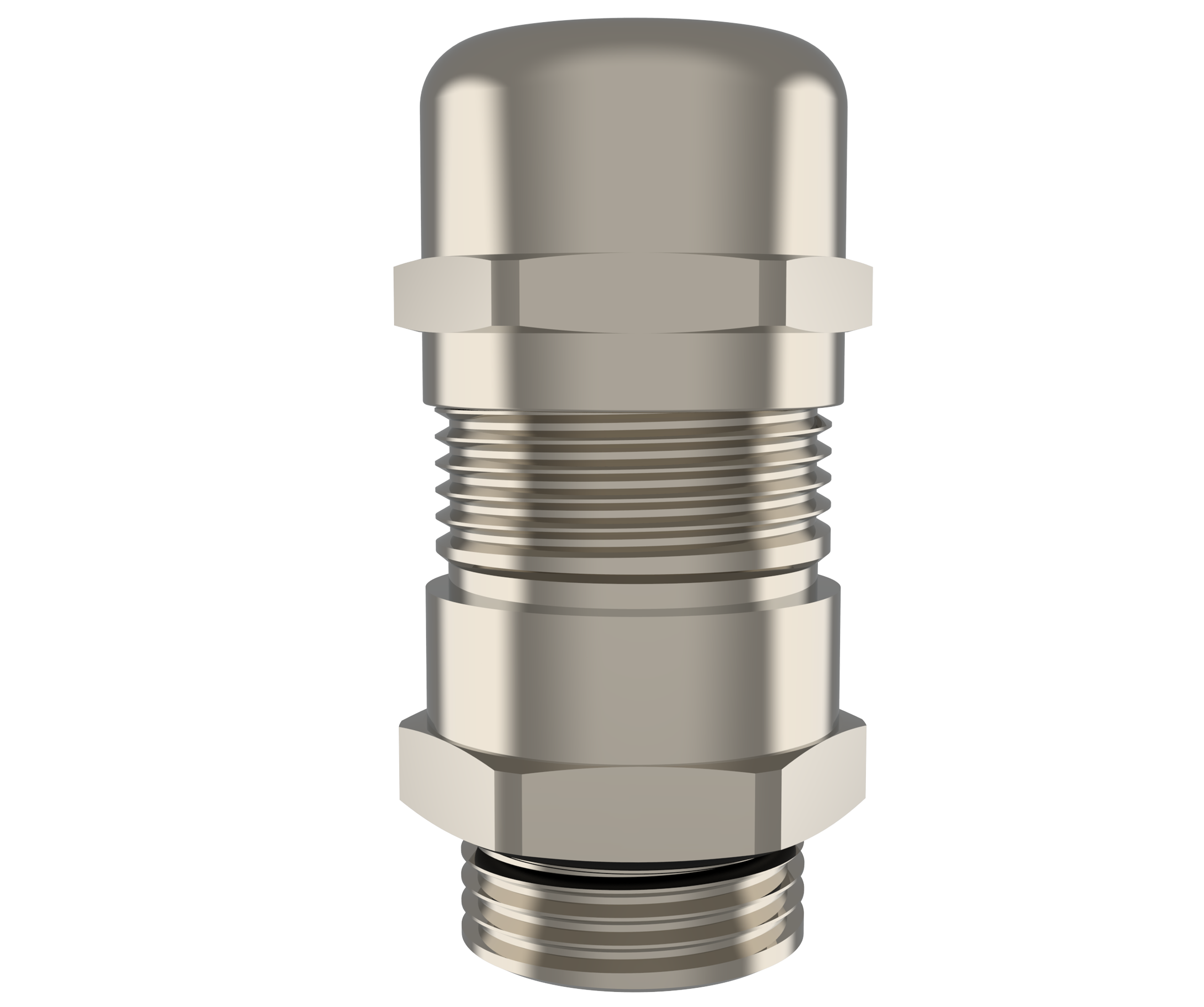

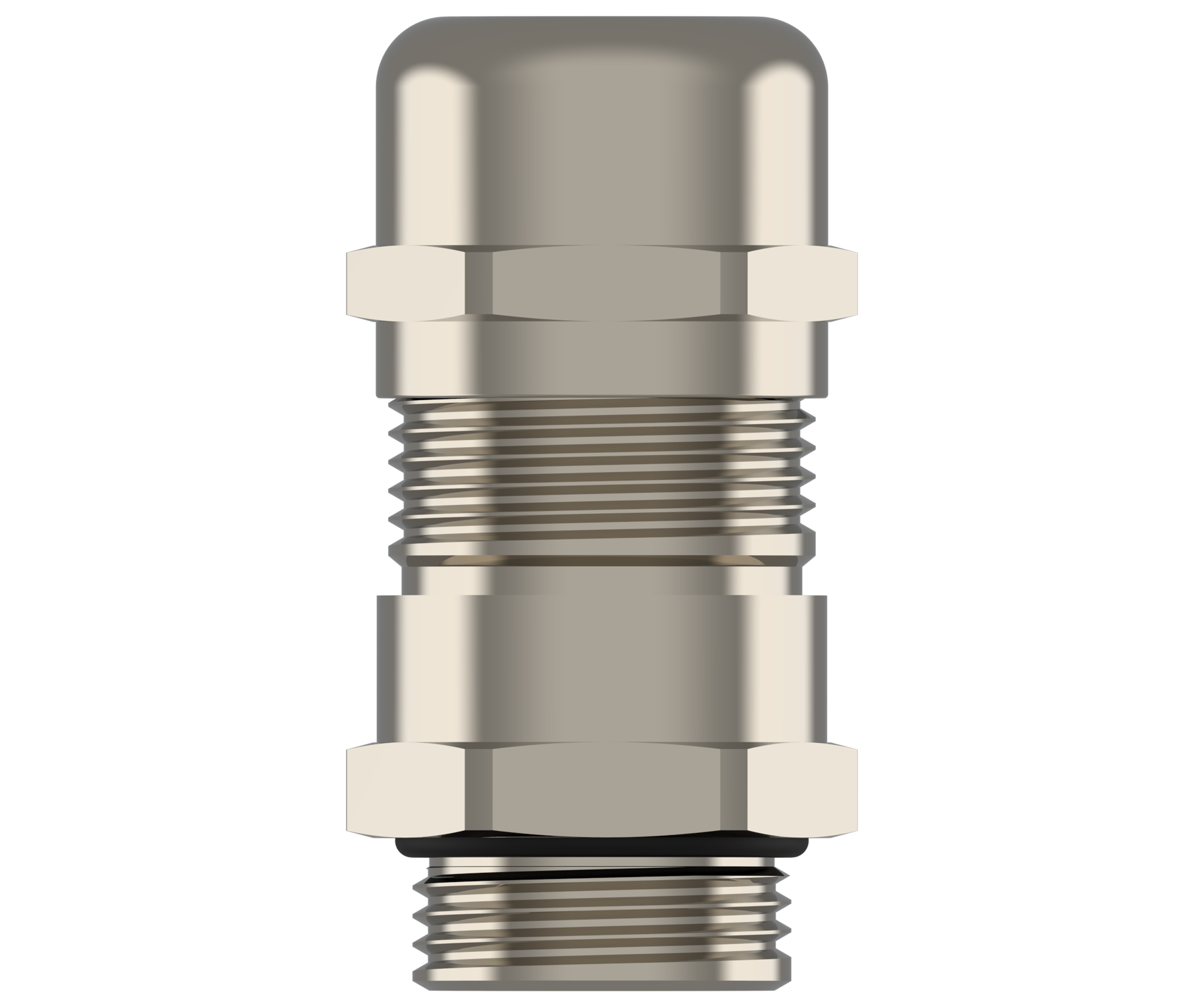

Jernbane Servo Ampacity kabelnippel

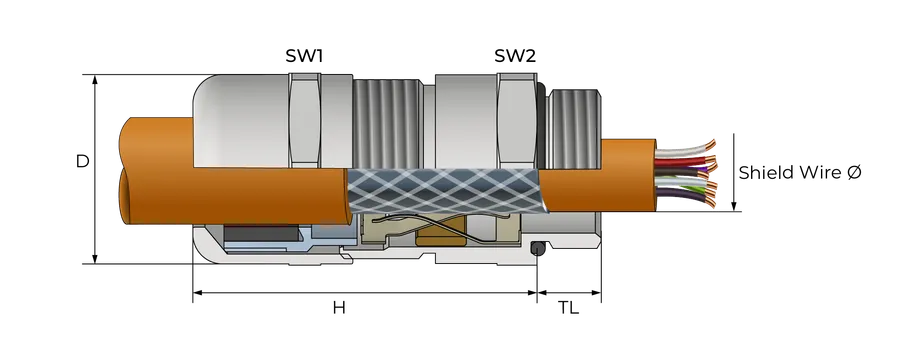

○EMC-kabelnippel for jernbane og høystrømsapplikasjoner med vibrasjonssikker ytelse via doble EMC-fjærer
○Enkel montering: installer kabelnippel – forbered kabelkappe – før inn kabel – stram kappe.
Spesifikasjoner

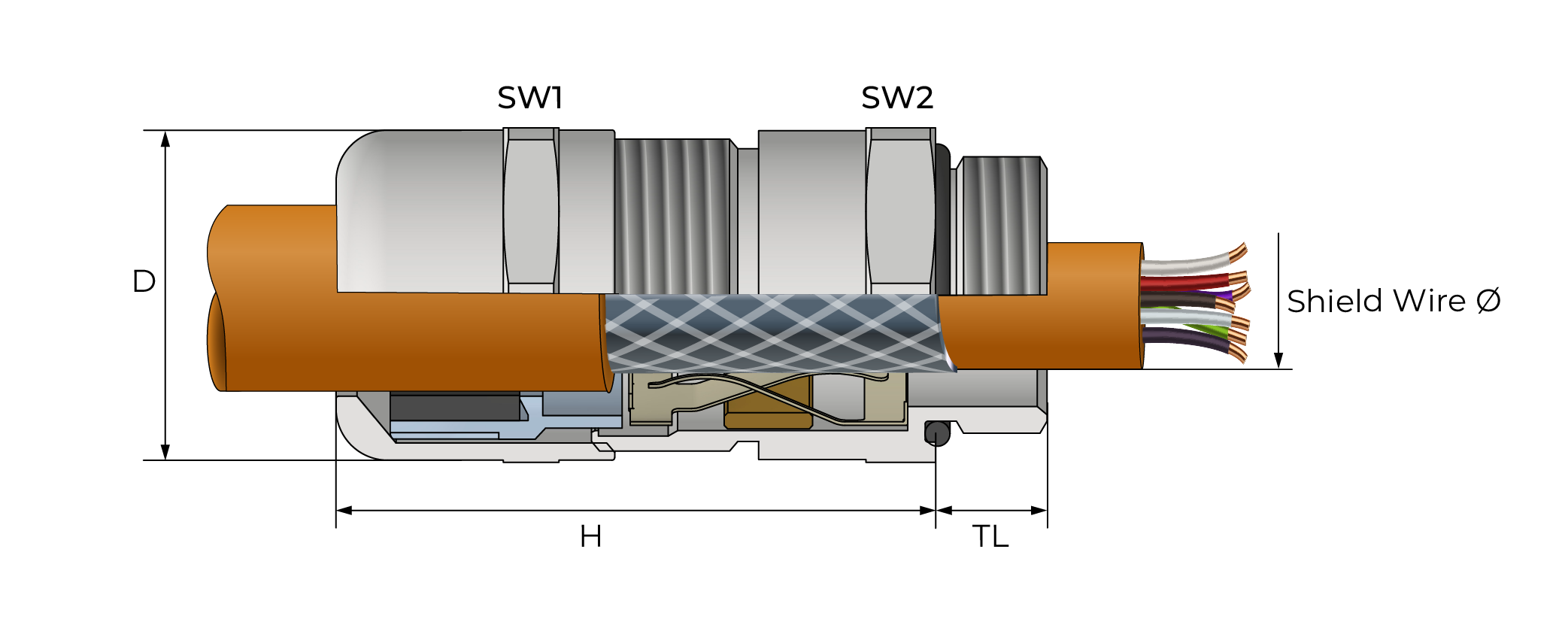

| Gjengestørrelse | Klemområdet | Gjengelengde | Nøkkelvidde | Skjermdiameter | Diameter | Maks høyde 'H' | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|
| M20x1,5 | 6,0 – 12,0 | 8 | 22/22 | 4,5 – 10,0 | 24.5 | 42.5 | — | R-BMEM-52S | — | |
| M20x1,5 | 7,5 – 14,0 | 8 | 24/24 | 5,5 – 11,0 | 27 | 47 | — | R-BMEM-52 | Get File | |
| M25x1,5 | 10,0 – 18,0 | 8 | 30/30 | 7,0 – 14,0 | 33 | 52 | — | R-BMEM-53 | — | |
| M32x1,5 | 16,0 – 25,0 | 9 | 40/40 | 12,0 – 20,0 | 44.5 | 60 | — | R-BMEM-54 | — | |
| M40x1,5 | 22,0 – 32,0 | 9 | 50/50 | 18,0 – 27,0 | 64 | 66.5 | — | R-BMEM-55 | — |
