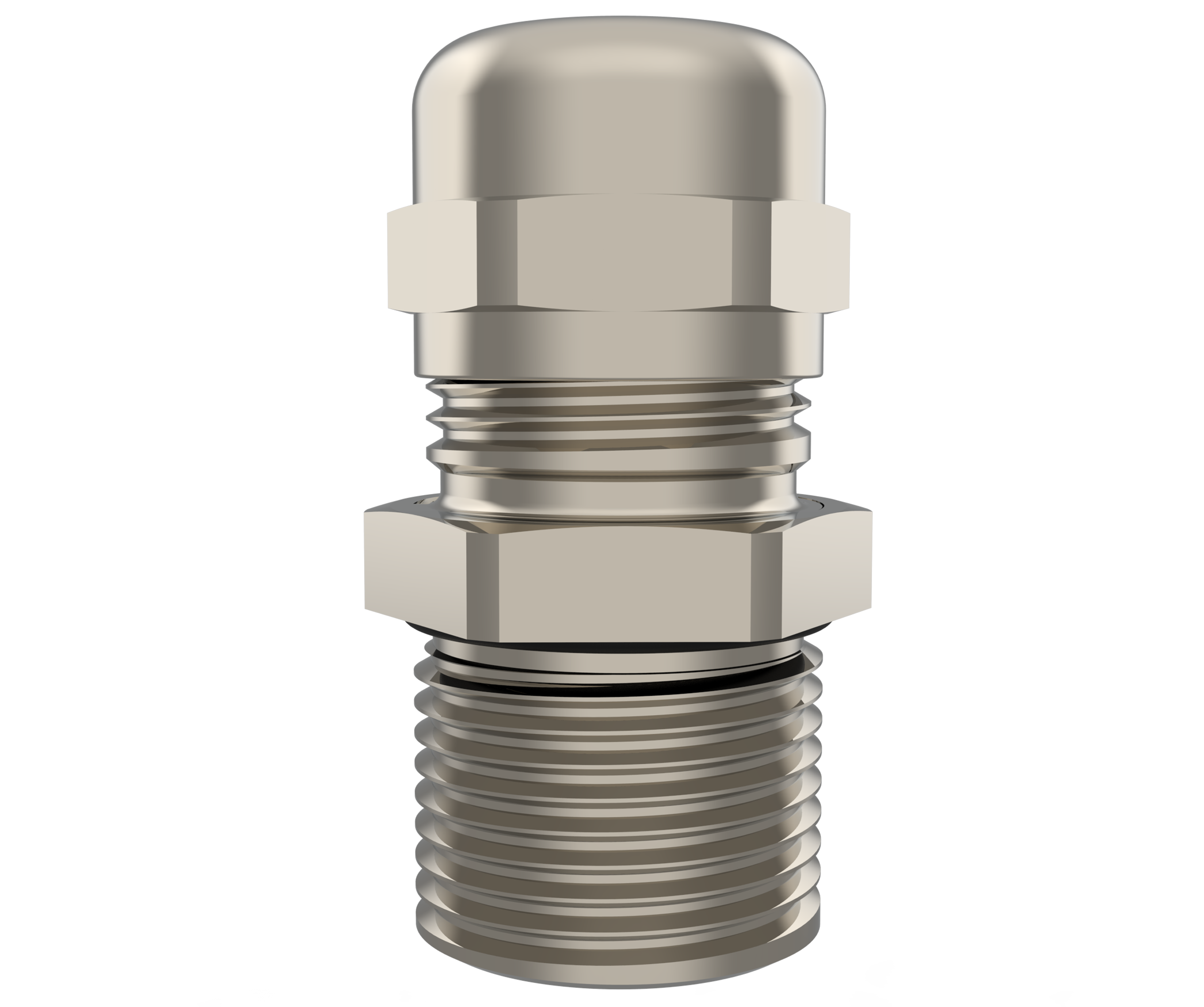

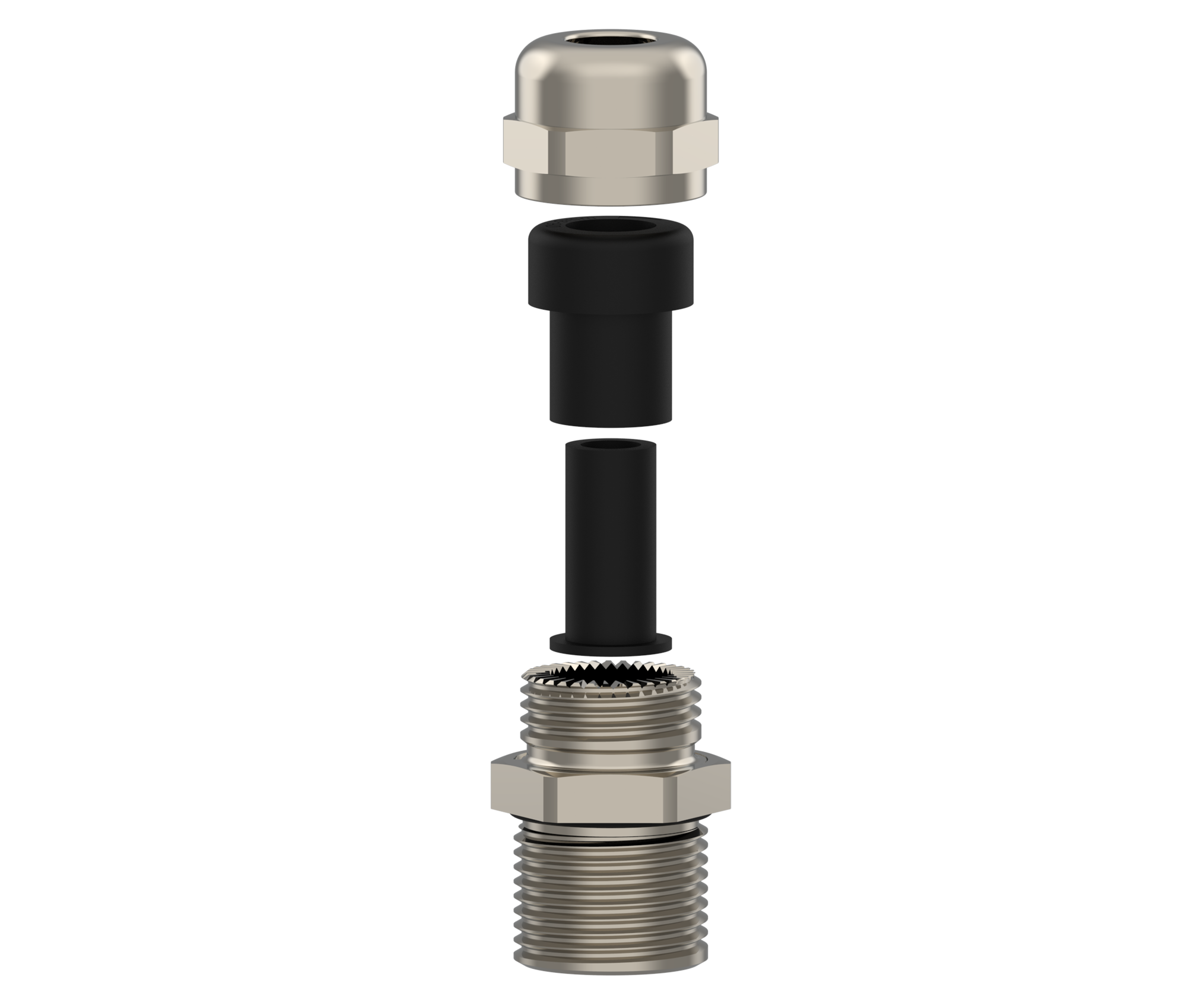

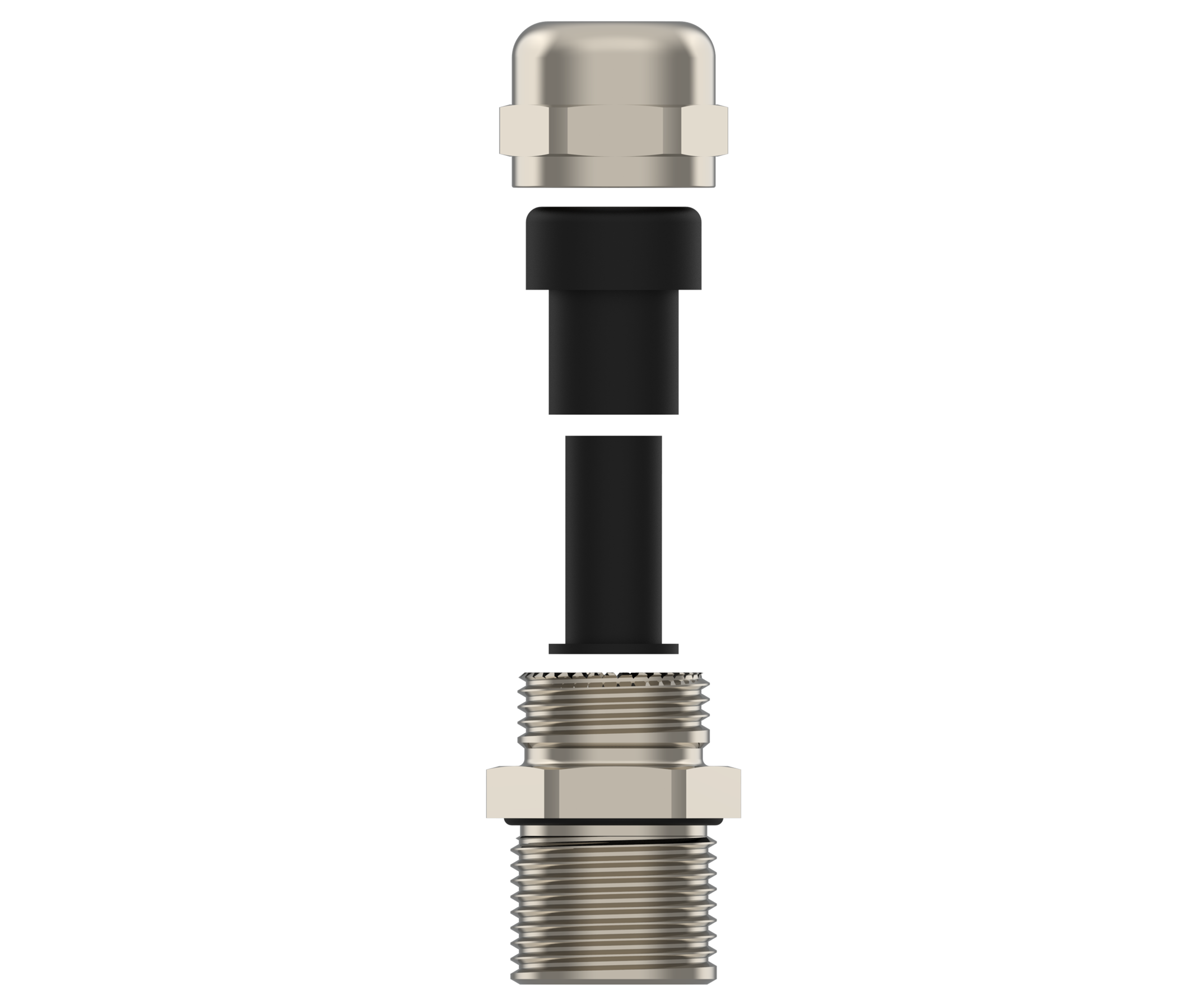

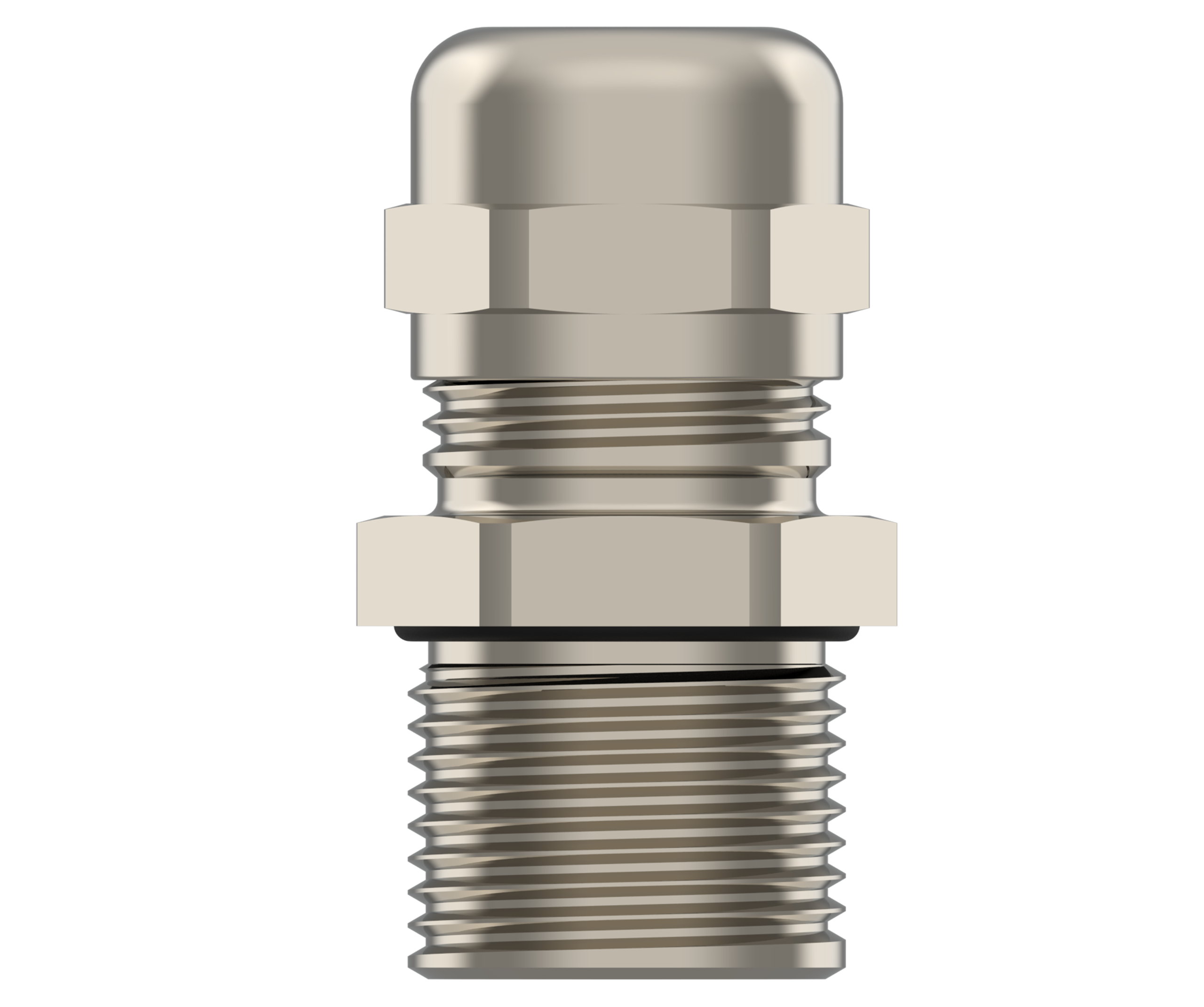

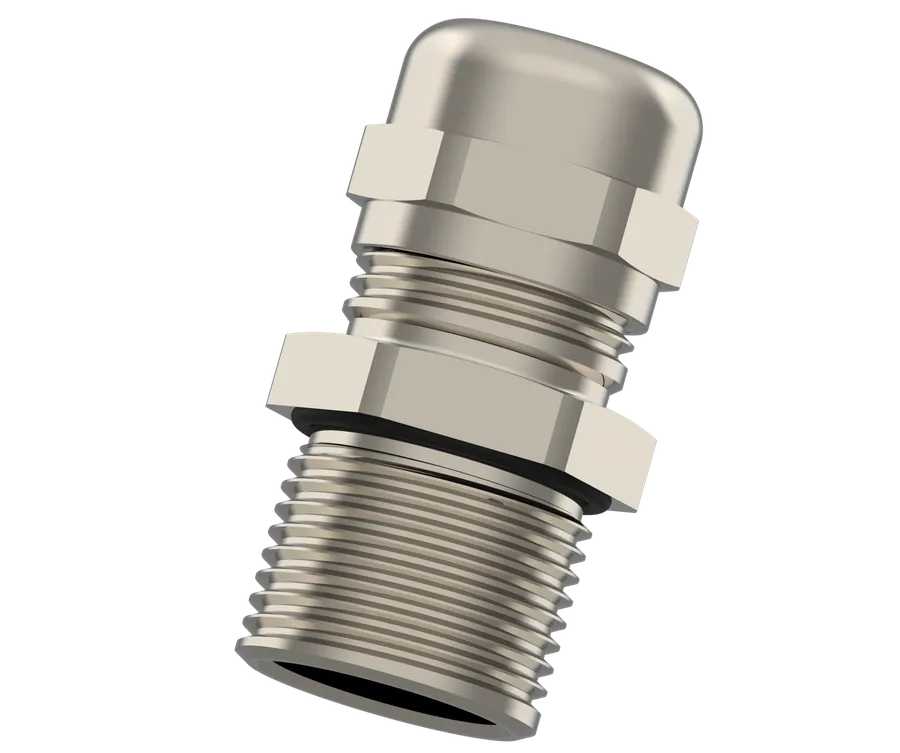

Jernbane Octans kabelnippel
○Kabelnippel for jernbaneapplikasjoner med høy strekkavlastning og oppdaterte internasjonale godkjenninger
○Enkel montering.
Spesifikasjoner

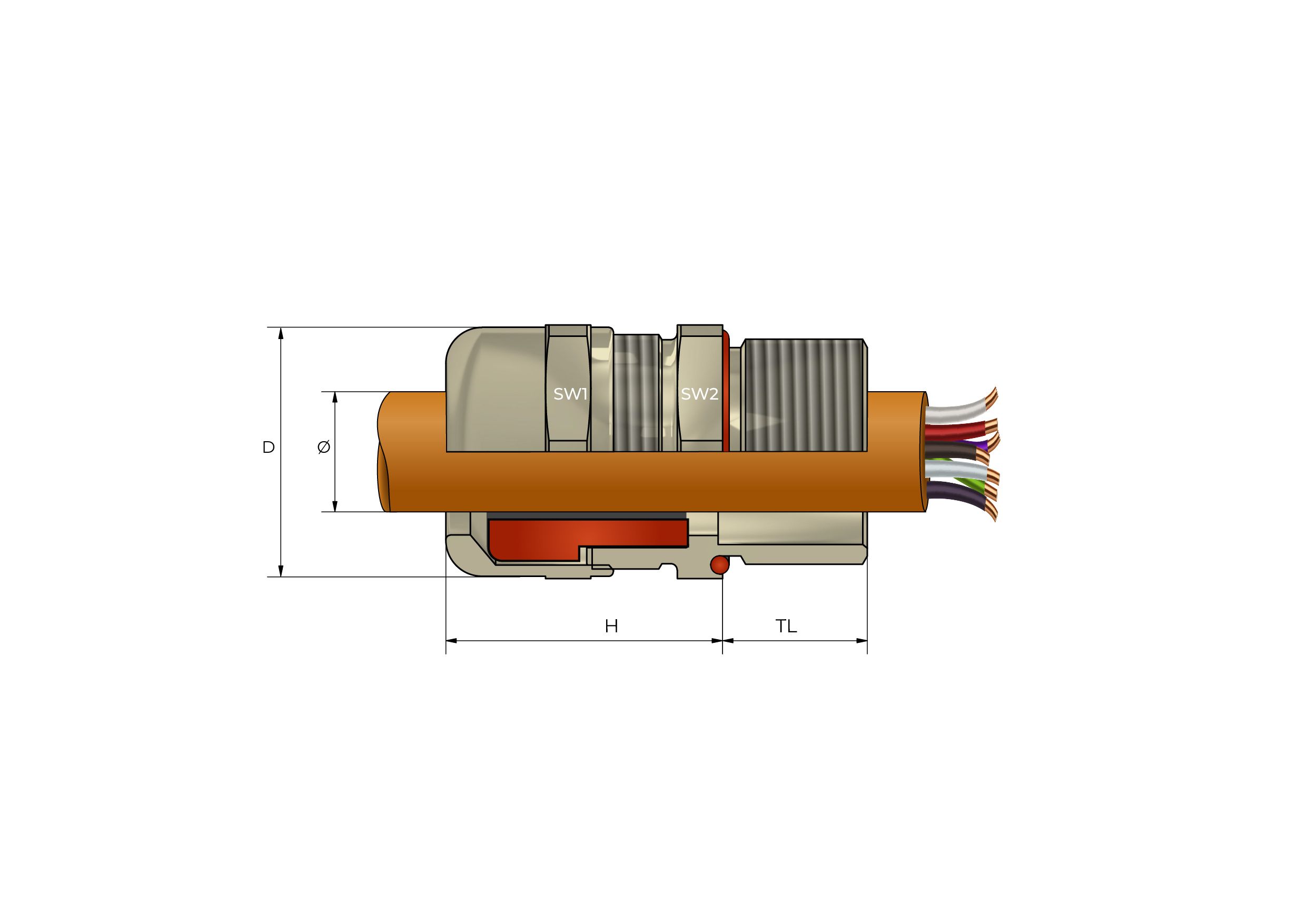

| Gjengestørrelse | Klemområdet | Gjengelengde | Nøkkelvidde | Diameter | Maks høyde 'H' | Seal Type | Varenummer | BIMED Kode | 3D File |
|---|---|---|---|---|---|---|---|---|---|
| M20x1,5 | 4,0 - 12,0 | 9 | 22/22 | 24.5 | 29 | Triple | — | R-BU1MBNE | — |
| M20x1,5 | 10,0 - 16,0 | 9 | 28/28 | 31 | 32 | Triple | — | R-BU12MBNE | — |
| M25x1,5 | 4,0 - 12,0 | 9 | 22/28 | 31 | 29 | Triple | — | R-BU2SMBNE | — |
| M25x1,5 | 10,0 - 18,0 | 9 | 28/28 | 31 | 32.5 | Triple | — | R-BU2MBNE | — |
| M32x1,5 | 10,0 - 18,0 | 9 | 28/35 | 39 | 32.5 | Triple | — | R-BU3SMBNE | — |
| M32x1,5 | 14,0 - 24,0 | 9 | 35/35 | 39 | 35 | Triple | — | R-BU3MBNE | — |
| M32x1,5 | 22,0 - 28,0 | 9 | 45/45 | 49.5 | 42.5 | Triple | — | R-BU34MBNE | — |
| M40x1,5 | 14,0 - 24,0 | 9 | 35/45 | 49.5 | 35 | Triple | — | R-BU4SMBNE | — |
| M40x1,5 | 22,0 - 32,0 | 9 | 45/45 | 49.5 | 42.5 | Triple | — | R-BU4MBNE | — |
| M50x1,5 | 26,0 - 35,0 | 9 | 50/55 | 61 | 45.5 | Triple | — | R-BU5MBNE | — |
| M50x1,5 | 35,0 - 44,0 | 9 | 64/64 | 70 | 45 | Triple | — | R-BU56MBNE | — |
