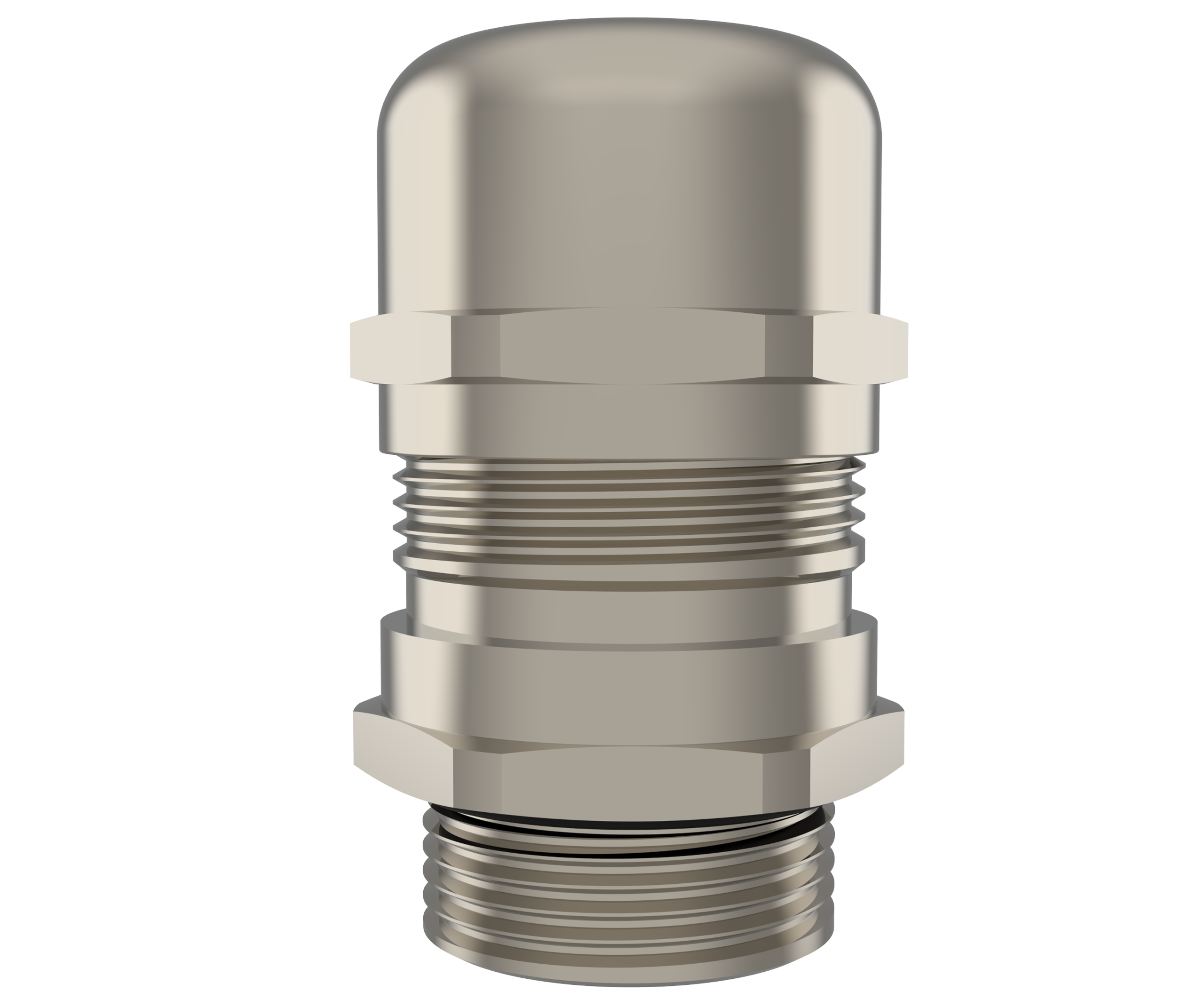

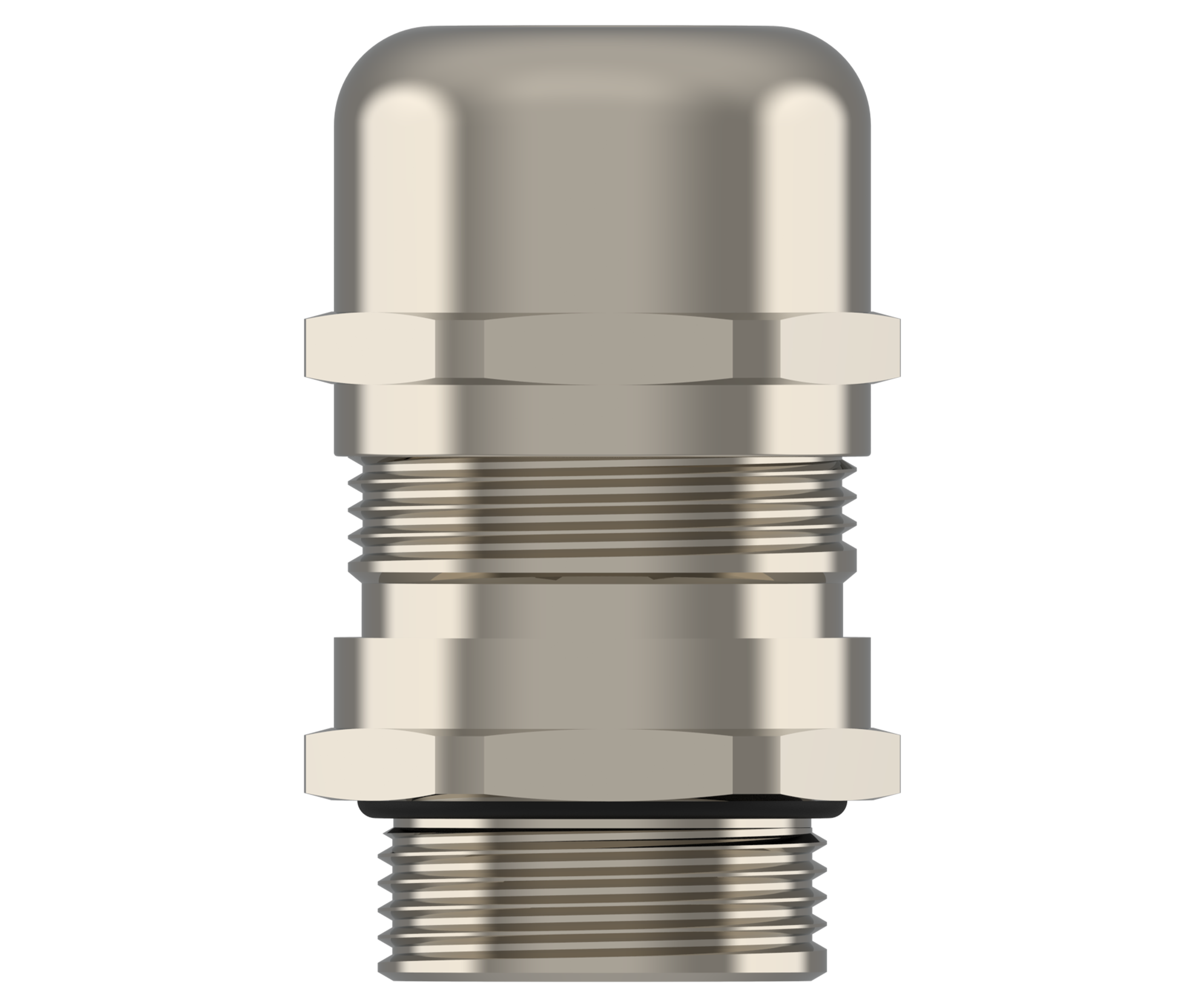

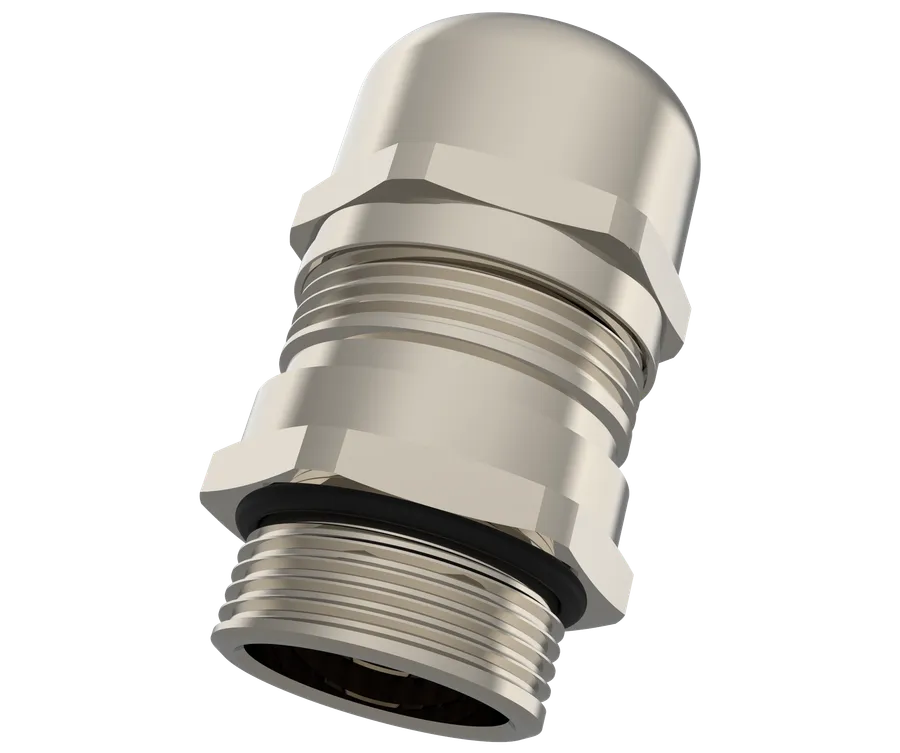

Jernbane EMC-4 kabelnippel
○EMC-kabelnippel for jernbaneapplikasjoner med vibrasjonssikker ytelse og langvarig kontakt via høykvalitets kontaktfjær
○Enkel montering og demontering av kabel.
Spesifikasjoner

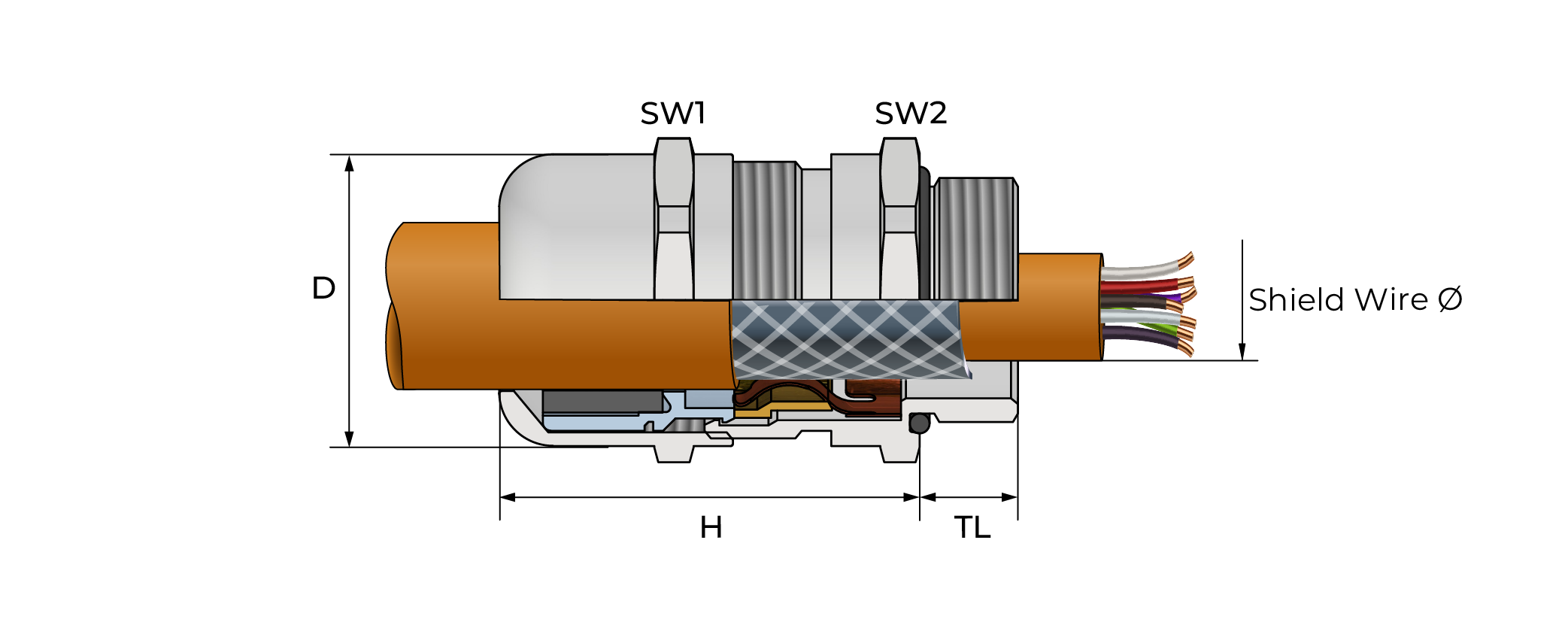

| Gjengestørrelse | Klemområdet | Gjengelengde | Nøkkelvidde | Skjermdiameter | Diameter | Maks høyde 'H' | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 3,0 - 6,5 | 6 | 14/14 | 2,0 - 5,0 | 15.5 | 30 | — | R-BMEM-ES (M12T) | — | |
| M16x1,5 | 5,0 - 10,0 | 6 | 20/20 | 3,5 - 8,0 | 22 | 35 | — | R-BMEM-E1 (M16T) | — | |
| M20x1,5 | 6,0 - 12,0 | 6 | 22/22 | 4,5 - 10,0 | 24.5 | 33.5 | — | R-BMEM-E2S (M20T) | — | |
| M20x1,5 | 7,5 - 14,0 | 8 | 24/24 | 5,5 - 11,5 | 26.8 | 41.5 | — | R-BMEM-E2 (M20T) | — | |
| M25x1,5 | 10,0 - 18,0 | 8 | 30/30 | 7,0 - 14,0 | 33 | 44.5 | — | R-BMEM-E3 (M25T) | — | |
| M32x1,5 | 16,0 - 25,0 | 9 | 40/40 | 12,0 - 20,0 | 44.5 | 55 | — | R-BMEM-E4 (M32T) | — | |
| M40x1,5 | 22,0 - 32,0 | 9 | 50/50 | 18,0 - 27,0 | 55.5 | 62.5 | — | R-BMEM-E5 (M40T) | — |
