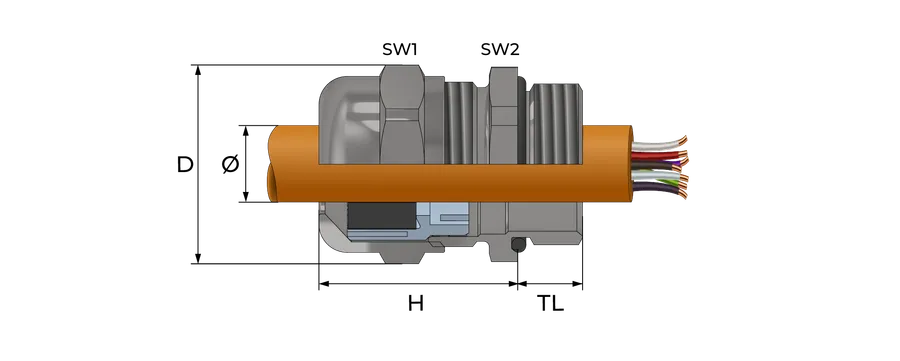

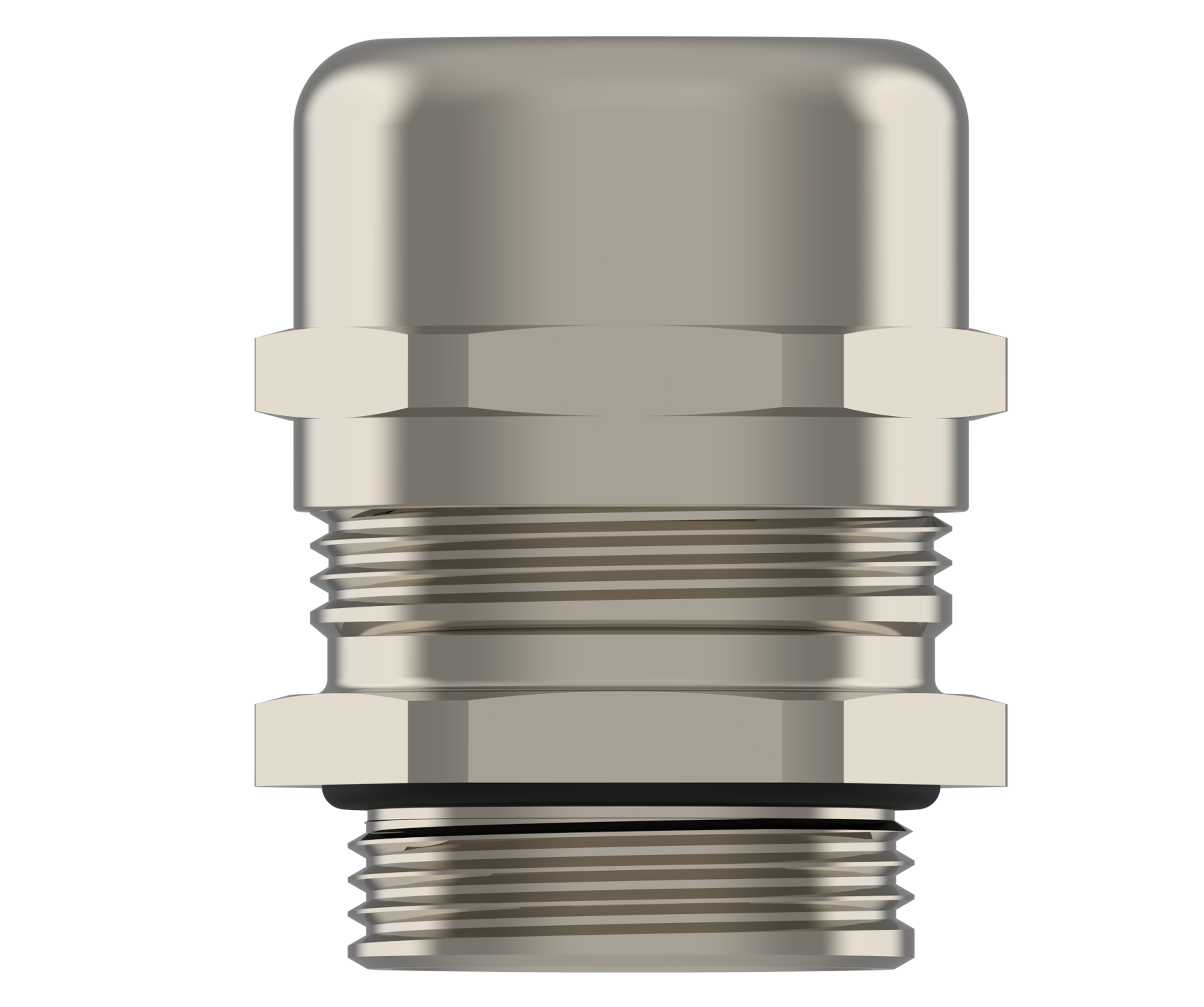

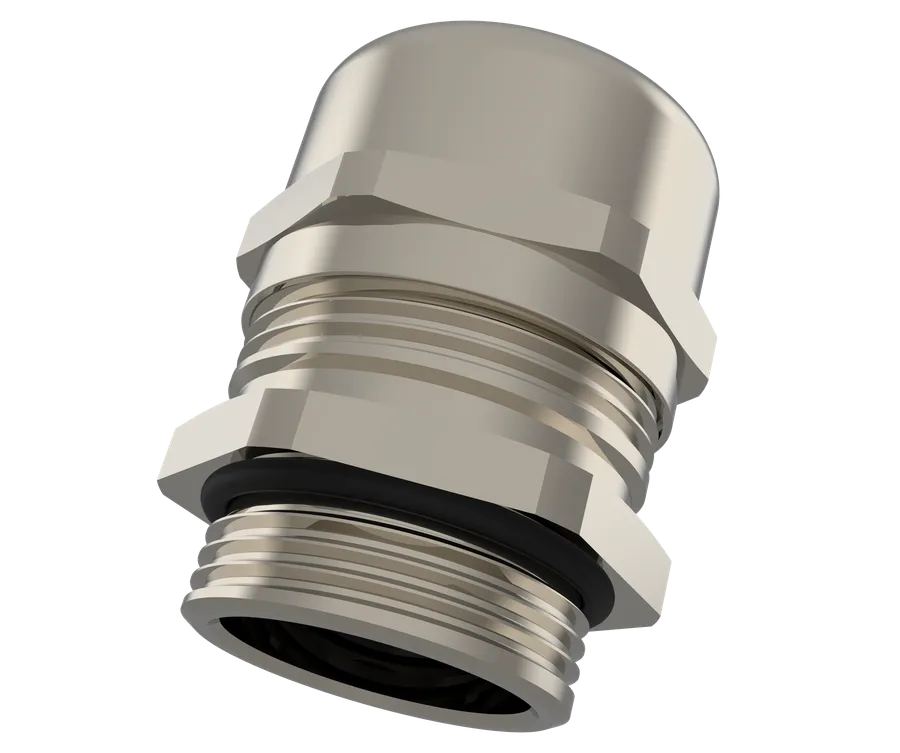

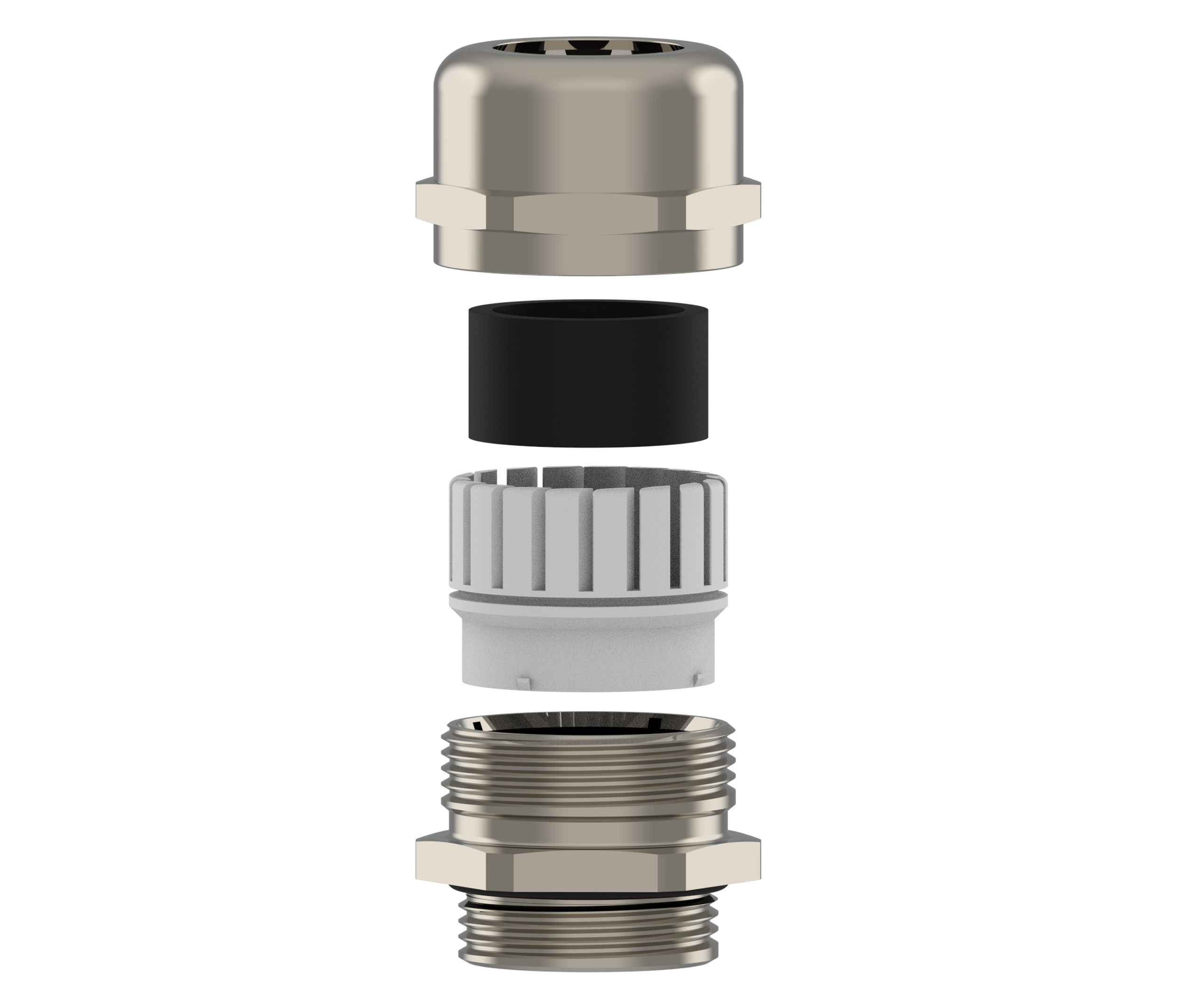

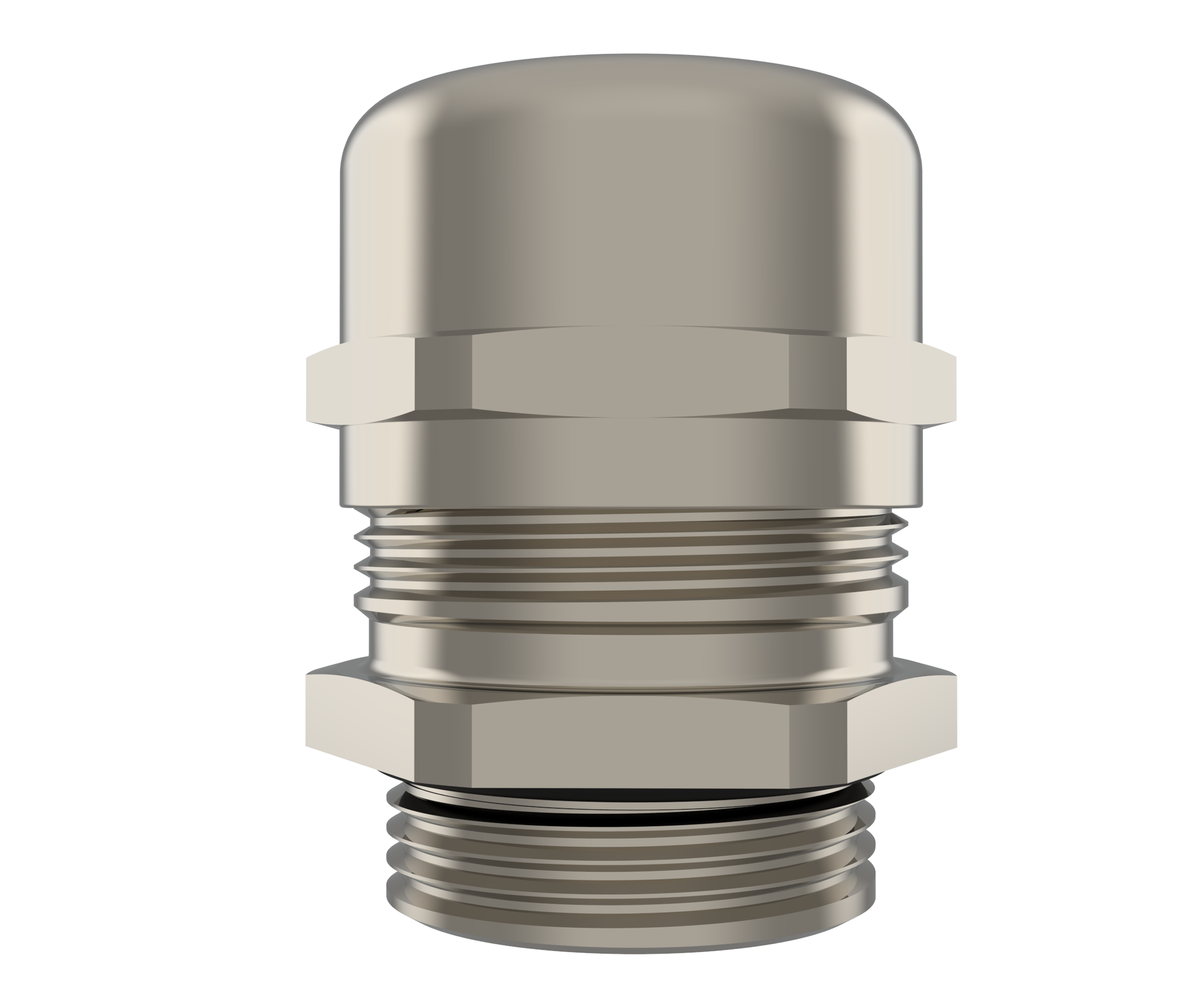

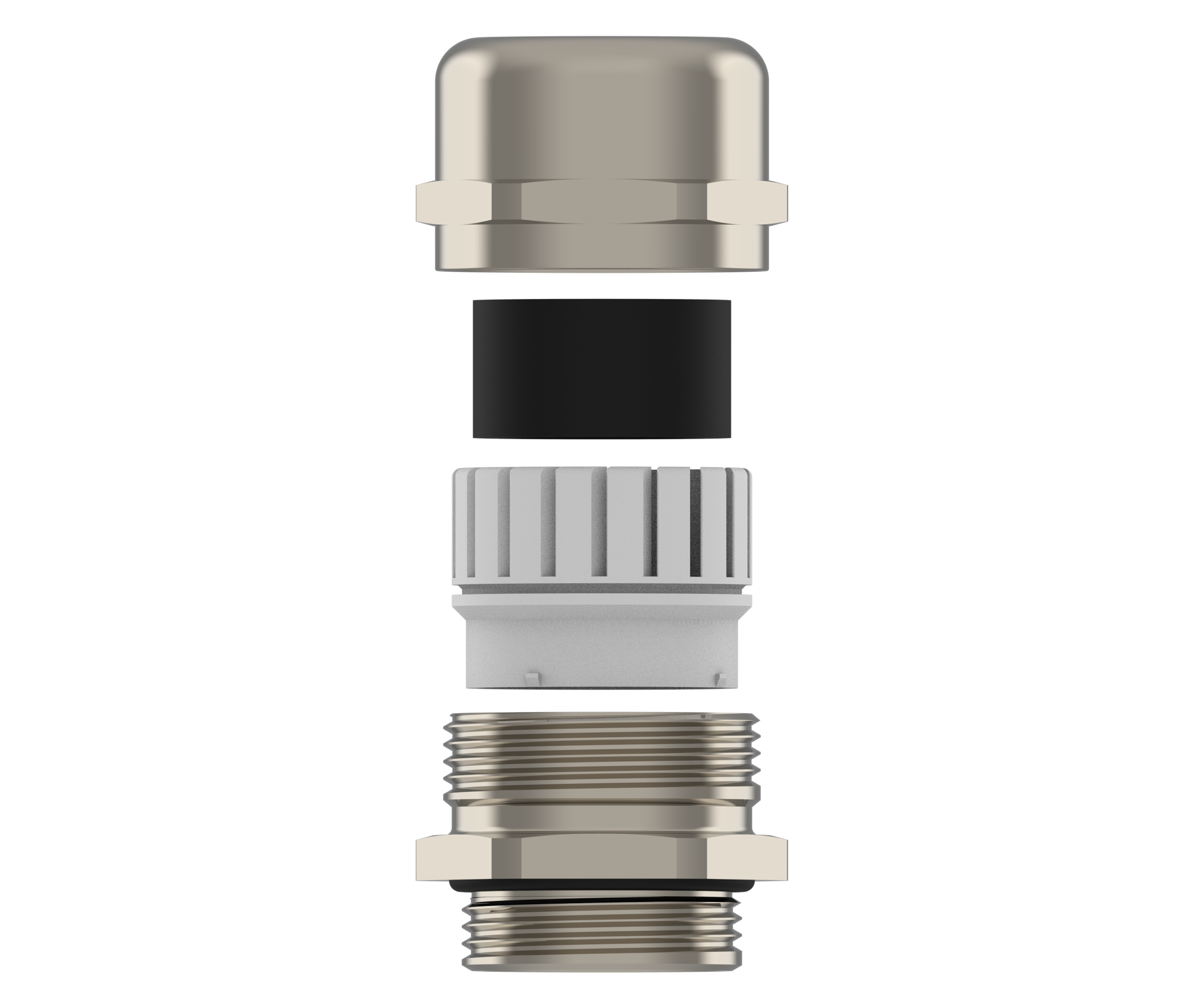

Jernbane standard metallkabelnippel
○Standard metallkabelnippel for jernbaneapplikasjoner med høy strekkavlastning og pålitelig tetning
○Enkel montering.
Spesifikasjoner

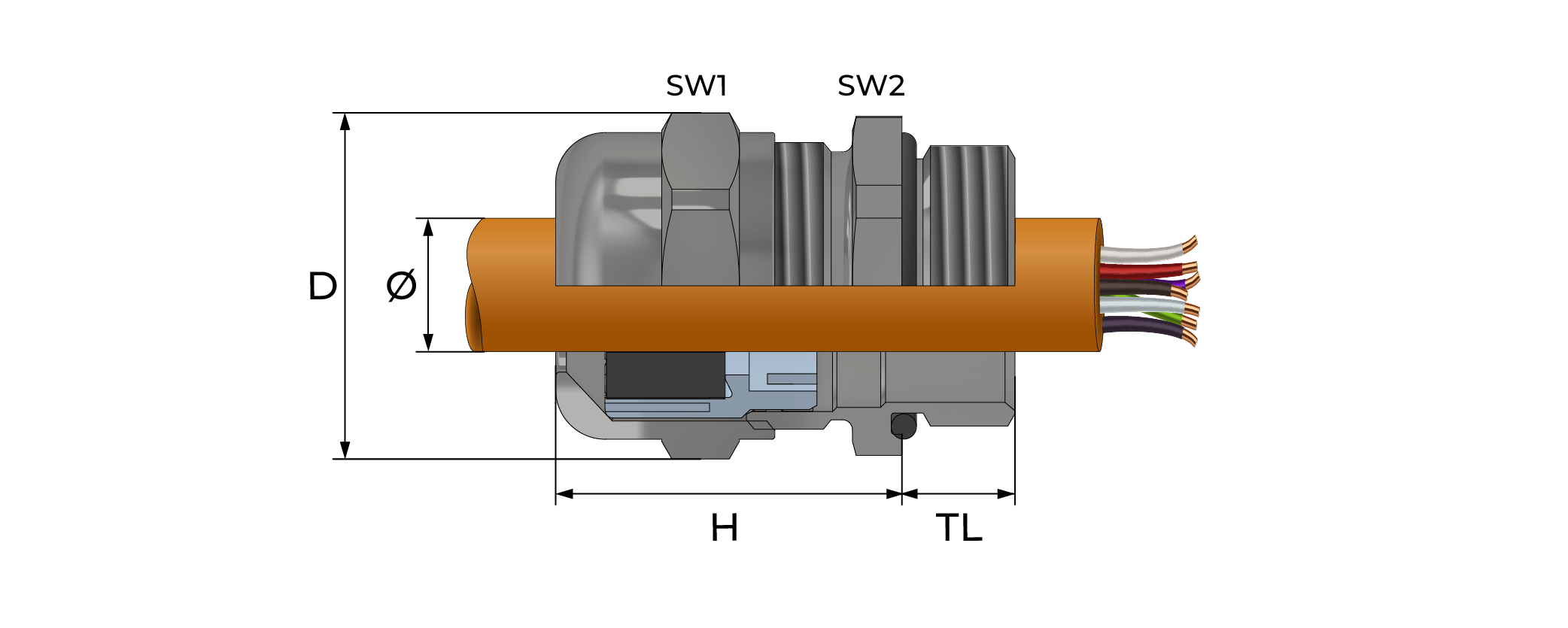

| Gjengestørrelse | Klemområdet | Gjengelengde | Nøkkelvidde | Diameter | Maks høyde 'H' | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 3,0 - 6,5 | 6 | 14/14 | 15.5 | 24 | — | R-BMBC-ES | — | |
| M12x1,5 | 3,0 - 6,5 | 12 | 14/14 | 15.5 | 24 | — | R-BMBE-ES | — | |
| M16x1,5 | 4,0 - 8,0 | 7 | 17/18 | 20 | 25.5 | — | R-BMBC-01 | — | |
| M16x1,5 | 4,0 - 8,0 | 12 | 17/18 | 20 | 25.5 | — | R-BMBE-01 | — | |
| M16x1,5 | 5,0 - 10,0 | 7 | 20/20 | 22 | 30 | — | R-BMBC-E1 | — | |
| M16x1,5 | 5,0 - 10,0 | 12 | 20/20 | 22 | 30 | — | R-BMBE-E1 | — | |
| M20x1,5 | 10,0 - 14,0 | 12 | 24/24 | 26.5 | 30 | — | R-BMBE-02S | — | |
| M20x1,5 | 10,0 - 14,0 | 8 | 24/24 | 26.5 | 30 | — | R-BMBC-02S | — | |
| M20x1,5 | 6,0 - 12,0 | 8 | 22/22 | 24.5 | 28 | — | R-BMBC-E2 | — | |
| M20x1,5 | 6,0 - 12,0 | 12 | 22/22 | 24.5 | 28 | — | R-BMBE-E2 | — | |
| M25x1,5 | 13,0 - 18,0 | 8 | 30/30 | 33 | 35 | — | R-BMBC-03S | Get File | |
| M25x1,5 | 13,0 - 18,0 | 12 | 30/30 | 33 | 35 | — | R-BMBE-03S | — | |
| M32x1,5 | 18,0 - 25,0 | 9 | 40/40 | 44.5 | 46 | — | R-BMBC-04S | — | |
| M32x1,5 | 18,0 - 25,0 | 15 | 40/40 | 44.5 | 46 | — | R-BMBE-04S | — | |
| M40x1,5 | 22,0 - 32,0 | 9 | 50/50 | 55.5 | 54.5 | — | R-BMBC-05S | — | |
| M40x1,5 | 22,0 - 32,0 | 15 | 50/50 | 55.5 | 54.5 | — | R-BMBE-05S | — |
