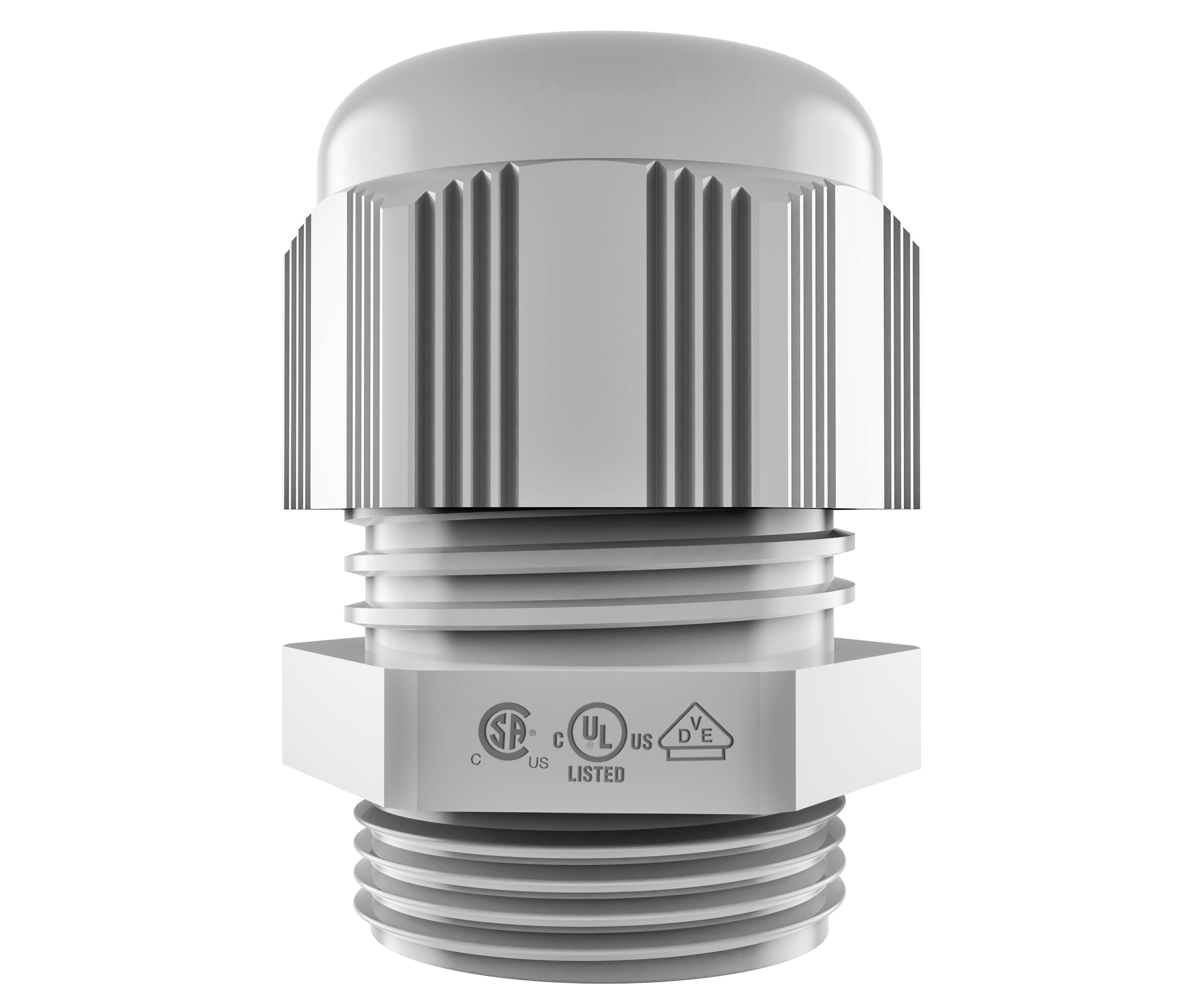

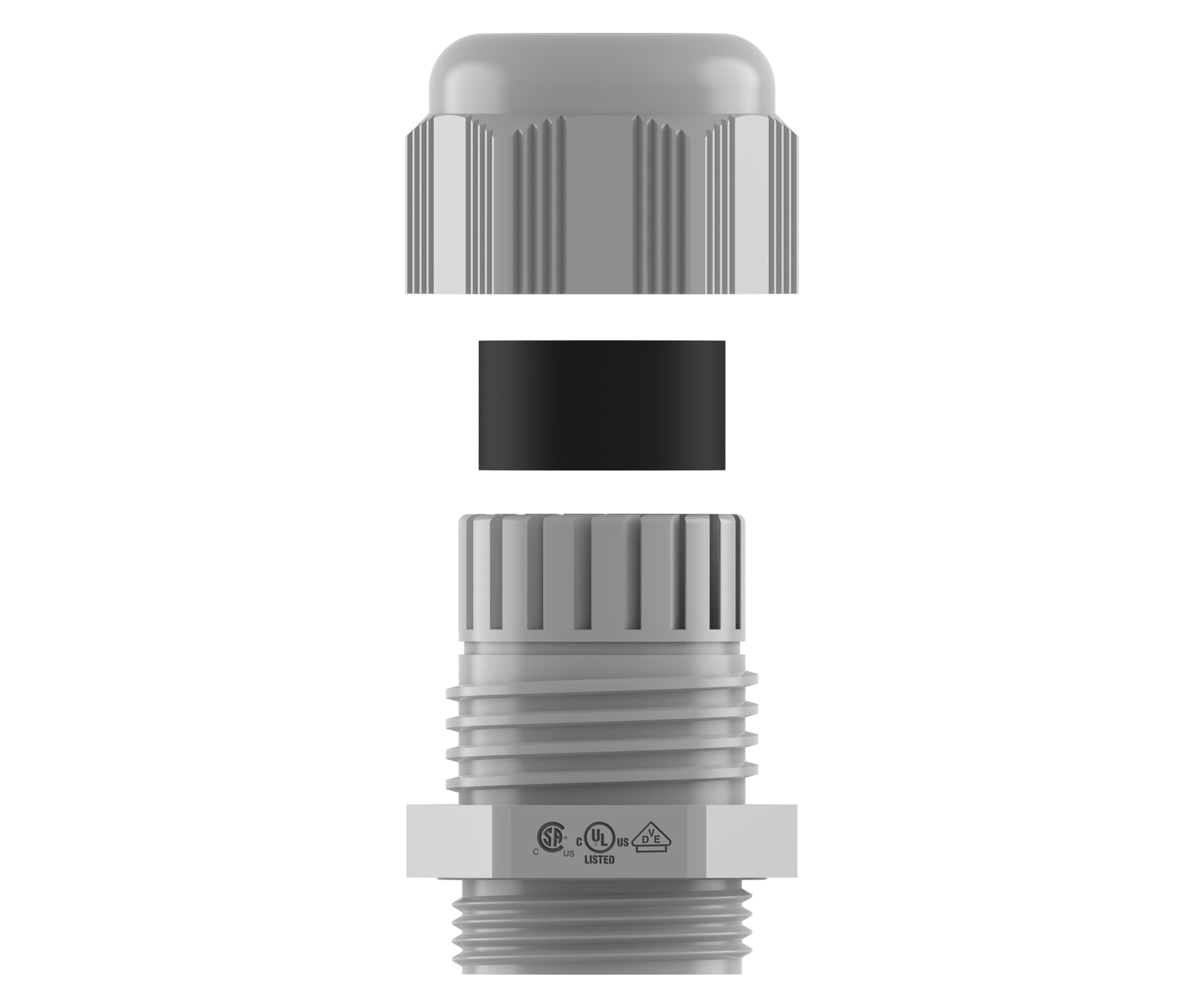

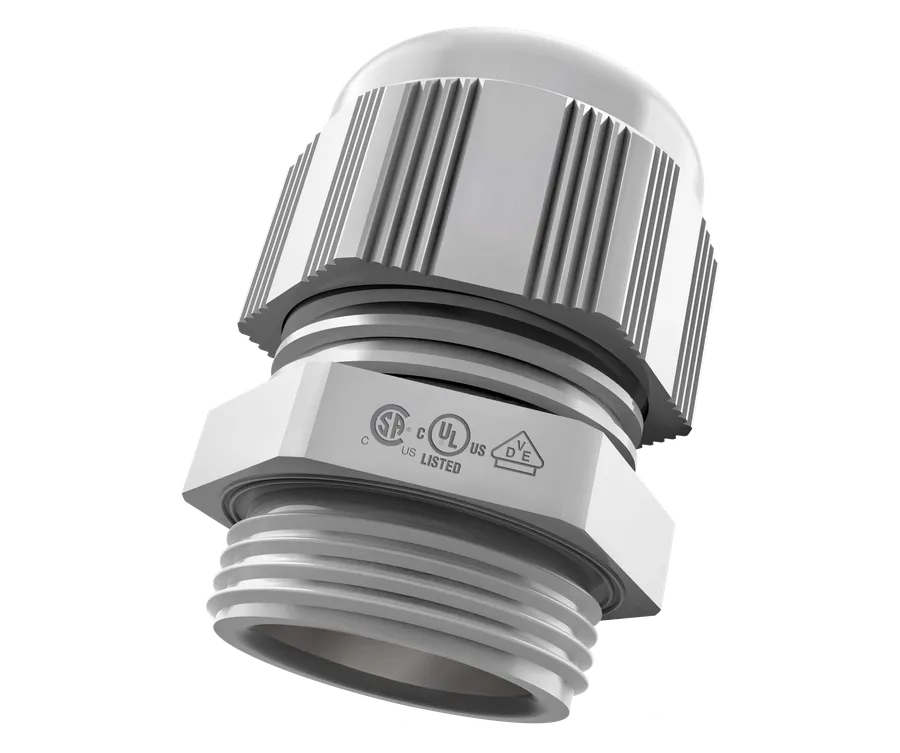

Standard kabelnippel i plast
○Kabelnippel i plast for standard industrielle applikasjoner. UL- og VDE-godkjent med enkel montering og høy strekkavlastning.

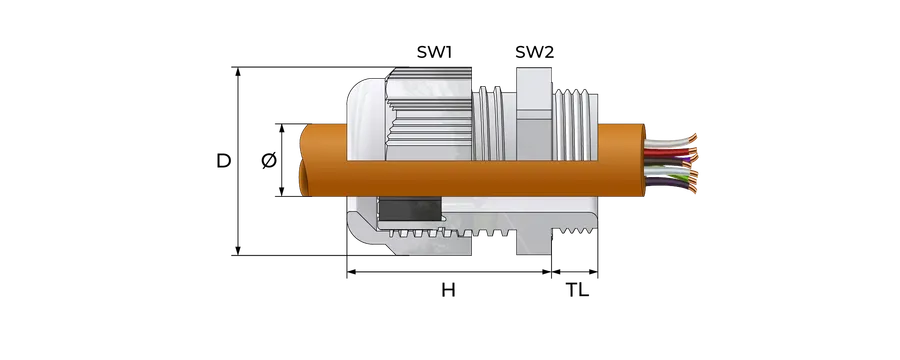

Spesifikasjoner

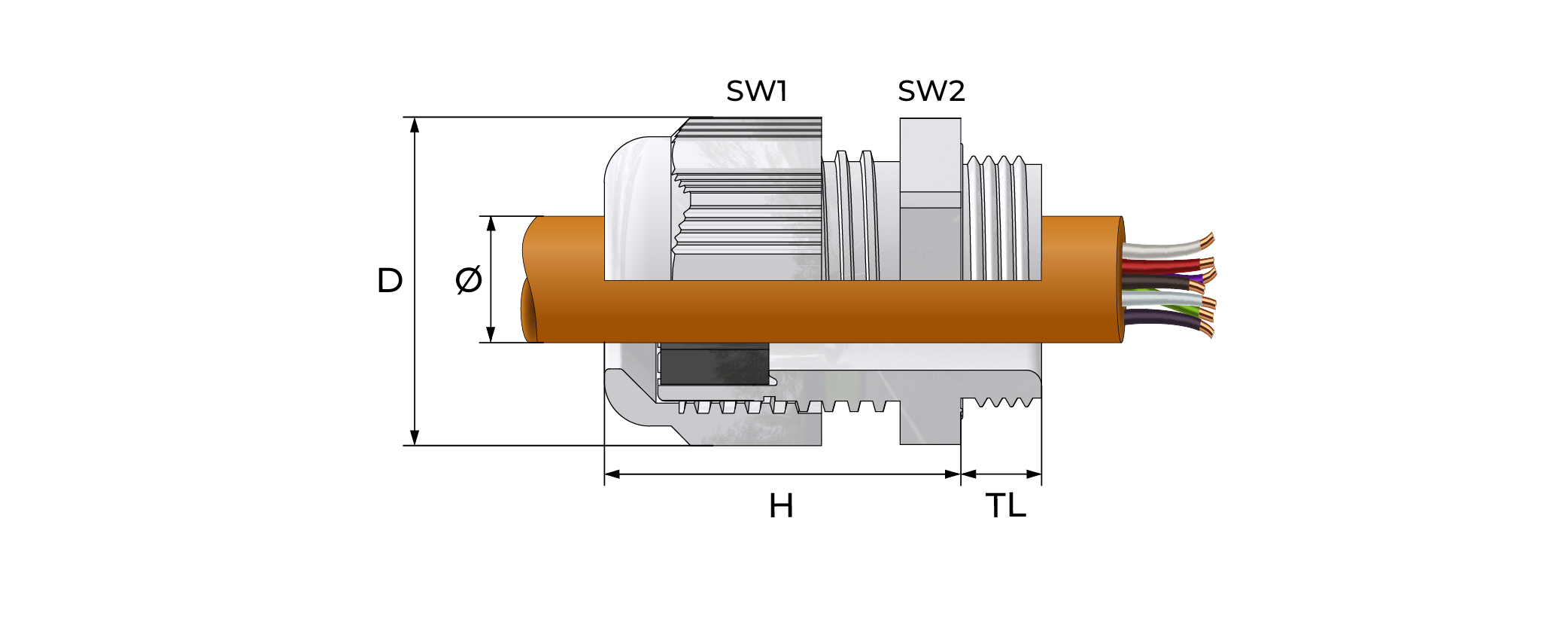

| Gjengestørrelse | Klemområdet | Gjengelengde | Nøkkelvidde | Diameter | Maks høyde 'H' | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 2,0 - 5,0 | 8 | 15/15 | 17 | 25.3 | — | BI-1S | — | |
| M12x1,5 | 2,0 - 5,0 | 10 | 15/15 | 17 | 25.3 | — | BM-EN-1SMR | — | |
| M12x1,5 | 2,0 - 5,0 | 15 | 15/15 | 17 | 25.3 | — | BM-EN-1SRL | — | |
| M12x1,5 | 3,0 - 6,5 | 8 | 15/15 | 17 | 25.3 | — | BM-1S | Get File | |
| M12x1,5 | 3,0 - 6,5 | 10 | 15/15 | 17 | 25.3 | — | BM-EN-1SM | — | |
| M12x1,5 | 3,0 - 6,5 | 15 | 15/15 | 17 | 25.3 | — | BM-EN-1SL | — | |
| M16x1,5 | 2,0 - 6,0 | 8 | 19/19 | 21.7 | 27.4 | — | BM-EN-11R | — | |
| M16x1,5 | 2,0 - 6,0 | 10 | 19/19 | 21.7 | 27.4 | — | BM-EN-11MR | — | |
| M16x1,5 | 2,0 - 6,0 | 15 | 19/19 | 21.7 | 27.4 | — | BM-EN-11LR | — | |
| M16x1,5 | 3,0 - 7,0 | 10 | 22/22 | 25 | 32.2 | — | BI-11 | — | |
| M16x1,5 | 3,0 - 7,0 | 15 | 22/22 | 25 | 32.2 | — | BI-11L | — | |
| M16x1,5 | 4,0 - 8,0 | 8 | 19/19 | 21.7 | 27.4 | — | BM-EN-11 | — | |
| M16x1,5 | 4,0 - 8,0 | 10 | 19/19 | 21.7 | 27.4 | — | BM-EN-11M | — | |
| M16x1,5 | 4,0 - 8,0 | 15 | 19/19 | 21.7 | 27.4 | — | BM-EN-11L | — | |
| M16x1,5 | 5,0 - 10,0 | 10 | 22/22 | 25 | 32.2 | — | BM-11 | Get File | |
| M16x1,5 | 5,0 - 10,0 | 15 | 22/22 | 25 | 32.2 | — | BM-11L | — | |
| M20x1,5 | 5,0 - 9,0 | 10 | 24/24 | 27 | 32.4 | — | BI-12 | — | |
| M20x1,5 | 5,0 - 9,0 | 15 | 24/24 | 27 | 32.4 | — | BI-12L | — | |
| M20x1,5 | 6,0 - 12,0 | 10 | 24/24 | 27 | 32.4 | — | BM-12 | Get File | |
| M20x1,5 | 6,0 - 12,0 | 15 | 24/24 | 27 | 32.4 | — | BM-12L | — | |
| M20x1,5 | 7,0 - 12,0 | 10 | 27/27 | 30.9 | 31.9 | — | BI-13 | — | |
| M20x1,5 | 7,0 - 12,0 | 15 | 27/27 | 30.9 | 31.9 | — | BI-14 | — | |
| M20x1,5 | 7,0 - 13,0 | 10 | 25/25 | 27.5 | 34 | — | BM-EN-12S | — | |
| M20x1,5 | 10,0 - 14,0 | 10 | 27/27 | 30.9 | 31.9 | — | BM-13 | — | |
| M20x1,5 | 10,0 - 14,0 | 15 | 27/27 | 30.9 | 31.9 | — | BM-14 | — | |
| M25x1,5 | 9,0 - 16,0 | 10 | 33/33 | 37.2 | 38.4 | — | BI-15 | — | |
| M25x1,5 | 9,0 - 16,0 | 15 | 33/33 | 37.2 | 38.4 | — | BI-16 | — | |
| M25x1,5 | 9,0 - 13,0 | 8 | 29/29 | 32.5 | 37.7 | — | BM-EN-13R | — | |
| M25x1,5 | 9,0 - 13,0 | 15 | 29/29 | 32.5 | 37.7 | — | BM-EN-13RL | — | |
| M25x1,5 | 11,0 - 17,0 | 8 | 29/29 | 32.5 | 37.7 | — | BM-EN-13 | — | |
| M25x1,5 | 11,0 - 17,0 | 15 | 29/29 | 32.5 | 37.7 | — | BM-EN-13L | — | |
| M25x1,5 | 13,0 - 18,0 | 10 | 33/33 | 37.2 | 38.4 | — | BM-15 | Get File | |
| M25x1,5 | 13,0 - 18,0 | 15 | 33/33 | 37.2 | 38.4 | — | BM-16 | Get File | |
| M32x1,5 | 11,0 - 15,0 | 10 | 36/36 | 41 | 42.3 | — | BM-EN-14R | — | |
| M32x1,5 | 11,0 - 15,0 | 15 | 36/36 | 41 | 42.3 | — | BM-EN-14RL | — | |
| M32x1,5 | 12,0 - 20,0 | 15 | 42/42 | 47.1 | 43.3 | — | BI-17 | — | |
| M32x1,5 | 15,0 - 21,0 | 10 | 36/36 | 41 | 42.3 | — | BM-EN-14 | — | |
| M32x1,5 | 15,0 - 21,0 | 15 | 36/36 | 41 | 42.3 | — | BM-EN-14L | — | |
| M32x1,5 | 18,0 - 25,0 | 15 | 42/42 | 47.1 | 43.3 | — | BM-17 | Get File | |
| M40x1,5 | 16,0 - 23,0 | 10 | 46/46 | 52.4 | 47.4 | — | BM-EN-15R | — | |
| M40x1,5 | 16,0 - 23,0 | 18 | 46/46 | 52.4 | 47.4 | — | BM-EN-15RL | — | |
| M40x1,5 | 19,0 - 28,0 | 10 | 46/46 | 52.4 | 47.4 | — | BM-EN-15 | — | |
| M40x1,5 | 19,0 - 28,0 | 18 | 46/46 | 52.4 | 47.4 | — | BM-EN-15L | — | |
| M40x1,5 | 20,0 - 26,0 | 18 | 53/53 | 59.6 | 52.4 | — | BI-18 | — | |
| M40x1,5 | 22,0 - 32,0 | 18 | 53/53 | 59.6 | 52.4 | — | BM-18 | Get File | |
| M50x1,5 | 25,0 - 31,0 | 18 | 60/60 | 67.8 | 54.8 | — | BI-19 | — | |
| M50x1,5 | 30,0 - 38,0 | 18 | 60/60 | 67.8 | 54.8 | — | BM-19 | Get File | |
| M63x1,5 | 29,0 - 35,0 | 18 | 65/65 | 72.4 | 54.9 | — | BI-20 | — | |
| M63x1,5 | 34,0 - 44,0 | 18 | 65/65 | 72.4 | 54.9 | — | BM-20 | Get File | |
| M75x2,0 | 48,0 - 55,0 | 25 | 75/80 | 89 | 55 | — | BM-B12 | — |
