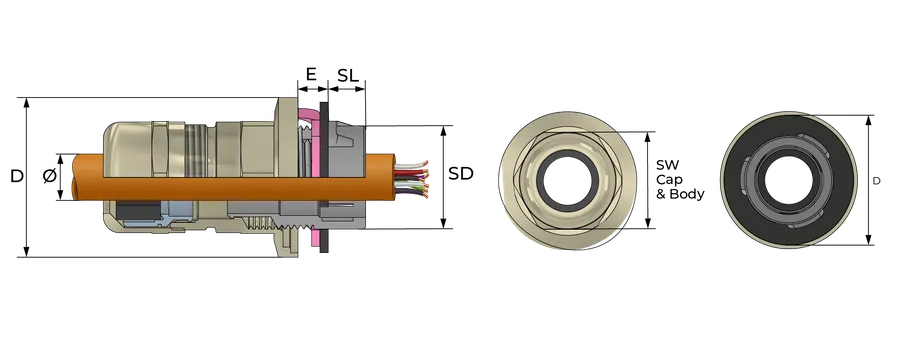

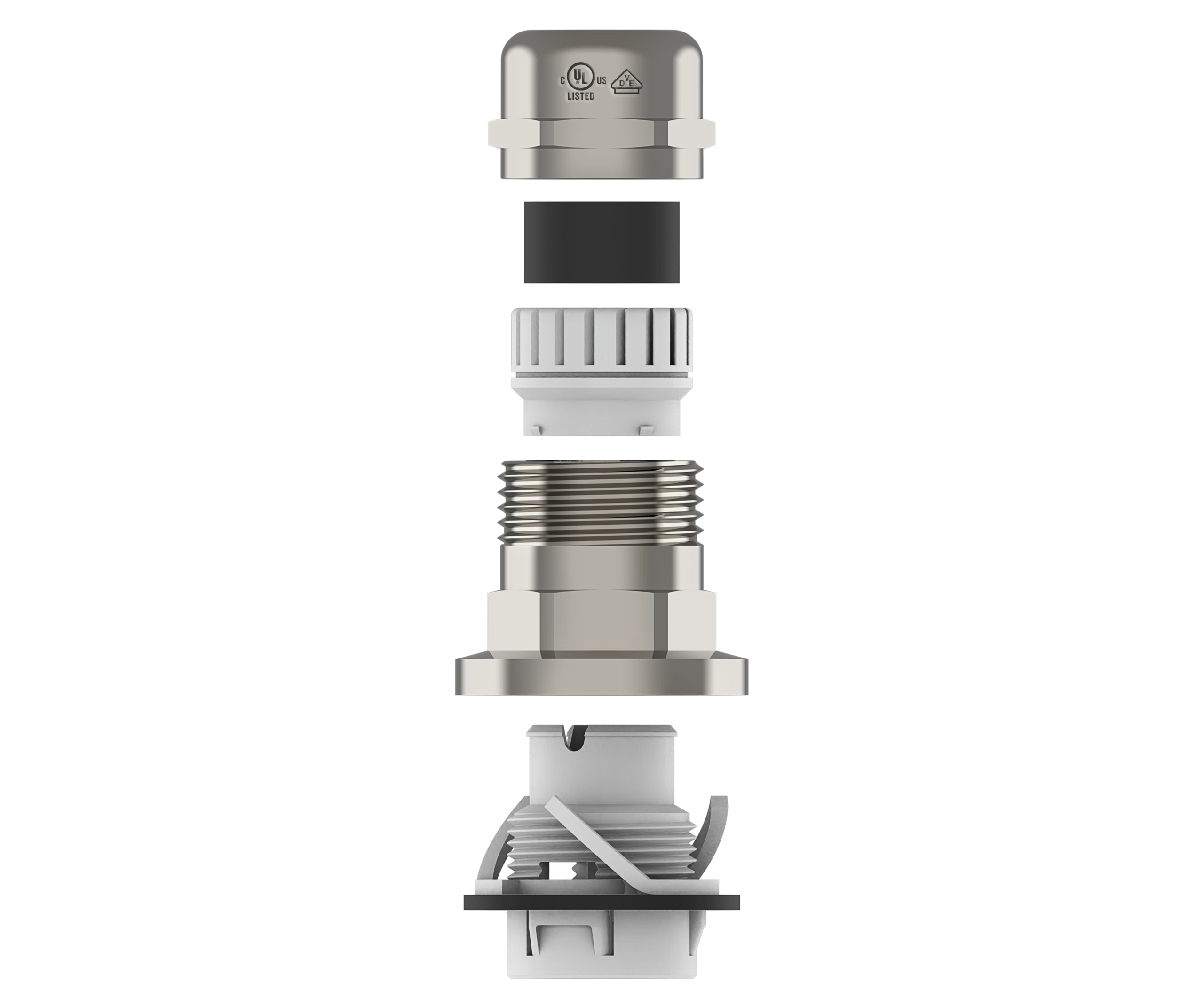

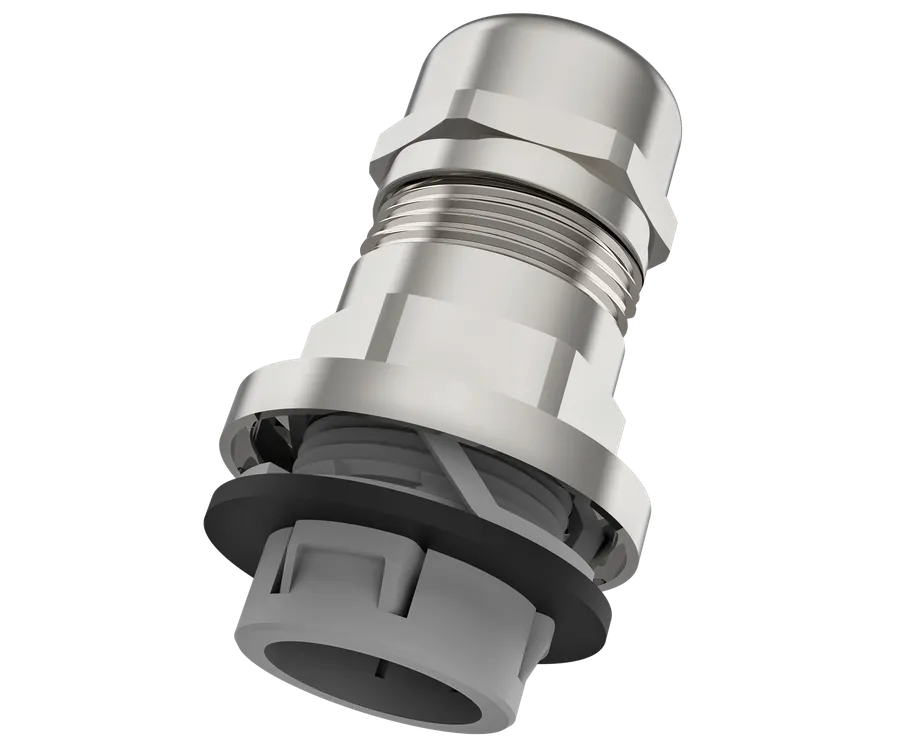

Snap-in kabelnippel, metall
○Rask og enkel montering: trykk inn kabelnippel og drei kroppen med klokken – montert på sekunder uten låsemutter
○Egnet for gjennomgangshull med veggtykkelse 0,5–4,0 mm; enkel demontering med separat verktøy.
Spesifikasjoner

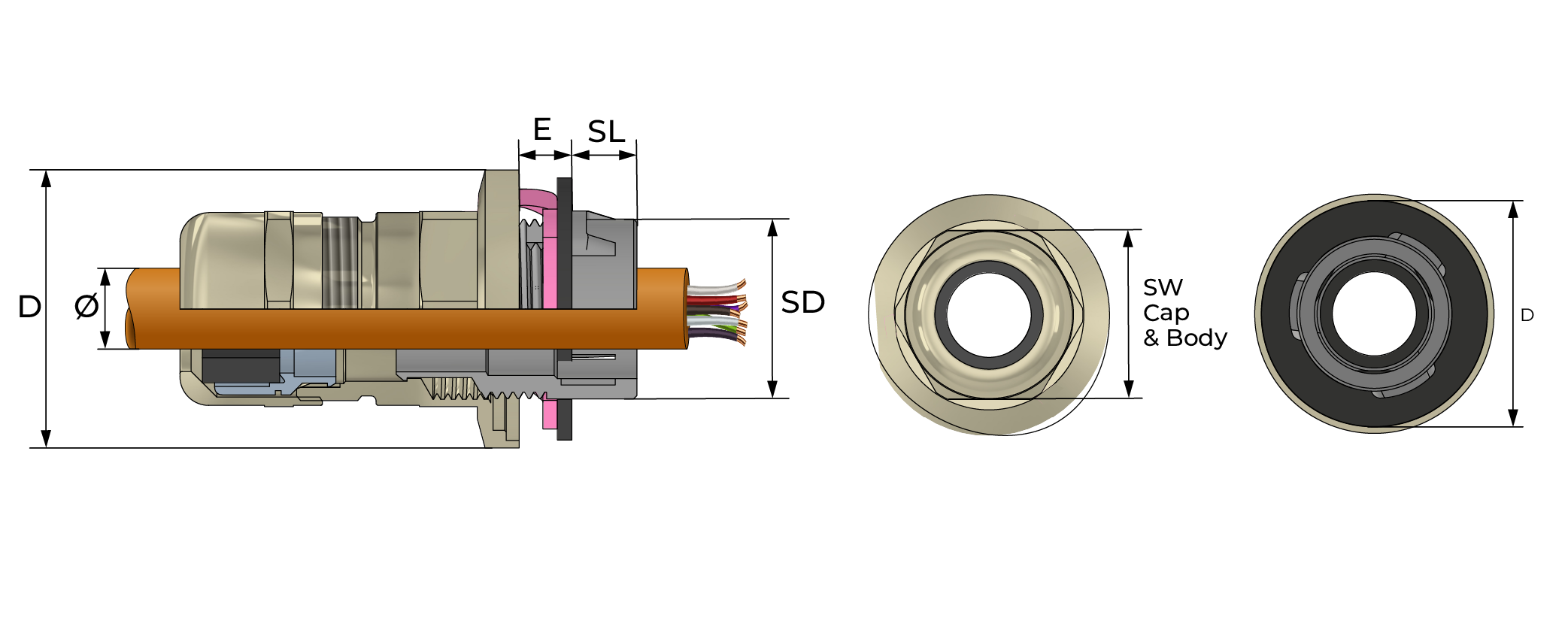

| Klemområdet | Nøkkelvidde | SL | SD Ø | Seal Type | Snap Size | Outer Ø D | Max. Height H | Enclosure Hole Ø | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3,0 - 7,0 | 20/20 | 9 | 16 | Single | 16 | 28.3 | 47 | 16,2 - 16,4 | — | BBOS-11R | — | |
| 3,0 - 10,0 | 20/20 | 9 | 16 | Double | 16 | 28.3 | 47.5 | 16,2 - 16,4 | — | BBOS-DS-11 | — | |
| 5,0 - 9,0 | 22/22 | 9 | 20 | Single | 20 | 32.3 | 46 | 20,2 - 20,4 | — | BBOS-12R | — | |
| 5,0 - 10,0 | 20/20 | 9 | 16 | Single | 16 | 28.3 | 47 | 16,2 - 16,4 | — | BBOS-11 | — | |
| 5,0 - 12,0 | 22/22 | 9 | 20 | Double | 20 | 32.3 | 46.5 | 20,2 - 20,4 | — | BBOS-DS-12 | — | |
| 6,0 - 12,0 | 22/22 | 9 | 20 | Single | 20 | 32.3 | 46 | 20,2 - 20,4 | — | BBOS-12 | — | |
| 8,0 - 17,0 | 27/27 | 9 | 25 | Double | 25 | 38.5 | 49.5 | 25,2 - 25,4 | — | BBOS-EU-DS-13 | — | |
| 9,0 - 13,0 | 27/27 | 9 | 25 | Single | 25 | 38.5 | 49 | 25,2 - 25,4 | — | BBOS-EU-13R | Get File | |
| 11,0 - 17,0 | 27/27 | 9 | 25 | Single | 25 | 38.5 | 48.5 | 25,2 - 25,4 | — | BBOS-EU-13 | — | |
| 11,0 - 15,0 | 34/34 | 9 | 32 | Single | 32 | 45.5 | 56.5 | 32,2 - 32,4 | — | BBOS-EU-14R | — | |
| 11,0 - 21,0 | 34/34 | 9 | 32 | Double | 32 | 45.5 | 56.5 | 32,2 - 32,4 | — | BBOS-EU-DS-14 | — | |
| 15,0 - 21,0 | 34/34 | 9 | 32 | Single | 32 | 45.5 | 56.5 | 32,2 - 32,4 | — | BBOS-EU-14 | — | |
| 16,0 - 23,0 | 43/43 | 13.2 | 40 | Single | 40 | 59 | 64 | 40,2 - 40,4 | — | BBOS-EU-15R | — | |
| 16,0 - 28,0 | 43/43 | 13.2 | 40 | Double | 40 | 59 | 65 | 40,2 - 40,4 | — | BBOS-EU-DS-15 | — | |
| 19,0 - 28,0 | 43/43 | 13.2 | 40 | Single | 40 | 59 | 64 | 40,2 - 40,4 | — | BBOS-EU-15 | — |
