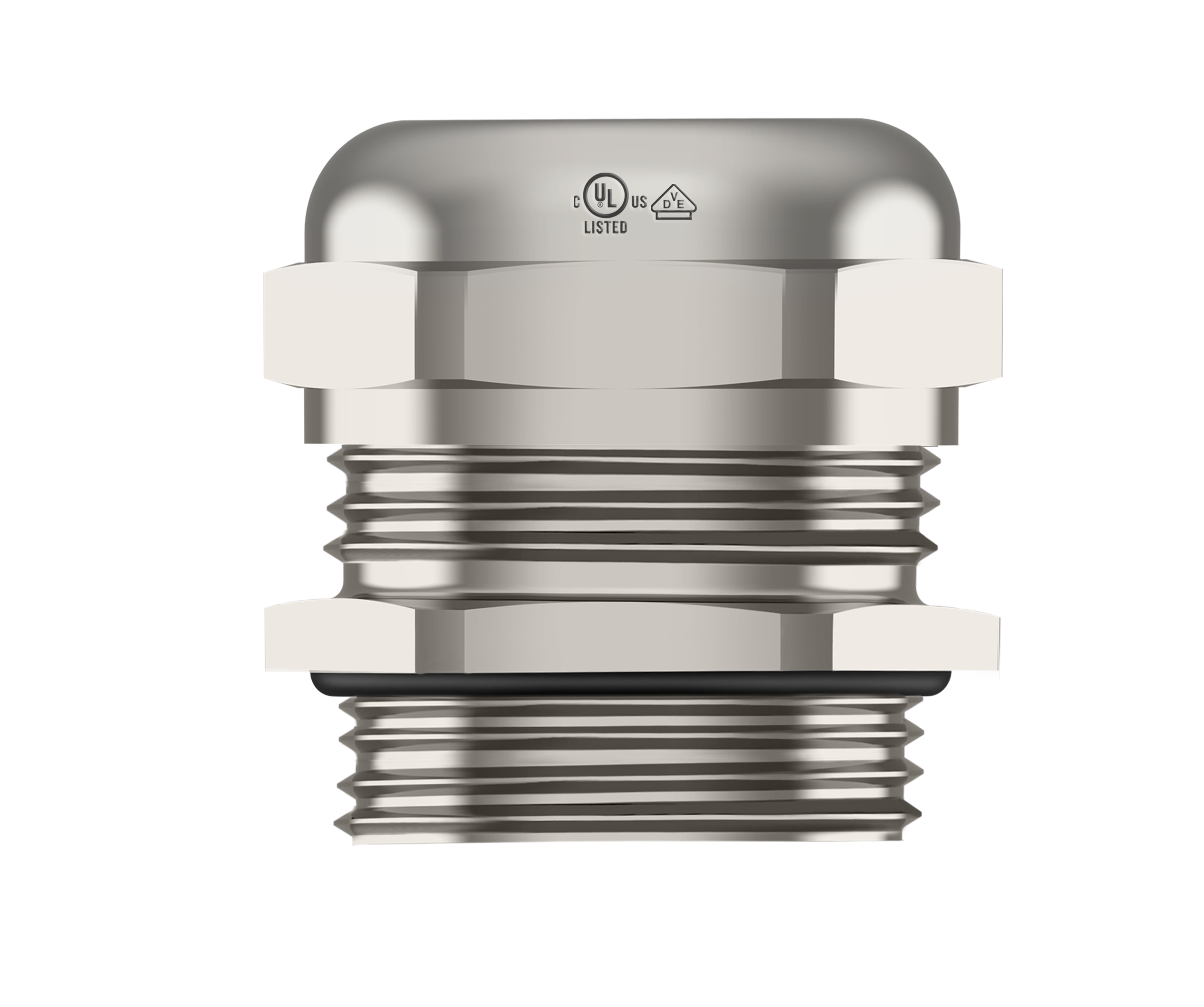

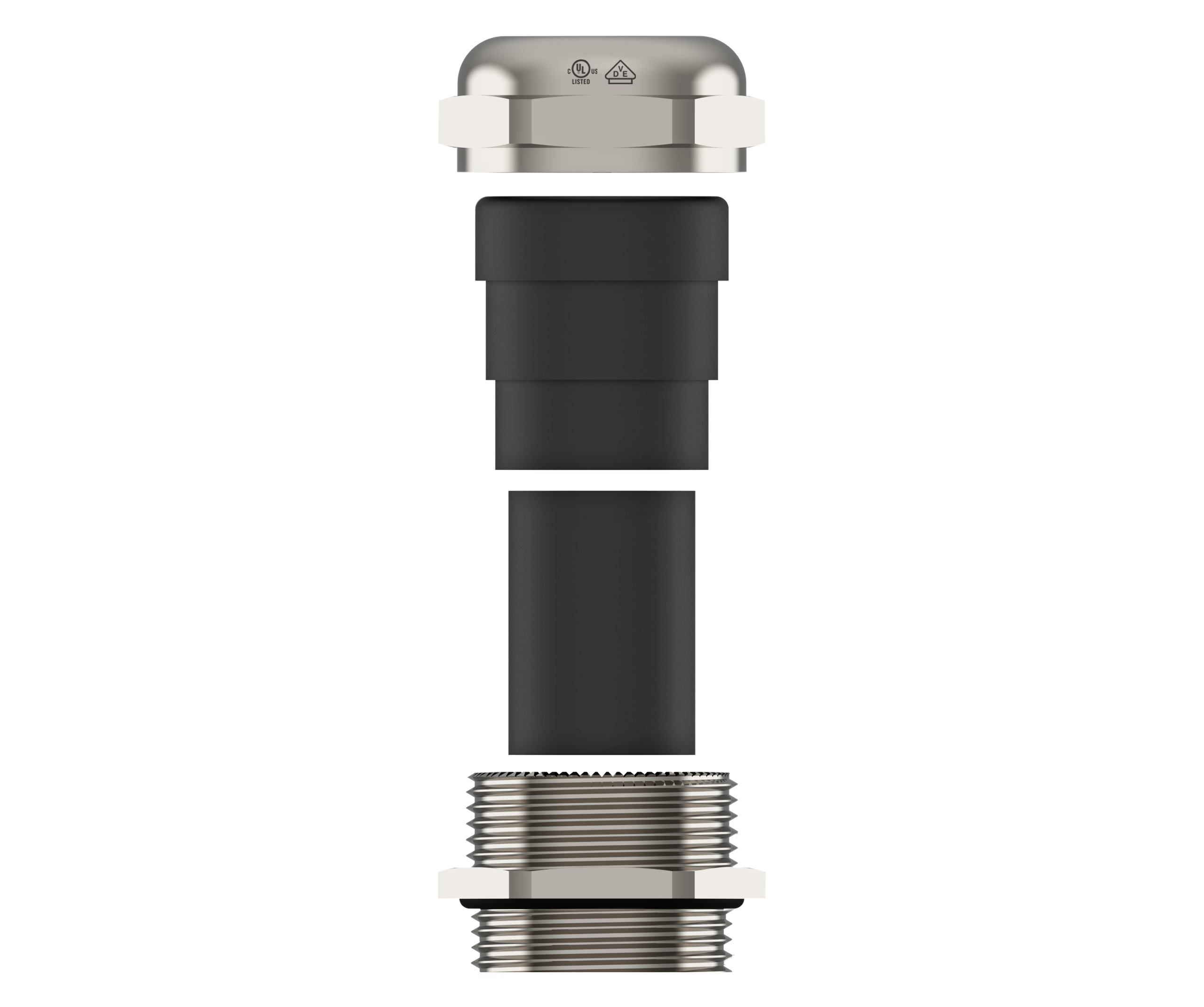

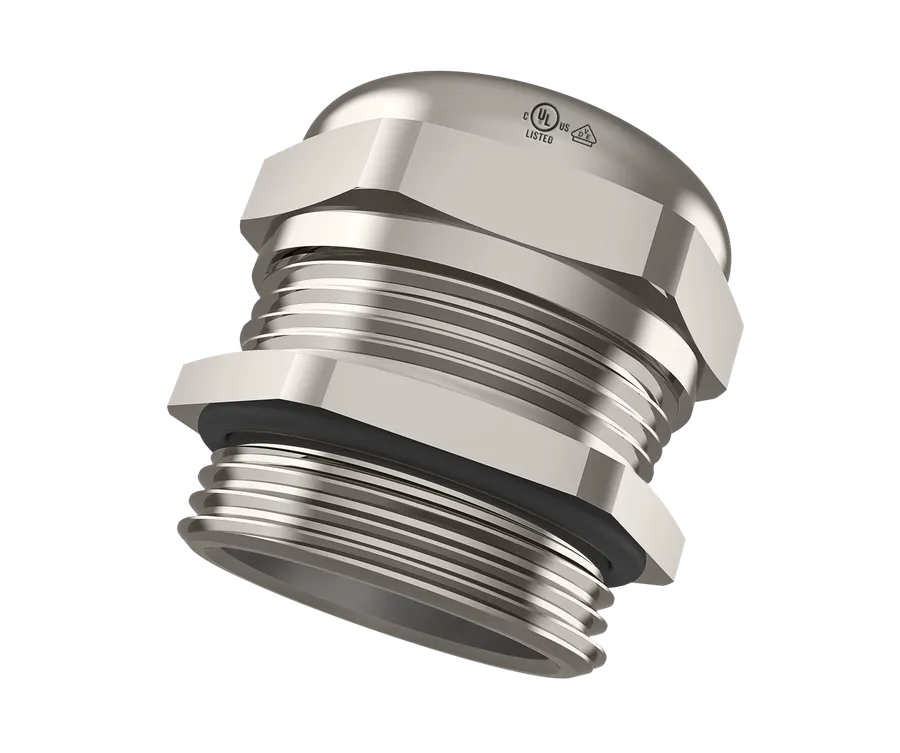

Kabelnippel med dobbel tetning
○Kabelnippel med dobbel tetning for bredt klemområde og kompakt design
○Egnet for krevende industrielle miljøer med stort temperaturområde ved bruk av silikontetning.
Spesifikasjoner

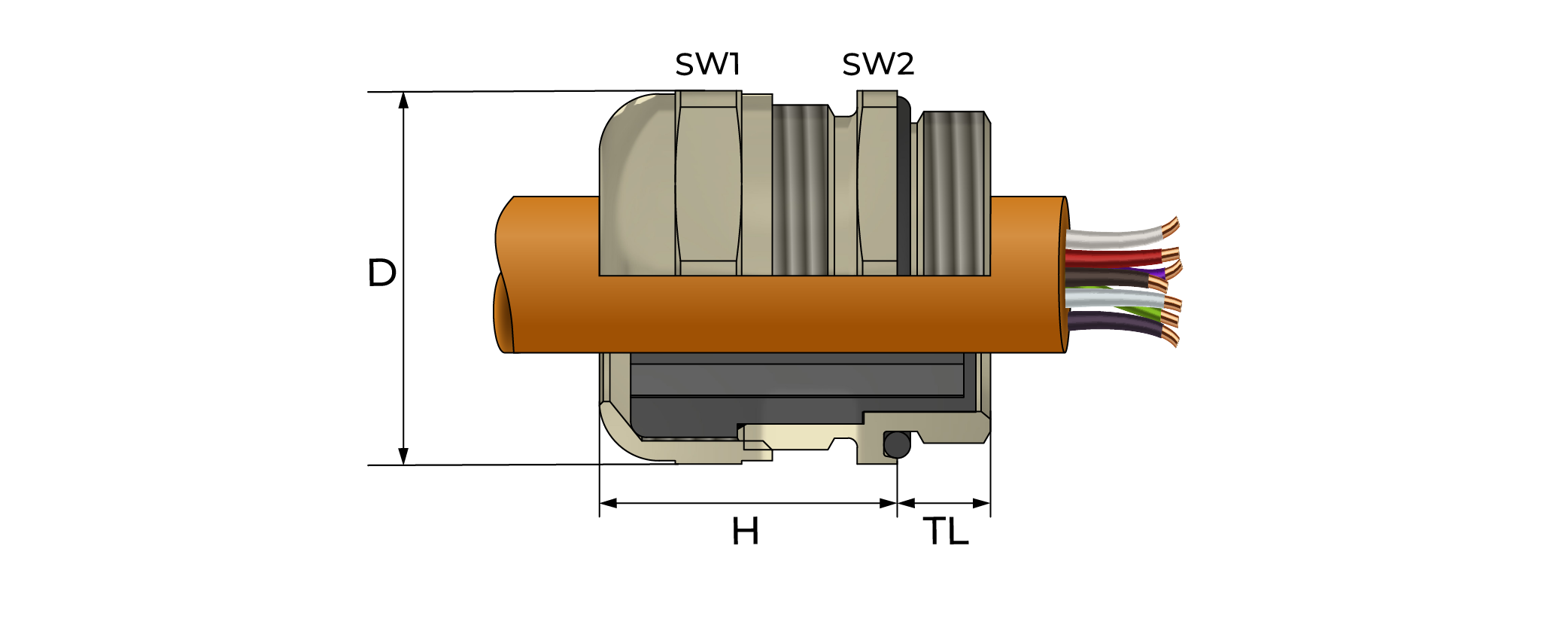

| Gjengestørrelse | Gjengelengde | Nøkkelvidde | Diameter | Maks høyde 'H' | Outer Seal Ø | Double Seal Ø | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 6 | 14/14 | 15.8 | 20 | 4,0 - 6,0 | - | — | BDSM-0S | — | |
| M16x1,5 | 5.1 | 18/18 | 20 | 20.5 | 6,5 - 9,0 | 4,0 - 6,0 | — | BDSM-01 | — | |
| M20x1,5 | 6 | 22/22 | 24.5 | 22 | 7,0 - 12,0 | 4,5 - 7,0 | — | BDSM-02 | — | |
| M25x1,5 | 7 | 28/28 | 31 | 24.5 | 14,0 - 17,5 | 10,0 - 13,0 | — | BDSM-03 | Get File | |
| M32x1,5 | 8 | 35/35 | 38.8 | 27.5 | 19,0 - 23,5 | 14,5 - 18,0 | — | BDSM-04 | — | |
| M40x1,5 | 8 | 43/43 | 47 | 38 | 23,5 - 27,0 | 16,5 - 23,5 | — | BDSM-05 | — |
