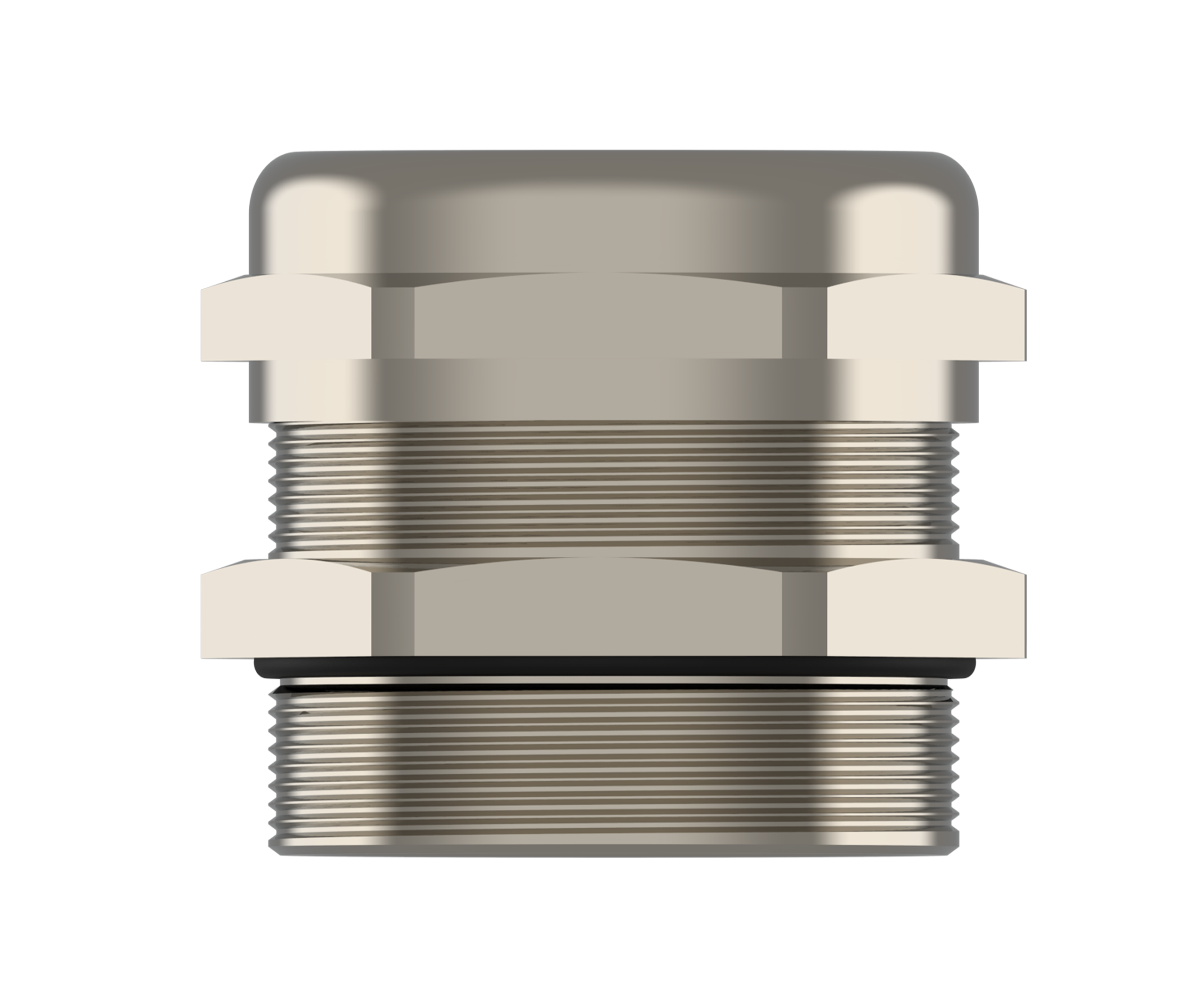

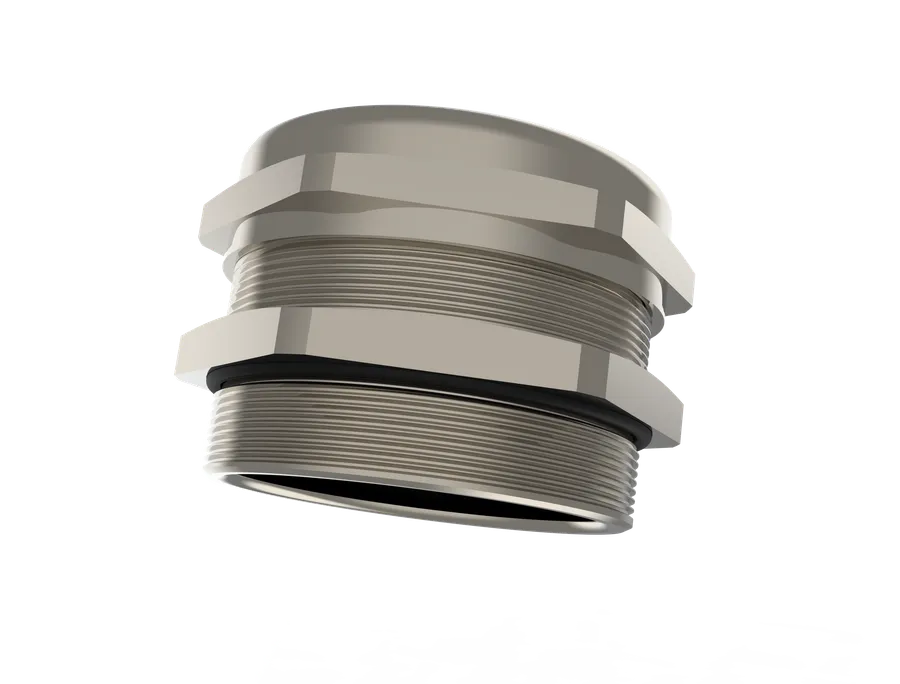

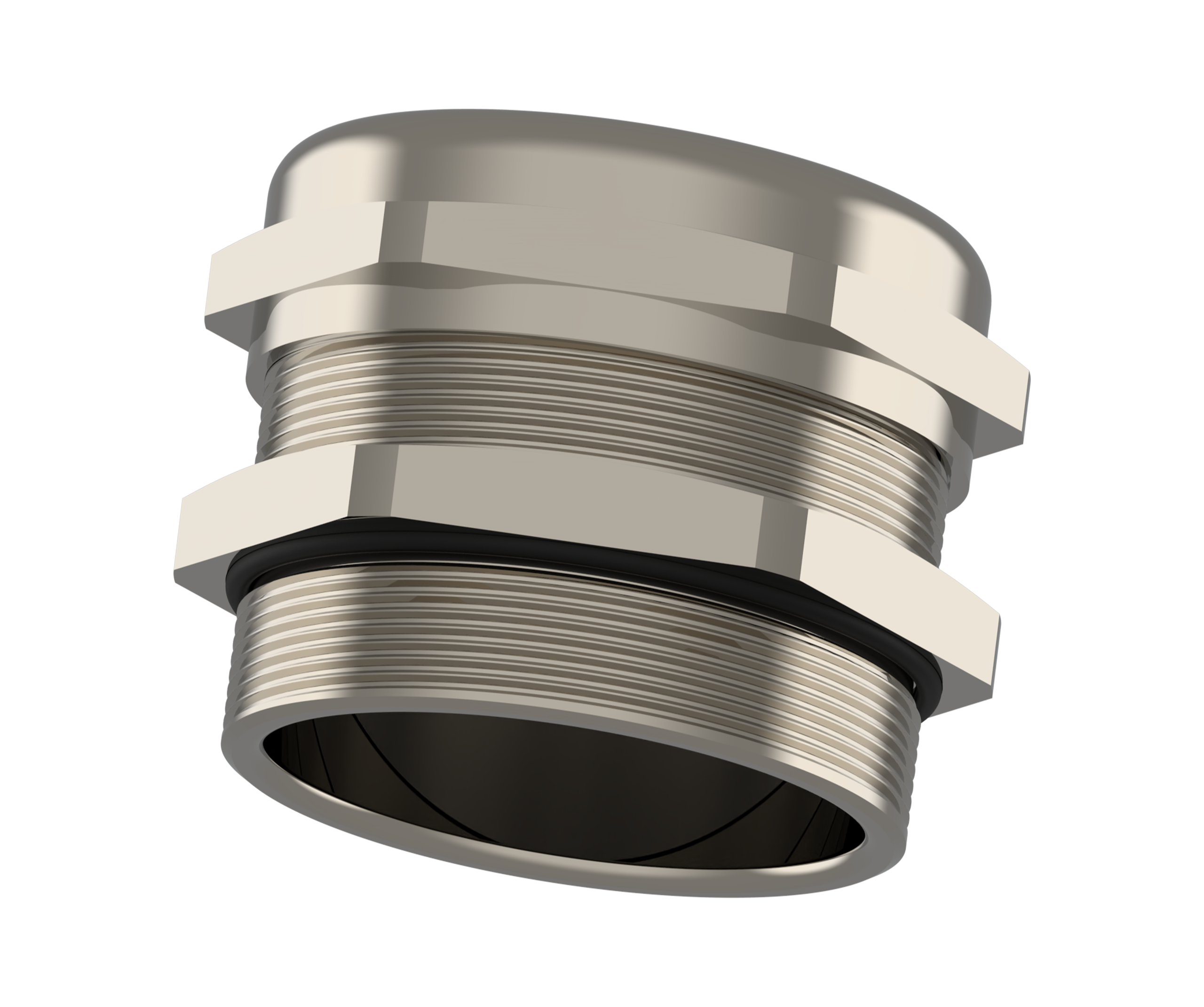

Kompresjonskabelnippel i messing
○Kabelnippel i messing for standard industrielle applikasjoner i krevende miljøer, egnet for kabler med store diametre

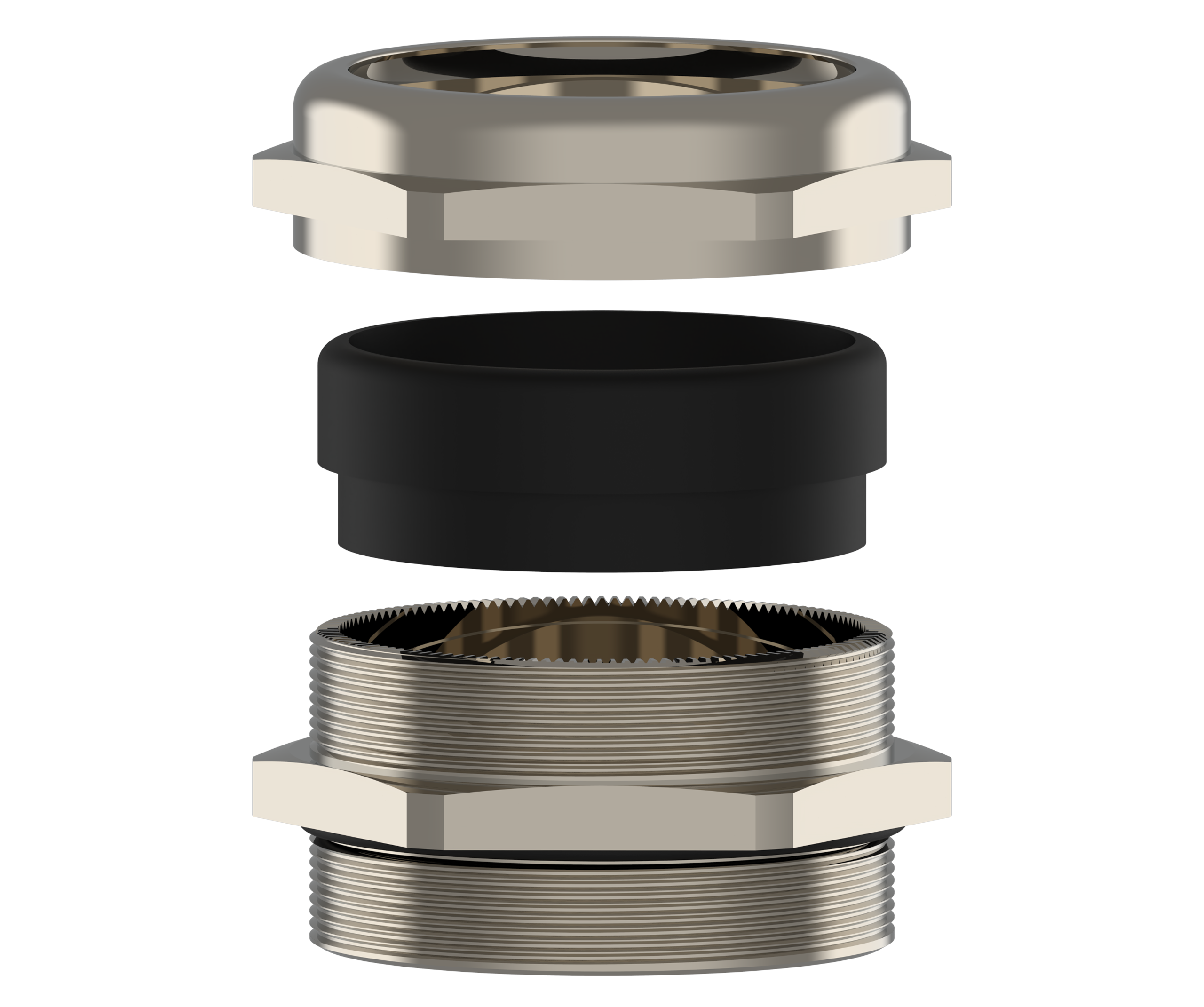

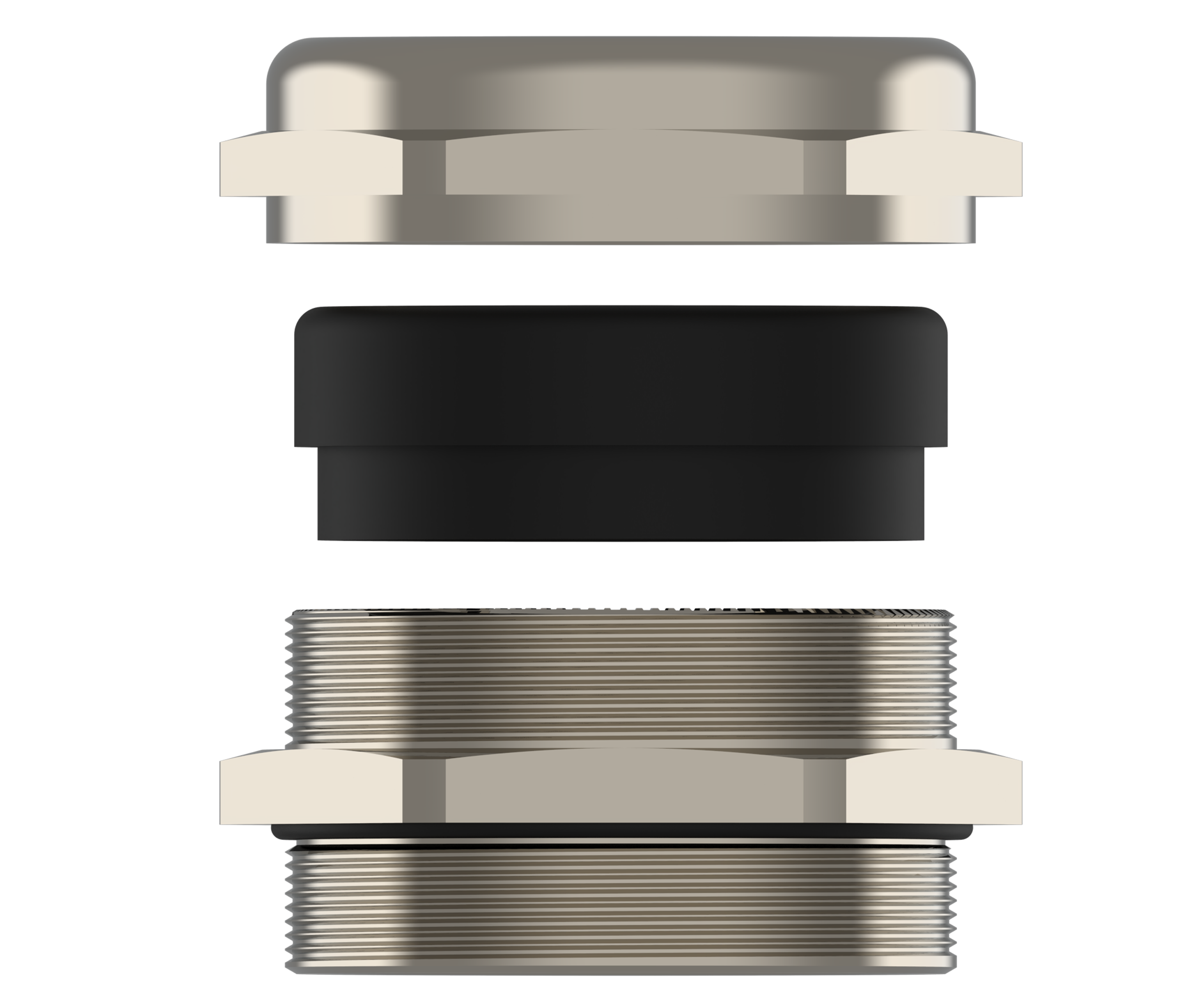

○Enkel montering: installer kabelnippel – før inn kabel – stram kappe.
Spesifikasjoner

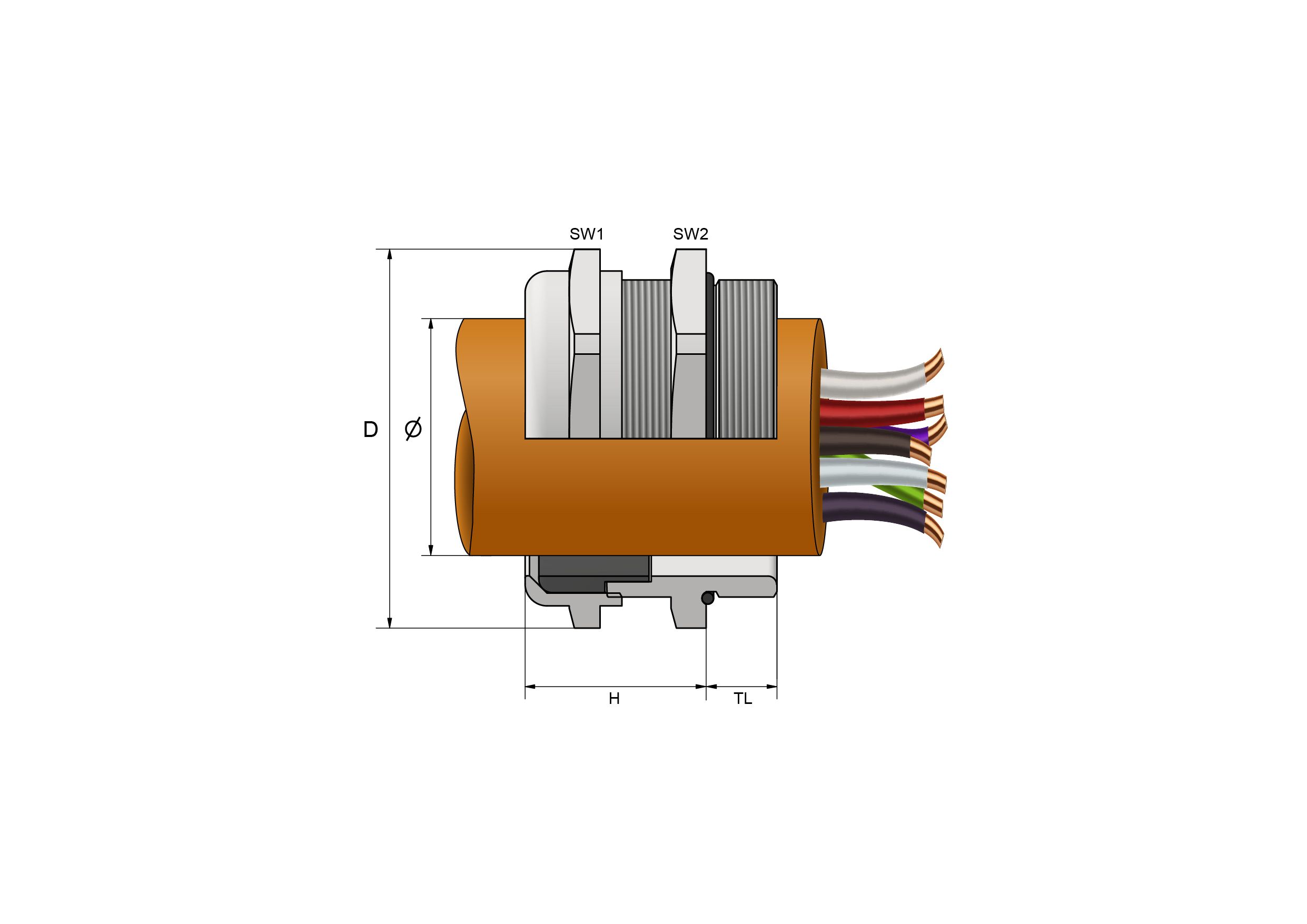

| Gjengestørrelse | Klemområdet | Gjengelengde | Nøkkelvidde | Diameter | Maks høyde 'H' | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|
| M72x2,0 | 56,0 - 62,0 | 16 | 77/77 | 86 | 43 | — | BDSM-08 | Get File | |
| M75x1,5 | 56,0 - 62,0 | 16 | 77/77 | 86 | 43 | — | BDSM-09S | Get File | |
| M75x2,0 | 56,0 - 64,0 | 16 | 90/90 | 100 | 50.5 | — | BDSM-09 | Get File | |
| M80x2,0 | 50,0 - 56,0 | 18 | 90/90 | 100 | 51.5 | — | BDSM-10R | Get File | |
| M80x2,0 | 60,0 - 67,0 | 18 | 90/90 | 100 | 50.5 | — | BDSM-10 | Get File | |
| M85x2,0 | 63,0 - 70,0 | 22 | 95/95 | 106 | 56 | — | BDSM-11R | Get File | |
| M85x2,0 | 68,0 - 77,0 | 22 | 95/95 | 106 | 54 | — | BDSM-11 | Get File | |
| M90x2,0 | 68,0 - 77,0 | 22 | 95/100 | 111 | 54 | — | BDSM-12 | Get File |
