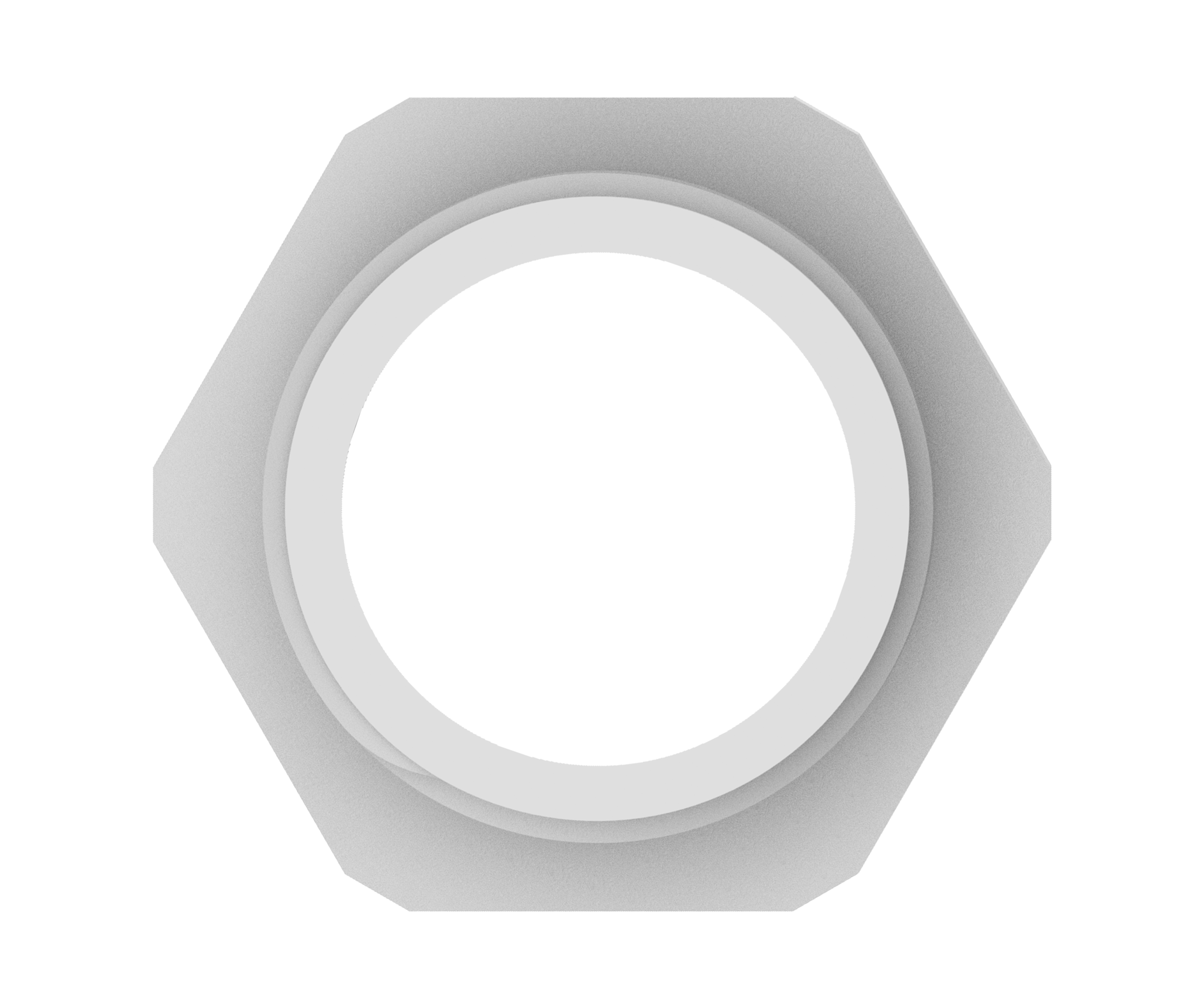

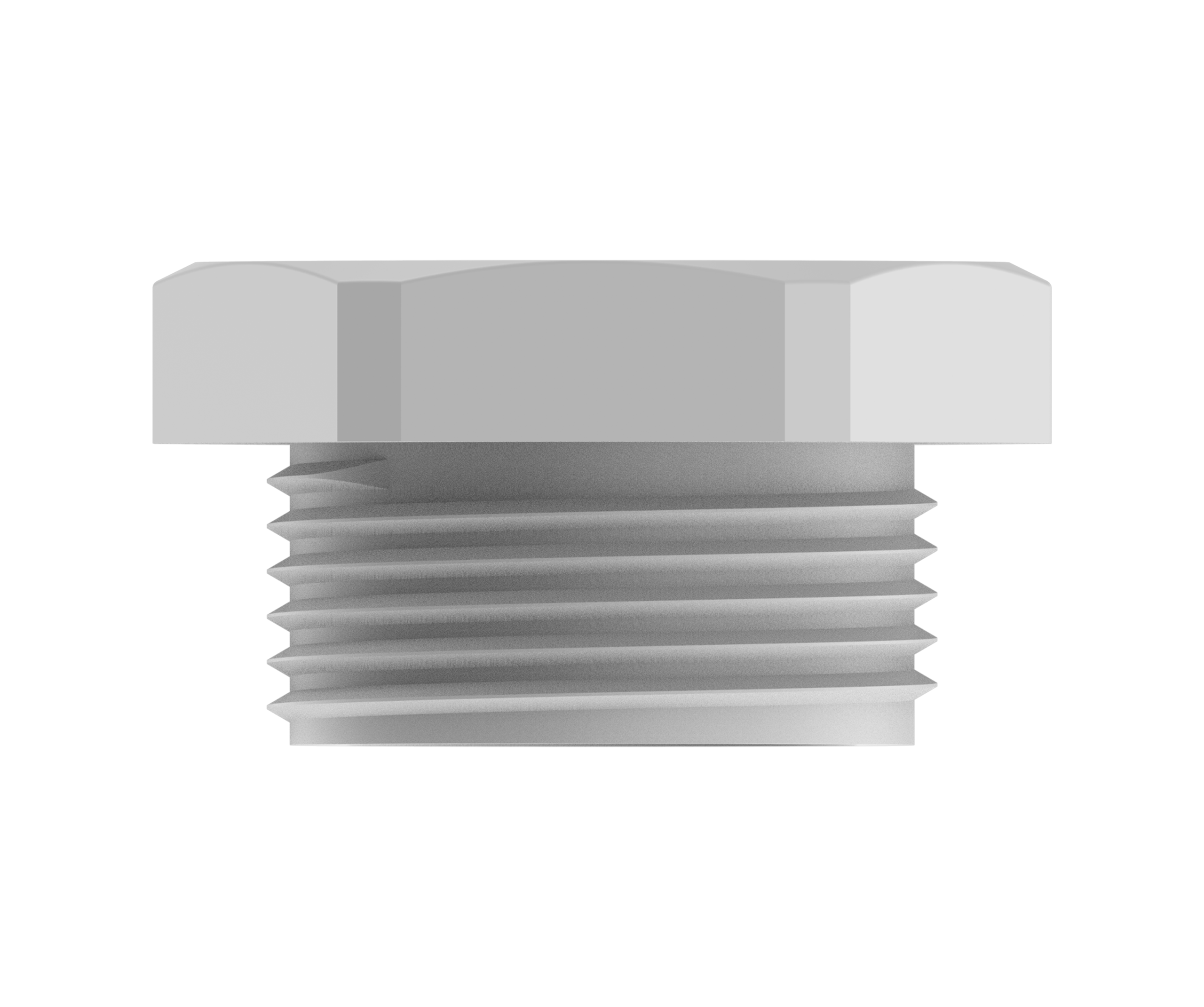

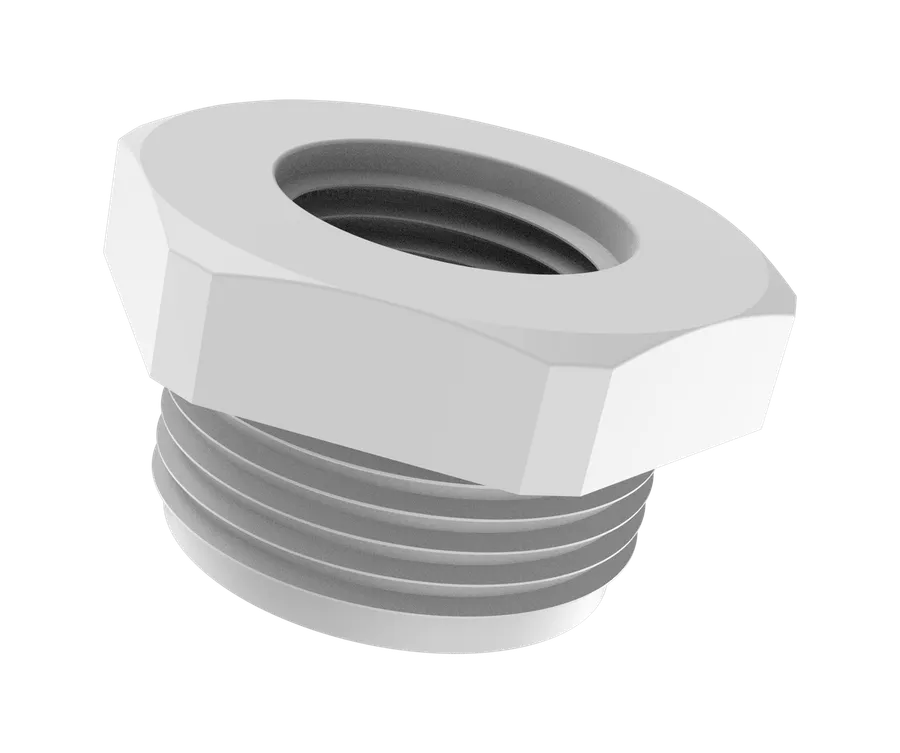

Reduksjonsnippel i polyamid (PA6)
○Adapter for overgang mellom ulike gjengestørrelser.
Spesifikasjoner

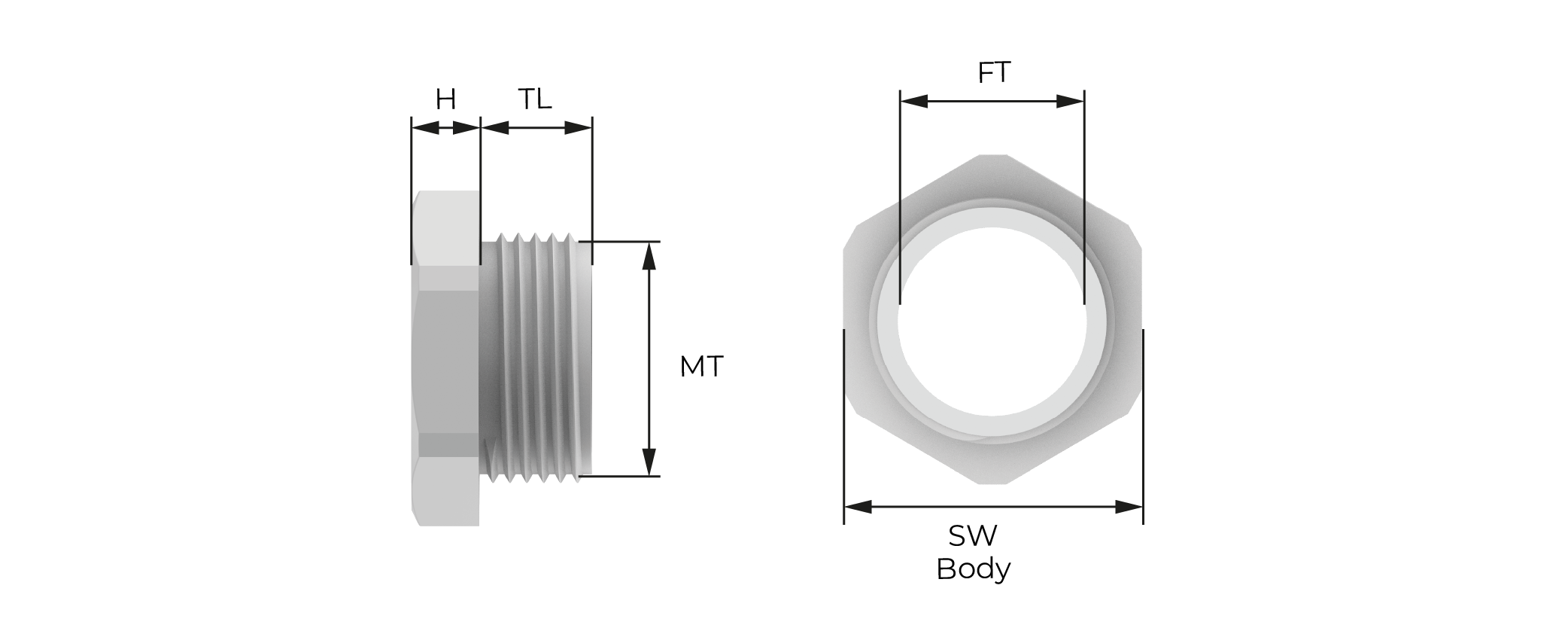

| Gjengelengde | Nøkkelvidde | Height 'H' | Male Thread Size 'MT' | Female Thread Size 'FT' | Varenummer | BIMED Kode | 3D File |
|---|---|---|---|---|---|---|---|
| 6 | 32 | 8 | M25x1,5 | M16x1,5 | — | PR2M01M-1 | — |
| 6 | 32 | 8 | M25x1,5 | M16x1,5 | — | PR2M01M-2 | — |
| 6 | 32 | 8 | M25x1,5 | M20x1,5 | — | PR2M1M-1 | — |
| 6 | 32 | 8 | M25x1,5 | M20x1,5 | — | PR2M1M-2 | — |
| 8 | 24 | 4 | M16x1,5 | M12x1,5 | — | PR01M02M-1 | — |
| 8 | 24 | 4 | M16x1,5 | M12x1,5 | — | PR01M02M-2 | — |
| 8 | 24 | 4 | M20x1,5 | M12x1,5 | — | PR1M02M-1 | — |
| 8 | 24 | 4 | M20x1,5 | M12x1,5 | — | PR1M02M-2 | — |
| 8 | 24 | 4 | M20x1,5 | M16x1,5 | — | PR1M01M-1 | — |
| 8 | 24 | 4 | M20x1,5 | M16x1,5 | — | PR1M01M-2 | — |
| 8 | 32 | 6 | M25x1,5 | M12x1,5 | — | PR2M02M-1 | — |
| 8 | 32 | 6 | M25x1,5 | M12x1,5 | — | PR2M02M-2 | — |
| 10 | 36 | 5.9 | M32x1,5 | M12x1,5 | — | PR3M02M-1 | — |
| 10 | 36 | 5.9 | M32x1,5 | M12x1,5 | — | PR3M02M-2 | — |
| 10 | 36 | 6 | M32x1,5 | M16x1,5 | — | PR3M01M-1 | — |
| 10 | 36 | 6 | M32x1,5 | M16x1,5 | — | PR3M01M-2 | — |
| 10 | 36 | 6.1 | M32x1,5 | M20x1,5 | — | PR3M1M-1 | — |
| 10 | 36 | 6.1 | M32x1,5 | M20x1,5 | — | PR3M1M-2 | — |
| 10 | 36 | 5.9 | M32x1,5 | M25x1,5 | — | PR3M2M-1 | — |
| 10 | 36 | 5.9 | M32x1,5 | M25x1,5 | — | PR3M2M-2 | — |
| 12 | 46 | 7 | M40x1,5 | M16x1,5 | — | PR4M01M-1 | — |
| 12 | 46 | 7 | M40x1,5 | M16x1,5 | — | PR4M01M-2 | — |
| 12 | 46 | 7 | M40x1,5 | M20x1,5 | — | PR4M1M-1 | — |
| 12 | 46 | 7 | M40x1,5 | M20x1,5 | — | PR4M1M-2 | — |
| 12 | 46 | 7 | M40x1,5 | M25x1,5 | — | PR4M2M-1 | — |
| 12 | 46 | 7 | M40x1,5 | M25x1,5 | — | PR4M2M-2 | — |
| 12 | 46 | 7 | M40x1,5 | M32x1,5 | — | PR4M3M-1 | — |
| 12 | 46 | 7 | M40x1,5 | M32x1,5 | — | PR4M3M-2 | — |
| 12 | 68 | 7 | M63x1,5 | M25x1,5 | — | PR6M2M-1 | — |
| 12 | 68 | 7 | M63x1,5 | M25x1,5 | — | PR6M2M-2 | — |
| 14 | 55 | 5.9 | M50x1,5 | M20x1,5 | — | PR5M1M-1 | — |
| 14 | 55 | 5.9 | M50x1,5 | M20x1,5 | — | PR5M1M-2 | — |
| 14 | 55 | 6 | M50x1,5 | M25x1,5 | — | PR5M2M-1 | — |
| 14 | 55 | 6 | M50x1,5 | M25x1,5 | — | PR5M2M-2 | — |
| 14 | 55 | 6.1 | M50x1,5 | M32x1,5 | — | PR5M3M-1 | — |
| 14 | 55 | 6.1 | M50x1,5 | M32x1,5 | — | PR5M3M-2 | — |
| 14 | 55 | 5.9 | M50x1,5 | M40x1,5 | — | PR5M4M-1 | — |
| 14 | 55 | 5.9 | M50x1,5 | M40x1,5 | — | PR5M4M-2 | — |
| 15 | 65 | 7 | M63x1,5 | M32x1,5 | — | PR6M3M-1 | — |
| 15 | 65 | 7 | M63x1,5 | M32x1,5 | — | PR6M3M-2 | — |
| 15 | 65 | 7 | M63x1,5 | M40x1,5 | — | PR6M4M-1 | — |
| 15 | 65 | 7 | M63x1,5 | M40x1,5 | — | PR6M4M-2 | — |
| 15 | 65 | 7 | M63x1,5 | M50x1,5 | — | PR6M5M-1 | — |
| 15 | 65 | 7 | M63x1,5 | M50x1,5 | — | PR6M5M-2 | — |
