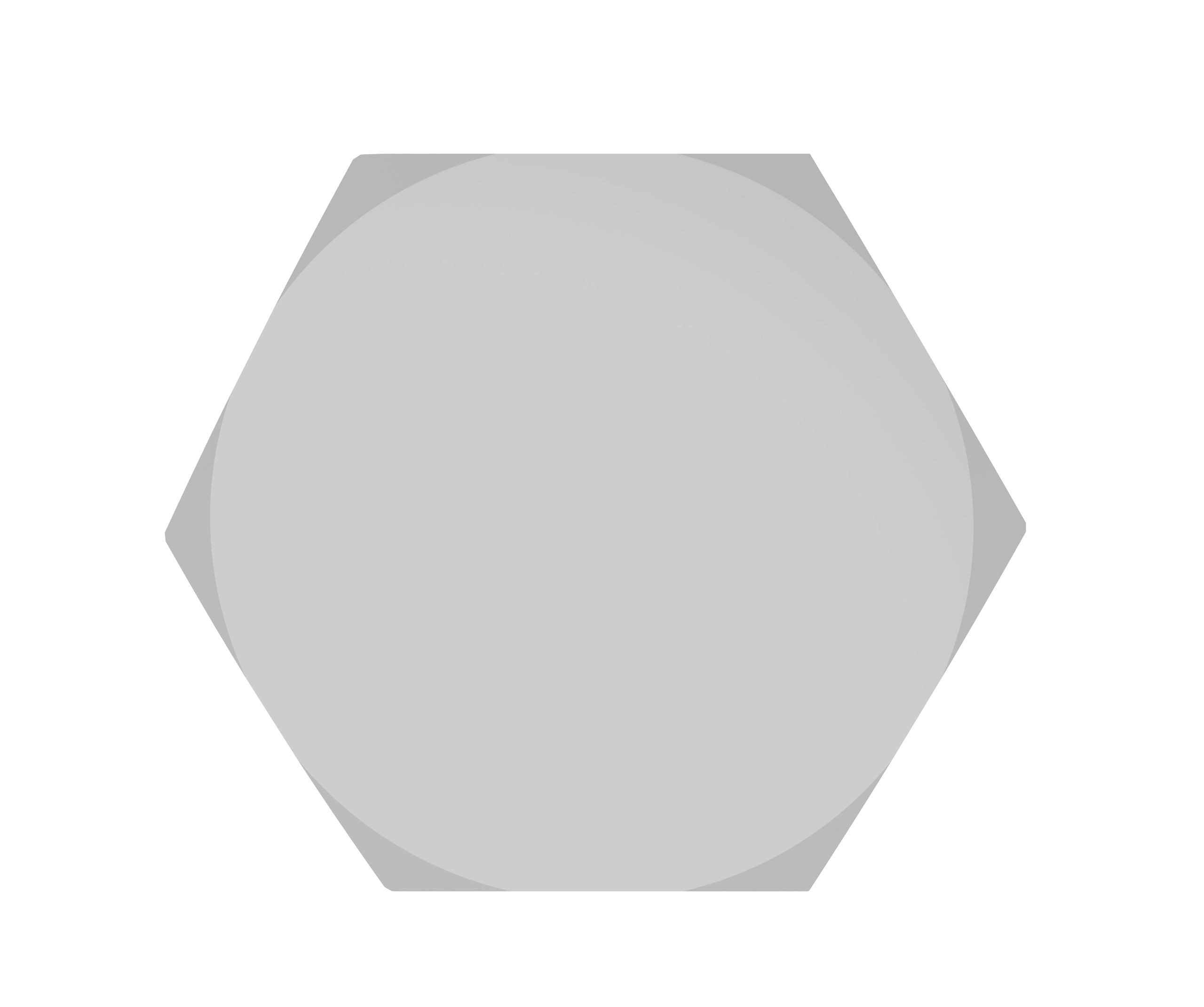

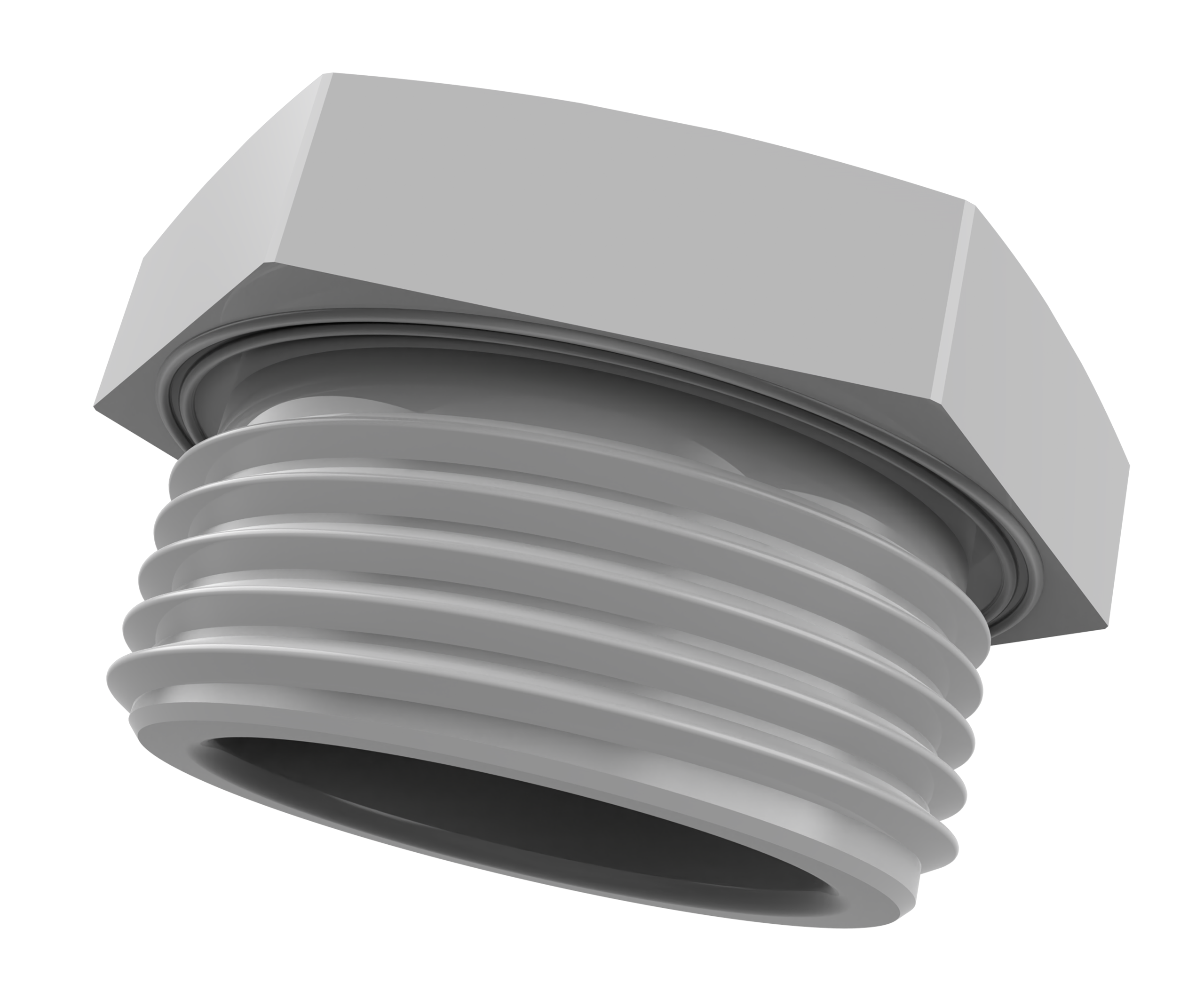

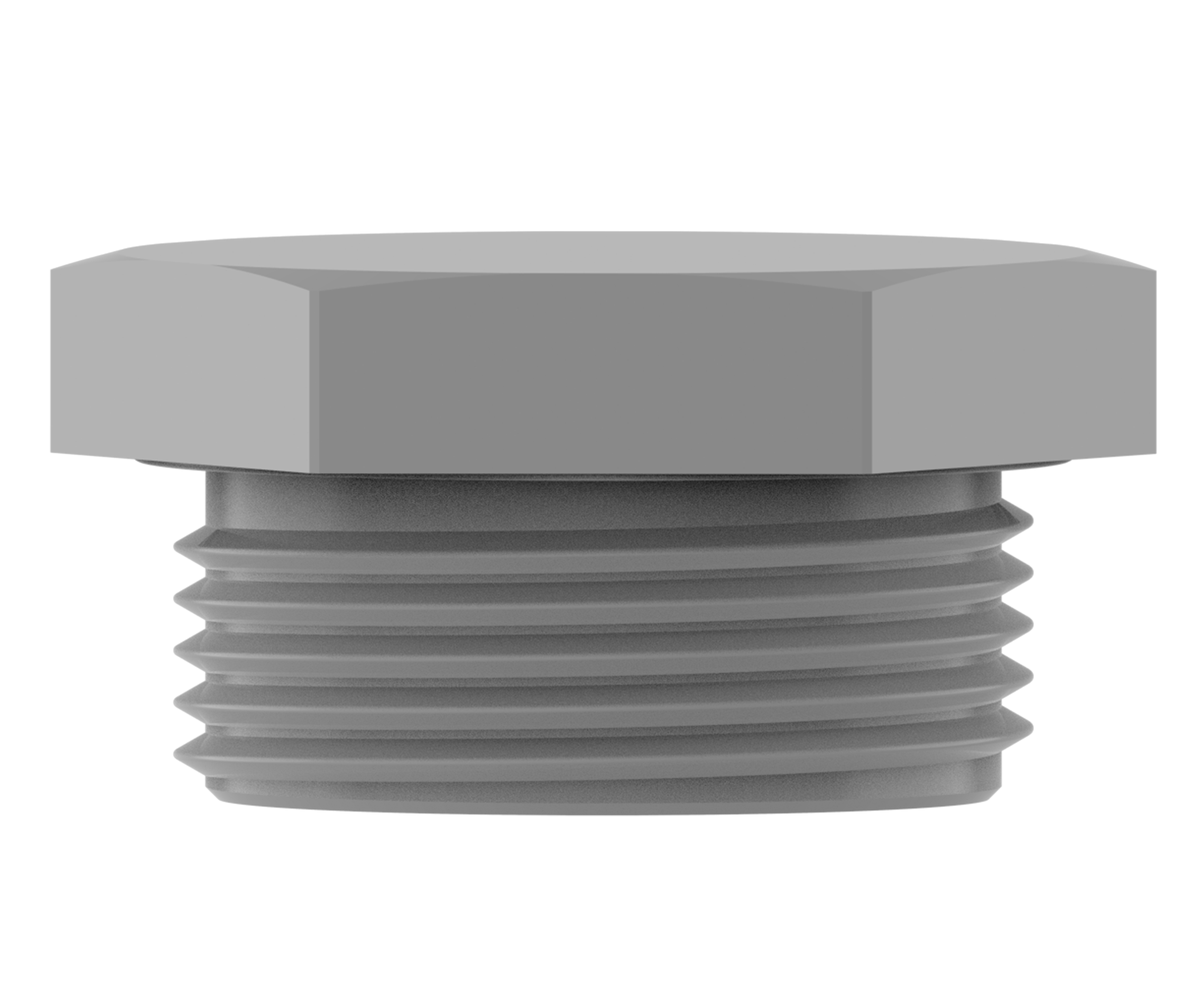

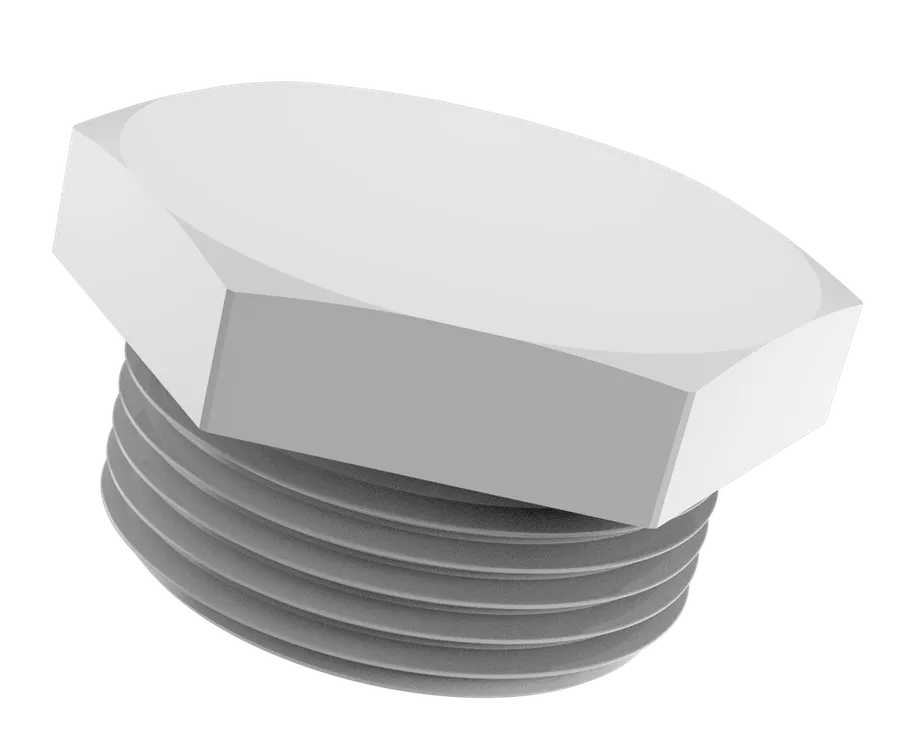

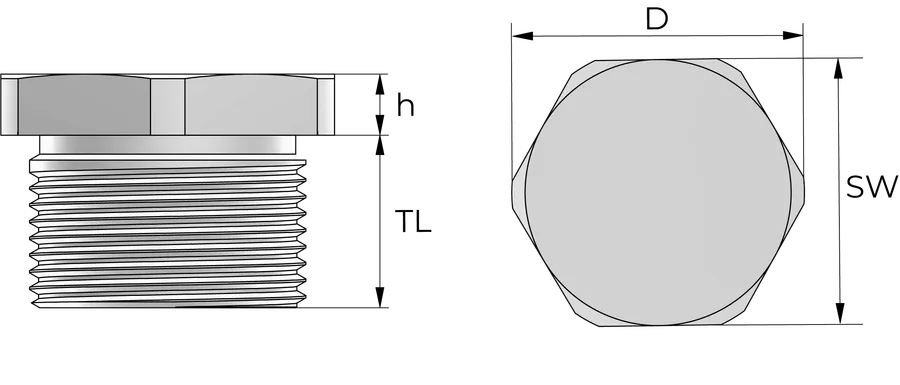

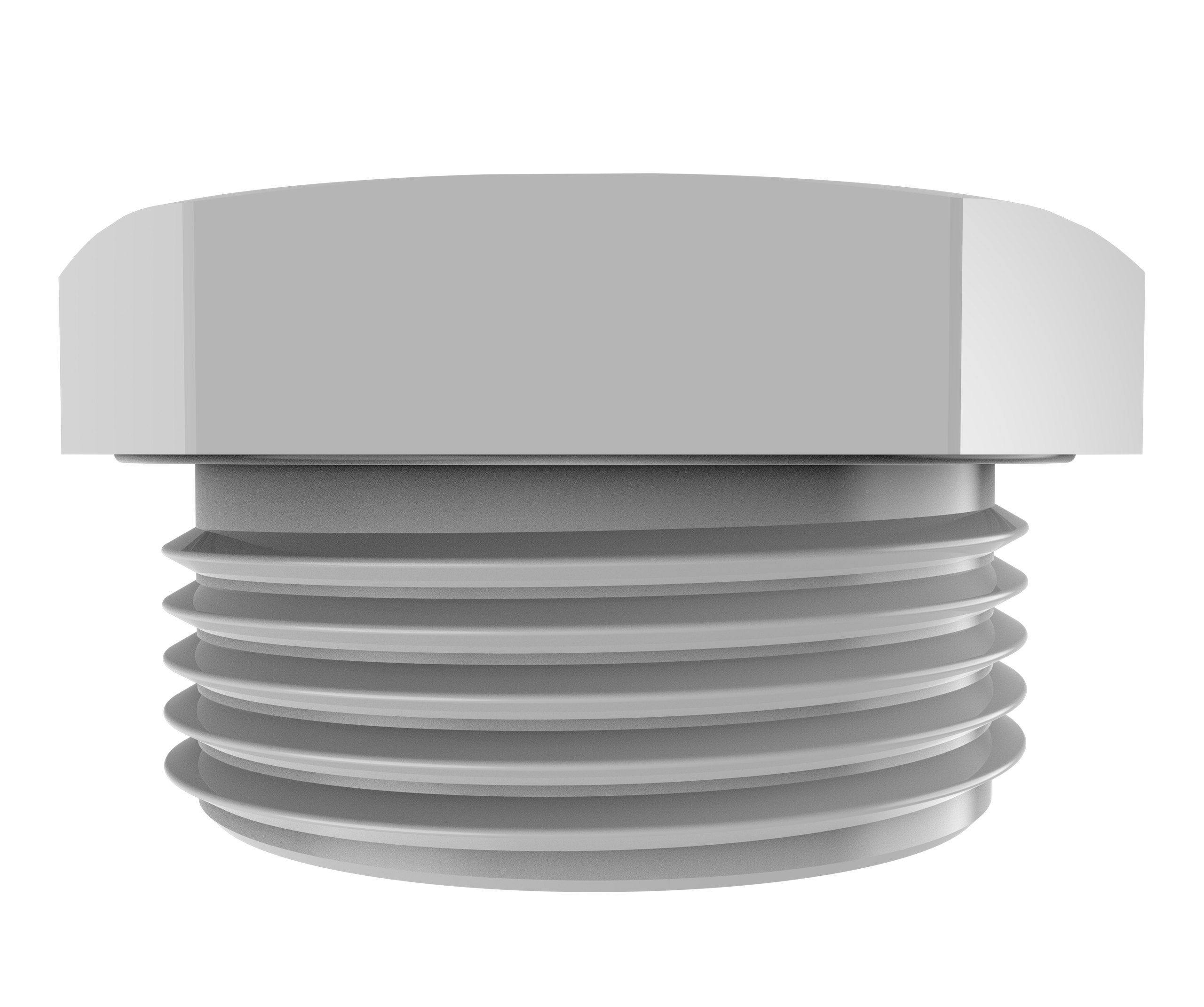

Sekskant-blindplugg i polyamid (PA6)
○Tetter åpninger i kabinetter der kabelnippel ikke er montert
○Strammes med skiftenøkkel for standard industrielle applikasjoner.
Spesifikasjoner
| Gjengestørrelse | Gjengelengde | Diameter | Nøkkelvidde | Height 'H' | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 10 | 17 | 15 | 5 | — | BMBS-1S(A)(TL10) | — | |
| M12x1,5 | 10 | 17 | 15 | 5 | — | BMBS-0S(A)(TL10) | — | |
| M12x1,5 | 10 | 17 | 15 | 5 | — | BMBS-2S(A)(TL10) | — | |
| M16x1,5 | 11 | 22 | 19 | 4.3 | — | BMBS-11(A)(TL11) | — | |
| M16x1,5 | 11 | 22 | 19 | 4.3 | — | BMBS-01(A)(TL11) | — | |
| M16x1,5 | 11 | 22 | 19 | 4.3 | — | BMBS-21(A)(TL11) | — | |
| M16x1,5 | 15 | 22 | 19 | 4.3 | — | BMBS-11(A)(TL15) | — | |
| M16x1,5 | 15 | 22 | 19 | 4.3 | — | BMBS-01(A)(TL15) | — | |
| M16x1,5 | 15 | 22 | 19 | 4.3 | — | BMBS-21(A)(TL15) | — | |
| M20x1,5 | 11 | 26 | 23 | 6 | — | BMBS-12(A)(TL11) | — | |
| M20x1,5 | 11 | 26 | 23 | 6 | — | BMBS-02(A)(TL11) | — | |
| M20x1,5 | 11 | 26 | 23 | 6 | — | BMBS-22(A)(TL11) | — | |
| M20x1,5 | 15 | 26 | 23 | 6 | — | BMBS-12(A)(TL15) | — | |
| M20x1,5 | 15 | 26 | 23 | 6 | — | BMBS-02(A)(TL15) | — | |
| M20x1,5 | 15 | 26 | 23 | 6 | — | BMBS-22(A)(TL15) | — | |
| M25x1,5 | 10 | 32 | 28 | 5.8 | — | BMBS-13(A)(TL10) | — | |
| M25x1,5 | 10 | 32 | 28 | 5.8 | — | BMBS-03(A)(TL10) | Get File | |
| M25x1,5 | 10 | 32 | 28 | 5.8 | — | BMBS-23(A)(TL10) | — | |
| M25x1,5 | 15 | 32 | 28 | 5.8 | — | BMBS-13(A)(TL15) | — | |
| M25x1,5 | 15 | 32 | 28 | 5.8 | — | BMBS-03(A)(TL15) | — | |
| M25x1,5 | 15 | 32 | 28 | 5.8 | — | BMBS-23(A)(TL15) | — | |
| M32x1,5 | 15 | 41.5 | 36 | 7.8 | — | BMBS-14(A)(TL15) | — | |
| M32x1,5 | 15 | 41.5 | 36 | 7.8 | — | BMBS-04(A)(TL15) | — | |
| M32x1,5 | 15 | 41.5 | 36 | 7.8 | — | BMBS-24(A)(TL15) | — | |
| M40x1,5 | 18 | 53 | 46 | 8.5 | — | BMBS-15(A)(TL18) | — | |
| M40x1,5 | 18 | 53 | 46 | 8.5 | — | BMBS-05(A)(TL18) | — | |
| M40x1,5 | 18 | 53 | 46 | 8.5 | — | BMBS-25(A)(TL18) | — | |
| M50x1,5 | 18 | 63.5 | 55 | 9.5 | — | BMBS-16(A)(TL18) | — | |
| M50x1,5 | 18 | 63.5 | 55 | 9.5 | — | BMBS-06(A)(TL18) | — | |
| M50x1,5 | 18 | 63.5 | 55 | 9.5 | — | BMBS-26(A)(TL18) | — | |
| M63x1,5 | 18 | 79.5 | 69 | 9.5 | — | BMBS-17(A)(TL18) | — | |
| M63x1,5 | 18 | 79.5 | 69 | 9.5 | — | BMBS-07(A)(TL18) | — | |
| M63x1,5 | 18 | 79.5 | 69 | 9.5 | — | BMBS-27(A)(TL18) | — |
