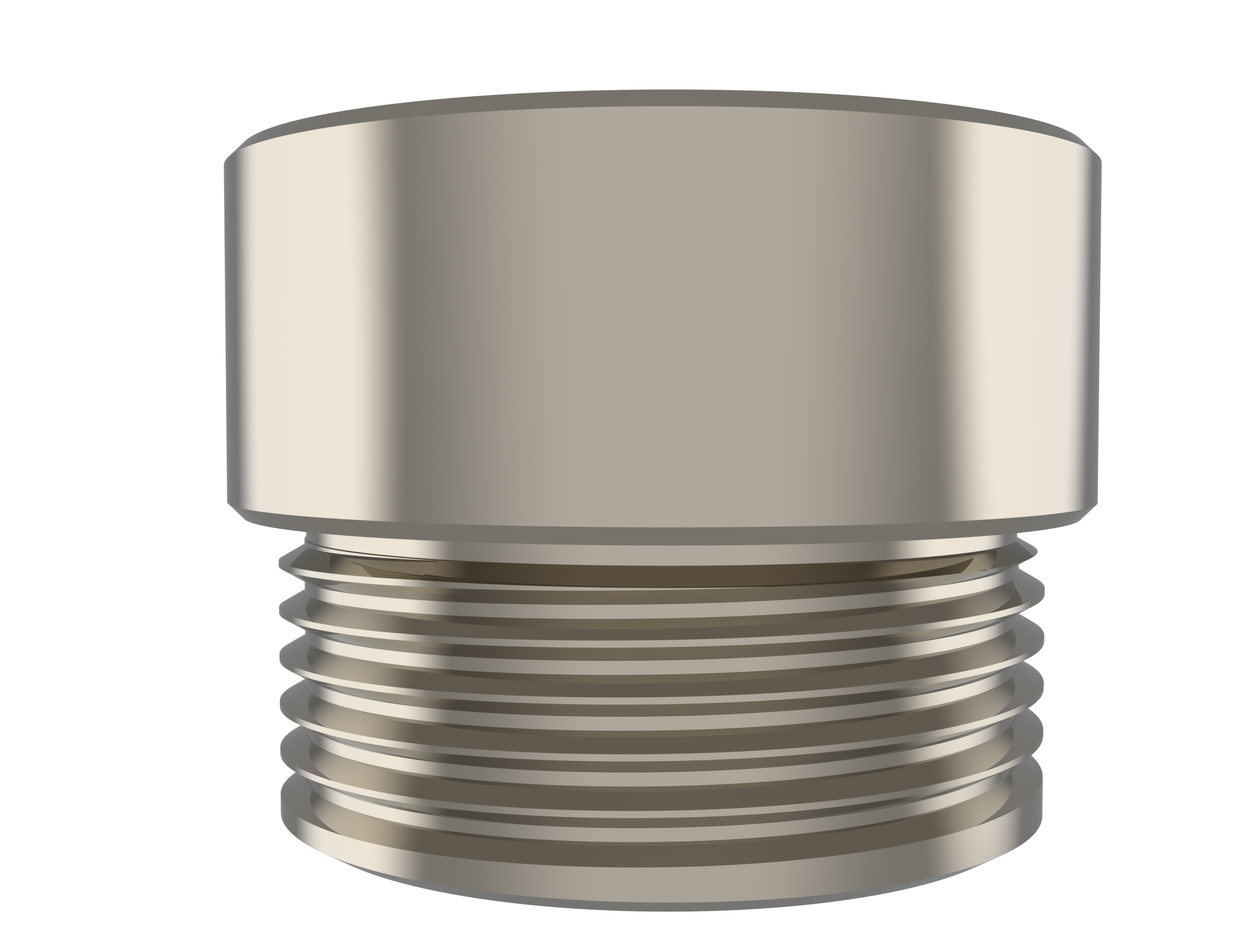

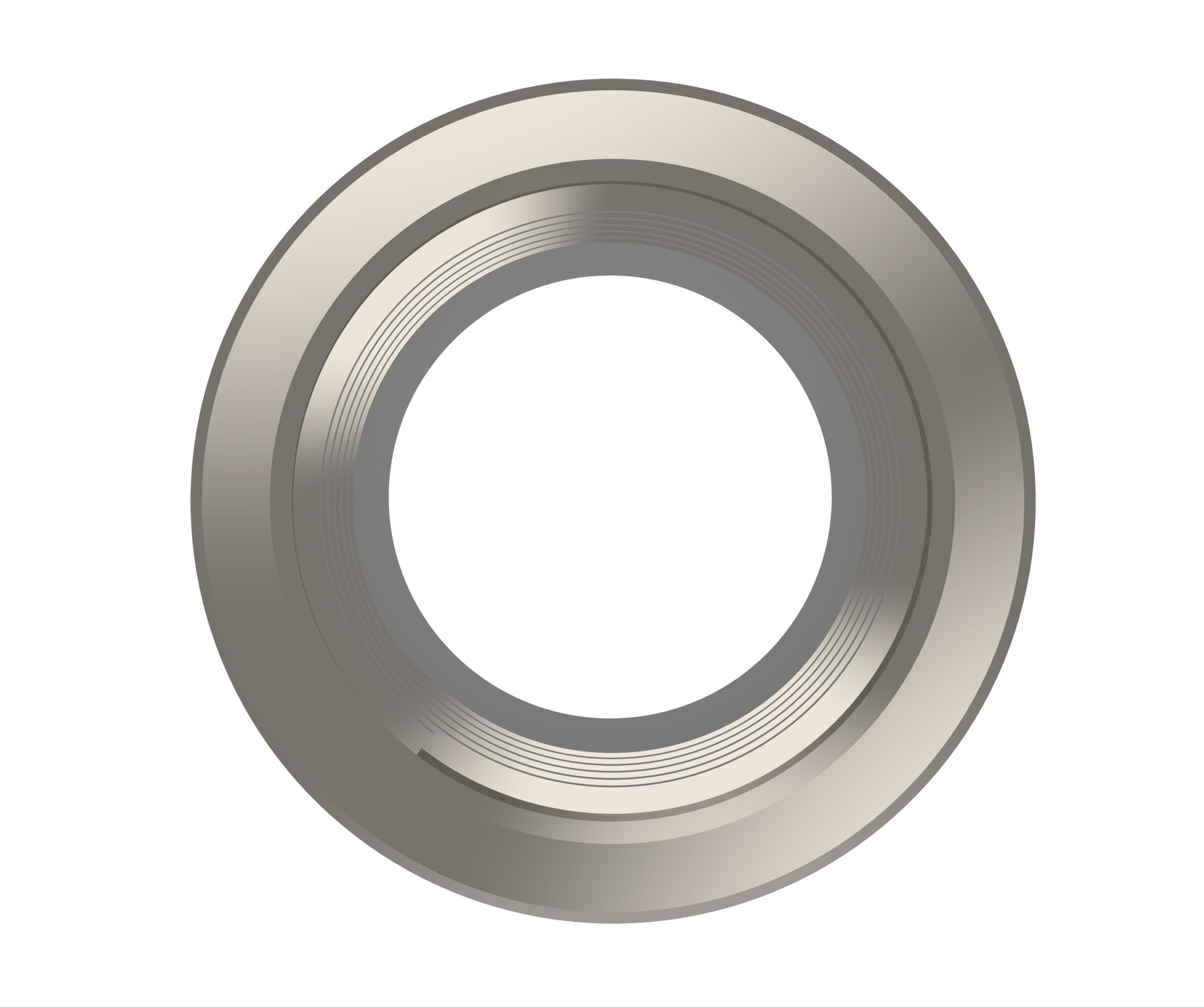

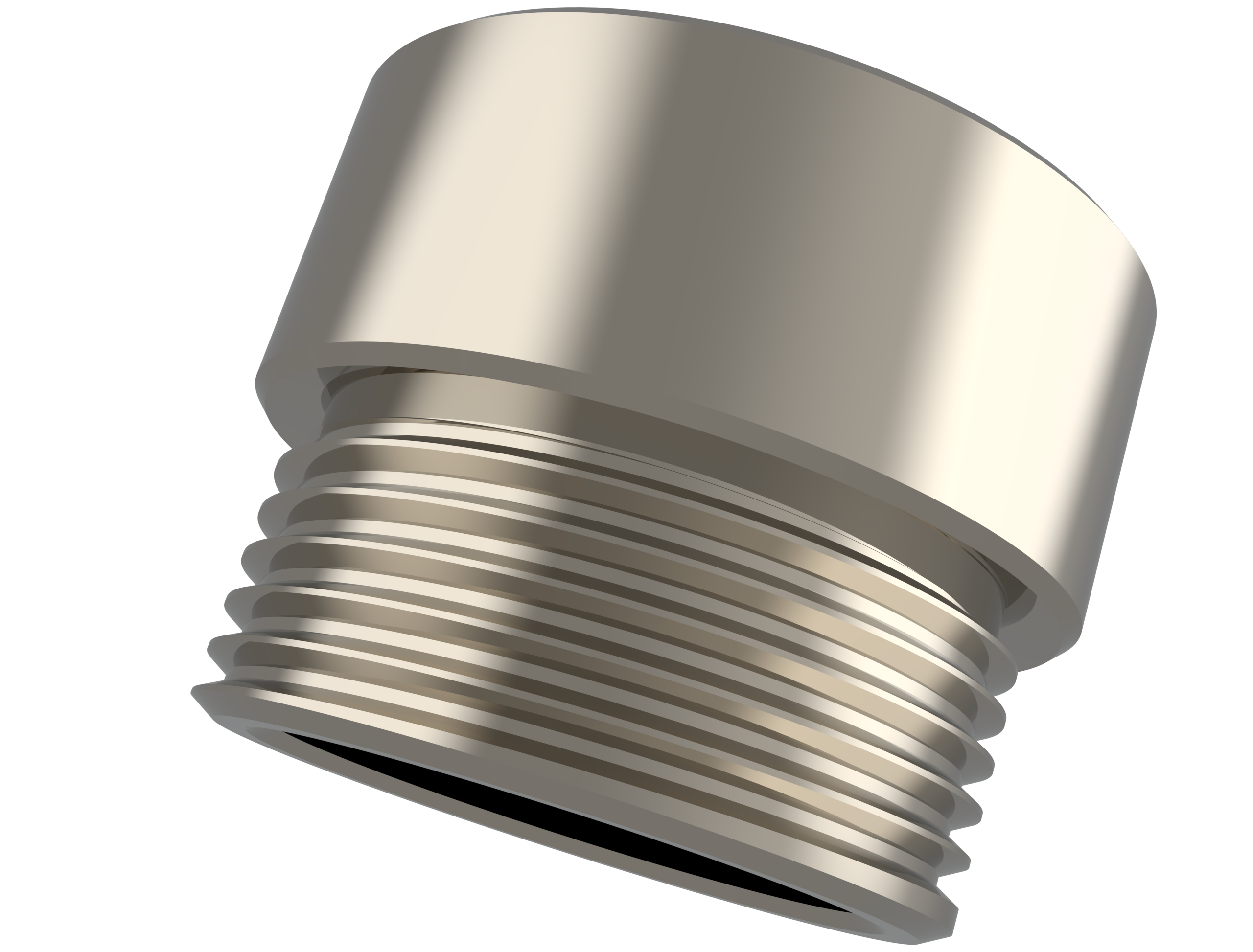

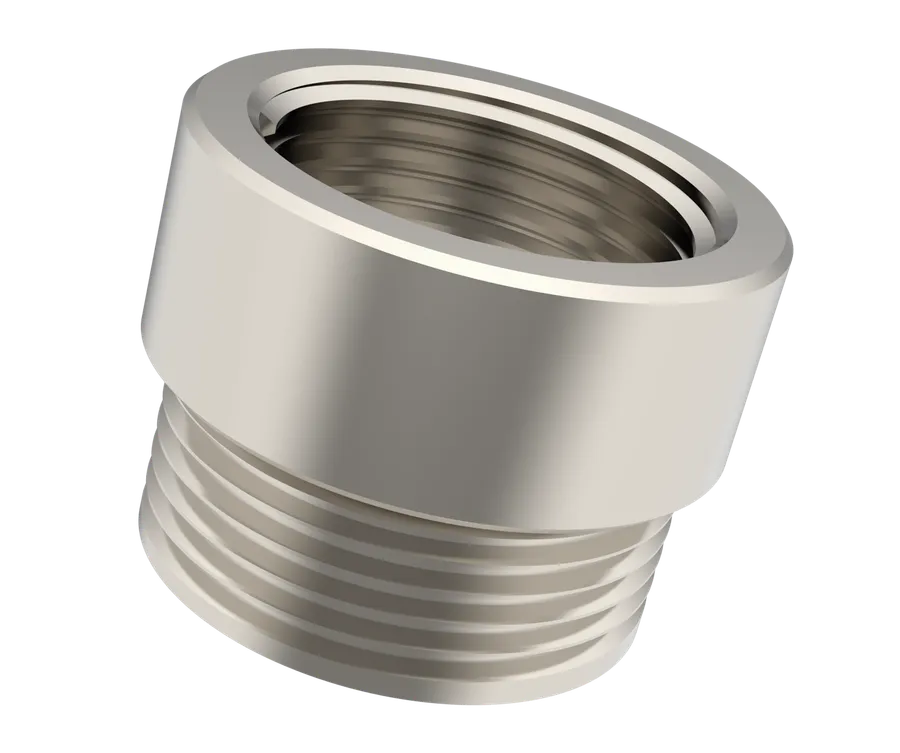

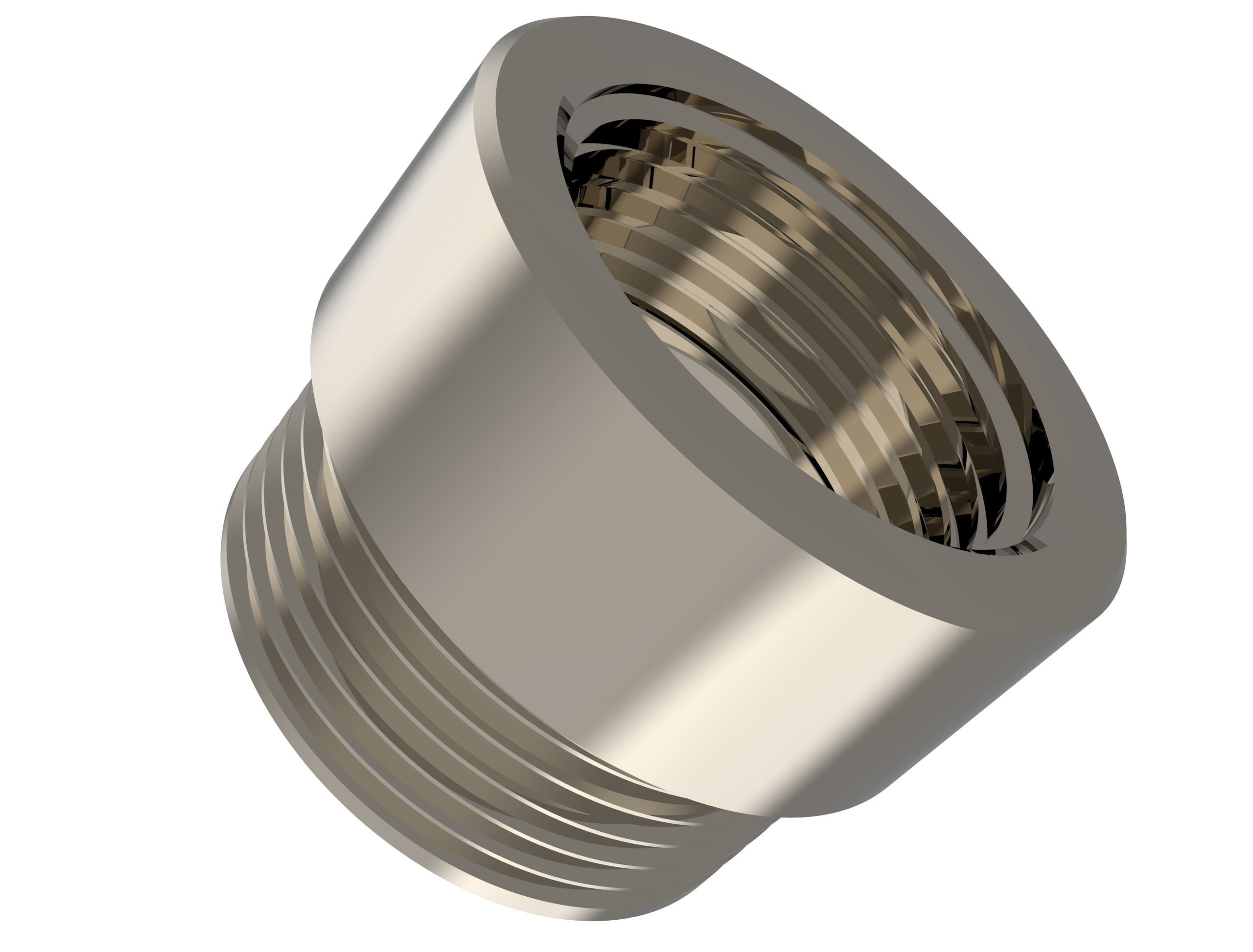

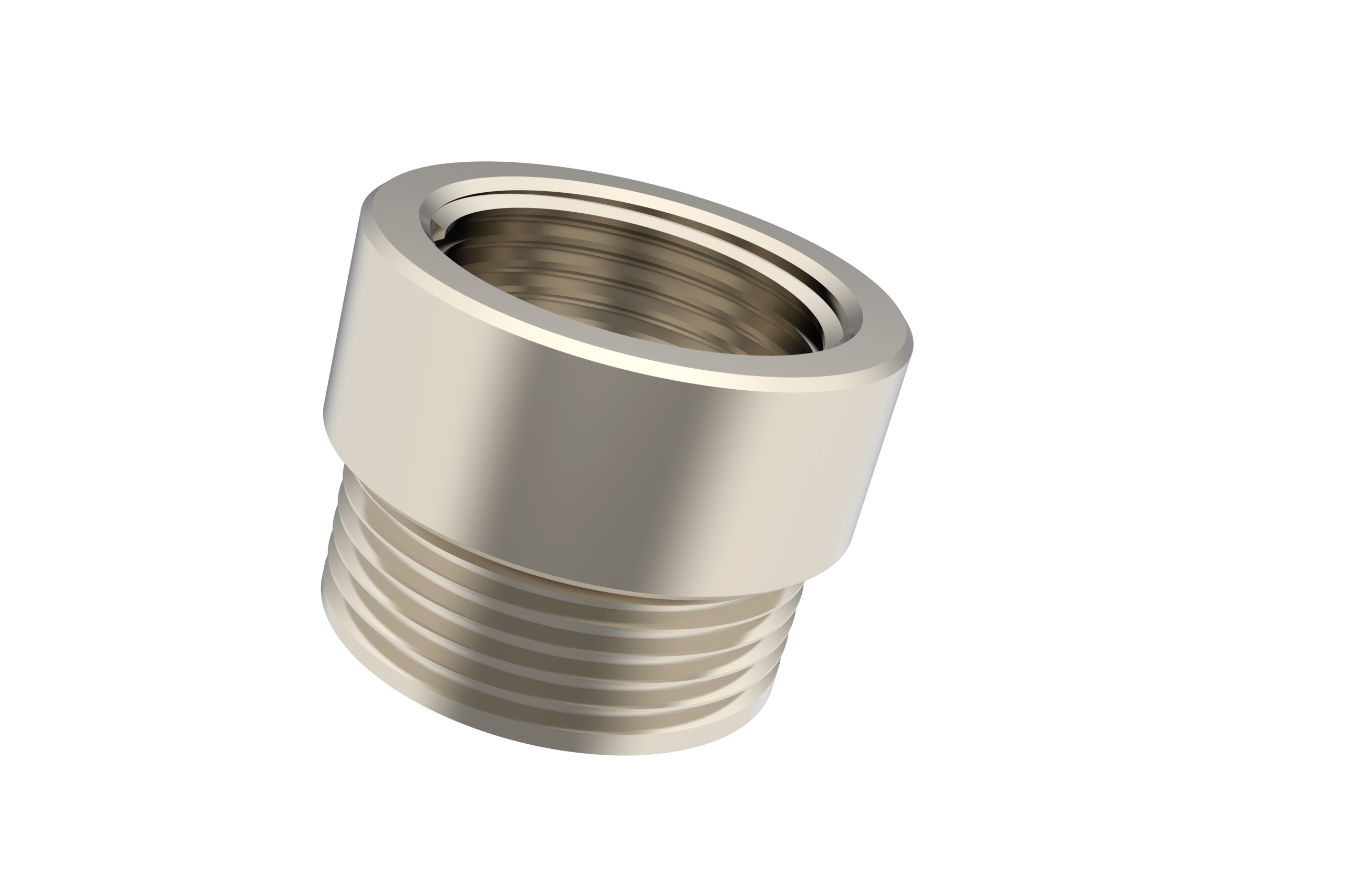

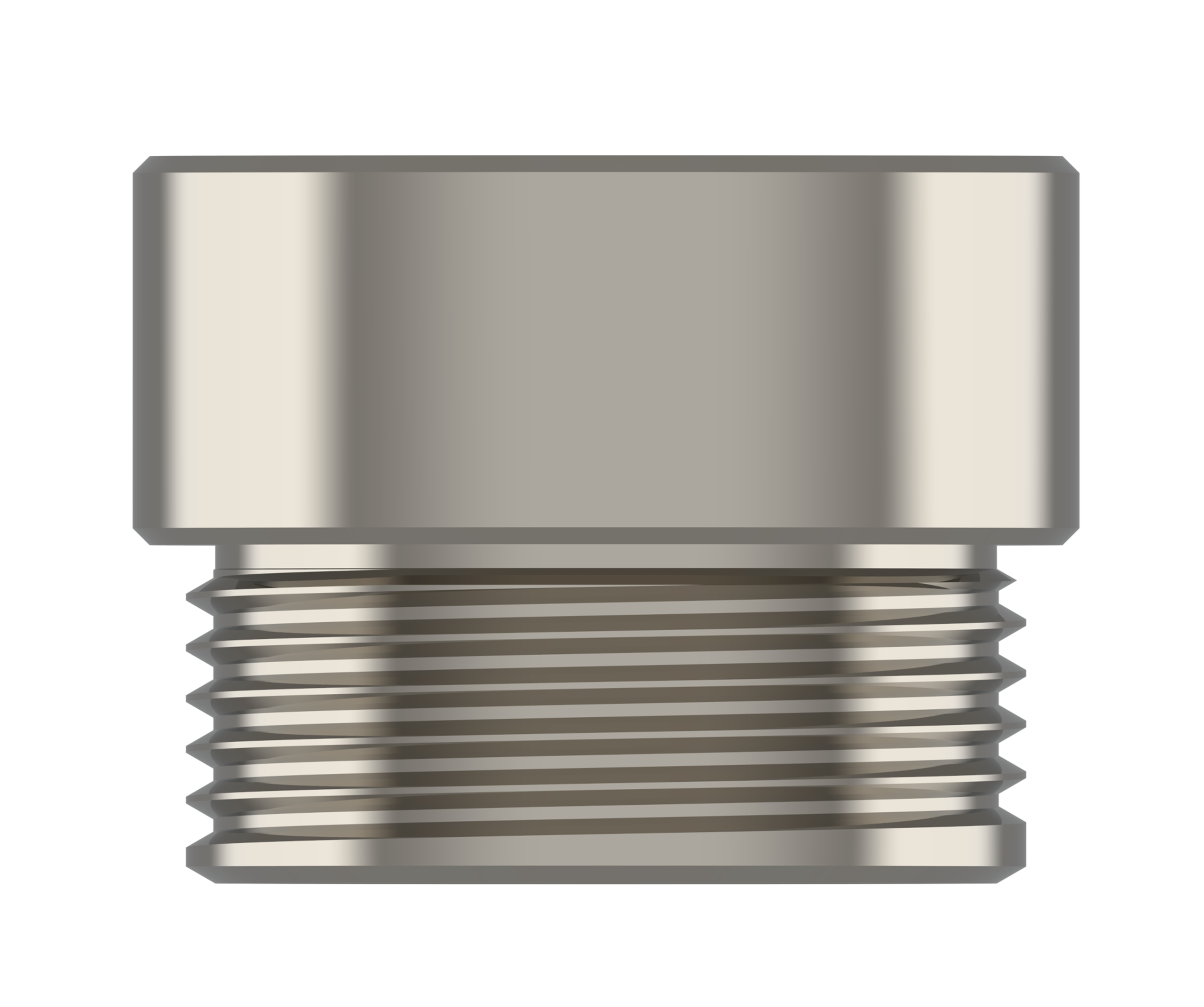

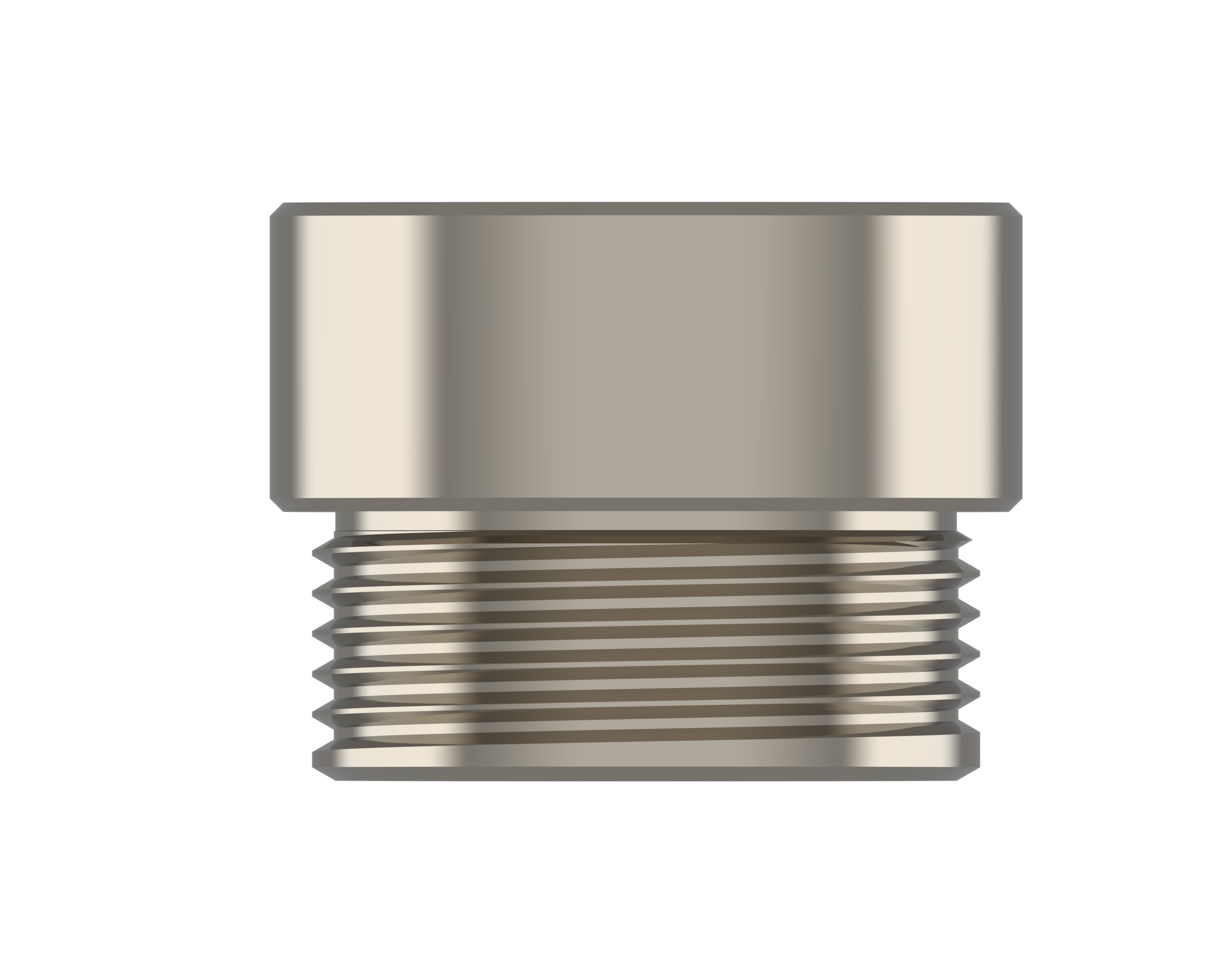

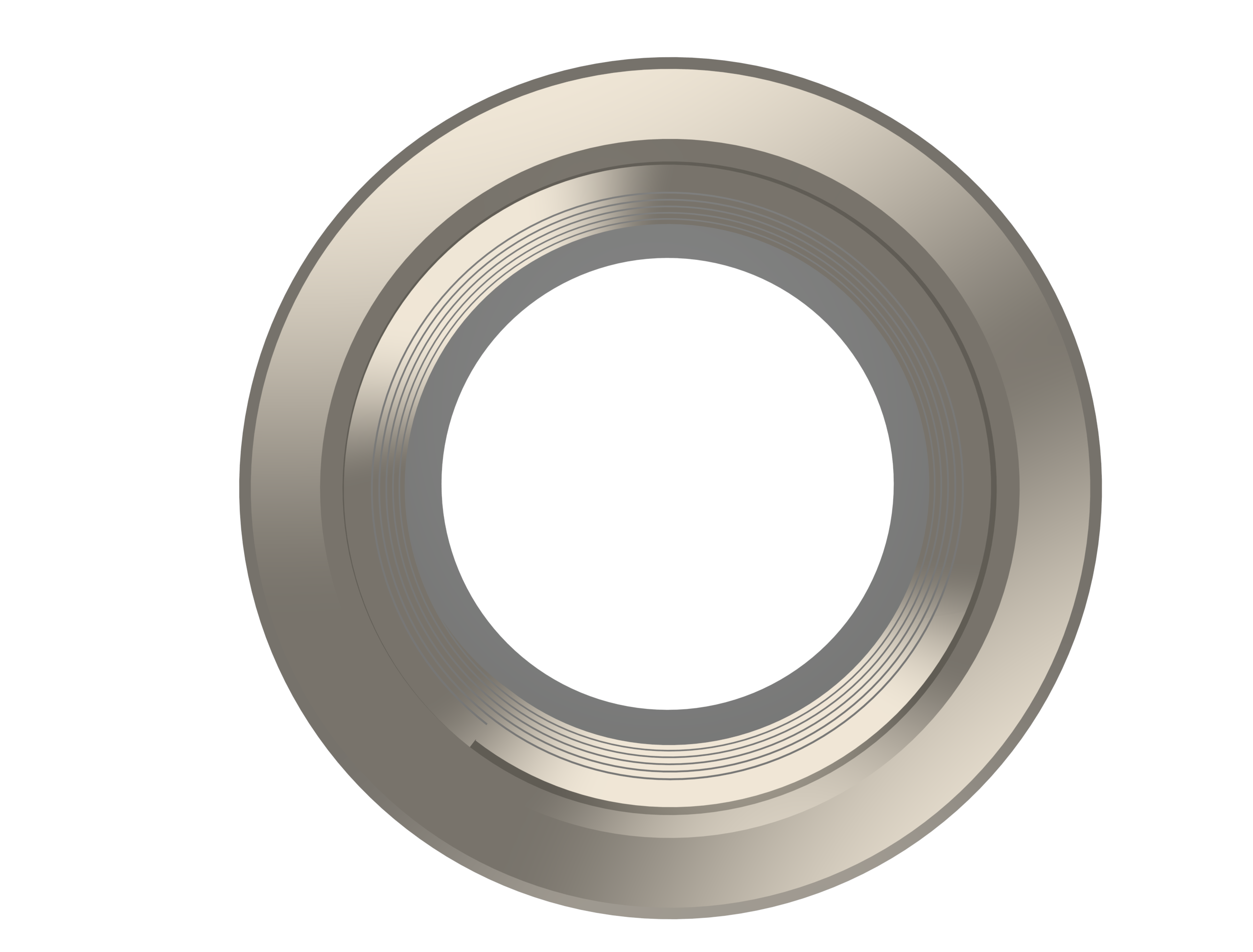

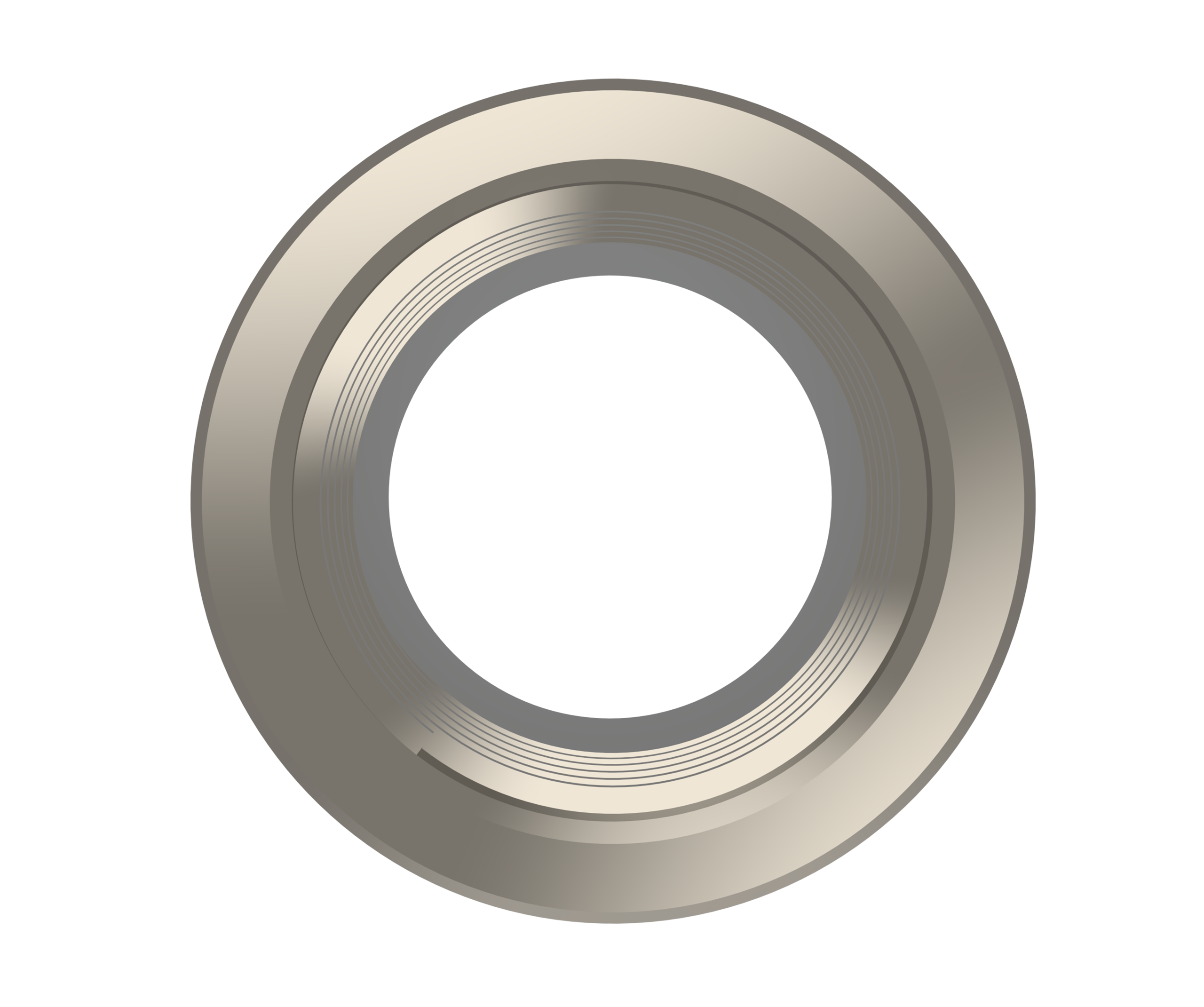

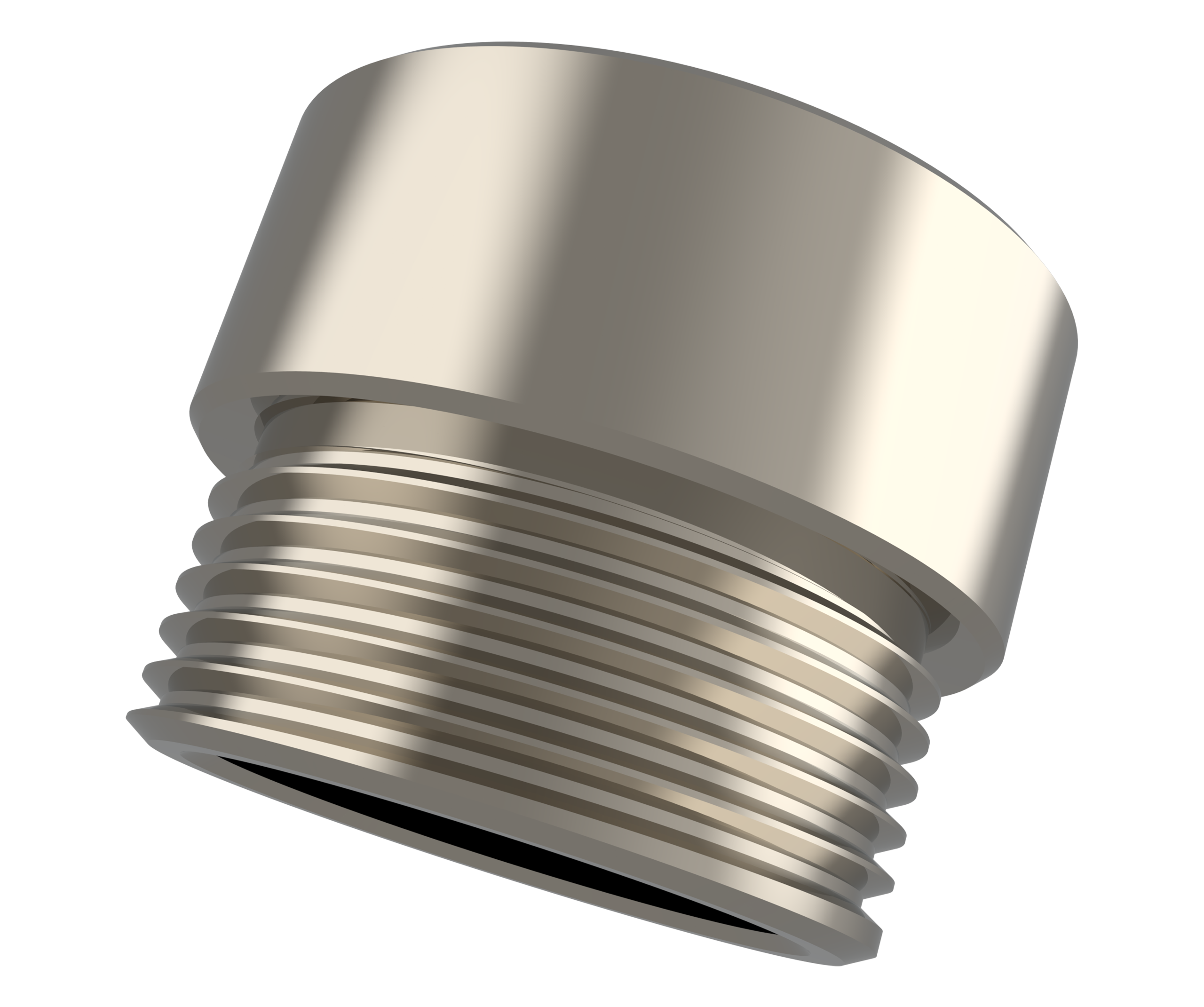

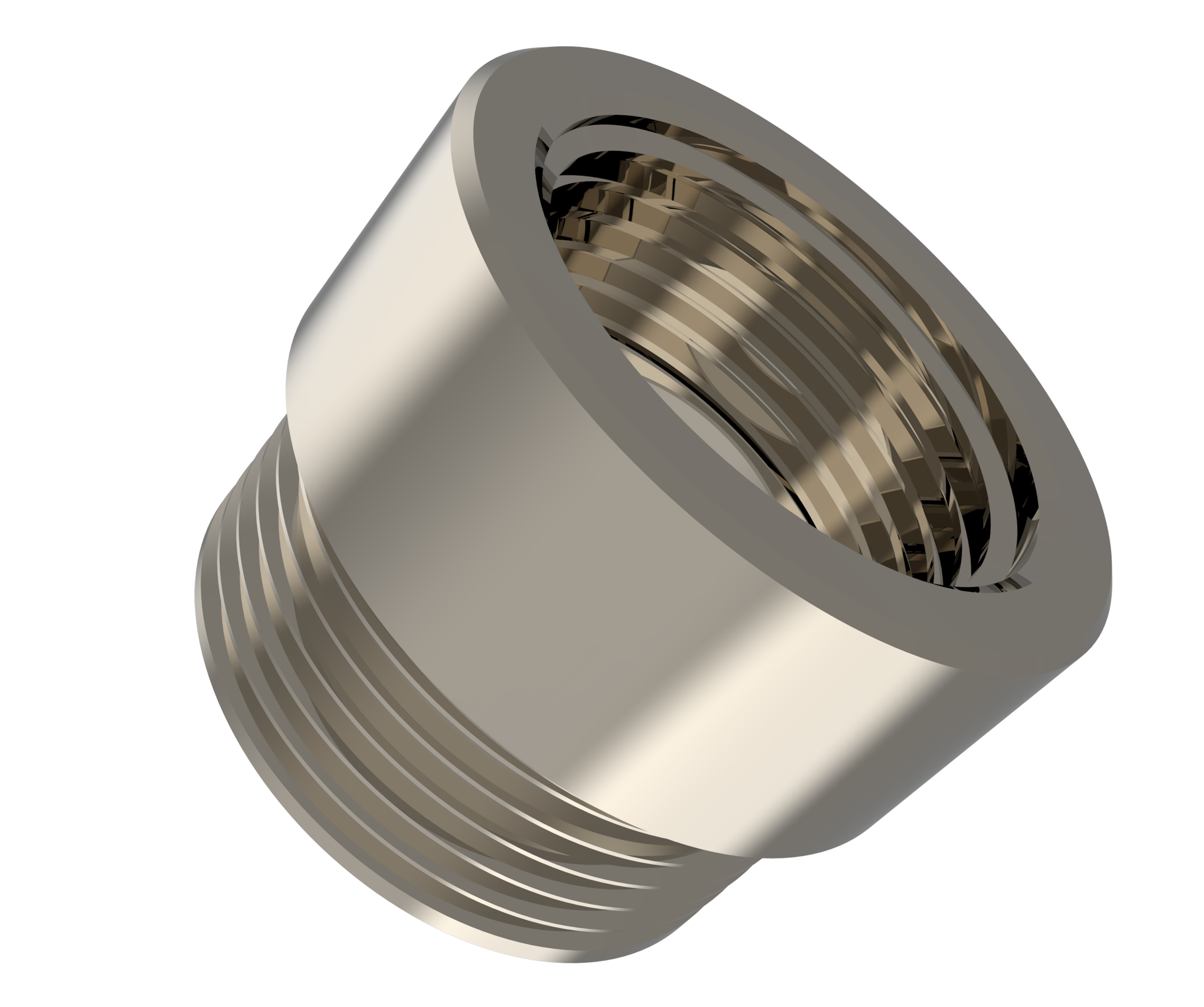

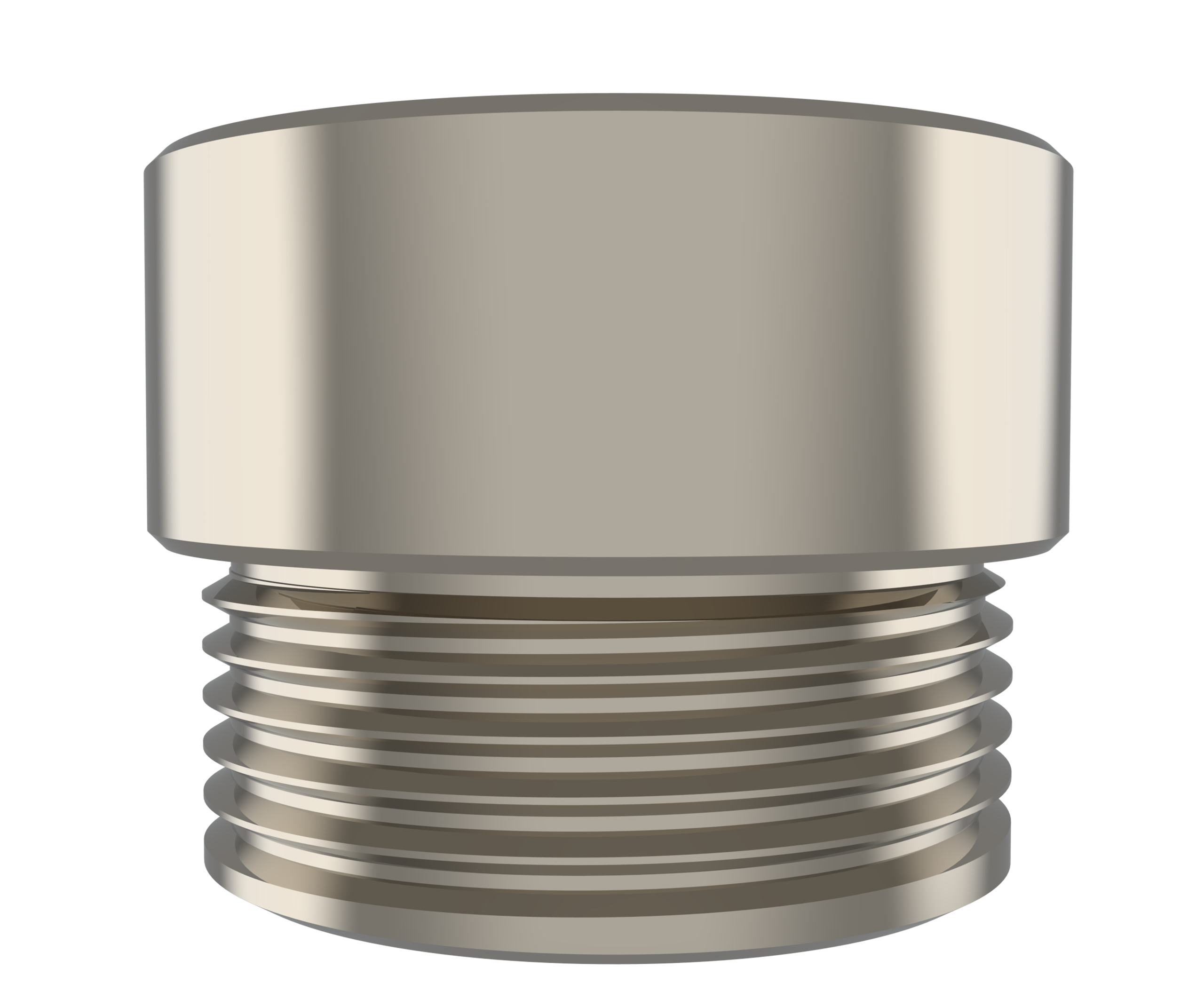

Adapter, metall

Name: Adapter, metall
Brand: Bimed Teknik

○Adapter i metall for overgang mellom ulike gjengetyper og -størrelser

○Egnet for metallkabinetter og maskiner.

Spesifikasjoner

Gjengelengde	Diameter	ITL	Height 'H'	Inner Ø 'ID'	Thread Size 'F'	Thread Size 'M'	Varenummer	BIMED Kode	3D File	Datablad
0.2362204724409449	0.7086614173228347	0.2755905511811024	0.35433070866141736	0.31496062992125984	M16x1,5	M12x1,5	—	IB-RB0SM01M	—	PDF
0.2362204724409449	0.8661417322834646	0.3937007874015748	0.4566929133858268	0.4724409448818898	M20X1.5	M16x1,5	—	IB-RB01M02M	—	PDF
0.2755905511811024	1.062992125984252	0.3346456692913386	0.4133858267716536	0.6299212598425197	M25X1.5	M20X1.5	—	IB-RB02M03M	—	PDF
0.31496062992125984	1.3385826771653544	0.37401574803149606	0.45275590551181105	0.8070866141732284	M32X1.5	M25X1.5	—	IB-RB03M04M	—	PDF
0.31496062992125984	1.6535433070866143	0.3346456692913386	0.5708661417322834	1.0236220472440944	M40X1.5	M32X1.5	—	IB-RB04M05M	—	PDF
0.31496062992125984	2.125984251968504	0.531496062992126	0.6692913385826772	1.0236220472440944	M50X1.5	—	—	IB-RB04M06M	—	PDF
0.31496062992125984	2.047244094488189	0.5905511811023623	0.767716535433071	1.3976377952755907	M50X1.5	M40X1.5	—	IB-RB05M06M	—	PDF
0.35433070866141736	2.5590551181102366	0.37401574803149606	0.8858267716535434	1.7716535433070868	M63X1.5	M50X1.5	—	IB-RB06M07M	—	PDF
