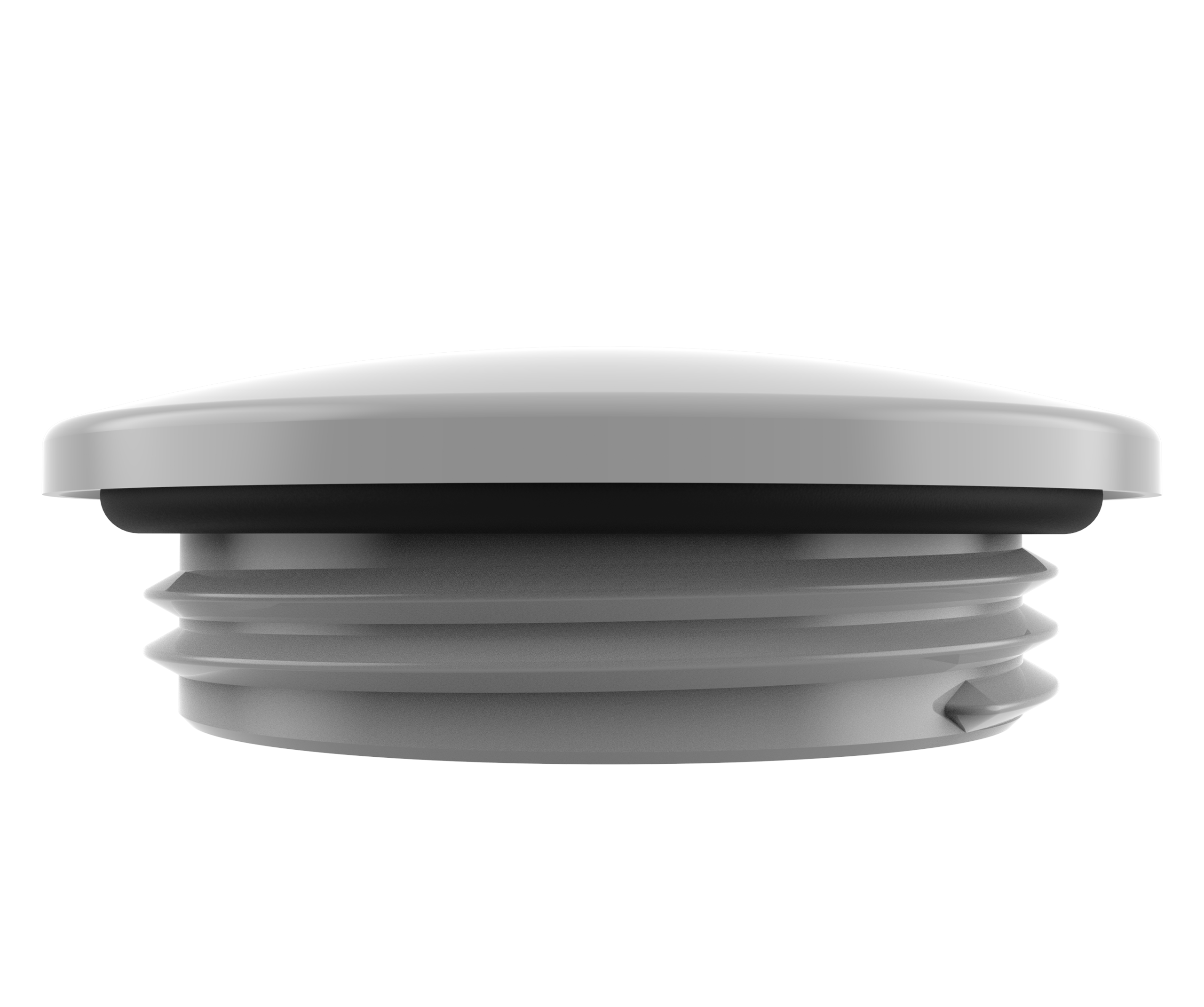

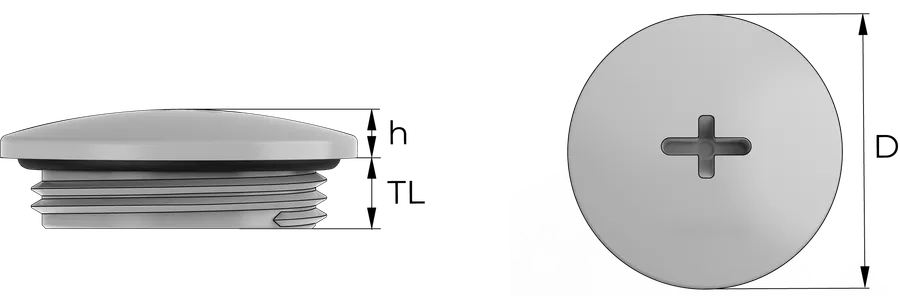

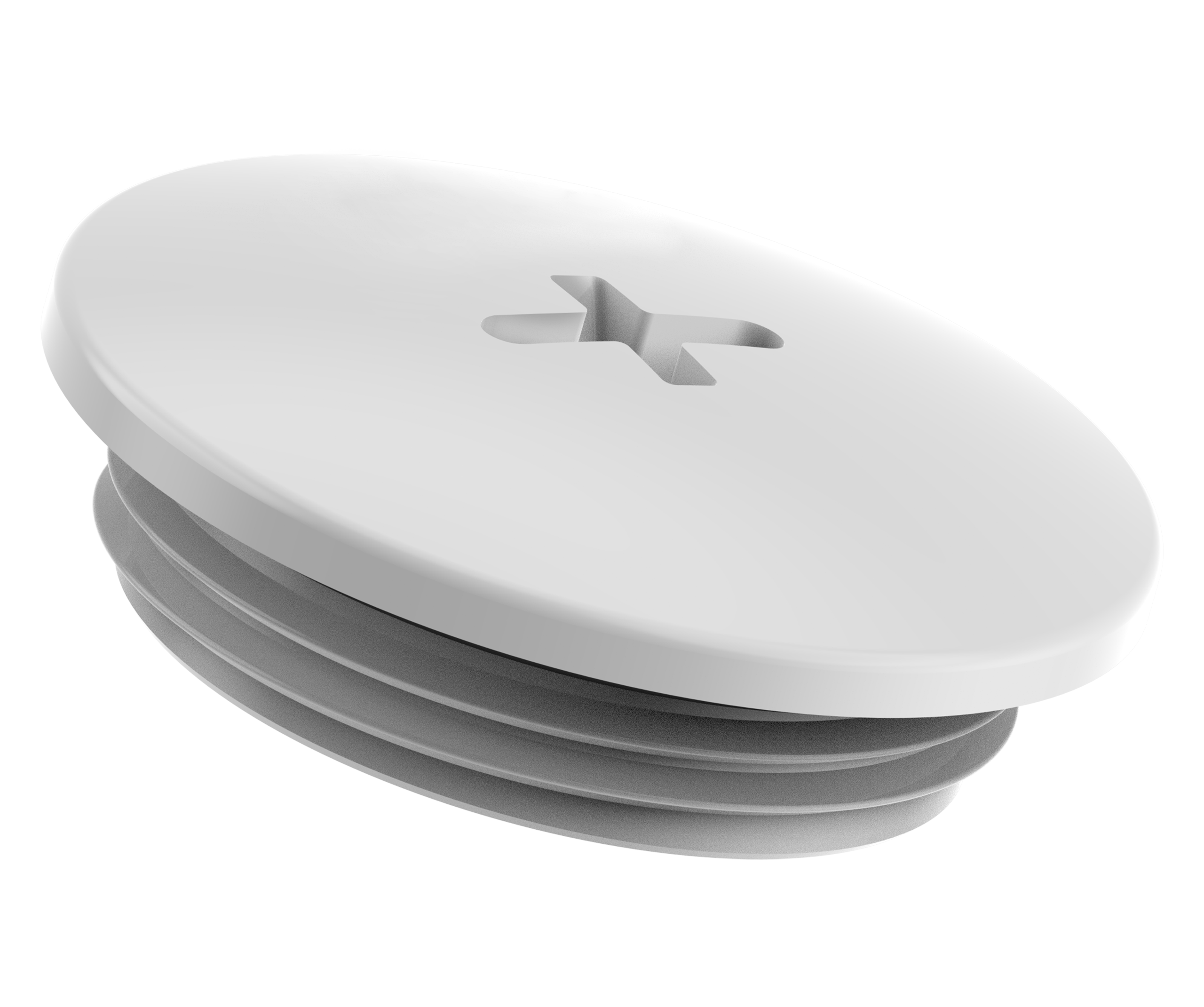

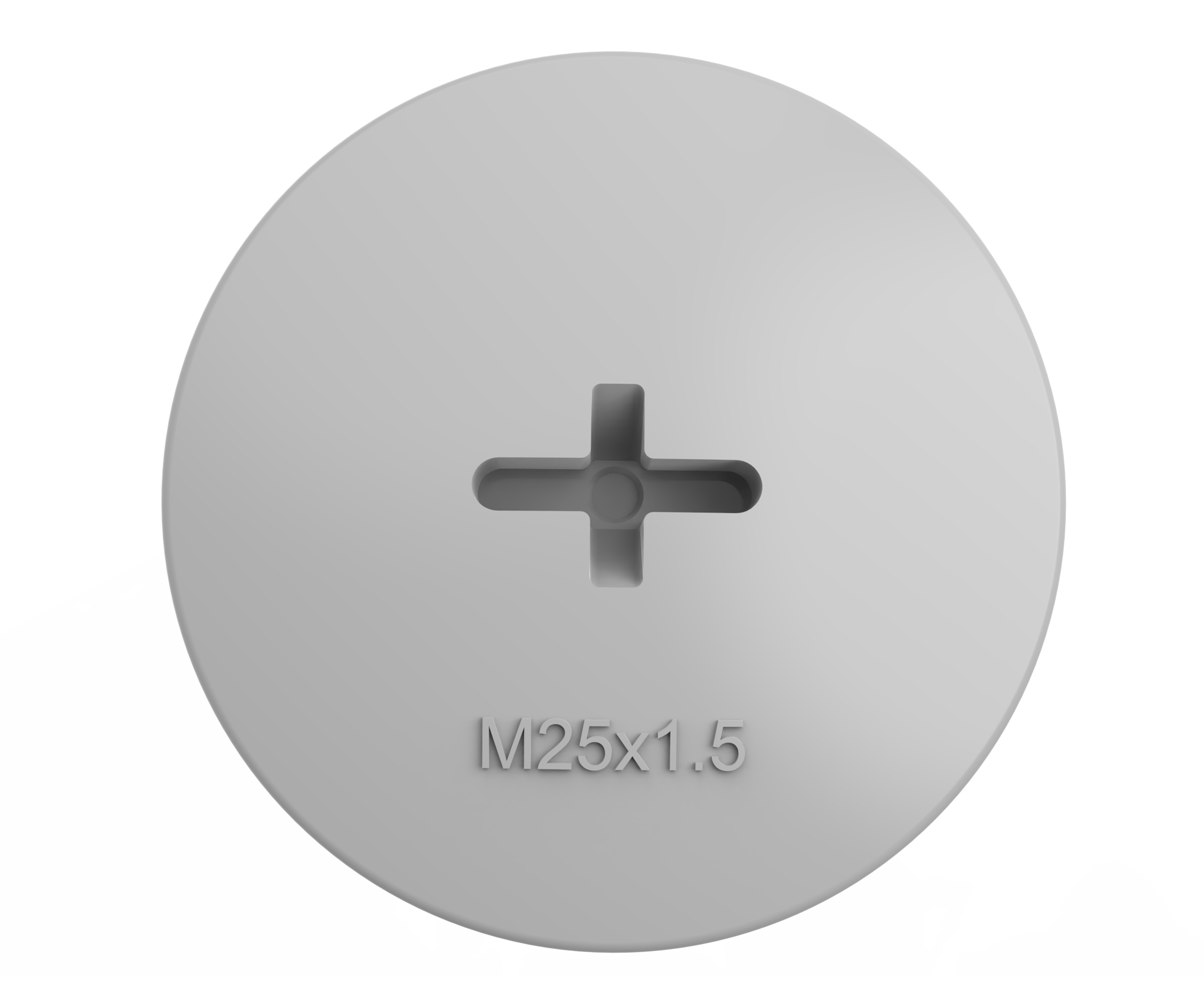

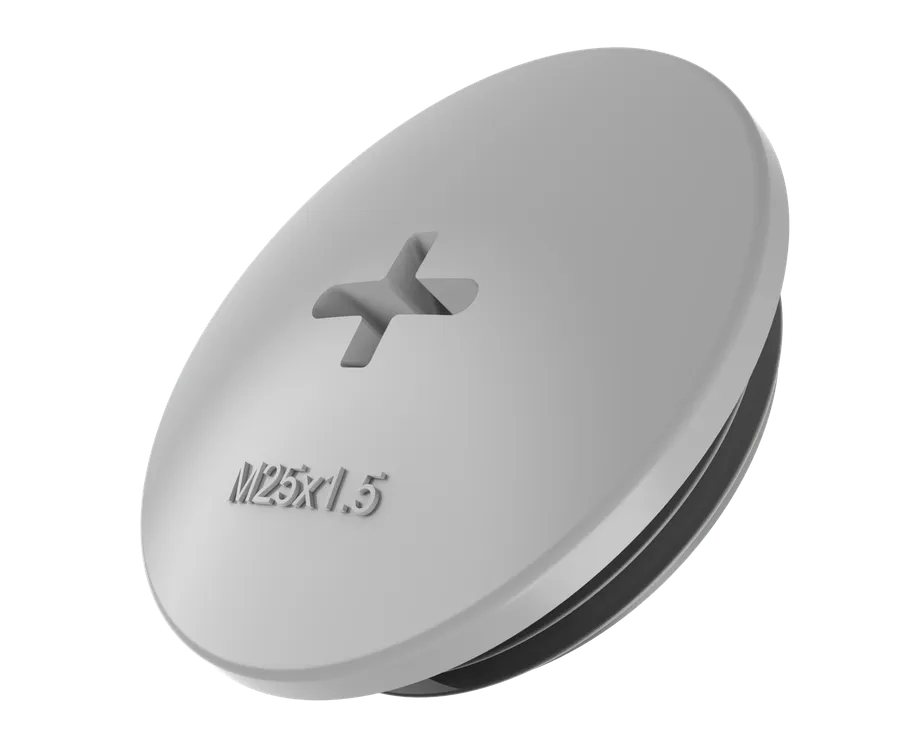

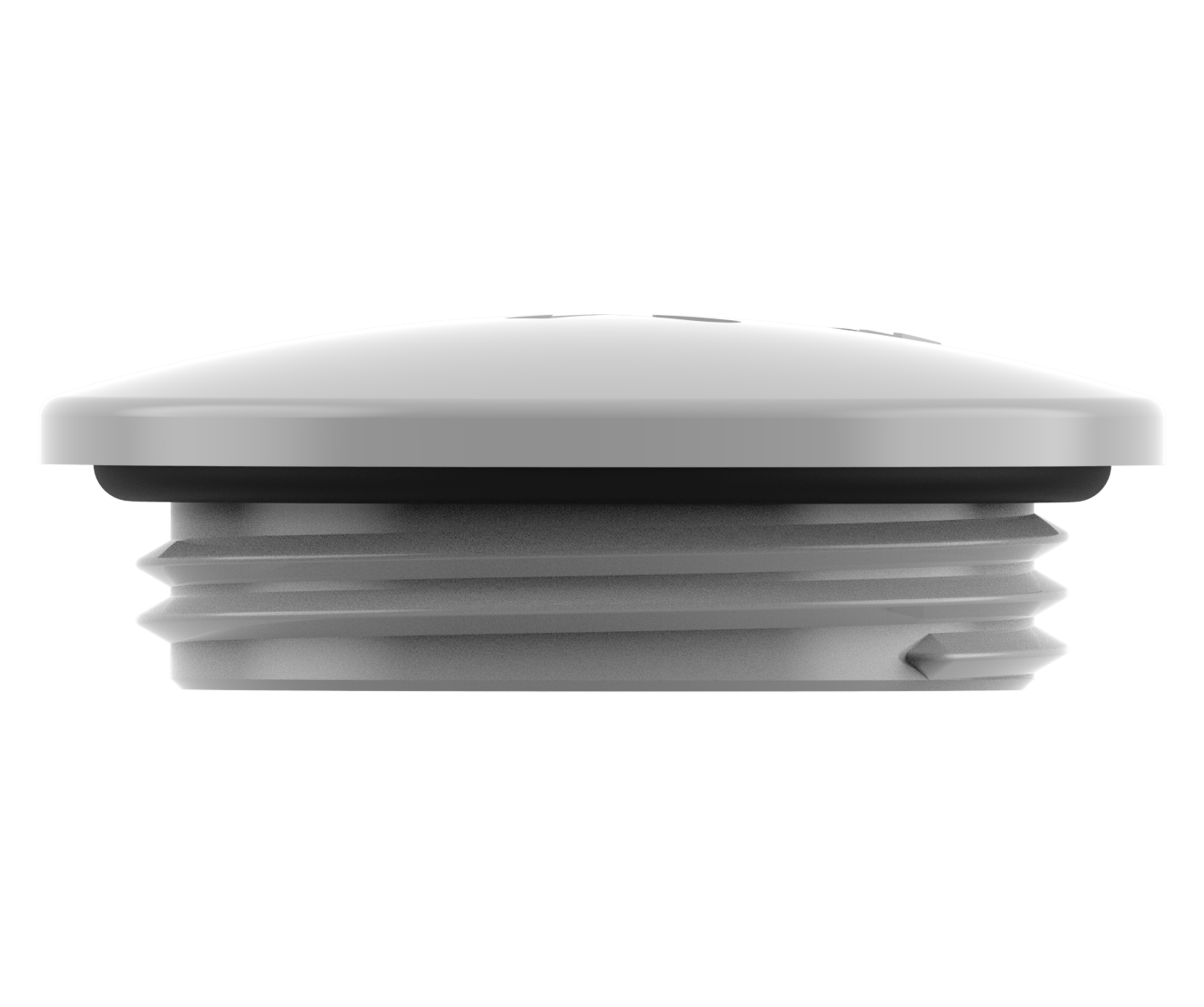

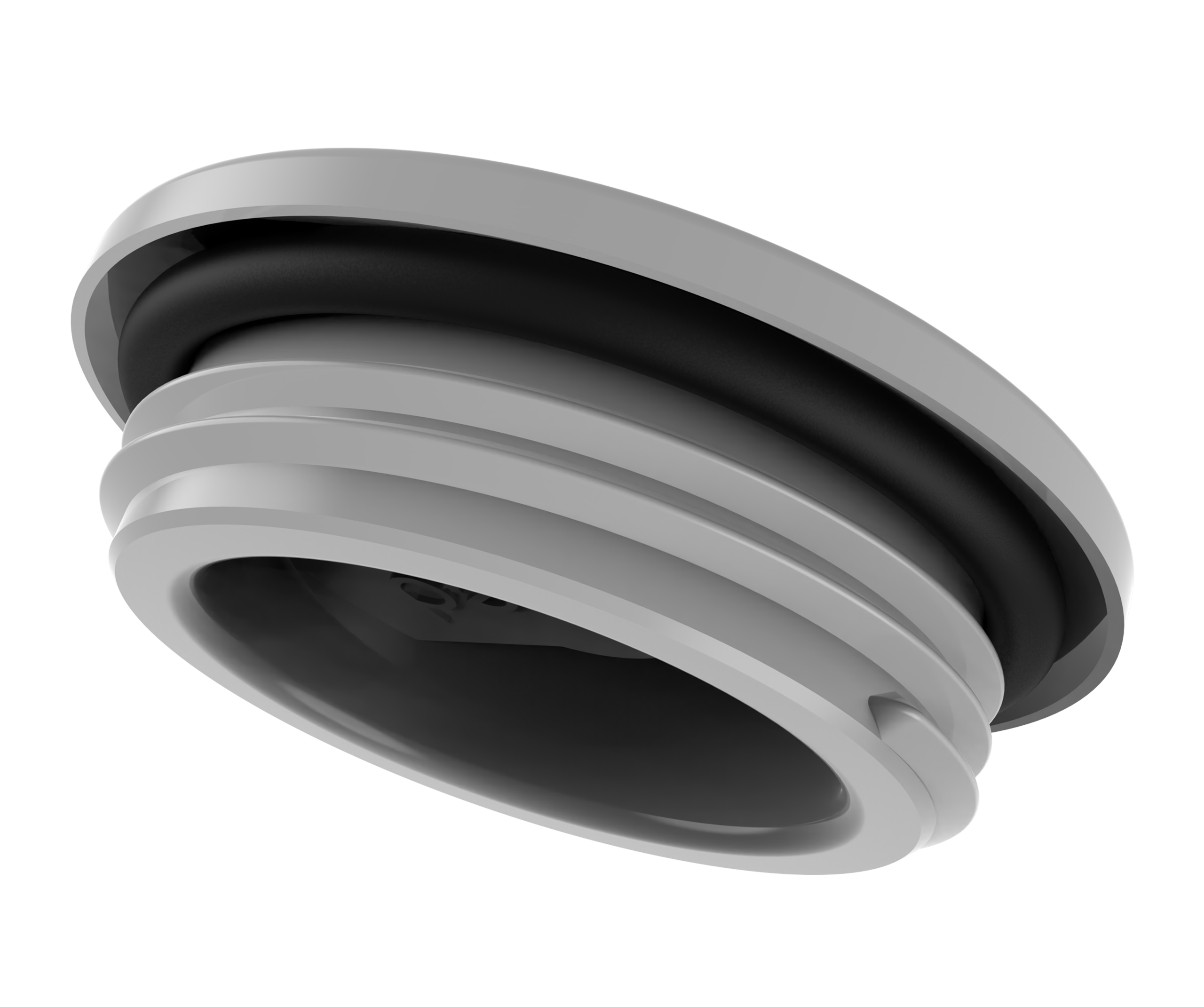

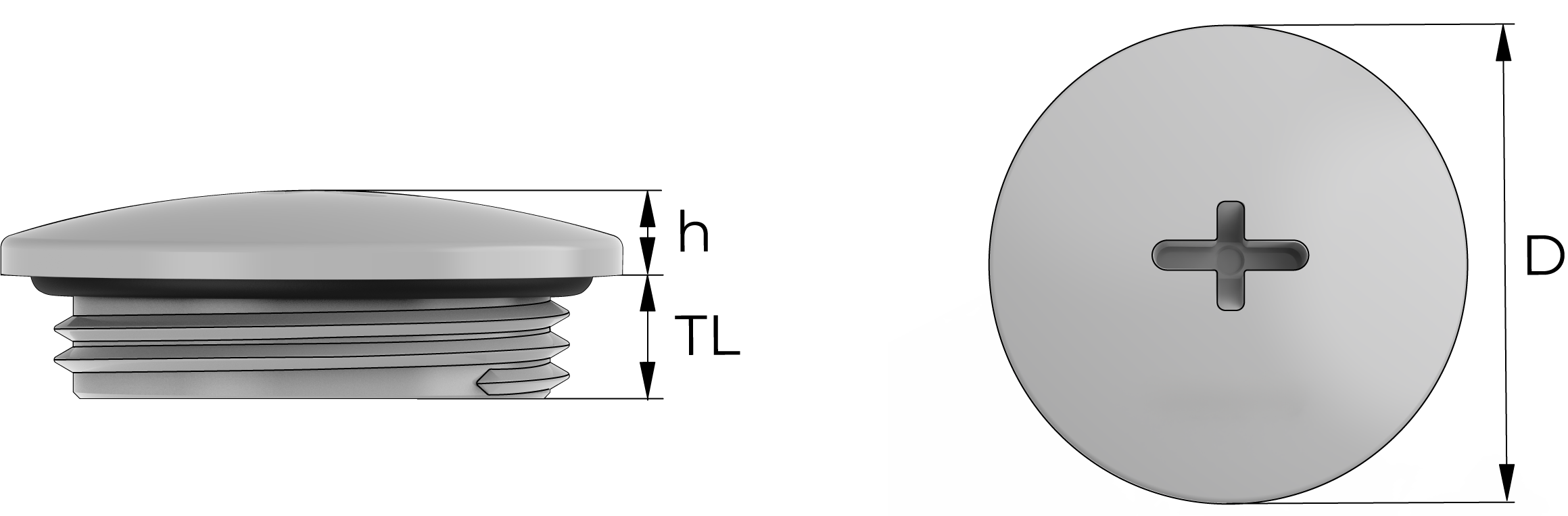

Blindplugg i polyamid (PA6)
○Tetter åpninger i kabinetter der kabelnippel ikke er montert
○Krysskrutversjon for standard industrielle applikasjoner.
Spesifikasjoner
| Gjengestørrelse | Gjengelengde | Diameter | Height 'H' | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|
| M12x1,5 | 6 | 15 | 3 | — | BMBS-1S(Y)(+)(TL6) | — | |
| M12x1,5 | 6 | 15 | 3 | — | BMBS-0S(Y)(+)(TL6) | — | |
| M12x1,5 | 6 | 15 | 3 | — | BMBS-2S(Y)(+)(TL6) | — | |
| M12x1,5 | 10 | 15 | 3 | — | BMBS-1S(Y)(+)(TL10) | — | |
| M12x1,5 | 10 | 15 | 3 | — | BMBS-0S(Y)(+)(TL10) | — | |
| M12x1,5 | 10 | 15 | 3 | — | BMBS-2S(Y)(+)(TL10) | — | |
| M16x1,5 | 6 | 19.5 | 3.4 | — | BMBS-11(Y)(+)(TL6) | — | |
| M16x1,5 | 6 | 19.5 | 3.4 | — | BMBS-01(Y)(+)(TL6) | — | |
| M16x1,5 | 6 | 19.5 | 3.4 | — | BMBS-21(Y)(+)(TL6) | — | |
| M16x1,5 | 10 | 19.5 | 3.4 | — | BMBS-11(Y)(+)(TL10) | — | |
| M16x1,5 | 10 | 19.5 | 3.4 | — | BMBS-01(Y)(+)(TL10) | — | |
| M16x1,5 | 10 | 19.5 | 3.4 | — | BMBS-21(Y)(+)(TL10) | — | |
| M20x1,5 | 6 | 25 | 3 | — | BMBS-12(Y)(+)(TL6) | — | |
| M20x1,5 | 6 | 25 | 3 | — | BMBS-02(Y)(+)(TL6) | — | |
| M20x1,5 | 6 | 25 | 3 | — | BMBS-22(Y)(+)(TL6) | — | |
| M20x1,5 | 10 | 25 | 3 | — | BMBS-12(Y)(+)(TL10) | — | |
| M20x1,5 | 10 | 25 | 3 | — | BMBS-02(Y)(+)(TL10) | — | |
| M20x1,5 | 10 | 25 | 3 | — | BMBS-22(Y)(+)(TL10) | — | |
| M25x1,5 | 6 | 30 | 4 | — | BMBS-13(Y)(+)(TL6) | — | |
| M25x1,5 | 6 | 30 | 4 | — | BMBS-03(Y)(+)(TL6) | Get File | |
| M25x1,5 | 6 | 30 | 4 | — | BMBS-23(Y)(+)(TL6) | — | |
| M25x1,5 | 10 | 30 | 4 | — | BMBS-13(Y)(+)(TL10) | — | |
| M25x1,5 | 10 | 30 | 4 | — | BMBS-03(Y)(+)(TL10) | — | |
| M25x1,5 | 10 | 30 | 4 | — | BMBS-23(Y)(+)(TL10) | — | |
| M25x1,5 | 15 | 30 | 4 | — | BMBS-13(Y)(+)(TL15) | — | |
| M25x1,5 | 15 | 30 | 4 | — | BMBS-03(Y)(+)(TL15) | — | |
| M25x1,5 | 15 | 30 | 4 | — | BMBS-23(Y)(+)(TL15) | — | |
| M32x1,5 | 8 | 37 | 4 | — | BMBS-14(Y)(+)(TL8) | — | |
| M32x1,5 | 8 | 37 | 4 | — | BMBS-04(Y)(+)(TL8) | — | |
| M32x1,5 | 8 | 37 | 4 | — | BMBS-24(Y)(+)(TL8) | — | |
| M32x1,5 | 10 | 37 | 4 | — | BMBS-14(Y)(+)(TL10) | — | |
| M32x1,5 | 10 | 37 | 4 | — | BMBS-04(Y)(+)(TL10) | — | |
| M32x1,5 | 10 | 37 | 4 | — | BMBS-24(Y)(+)(TL10) | — | |
| M40x1,5 | 8 | 46 | 4.5 | — | BMBS-15(Y)(+)(TL8) | — | |
| M40x1,5 | 8 | 46 | 4.5 | — | BMBS-05(Y)(+)(TL8) | — | |
| M40x1,5 | 8 | 46 | 4.5 | — | BMBS-25(Y)(+)(TL8) | — | |
| M40x1,5 | 10 | 46 | 4.5 | — | BMBS-15(Y)(+)(TL10) | — | |
| M40x1,5 | 10 | 46 | 4.5 | — | BMBS-05(Y)(+)(TL10) | — | |
| M40x1,5 | 10 | 46 | 4.5 | — | BMBS-25(Y)(+)(TL10) | — | |
| M50x1,5 | 10 | 54.9 | 3.7 | — | BMBS-16(Y)(+)(TL10) | — | |
| M50x1,5 | 10 | 54.9 | 3.7 | — | BMBS-06(Y)(+)(TL10) | — | |
| M50x1,5 | 10 | 54.9 | 3.7 | — | BMBS-26(Y)(+)(TL10) | — | |
| M63x1,5 | 12 | 69 | 5 | — | BMBS-17(Y)(+)(TL12) | — | |
| M63x1,5 | 12 | 69 | 5 | — | BMBS-07(Y)(+)(TL12) | — | |
| M63x1,5 | 12 | 69 | 5 | — | BMBS-27(Y)(+)(TL12) | — |
