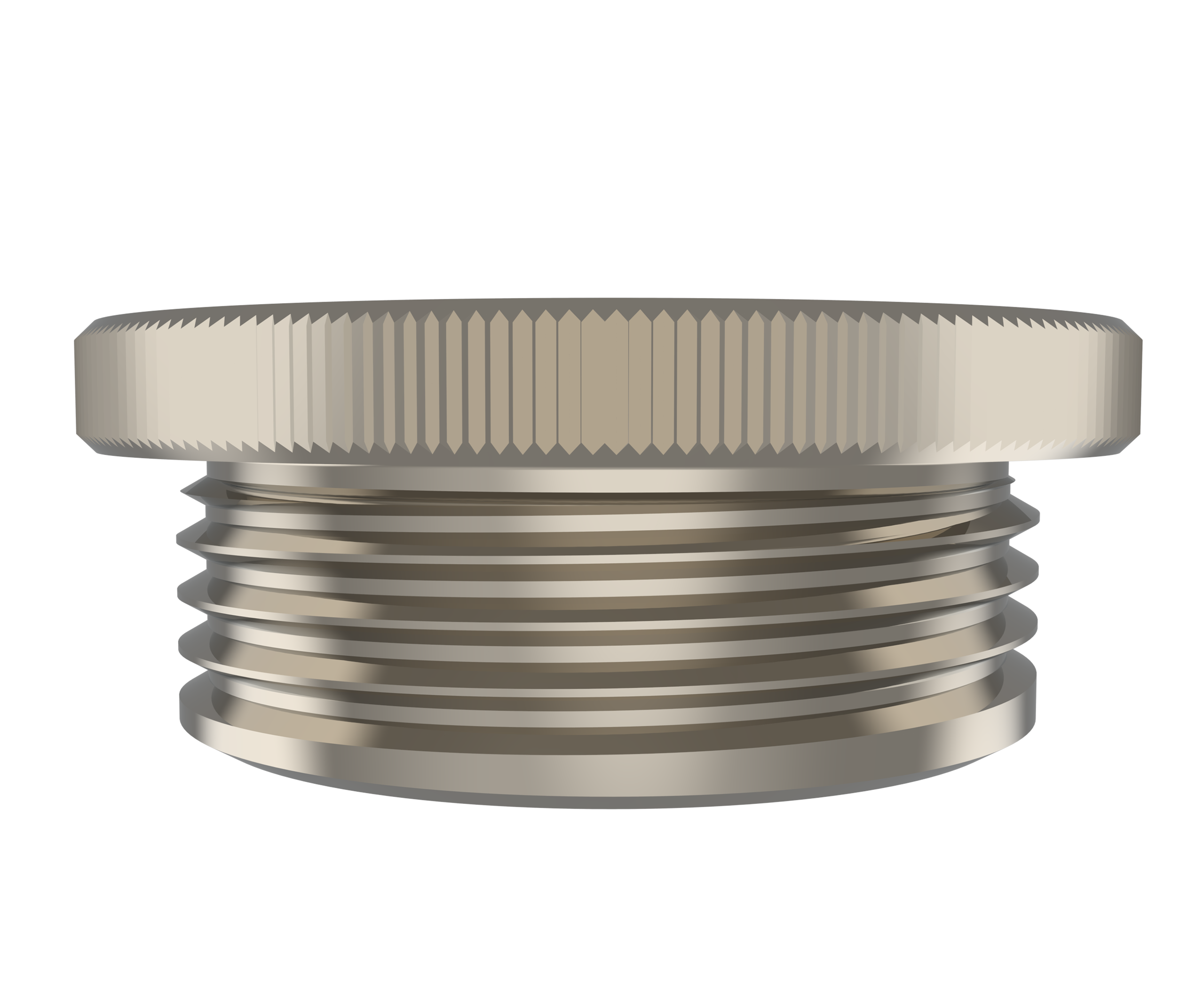

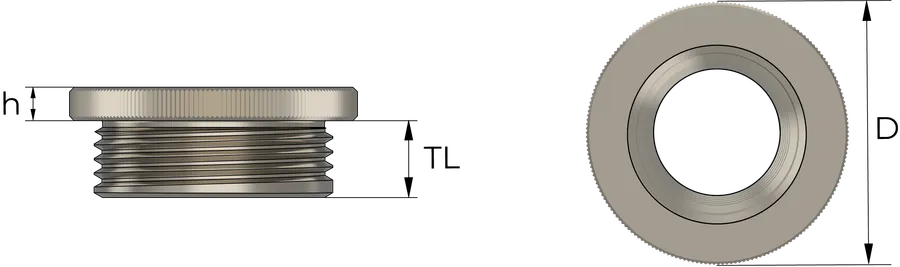

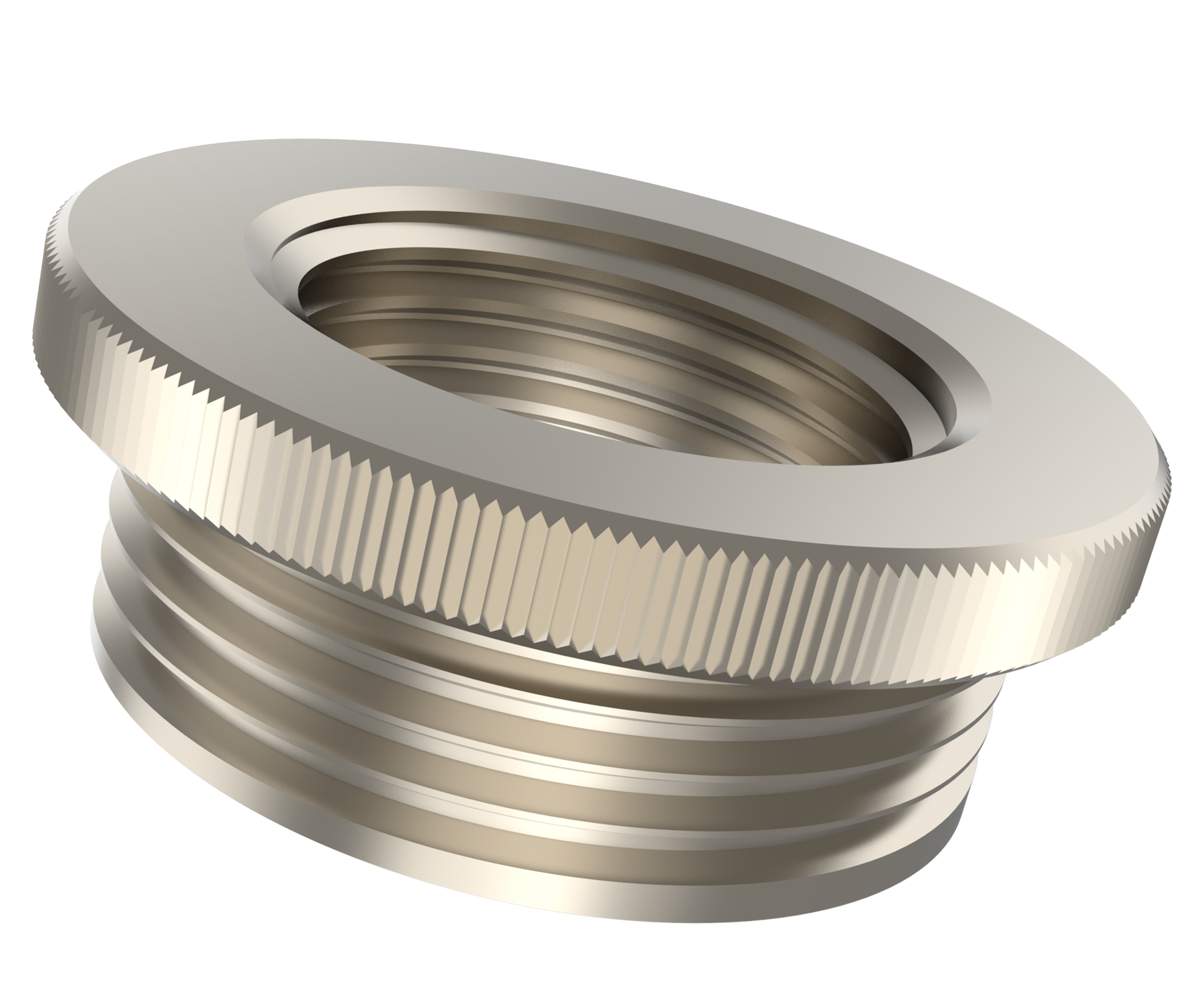

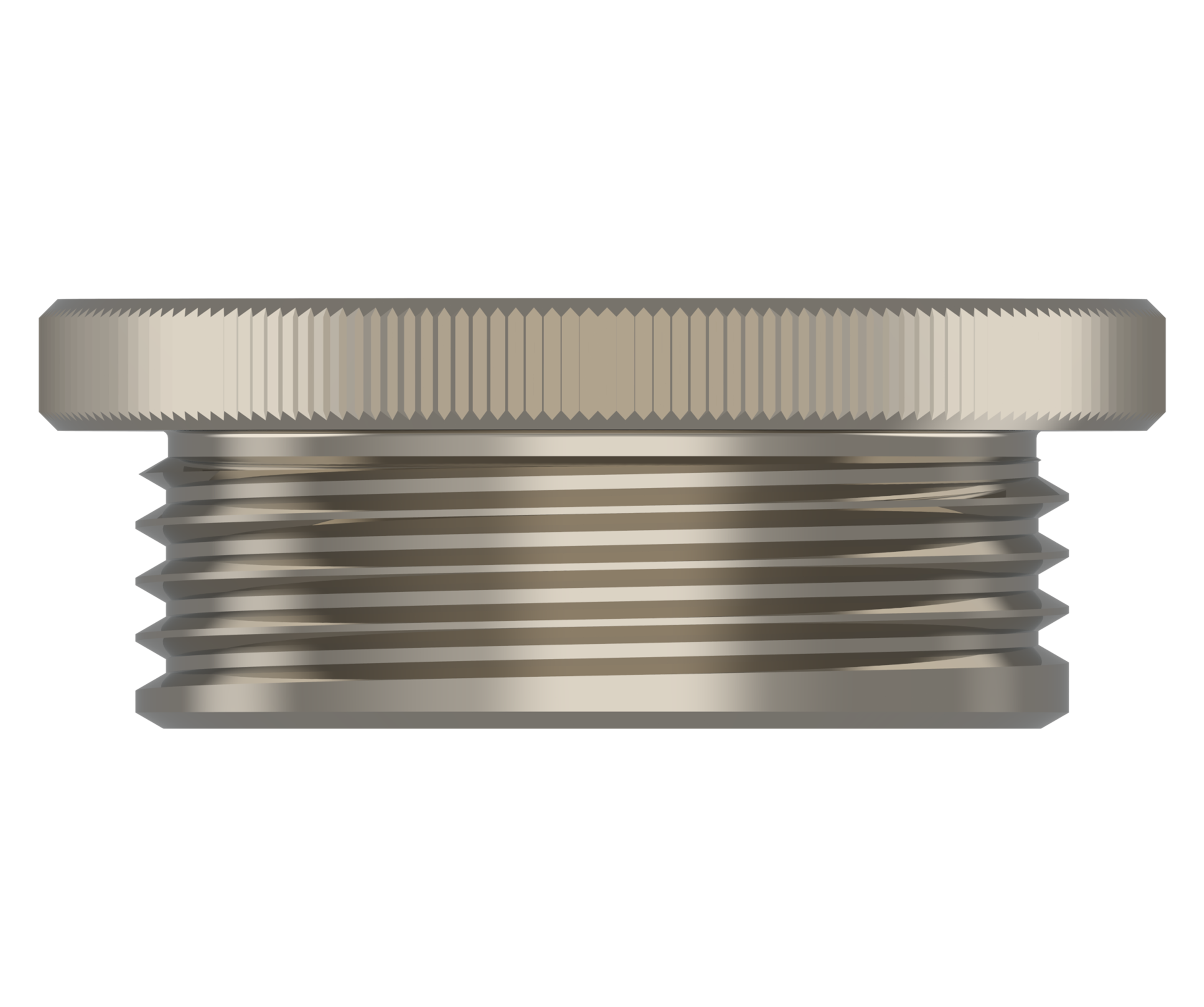

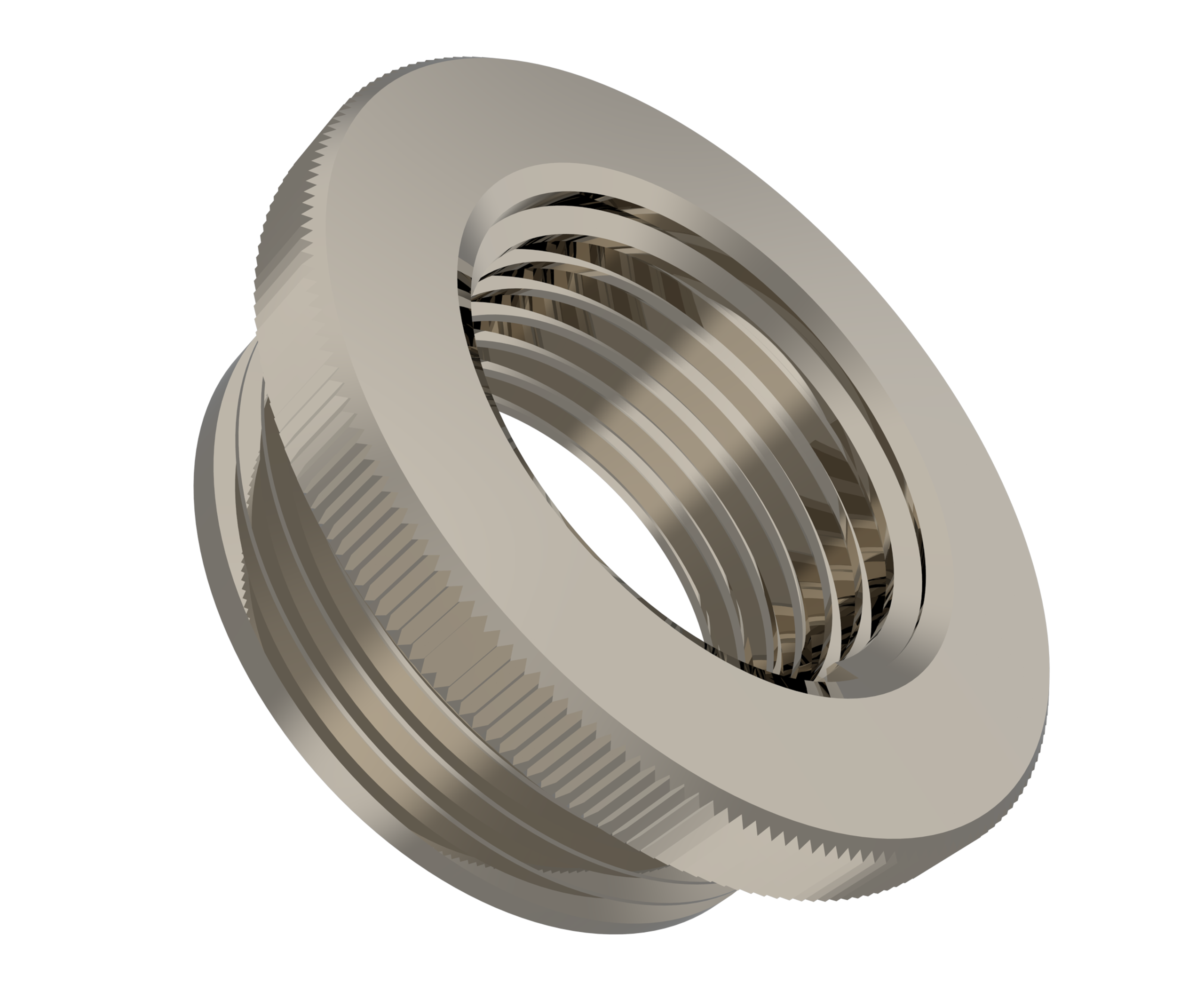

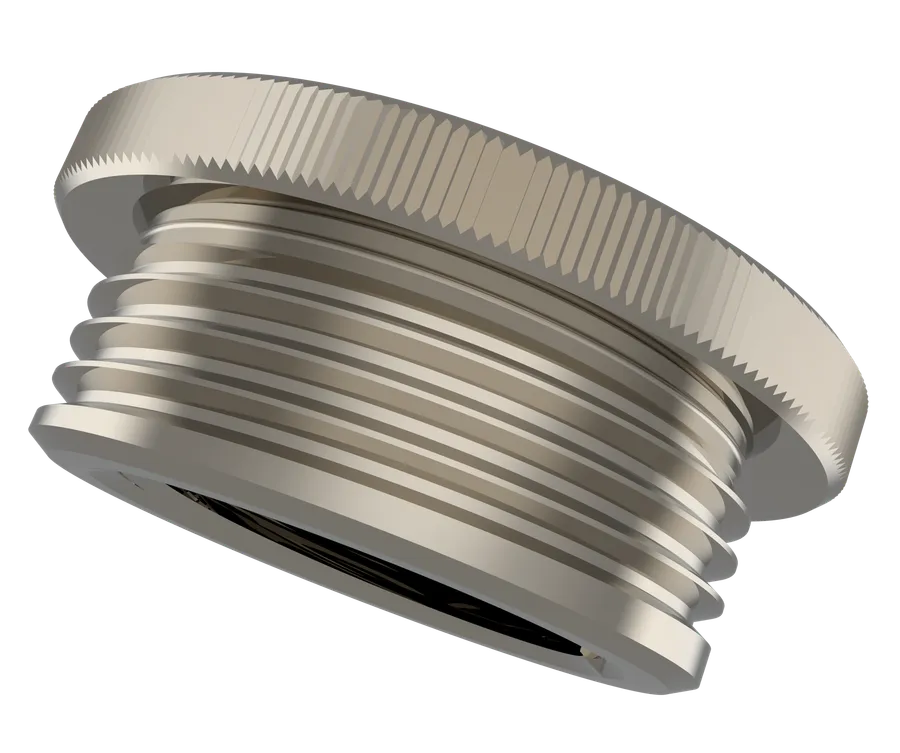

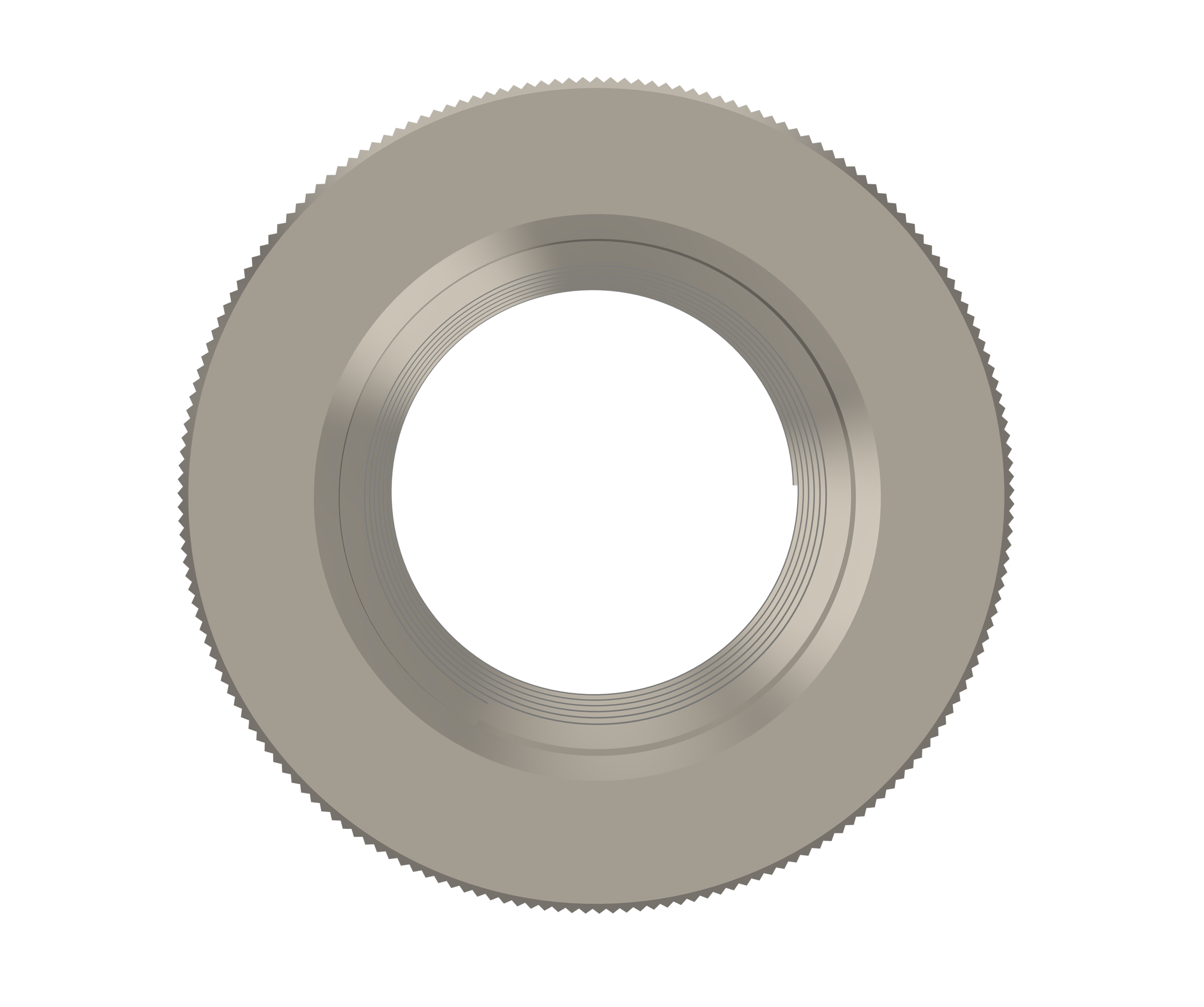

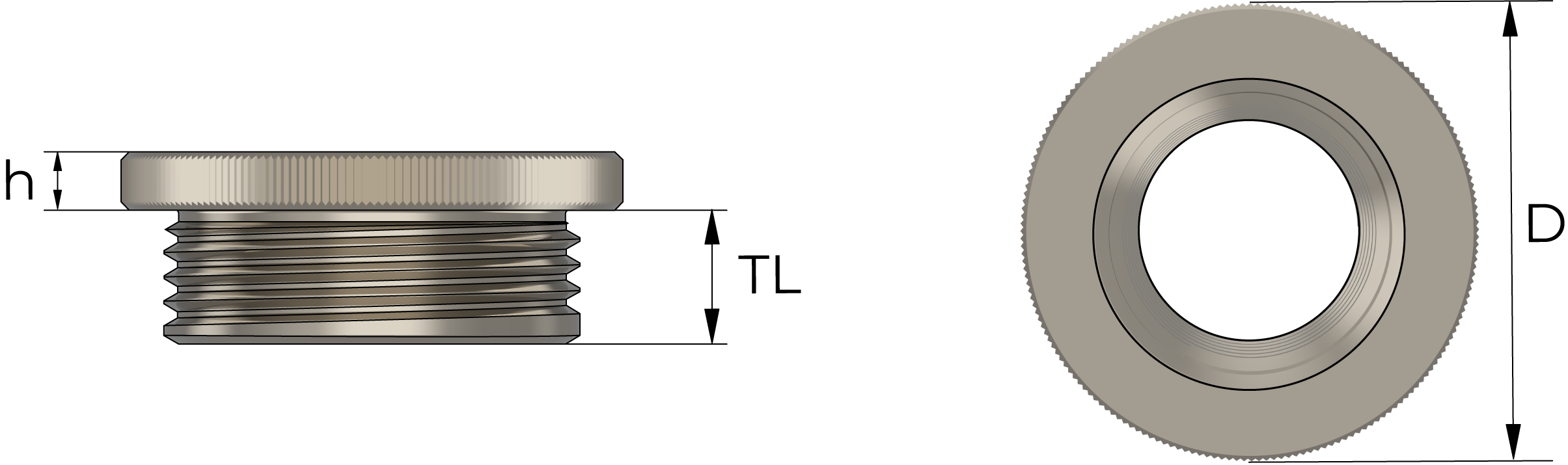

Reduksjonsnippel, metall
○Reduksjonsnippel i metall for overgang mellom ulike gjengetyper og -størrelser
○Egnet for metallkabinetter og maskiner.
Spesifikasjoner
| Gjengelengde | Diameter | Height 'H' | Thread Size 'F' | Thread Size 'M' | Varenummer | mm | inch | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|
| 0.26 | 0.87 | 0.12 | M12x1,5 | M20x1,5 | — | — | IB-RA02M0SM | — | |
| 0.26 | 0.87 | 0.1 | M16x1,5 | — | — | — | IB-RA02M01M | — | |
| 0.26 | 1.1 | 0.1 | M16x1,5 | M25x1,5 | — | — | IB-RA03M01M | — | |
| 0.26 | 0.71 | 0.12 | M12x1,5 | M16x1,5 | — | — | IB-RA01M0SM | — | |
| 0.31 | 1.18 | 0.14 | M20x1,5 | — | — | — | IB-RA03M02M | Get File | |
| 0.31 | 1.54 | 0.14 | M20x1,5 | M32x1,5 | — | — | IB-RA04M02M | — | |
| 0.31 | 1.54 | 0.14 | M25x1,5 | — | — | — | IB-RA04M03M | — | |
| 0.35 | 1.97 | 0.14 | M25x1,5 | M40x1,5 | — | — | IB-RA05M03M | — | |
| 0.35 | 1.97 | 0.14 | M32x1,5 | — | — | — | IB-RA05M04M | — | |
| 0.39 | 2.52 | 0.16 | M32x1,5 | M50x1,5 | — | — | IB-RA06M04M | — | |
| 0.39 | 2.52 | 0.16 | M40x1,5 | — | — | — | IB-RA06M05M | — | |
| 0.39 | 2.81 | 0.31 | M40x1,5 | M63x1,5 | — | — | IB-RA07M05M | — | |
| 0.39 | 2.81 | 0.31 | M50x1,5 | — | — | — | IB-RA07M06M | — | |
| 0.59 | 3.15 | 0.51 | M50x1,5 | M72x1,5 | — | — | IB-RA08M06M | — | |
| 0.59 | 3.15 | 0.51 | M50x1,5 | M75x1,5 | — | — | IB-RA09M06M | — | |
| 6.5 | 18 | 3 | M12x1,5 | M16x1,5 | — | IB-RA01M0SM | — | — | |
| 6.5 | 22 | 3 | M12x1,5 | M20x1,5 | — | IB-RA02M0SM | — | — | |
| 6.5 | 22 | 2.5 | M16x1,5 | M20x1,5 | — | IB-RA02M01M | — | — | |
| 6.5 | 28 | 2.5 | M16x1,5 | M25x1,5 | — | IB-RA03M01M | — | — | |
| 8 | 30 | 3.5 | M20x1,5 | M25x1,5 | — | IB-RA03M02M | — | Get File | |
| 8 | 39 | 3.5 | M20x1,5 | M32x1,5 | — | IB-RA04M02M | — | — | |
| 8 | 39 | 3.5 | M25x1,5 | M32x1,5 | — | IB-RA04M03M | — | — | |
| 9 | 50 | 3.5 | M25x1,5 | M40x1,5 | — | IB-RA05M03M | — | — | |
| 9 | 50 | 3.5 | M32x1,5 | M40x1,5 | — | IB-RA05M04M | — | — | |
| 10 | 64 | 4 | M32x1,5 | M50x1,5 | — | IB-RA06M04M | — | — | |
| 10 | 64 | 4 | M40x1,5 | M50x1,5 | — | IB-RA06M05M | — | — | |
| 10 | 71.5 | 8 | M40x1,5 | M63x1,5 | — | IB-RA07M05M | — | — | |
| 10 | 71.5 | 8 | M50x1,5 | M63x1,5 | — | IB-RA07M06M | — | — | |
| 15 | 80 | 13 | M50x1,5 | M72x1,5 | — | IB-RA08M06M | — | — | |
| 15 | 80 | 13 | M50x1,5 | M75x1,5 | — | IB-RA09M06M | — | — |
