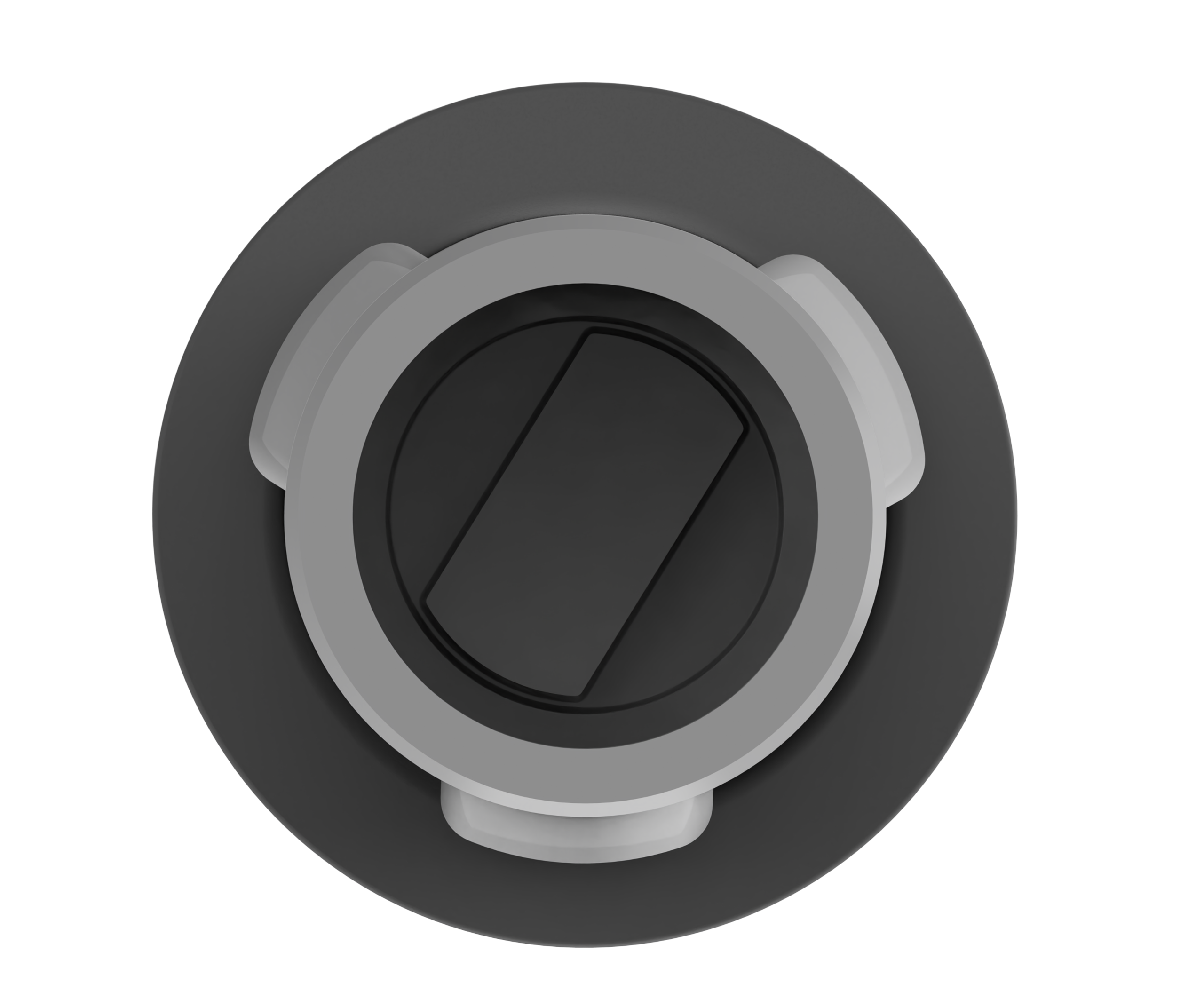

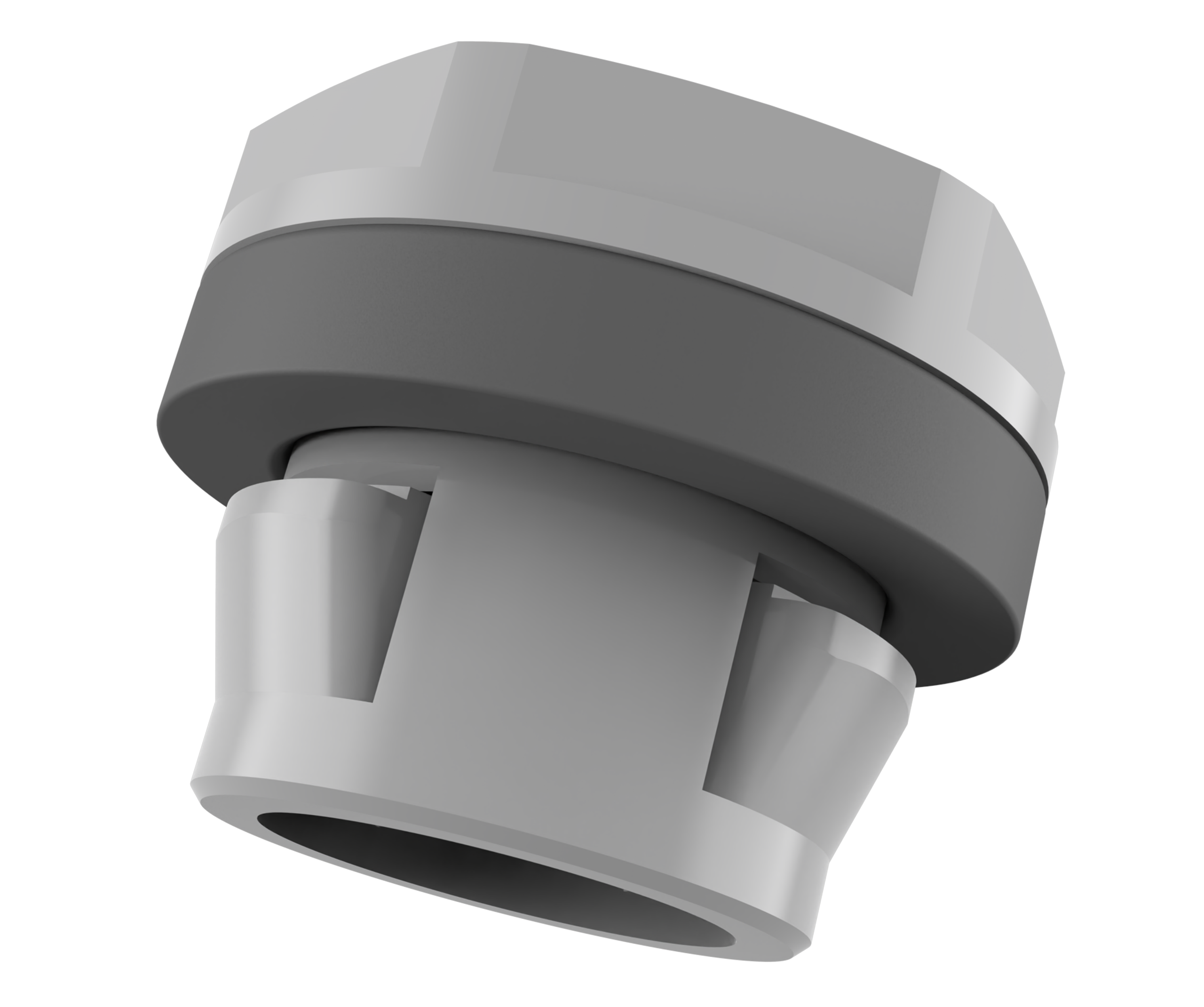

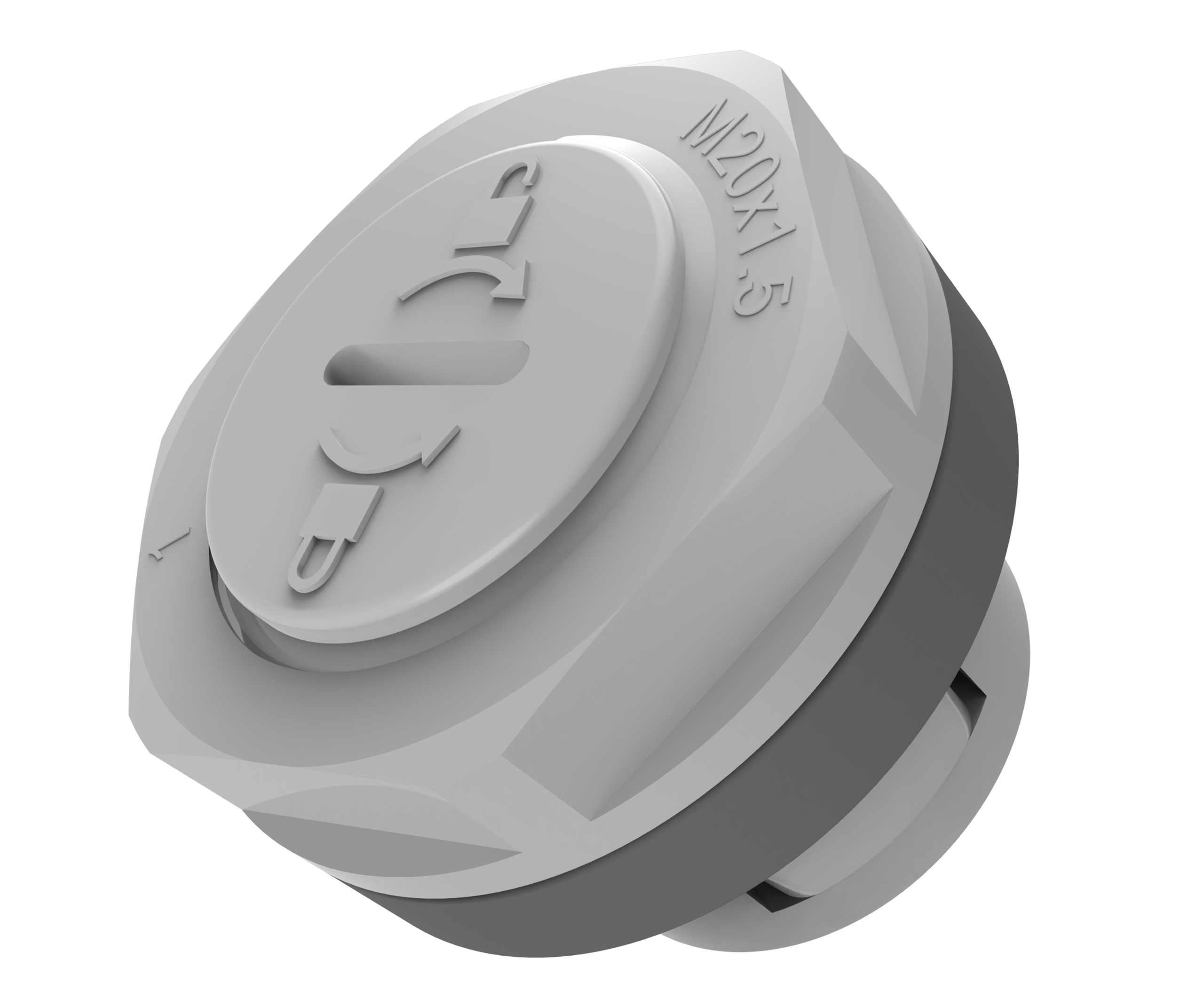

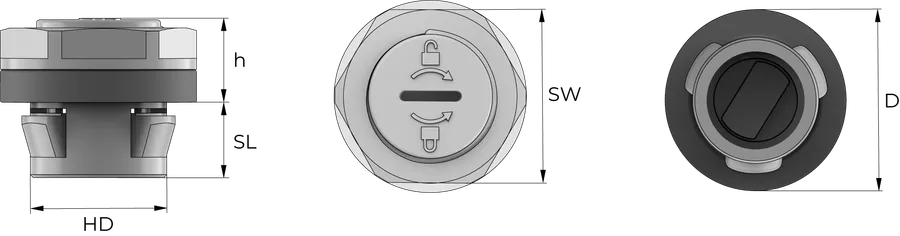

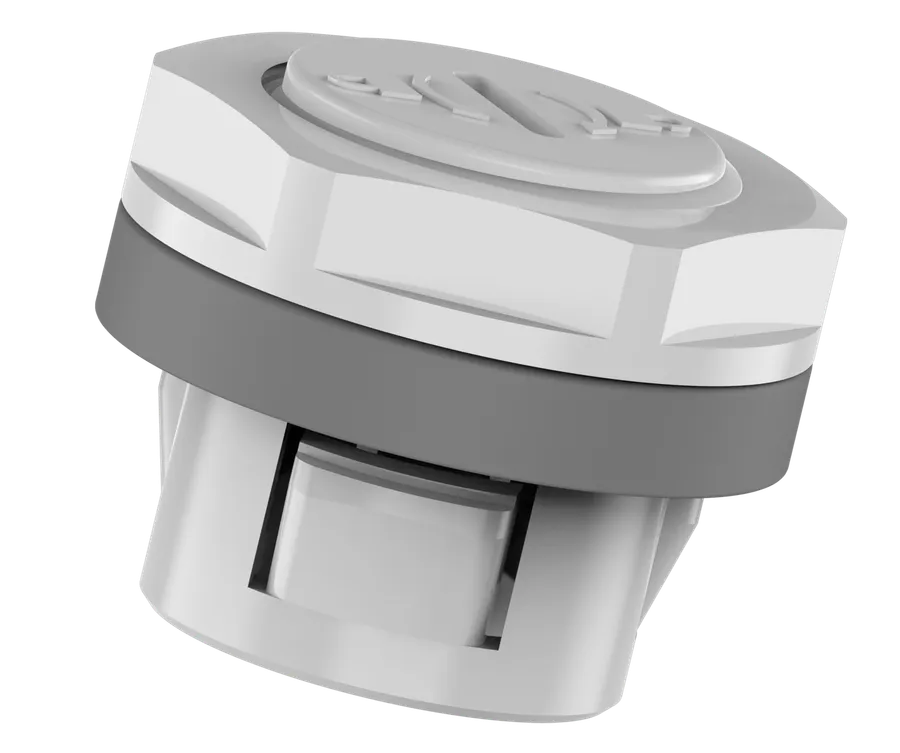

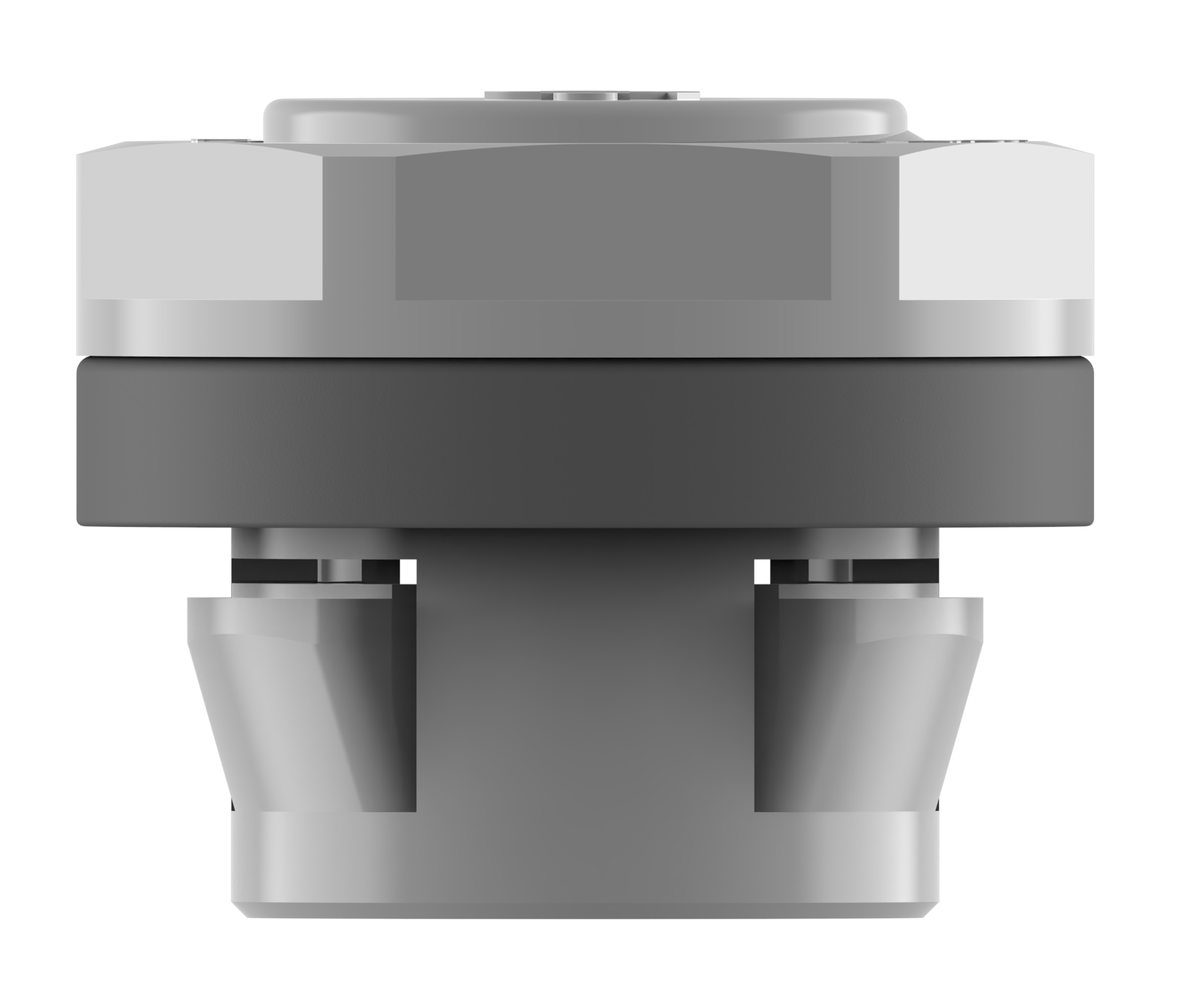

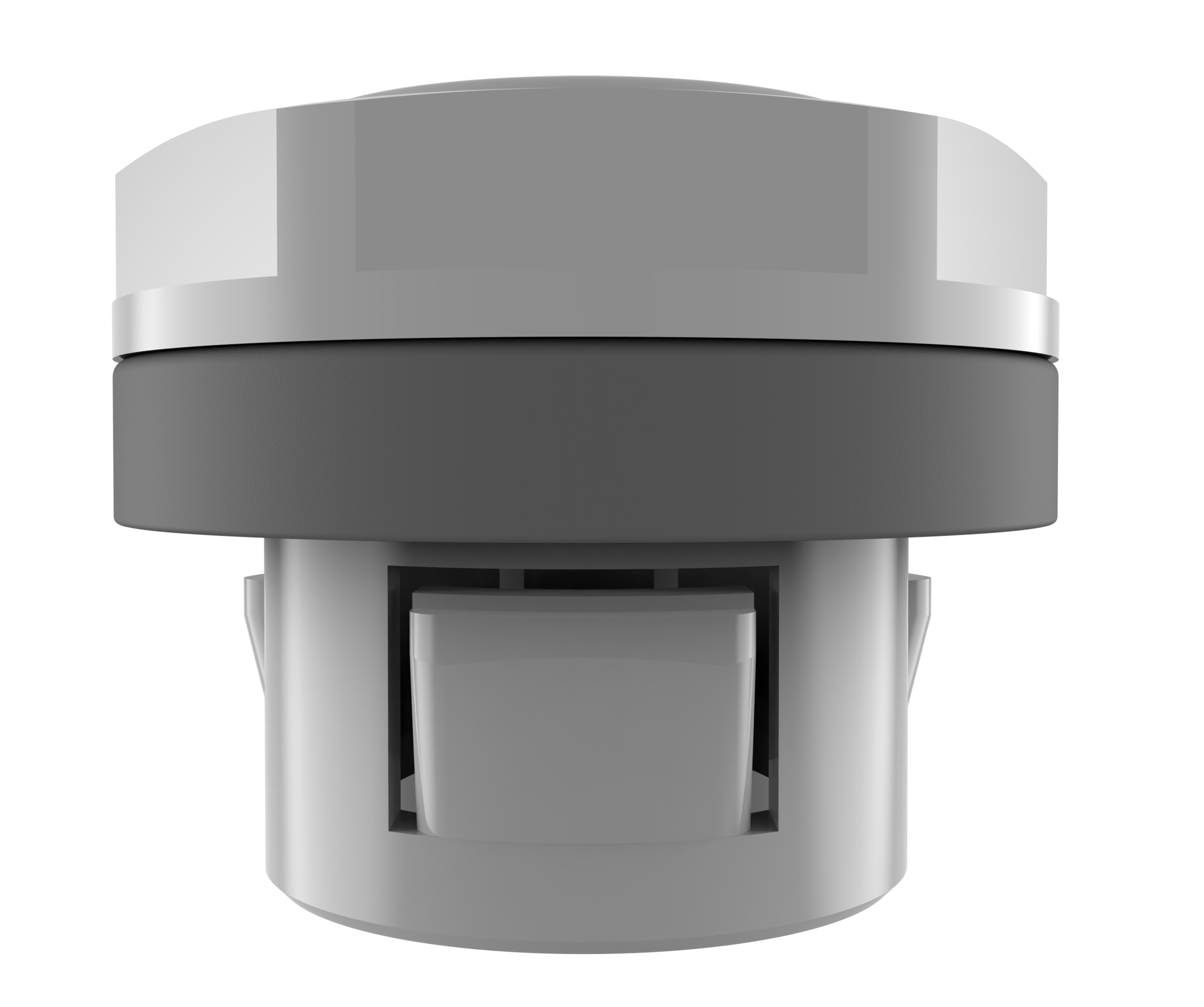

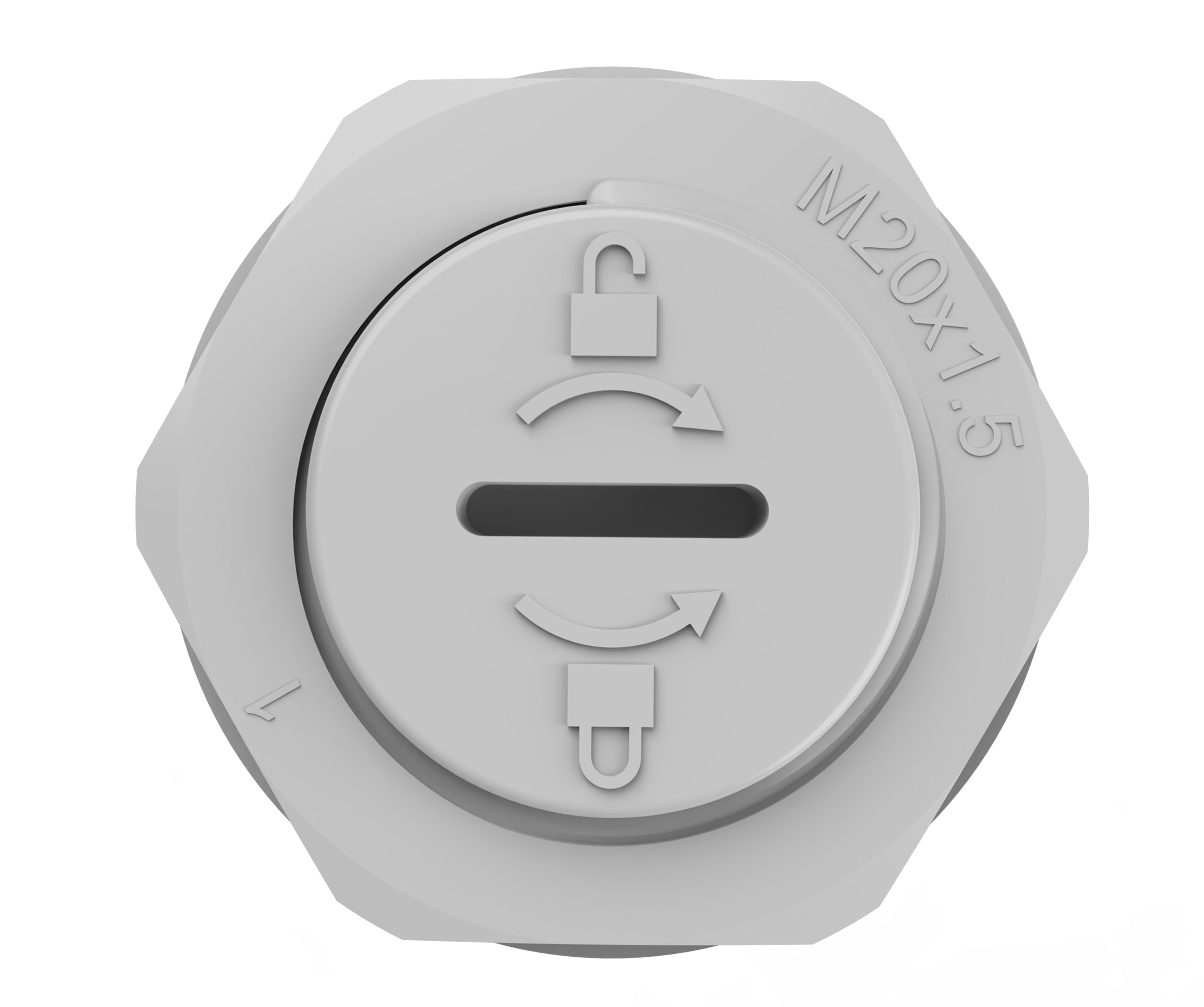

Modulær blindplugg i polyamid (PA6)
○Snap-in blindplugg for hull uten gjenge på kapslingen. Låsemutter med gjenge iht. EN 60423 (metrisk) og DIN 40430 (PG); kan gjenbrukes for festing av kabelnippel.
Spesifikasjoner
| Gjengestørrelse | Diameter | SL | Nøkkelvidde | HD Ø | SL Ø | Height 'H' | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|
| M12 | 19.5 | 9 | 18 | 12,2 - 12,4 | 11.9 | 12 | — | BMPL-1S | — | |
| M12 | 19.5 | 9 | 18 | 12,2 - 12,4 | 11.9 | 12 | — | BMPL-0S | — | |
| M12 | 19.5 | 9 | 18 | 12,2 - 12,4 | 11.9 | 12 | — | BMPL-2S | — | |
| M20 | 28.6 | 9 | 26 | 20,2 - 20,4 | 19.9 | 13.5 | — | BMPL-12 | — | |
| M20 | 28.6 | 9 | 26 | 20,2 - 20,4 | 19.9 | 13.5 | — | BMPL-02 | Get File | |
| M20 | 28.6 | 9 | 26 | 20,2 - 20,4 | 19.9 | 13.5 | — | BMPL-22 | — | |
| M32 | 46.1 | 9 | 41 | 32,2 - 32,4 | 31.9 | 15.5 | — | BMPL-14 | — | |
| M32 | 46.1 | 9 | 41 | 32,2 - 32,4 | 31.9 | 15.5 | — | BMPL-04 | — | |
| M32 | 46.1 | 9 | 41 | 32,2 - 32,4 | 31.9 | 15.5 | — | BMPL-24 | — |
