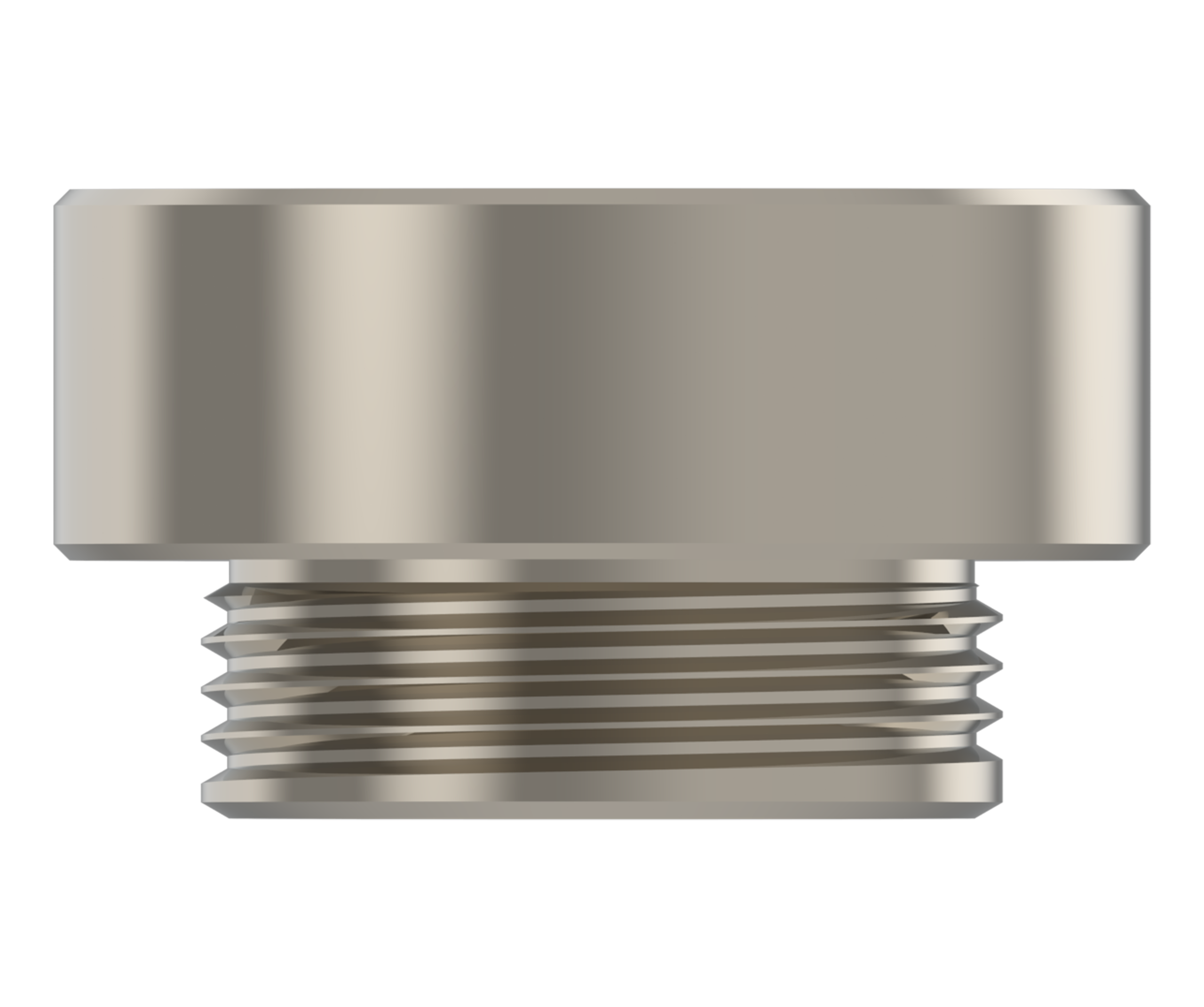

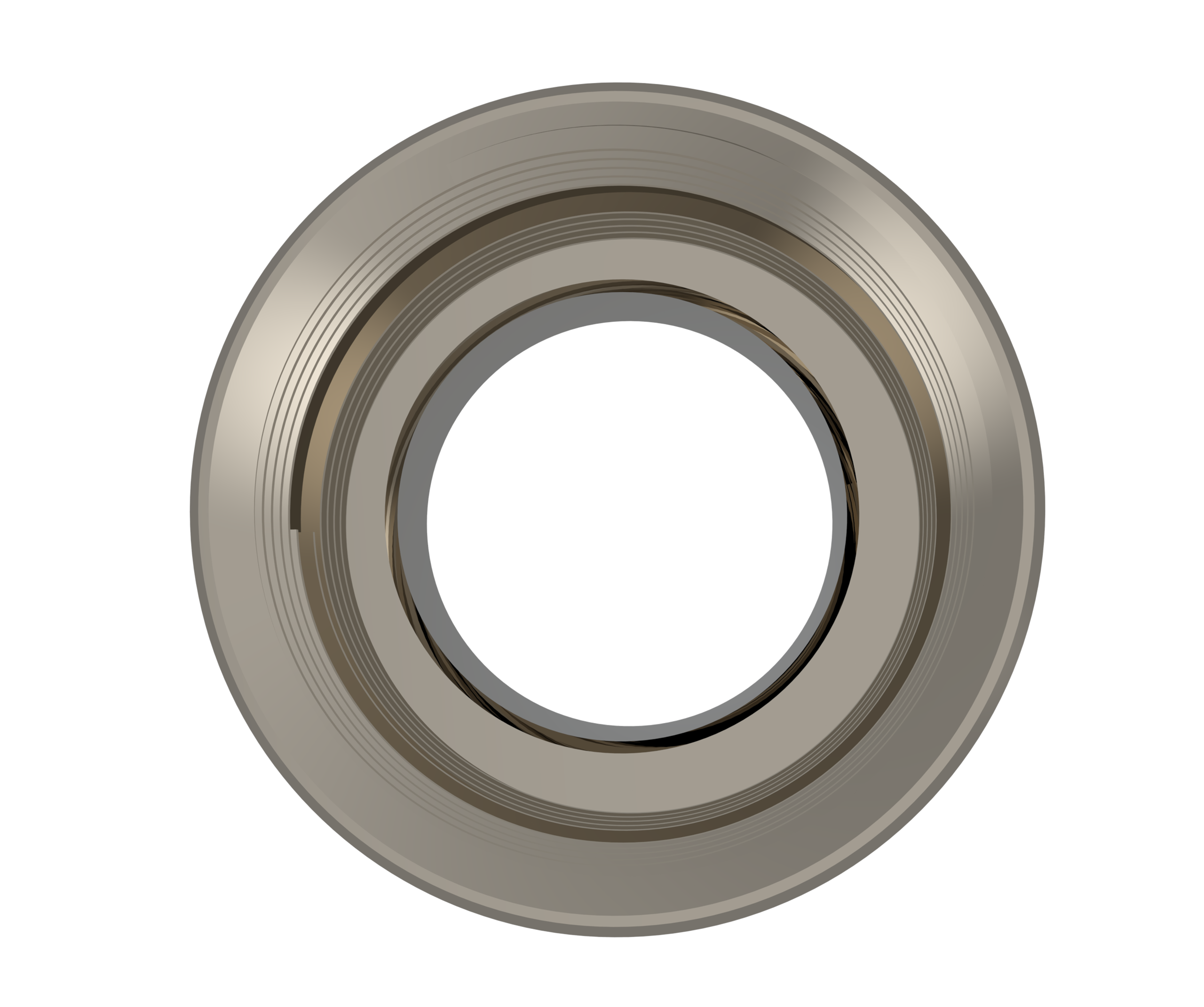

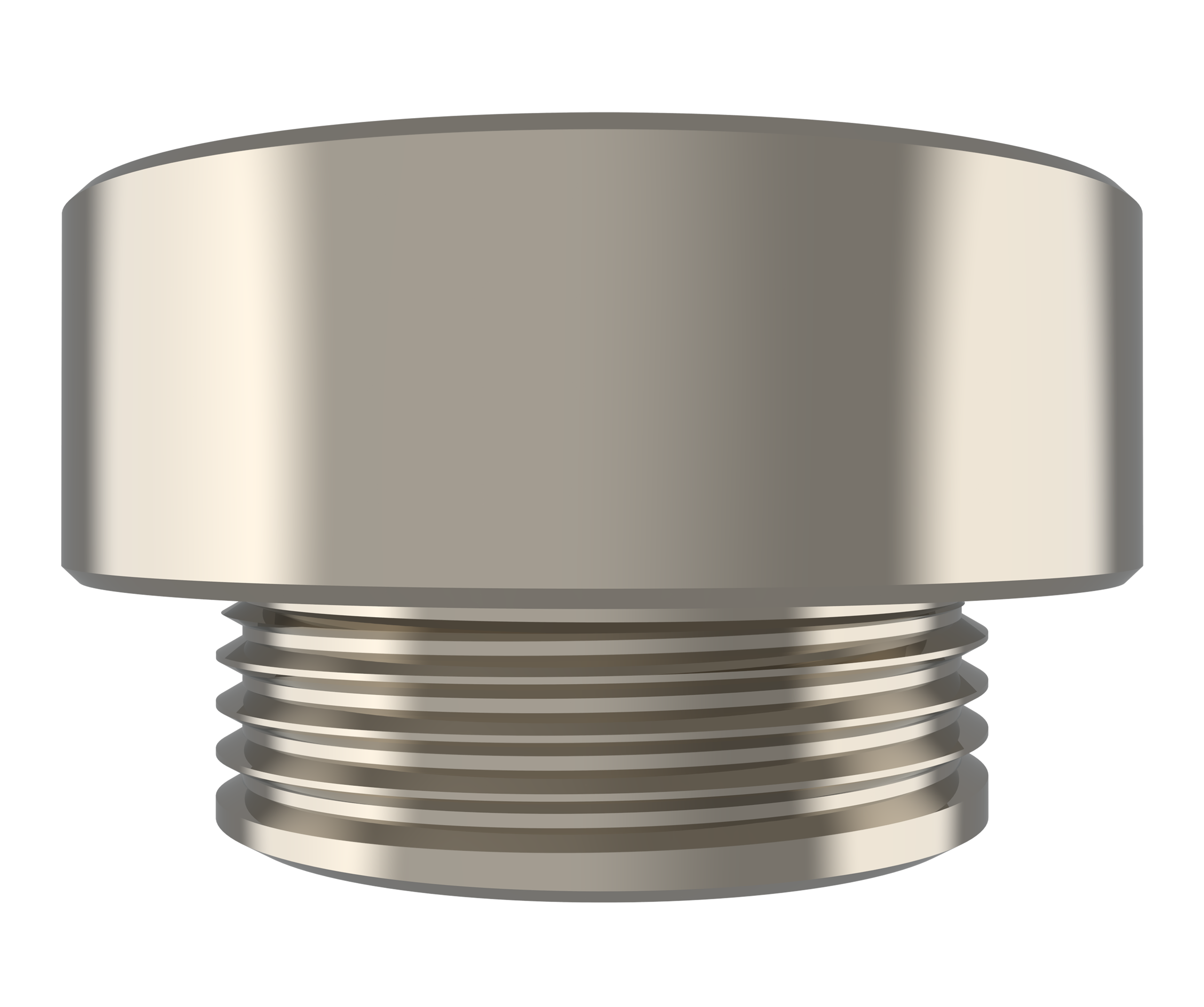

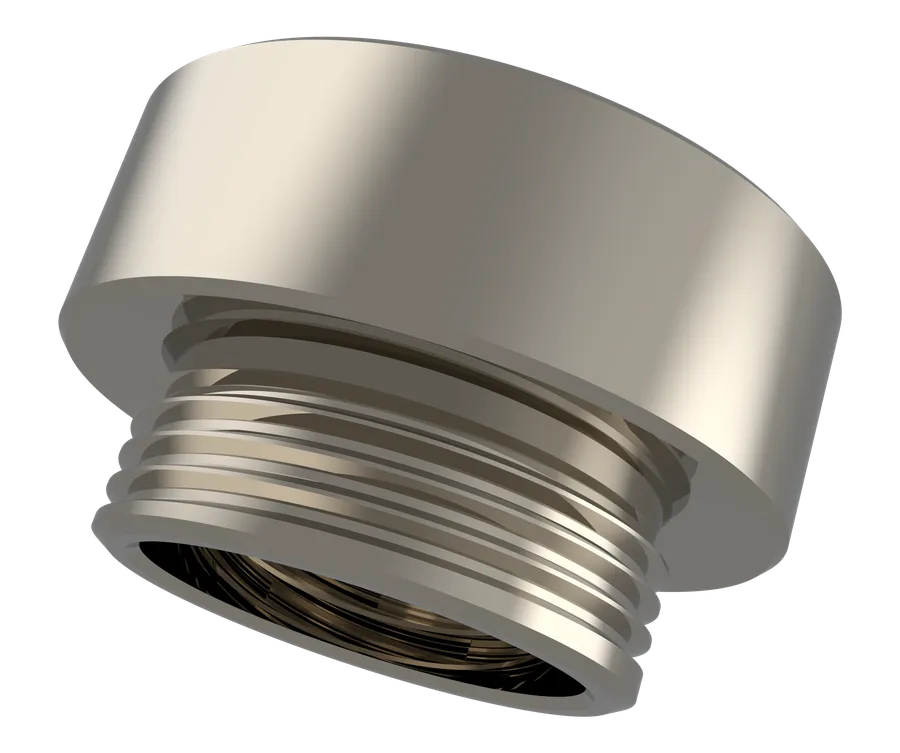

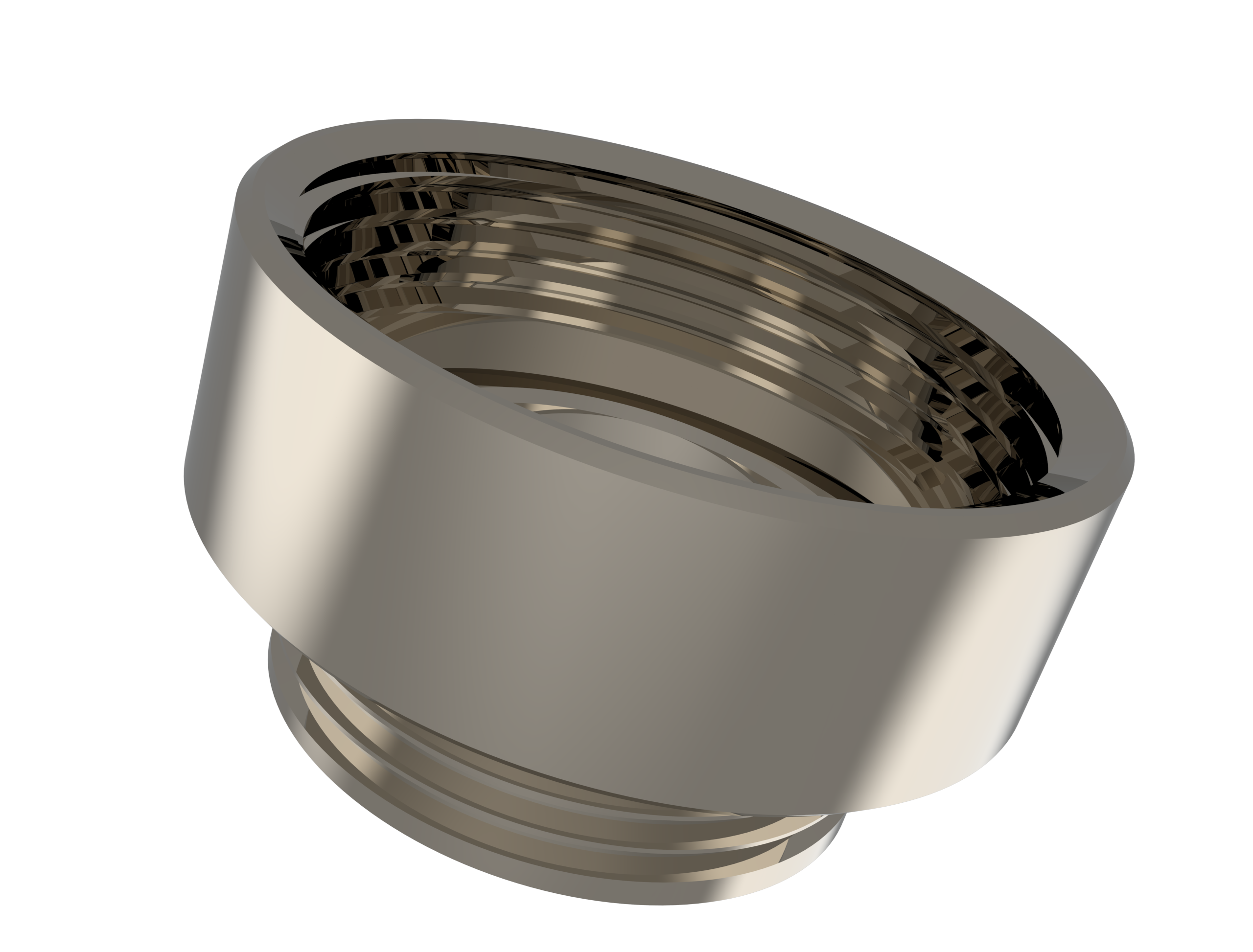

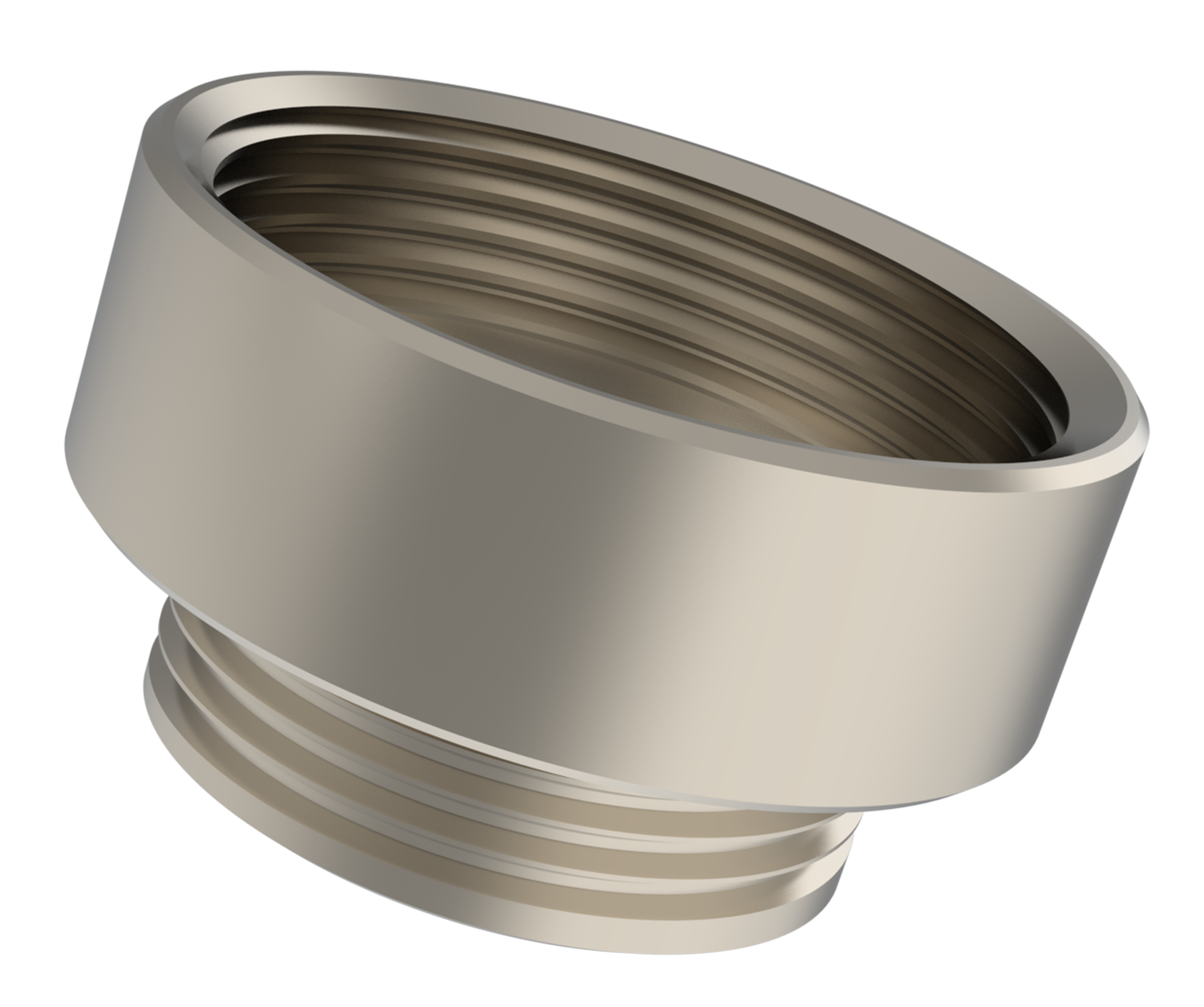

Utvidelsesnippel, metall
○Adapter i metall for overgang fra mindre til større gjengetyper og -størrelser
○Egnet for metallkabinetter og maskiner.
Spesifikasjoner
| Gjengelengde | Diameter | ITL | Height 'H' | Inner Ø 'ID' | Thread Size 'F' | Thread Size 'M' | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 17 | 5 | 10 | 8 | PG 9 | PG 7 | — | IB-RB01P02P | — | |
| 6 | 18 | 7 | 9 | 8 | M16x1,5 | M12x1,5 | — | IB-RB0SM01M | — | |
| 6 | 22 | 10 | 11.6 | 12 | M20x1,5 | M16x1,5 | — | IB-RB01M02M | — | |
| 6 | 20 | 7 | 10.5 | 11.5 | PG 11 | PG 9 | — | IB-RB02P03P | — | |
| 6 | 22 | 9 | 11.5 | 11.5 | PG 13,5 | PG 9 | — | IB-RB02P04P | — | |
| 6 | 22 | 8.5 | 11.5 | 13.8 | PG 13,5 | PG 11 | — | IB-RB03P04P | — | |
| 6.5 | 24 | 8.5 | 10.5 | 13.8 | PG 16 | PG 11 | — | IB-RB03P05P | — | |
| 6.5 | 30 | 10 | 14.5 | 13.8 | PG 21 | PG 11 | — | IB-RB03P06P | — | |
| 6.5 | 24 | 8.5 | 10.5 | 16.5 | PG 16 | PG 13,5 | — | IB-RB04P05P | — | |
| 6.5 | 30 | 10 | 14.5 | 16.5 | PG 21 | PG 13,5 | — | IB-RB04P06P | — | |
| 6.5 | 29.7 | 10 | 12 | 17.5 | PG 21 | PG 16 | — | IB-RB05P06P | — | |
| 7 | 27 | 8.5 | 10.5 | 16 | M25x1,5 | M20x1,5 | — | IB-RB02M03M | — | |
| 7 | 40 | 12 | 16 | 17.5 | PG 29 | PG 16 | — | IB-RB05P07P | — | |
| 7 | 39 | 14 | 16 | 24 | PG 29 | PG 21 | — | IB-RB06P07P | — | |
| 8 | 34 | 9.5 | 11.5 | 20.5 | M32x1,5 | M25x1,5 | — | IB-RB03M04M | Get File | |
| 8 | 42 | 8.5 | 14.5 | 26 | M40x1,5 | M32x1,5 | — | IB-RB04M05M | — | |
| 8 | 54 | 13.5 | 17 | 26 | M50x1,5 | M32x1,5 | — | IB-RB04M06M | — | |
| 8 | 52 | 15 | 19.5 | 35.5 | M50x1,5 | M40x1,5 | — | IB-RB05M06M | — | |
| 8 | 50 | 17.5 | 19.5 | 32 | PG 36 | PG 29 | — | IB-RB07P08P | — | |
| 9 | 65 | 9.5 | 22.5 | 45 | M63x1,5 | M50x1,5 | — | IB-RB06M07M | — | |
| 9 | 57 | 19 | 22 | 38 | PG 42 | PG 36 | — | IB-RB08P09P | — | |
| 10 | 64 | 19.5 | 23 | 49.2 | PG 48 | PG 42 | — | IB-RB09P10P | — |
