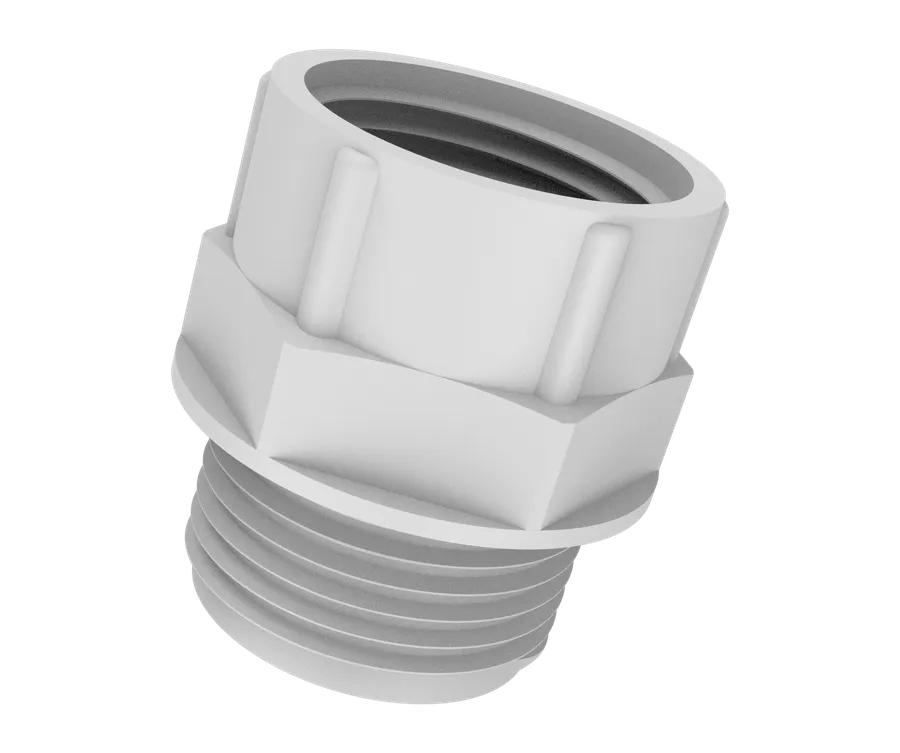

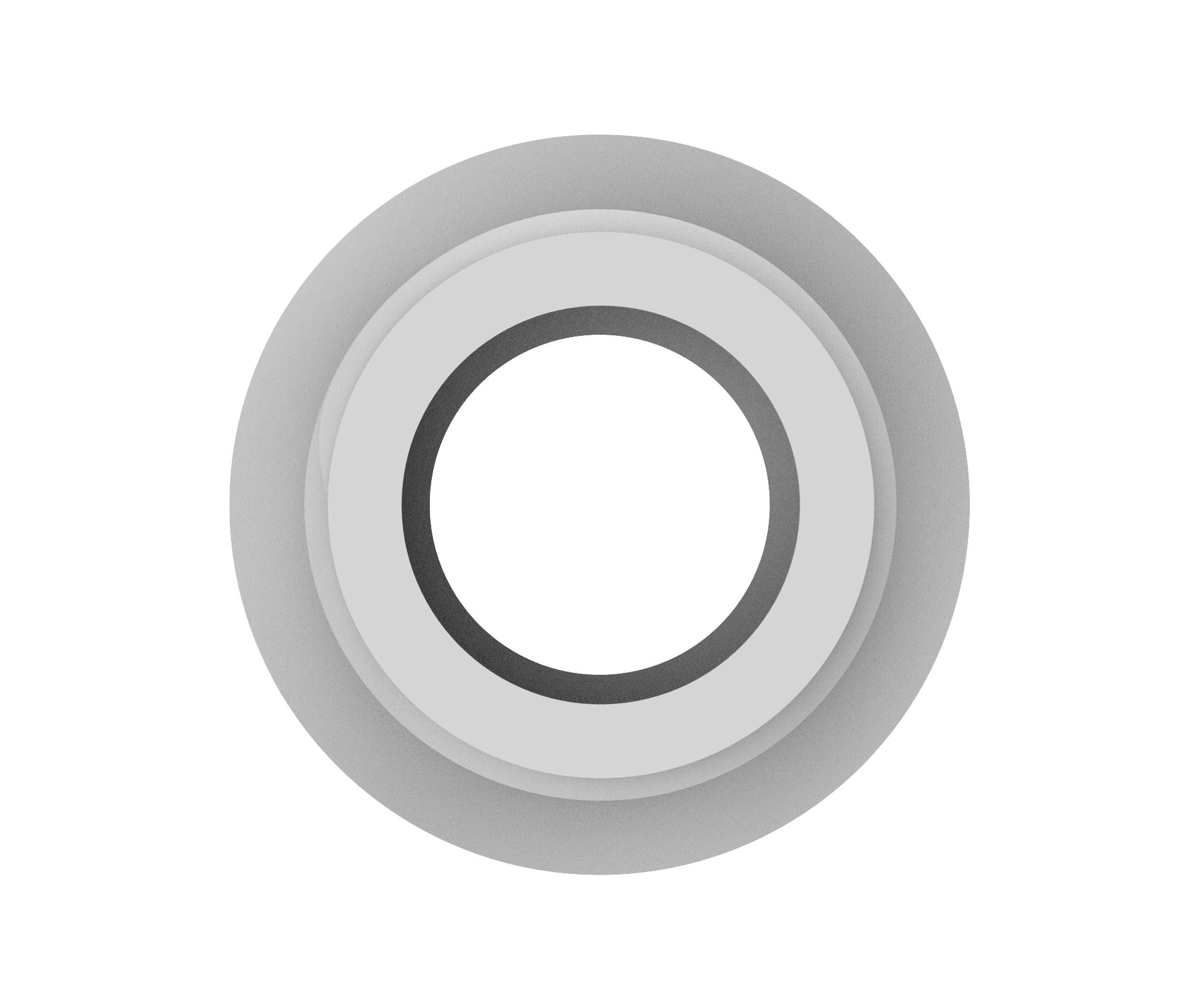

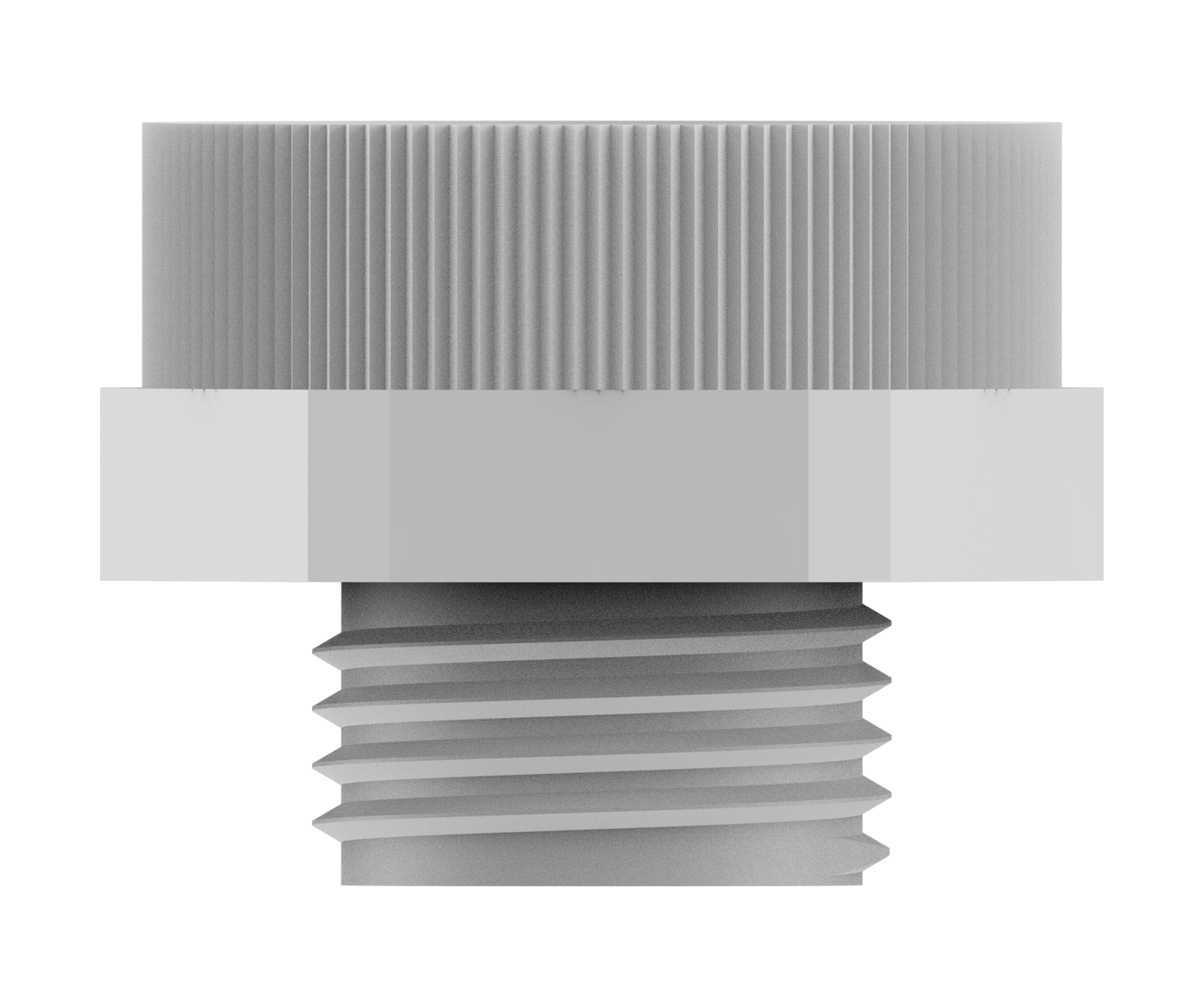

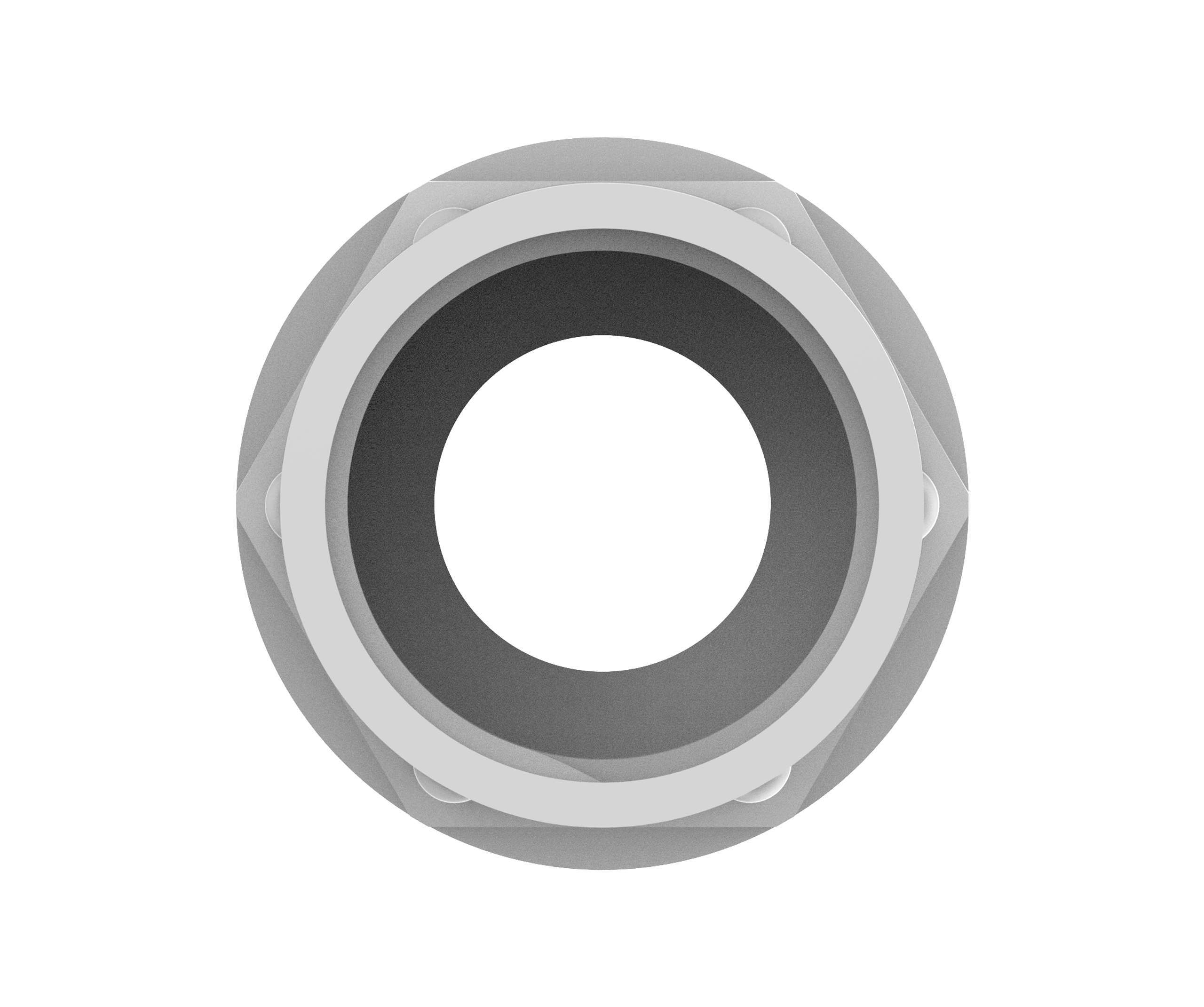

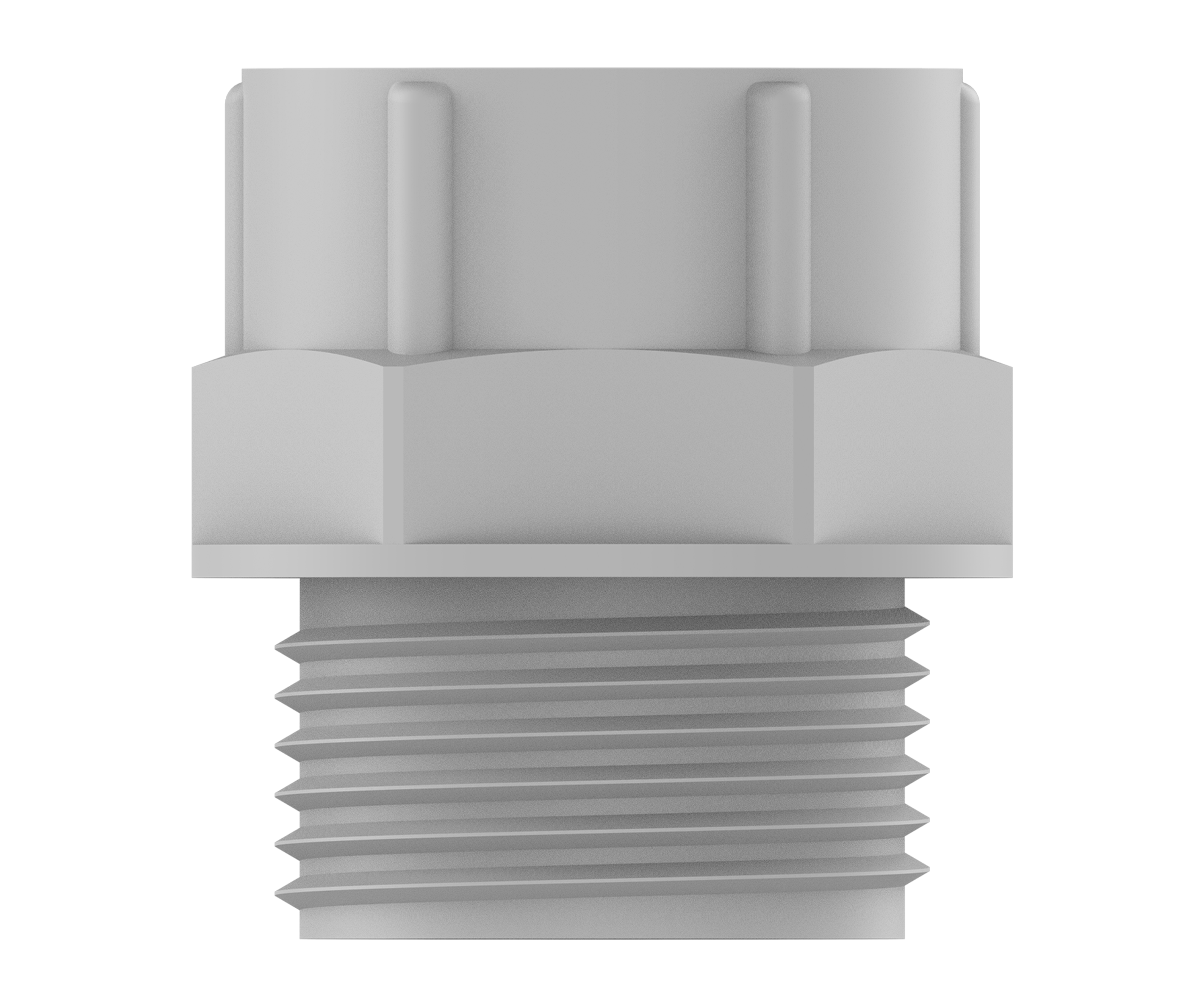

Adapter i polyamid (PA6)
○Adapter for overgang mellom ulike gjengestørrelser.
Spesifikasjoner
| Gjengelengde | Diameter | Nøkkelvidde | Height 'H' | Male Thread Size 'MT' | Female Thread Size 'FT' | Varenummer | BIMED Kode | 3D File |
|---|---|---|---|---|---|---|---|---|
| 8 | 7.5 | 15 | 13 | M12x1,5 | PG 7 | — | PA02M1P-1 | — |
| 8 | 7.5 | 15 | 13 | M12x1,5 | PG 7 | — | PA02M1P-2 | — |
| 10 | 20.5 | 36 | 15 | M32x1,5 | PG 21 | — | PA3M6P-1 | — |
| 10 | 20.5 | 36 | 15 | M32x1,5 | PG 21 | — | PA3M6P-2 | — |
| 11 | 8 | 19 | 12.5 | M12x1,5 | PG 9 | — | PA02M2P-1 | — |
| 11 | 8 | 19 | 12.5 | M12x1,5 | PG 9 | — | PA02M2P-2 | — |
| 11 | 9.5 | 19 | 13.5 | M16x1,5 | PG 9 | — | PA01M2P-1 | — |
| 11 | 9.5 | 19 | 13.5 | M16x1,5 | PG 9 | — | PA01M2P-2 | — |
| 11 | 11 | 22 | 15.5 | M20x1,5 | PG 11 | — | PA1M3P-1 | — |
| 11 | 11 | 22 | 15.5 | M20x1,5 | PG 11 | — | PA1M3P-2 | — |
| 11 | 13 | 24 | 15 | M20x1,5 | PG 13,5 | — | PA1M4P-1 | — |
| 11 | 13 | 24 | 15 | M20x1,5 | PG 13,5 | — | PA1M4P-2 | — |
| 11 | 14.5 | 27 | 17 | M20x1,5 | PG 16 | — | PA1M5P-1 | — |
| 11 | 14.5 | 27 | 17 | M20x1,5 | PG 16 | — | PA1M5P-2 | — |
| 11 | 15.5 | 27 | 18 | M25x1,5 | PG 16 | — | PA2M5P-1 | — |
| 11 | 15.5 | 27 | 18 | M25x1,5 | PG 16 | — | PA2M5P-2 | — |
| 11 | 19.5 | 32 | 20 | M25x1,5 | PG 21 | — | PA2M6P-1 | — |
| 11 | 19.5 | 32 | 20 | M25x1,5 | PG 21 | — | PA2M6P-2 | — |
| 11 | 26.5 | 42 | 22 | M32x1,5 | PG 29 | — | PA3M7P-1 | — |
| 11 | 26.5 | 42 | 22 | M32x1,5 | PG 29 | — | PA3M7P-2 | — |
| 11 | 28 | 42 | 23 | M40x1,5 | PG 29 | — | PA4M7P-1 | — |
| 11 | 28 | 42 | 23 | M40x1,5 | PG 29 | — | PA4M7P-2 | — |
| 11 | 34 | 53 | 26 | M50x1,5 | PG 36 | — | PA5M8P-1 | — |
| 11 | 34 | 53 | 26 | M50x1,5 | PG 36 | — | PA5M8P-2 | — |
| 11 | 40 | 60 | 28 | M50x1,5 | PG 42 | — | PA5M9P-1 | — |
| 11 | 40 | 60 | 28 | M50x1,5 | PG 42 | — | PA5M9P-2 | — |
| 11 | 45 | 65 | 29 | M63x1,5 | PG 48 | — | PA6M10P-1 | — |
| 11 | 45 | 65 | 29 | M63x1,5 | PG 48 | — | PA6M10P-2 | — |
