PAVO

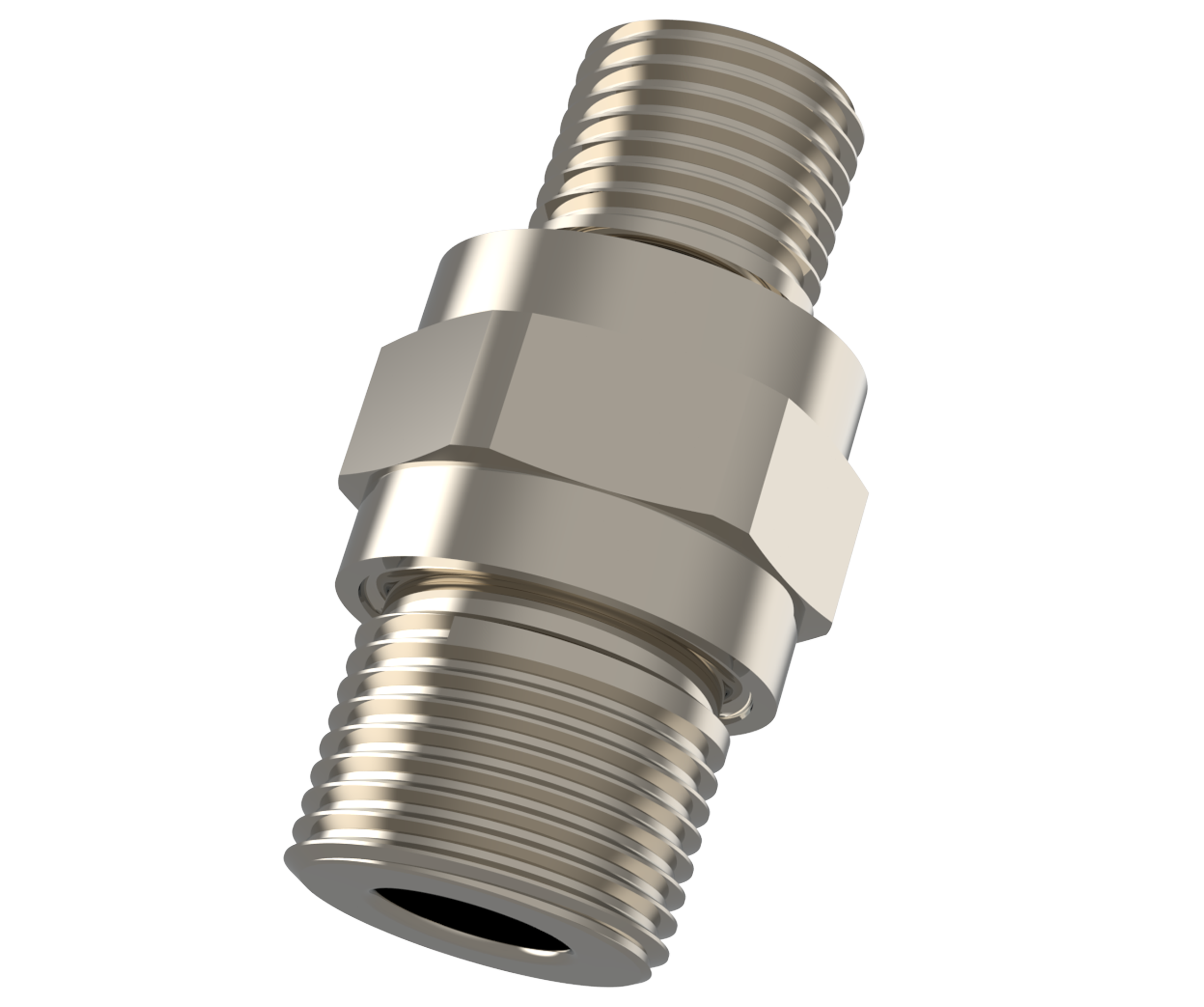

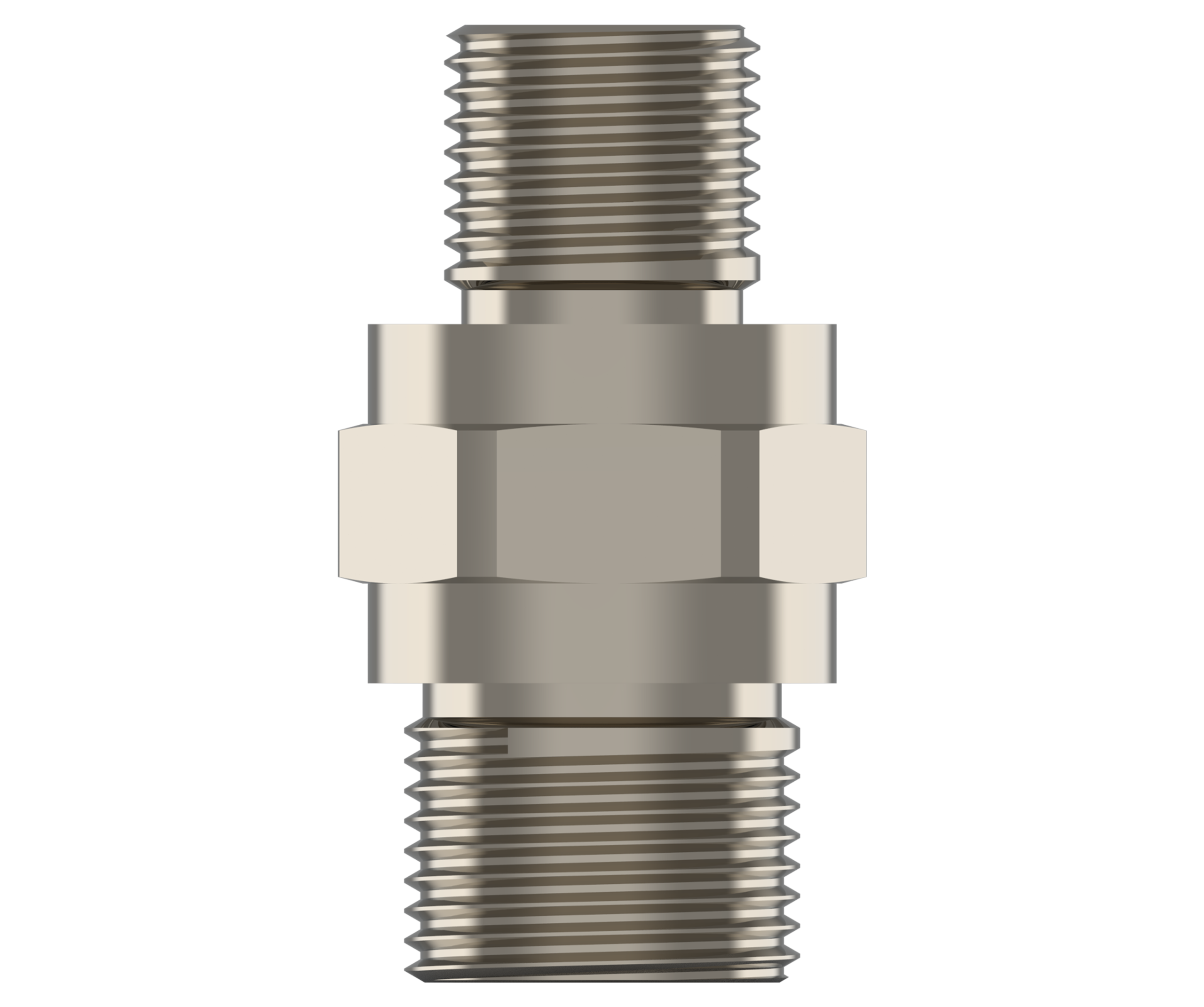

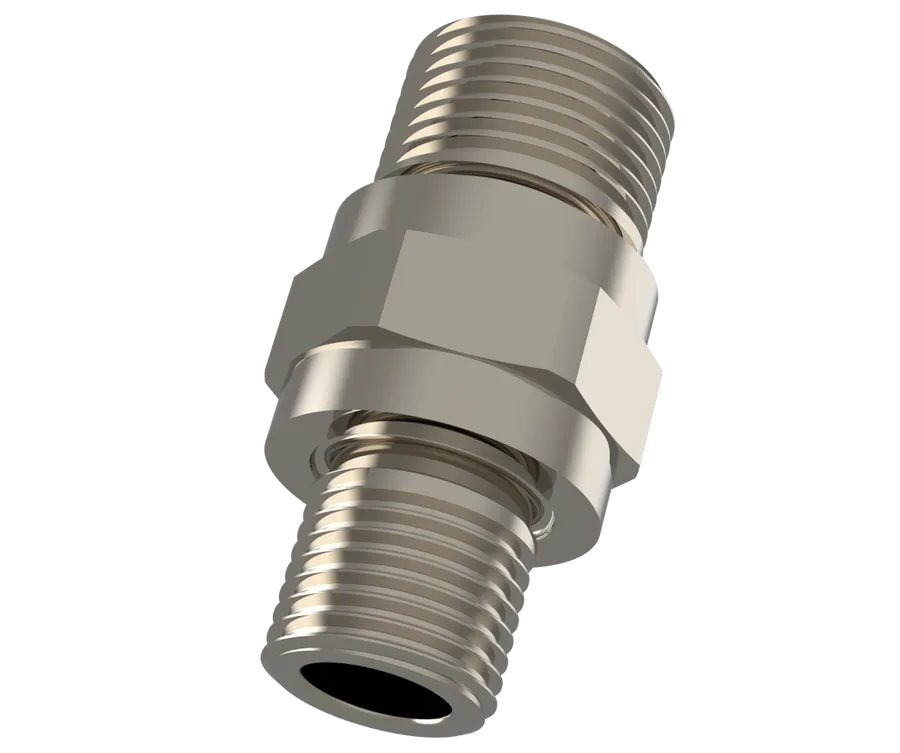

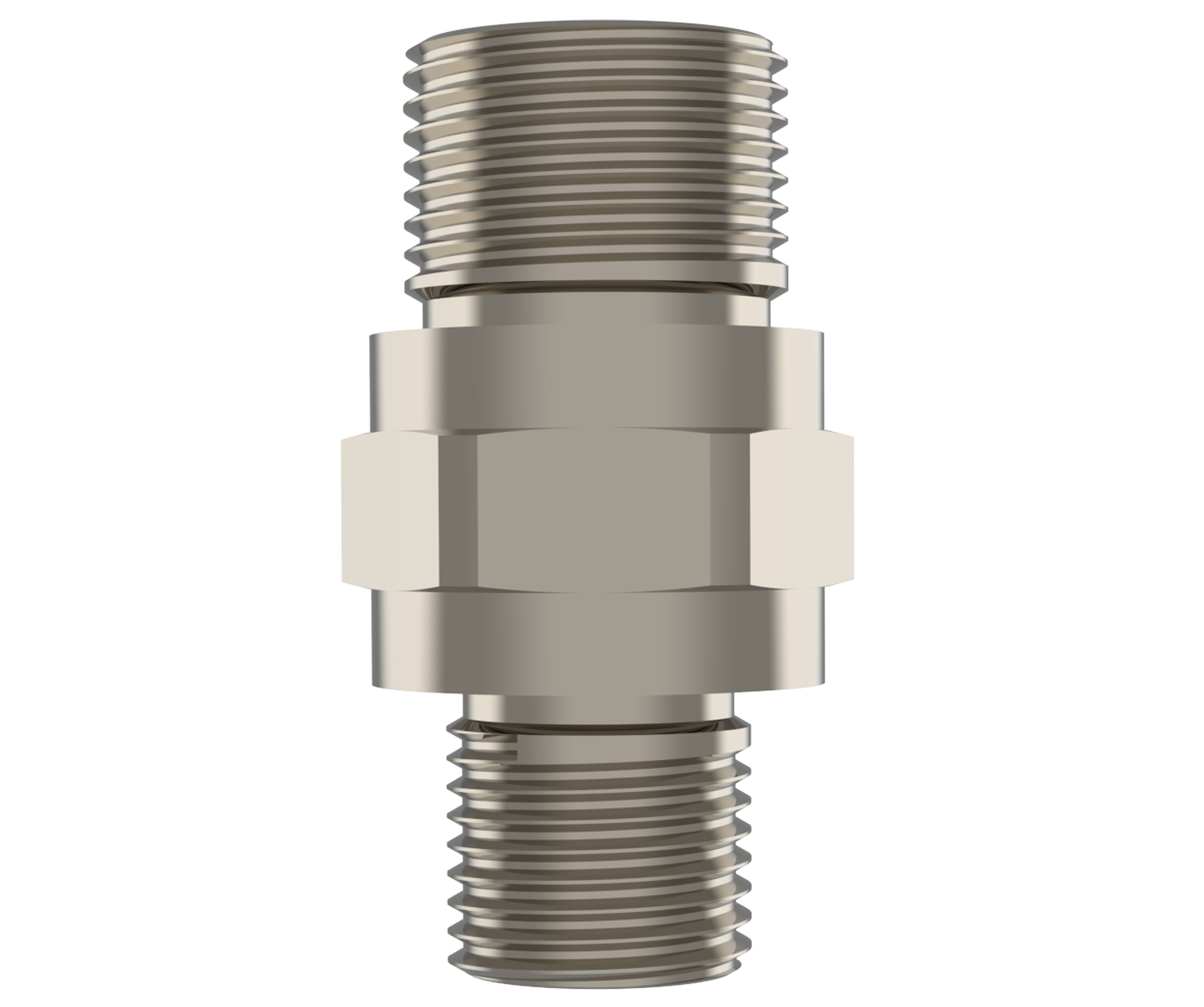

○Ex-nippel for overgang mellom ulike gjenge-typer og -størrelser, egnet for Gruppe I, II og III eksplosjonsfarlige områder. ATEX- og IECEx-sertifisert i henhold til Ex eb, Ex db og Ex tb.
Spesifikasjoner

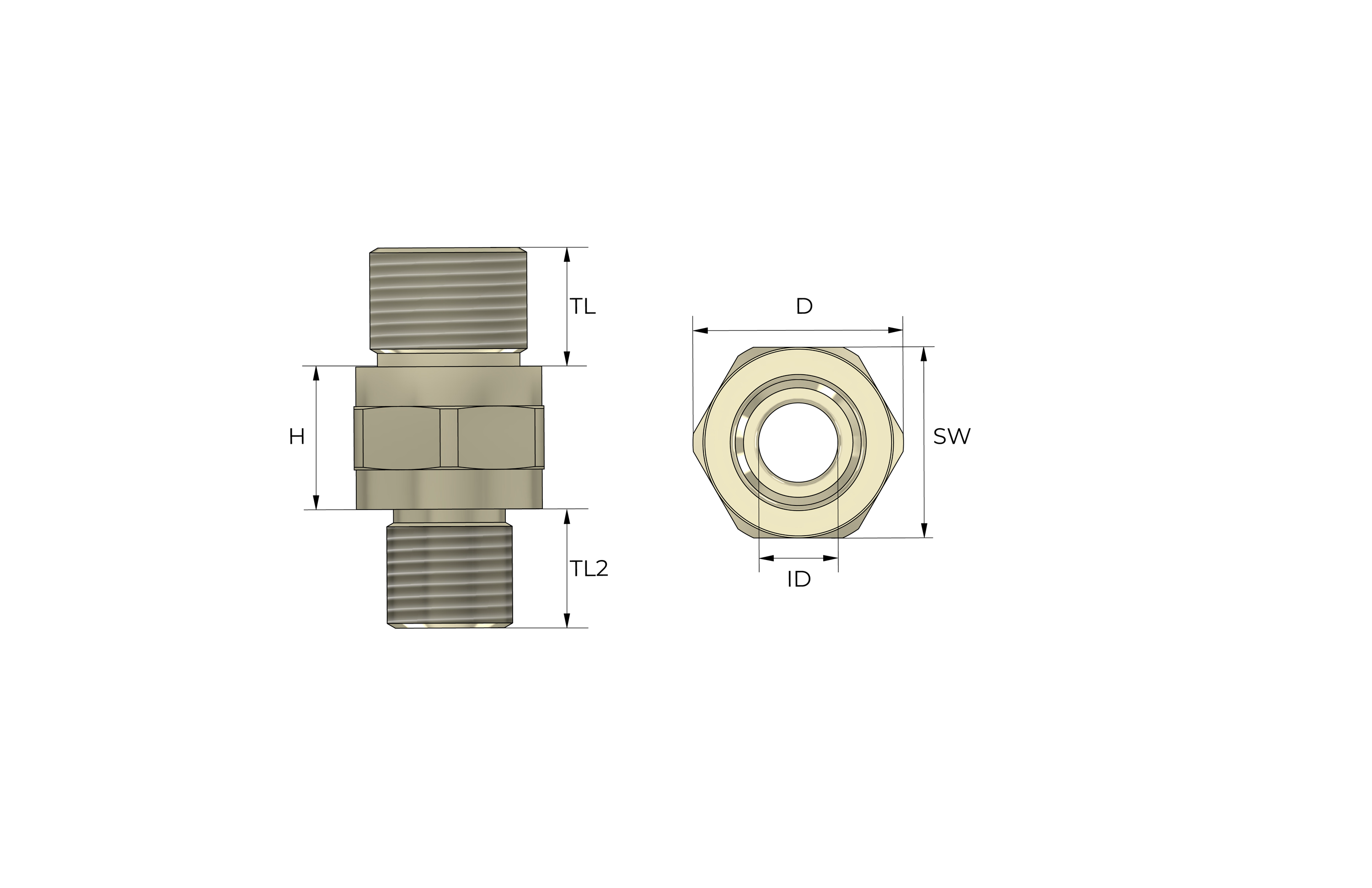

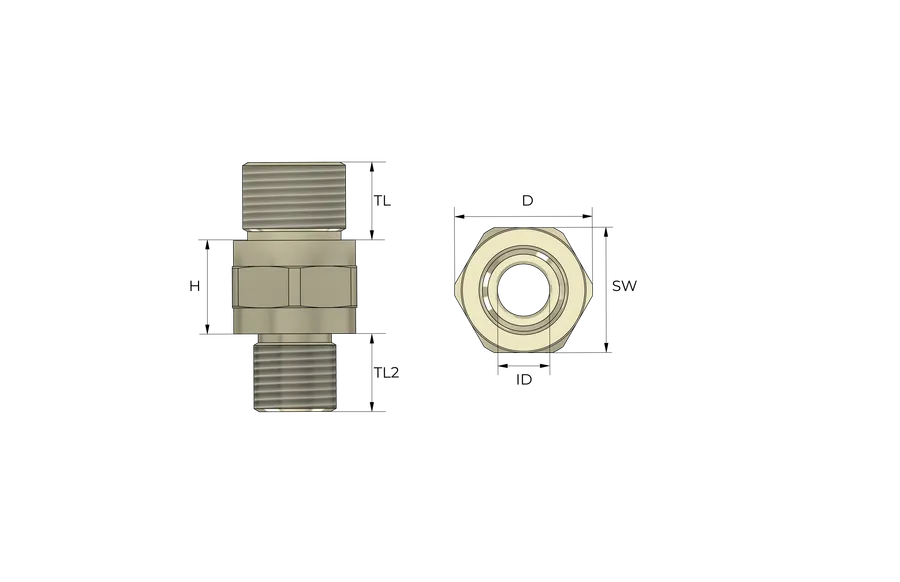

| Gjengelengde | Diameter | Maks høyde 'H' | Nøkkelvidde | TL 2 | Inner Ø 'ID' | Thread Size 1 "M" | Thread Size 2 "F" | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 22 | 18 | 20 | 16 | 10 | M16x1,5 | M16x1,5 | — | B-RN01M01M | — | |
| 16 | 26.5 | 18 | 24 | 16 | 10 | M20x1,5 | M16x1,5 | — | B-RN1M01M | Get File | |
| 16 | 26.5 | 18 | 24 | 16 | 14 | M20x1,5 | M20x1,5 | — | B-RN1M1M | — | |
| 16 | 35 | 20 | 32 | 18 | 10 | M25x1,5 | M16x1,5 | — | B-RN2M01M | — | |
| 16 | 35 | 20 | 32 | 18 | 14 | M25x1,5 | M20x1,5 | — | B-RN2M1M | — | |
| 16 | 39.5 | 20 | 36 | 20 | 14 | M32x1,5 | M20x1,5 | — | B-RN3M1M | — | |
| 18 | 35 | 20 | 32 | 18 | 19 | M25x1,5 | M25x1,5 | — | B-RN2M2M | — | |
| 18 | 39.5 | 20 | 36 | 20 | 19 | M32x1,5 | M25x1,5 | — | B-RN3M2M | — | |
| 18 | 50 | 20 | 45 | 20 | 19 | M40x1,5 | M25x1,5 | — | B-RN4M2M | — | |
| 20 | 39.5 | 20 | 36 | 20 | 26 | M32x1,5 | M32x1,5 | — | B-RN3M3M | — | |
| 20 | 50 | 20 | 45 | 20 | 26 | M40x1,5 | M32x1,5 | — | B-RN4M3M | — | |
| 20 | 50 | 20 | 45 | 20 | 34 | M40x1,5 | M40x1,5 | — | B-RN4M4M | — | |
| 20 | 61 | 22 | 55 | 20 | 26 | M50x1,5 | M32x1,5 | — | B-RN5M3M | — | |
| 20 | 61 | 22 | 55 | 20 | 34 | M50x1,5 | M40x1,5 | — | B-RN5M4M | — | |
| 20 | 61 | 22 | 55 | 20 | 44 | M50x1,5 | M50x1,5 | — | B-RN5M5M | — | |
| 20 | 77 | 22 | 70 | 20 | 34 | M60x1,5 | M40x1,5 | — | B-RN60M4M | — | |
| 20 | 77 | 22 | 70 | 20 | 44 | M60x1,5 | M50x1,5 | — | B-RN60M5M | — | |
| 20 | 77 | 22 | 70 | 20 | 54 | M60x1,5 | M60x1,5 | — | B-RN60M60M | — | |
| 20 | 77 | 22 | 70 | 20 | 44 | M63x1,5 | M50x1,5 | — | B-RN6M5M | — | |
| 20 | 77 | 22 | 70 | 20 | 54 | M63x1,5 | M60x1,5 | — | B-RN6M60M | — | |
| 20 | 77 | 22 | 70 | 20 | 57 | M63x1,5 | M63x1,5 | — | B-RN6M6M | — | |
| 20 | 88.5 | 26 | 80 | 20 | 54 | M70x1,5 | M60x1,5 | — | B-RN70M60M | — | |
| 20 | 88.5 | 26 | 80 | 20 | 57 | M70x1,5 | M63x1,5 | — | B-RN70M6M | — | |
| 20 | 88.5 | 26 | 80 | 20 | 64 | M70x1,5 | M70x1,5 | — | B-RN70M70M | — | |
| 20 | 94 | 26 | 85 | 20 | 57 | M75x1,5 | M63x1,5 | — | B-RN7M6M | — | |
| 20 | 94 | 26 | 85 | 20 | 64 | M75x1,5 | M70x1,5 | — | B-RN7M70M | — | |
| 20 | 94 | 26 | 85 | 20 | 69 | M75x1,5 | M75x1,5 | — | B-RN7M7M | — | |
| 20 | 100 | 26 | 90 | 20 | 64 | M80x1,5 | M70x1,5 | — | B-RN80M70M | — | |
| 20 | 100 | 26 | 90 | 20 | 69 | M80x1,5 | M75x1,5 | — | B-RN80M7M | — | |
| 20 | 100 | 26 | 90 | 20 | 74 | M80x1,5 | M80x1,5 | — | B-RN80M80M | — | |
| 20 | 105 | 26 | 95 | 20 | 69 | M85x1,5 | M75x1,5 | — | B-RN85M7M | — | |
| 20 | 105 | 26 | 95 | 20 | 74 | M85x1,5 | M80x1,5 | — | B-RN85M80M | — | |
| 20 | 105 | 26 | 95 | 20 | 79 | M85x1,5 | M85x1,5 | — | B-RN85M85M | — | |
| 20 | 111 | 26 | 100 | 20 | 74 | M90x1,5 | M80x1,5 | — | B-RN8M80M | — | |
| 20 | 111 | 26 | 100 | 20 | 79 | M90x1,5 | M85x1,5 | — | B-RN8M85M | — | |
| 20 | 111 | 26 | 100 | 20 | 84 | M90x1,5 | M90x1,5 | — | B-RN8M8M | — | |
| 20 | 123 | 27 | 110 | 20 | 79 | M100x1,5 | M85x1,5 | — | B-RN9M85M | — | |
| 20 | 123 | 27 | 110 | 20 | 84 | M100x1,5 | M90x1,5 | — | B-RN9M8M | — | |
| 20 | 123 | 27 | 110 | 20 | 93 | M100x1,5 | M100x1,5 | — | B-RN9M9M | — | |
| 20 | 133.5 | 27 | 120 | 20 | 84 | M110x1,5 | M90x1,5 | — | B-RN10M8M | — | |
| 20 | 133.5 | 27 | 120 | 20 | 93 | M110x1,5 | M100x1,5 | — | B-RN10M9M | — | |
| 20 | 133.5 | 27 | 120 | 20 | 100 | M110x1,5 | M110x1,5 | — | B-RN10M10M | — |
