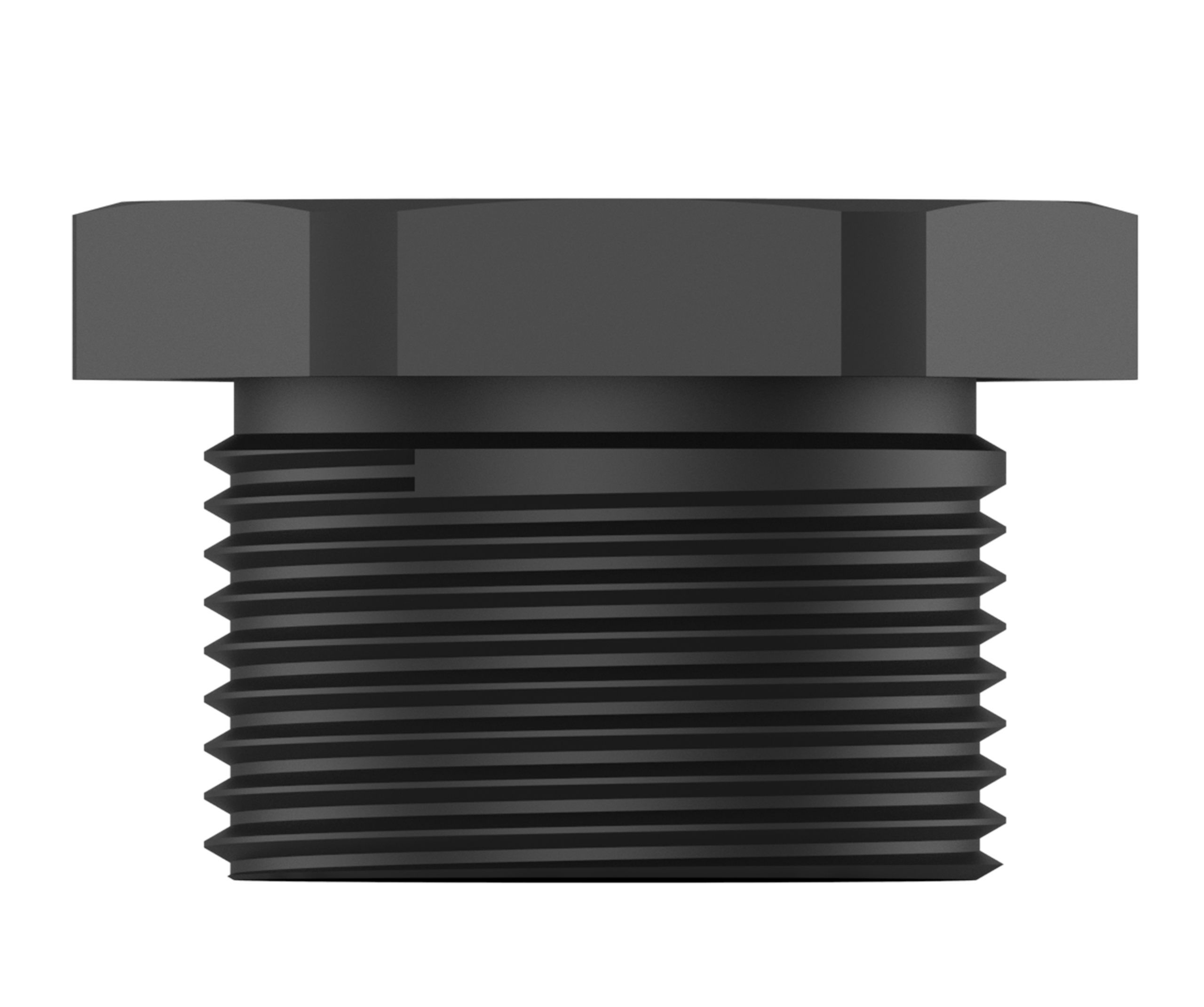

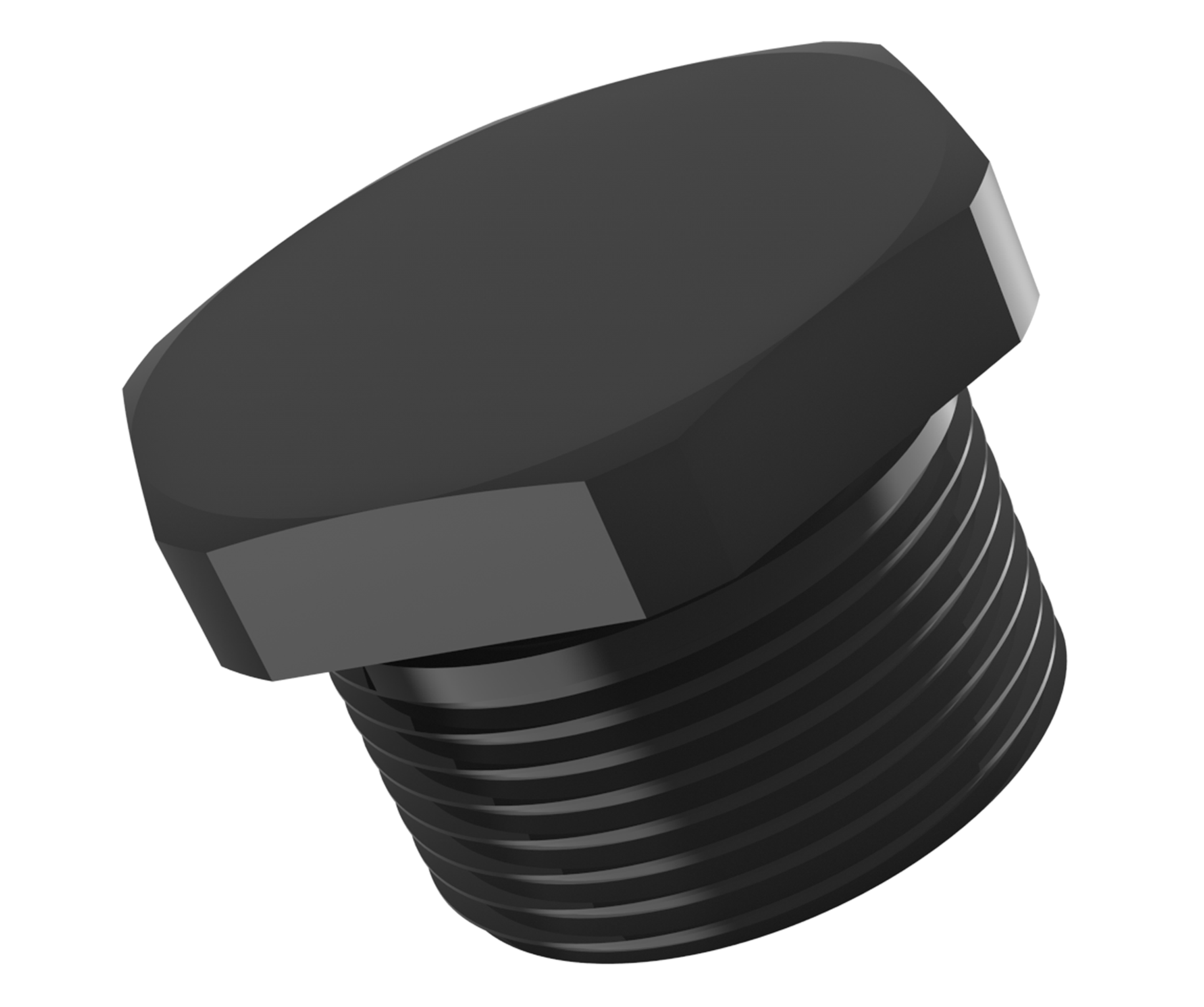

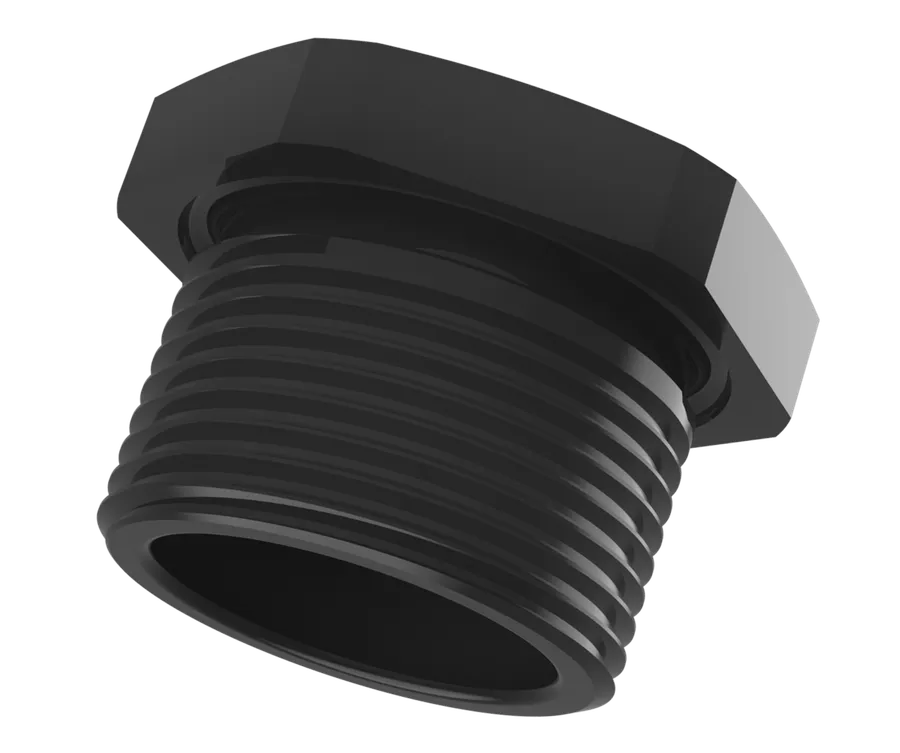

HI DRACO
○Ex-blindplugg for tetting av kapslingshull i eksplosjonsfarlige omgivelser, godkjent for 7J høyslagsapplikasjoner med enkel montering. ATEX- og IECEx-sertifisert i henhold til Ex eb og Ex tb.
Spesifikasjoner
| Gjengestørrelse | Gjengelengde | Diameter | Maks høyde 'H' | Nøkkelvidde | Varenummer | BIMED Kode | Datablad |
|---|---|---|---|---|---|---|---|
| M12x1,5 | 10 | 17 | 5 | 15 | — | HITP-X02 | |
| M16x1,5 | 11 | 22 | 4.3 | 19 | — | HITP-X01 | |
| M16x1,5 | 15 | 22 | 4.3 | 19 | — | HITP-X01HL | |
| M20x1,5 | 11 | 26 | 6 | 23 | — | HITP-X1 | |
| M20x1,5 | 15 | 26 | 6 | 23 | — | HITP-X1HL | |
| M25x1,5 | 10 | 32 | 5.8 | 28 | — | HITP-X2 | |
| M25x1,5 | 15 | 32 | 5.8 | 28 | — | HITP-X2HL | |
| M32x1,5 | 15 | 41.5 | 7.8 | 36 | — | HITP-X3 | |
| M40x1,5 | 18 | 53 | 8.5 | 46 | — | HITP-X4 | |
| M50x1,5 | 18 | 63.5 | 9.5 | 55 | — | HITP-X5 | |
| M63x1,5 | 18 | 79.5 | 9.5 | 69 | — | HITP-X6 |
