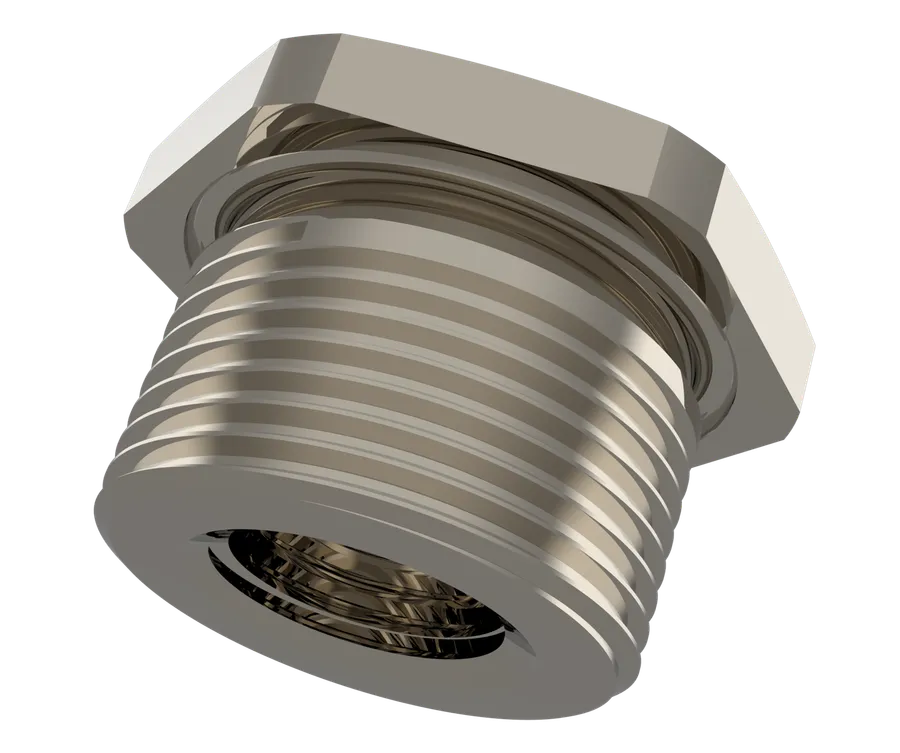

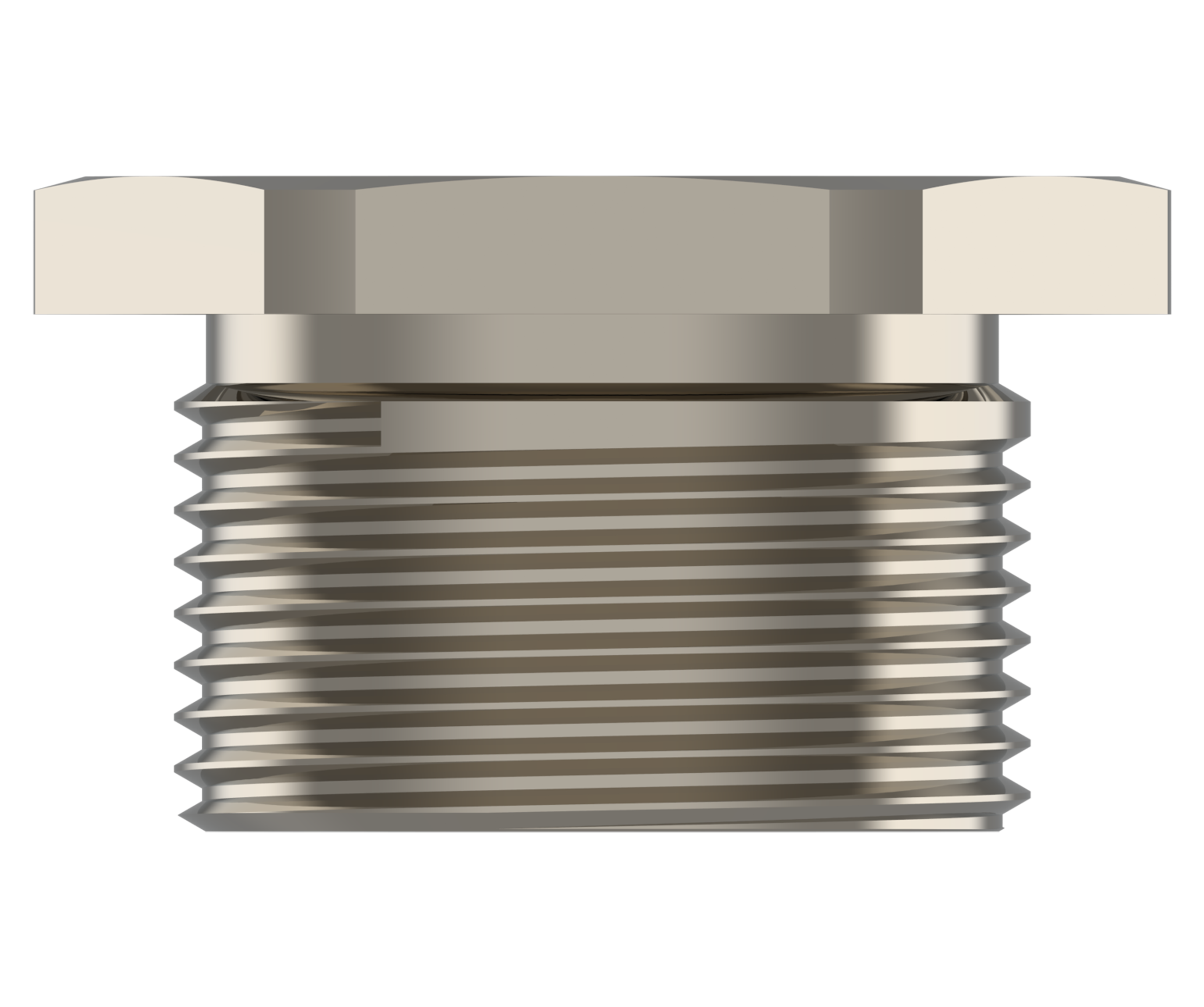

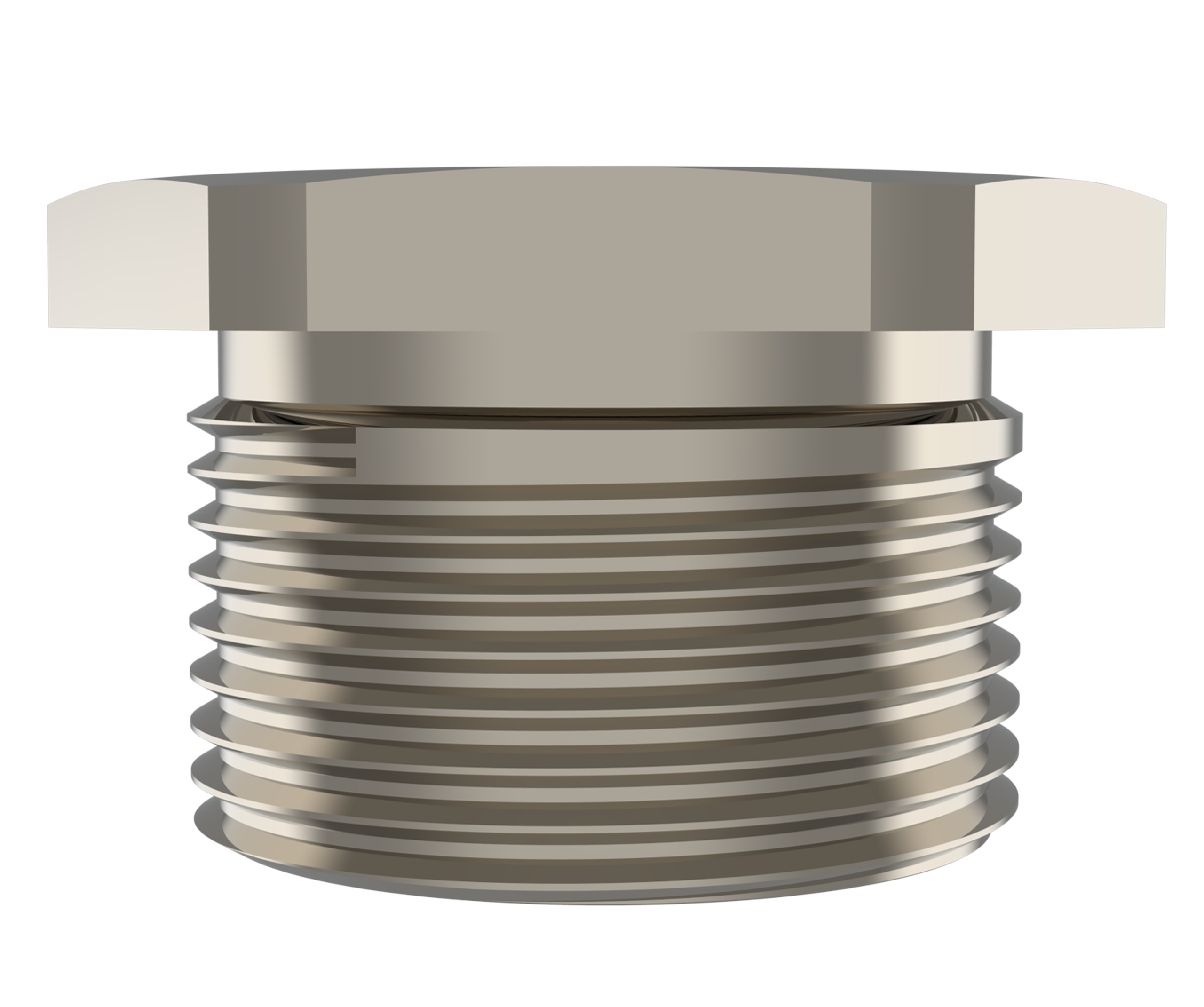

GRUS
○Ex-reduksjonsnippel for overgang mellom ulike gjenge-typer og -størrelser, egnet for Gruppe I, II og III eksplosjonsfarlige områder. ATEX- og IECEx-sertifisert i henhold til Ex eb, Ex db og Ex tb.

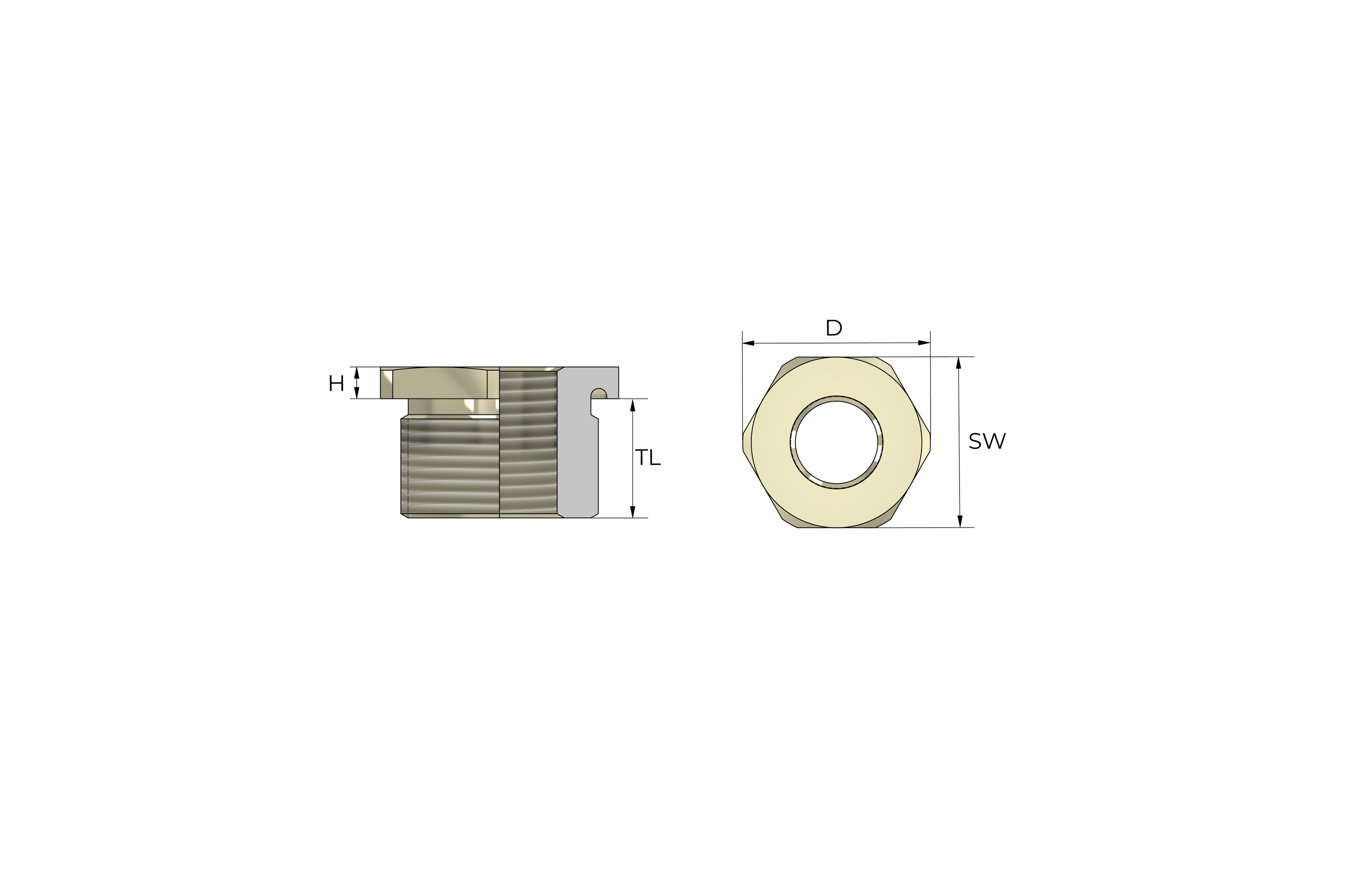

Spesifikasjoner
| Gjengelengde | Diameter | Maks høyde 'H' | Nøkkelvidde | Thread Size"M" | Thread Size "F" | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|
| 21 | 27.5 | 4 | 25 | NPT 1/2" | NPT 3/8" | — | B-RA1N01N | — | |
| 21 | 33 | 4 | 30 | NPT 3/4" | NPT 3/8" | — | B-RA2N01N | — | |
| 21 | 33 | 4 | 30 | NPT 3/4" | NPT 1/2" | — | B-RA2N1N | — | |
| 21 | 27.5 | 4 | 25 | NPT 1/2" | M16x1,5 | — | B-RA1N01M | — | |
| 21 | 33 | 4 | 30 | NPT 3/4" | M16x1,5 | — | B-RA2N01M | — | |
| 21 | 33 | 4 | 30 | NPT 3/4" | M20x1,5 | — | B-RA2N1M | — | |
| 26 | 39.5 | 4 | 36 | NPT 1" | NPT 3/8" | — | B-RA3N01N | — | |
| 26 | 39.5 | 4 | 36 | NPT 1" | NPT 1/2" | — | B-RA3N1N | — | |
| 26 | 39.5 | 4 | 36 | NPT 1" | NPT 3/4" | — | B-RA3N2N | — | |
| 26 | 39.5 | 4 | 36 | NPT 1" | M16x1,5 | — | B-RA3N01M | — | |
| 26 | 39.5 | 4 | 36 | NPT 1" | M20x1,5 | — | B-RA3N1M | — | |
| 26 | 39.5 | 4 | 36 | NPT 1" | M25x1,5 | — | B-RA3N2M | — | |
| 28 | 72 | 5 | 65 | NPT 2" | NPT 1" | — | B-RA6N3N | — | |
| 28 | 72 | 5 | 65 | NPT 2" | NPT 3/4" | — | B-RA6N2N | — | |
| 28 | 50 | 4 | 45 | NPT 1 1/4" | NPT 1/2" | — | B-RA4N1N | — | |
| 28 | 50 | 4 | 45 | NPT 1 1/4" | NPT 3/4" | — | B-RA4N2N | — | |
| 28 | 50 | 4 | 45 | NPT 1 1/4" | NPT 1" | — | B-RA4N3N | — | |
| 28 | 61 | 5 | 55 | NPT 1 1/2" | NPT 3/4" | — | B-RA5N2N | — | |
| 28 | 61 | 5 | 55 | NPT 1 1/2" | NPT 1" | — | B-RA5N3N | — | |
| 28 | 61 | 5 | 55 | NPT 1 1/2" | NPT 1 1/4" | — | B-RA5N4N | — | |
| 28 | 72 | 5 | 65 | NPT 2" | NPT 1 1/4" | — | B-RA6N4N | — | |
| 28 | 72 | 5 | 65 | NPT 2" | NPT 1 1/2" | — | B-RA6N5N | — | |
| 28 | 50 | 4 | 45 | NPT 1 1/4" | M16x1,5 | — | B-RA4N01M | — | |
| 28 | 50 | 4 | 45 | NPT 1 1/4" | M20x1,5 | — | B-RA4N1M | — | |
| 28 | 50 | 4 | 45 | NPT 1 1/4" | M25x1,5 | — | B-RA4N2M | — | |
| 28 | 50 | 4 | 45 | NPT 1 1/4" | M32x1,5 | — | B-RA4N3M | — | |
| 28 | 61 | 5 | 55 | NPT 1 1/2" | M20x1,5 | — | B-RA5N1M | — | |
| 28 | 61 | 5 | 55 | NPT 1 1/2" | M25x1,5 | — | B-RA5N2M | — | |
| 28 | 61 | 5 | 55 | NPT 1 1/2" | M32x1,5 | — | B-RA5N3M | — | |
| 28 | 61 | 5 | 55 | NPT 1 1/2" | M40x1,5 | — | B-RA5N4M | — | |
| 28 | 72 | 5 | 65 | NPT 1 1/2" | M25x1,5 | — | B-RA6N2M | — | |
| 28.0 28.0 | 72 72 | 5.0 5.0 | 65 65 | NPT 2" | M32x1,5 M40x1,5 | — | B-RA6N3M B-RA6N4M | — | |
| 28 | 72 | 5 | 65 | NPT 2" | M50x1,5 | — | B-RA6N5M | — | |
| 41 | 83 | 6 | 75 | NPT 2 1/2" | NPT 3/4" | — | B-RA7N2N | — | |
| 41 | 83 | 6 | 75 | NPT 2 1/2" | NPT 1" | — | B-RA7N3N | — | |
| 41 | 83 | 6 | 75 | NPT 2 1/2" | NPT 1 1/4" | — | B-RA7N4N | — | |
| 41 | 83 | 6 | 75 | NPT 2 1/2" | NPT 1 1/2" | — | B-RA7N5N | — | |
| 41 | 83 | 6 | 75 | NPT 2 1/2" | NPT 2" | — | B-RA7N6N | — | |
| 41 | 83 | 6 | 75 | NPT 2 1/2" | M50x1,5 | — | B-RA7N5M | — | |
| 41 | 83 | 6 | 75 | NPT 2 1/2" | M60x1,5 | — | B-RA7N60M | — | |
| 41 | 83 | 6 | 75 | NPT 2 1/2" | M63x1,5 | — | B-RA7N6M | — | |
| 43 | 105 | 8 | 95 | NPT 3" | NPT 1" | — | B-RA8N3N | — | |
| 43 | 105 | 8 | 95 | NPT 3" | NPT 1 1/4" | — | B-RA8N4N | — | |
| 43 | 105 | 8 | 95 | NPT 3" | NPT 1 1/2" | — | B-RA8N5N | — | |
| 43 | 105 | 8 | 95 | NPT 3" | NPT 2" | — | B-RA8N6N | — | |
| 43 | 105 | 8 | 95 | NPT 3" | NPT 2 1/2" | — | B-RA8N7N | — | |
| 43 | 123 | 10 | 110 | NPT 3 1/2" | NPT 1 1/4" | — | B-RA9N4N | — | |
| 43 | 123 | 10 | 110 | NPT 3 1/2" | NPT 1 1/2" | — | B-RA9N5N | — | |
| 43 | 123 | 10 | 110 | NPT 3 1/2" | NPT 2" | — | B-RA9N6N | — | |
| 43 | 123 | 10 | 110 | NPT 3 1/2" | NPT 2 1/2" | — | B-RA9N7N | — | |
| 43 | 123 | 10 | 110 | NPT 3 1/2" | NPT 3" | — | B-RA9N8N | — | |
| 43 | 105 | 8 | 95 | NPT 3" | M63x1,5 | — | B-RA8N6M | — | |
| 43 | 105 | 8 | 95 | NPT 3" | M70x1,5 | — | B-RA8N70M | — | |
| 43 | 105 | 8 | 95 | NPT 3" | M75x1,5 | — | B-RA8N7M | — | |
| 43 | 123 | 10 | 110 | NPT 3 1/2" | M80x1,5 | — | B-RA9N80M | — | |
| 43 | 123 | 10 | 110 | NPT 3 1/2" | M85x1,5 | — | B-RA9N85M | — | |
| 43 | 123 | 10 | 110 | NPT 3 1/2" | M90x1,5 | — | B-RA9N8M | — | |
| 44 | 133.5 | 10 | 120 | NPT 4" | NPT 1 1/2" | — | B-RA10N5N | — | |
| 44 | 133.5 | 10 | 120 | NPT 4" | NPT 2" | — | B-RA10N6N | — | |
| 44 | 133.5 | 10 | 120 | NPT 4" | NPT 2 1/2" | — | B-RA10N7N | — | |
| 44 | 133.5 | 10 | 120 | NPT 4" | NPT 3" | — | B-RA10N8N | — | |
| 44 | 133.5 | 10 | 120 | NPT 4" | M80x1,5 | — | B-RA10N80M | — | |
| 44 | 133.5 | 10 | 120 | NPT 4" | M85x1,5 | — | B-RA10N85M | — | |
| 44 | 133.5 | 10 | 120 | NPT 4" | M90x1,5 | — | B-RA10N8M | — | |
| 44 | 133.5 | 10 | 120 | NPT 4" | M100x1,5 | — | B-RA10N9M | — |
