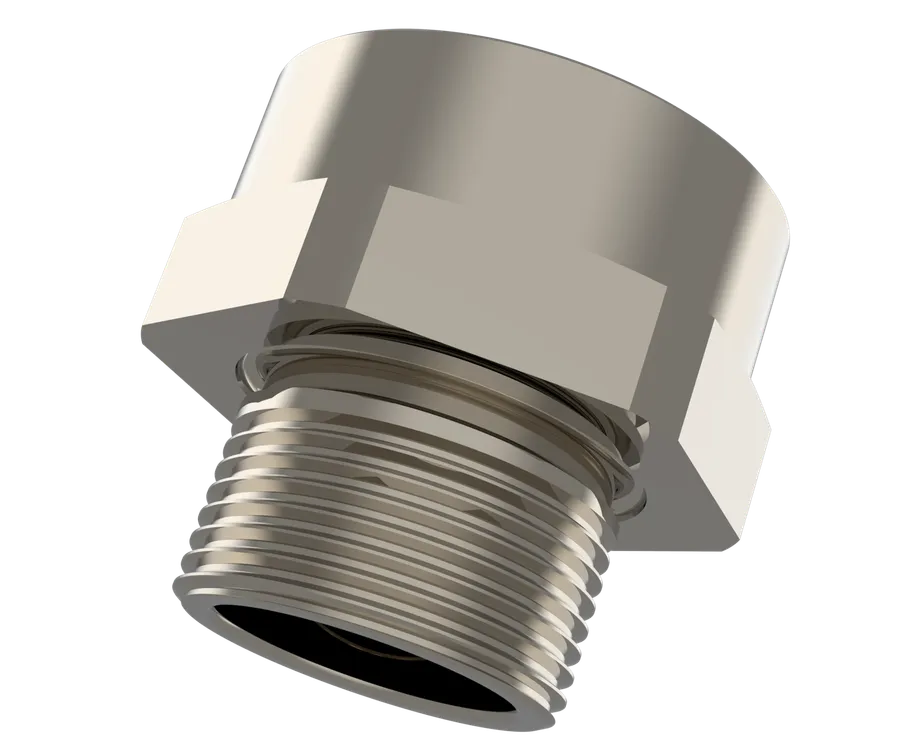

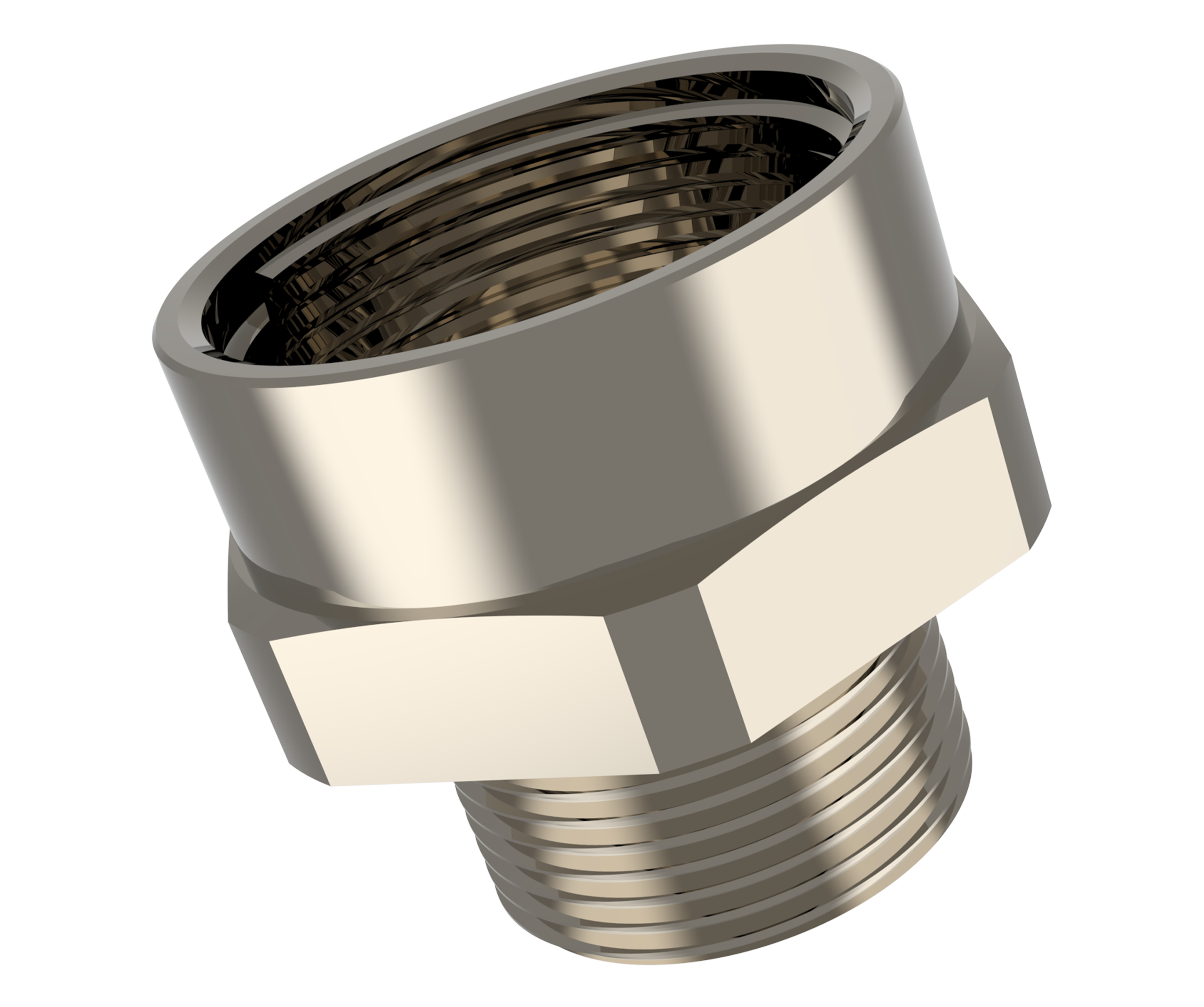

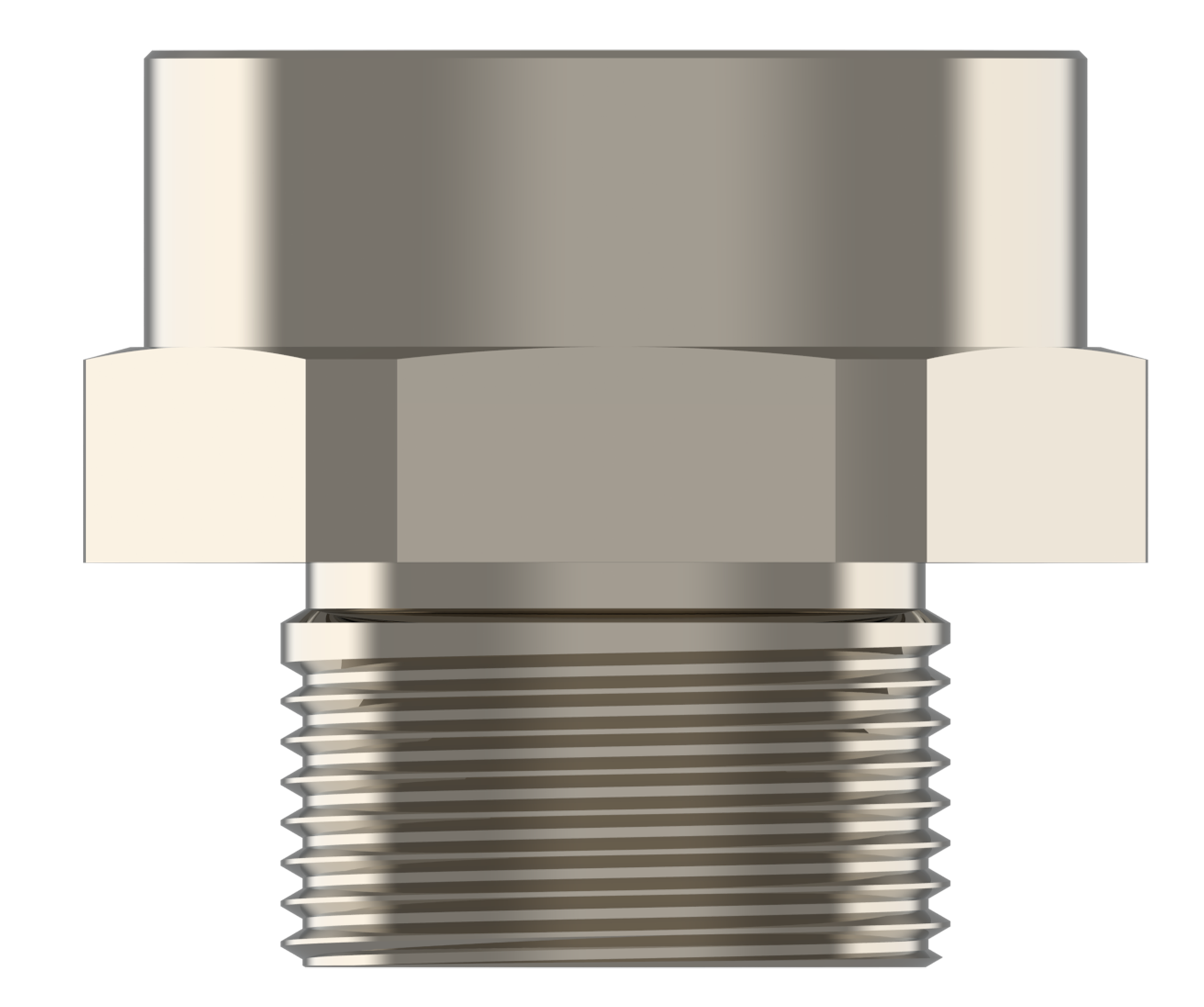

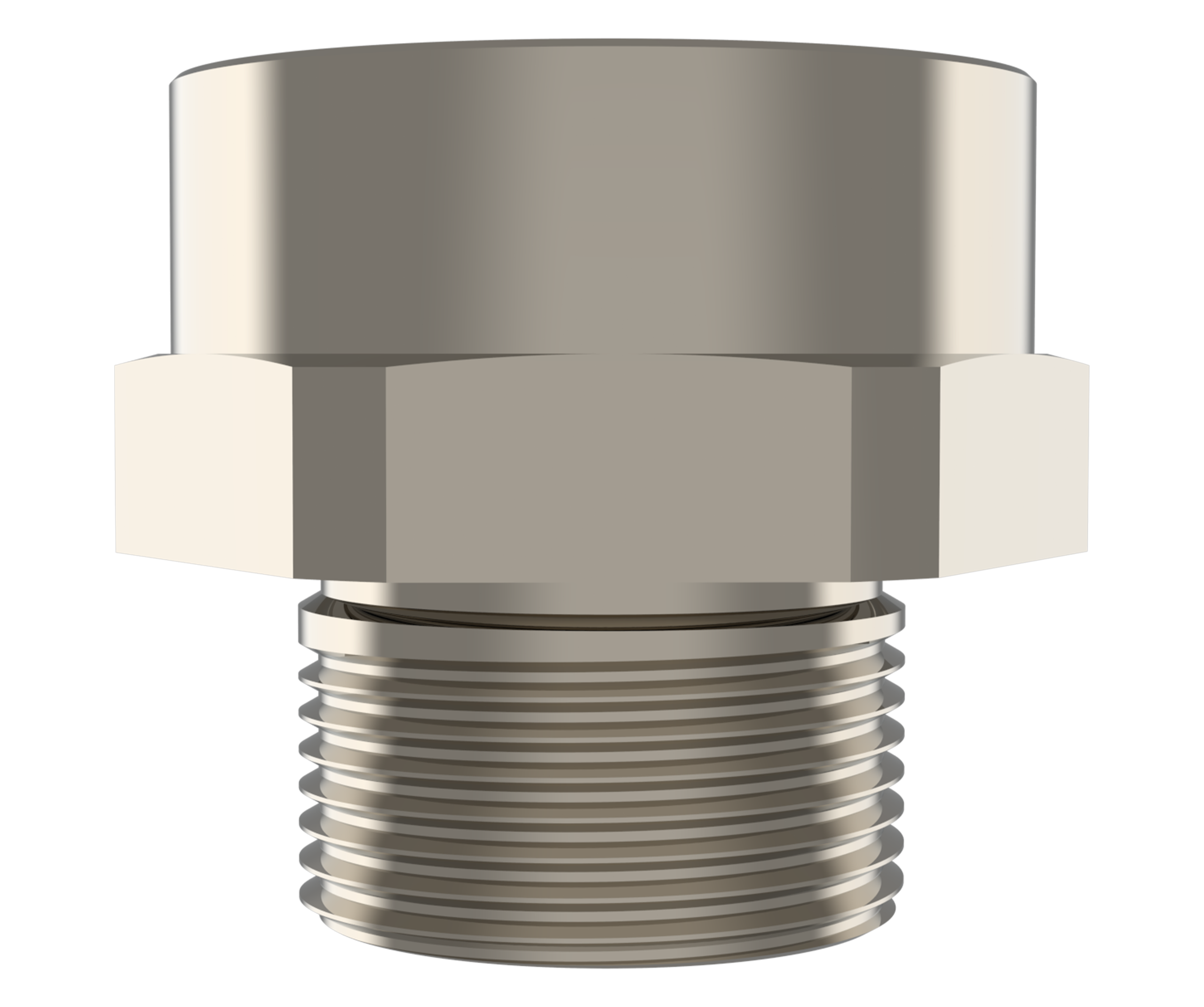

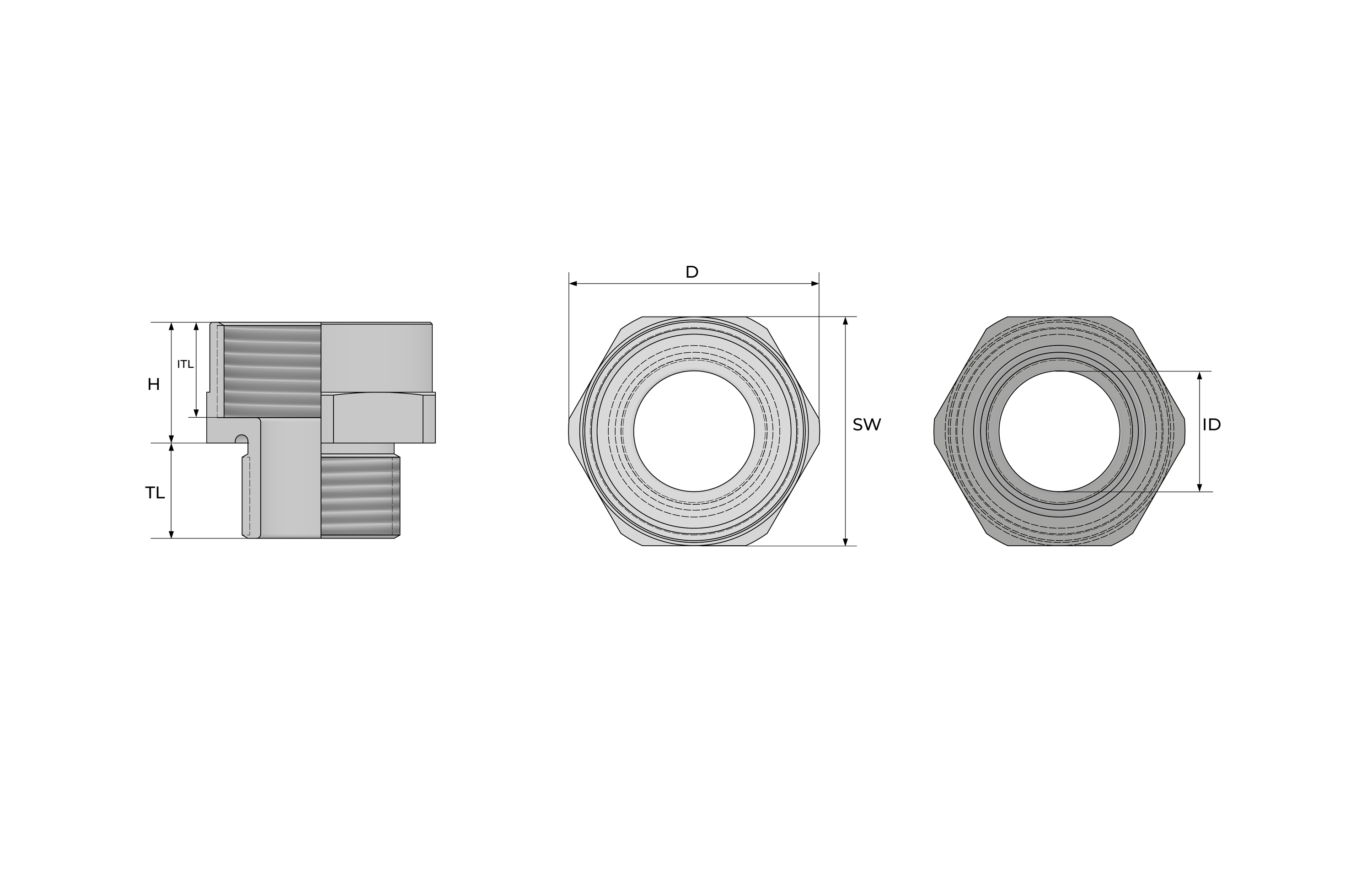

APUS
○Ex-forstørrernippel for overgang mellom ulike gjenge-typer og -størrelser, egnet for Gruppe I, II og III eksplosjonsfarlige områder. ATEX- og IECEx-sertifisert i henhold til Ex eb, Ex db og Ex tb.
Spesifikasjoner
| Gjengelengde | Diameter | Maks høyde 'H' | Nøkkelvidde | ITL | Inner Ø 'ID' | Thread Size"F" | Thread Size"M" | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 27.5 | 21 | 25 | 16 | 10 | M20x1,5 | M16x1,5 | — | B-RB1M01M | — | |
| 16 | 33 | 23 | 30 | 18 | 10 | M25x1,5 | M16x1,5 | — | B-RB2M01M | — | |
| 16 | 39.5 | 25 | 36 | 20 | 10 | M32x1,5 | M16x1,5 | — | B-RB3M01M | — | |
| 16 | 33 | 23 | 30 | 18 | 14 | M25x1,5 | M20x1,5 | — | B-RB2M1M | — | |
| 16 | 39.5 | 25 | 36 | 20 | 14 | M32x1,5 | M20x1,5 | — | B-RB3M1M | — | |
| 16 | 50 | 25 | 45 | 20 | 14 | M40x1,5 | M20x1,5 | — | B-RB4M1M | — | |
| 18 | 39.5 | 25 | 36 | 20 | 19 | M32x1,5 | M25x1,5 | — | B-RB3M2M | Get File | |
| 18 | 50 | 25 | 45 | 20 | 19 | M40x1,5 | M25x1,5 | — | B-RB4M2M | — | |
| 18 | 61 | 25 | 55 | 20 | 19 | M50x1,5 | M25x1,5 | — | B-RB5M2M | — | |
| 20 | 88.5 | 25.5 | 80 | 20 | 54 | M70x1,5 | M60x1,5 | — | B-RB70M60M | — | |
| 20 | 88.5 | 25.5 | 80 | 20 | 54 | M75x1,5 | M60x1,5 | — | B-RB7M60M | — | |
| 20 | 100 | 25.5 | 90 | 20 | 54 | M80x1,5 | M60x1,5 | — | B-RB80M60M | — | |
| 20 | 105 | 25.5 | 95 | 20 | 54 | M85x1,5 | M60x1,5 | — | B-RB85M60M | — | |
| 20 | 50 | 25 | 45 | 20 | 26 | M40x1,5 | M32x1,5 | — | B-RB4M3M | — | |
| 20 | 61 | 25 | 55 | 20 | 26 | M50x1,5 | M32x1,5 | — | B-RB5M3M | — | |
| 20 | 75 | 25.5 | 68 | 20 | 26 | M60x1,5 | M32x1,5 | — | B-RB60M3M | — | |
| 20 | 61 | 25 | 55 | 20 | 34 | M50x1,5 | M40x1,5 | — | B-RB5M4M | — | |
| 20 | 75 | 25.5 | 68 | 20 | 34 | M60x1,5 | M40x1,5 | — | B-RB60M4M | — | |
| 20 | 75 | 25.5 | 68 | 20 | 34 | M63x1,5 | M40x1,5 | — | B-RB6M4M | — | |
| 20 | 88.5 | 25.5 | 80 | 20 | 34 | M70x1,5 | M40x1,5 | — | B-RB70M4M | — | |
| 20 | 88.5 | 25.5 | 80 | 20 | 34 | M75x1,5 | M40x1,5 | — | B-RB7M4M | — | |
| 20 | 75 | 25.5 | 68 | 20 | 44 | M60x1,5 | M50x1,5 | — | B-RB60M5M | — | |
| 20 | 75 | 25.5 | 68 | 20 | 44 | M63x1,5 | M50x1,5 | — | B-RB6M5M | — | |
| 20 | 88.5 | 25.5 | 80 | 20 | 44 | M70x1,5 | M50x1,5 | — | B-RB70M5M | — | |
| 20 | 88.5 | 25.5 | 80 | 20 | 44 | M75x1,5 | M50x1,5 | — | B-RB7M5M | — | |
| 20 | 100 | 25.5 | 90 | 20 | 44 | M80x1,5 | M50x1,5 | — | B-RB80M5M | — | |
| 20 | 75 | 25.5 | 68 | 20 | 54 | M63x1,5 | M60x1,5 | — | B-RB6M60M | — | |
| 20 | 105 | 25.5 | 95 | 20 | 54 | M90x1,5 | M60x1,5 | — | B-RB8M60M | — | |
| 20 | 88.5 | 25.5 | 80 | 20 | 57 | M70x1,5 | M63x1,5 | — | B-RB70M6M | — | |
| 20 | 88.5 | 25.5 | 80 | 20 | 57 | M75x1,5 | M63x1,5 | — | B-RB7M6M | — | |
| 20 | 100 | 25.5 | 90 | 20 | 57 | M80x1,5 | M63x1,5 | — | B-RB80M6M | — | |
| 20 | 105 | 25.5 | 95 | 20 | 57 | M85x1,5 | M63x1,5 | — | B-RB85M6M | — | |
| 20 | 105 | 25.5 | 95 | 20 | 57 | M90x1,5 | M63x1,5 | — | B-RB8M6M | — | |
| 20 | 88.5 | 25.5 | 80 | 20 | 64 | M75x1,5 | M70x1,5 | — | B-RB7M70M | — | |
| 20 | 100 | 25.5 | 90 | 20 | 64 | M80x1,5 | M70x1,5 | — | B-RB80M70M | — | |
| 20 | 105 | 25.5 | 95 | 20 | 64 | M85x1,5 | M70x1,5 | — | B-RB85M70M | — | |
| 20 | 105 | 25.5 | 95 | 20 | 64 | M90x1,5 | M70x1,5 | — | B-RB8M70M | — | |
| 20 | 100 | 25.5 | 90 | 20 | 69 | M80x1,5 | M70x1,5 | — | B-RB80M7M | — | |
| 20 | 105 | 25.5 | 95 | 20 | 69 | M85x1,5 | M75x1,5 | — | B-RB85M7M | — | |
| 20 | 105 | 25.5 | 95 | 20 | 69 | M90x1,5 | M75x1,5 | — | B-RB8M7M | — | |
| 20 | 123 | 25.5 | 110 | 20 | 69 | M100x1,5 | M75x1,5 | — | B-RB9M7M | — | |
| 20 | 105 | 25.5 | 95 | 20 | 72 | M85x1,5 | M80x1,5 | — | B-RB85M80M | — | |
| 20 | 105 | 25.5 | 95 | 20 | 72 | M90x1,5 | M80x1,5 | — | B-RB8M80M | — | |
| 20 | 123 | 25.5 | 110 | 20 | 72 | M100x1,5 | M80x1,5 | — | B-RB9M80M | — | |
| 20 | 134 | 26 | 120 | 20 | 72 | M110x1,5 | M80x1,5 | — | B-RB10M80M | — | |
| 20 | 105 | 25.5 | 95 | 20 | 77 | M90x1,5 | M85x1,5 | — | B-RB8M85M | — | |
| 20 | 123 | 25.5 | 110 | 20 | 77 | M100x1,5 | M85x1,5 | — | B-RB9M85M | — | |
| 20 | 134 | 26 | 120 | 20 | 77 | M110x1,5 | M85x1,5 | — | B-RB10M85M | — | |
| 20 | 123 | 26 | 110 | 20 | 84 | M100x1,5 | M90x1,5 | — | B-RB9M8M | — | |
| 20 | 134 | 26 | 120 | 20 | 84 | M110x1,5 | M90x1,5 | — | B-RB10M8M | — | |
| 20 | 134 | 26 | 120 | 20 | 94 | M110x1,5 | M100x1,5 | — | B-RB10M9M | — |
