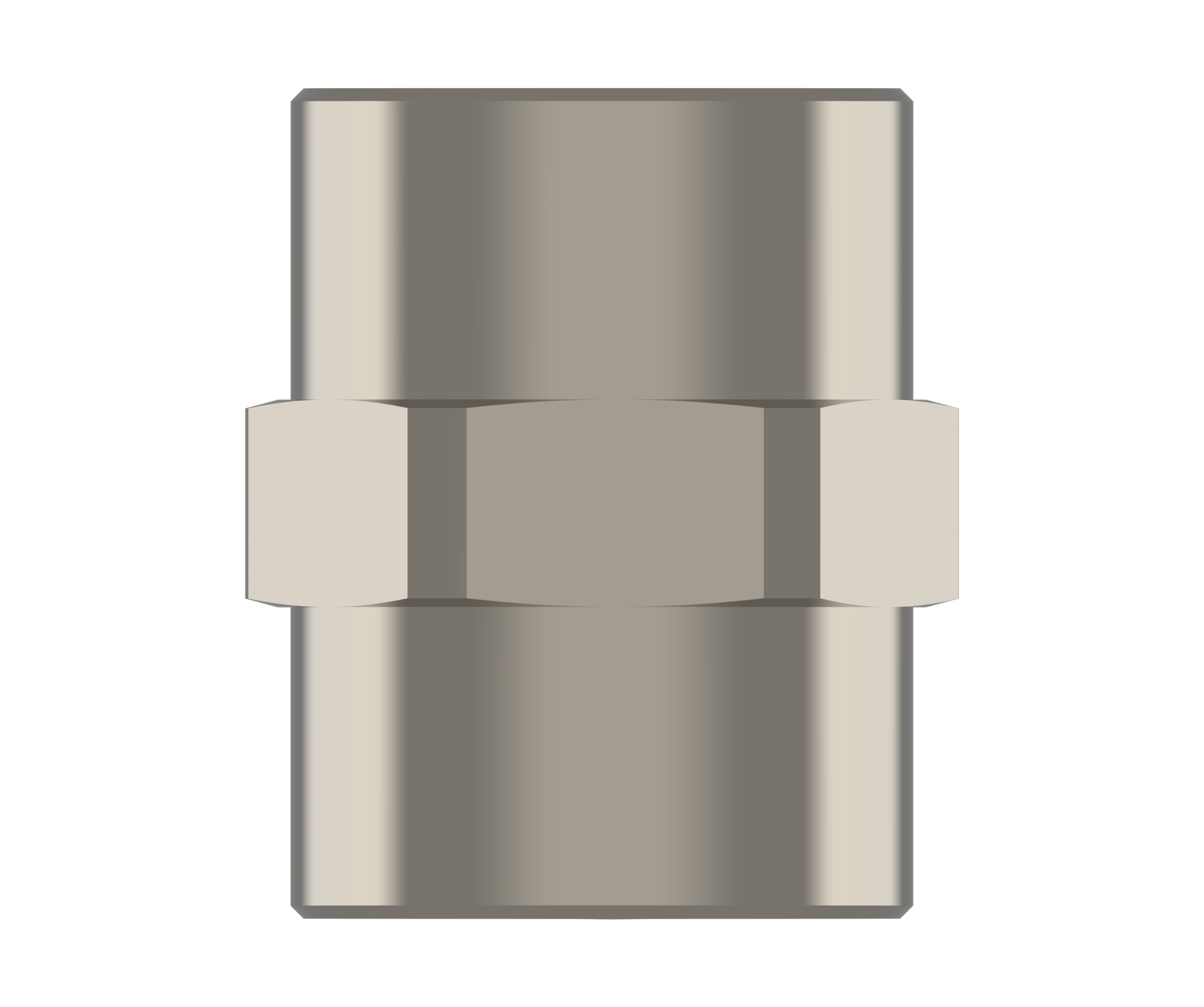

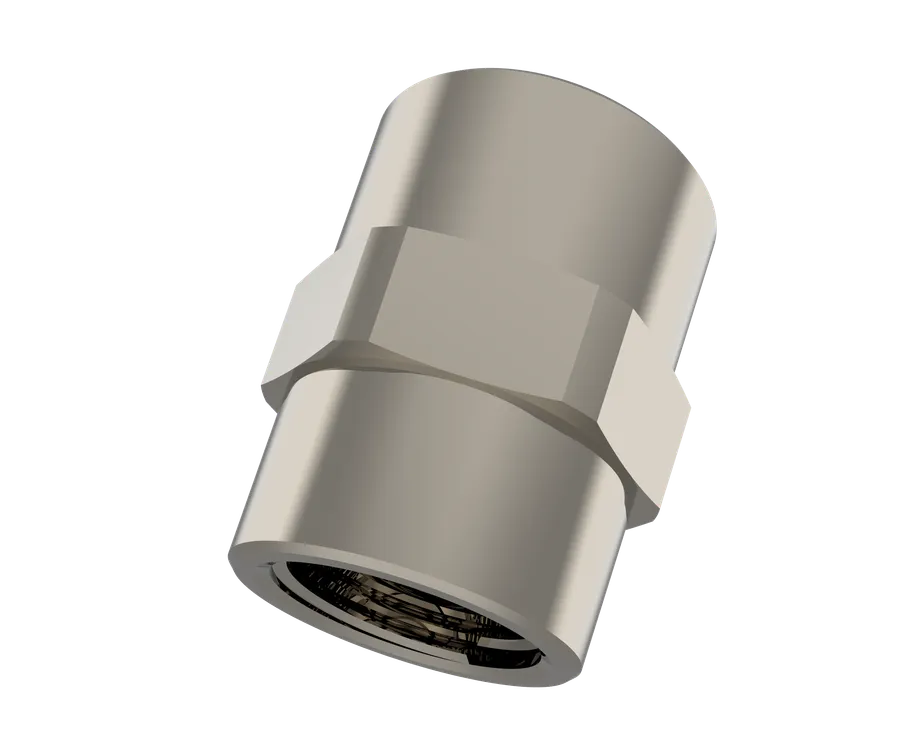

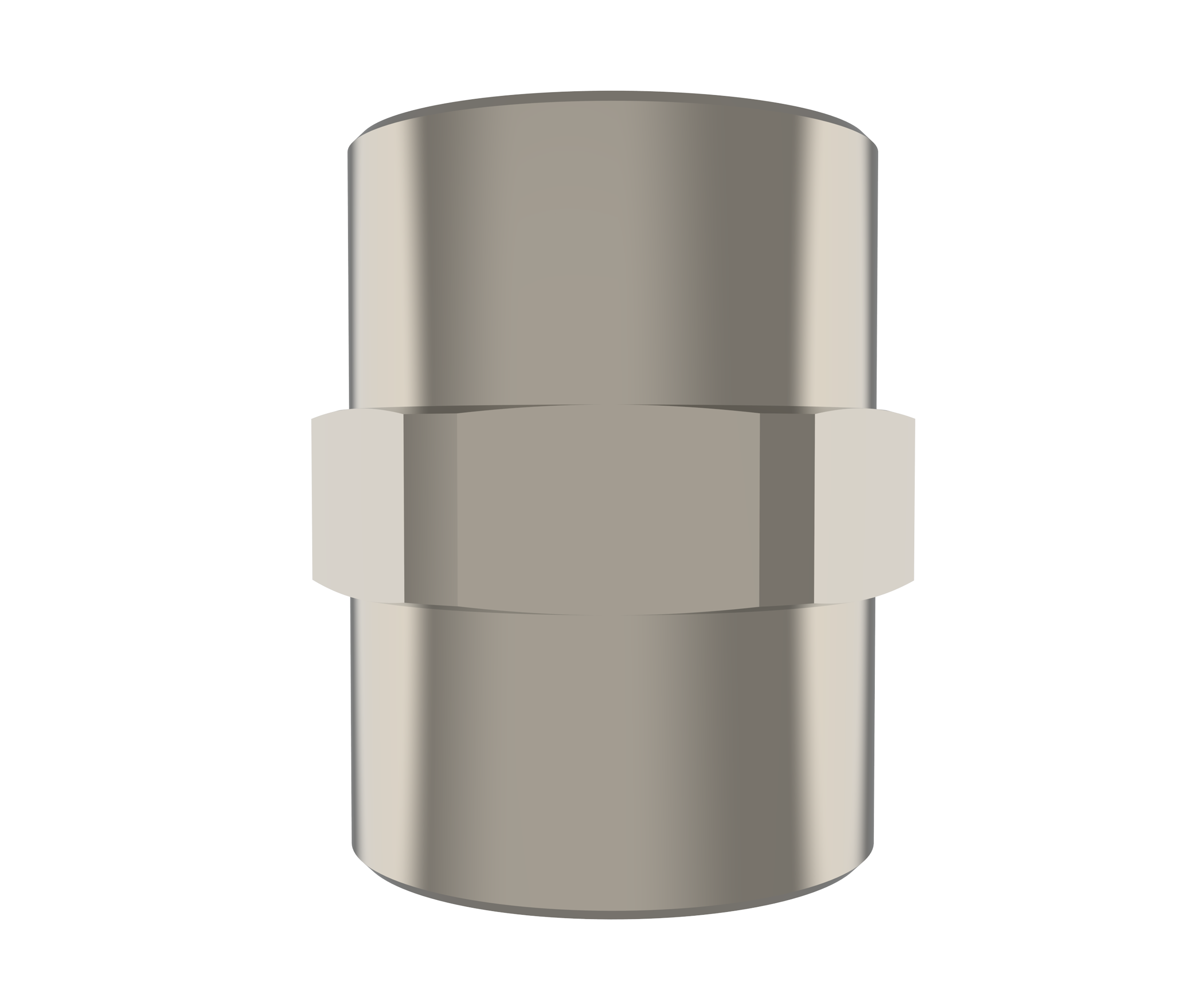

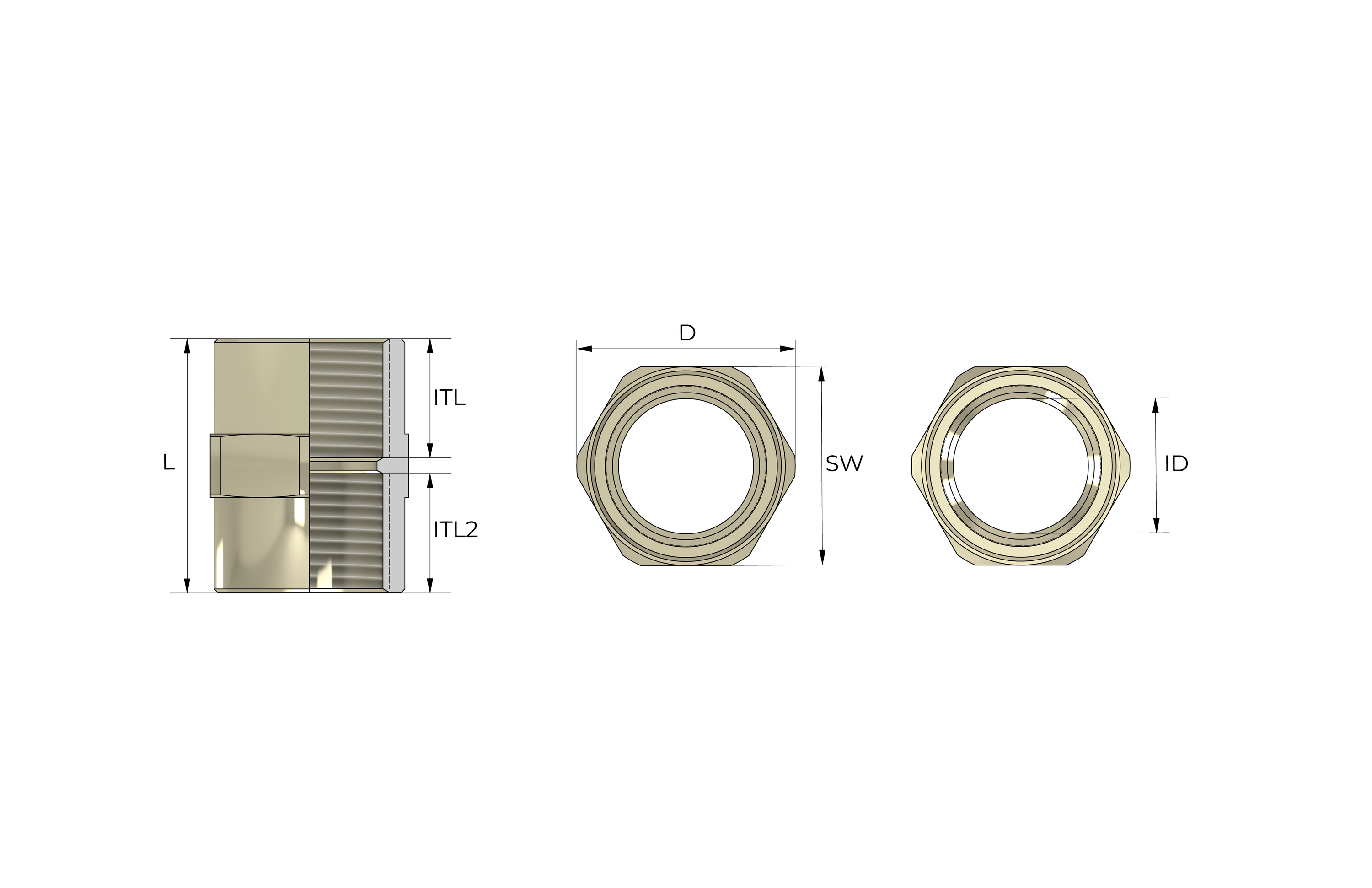

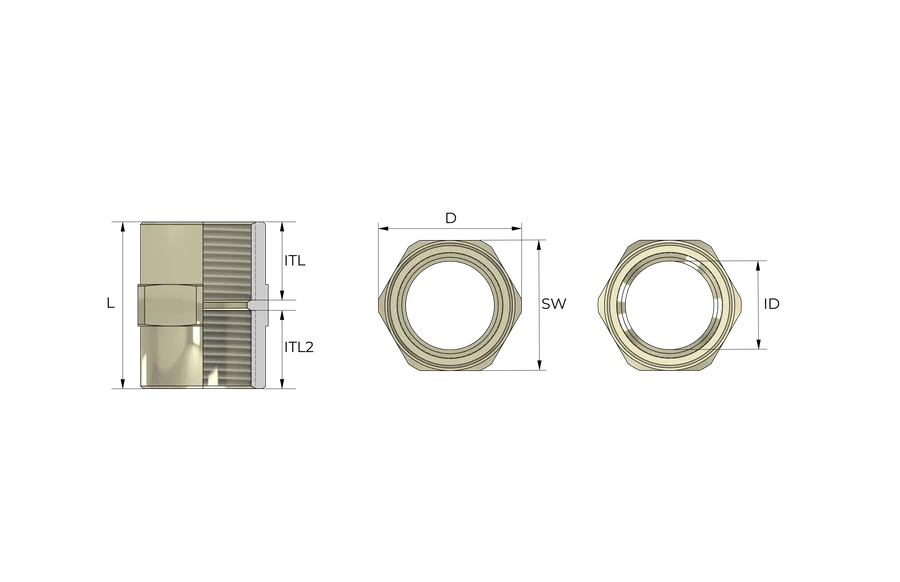

ARIES
○Ex-koblinger for overgang mellom ulike gjenge-typer og -størrelser, egnet for Gruppe I, II og III eksplosjonsfarlige områder. ATEX- og IECEx-sertifisert i henhold til Ex eb, Ex db og Ex tb.
Spesifikasjoner
| Diameter | Maks høyde 'H' | Nøkkelvidde | ITL 1 | ITL 2 | Inner Ø 'ID' | Thread Size 1 "F" | Thread Size 2 "F" | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 22 | 37 | 20 | 16 | 16 | 13.5 | M16x1,5 | M16x1,5 | — | B-RM01M01M | — | |
| 27.5 | 36 | 25 | 16 | 16 | 13.5 | M20x1,5 | M16x1,5 | — | B-RM1M01M | — | |
| 27.5 | 36 | 25 | 16 | 16 | 17 | M20x1,5 | M20x1,5 | — | B-RM1M1M | — | |
| 35 | 41 | 32 | 18 | 16 | 13.5 | M25x1,5 | M16x1,5 | — | B-RM2M01M | — | |
| 35 | 39 | 32 | 18 | 16 | 17 | M25x1,5 | M20x1,5 | — | B-RM2M1M | — | |
| 35 | 41 | 32 | 18 | 18 | 22 | M25x1,5 | M25x1,5 | — | B-RM2M2M | — | |
| 39.5 | 44 | 36 | 20 | 16 | 17 | M32x1,5 | M20x1,5 | — | B-RM3M1M | — | |
| 39.5 | 44 | 36 | 20 | 18 | 22 | M32x1,5 | M25x1,5 | — | B-RM3M2M | — | |
| 39.5 | 44 | 36 | 20 | 20 | 29 | M32x1,5 | M32x1,5 | — | B-RM3M3M | — | |
| 50 | 47 | 45 | 20 | 18 | 22 | M40x1,5 | M25x1,5 | — | B-RM4M2M | — | |
| 50 | 46 | 45 | 20 | 20 | 29 | M40x1,5 | M32x1,5 | — | B-RM4M3M | — | |
| 50 | 44 | 45 | 20 | 20 | 37 | M40x1,5 | M40x1,5 | — | B-RM4M4M | — | |
| 61 | 50 | 55 | 20 | 20 | 29 | M50x1,5 | M32x1,5 | — | B-RM5M3M | — | |
| 61 | 46 | 55 | 20 | 20 | 37 | M50x1,5 | M40x1,5 | — | B-RM5M4M | — | |
| 61 | 44 | 55 | 20 | 20 | 47 | M50x1,5 | M50x1,5 | — | B-RM5M5M | — | |
| 75 | 51 | 68 | 20 | 20 | 36 | M60x1,5 | M40x1,5 | — | B-RM60M4M | — | |
| 75 | 47 | 68 | 20 | 20 | 47 | M60x1,5 | M50x1,5 | — | B-RM60M5M | — | |
| 75 | 46 | 68 | 20 | 20 | 55 | M60x1,5 | M60x1,5 | — | B-RM60M60M | — | |
| 75 | 47 | 68 | 20 | 20 | 47 | M63x1,5 | M50x1,5 | — | B-RM6M5M | — | |
| 75 | 46 | 68 | 20 | 20 | 55 | M63x1,5 | M60x1,5 | — | B-RM6M60M | — | |
| 75 | 44 | 68 | 20 | 20 | 60 | M63x1,5 | M63x1,5 | — | B-RM6M6M | — | |
| 88.5 | 47 | 80 | 20 | 20 | 60 | M75x1,5 | M63x1,5 | — | B-RM7M6M | — | |
| 88.5 | 47 | 80 | 20 | 20 | 65 | M75x1,5 | M70x1,5 | — | B-RM7M70M | — | |
| 88.5 | 44 | 80 | 20 | 20 | 72 | M75x1,5 | M75x1,5 | — | B-RM7M7M | — | |
| 100 | 49 | 90 | 20 | 20 | 65 | M80x1,5 | M70x1,5 | — | B-RM80M70M | — | |
| 100 | 46 | 90 | 20 | 20 | 72 | M80x1,5 | M75x1,5 | — | B-RM80M7M | — | |
| 100 | 46 | 90 | 20 | 20 | 75 | M80x1,5 | M80x1,5 | — | B-RM80M80M | — | |
| 105 | 47 | 95 | 20 | 20 | 72 | M85x1,5 | M75x1,5 | — | B-RM85M7M | — | |
| 105 | 47 | 95 | 20 | 20 | 75 | M85x1,5 | M80x1,5 | — | B-RM85M80M | — | |
| 105 | 46 | 95 | 20 | 20 | 80 | M85x1,5 | M85x1,5 | — | B-RM85M85M | — | |
| 105 | 49 | 95 | 20 | 20 | 75 | M90x1,5 | M80x1,5 | — | B-RM8M80M | — | |
| 105 | 47 | 95 | 20 | 20 | 80 | M90x1,5 | M85x1,5 | — | B-RM8M85M | — | |
| 105 | 44 | 95 | 20 | 20 | 87 | M90x1,5 | M90x1,5 | — | B-RM8M8M | — | |
| 123 | 51 | 110 | 20 | 20 | 80 | M100x1,5 | M85x1,5 | — | B-RM9M85M | — | |
| 123 | 48 | 110 | 20 | 20 | 87 | M100x1,5 | M90x1,5 | — | B-RM9M8M | — | |
| 123 | 46 | 110 | 20 | 20 | 95 | M100x1,5 | M100x1,5 | — | B-RM9M9M | — | |
| 133.5 | 51 | 120 | 20 | 20 | 87 | M110x1,5 | M90x1,5 | — | B-RM10M8M | — | |
| 133.5 | 50 | 120 | 20 | 20 | 95 | M110x1,5 | M100x1,5 | — | B-RM10M9M | — | |
| 133.5 | 44 | 120 | 20 | 20 | 107 | M110x1,5 | M110x1,5 | — | B-RM10M10M | — |
