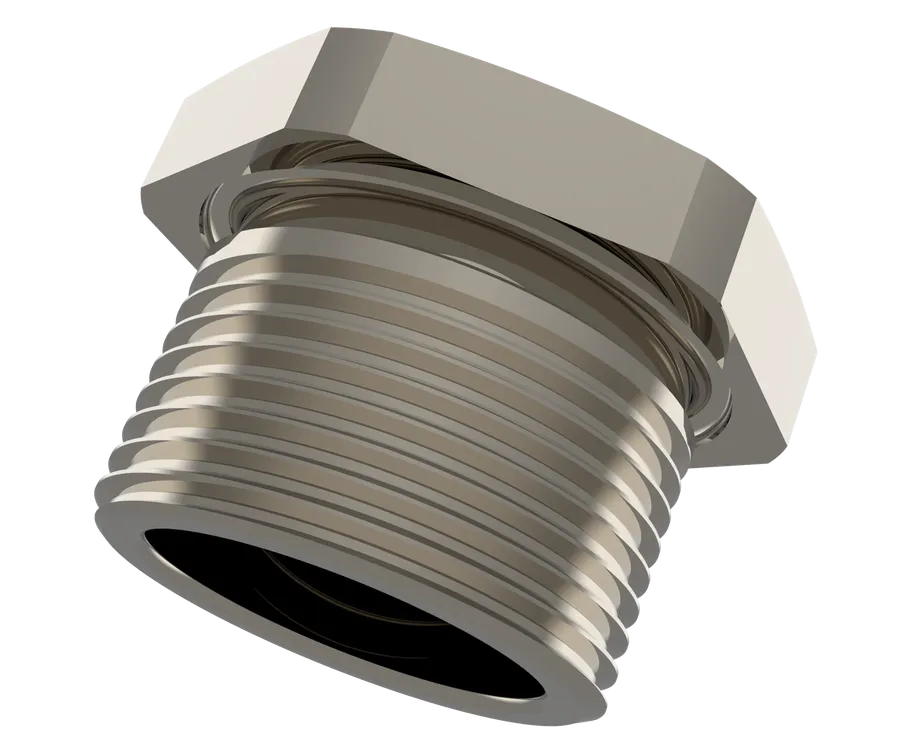

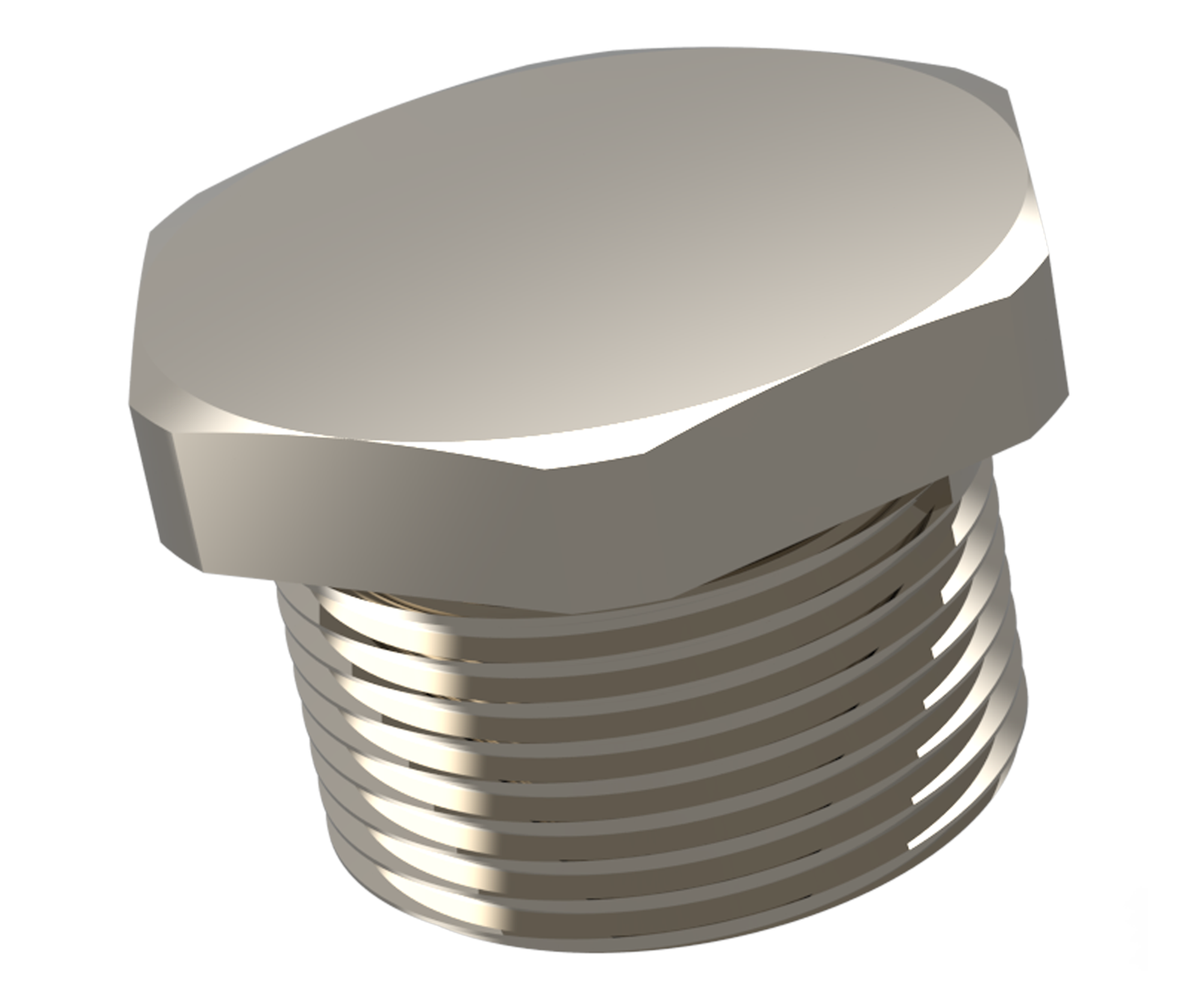

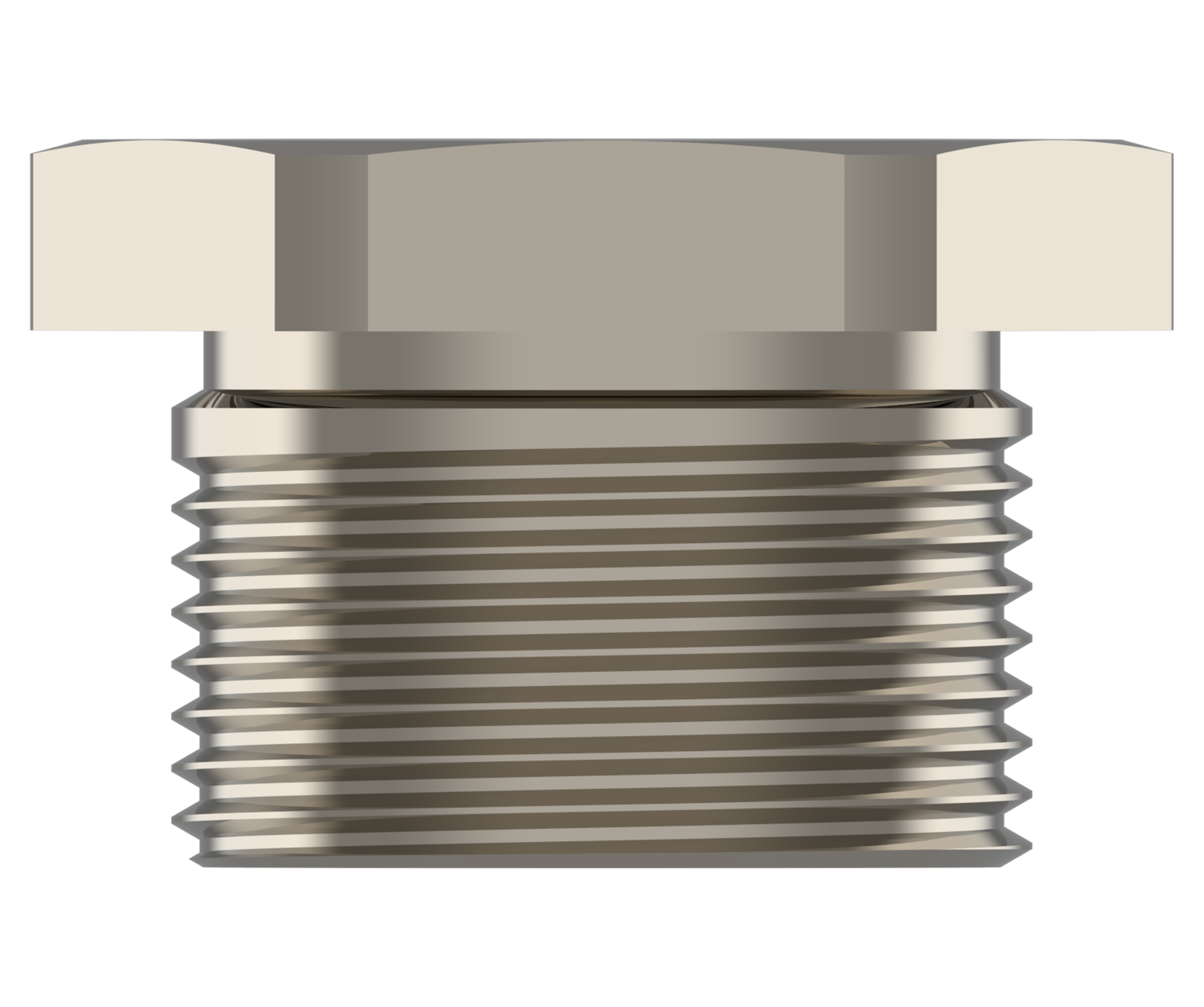

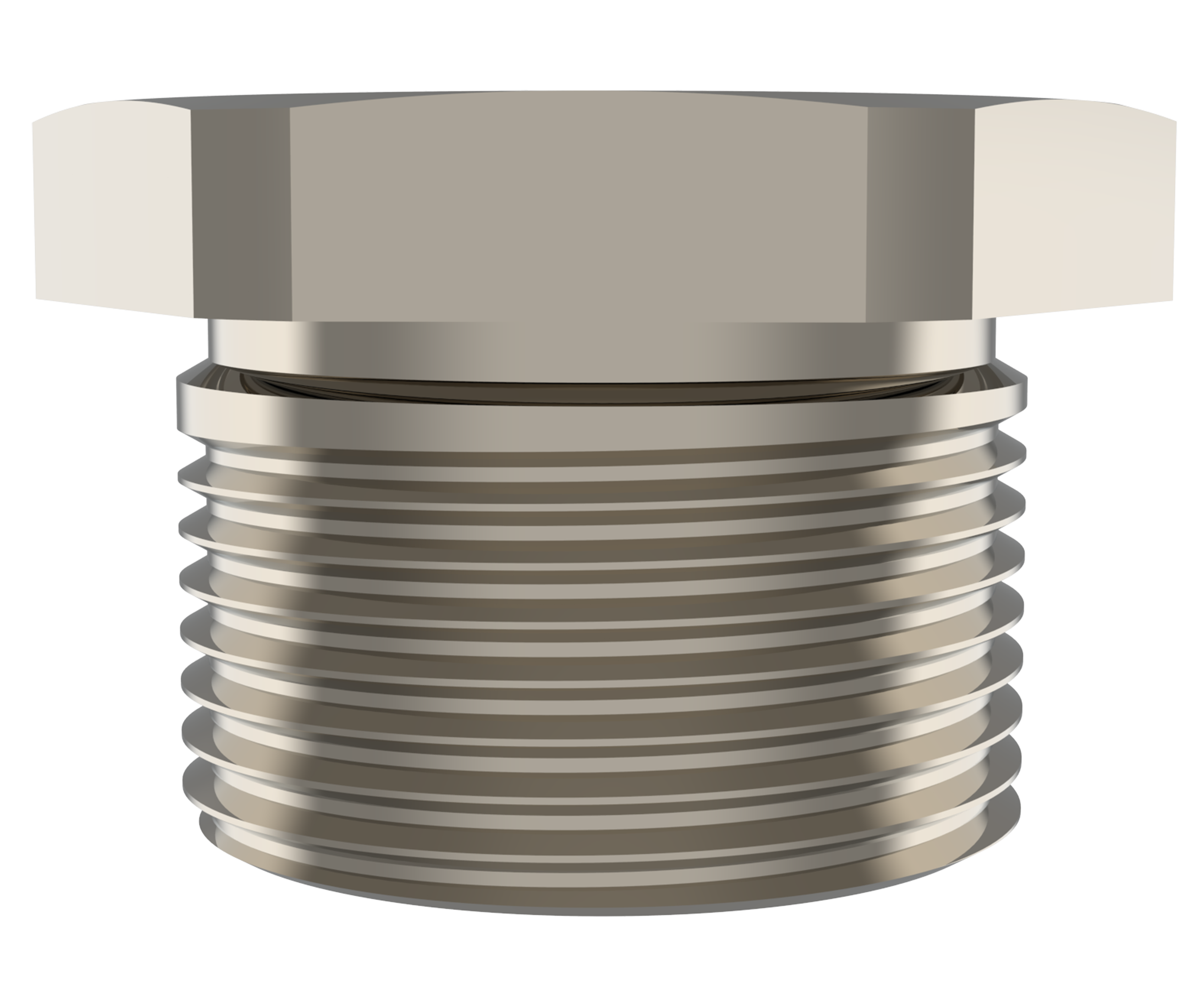

AQUILA HEXAGONAL
○Blindplugg for tetting av kapslingshull i eksplosjonsfarlige områder, med sekskanthode for nøkkelmontering. ATEX- og IECEx-sertifisert i henhold til Ex eb, Ex db og Ex tb for Gruppe I, II og III.
Spesifikasjoner
| Gjengestørrelse | Gjengelengde | Diameter | Maks høyde 'H' | Nøkkelvidde | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|
| M16x1,5 | 15.5 | 24 | 5.5 | 22 | — | B-TS01M | — | |
| M20x1,5 | 15.5 | 27.5 | 5.5 | 25 | — | B-TS1M | — | |
| M25x1,5 | 15.5 | 33 | 5.5 | 30 | — | B-TS2M | Get File | |
| M32x1,5 | 15.5 | 41 | 5.5 | 37 | — | B-TS3M | — | |
| M40x1,5 | 17.5 | 50 | 5.5 | 45 | — | B-TS4M | — | |
| M50x1,5 | 17.5 | 61 | 5.5 | 55 | — | B-TS5M | — | |
| M60x1,5 | 17.5 | 77 | 5.5 | 70 | — | B-TS60M | — | |
| M63x1,5 | 17.5 | 77 | 5.5 | 70 | — | B-TS6M | — | |
| M70x1,5 | 20 | 89 | 5 | 80 | — | B-TS70M | — | |
| M75x1,5 | 20 | 94 | 5 | 85 | — | B-TS7M | — | |
| M80x1,5 | 20 | 100 | 5 | 90 | — | B-TS80M | — | |
| M85x1,5 | 20 | 105 | 5 | 95 | — | B-TS85M | — | |
| M90x1,5 | 20 | 111 | 5 | 100 | — | B-TS8M | — | |
| M100x1,5 | 20 | 123 | 5 | 110 | — | B-TS9M | — | |
| M110x1,5 | 20 | 133.5 | 5 | 120 | — | B-TS10M | — |
