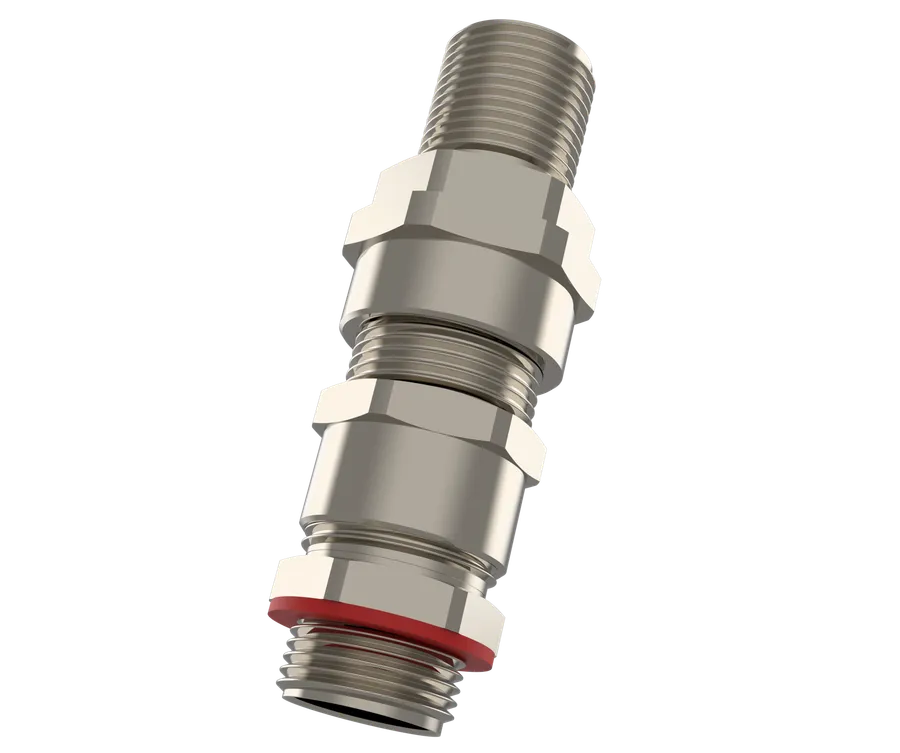

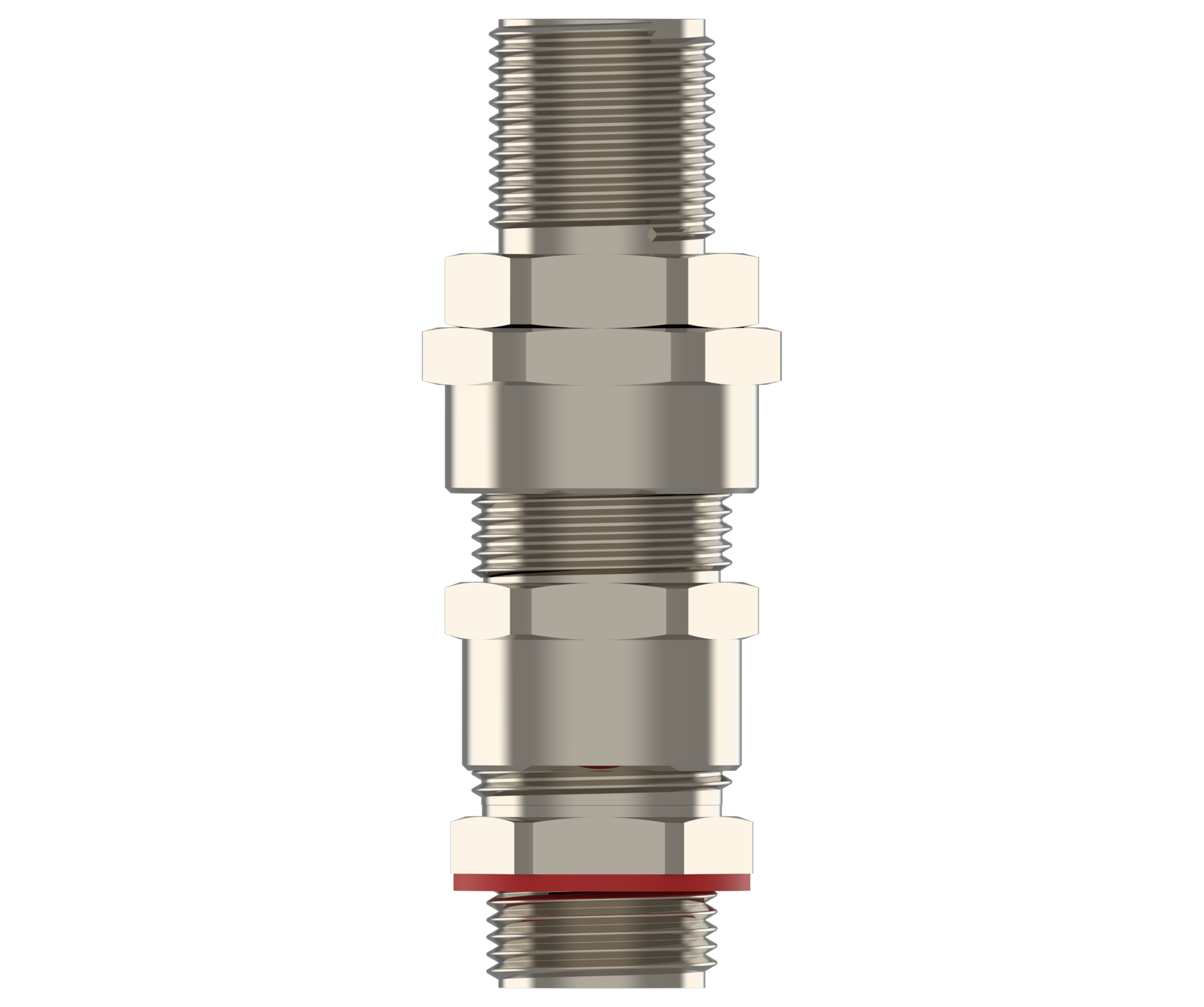

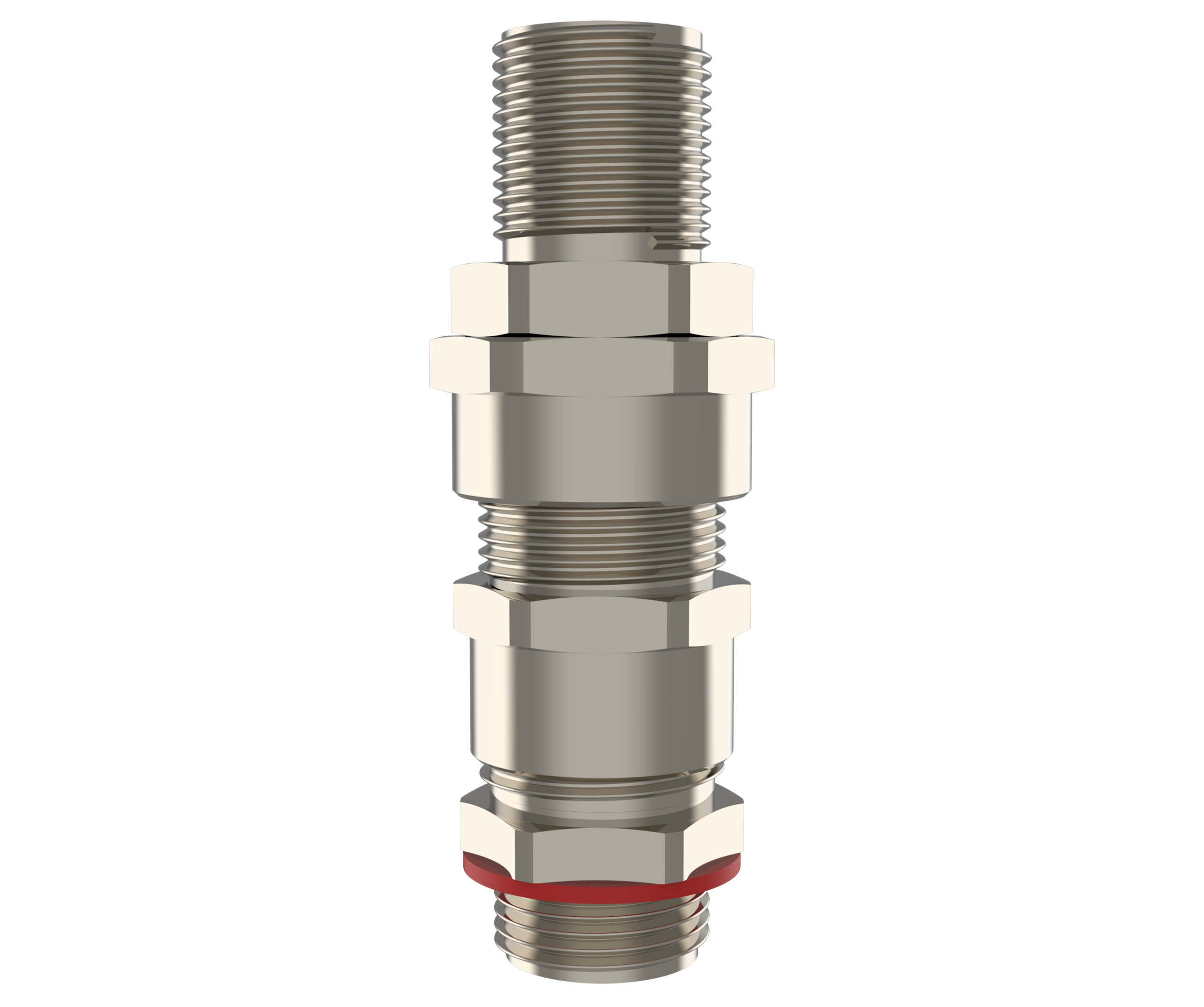

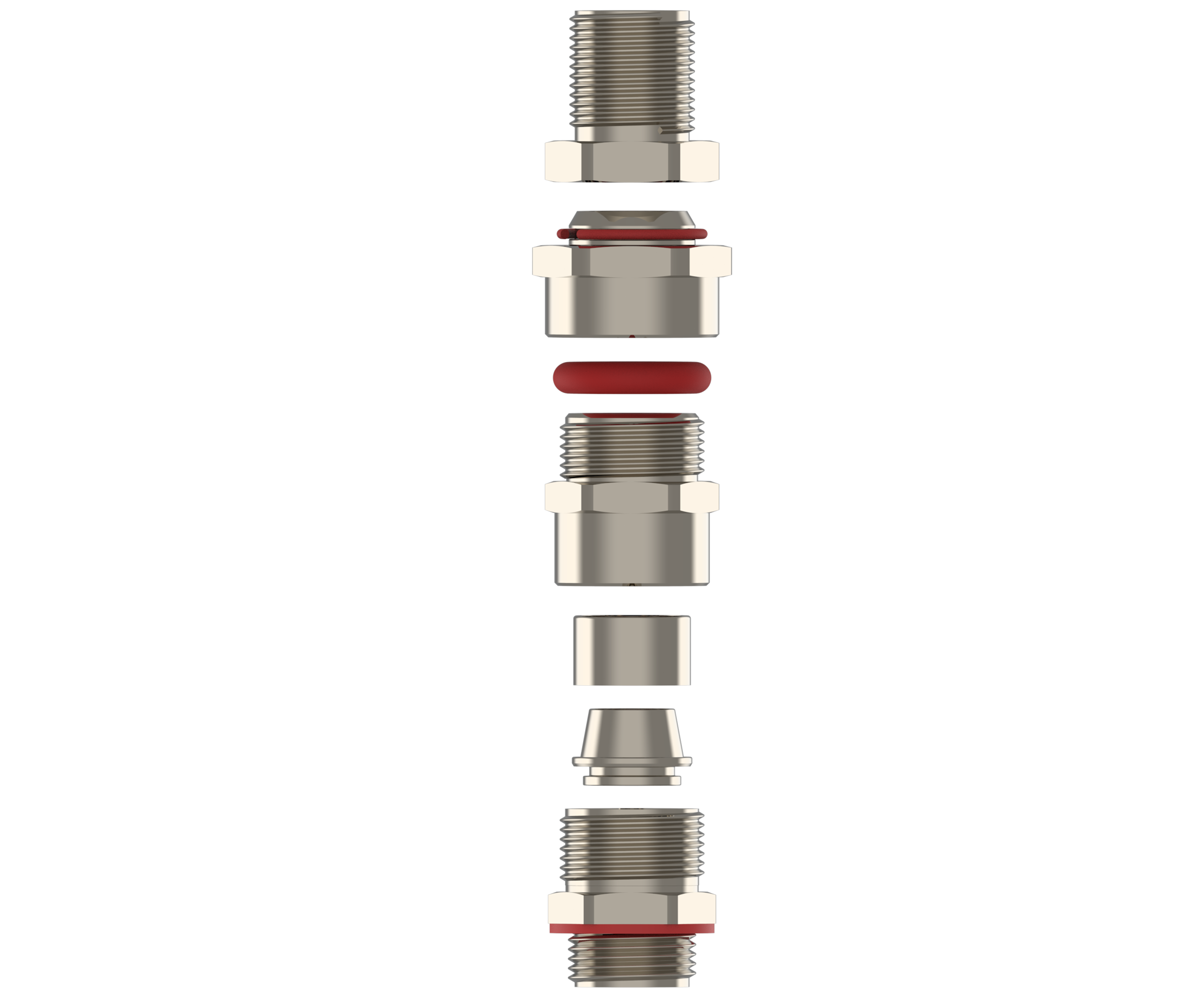

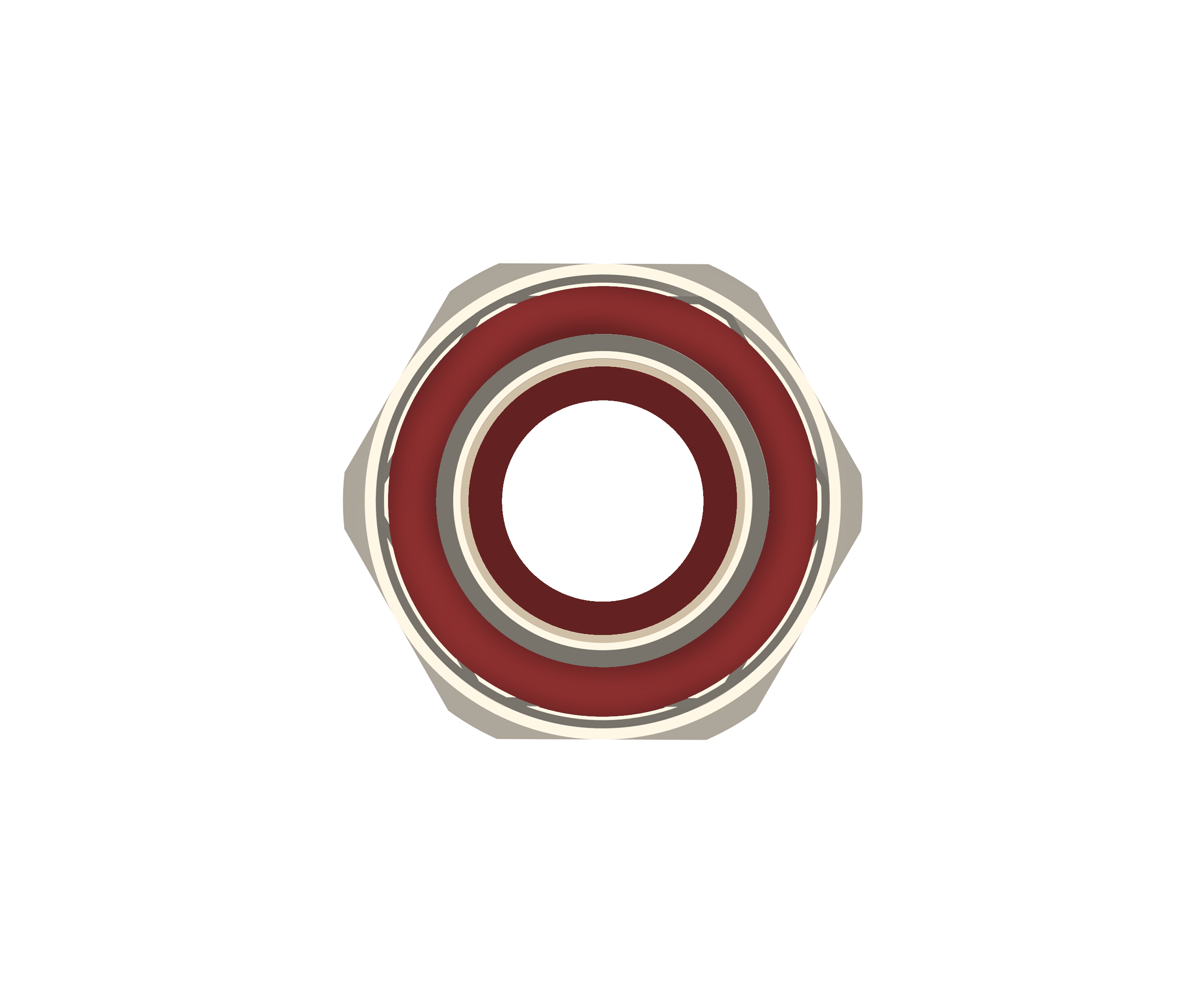

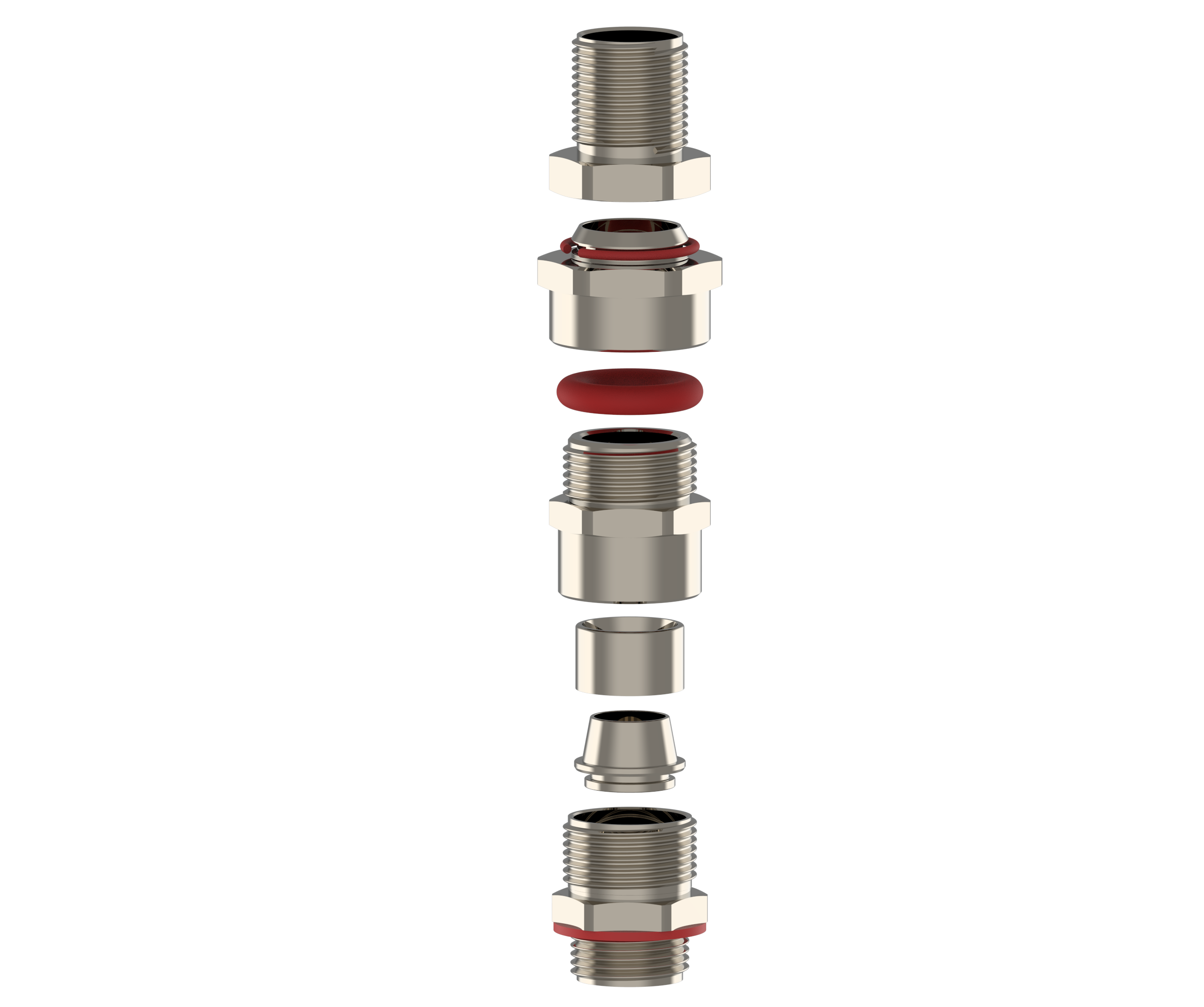

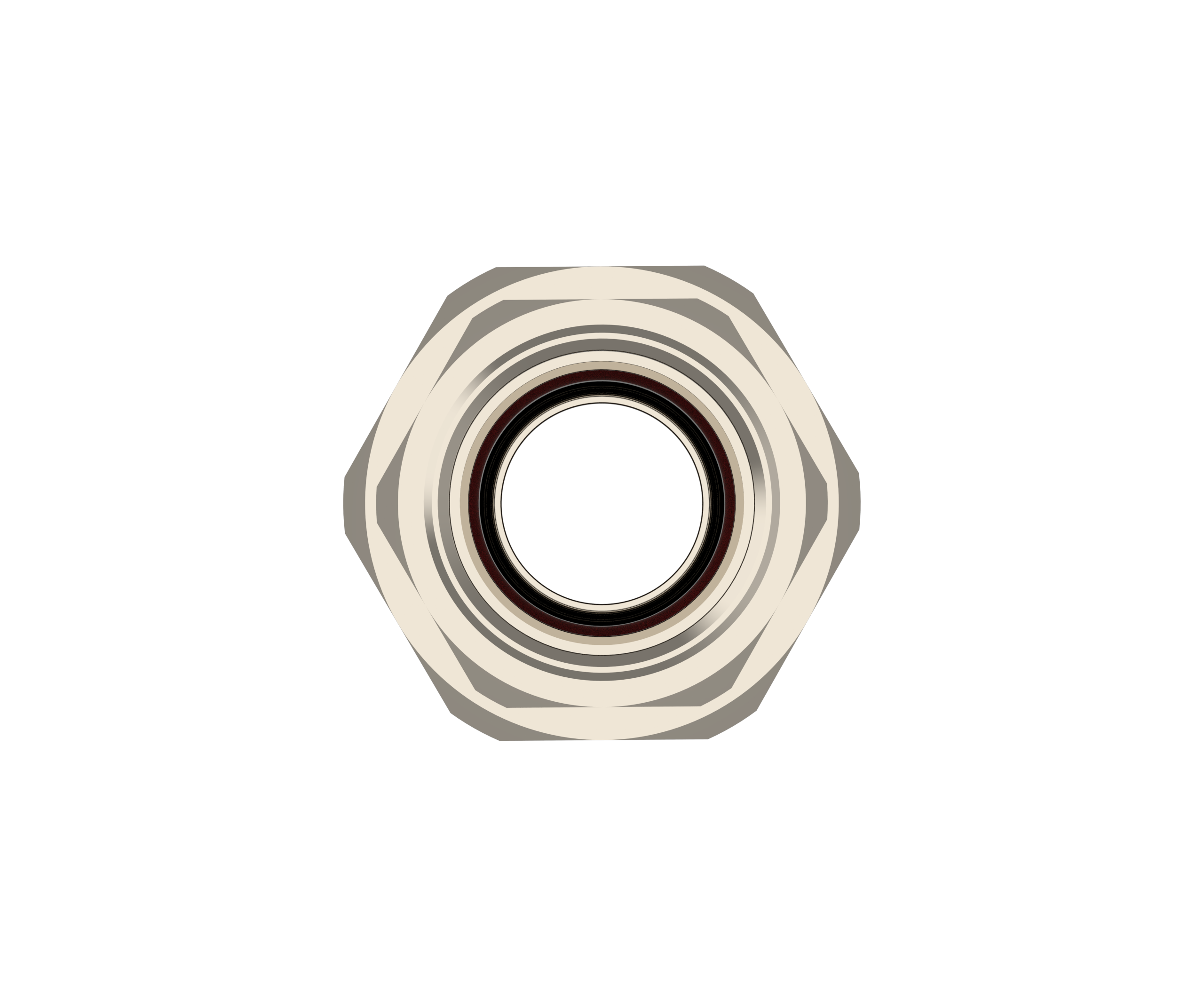

Volans stivt konduit, hann
○Ex-konduitkobling (hann) med dobbel-kompresjonsprinsipp for stivt konduit i eksplosjonsfarlige områder (Gruppe II og III). ATEX- og IECEx-sertifisert i henhold til Ex eb, Ex db og Ex tb.
Spesifikasjoner
| Gjengestørrelse | Gjengelengde | Armour Wire Ø | Diameter | Maks høyde 'H' | Outer Cable Ø | SW 1/2/3/4 | Inner Cable Ø | Shield Wire Ø | Conduit Thread Size | Varenummer | BIMED Kode | 3D File |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M12x1.5 | 15.0 | 0.8 - 1.25 | 26.5 | 86 | 5.5 - 12.0 | 21/21/24/24 | 3.0 - 8.0 | 0.2 - 0.8 | M16x1.5 | — | VOLM0SM01M | — |
| M12x1.5 | 15.0 | 0.8 - 1.25 | 26.5 | 86 | 5.5 - 12.0 | 21/21/24/24 | 3.0 - 8.0 | 0.2 - 0.8 | M20x1.5 | — | VOLM0SM1M | — |
| M16x1.5 | 15.0 | 0.8 - 1.25 | 26.5 | 86 | 5.5 - 12.0 | 21/21/24/24 | 3.0 - 8.0 | 0.2 - 0.8 | M16x1.5 | — | VOLM01SM0SM | — |
| M16x1.5 | 15.0 | 0.8 - 1.25 | 26.5 | 83 | 9.0 - 16.0 | 24/24/24/24 | 6.0 - 12.0 | 0.2 - 0.8 | M20x1.5 | — | VOLM01SM01M | — |
| M16x1.5 | 15.0 | 0.8 - 1.25 | 33 | 83 | 9.0 - 16.0 | 24/24/30/30 | 6.0 - 12.0 | 0.2 - 0.8 | M20x1.5 | — | VOLM01M1M | — |
| M16x1.5 | 15.0 | 0.8 - 1.25 | 33 | 83 | 9.0 - 16.0 | 24/24/30/30 | 6.0 - 12.0 | 0.2 - 0.8 | M25x1.5 | — | VOLM01M2M | — |
| M20x1.5 | 15.0 | 0.8 - 1.25 | 26.5 | 86 | 5.5 - 12.0 | 24/21/24/24 | 3.0 - 8.0 | 0.2 - 0.8 | M16x1.5 | — | VOLM1XSM01M | — |
| M20x1.5 | 15.0 | 0.8 - 1.25 | 26.5 | 86 | 5.5 - 12.0 | 24/21/24/24 | 3.0 - 8.0 | 0.2 - 0.8 | M20x1.5 | — | VOLM1XSM1M | — |
| M20x1.5 | 15.0 | 0.8 - 1.25 | 26.5 | 83 | 9.0 - 16.0 | 24/24/24/24 | 6.0 - 12.0 | 0.2 - 0.8 | M20x1.5 | — | VOLM1SM1M | Get File |
| M20x1.5 | 15.0 | 0.8 - 1.25 | 33 | 83 | 9.0 - 16.0 | 24/24/30/30 | 6.0 - 12.0 | 0.2 - 0.8 | M25x1.5 | — | VOLM1SM2M | — |
| M20x1.5 | 15.0 | 0.8 - 1.25 | 33 | 91 | 12.0 - 20.0 | 30/30/30/30 | 6.0 - 14.0 | 0.2 - 0.8 | M25x1.5 | — | VOLM1M2M | — |
| M20x1.5 | 15.0 | 0.8 - 1.25 | 39.8 | 91 | 12.0 - 20.0 | 30/30/36/36 | 6.0 - 14.0 | 0.2 - 0.8 | M32x1.5 | — | VOLM1M3M | — |
| M25x1.5 | 15.0 | 0.8 - 1.25 | 26.5 | 83 | 9.0 - 16.0 | 24/24/24/24 | 6.0 - 12.0 | 0.2 - 0.8 | M20x1.5 | — | VOLM2XSM1M | — |
| M25x1.5 | 15.0 | 0.8 - 1.25 | 33 | 83 | 9.0 - 16.0 | 24/24/30/30 | 6.0 - 12.0 | 0.2 - 0.8 | M25x1.5 | — | VOLM2XSM2M | — |
| M25x1.5 | 15.0 | 0.8 - 1.25 | 33 | 91 | 12.0 - 20.0 | 30/30/30/30 | 6.0 - 14.0 | 0.2 - 0.8 | M25x1.5 | — | VOLM2SM2M | — |
| M25x1.5 | 15.0 | 0.8 - 1.25 | 39.8 | 91 | 12.0 - 20.0 | 30/30/36/36 | 6.0 - 14.0 | 0.2 - 0.8 | M32x1.5 | — | VOLM2SM3M | — |
| M25x1.5 | 15.0 | 1.25 - 1.6 | 39.8 | 97 | 16.0 - 26.0 | 36/36/36/36 | 11.0 - 20.0 | 0.2 - 0.8 | M32x1.5 | — | VOLM2M3M | — |
| M25x1.5 | 15.0 | 1.25 - 1.6 | 51 | 97 | 16.0 - 26.0 | 36/36/46/46 | 11.0 - 20.0 | 0.2 - 0.8 | M40x1.5 | — | VOLM2M4M | — |
| M32x1.5 | 15.0 | 0.8 - 1.25 | 33 | 91 | 12.0 - 20.0 | 30/30/30/30 | 6.0 - 14.0 | 0.2 - 0.8 | M25x1.5 | — | VOLM3XSM2M | — |
| M32x1.5 | 15.0 | 0.8 - 1.25 | 39.8 | 91 | 12.0 - 20.0 | 30/30/36/36 | 6.0 - 14.0 | 0.2 - 0.8 | M32x1.5 | — | VOLM3XSM3M | — |
| M32x1.5 | 15.0 | 1.25 - 1.6 | 39.8 | 97 | 16.0 - 26.0 | 36/36/36/36 | 11.0 - 20.0 | 0.2 - 0.8 | M32x1.5 | — | VOLM3SM3M | — |
| M32x1.5 | 15.0 | 1.25 - 1.6 | 51 | 97 | 16.0 - 26.0 | 36/36/46/46 | 11.0 - 20.0 | 0.2 - 0.8 | M40x1.5 | — | VOLM3SM4M | — |
| M32x1.5 | 15.0 | 1.6 - 2.0 | 51 | 116 | 20.0 - 33.0 | 46/46/46/46 | 16.0 - 26.5 | 0.2 - 0.8 | M40x1.5 | — | VOLM3M4M | — |
| M32x1.5 | 15.0 | 1.6 - 2.0 | 61 | 116 | 20.0 - 33.0 | 46/46/55/55 | 16.0 - 26.5 | 0.2 - 0.8 | M50x1.5 | — | VOLM3M5M | — |
| M40x1.5 | 15.0 | 1.25 - 1.6 | 39.8 | 97 | 16.0 - 26.0 | 36/36/36/36 | 11.0 - 20.0 | 0.2 - 0.8 | M32x1.5 | — | VOLM4XSM3M | — |
| M40x1.5 | 15.0 | 1.25 - 1.6 | 51 | 97 | 16.0 - 26.0 | 36/36/46/46 | 11.0 - 20.0 | 0.2 - 0.8 | M40x1.5 | — | VOLM4XSM4M | — |
| M40x1.5 | 15.0 | 1.6 - 2.0 | 51 | 116 | 20.0 - 33.0 | 46/46/46/46 | 16.0 - 26.5 | 0.2 - 0.8 | M40x1.5 | — | VOLM4SM4M | — |
| M40x1.5 | 15.0 | 1.6 - 2.0 | 61 | 116 | 20.0 - 33.0 | 46/46/55/55 | 16.0 - 26.5 | 0.2 - 0.8 | M50x1.5 | — | VOLM4SM5M | — |
| M40x1.5 | 15.0 | 1.6 - 2.0 | 61 | 127 | 29.0 - 41.0 | 55/55/55/55 | 22.0 - 32.5 | 0.2 - 0.8 | M50x1.5 | — | VOLM4M5M | — |
| M40x1.5 | 15.0 | 1.6 - 2.0 | 75 | 127 | 29.0 - 41.0 | 55/55/67/67 | 22.0 - 32.5 | 0.2 - 0.8 | M63x1.5 | — | VOLM4M6M | — |
| M50x1.5 | 15.0 | 1.6 - 2.0 | 51 | 116 | 20.0 - 33.0 | 46/46/46/46 | 16.0 - 26.5 | 0.2 - 0.8 | M40x1.5 | — | VOLM5XSM4M | — |
| M50x1.5 | 15.0 | 1.6 - 2.0 | 61 | 116 | 20.0 - 33.0 | 46/46/55/55 | 16.0 - 26.5 | 0.2 - 0.8 | M50x1.5 | — | VOLM5XSM5M | — |
| M50x1.5 | 15.0 | 1.6 - 2.0 | 61 | 127 | 29.0 - 41.0 | 55/55/55/55 | 22.0 - 32.5 | 0.2 - 0.8 | M50x1.5 | — | VOLM5SM5M | — |
| M50x1.5 | 15.0 | 1.6 - 2.0 | 75 | 127 | 29.0 - 41.0 | 55/55/67/67 | 22.0 - 32.5 | 0.2 - 0.8 | M63x1.5 | — | VOLM5SM6M | — |
| M50x1.5 | 15.0 | 1.8 - 2.5 | 75 | 141 | 36.0 - 52.0 | 65/65/67/67 | 29.0 - 44.0 | 0.2 - 0.1 | M63x1.5 | — | VOLM5M6M | — |
| M50x1.5 | 15.0 | 1.8 - 2.5 | 89 | 141 | 36.0 - 52.0 | 65/65/80/80 | 29.0 - 44.0 | 0.2 - 0.1 | M75x1.5 | — | VOLM5M7M | — |
| M63x1.5 | 15.0 | 1.6 - 2.0 | 61 | 127 | 29.0 - 41.0 | 55/55/55/55 | 22.0 - 32.5 | 0.2 - 0.8 | M50x1.5 | — | VOLM6XSM5M | — |
| M63x1.5 | 15.0 | 1.6 - 2.0 | 75 | 127 | 29.0 - 41.0 | 55/55/67/67 | 22.0 - 32.5 | 0.2 - 0.8 | M63x1.5 | — | VOLM6XSM6M | — |
| M63x1.5 | 15.0 | 1.8 - 2.5 | 75 | 141 | 36.0 - 52.0 | 68/68/67/67 | 29.0 - 44.0 | 0.2 - 0.1 | M63x1.5 | — | VOLM6SM6M | — |
| M63x1.5 | 15.0 | 1.8 - 2.5 | 89 | 141 | 36.0 - 52.0 | 68/68/80/80 | 29.0 - 44.0 | 0.2 - 0.1 | M75x1.5 | — | VOLM6SM7M | — |
| M63x1.5 | 15.0 | 1.8 - 2.5 | 89 | 141 | 50.0 - 65.0 | 68/68/80/80 | 43.0 - 56.0 | 0.2 - 0.1 | M75x1.5 | — | VOLM6M7M | — |
| M63x1.5 | 15.0 | 1.8 - 2.5 | 94 | 148 | 50.0 - 65.0 | 80/80/85/85 | 43.0 - 56.0 | 0.2 - 0.1 | M80x1.5 | — | VOLM6M80M | — |
| M63x1.5 | 15.0 | 1.8 - 2.5 | 106 | 148 | 50.0 - 65.0 | 80/80/95/95 | 43.0 - 56.0 | 0.2 - 0.1 | M90x1.5 | — | VOLM6M8M | — |
| M75x1.5 | 15.0 | 1.8 - 2.5 | 75 | 141 | 36.0 - 52.0 | 68/68/67/67 | 29.0 - 44.0 | 0.2 - 0.1 | M63x1.5 | — | VOLM7XSM6M | — |
| M75x1.5 | 15.0 | 1.8 - 2.5 | 89 | 141 | 36.0 - 52.0 | 68/68/80/80 | 29.0 - 44.0 | 0.2 - 0.1 | M75x1.5 | — | VOLM7SM7M | — |
| M75x1.5 | 15.0 | 1.8 - 2.5 | 89 | 141 | 50.0 - 65.0 | 80/80/80/80 | 43.0 - 56.0 | 0.2 - 0.1 | M75x1.5 | — | VOLM7SM7M | — |
| M75x1.5 | 15.0 | 1.8 - 2.5 | 94 | 148 | 50.0 - 65.0 | 80/80/85/85 | 43.0 - 56.0 | 0.2 - 0.1 | M80x1.5 | — | VOLM7SM80M | — |
| M75x1.5 | 15.0 | 1.8 - 2.5 | 106 | 148 | 50.0 - 65.0 | 80/80/95/95 | 43.0 - 56.0 | 0.2 - 0.1 | M90x1.5 | — | VOLM7SM8M | — |
| M75x1.5 | 15.0 | 1.8 - 2.5 | 106 | 174 | 61.0 - 78.0 | 95/95/95/95 | 54.0 - 68.0 | 0.2 - 0.1 | M90x1.5 | — | VOLM7M8M | — |
| M75x1.5 | 15.0 | 1.8 - 2.5 | 115 | 174 | 61.0 - 78.0 | 95/95/106/106 | 54.0 - 68.0 | 0.2 - 0.1 | M100x1.5 | — | VOLM7M9M | — |
