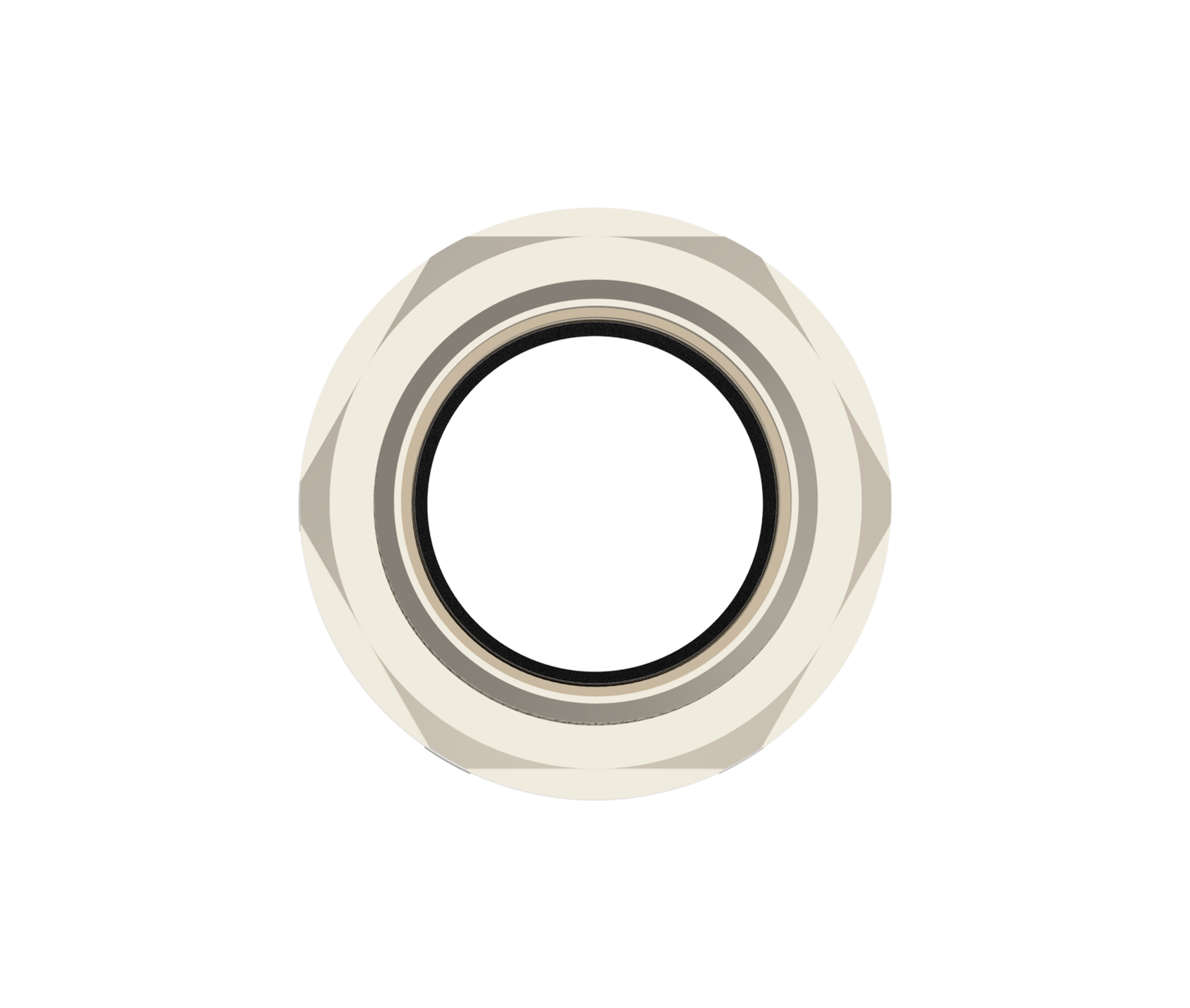

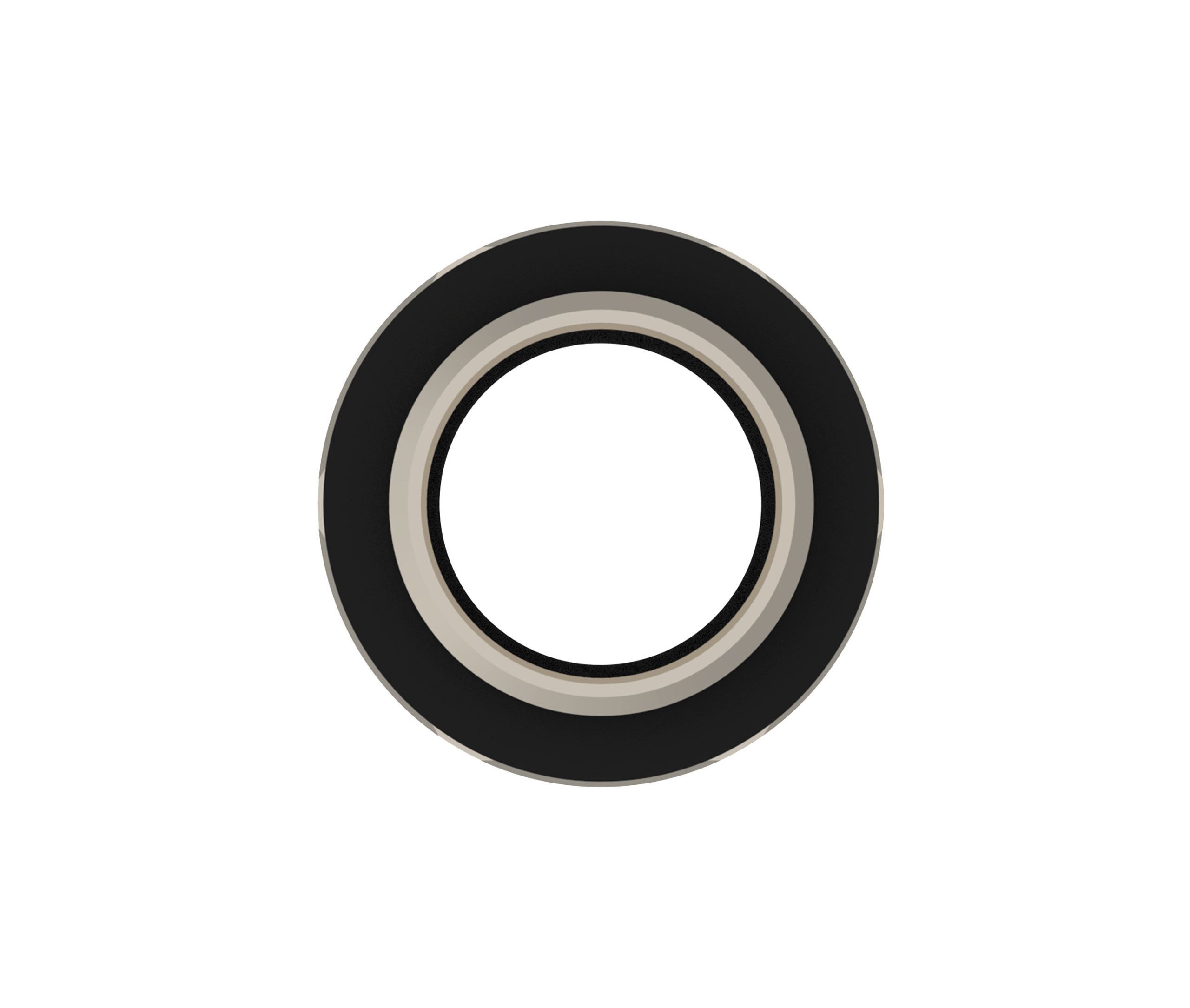

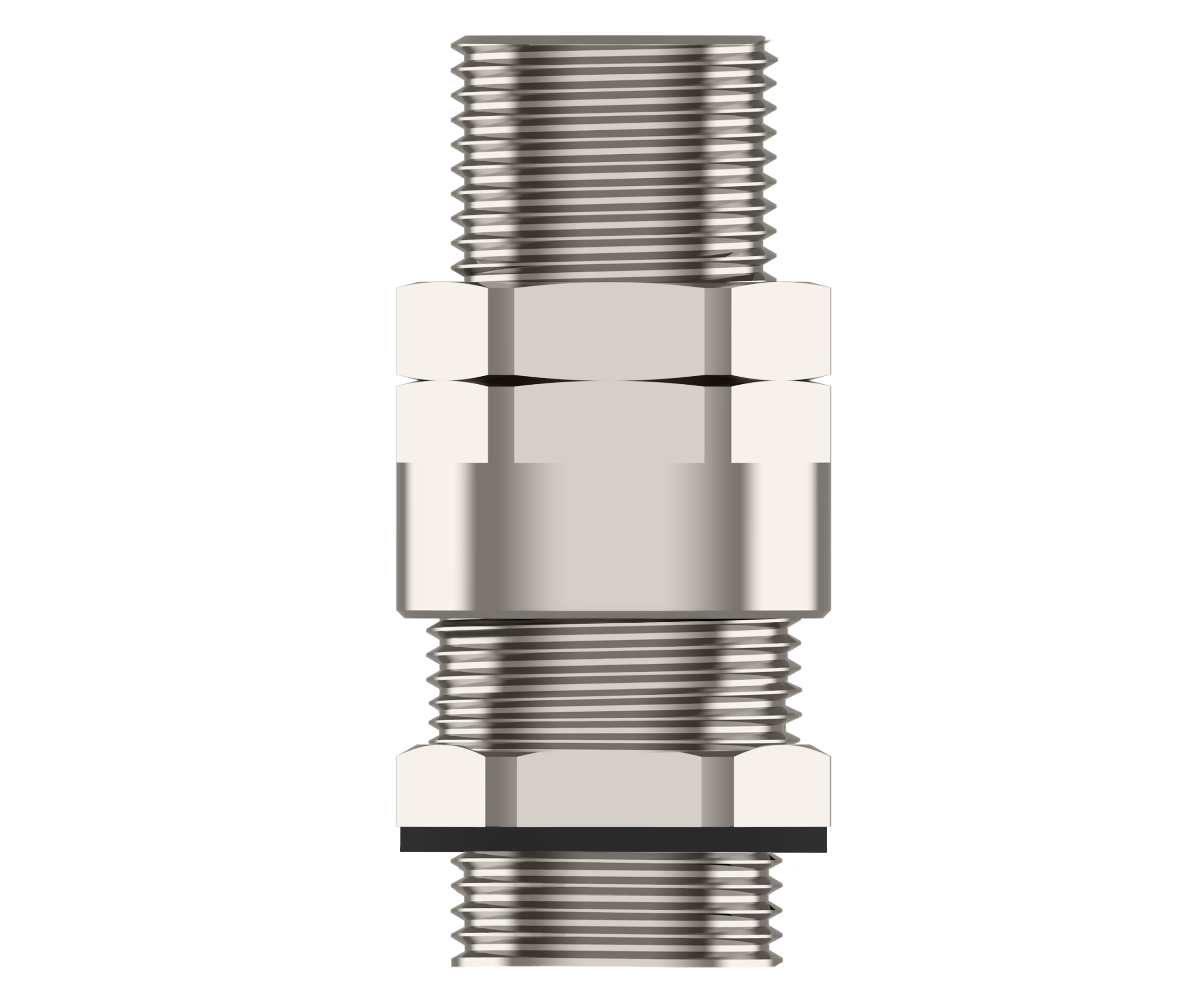

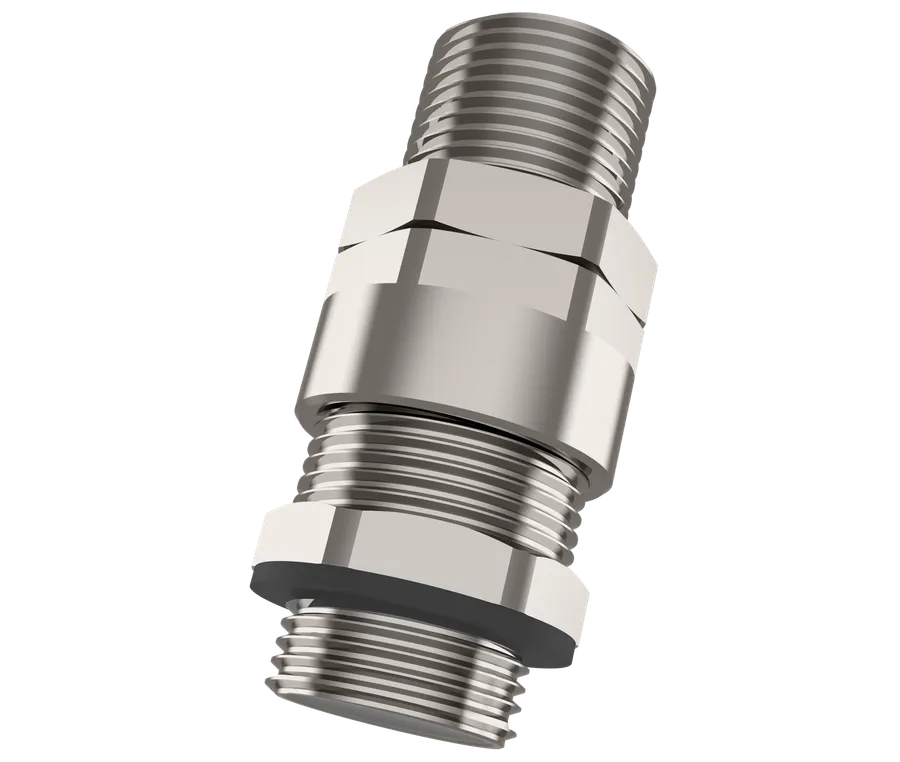

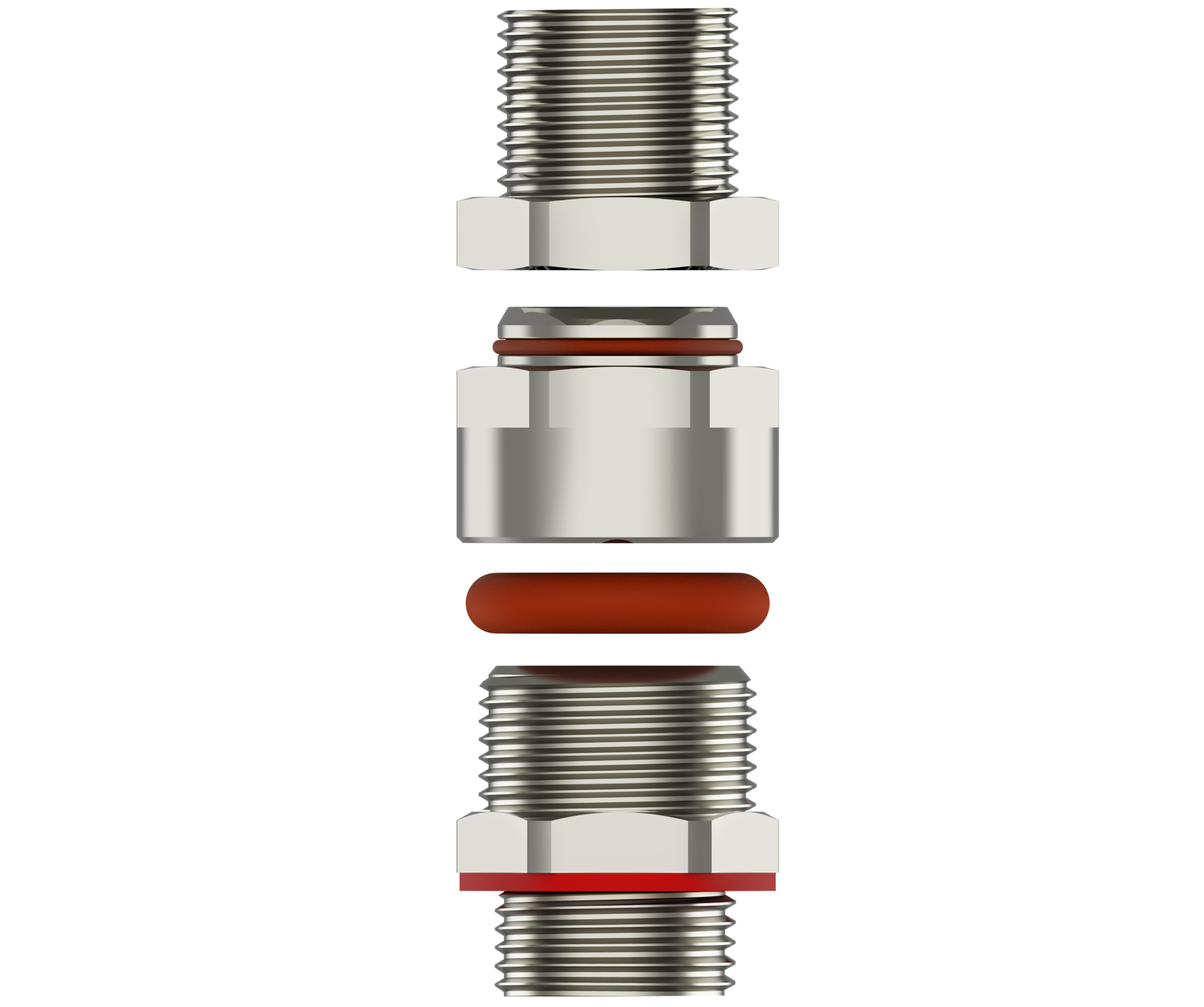

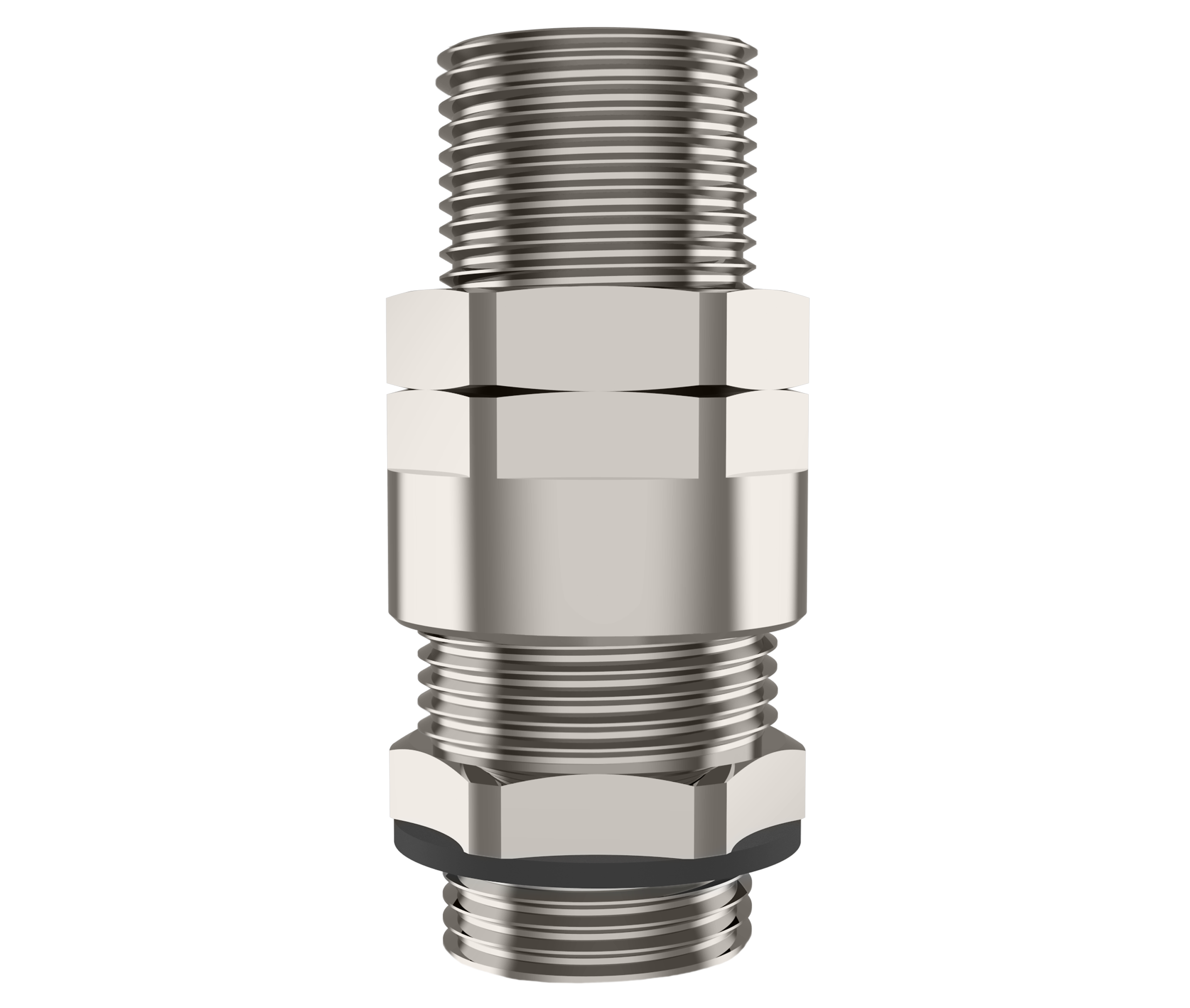

Crux Stivt konduit, hann
○CRUX konduitkobling (hann) for stivt konduit, beregnet på krevende miljøer med ekstremt høye og lave driftstemperaturer og høy slagfasthet
○Svært høy beskyttelse mot støv, fukt og vann.
Spesifikasjoner
| Gjengestørrelse | Gjengelengde | Diameter | Maks høyde 'H' | Outer Cable Ø | SW 1/2/3/4 | Conduit Thread Size | Varenummer | BIMED Kode | 3D File |
|---|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 9 | 18.0 | 39.0 | 3.0 - 8.0 | 16/16/16 | M12x 1.5 | — | CRXM0SM0SM | — |
| M12x1,5 | 9 | 18.0 | 39.0 | 3.0 - 8.0 | 16/18/16 | M16x 1.5 | — | CRXM0SM01M | — |
| M16x1,5 | 9 | 18.0 | 39.0 | 3.0 - 8.0 | 20/16/16 | M12x 1.5 | — | CRXM01SM0SM | — |
| M16x1,5 | 9 | 18.0 | 39.0 | 3.0 - 8.0 | 20/18/16 | M16x 1.5 | — | CRXM01SM01M | — |
| M16x1,5 | 9 | 26.5 | 46.0 | 5.5 - 12.0 | 20/24/24 | M16x 1.5 | — | CRXM01M01M | — |
| M16x1,5 | 9 | 26.5 | 46.0 | 5.5 - 12.0 | 20/24/24 | M20x 1.5 | — | CRXM01M1M | — |
| M20x1,5 | 9 | 18.0 | 39.0 | 3.0 - 8.0 | 24/16/16 | M12x 1.5 | — | CRXM1XSM0SM | — |
| M20x1,5 | 9 | 18.0 | 39.0 | 3.0 - 8.0 | 24/18/16 | M16x 1.5 | — | CRXM1XSM01M | — |
| M20x1,5 | 9 | 26.5 | 46.0 | 5.5 - 12.0 | 24/24/24 | M16x 1.5 | — | CRXM1SM01M | — |
| M20x1,5 | 9 | 26.5 | 46.0 | 5.5 - 12.0 | 24/24/24 | M20x 1.5 | — | CRXM1SM1M | — |
| M20x1,5 | 9 | 26.5 | 48.0 | 9.0 - 16.0 | 24/24/24 | M20x 1.5 | — | CRXM1M1M | Get File |
| M20x1,5 | 9 | 26.5 | 48.0 | 9.0 - 16.0 | 24/30/30 | M25x 1.5 | — | CRXM1M2M | — |
| M25x1,5 | 9 | 26.5 | 46.0 | 5.5 - 12.0 | 24/24/24 | M16x 1.5 | — | CRXM2XSM01M | — |
| M25x1,5 | 9 | 26.5 | 46.0 | 5.5 - 12.0 | 24/24/24 | M20x 1.5 | — | CRXM2XSM1M | — |
| M25x1,5 | 9 | 26.5 | 48.0 | 9.0 - 16.0 | 30/24/24 | M20x 1.5 | — | CRXM2SM1M | — |
| M25x1,5 | 9 | 26.5 | 48.0 | 9.0 - 16.0 | 30/30/30 | M25x 1.5 | — | CRXM2SM2M | — |
| M25x1,5 | 9 | 33.0 | 50.0 | 12.0 - 20.0 | 30/30/30 | M25x 1.5 | — | CRXM2M2M | — |
| M25x1,5 | 9 | 33.0 | 50.0 | 12.0 - 20.0 | 30/36/36 | M32x 1.5 | — | CRXM2M3M | — |
| M32x1,5 | 9 | 26.5 | 48.0 | 9.0 - 16.0 | 30/24/24 | M20x 1.5 | — | CRXM3XSM1M | — |
| M32x1,5 | 9 | 26.5 | 48.0 | 9.0 - 16.0 | 30/30/30 | M25x 1.5 | — | CRXM3XSM2M | — |
| M32x1,5 | 9 | 33.0 | 50.0 | 12.0 - 20.0 | 36/30/30 | M25x 1.5 | — | CRXM3SM2M | — |
| M32x1,5 | 9 | 33.0 | 50.0 | 12.0 - 20.0 | 36/36/36 | M32x 1.5 | — | CRXM3SM3M | — |
| M32x1,5 | 9 | 39.8 | 52.0 | 16.0 - 26.0 | 36/36/36 | M32x 1.5 | — | CRXM3M3M | — |
| M32x1,5 | 9 | 39.8 | 52.0 | 16.0 - 26.0 | 36/46/46 | M40x 1.5 | — | CRXM3M4M | — |
| M40x1,5 | 9 | 33.0 | 50.0 | 12.0 - 20.0 | 36/30/30 | M25x 1.5 | — | CRXM4XSM2M | — |
| M40x1,5 | 9 | 33.0 | 50.0 | 12.0 - 20.0 | 36/36/36 | M32x 1.5 | — | CRXM4XSM3M | — |
| M40x1,5 | 9 | 39.8 | 52.0 | 16.0 - 26.0 | 46/36/36 | M32x 1.5 | — | CRXM4SM3M | — |
| M40x1,5 | 9 | 39.8 | 52.0 | 16.0 - 26.0 | 46/46/46 | M40x 1.5 | — | CRXM4SM4M | — |
| M40x1,5 | 9 | 51.0 | 54.0 | 20.0 - 33.0 | 46/46/46 | M40x 1.5 | — | CRXM4M4M | — |
| M40x1,5 | 9 | 51.0 | 54.0 | 20.0 - 33.0 | 46/55/55 | M50x 1.5 | — | CRXM4M5M | — |
| M50x1,5 | 9 | 39.8 | 52.0 | 16.0 - 26.0 | 46/36/36 | M32x 1.5 | — | CRXM5XSM3M | — |
| M50x1,5 | 9 | 39.8 | 52.0 | 16.0 - 26.0 | 46/46/46 | M40x 1.5 | — | CRXM5XSM4M | — |
| M50x1,5 | 9 | 51.0 | 54.0 | 20.0 - 33.0 | 55/46/46 | M40x 1.5 | — | CRXM5SM4M | — |
| M50x1,5 | 9 | 51.0 | 54.0 | 20.0 - 33.0 | 55/55/55 | M50x 1.5 | — | CRXM5SM5M | — |
| M50x1,5 | 9 | 61.0 | 56.0 | 29.0 - 41.0 | 55/55/55 | M50x 1.5 | — | CRXM5M5M | — |
| M50x1,5 | 9 | 61.0 | 56.0 | 29.0 - 41.0 | 55/67/67 | M63x 1.5 | — | CRXM5M6M | — |
| M63x1,5 | 9 | 51.0 | 54.0 | 20.0 - 33.0 | 55/46/46 | M40x 1.5 | — | CRXM6XSM4M | — |
| M63x1,5 | 9 | 51.0 | 54.0 | 20.0 - 33.0 | 55/55/55 | M50x 1.5 | — | CRXM6XSM5M | — |
| M63x1,5 | 9 | 61.0 | 56.0 | 29.0 - 41.0 | 67/55/55 | M50x 1.5 | — | CRXM6SM5M | — |
| M63x1,5 | 9 | 61.0 | 56.0 | 29.0 - 41.0 | 67/67/67 | M63x 1.5 | — | CRXM6SM6M | — |
| M63x1,5 | 9 | 75.0 | 58.0 | 36.0 - 52.0 | 67/67/67 | M63x 1.5 | — | CRXM6M6M | — |
| M63x1,5 | 9 | 75.0 | 58.0 | 36.0 - 52.0 | 67/80/80 | M75x 1.5 | — | CRXM6M7M | — |
| M75x1,5 | 9 | 61.0 | 56.0 | 29.0 - 41.0 | 67/55/55 | M50x 1.5 | — | CRXM7XSM5M | — |
| M75x1,5 | 9 | 61.0 | 56.0 | 29.0 - 41.0 | 67/67/67 | M63x 1.5 | — | CRXM7XSM6M | — |
| M75x1,5 | 9 | 75.0 | 58.0 | 36.0 - 52.0 | 80/67/67 | M63x 1.5 | — | CRXM7SM6M | — |
| M75x1,5 | 9 | 75.0 | 58.0 | 36.0 - 52.0 | 80/80/80 | M75x 1.5 | — | CRXM7SM7M | — |
| M75x1,5 | 9 | 89.0 | 60.0 | 50.0 - 65.0 | 80/80/80 | M75x 1.5 | — | CRXM7M7M | — |
| M75x1,5 | 9 | 89.0 | 60.0 | 50.0 - 65.0 | 80/85/85 | M80x 1.5 | — | CRXM7M80M | — |
| M75x1,5 | 9 | 89.0 | 60.0 | 50.0 - 65.0 | 80/95/95 | M90x 1.5 | — | CRXM7M8M | — |
