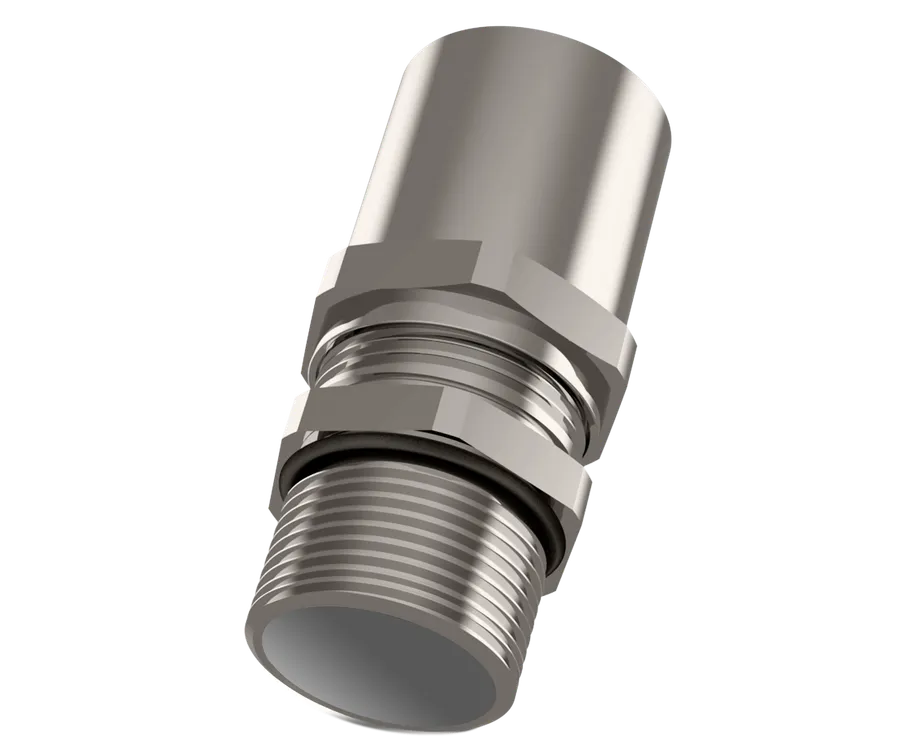

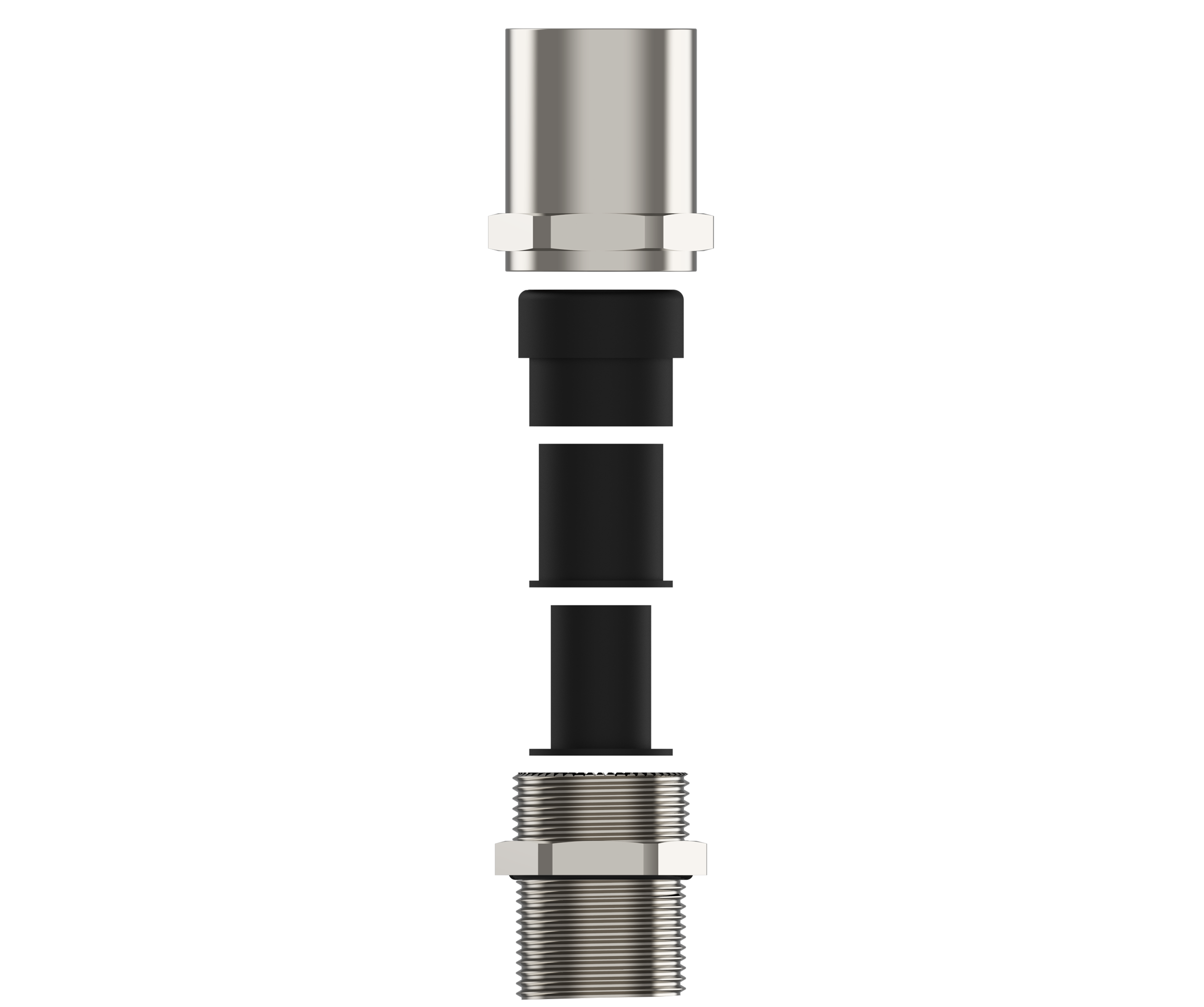

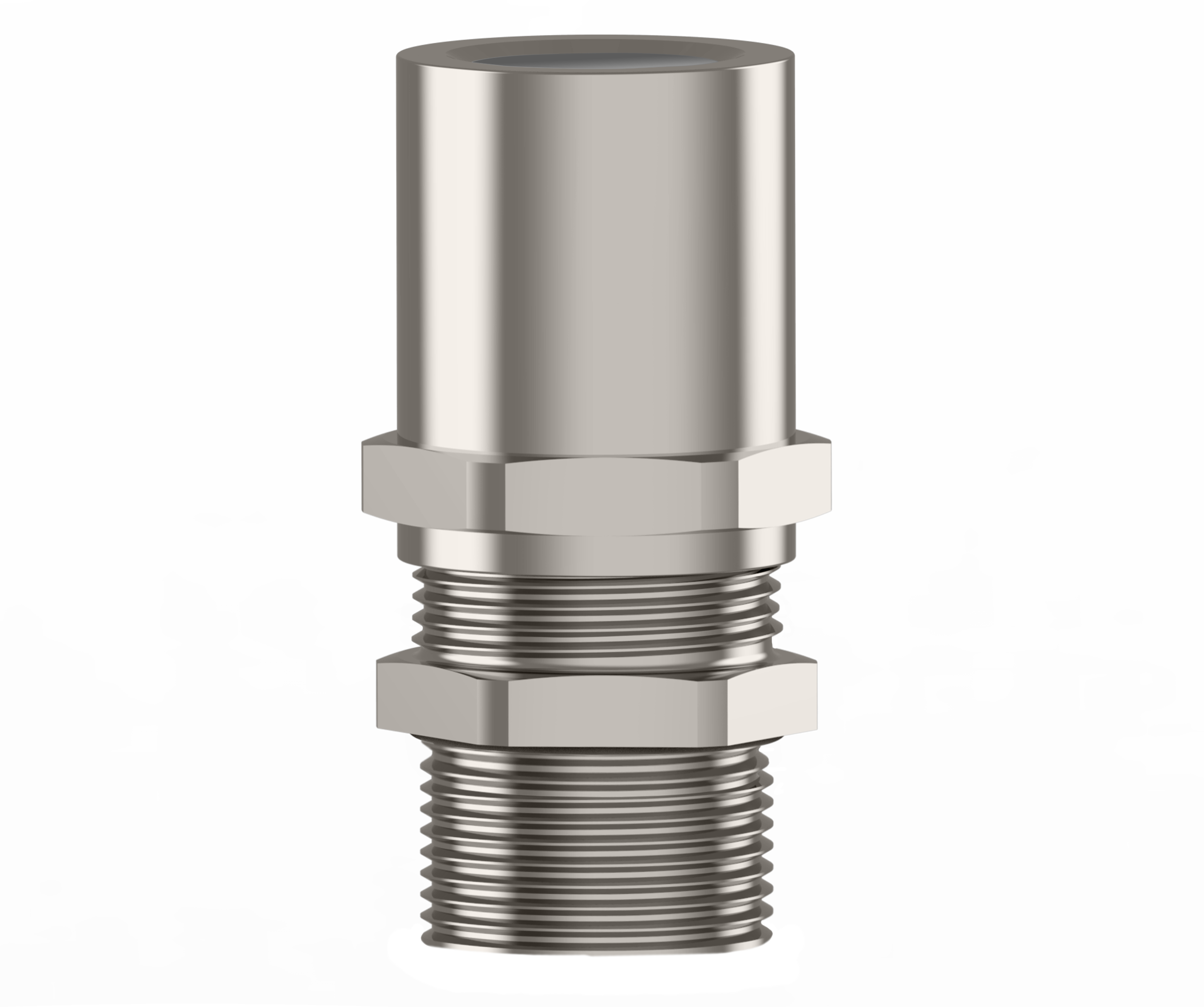

CARINA
○Konduitkobling for eksplosjonsfarlige områder (Gruppe II) med eksplosjonssikker tetning rundt kabelkappen i stivt konduit. ATEX- og IECEx-sertifisert i henhold til Ex eb, Ex db og Ex tb.

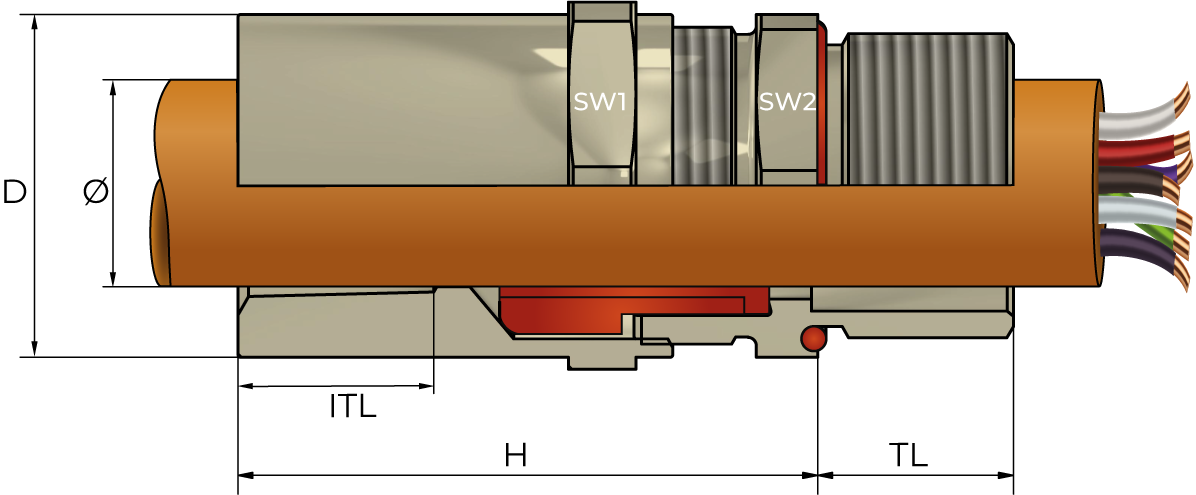

Spesifikasjoner
| Klemområdet | Nøkkelvidde | Diameter | Maks høyde 'H' | ITL | TL Ex-e | Seal Type | TL Ex-d/e | Thread Size "F" | Thread Size "M" | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4,0 - 8,0 | 24/22 | 26.5 | 51 | 16 | 9 | Triple | 16 | NPT 1/4" | M12x1,5 | — | EBM0SM0SN | — | |
| 4,0 - 8,0 | 24/22 | 26.5 | 49.5 | 16 | 9 | Triple | 16 | NPT 3/8" | M12x1,5 | — | EBM0SM01N | — | |
| 4,0 - 8,0 | 24/22 | 26.5 | 49.5 | 16 | 9 | Triple | 16 | NPT 1/4" | M16x1,5 | — | EBM01M0SN | — | |
| 4,0 - 12,0 | 24/22 | 26.5 | 49.5 | 16 | 9 | Triple | 16 | NPT 3/8" | M16x1,5 | — | EBM01M01N | — | |
| 4,0 - 12,0 | 24/22 | 26.5 | 49.5 | 16 | 9 | Triple | 16 | NPT 1/2" | M16x1,5 | — | EBM01M12N | — | |
| 4,0 - 12,0 | 24/22 | 26.5 | 46 | 16 | 9 | Triple | 16 | NPT 3/8" | M20x1,5 | — | EBM12M01N | — | |
| 4,0 - 12,0 | 24/22 | 26.5 | 46 | 16 | 9 | Triple | 16 | NPT 1/2" | M20x1,5 | — | EBM1M1N | — | |
| 10,0 - 16,0 | 30/28 | 33 | 49 | 16 | 9 | Triple | 16 | NPT 1/2" | M20x1,5 | — | EBM12M12N | — | |
| 10,0 - 16,0 | 30/28 | 33 | 49 | 16 | 9 | Triple | 16 | NPT 3/4" | M20x1,5 | — | EBM12M23N | — | |
| 10,0 - 16,0 | 30/30 | 33 | 49.5 | 16 | 9 | Triple | 16 | NPT 1/2" | M25x1,5 | — | EBM23M12N | Get File | |
| 10,0 - 18,0 | 30/28 | 33 | 49.5 | 16 | 9 | Triple | 16 | NPT 3/4" | M25x1,5 | — | EBM2M2N | — | |
| 14,0 - 20,0 | 28/35 | 33 | 49.5 | 16 | 9 | Triple | 16 | NPT 3/4" | M25x1,5 | — | EBM23M23N | — | |
| 14,0 - 20,0 | 35/35 | 39 | 57 | 20 | 9 | Triple | 16 | NPT 1" | M25x1,5 | — | EBM23M34N | — | |
| 14,0 - 20,0 | 35/35 | 39 | 52 | 16 | 9 | Triple | 16 | NPT 3/4" | M32x1,5 | — | EBM34M23N | — | |
| 14,0 - 24,0 | 35/35 | 39 | 56 | 20 | 9 | Triple | 16 | NPT 1" | M32x1,5 | — | EBM3M3N | — | |
| 22,0 - 26,0 | 45/45 | 50 | 67.5 | 20 | 9 | Triple | 16 | NPT 1" | M32x1,5 | — | EBM34M34N | — | |
| 22,0 - 28,0 | 50/45 | 55.5 | 65.5 | 20 | 9 | Triple | 16 | NPT 1 1/4" | M32x1,5 | — | EBM34M45N | — | |
| 22,0 - 26,0 | 45/45 | 50 | 67.5 | 20 | 9 | Triple | 18 | NPT 1" | M40x1,5 | — | EBM45M34N | — | |
| 22,0 - 32,0 | 50/45 | 55 | 65.5 | 20 | 9 | Triple | 18 | NPT 1 1/4" | M40x1,5 | — | EBM4M4N | — | |
| 26,0 - 34,0 | 45/50 | 55 | 65.5 | 20 | 9 | Triple | 18 | NPT 1 1/4" | M40x1,5 | — | EBM45M45N | — | |
| 26,0 - 34,0 | 50/50 | 56 | 69 | 20 | 9 | Triple | 18 | NPT 1 1/2" | M40x1,5 | — | EBM45M56N | — | |
| 26,0 - 34,0 | 50/55 | 61 | 68 | 20 | 9 | Triple | 18 | NPT 1 1/4" | M50x1,5 | — | EBM5M45N | — | |
| 26,0 - 35,0 | 55/55 | 61 | 69 | 20 | 9 | Triple | 18 | NPT 1 1/2" | M50x1,5 | — | EBM5M5N | — | |
| 35,0 - 41,0 | 64/64 | 70 | 66.5 | 20 | 9 | Triple | 18 | NPT 1 1/2" | M50x1,5 | — | EBM56M56N | — | |
| 35,0 - 44,0 | 68/64 | 75 | 69.5 | 20 | 9 | Triple | 18 | NPT 2" | M50x1,5 | — | EBM56M67N | — | |
| 35,0 - 41,0 | 64/68 | 75 | 67.5 | 20 | 9 | Triple | 18 | NPT 1 1/2" | M63x1,5 | — | EBM67M56N | — | |
| 35,0 - 45,0 | 68/68 | 75 | 69.5 | 20 | 9 | Triple | 18 | NPT 2" | M63x1,5 | — | EBM6M6N | — | |
| 46,0 - 52,0 | 80/68 | 89 | 75.5 | 21 | 9 | Triple | 18 | NPT 2" | M63x1,5 | — | EBM67M67N | — | |
| 46,0 - 56,0 | 80/75 | 89 | 76 | 21 | 9 | Triple | 18 | NPT 2 1/2" | M63x1,5 | — | EBM67M78N | — | |
| 46,0 - 62,0 | 80/80 | 89 | 73 | 21 | 9 | Triple | 20 | NPT 2 1/2" | M75x1,5 | — | EBM7M7N | — | |
| 60,0 - 64,0 | 95/95 | 105 | 76 | 21 | 9 | Triple | 20 | NPT 2 1/2" | M75x1,5 | — | EBM78M78N | — | |
| 60,0 - 69,0 | 95/95 | 105 | 76 | 21 | 9 | Triple | 20 | NPT 3" | M75x1,5 | — | EBM78M810N | — | |
| 60,0 - 64,0 | 105/95 | 117 | 76 | 21 | 9 | Triple | 20 | NPT 2 1/2" | M90x1,5 | — | EBM810M78N | — | |
| 60,0 - 75,0 | 95/95 | 105 | 76 | 21 | 9 | Triple | 20 | NPT 3" | M90x1,5 | — | EBM8M8N | — | |
| 75,0 - 79,5 | 105/105 | 117 | 76 | 21 | 9 | Triple | 20 | NPT 3" | M90x1,5 | — | EBM810M810N | — | |
| 75,0 - 82,0 | 105/105 | 117 | 76 | 21 | 9 | Triple | 20 | NPT 4" | M90x1,5 | — | EBM810M10N | — | |
| 75,0 - 79,5 | 105/105 | 117 | 76 | 21 | 9 | Triple | 20 | NPT 3" | M100x1,5 | — | EBM10M810N | — | |
| 75,0 - 85,0 | 105/105 | 117 | 76 | 21 | 9 | Triple | 20 | NPT 4" | M100x1,5 | — | EBM10M10N | — | |
| 85,0 - 95,0 | 115/115 | 128 | 77 | 21 | 9 | Triple | 20 | NPT 4" | M110x1,5 | — | EBM11M11N | — |
