PHOENIX

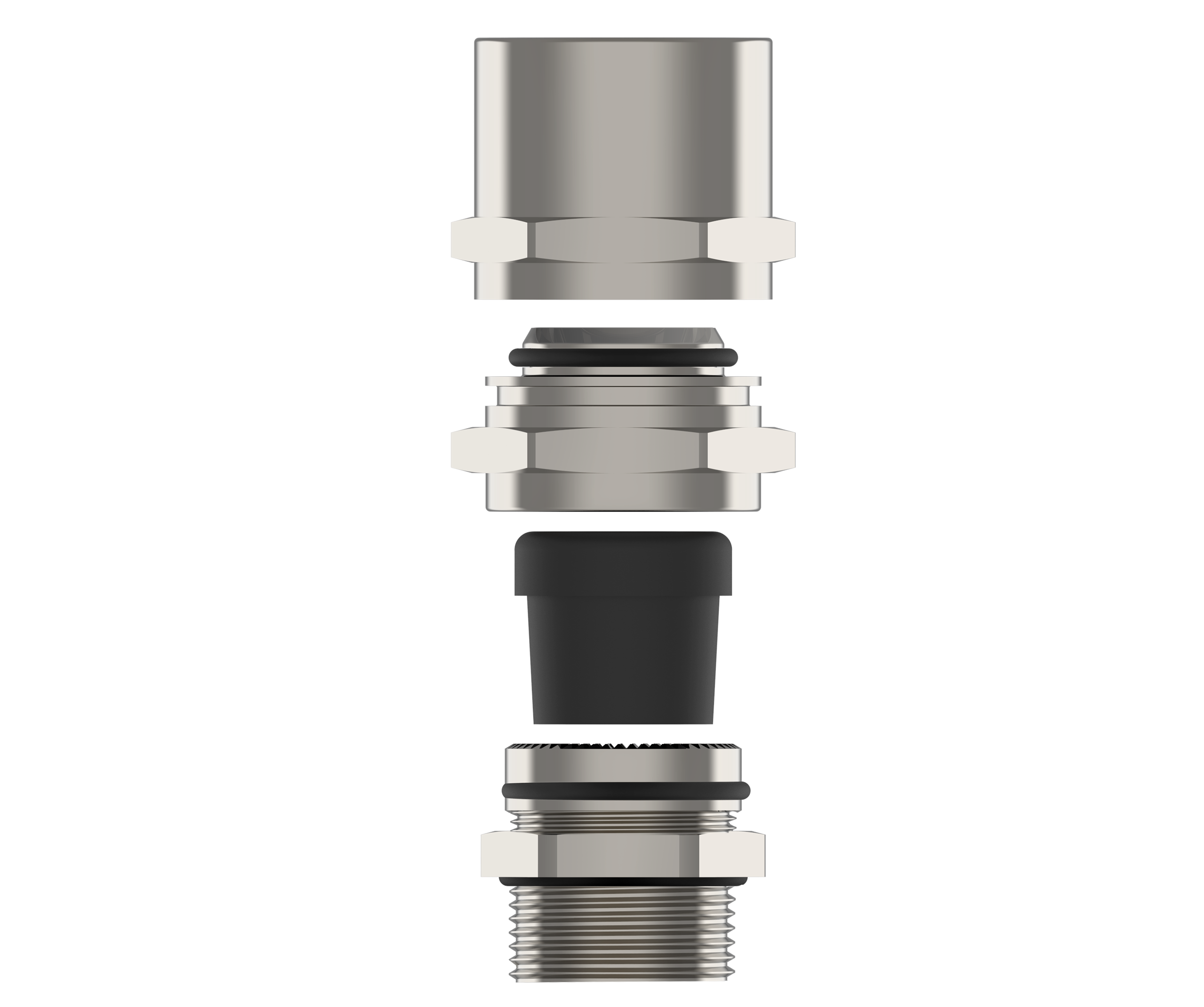

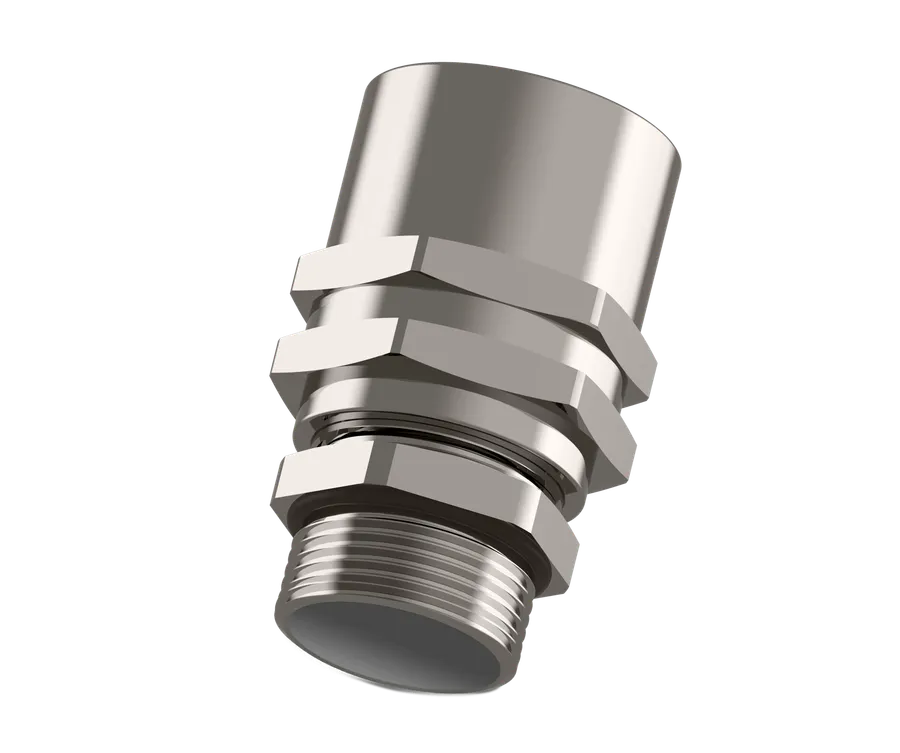

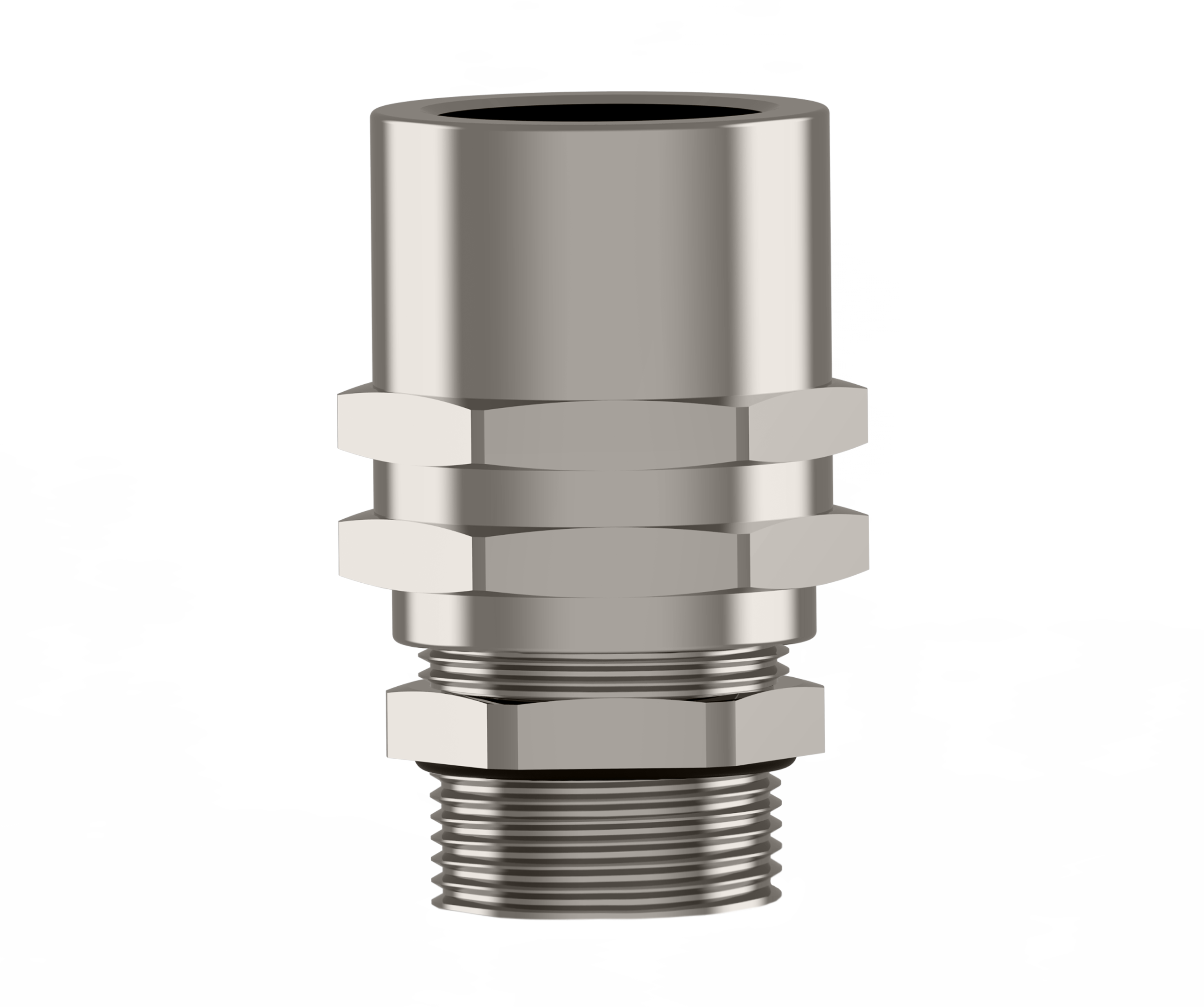

○Ex-konduitkoblinger (flerhullstettings-type) for Gruppe II, beregnet på uarmerte kabler i stivt konduit med eksplosjonssikker tetning rundt kabelkappen; tilgjengelig i svivel- og stasjonærversjon. ATEX- og IECEx-sertifisert i henhold til Ex eb og Ex tb.
Spesifikasjoner

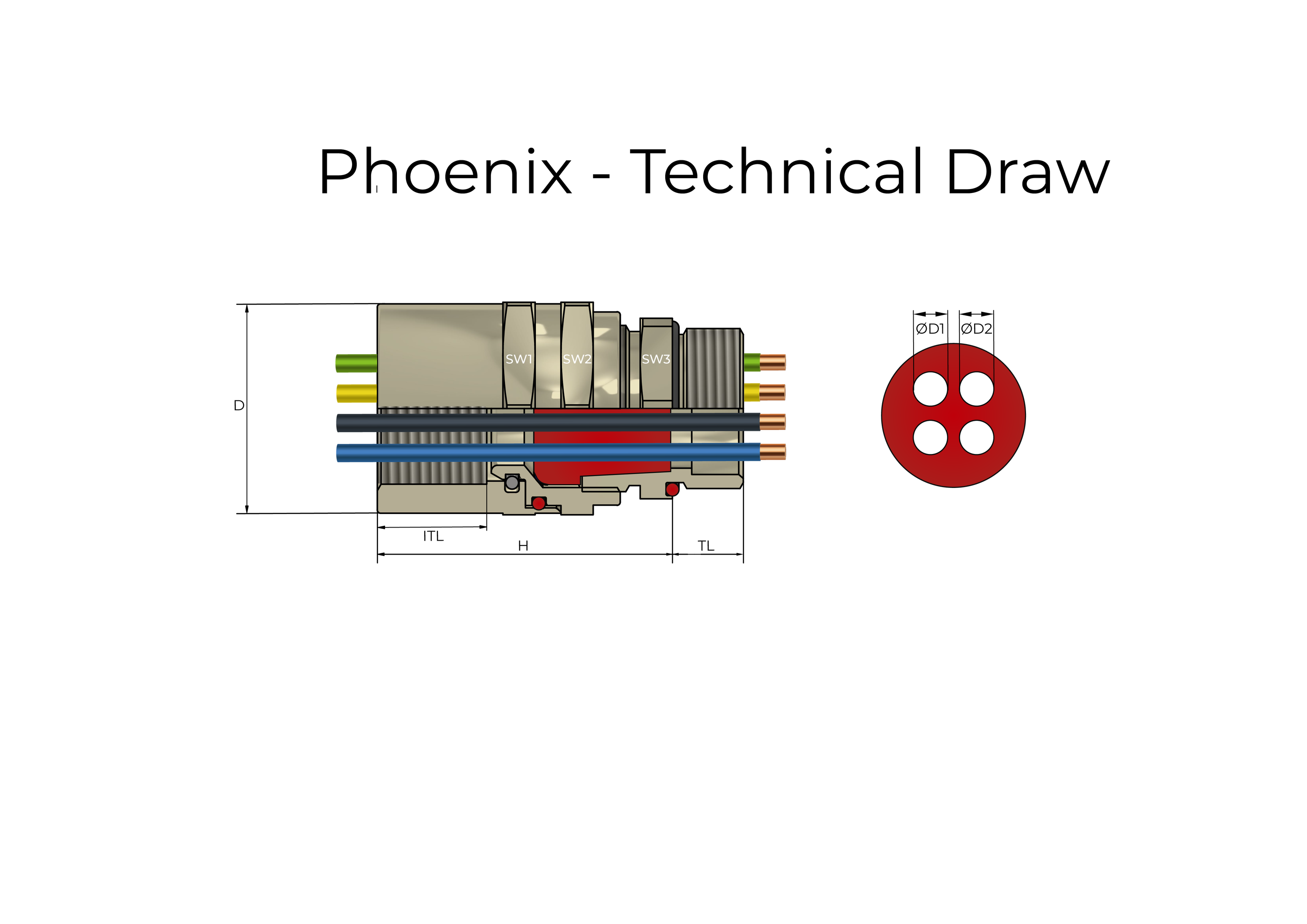

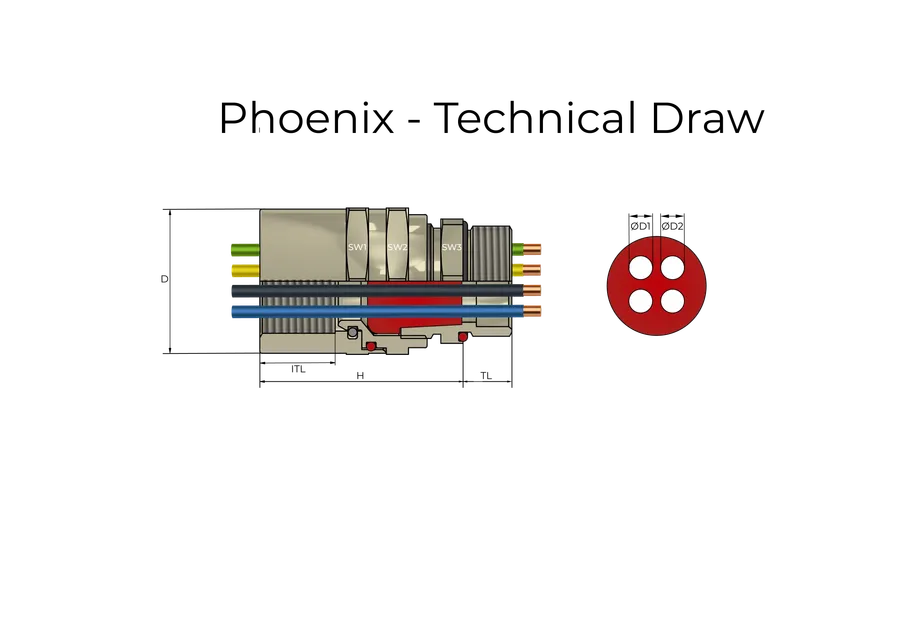

| Gjengelengde | Nøkkelvidde | Diameter | Maks høyde 'H' | ITL | Cores Ø | Max. Cores | Thread Size 'F' | Thread Size 'M' | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11 | 33/33/28 | 37.5 | 50 | 16 | 2.5 | 7 | M20x1,5 | M20x1,5 | — | SVH251M1M | — | |
| 11 | 33/33/28 | 37.5 | 50 | 16 | 3 | 4 | M20x1,5 | M20x1,5 | — | SVH301M1M | — | |
| 11 | 33/33/28 | 37.5 | 50 | 16 | 2.5 | 7 | M25x1,5 | M20x1,5 | — | SVH251M2M | — | |
| 11 | 33/33/28 | 37.5 | 50 | 16 | 3 | 4 | M25x1,5 | M20x1,5 | — | SVH301M2M | — | |
| 11 | 33/33/28 | 37.5 | 50 | 17 | 2.5 | 7 | NPT 3/4" | M20x1,5 | — | SVH251M2N | — | |
| 11 | 33/33/28 | 37.5 | 50 | 17 | 3 | 4 | NPT 3/4" | M20x1,5 | — | SVH301M2N | — | |
| 11 | 33/33/28 | 37.5 | 48 | 16 | 2.5 | 7 | M20x1,5 | M25x1,5 | — | SVH252M1M | — | |
| 11 | 33/33/28 | 37.5 | 48 | 16 | 3 | 4 | M20x1,5 | M25x1,5 | — | SVH302M1M | — | |
| 11 | 33/33/28 | 37.5 | 48 | 16 | 3.6 | 3 | M20x1,5 | M25x1,5 | — | SVH362M1M | — | |
| 11 | 33/33/28 | 37.5 | 48 | 16 | 4 | 7 | M20x1,5 | M25x1,5 | — | SVH402M1M | — | |
| 11 | 33/33/28 | 37.5 | 48 | 16 | 2.5 | 7 | M25x1,5 | M25x1,5 | — | SVH252M2M | — | |
| 11 | 33/33/28 | 37.5 | 48 | 16 | 3 | 4 | M25x1,5 | M25x1,5 | — | SVH302M2M | — | |
| 11 | 33/33/28 | 37.5 | 48 | 16 | 3.6 | 3 | M25x1,5 | M25x1,5 | — | SVH362M2M | — | |
| 11 | 33/33/28 | 37.5 | 48 | 16 | 4 | 7 | M25x1,5 | M25x1,5 | — | SVH402M2M | — | |
| 11 | 33/33/28 | 37.5 | 48 | 17 | 2.5 | 7 | NPT 3/4" | M25x1,5 | — | SVH252M2N | — | |
| 11 | 33/33/28 | 37.5 | 48 | 17 | 3 | 4 | NPT 3/4" | M25x1,5 | — | SVH302M2N | — | |
| 11 | 33/33/28 | 37.5 | 48 | 17 | 3.6 | 3 | NPT 3/4" | M25x1,5 | — | SVH362M2N | — | |
| 11 | 33/33/28 | 37.5 | 48 | 17 | 4 | 7 | NPT 3/4" | M25x1,5 | — | SVH402M2N | — |
