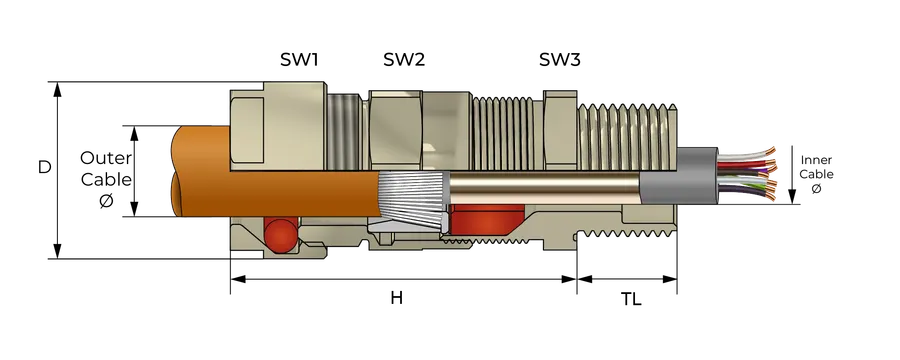

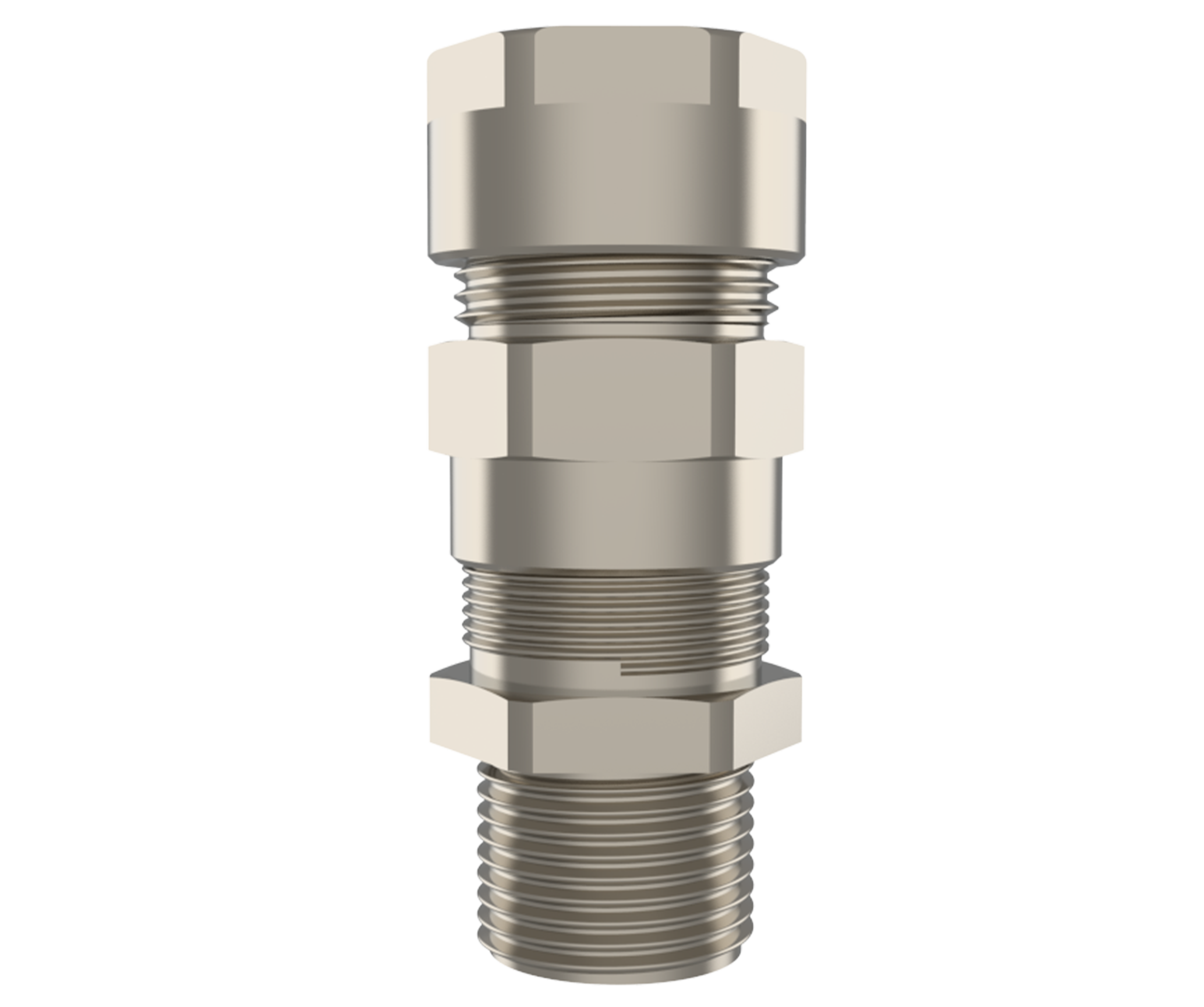

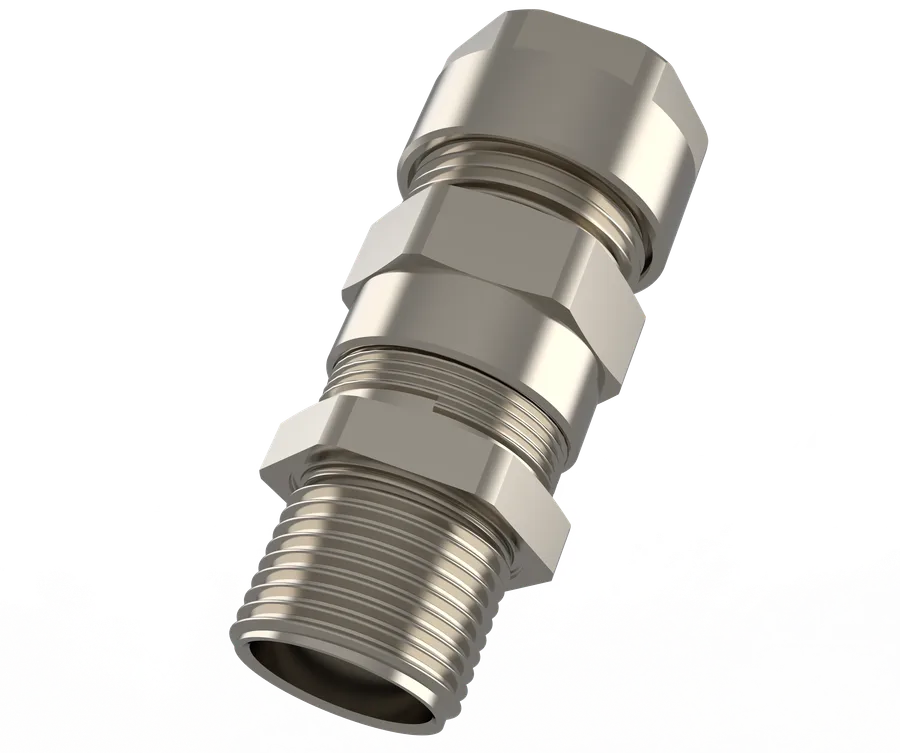

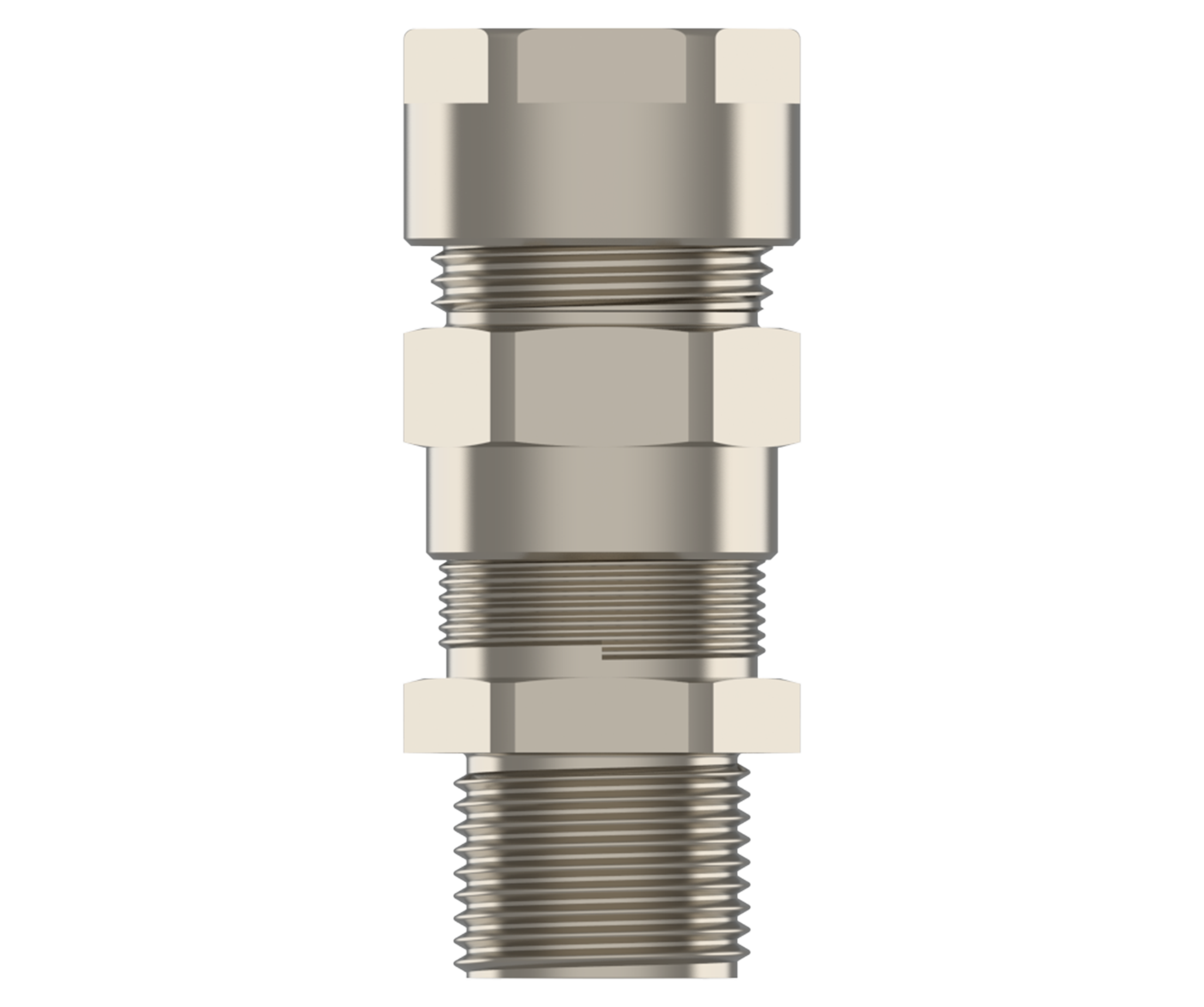

Volans blykappe

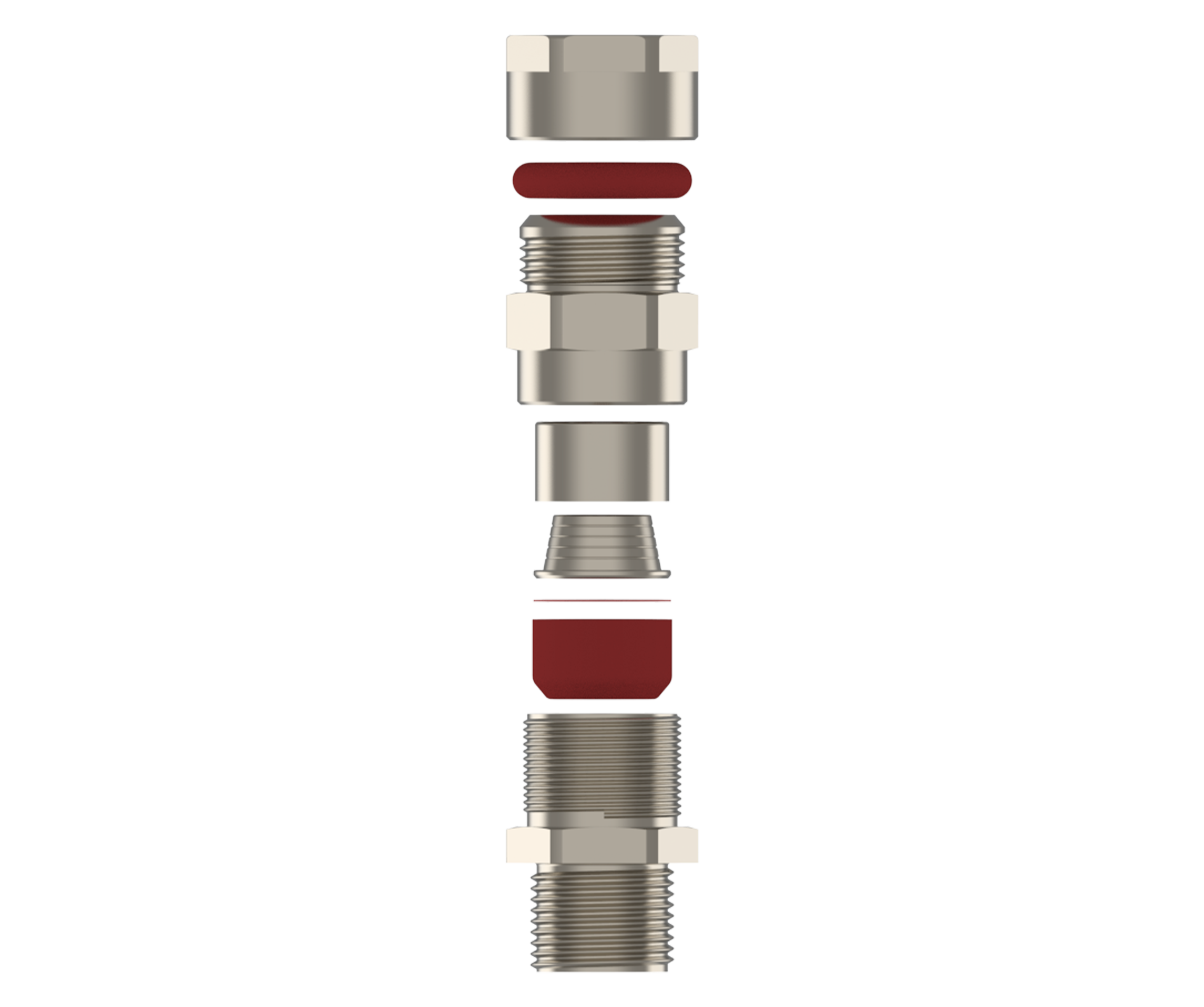

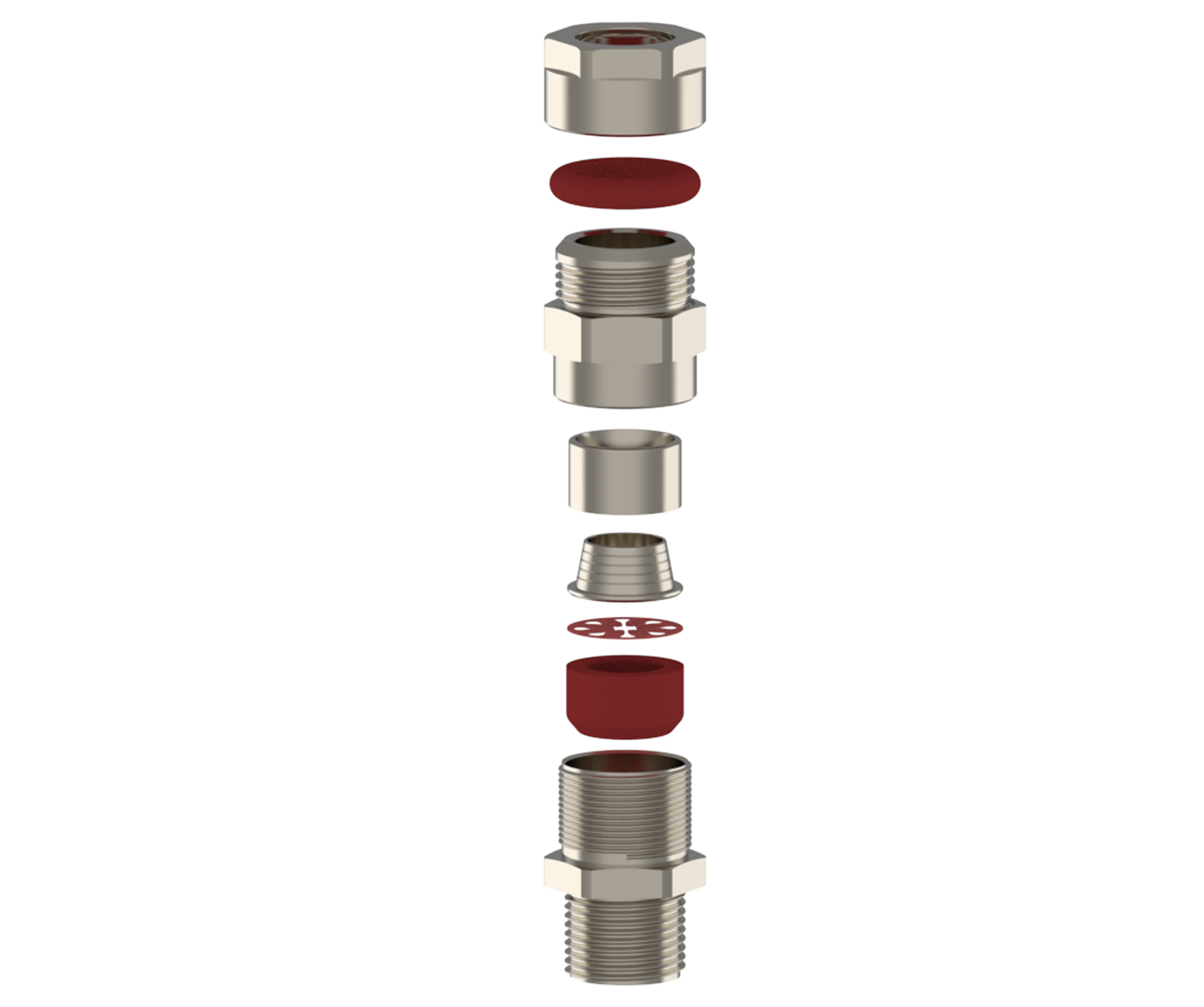

○Ex-kabelnippel med dobbel-kompresjonsprinsipp for kabler med blykjerne, med eksplosjonssikker tetning på indre kabelkappe og IP-tetning på ytre kappe. ATEX- og IECEx-sertifisert i henhold til Ex eb, Ex db og Ex tb med EMC-kompatibilitet.
Spesifikasjoner

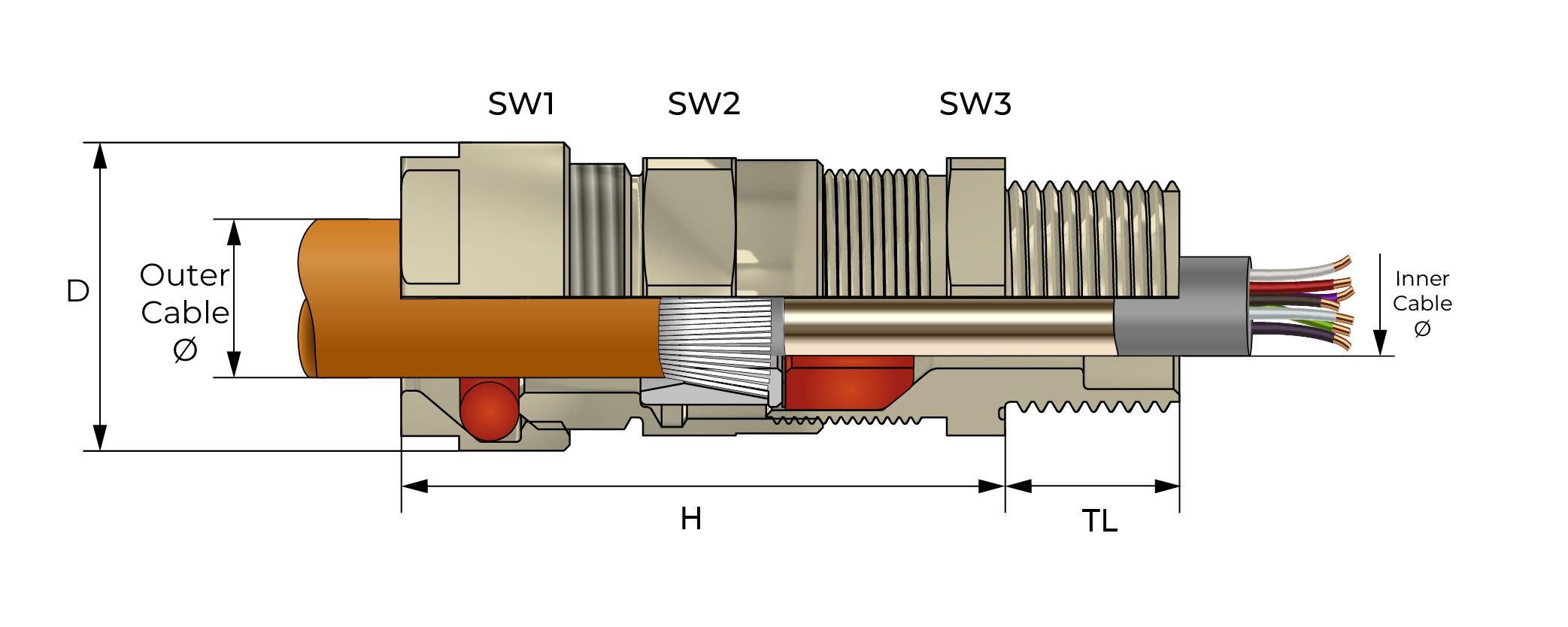

| Gjengestørrelse | Gjengelengde | Nøkkelvidde | Armour Wire Ø | Diameter | Maks høyde 'H' | Outer Cable Ø | Inner Cable Ø | Shield Wire Ø | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 15.0 | 22/22/19 | 0.8 - 1.25 | 24.0 | 57.0 | 5.5 - 12.0 | 3.0 - 7.5 | 0.2 - 0.8 | — | VOL0SM-LSK | — | |
| M16x1,5 | 15.0 | 22/22/19 | 0.8 - 1.25 | 24.0 | 57.0 | 5.5 - 12.0 | 3.0 - 7.5 | 0.2 - 0.8 | — | VOL01SM-LSK | — | |
| M16x1,5 | 15.0 | 24/24/24 | 0.8 - 1.25 | 26.5 | 57.0 | 9.0 - 16.0 | 6.0 - 11.5 | 0.2 - 0.8 | — | VOL01M-LSK | — | |
| M20x1,5 | 15.0 | 22/22/24 | 0.8 - 1.25 | 26.5 | 57.0 | 5.5 - 12.0 | 3.0 - 7.5 | 0.2 - 0.8 | — | VOL1XSM-LSK | — | |
| M20x1,5 | 15.0 | 24/24/24 | 0.8 - 1.25 | 26.5 | 57.0 | 9.0 - 16.0 | 6.0 - 11.5 | 0.2 - 0.8 | — | VOL1SM-LSK | Get File | |
| M20x1,5 | 15.0 | 30/30/30 | 0.8 - 1.25 | 33.0 | 60.0 | 12.0 - 20.0 | 6.0 - 13.5 | 0.2 - 0.8 | — | VOL1M-LSK | — | |
| M25x1,5 | 15.0 | 30/30/30 | 0.8 - 1.25 | 33.0 | 60.0 | 12.0 - 20.0 | 6.0 - 13.5 | 0.2 - 0.8 | — | VOL2SM-LSK | — | |
| M25x1,5 | 15.0 | 36/36/36 | 1.25 - 1.6 | 39.8 | 66.0 | 16.0 - 26.0 | 11.0 - 19.5 | 0.2 - 0.8 | — | VOL2M-LSK | — | |
| M32x1,5 | 15.0 | 46/46/46 | 1.6 - 2.0 | 51.0 | 76.0 | 20.0 - 33.0 | 16.0 - 26.0 | 0.2 - 0.8 | — | VOL3M-LSK | — | |
| M32x1,5 | 15.0 | 36/36/36 | 1.25 - 1.6 | 39.8 | 66.0 | 16.0 - 26.0 | 11.0 - 19.5 | 0.2 - 0.8 | — | VOL3SM-LSK | — | |
| M40x1,5 | 15.0 | 46/46/46 | 1.6 - 2.0 | 51.0 | 76.0 | 20.0 - 33.0 | 16.0 - 26.0 | 0.2 - 0.8 | — | VOL4SM-LSK | — | |
| M40x1,5 | 15.0 | 55/55/55 | 1.6 - 2.0 | 62.5 | 85.0 | 29.0 - 41.0 | 22.0 - 32.0 | 0.2 - 0.8 | — | VOL4M-LSK | — | |
| M50x1,5 | 15.0 | 55/55/55 | 1.6 - 2.0 | 62.5 | 85.0 | 29.0 - 41.0 | 22.0 - 32.0 | 0.2 - 0.8 | — | VOL5SM-LSK | — | |
| M50x1,5 | 15.0 | 65/65/65 | 1.8 - 2.5 | 74.5 | 100.0 | 36.0 - 52.0 | 29.0 - 43.5 | 0.2 - 1.0 | — | VOL5M-LSK | — | |
| M63x1,5 | 15.0 | 65/65/68 | 1.8 - 2.5 | 75.0 | 100.0 | 36.0 - 52.0 | 29.0 - 43.5 | 0.2 - 1.0 | — | VOL6SM-LSK | — | |
| M63x1,5 | 15.0 | 80/80/80 | 1.8 - 2.5 | 91.0 | 102.0 | 50.0 - 65.0 | 43.0 - 55.5 | 0.2 - 1.0 | — | VOL6M-LSK | — | |
| M75x1,5 | 15.0 | 80/80/80 | 1.8 - 2.5 | 106.0 | 102.0 | 50.0 - 65.0 | 43.0 - 55.5 | 0.2 - 1.0 | — | VOL7SM-LSK | — | |
| M75x1,5 | 15.0 | 95/95/95 | 1.8 - 2.5 | 106.0 | 115.0 | 61.0 - 78.0 | 54.0 - 67.5 | 0.2 - 1.0 | — | VOL7M-LSK | — | |
| M80x1,5 | 20.0 | 95/95/95 | 1.8 - 2.5 | 118.0 | 115.0 | 61.0 - 78.0 | 54.0 - 67.5 | 0.2 - 1.0 | — | VOL80SM-LSK | — | |
| M80x1,5 | 20.0 | 106/106/106 | 2.0 - 3.5 | 118.0 | 126.0 | 75.0 - 89.0 | 65.0 - 75.0 | 0.3 - 1.0 | — | VOL80M-LSK | — | |
| M90x1,5 | 20.0 | 95/95/95 | 1.8 - 2.5 | 118.0 | 115.0 | 61.0 - 78.0 | 54.0 - 67.5 | 0.2 - 1.0 | — | VOL8SM-LSK | — | |
| M90x1,5 | 20.0 | 106/106/106 | 2.0 - 3.5 | 118.0 | 126.0 | 75.0 - 89.0 | 65.0 - 77.5 | 0.3 - 1.0 | — | VOL8M-LSK | — | |
| M100x1,5 | 20.0 | 106/106/106 | 2.0 - 3.5 | 139.0 | 126.0 | 75.0 - 89.0 | 65.0 - 77.5 | 0.3 - 1.0 | — | VOL9SM-LSK | — | |
| M100x1,5 | 20.0 | 127/127/127 | 2.5 - 4.0 | 139.0 | 134.0 | 88.0 - 104.0 | 76.0 - 91.5 | 0.3 - 1.0 | — | VOL9M-LSK | — |
