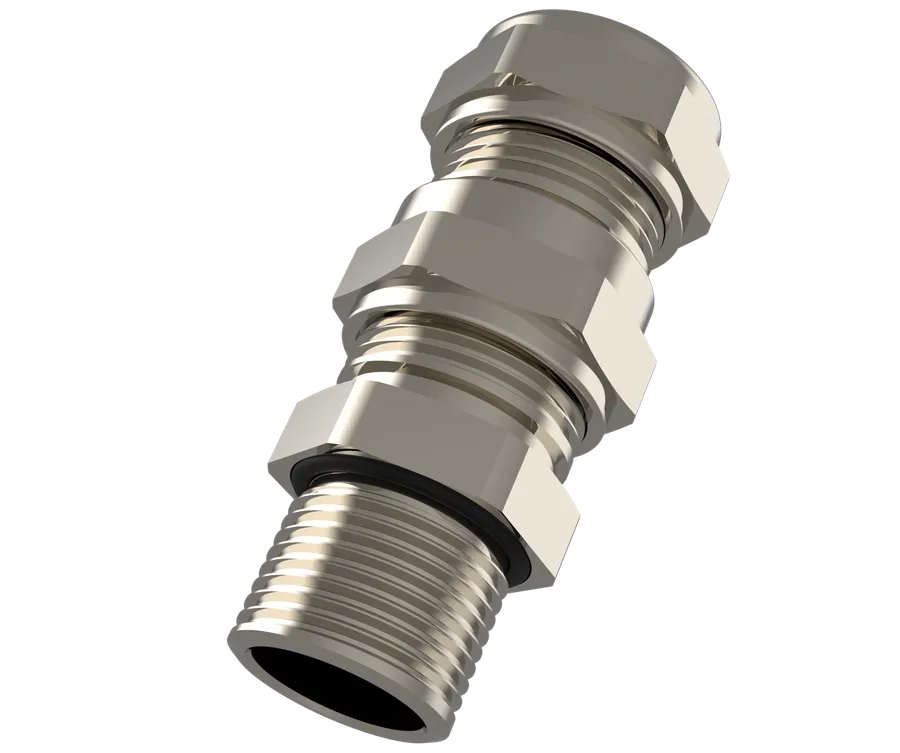

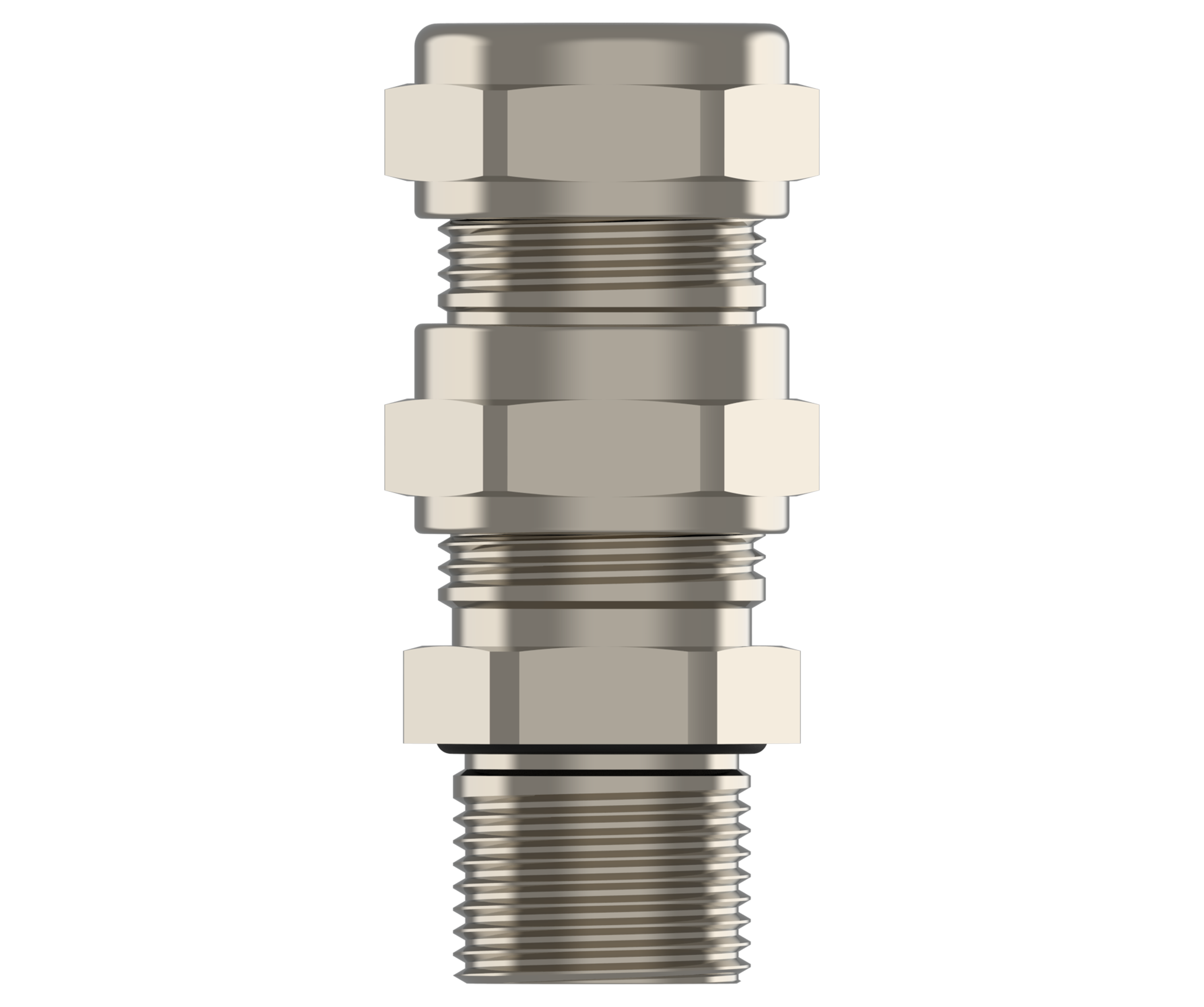

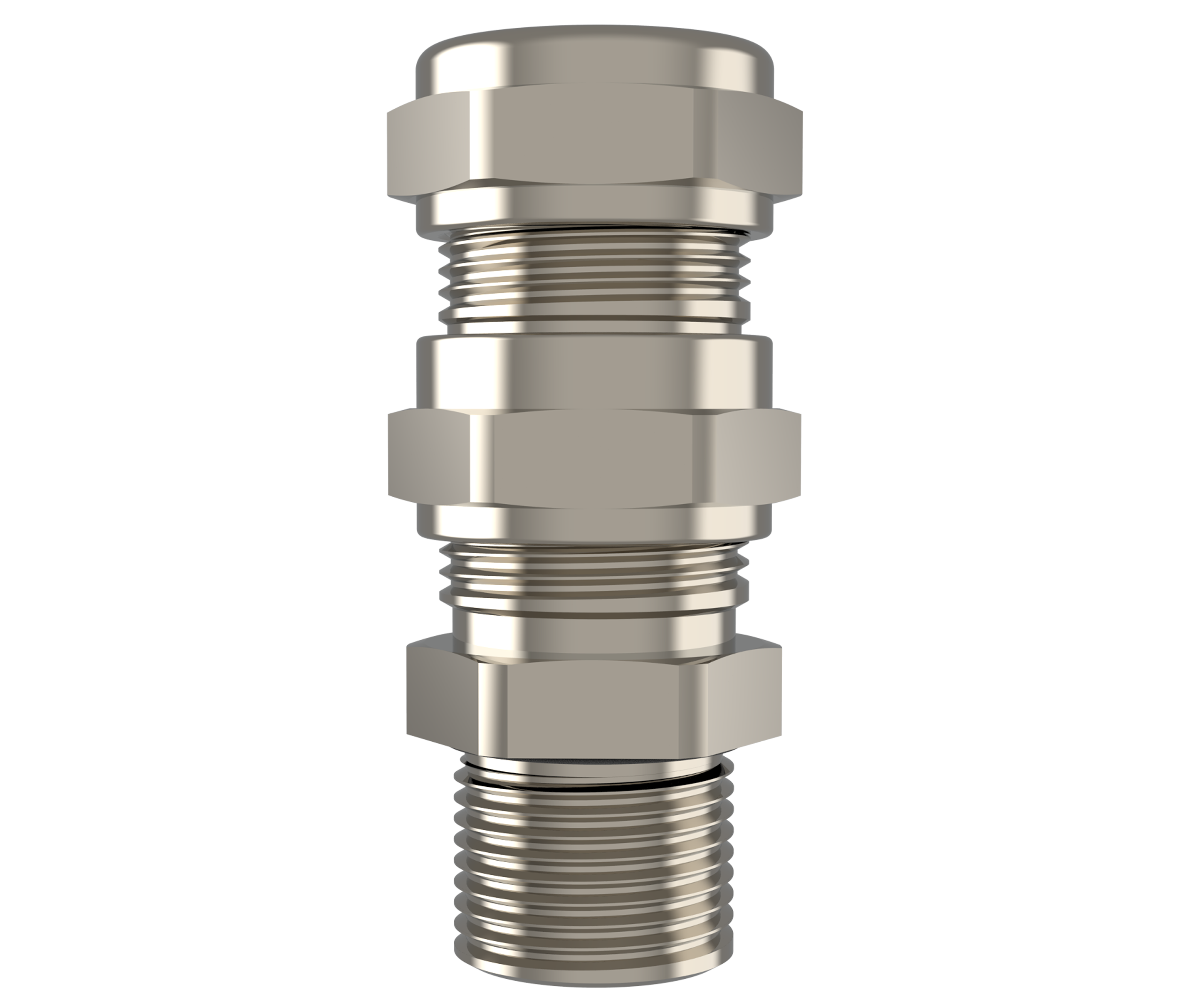

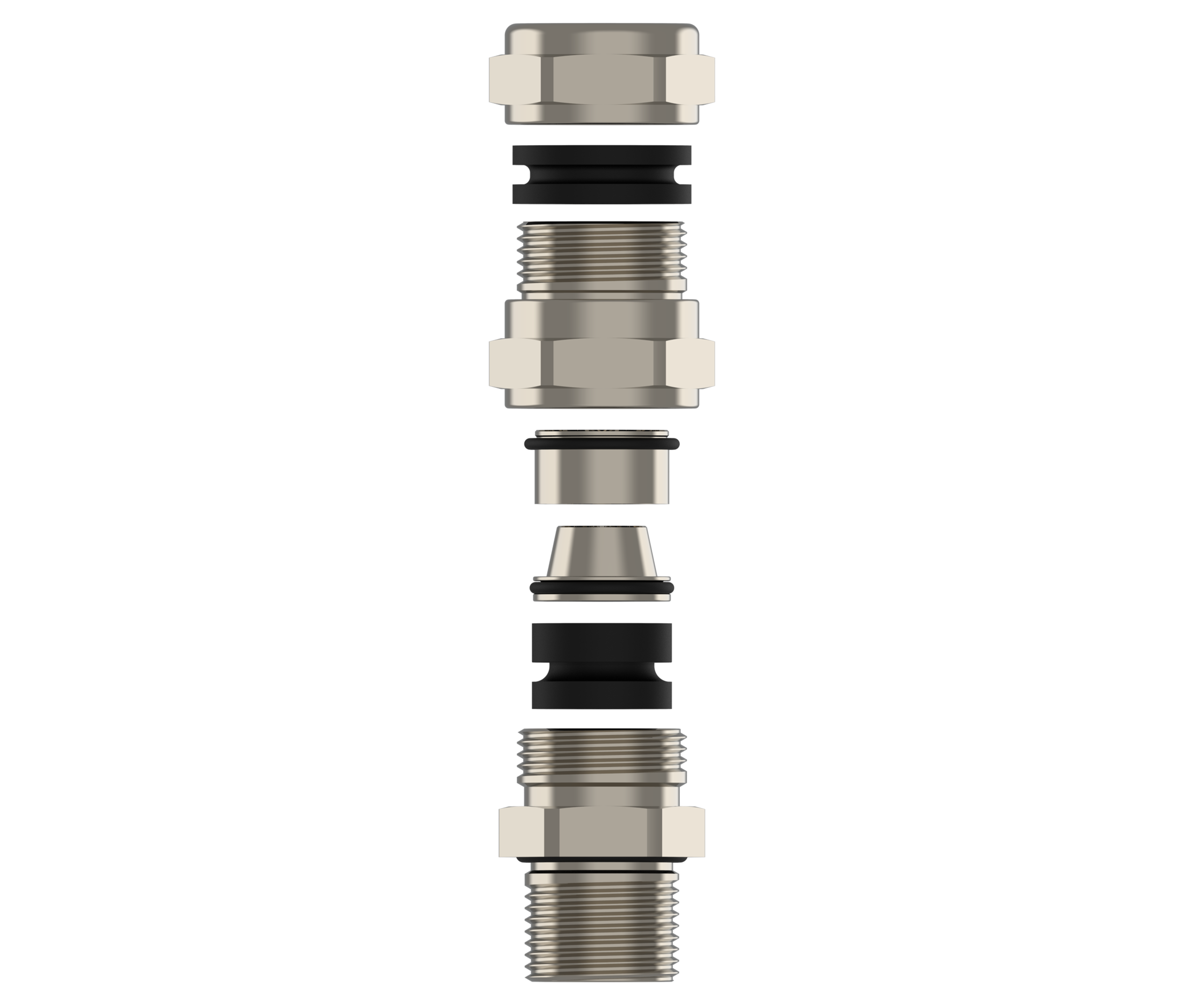

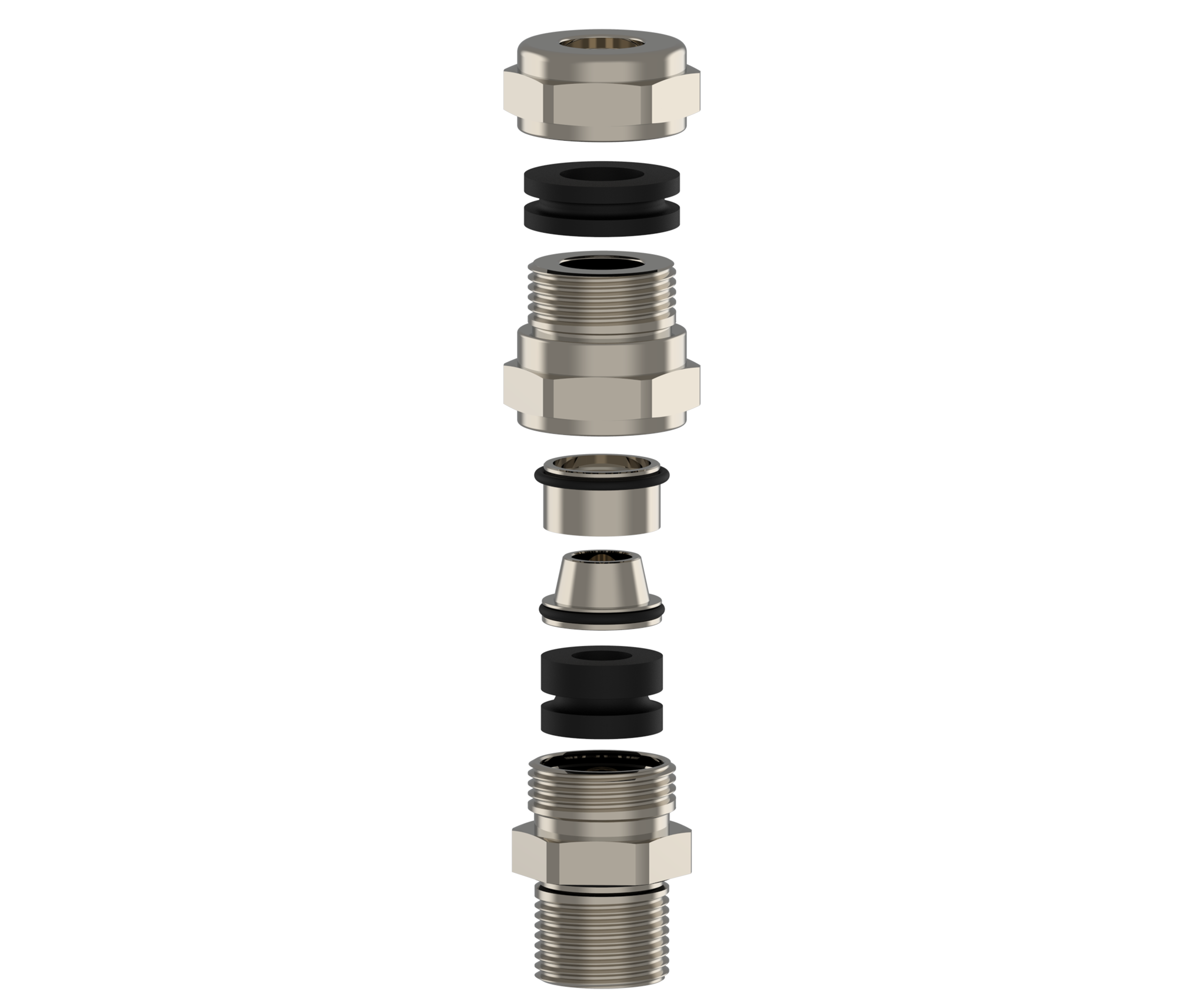

○Ex-kabelnippel med dobbel-kompresjonsprinsipp for offshore-bruk, med eksplosjonssikker tetning på indre kabelkappe og IP-/kabelsikrings-tetning på ytre kappe. ATEX- og IECEx-sertifisert i henhold til Ex eb, Ex db og Ex tb med EMC-kompatibilitet.

Spesifikasjoner

Gjengestørrelse	Gjengelengde	Nøkkelvidde	Diameter	Maks høyde 'H'	Outer Cable Ø	Inner Cable Ø	Shield Wire Ø	Varenummer	BIMED Kode	3D File	Datablad
M12x1,5	15	26/26/22	29	50.5	6,0 - 12,0	3,0 - 7,5	0,20 - 0,50	—	KBAO0SLM	—	PDF
M16x1,5	16	26/26/22	29	49.5	6,0 - 12,0	3,0 - 8,5	0,20 - 0,50	—	KBAO01SM	—	PDF
M16x1,5	16	29/29/25	31.5	52	8,5 - 16,0	6,0 - 12,0	0,20 - 0,50	—	KBAO01M	—	PDF
M20x1,5	16	26/26/24	29	50	6,0 - 12,0	3,0 - 8,5	0,20 - 0,50	—	KBAO1SM	Get File	PDF
M20x1,5	16	29/29/25	31.5	51.5	8,5 - 16,0	6,0 - 12,0	0,20 - 0,50	—	KBAO1M	—	PDF
M20x1,5	16	32/30/28	35	54	12,0 - 20,0	8,5 - 14,5	0,20 - 0,50	—	KBAO1LM	—	PDF
M25x1,5	18	26/26/29	31.5	50	6,0 - 12,0	3,0 - 8,5	0,20 - 0,50	—	KBAO2XSM	—	PDF
M25x1,5	18	29/29/29	31.5	52.5	8,5 - 16,0	6,0 - 12,0	0,20 - 0,50	—	KBAO2SM	—	PDF
M25x1,5	18	34/34/32	37	56.5	12,0 - 21,0	8,5 - 16,0	0,20 - 0,40	—	KBAO2M	—	PDF
M25x1,5	18	40/40/36	44	63	16,0 - 26,0	12,0 - 20,0	0,20 - 0,50	—	KBAO2LM	—	PDF
M32x1,5	18	29/29/36	39.8	52.5	8,5 - 16,0	6,0 - 12,0	0,20 - 0,50	—	KBAO3XSM	—	PDF
M32x1,5	18	40/40/40	44	64	16,0 - 26,0	12,0 - 20,0	0,20 - 0,50	—	KBAO3SM	—	PDF
M32x1,5	18	52/52/48	57	81	20,0 - 33,0	15,0 - 26,0	0,30 - 0,80	—	KBAO3M	—	PDF
M40x1,5	18	40/40/45	50	64	16,0 - 26,0	12,0 - 20,0	0,20 - 0,50	—	KBAO4XSM	—	PDF
M40x1,5	18	52/52/48	57	81	20,0 - 33,0	15,0 - 26,0	0,30 - 0,80	—	KBAO4SM	—	PDF
M40x1,5	18	60/60/55	66	92	29,0 - 41,0	20,0 - 32,0	0,15 - 0,75	—	KBAO4M	—	PDF
M50x1,5	18	75/70/60	83	100	33,0 - 48,0	22,0 - 35,0	0,25 - 0,90	—	KBAO5SM	—	PDF
M50x1,5	18	74/70/70	81.8	104.5	36,0 - 52,0	27,0 - 41,0	0,25 - 1,30	—	KBAO5M	—	PDF
M50x1,5	18	52/52/54	60	81	20,0 - 33,0	15,0 - 26,0	0,30 - 0,80	—	KBAO5XSM	—	PDF
M50x1,5	18	60/60/55	66	92	29,0 - 41,0	20,0 - 32,0	0,15 - 0,75	—	KBAO5XMM	—	PDF
M63x1,5	20	75/70/68	83	100	33,0 - 48,0	22,0 - 35,0	0,25 - 0,90	—	KBAO6XSM	—	PDF
M63x1,5	20	74/70/70	81.8	104.5	36,0 - 52,0	27,0 - 41,0	0,25 - 1,30	—	KBAO6XMM	—	PDF
M63x1,5	20	80/80/75	89.5	109.5	43,0 - 57,0	35,0 - 45,0	0,40 - 1,10	—	KBAO6SM	—	PDF
M63x1,5	20	85/85/85	94	111.5	47,0 - 60,0	40,0 - 52,0	0,30 - 1,30	—	KBAO6M	—	PDF
M75x1,5	20	80/80/85	94	109.5	43,0 - 57,0	35,0 - 45,0	0,40 - 1,10	—	KBAO7XSM	—	PDF
M75x1,5	20	85/85/85	94	111.5	47,0 - 60,0	40,0 - 52,0	0,30 - 1,30	—	KBAO7SM	—	PDF
M75x1,5	20	100/95/90	110.5	127.5	54,0 - 70,0	45,0 - 60,0	0,30 - 1,40	—	KBAO7M	—	PDF
M90x1,5	20	85/85/100	110.5	111.5	47,0 - 60,0	40,0 - 52,0	0,30 - 1,30	—	KBAO8XSM	—	PDF
M90x1,5	20	100/95/95	110.5	127.5	54,0 - 70,0	45,0 - 60,0	0,30 - 1,40	—	KBAO8SM	—	PDF
M90x1,5	20	115/115/110	127	158	63,0 - 80,0	60,0 - 72,0	0,30 - 3,30	—	KBAO8M	—	PDF
M110x1,5	20	100/95/120	128	127.5	54,0 - 70,0	45,0 - 60,0	0,30 - 1,40	—	KBAO10SM	—	PDF
M110x1,5	20	115/115/120	128	158	63,0 - 80,0	60,0 - 72,0	0,30 - 3,30	—	KBAO10M	—	PDF
