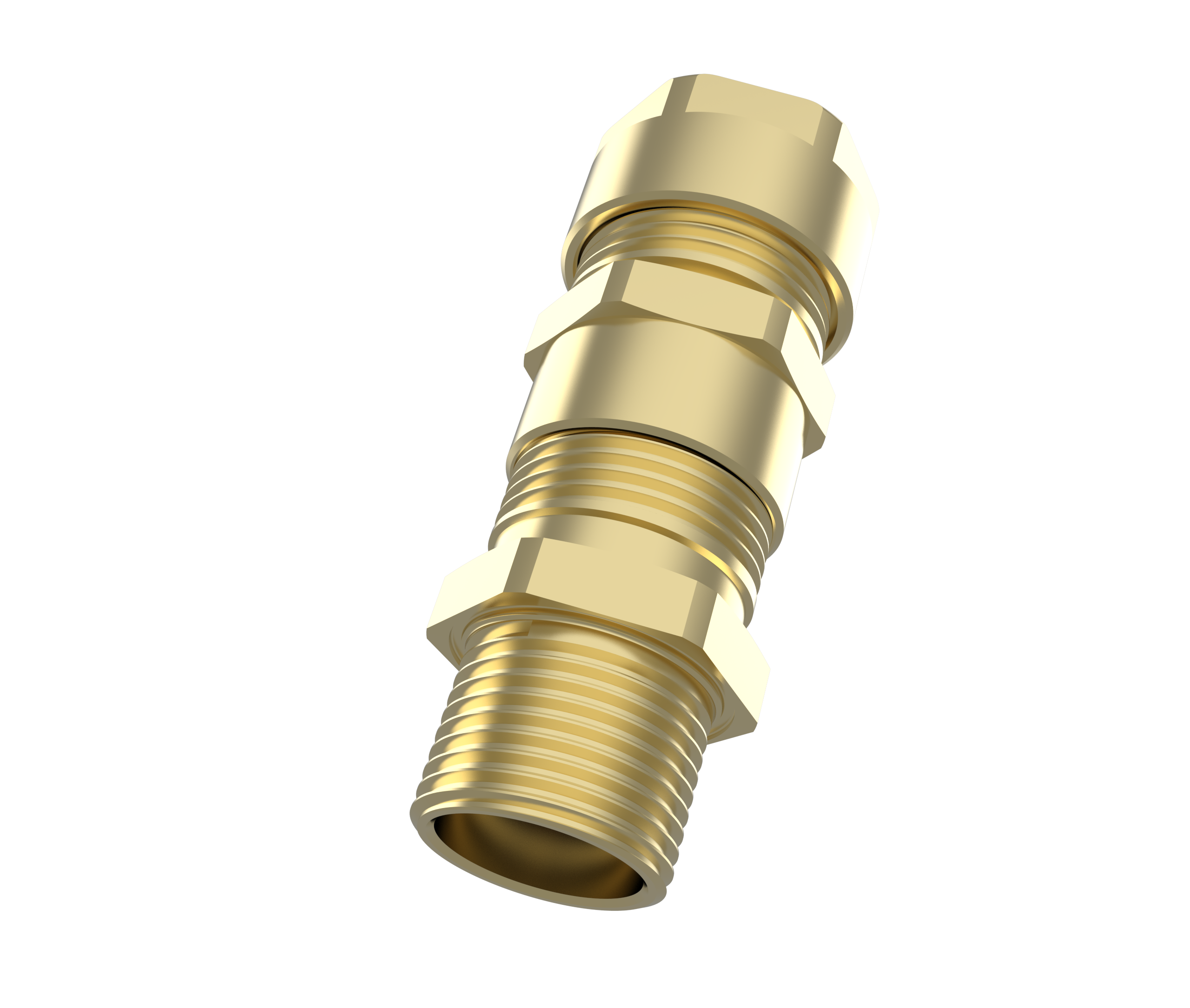

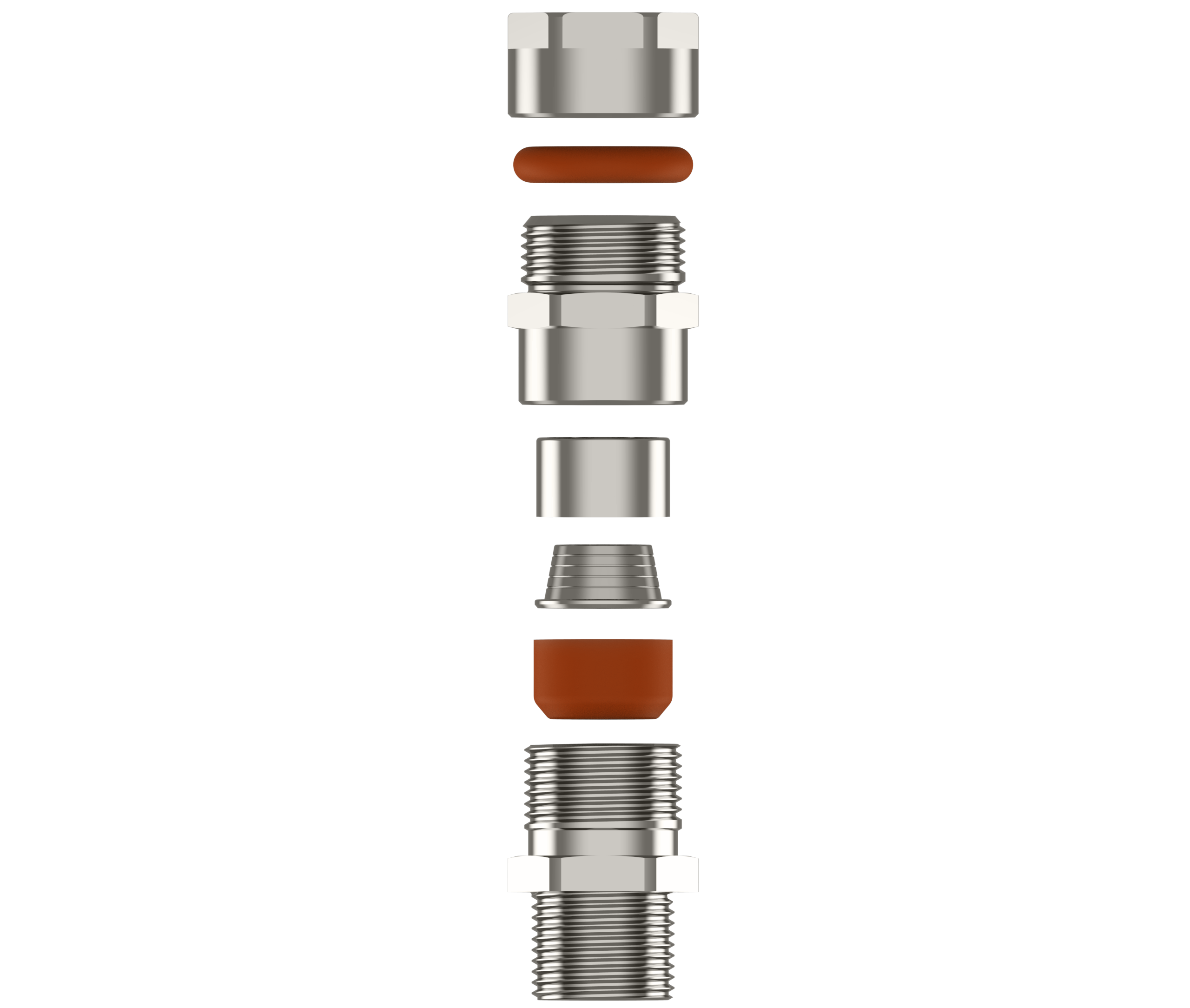

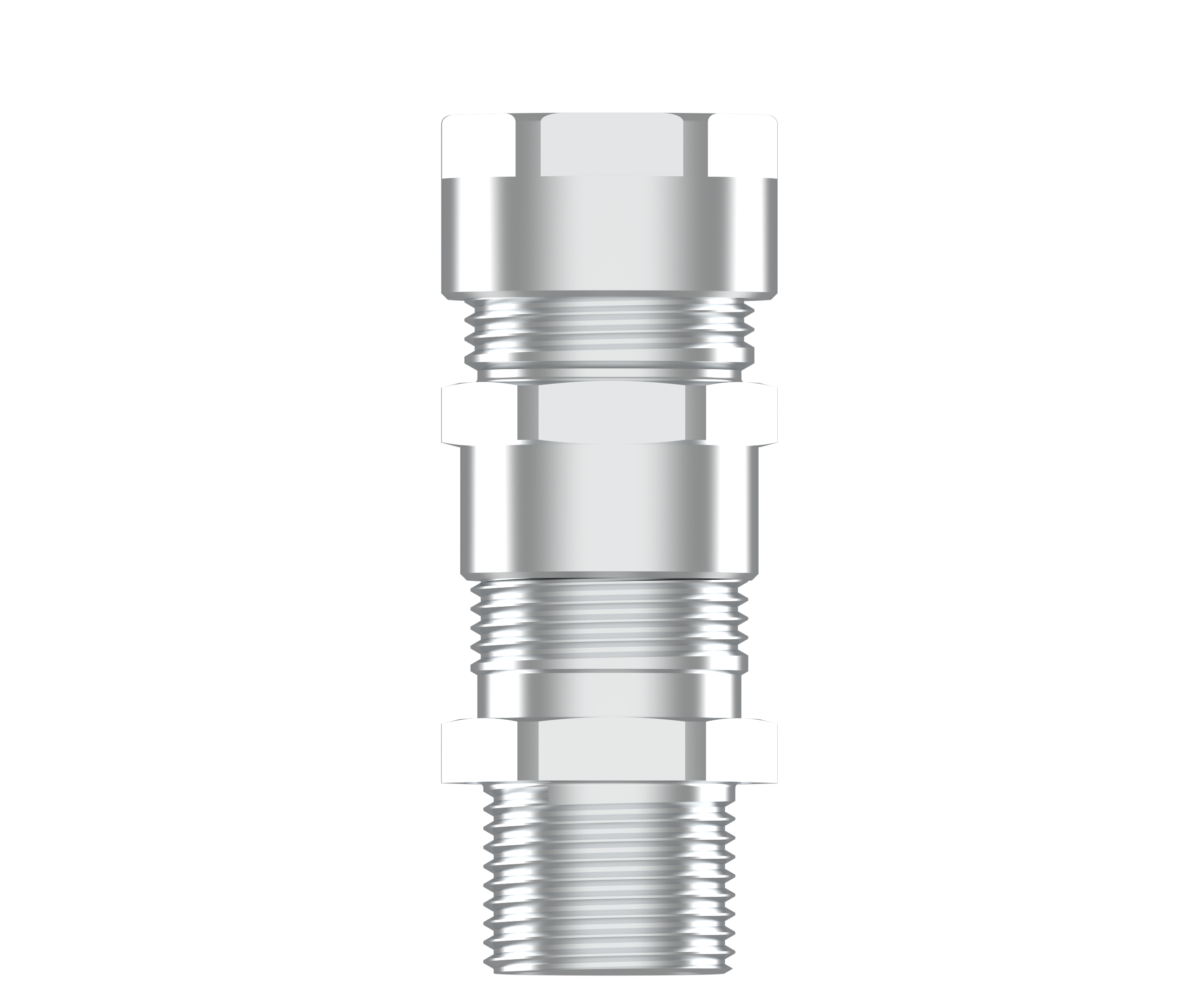

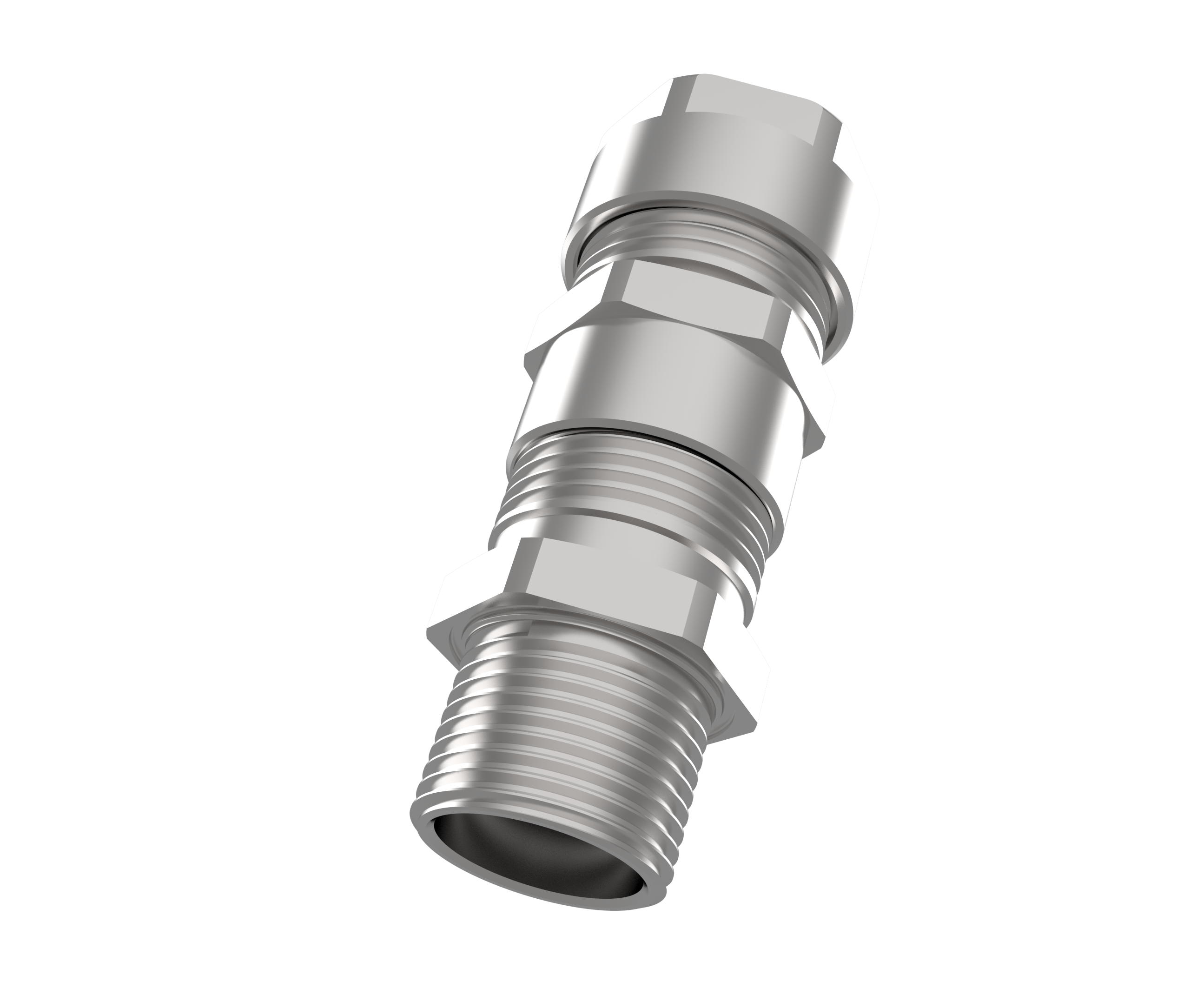

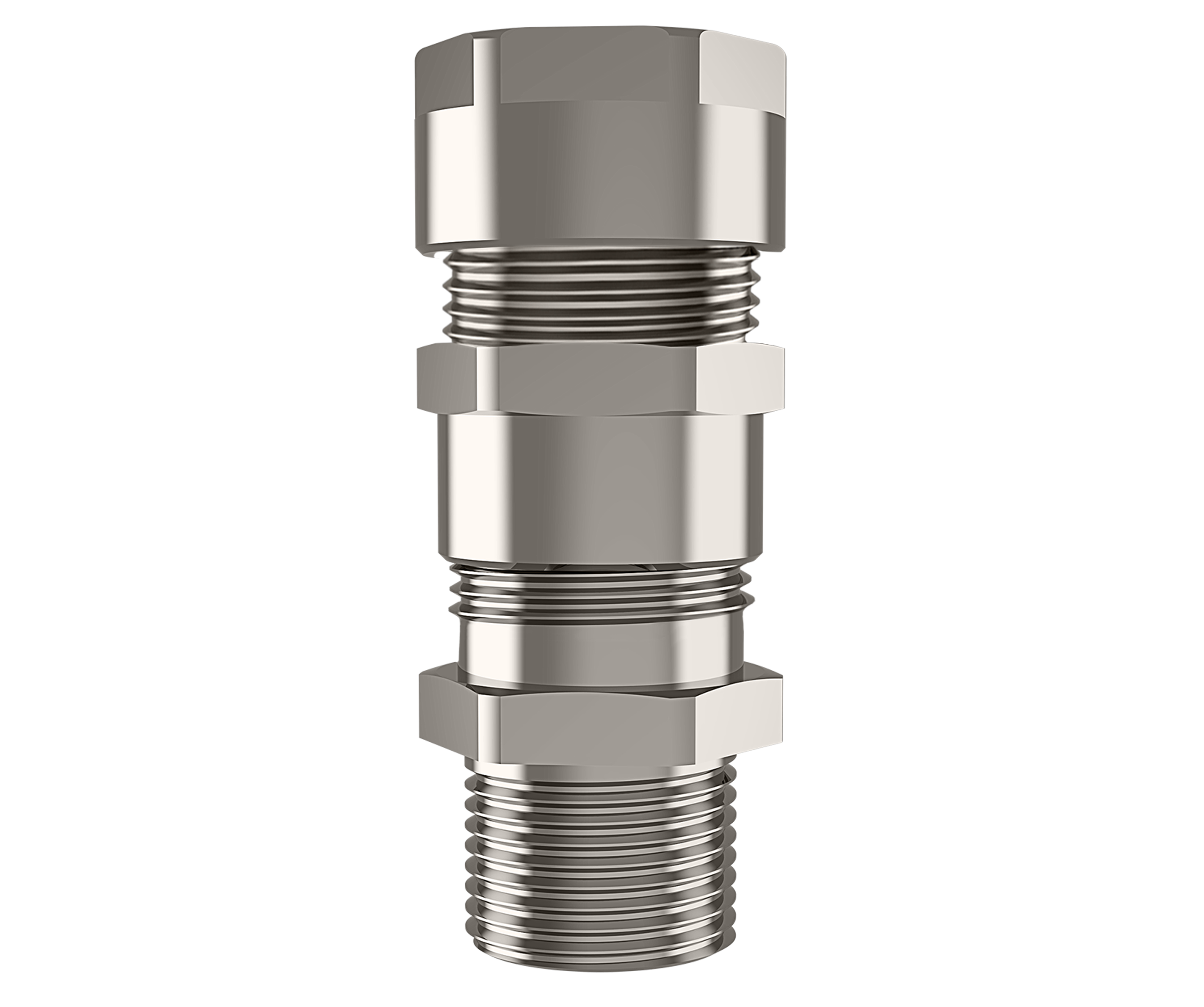

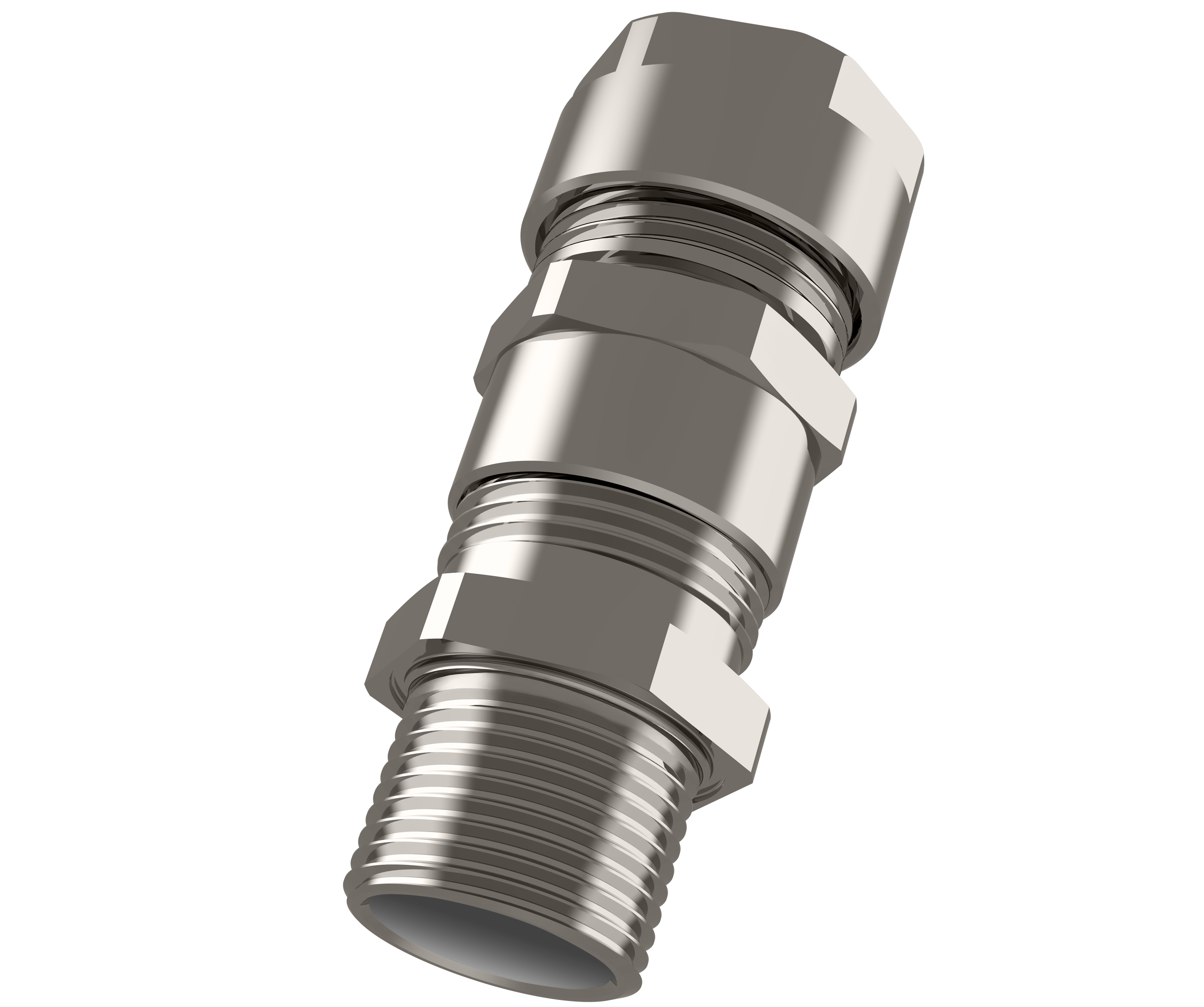

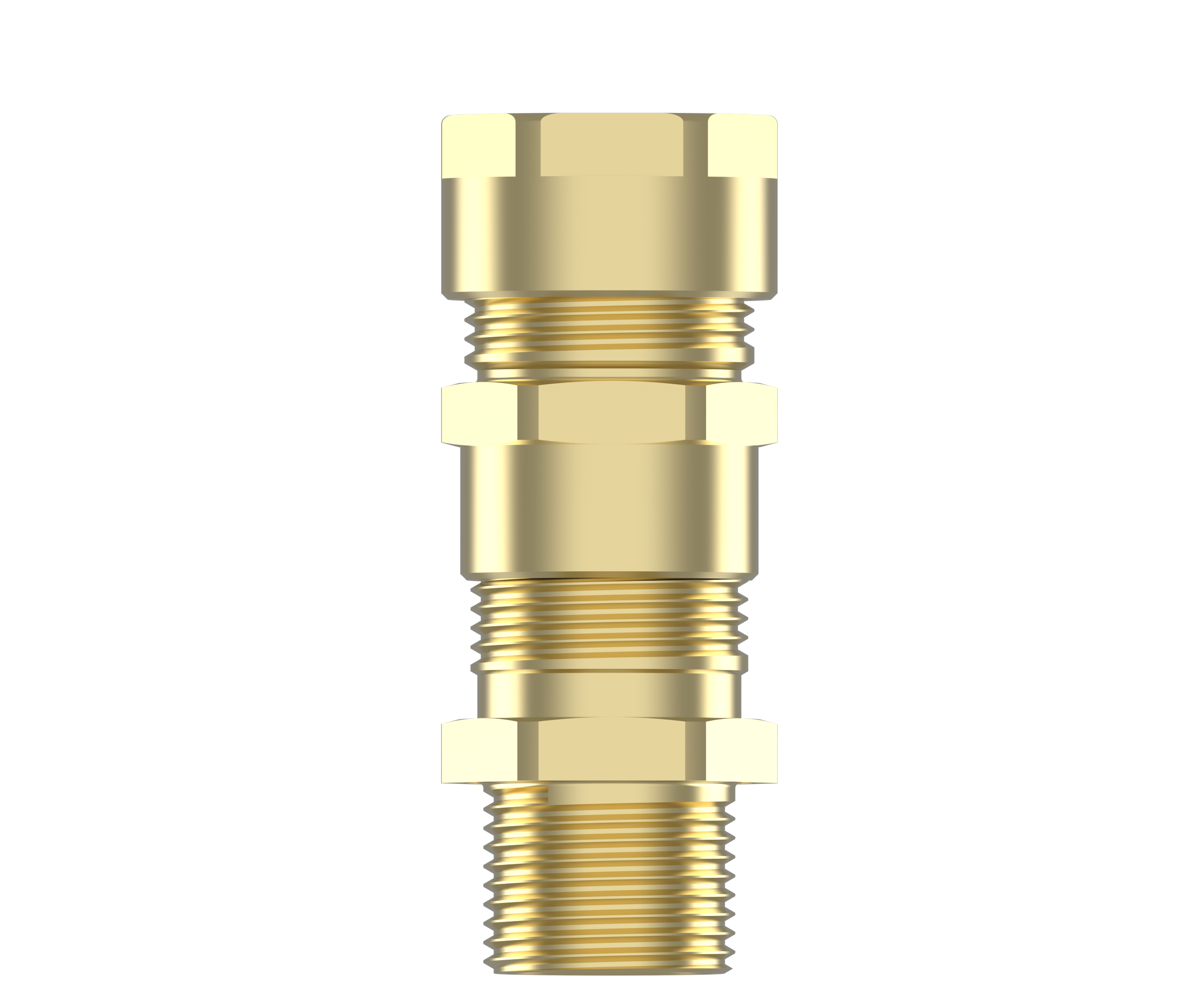

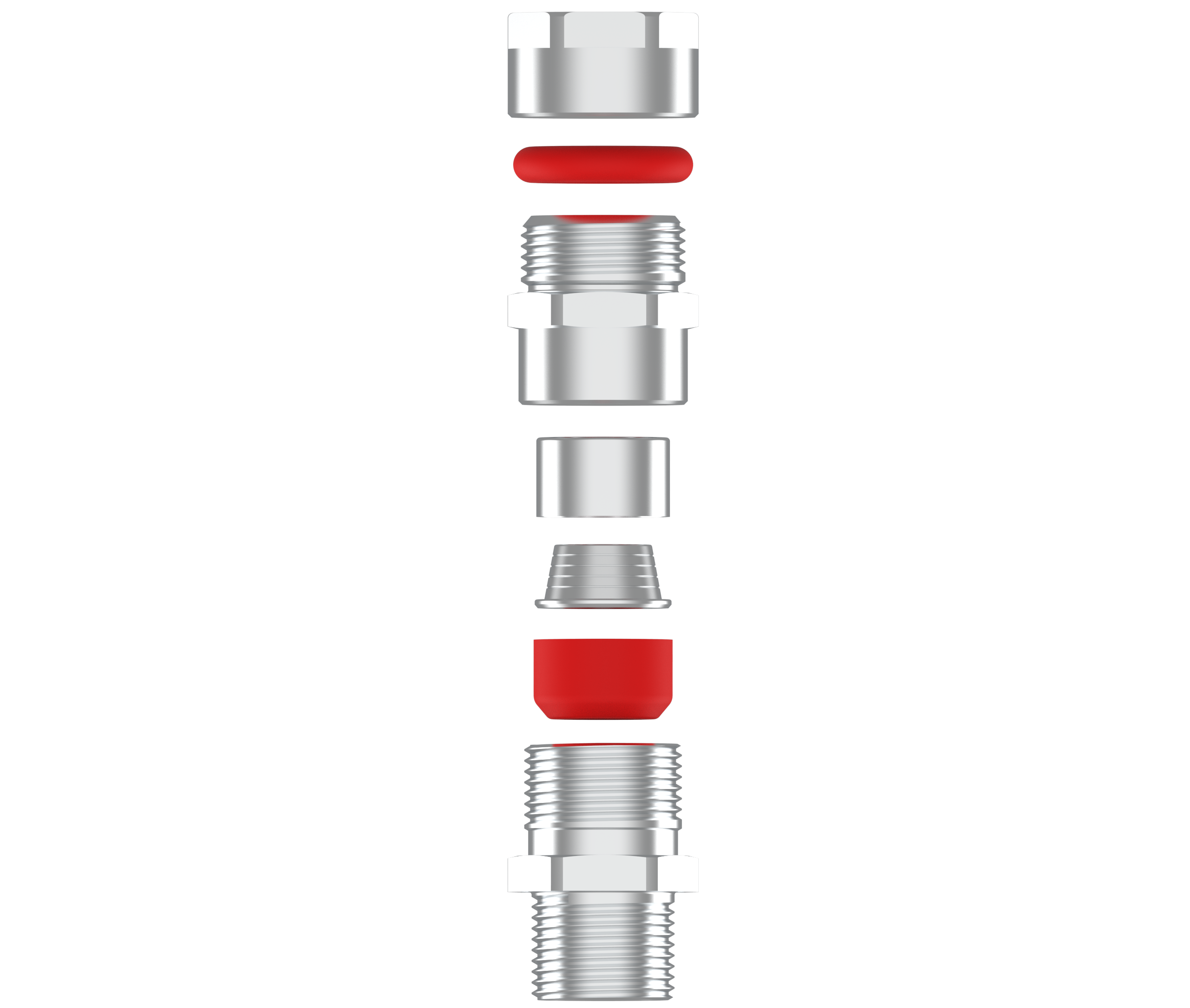

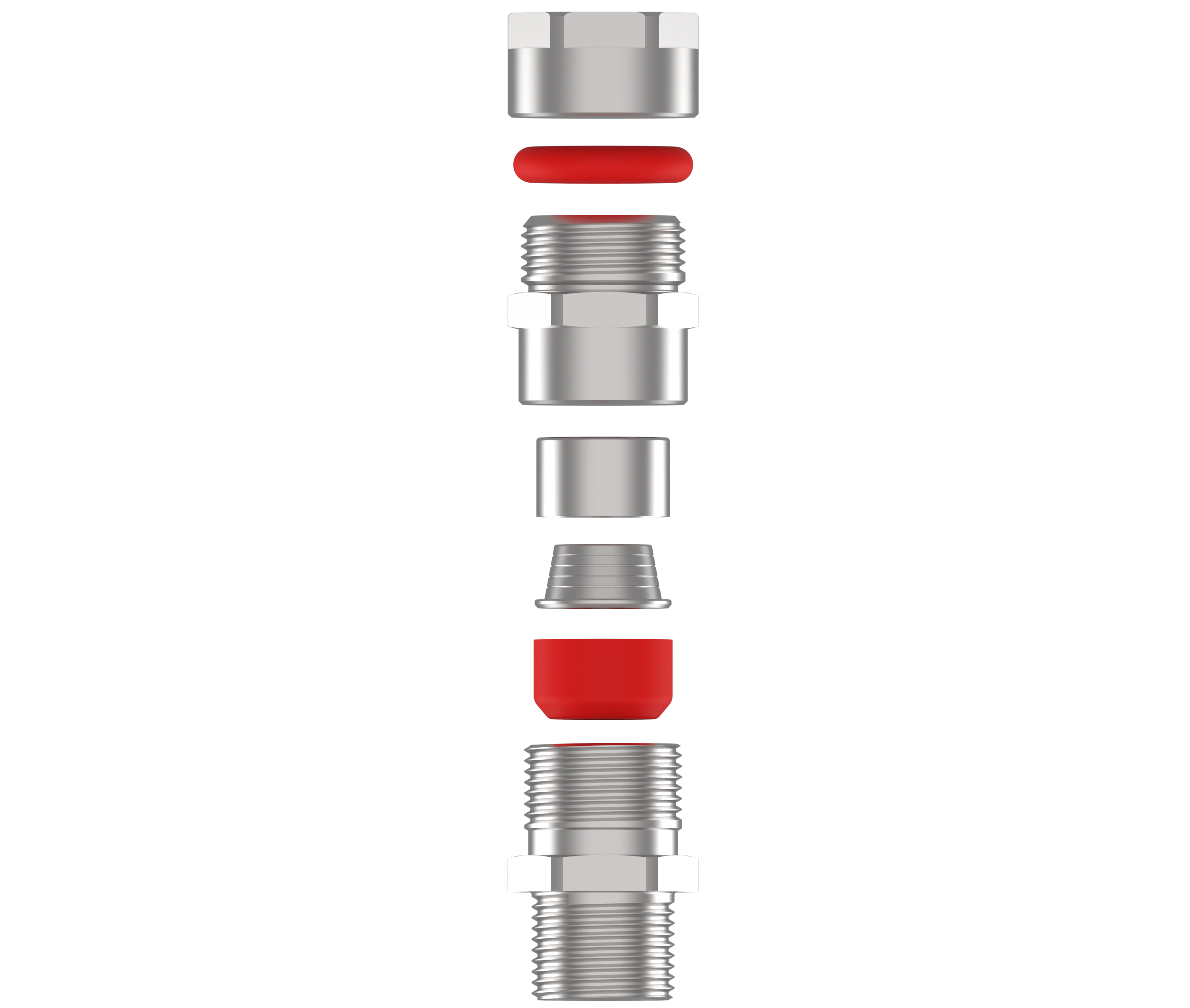

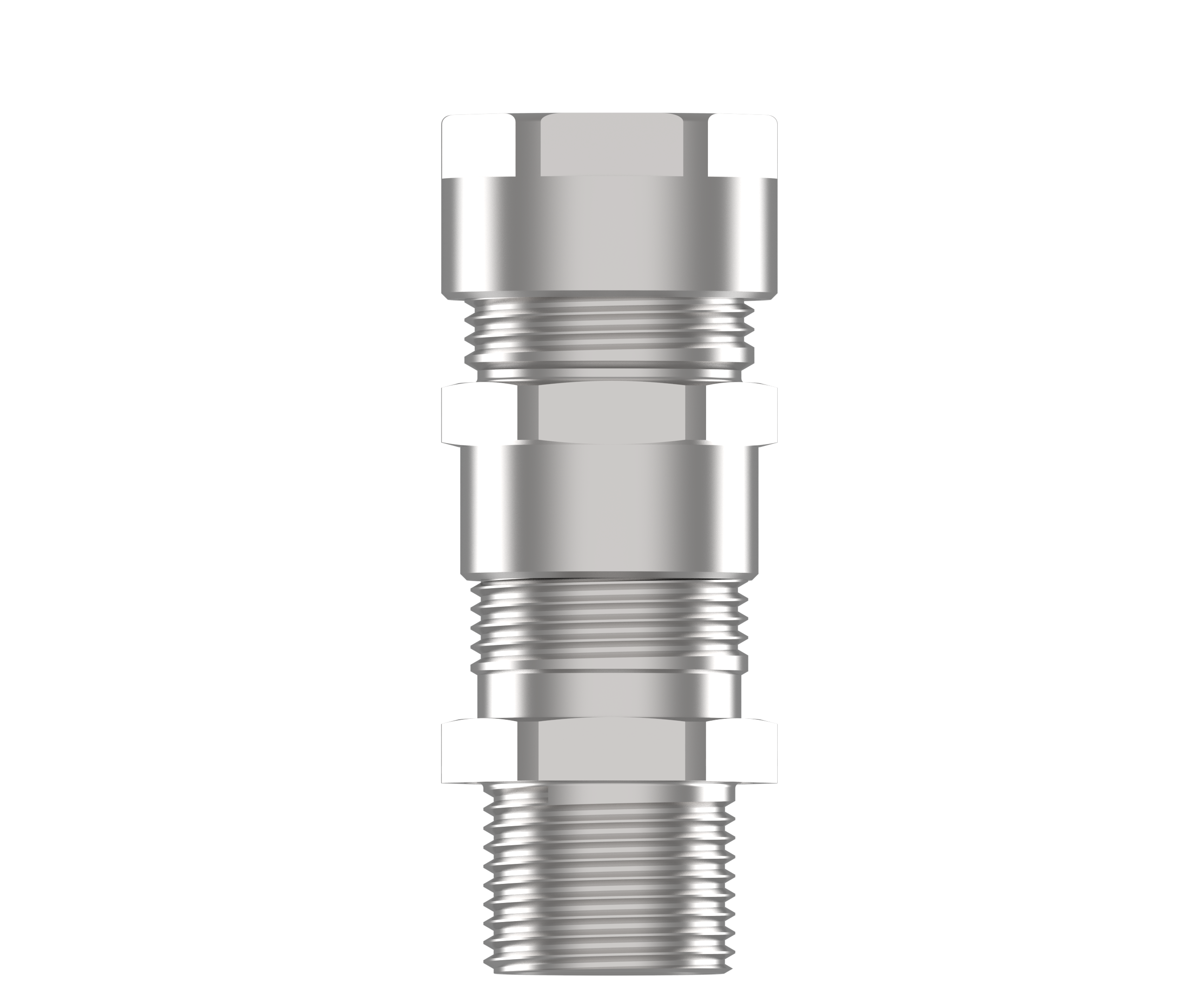

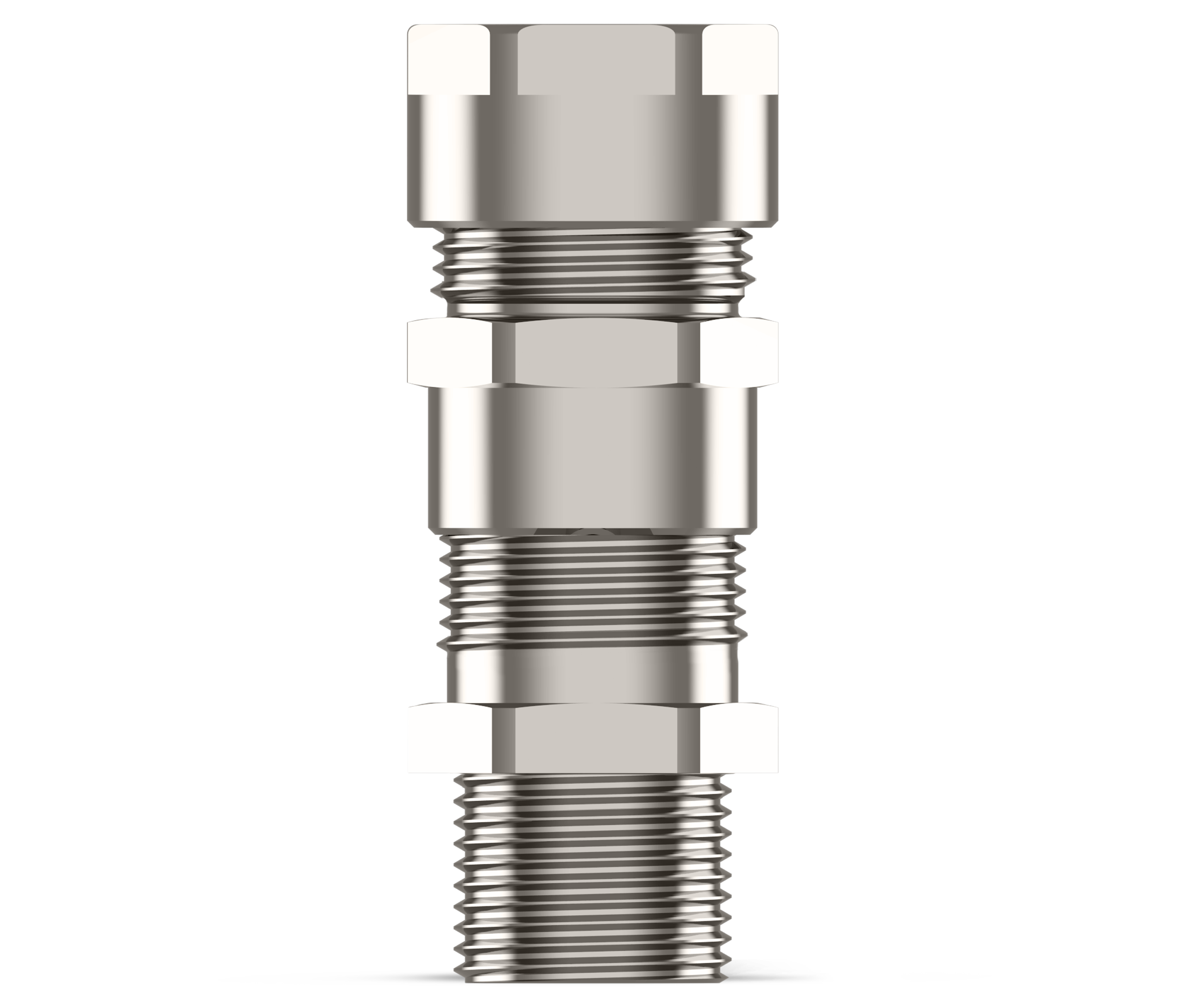

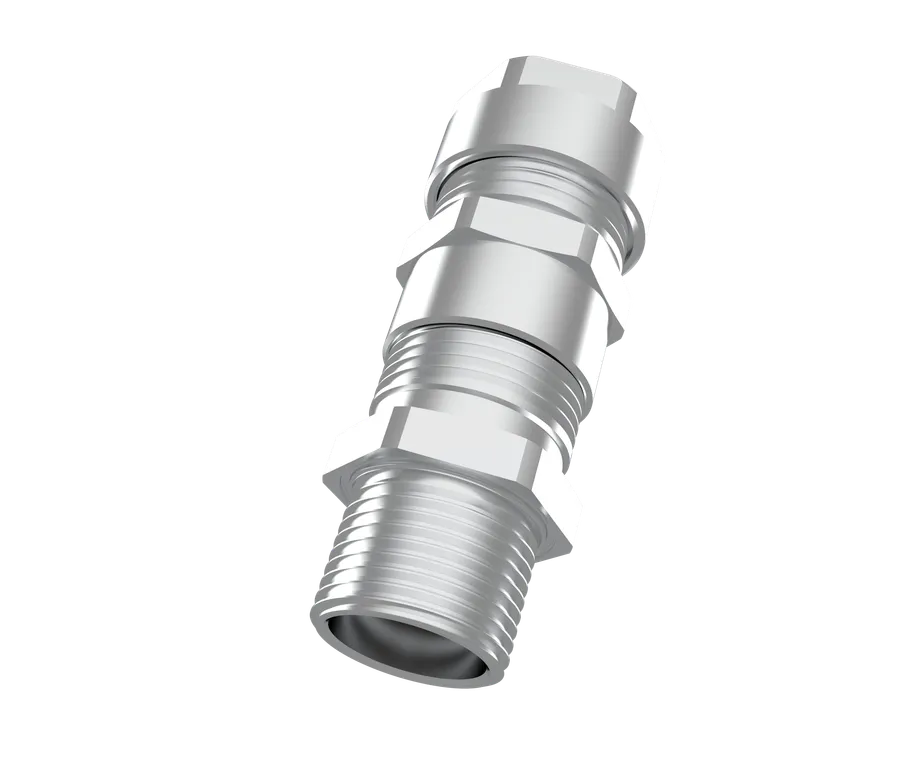

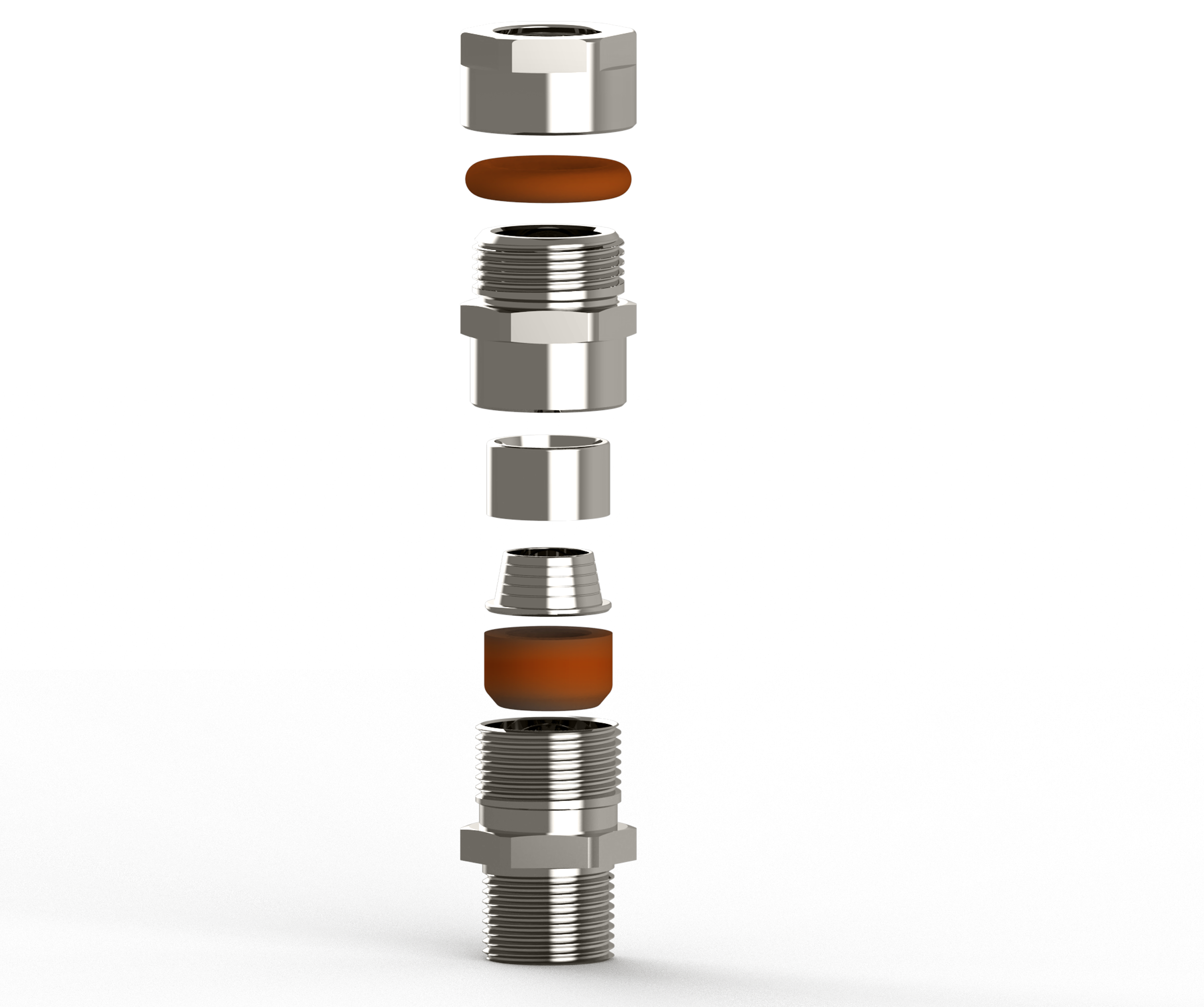

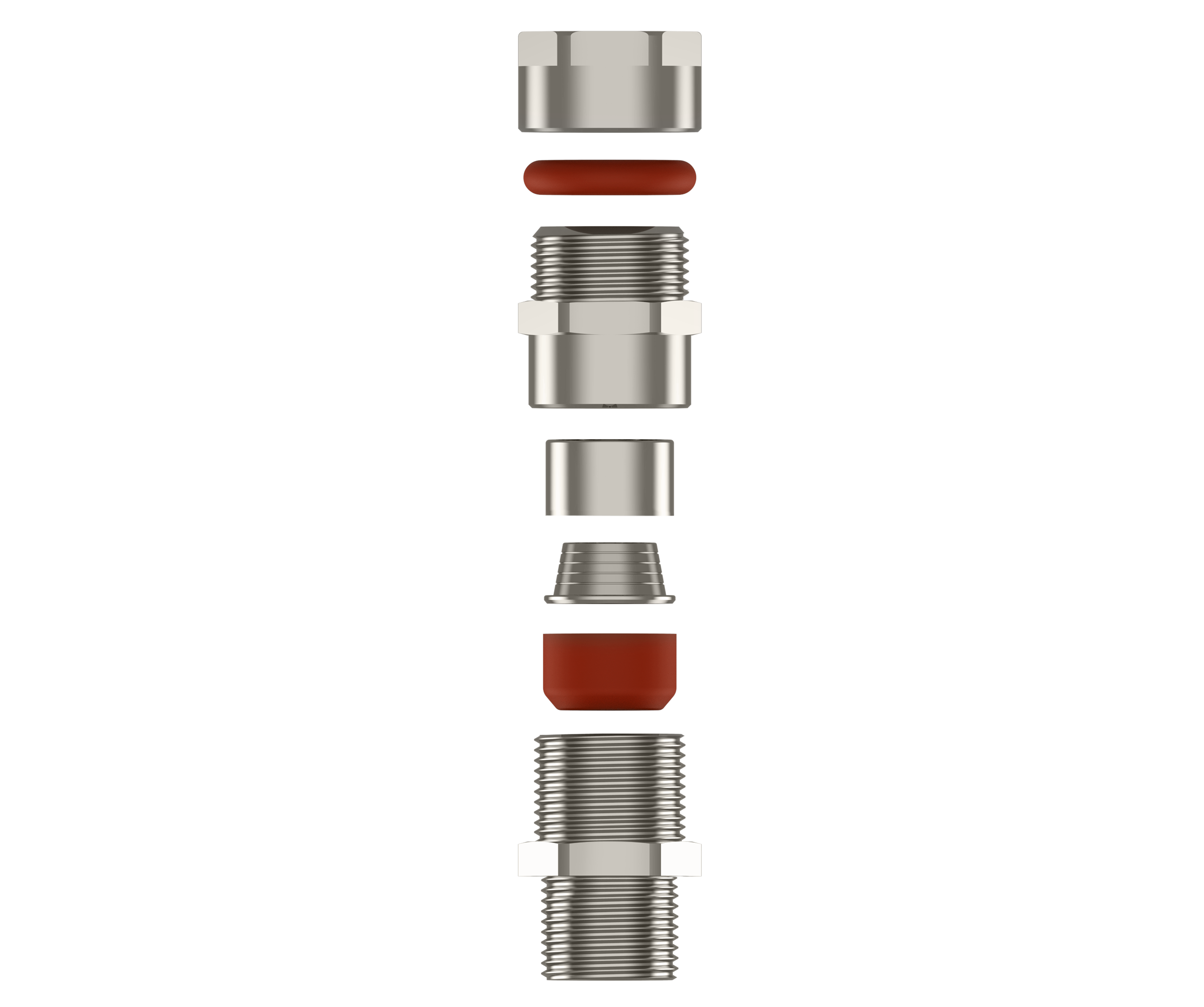

Volans
○Ex-kabelnippel med dobbel-kompresjonsprinsipp for alle typer armerte og flettede kabler, med eksplosjonssikker tetning på indre kabelkappe og IP-tetning på ytre kappe. ATEX- og IECEx-sertifisert i henhold til Ex eb, Ex db og Ex tb med EMC-kompatibilitet.
Spesifikasjoner

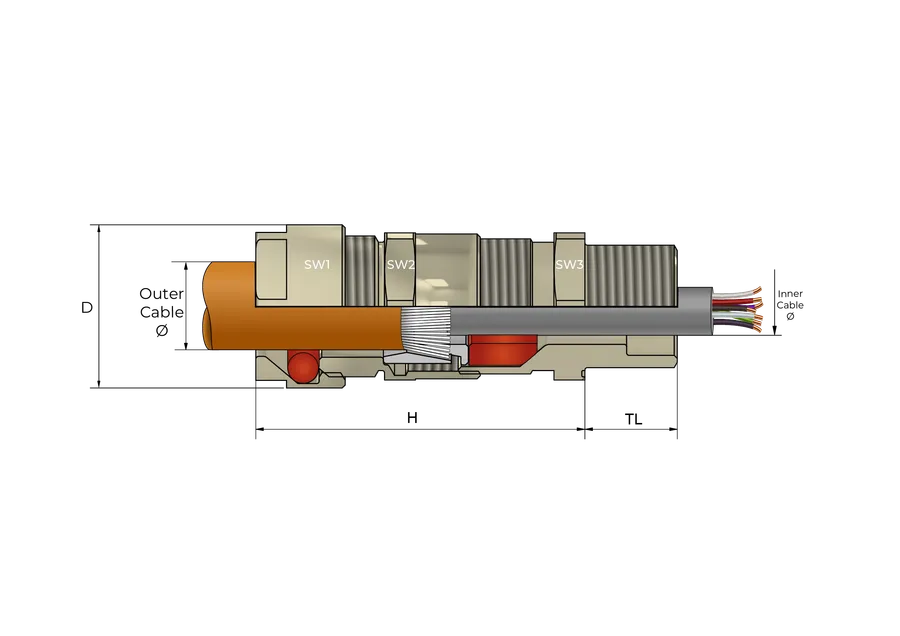

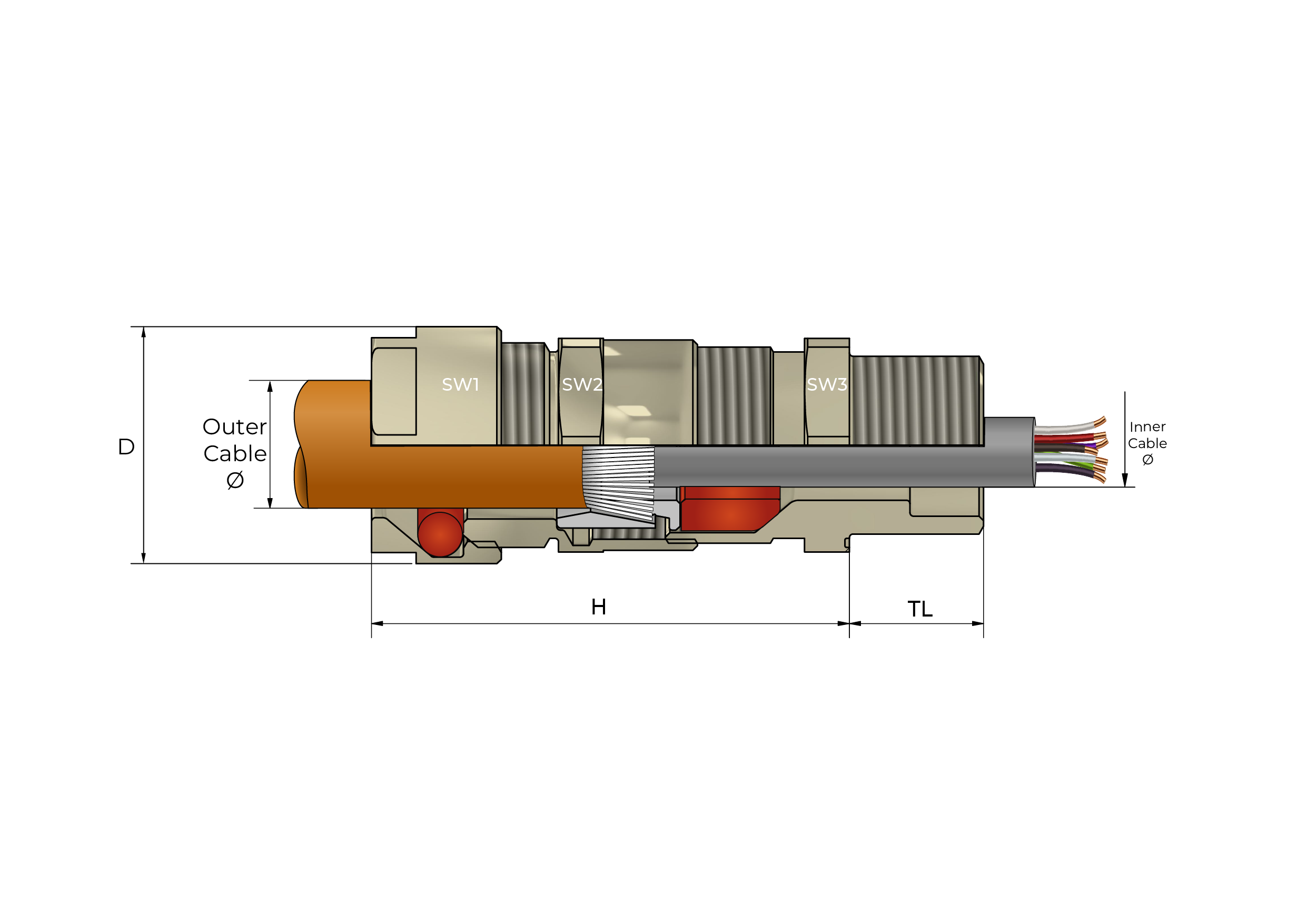

| Gjengestørrelse | Gjengelengde | Nøkkelvidde | Armour Wire Ø | Diameter | Maks høyde 'H' | Outer Cable Ø | Inner Cable Ø | Shield Wire Ø | Varenummer | BIMED Kode | 3D File |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 15 | 22/21/21 | 0,8 - 1,25 | 24 | 57 | 5,5 - 12,0 | 3,0 - 8,0 | 0,2 - 0,8 | — | VOL0SM | — |
| M16x1,5 | 15 | 22/21/24 | 0,8 - 1,25 | 26.5 | 57 | 5,5 - 12,0 | 3,0 - 8,0 | 0,2 - 0,8 | — | VOL01SM | — |
| M16x1,5 | 15 | 24/25/24 | 0,8 - 1,25 | 26.5 | 57 | 9,0 - 16,0 | 6,0 - 12,0 | 0,2 - 0,8 | — | VOL01M | — |
| M20x1,5 | 15 | 22/21/30 | 0,8 - 1,25 | 33 | 57 | 5,5 - 12,0 | 3,0 - 8,0 | 0,2 - 0,8 | — | VOL1XSM | — |
| M20x1,5 | 15 | 24/25/30 | 0,8 - 1,25 | 33 | 57 | 9,0 - 16,0 | 6,0 - 12,0 | 0,2 - 0,8 | — | VOL1SM | Get File |
| M20x1,5 | 15 | 30/30/30 | 0,8 - 1,25 | 33 | 60 | 12,0 - 20,0 | 6,0 - 14,0 | 0,2 - 0,8 | — | VOL1M | — |
| M25x1,5 | 15 | 24/25/36 | 0,8 - 1,25 | 39.8 | 57 | 9,0 - 16,0 | 6,0 - 12,0 | 0,2 - 0,8 | — | VOL2XSM | — |
| M25x1,5 | 15 | 30/30/36 | 0,8 - 1,25 | 39.8 | 60 | 12,0 - 20,0 | 6,0 - 14,0 | 0,2 - 0,8 | — | VOL2SM | — |
| M25x1,5 | 15 | 36/36/36 | 1,25 - 1,6 | 39.8 | 66 | 16,0 - 26,0 | 11,0 - 20,0 | 0,2 - 0,8 | — | VOL2M | — |
| M32x1,5 | 15 | 30/30/46 | 0,8 - 1,25 | 51 | 60 | 12,0 - 20,0 | 6,0 - 14,0 | 0,2 - 0,8 | — | VOL3XSM | — |
| M32x1,5 | 15 | 36/36/46 | 1,25 - 1,6 | 51 | 66 | 16,0 - 26,0 | 11,0 - 20,0 | 0,2 - 0,8 | — | VOL3SM | — |
| M32x1,5 | 15 | 46/46/46 | 1,6 - 2,0 | 51 | 76 | 20,0 - 33,0 | 16,0 - 26,5 | 0,2 - 0,8 | — | VOL3M | — |
| M40x1,5 | 15 | 36/36/55 | 1,25 - 1,6 | 62.5 | 66 | 16,0 - 26,0 | 11,0 - 20,0 | 0,2 - 0,8 | — | VOL4XSM | — |
| M40x1,5 | 15 | 46/46/55 | 1,6 - 2,0 | 62.5 | 76 | 20,0 - 33,0 | 16,0 - 26,5 | 0,2 - 0,8 | — | VOL4SM | — |
| M40x1,5 | 15 | 55/55/55 | 1,6 - 2,0 | 62.5 | 85 | 29,0 - 41,0 | 22,0 - 32,5 | 0,2 - 0,8 | — | VOL4M | — |
| M50x1,5 | 15 | 46/46/65 | 1,6 - 2,0 | 74.5 | 76 | 20,0 - 33,0 | 16,0 - 26,5 | 0,2 - 0,8 | — | VOL5XSM | — |
| M50x1,5 | 15 | 55/55/65 | 1,6 - 2,0 | 74.5 | 85 | 29,0 - 41,0 | 22,0 - 32,5 | 0,2 - 0,8 | — | VOL5SM | — |
| M50x1,5 | 15 | 65/65/65 | 1,8 - 2,5 | 74.5 | 100 | 36,0 - 52,0 | 29,0 - 44,0 | 0,2 - 1,0 | — | VOL5M | — |
| M63x1,5 | 15 | 55/55/80 | 1,6 - 2,0 | 91 | 85 | 29,0 - 41,0 | 22,0 - 32,5 | 0,2 - 0,8 | — | VOL6XSM | — |
| M63x1,5 | 15 | 65/65/80 | 1,8 - 2,5 | 91 | 100 | 36,0 - 52,0 | 29,0 - 44,0 | 0,2 - 1,0 | — | VOL6SM | — |
| M63x1,5 | 15 | 80/80/80 | 1,8 - 2,5 | 91 | 102 | 50,0 - 65,0 | 43,0 - 56,0 | 0,2 - 1,0 | — | VOL6M | — |
| M75x1,5 | 15 | 65/65/95 | 1,8 - 2,5 | 106 | 100 | 36,0 - 52,0 | 29,0 - 44,0 | 0,2 - 1,0 | — | VOL7XSM | — |
| M75x1,5 | 15 | 80/80/95 | 1,8 - 2,5 | 106 | 102 | 50,0 - 65,0 | 43,0 - 56,0 | 0,2 - 1,0 | — | VOL7SM | — |
| M75x1,5 | 15 | 95/95/95 | 1,8 - 2,5 | 106 | 115 | 61,0 - 78,0 | 54,0 - 68,0 | 0,2 - 1,0 | — | VOL7M | — |
| M80x1,5 | 20 | 80/80/106 | 1,8 - 2,5 | 118 | 102 | 50,0 - 65,0 | 43,0 - 56,0 | 0,2 - 1,0 | — | VOL80XSM | — |
| M80x1,5 | 20 | 95/95/106 | 1,8 - 2,5 | 118 | 115 | 61,0 - 78,0 | 54,0 - 68,0 | 0,2 - 1,0 | — | VOL80SM | — |
| M80x1,5 | 20 | 106/106/106 | 2,0 - 3,5 | 118 | 126 | 75,0 - 89,0 | 65,0 - 75,0 | 0,3 - 1,0 | — | VOL80M | — |
| M90x1,5 | 20 | 95/95/106 | 1,8 - 2,5 | 118 | 115 | 61,0 - 78,0 | 54,0 - 68,0 | 0,2 - 1,0 | — | VOL8SM | — |
| M90x1,5 | 20 | 106/106/106 | 2,0 - 3,5 | 118 | 126 | 75,0 - 89,0 | 65,0 - 78,0 | 0,3 - 1,0 | — | VOL8M | — |
| M100x1,5 | 20 | 106/106/127 | 2,0 - 3,5 | 139 | 126 | 75,0 - 89,0 | 65,0 - 78,0 | 0,3 - 1,0 | — | VOL9SM | — |
| M100x1,5 | 20 | 127/127/127 | 2,5 - 4,0 | 139 | 134 | 88,0 - 104,0 | 76,0 - 92,0 | 0,3 - 1,0 | — | VOL9M | — |
