Orion

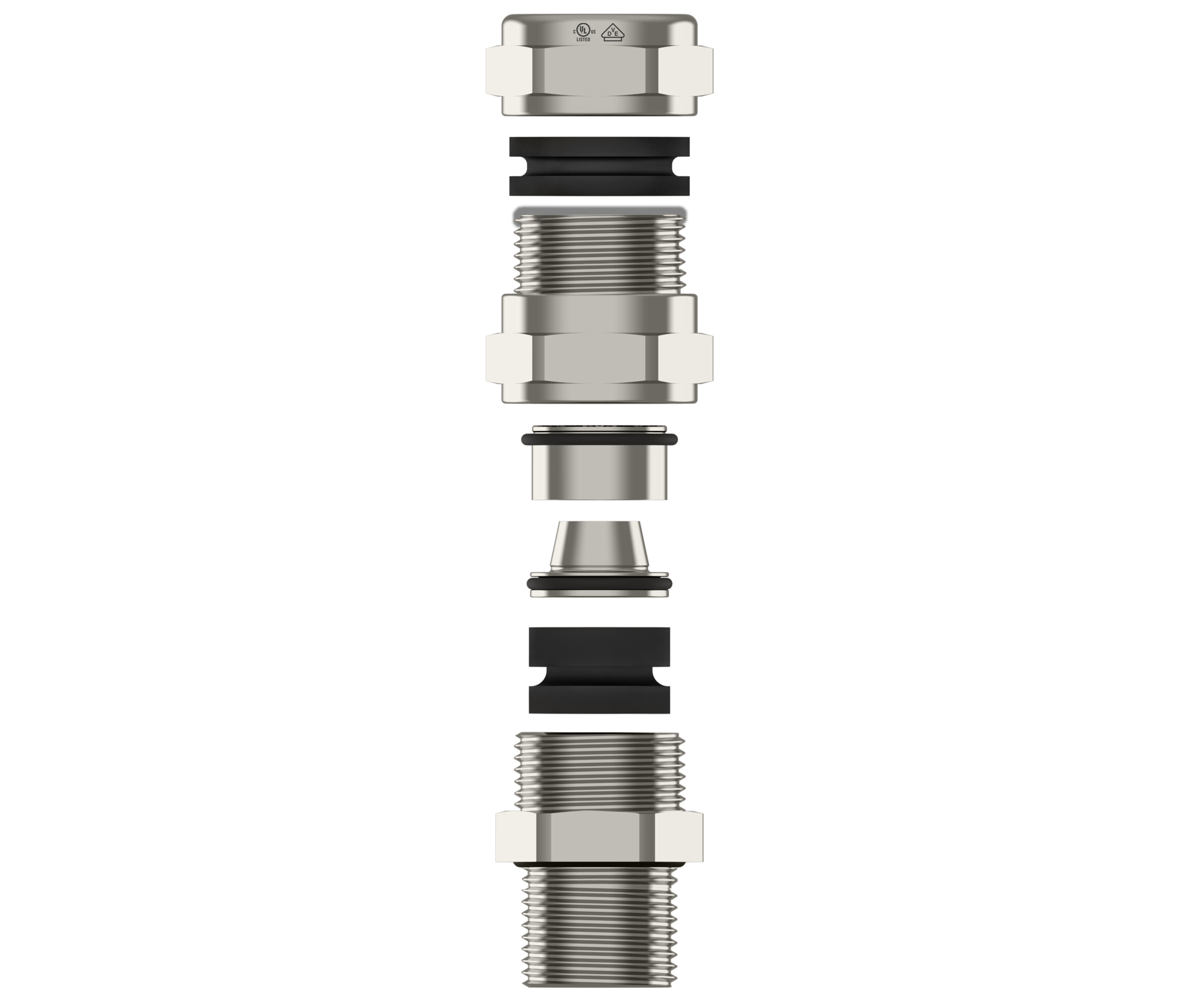

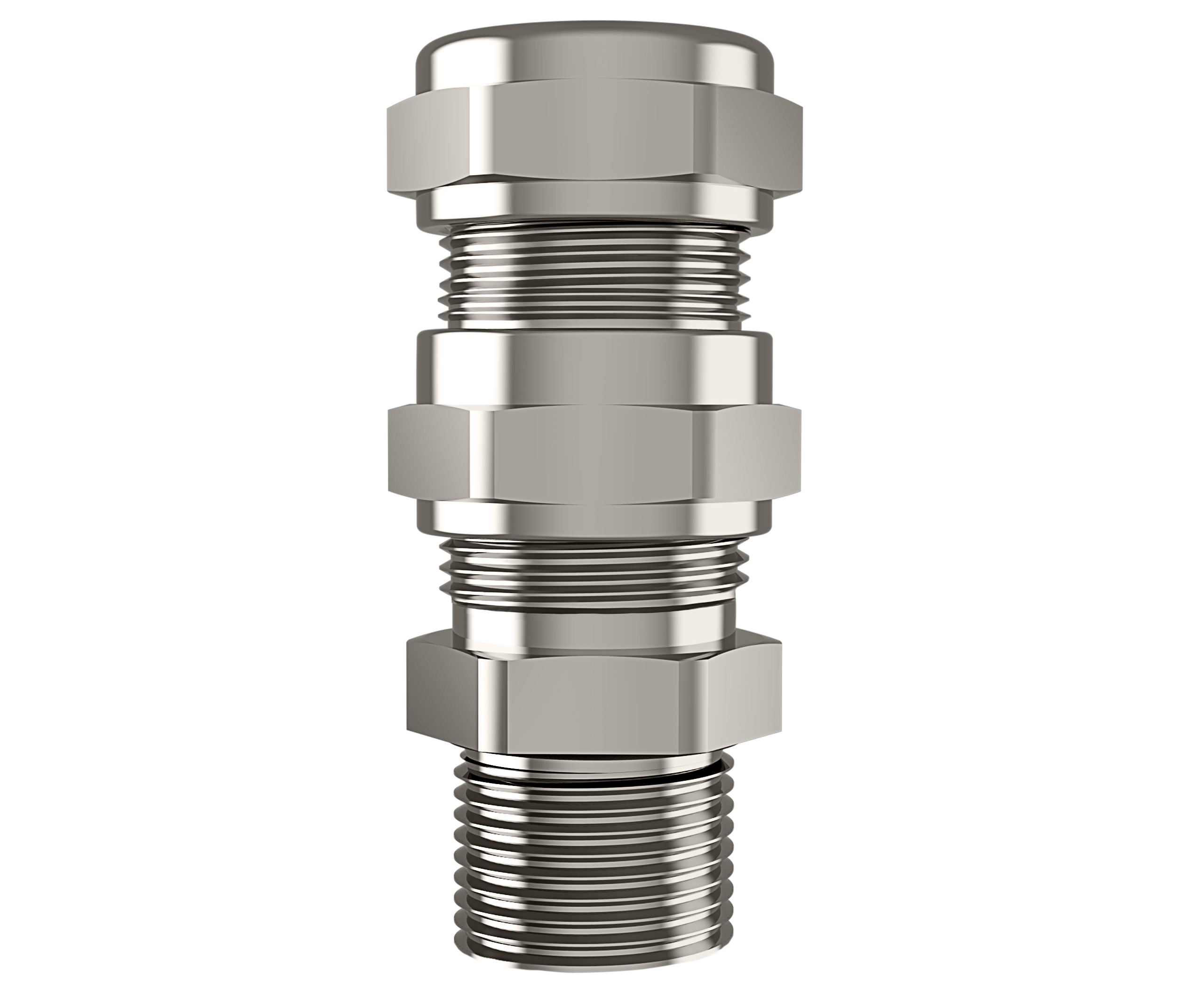

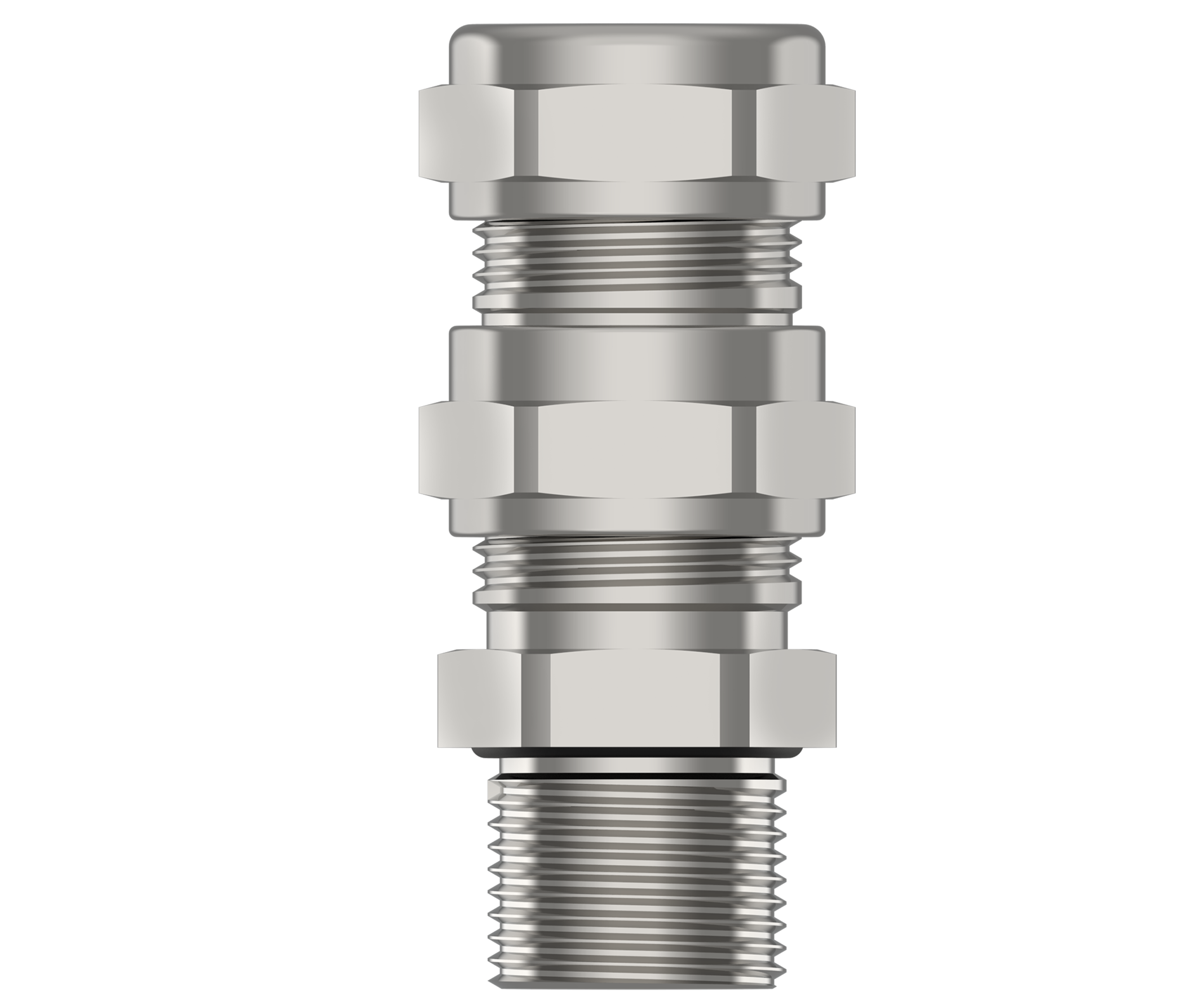

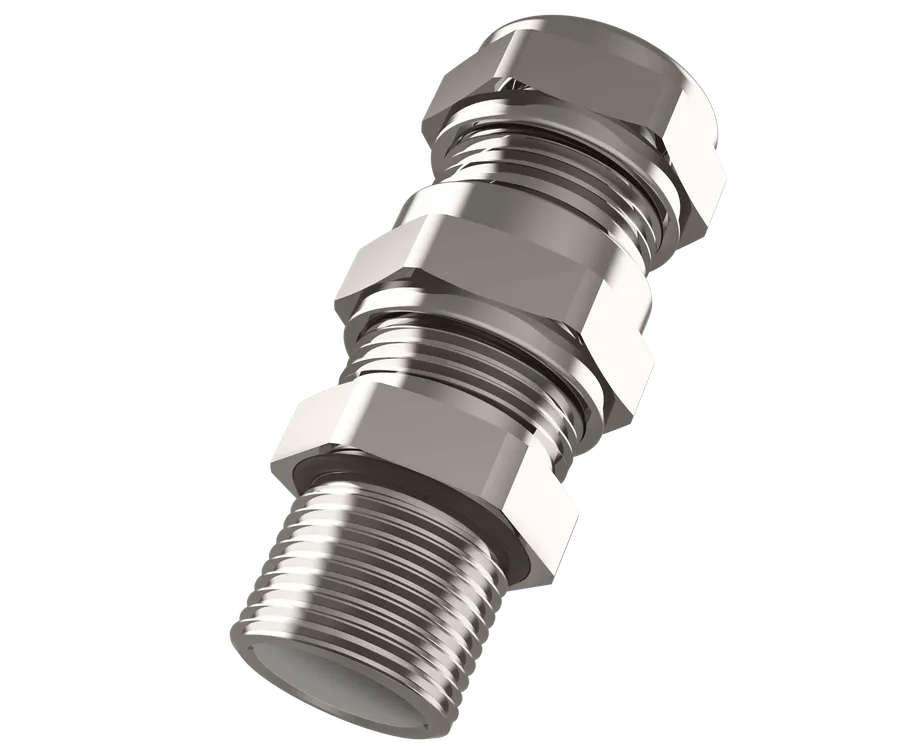

○Dobbeltettende Ex-kabelnippel for eksplosjonsfarlige områder (Gruppe I og II), egnet for armerte kabler (SWA, AWA)
○Exe, Exd og Ext-sertifisert (ATEX/IECEx) for sone 1/21 og sone 2/22; tilgjengelig i messing, nikkelbelagt messing, rustfritt stål eller aluminium.
Spesifikasjoner
| Gjengestørrelse | Gjengelengde | Nøkkelvidde | Armour Wire Ø | Diameter | Maks høyde 'H' | Outer Cable Ø | Inner Cable Ø | Varenummer | BIMED Kode | 3D File |
|---|---|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 15 | 17/17/17 | 0,10 - 0,40 | 18.9 | 62.5 | 3,0 - 5,5 | 2,0 - 4,0 | — | KBA0SM | — |
| M12x1,5 | 15 | 26/26/22 | 0,70 - 1,20 | 29 | 50.5 | 6,0 - 12,0 | 3,0 - 7,5 | — | KBA0SLM | — |
| M16x1,5 | 16 | 26/26/22 | 0,70 - 1,20 | 29 | 49.5 | 6,0 - 12,0 | 3,0 - 8,5 | — | KBA01SM | — |
| M16x1,5 | 16 | 29/29/25 | 0,70 - 1,25 | 31.5 | 52 | 8,5 - 16,0 | 6,0 - 12,0 | — | KBA01M | — |
| M20x1,5 | 16 | 26/26/24 | 0,70 - 1,20 | 29 | 50 | 6,0 - 12,0 | 3,0 - 8,5 | — | KBA1SM | Get File |
| M20x1,5 | 16 | 29/29/25 | 0,70 - 1,25 | 31.5 | 51.5 | 8,5 - 16,0 | 6,0 - 12,0 | — | KBA1M | — |
| M20x1,5 | 16 | 32/30/28 | 0,90 - 1,30 | 35 | 54 | 12,0 - 20,0 | 8,5 - 14,5 | — | KBA1LM | — |
| M25x1,5 | 18 | 26/26/29 | 0,70 - 1,20 | 31.5 | 50 | 6,0 - 12,0 | 3,0 - 8,5 | — | KBA2XSM | — |
| M25x1,5 | 18 | 29/29/29 | 0,70 - 1,25 | 31.5 | 52.5 | 8,5 - 16,0 | 6,0 - 12,0 | — | KBA2SM | — |
| M25x1,5 | 18 | 34/34/32 | 0,70 - 1,20 | 37 | 57 | 12,0 - 21,0 | 8,5 - 16,0 | — | KBA2M | — |
| M25x1,5 | 18 | 40/40/36 | 1,30 - 1,70 | 44 | 63 | 16,0 - 26,0 | 12,0 - 20,0 | — | KBA2LM | — |
| M32x1,5 | 18 | 29/29/36 | 0,70 - 1,25 | 39.8 | 52.5 | 8,5 - 16,0 | 6,0 - 12,0 | — | KBA3XSM | — |
| M32x1,5 | 18 | 40/40/40 | 1,30 - 1,70 | 44 | 64 | 16,0 - 26,0 | 12,0 - 20,0 | — | KBA3SM | — |
| M32x1,5 | 18 | 52/52/48 | 1,20 - 1,80 | 57 | 81 | 20,0 - 33,0 | 15,0 - 26,0 | — | KBA3M | — |
| M40x1,5 | 18 | 40/40/45 | 1,30 - 1,70 | 50 | 64 | 16,0 - 26,0 | 12,0 - 20,0 | — | KBA4XSM | — |
| M40x1,5 | 18 | 52/52/48 | 1,20 - 1,80 | 57 | 81 | 20,0 - 33,0 | 15,0 - 26,0 | — | KBA4SM | — |
| M40x1,5 | 18 | 60/60/55 | 1,60 - 2,20 | 66 | 92 | 29,0 - 41,0 | 20,0 - 32,0 | — | KBA4M | — |
| M50x1,5 | 18 | 52/52/54 | 1,20 - 1,80 | 60 | 81 | 20,0 - 33,0 | 15,0 - 26,0 | — | KBA5XSM | — |
| M50x1,5 | 18 | 60/60/55 | 1,60 - 2,20 | 66 | 92 | 29,0 - 41,0 | 20,0 - 32,0 | — | KBA5XMM | — |
| M50x1,5 | 18 | 75/70/60 | 2,00 - 2,80 | 83 | 100 | 33,0 - 48,0 | 22,0 - 35,0 | — | KBA5SM | — |
| M50x1,5 | 18 | 74/70/70 | 1,80 - 2,80 | 81.8 | 104.5 | 36,0 - 52,0 | 27,0 - 41,0 | — | KBA5M | — |
| M63x1,5 | 20 | 75/70/68 | 2,00 - 2,80 | 83 | 100 | 33,0 - 48,0 | 22,0 - 35,0 | — | KBA6XSM | — |
| M63x1,5 | 20 | 74/70/70 | 1,80 - 2,80 | 81.8 | 104.5 | 36,0 - 52,0 | 27,0 - 41,0 | — | KBA6XMM | — |
| M63x1,5 | 20 | 80/80/75 | 1,80 - 2,80 | 89.5 | 109.5 | 43,0 - 57,0 | 35,0 - 45,0 | — | KBA6SM | — |
| M63x1,5 | 20 | 85/85/85 | 1,80 - 2,80 | 94 | 111.5 | 47,0 - 60,0 | 40,0 - 52,0 | — | KBA6M | — |
| M63x1,5 | 20 | 100/95/90 | 1,30 - 2,50 | 110.5 | 128.5 | 54,0 - 70,0 | 45,0 - 56,0 | — | KBA6LM | — |
| M75x1,5 | 20 | 80/80/85 | 1,80 - 2,80 | 94 | 109.5 | 43,0 - 57,0 | 35,0 - 45,0 | — | KBA7XSM | — |
| M75x1,5 | 20 | 85/85/85 | 1,80 - 2,80 | 94 | 111.5 | 47,0 - 60,0 | 40,0 - 52,0 | — | KBA7SM | — |
| M75x1,5 | 20 | 100/95/90 | 1,00 - 2,30 | 110.5 | 127.5 | 54,0 - 70,0 | 45,0 - 60,0 | — | KBA7M | — |
| M90x1,5 | 20 | 85/85/100 | 1,80 - 2,80 | 110.5 | 111.5 | 47,0 - 60,0 | 40,0 - 52,0 | — | KBA8XSM | — |
| M90x1,5 | 20 | 100/95/95 | 1,00 - 2,30 | 110.5 | 127.5 | 54,0 - 70,0 | 45,0 - 60,0 | — | KBA8SM | — |
| M90x1,5 | 20 | 115/115/110 | 1,00 - 3,50 | 127 | 158 | 63,0 - 80,0 | 60,0 - 72,0 | — | KBA8M | — |
| M90x2,0 | 20 | 120/120/120 | 1,5 - 4,4 | 134 | 159.5 | 78,0 - 90,0 | 70,0 - 82,0 | — | KBA8LMLT | — |
| M100x2,0 | 20 | 135/135/135 | 1,2 - 4,0 | 150 | 169 | 88,0 - 100,0 | 80,0 - 92,0 | — | KBA9SMLT | — |
| M110x1,5 | 20 | 100/95/120 | 1,00 - 2,30 | 128 | 127.5 | 54,0 - 70,0 | 45,0 - 60,0 | — | KBA10SM | — |
| M110x1,5 | 20 | 115/115/120 | 1,00 - 3,50 | 128 | 158 | 63,0 - 80,0 | 60,0 - 72,0 | — | KBA10M | — |
| M110x2,0 | 20 | 145/145/145 | 2,1 - 5,4 | 162 | 180 | 98,0 - 110,0 | 90,0 - 101,0 | — | KBA10LMLT | — |
| M130x2,0 | 24 | 160/160/160 | 2,0 - 5,4 | 176 | 202 | 109,0 - 123,0 | 100,0 - 115,0 | — | KBA13MLT | — |
