Orion Universal

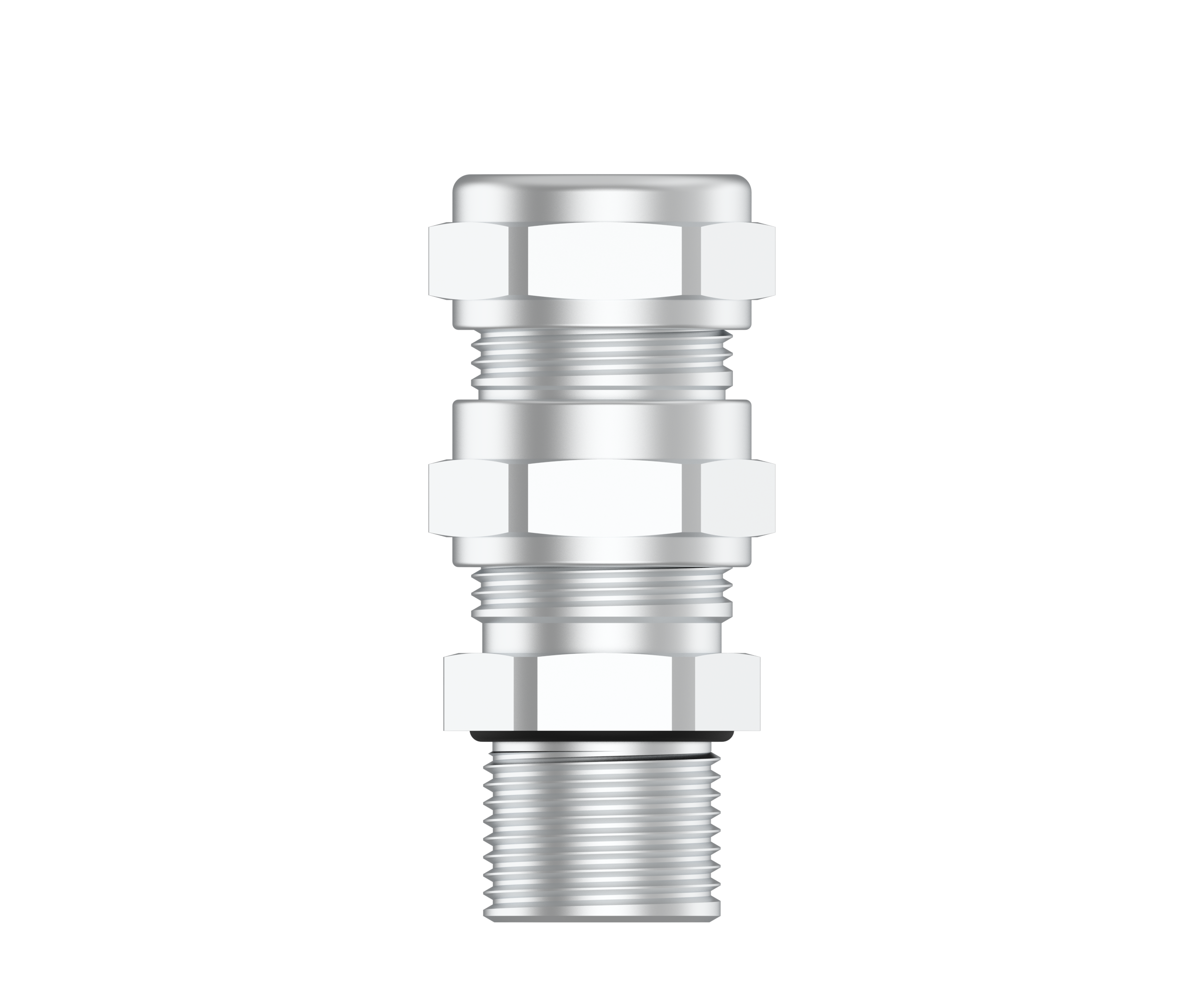

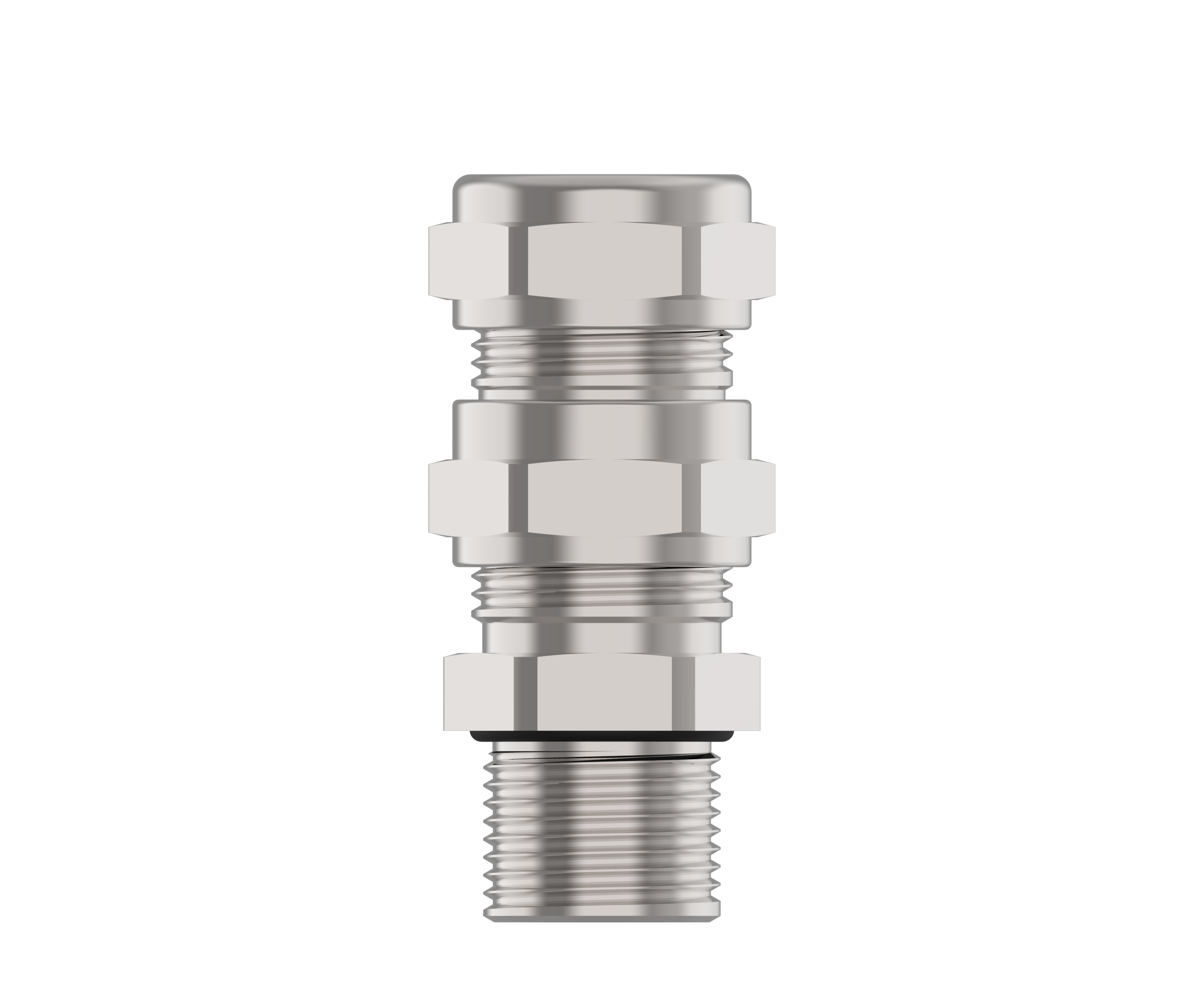

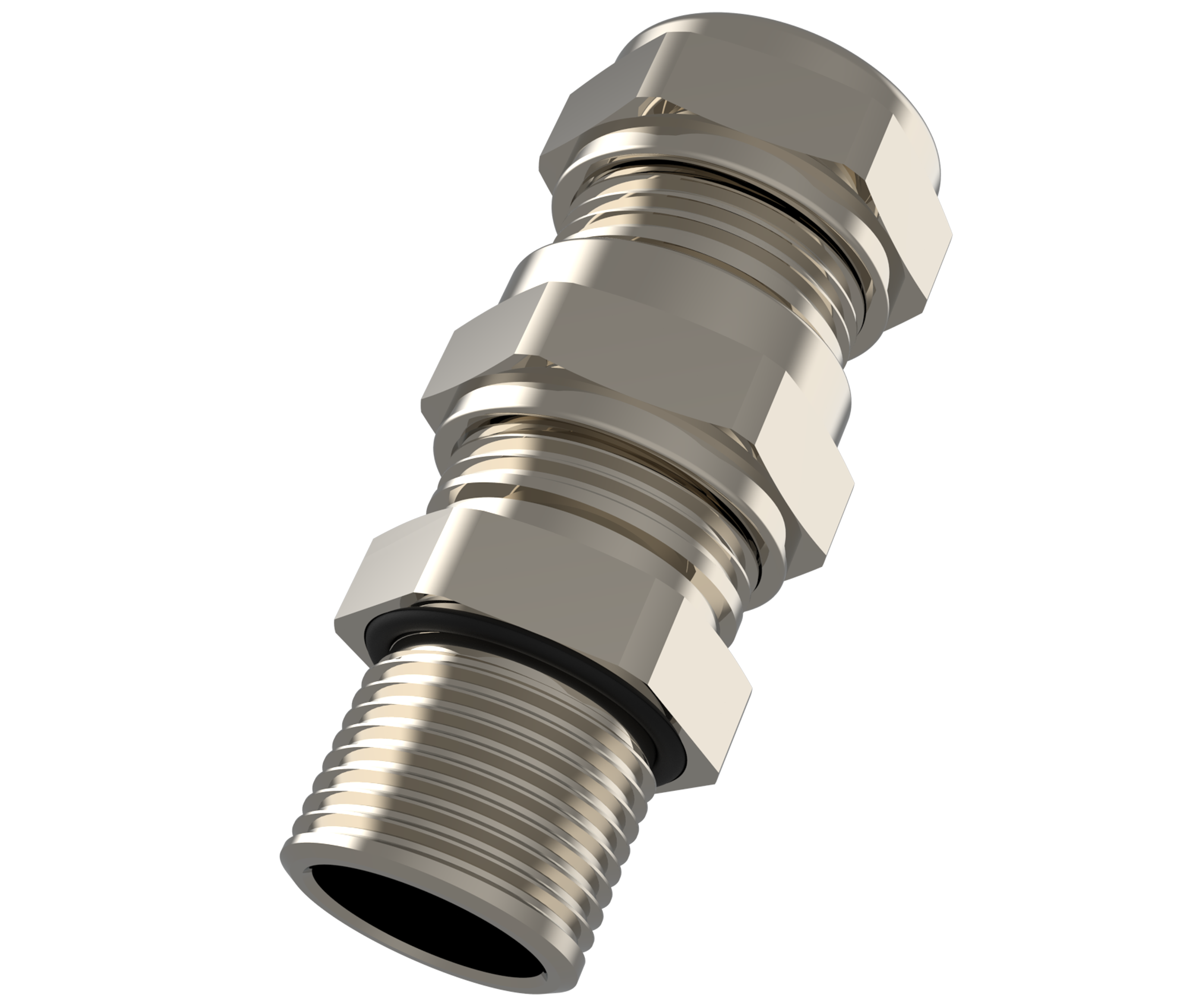

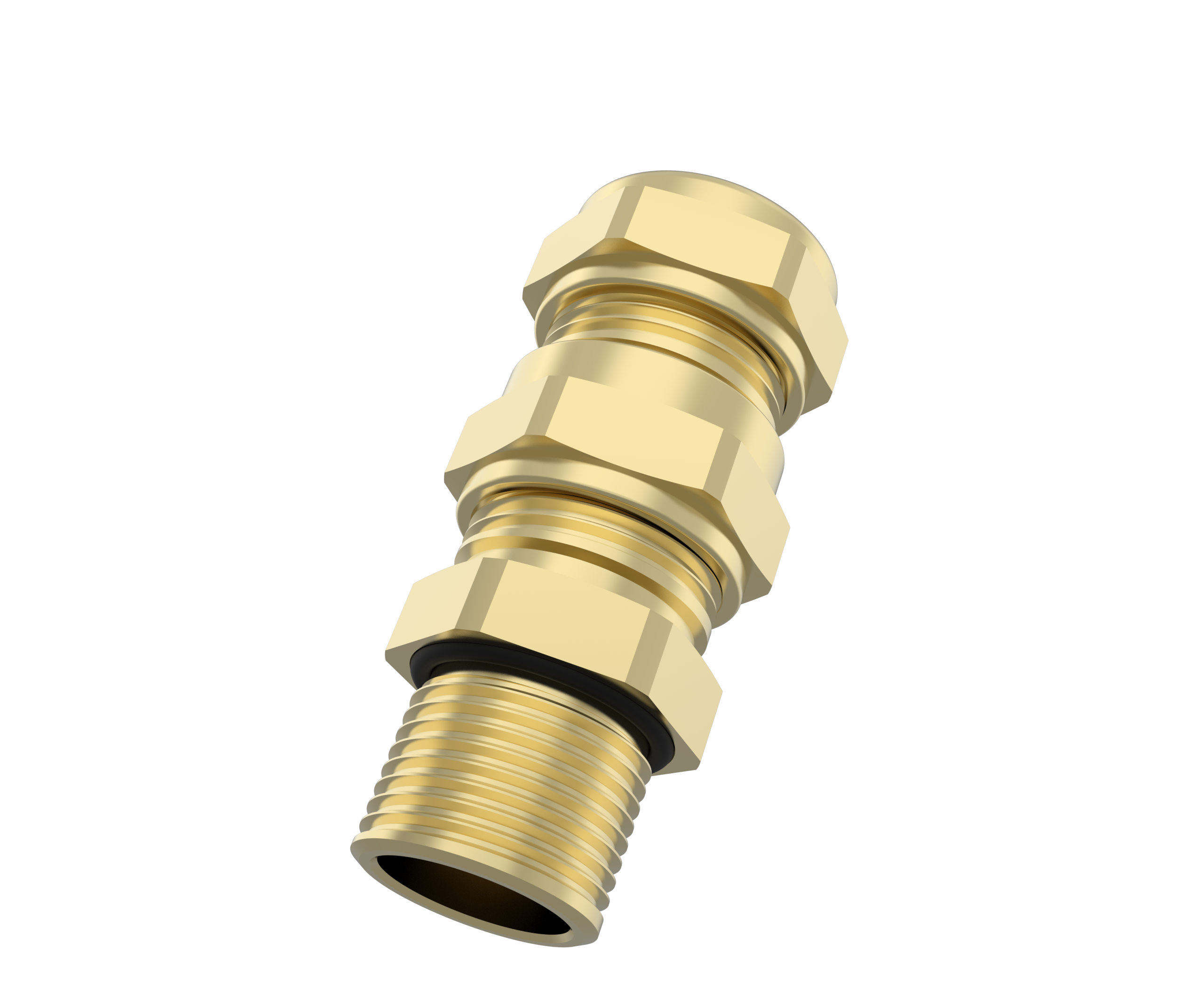

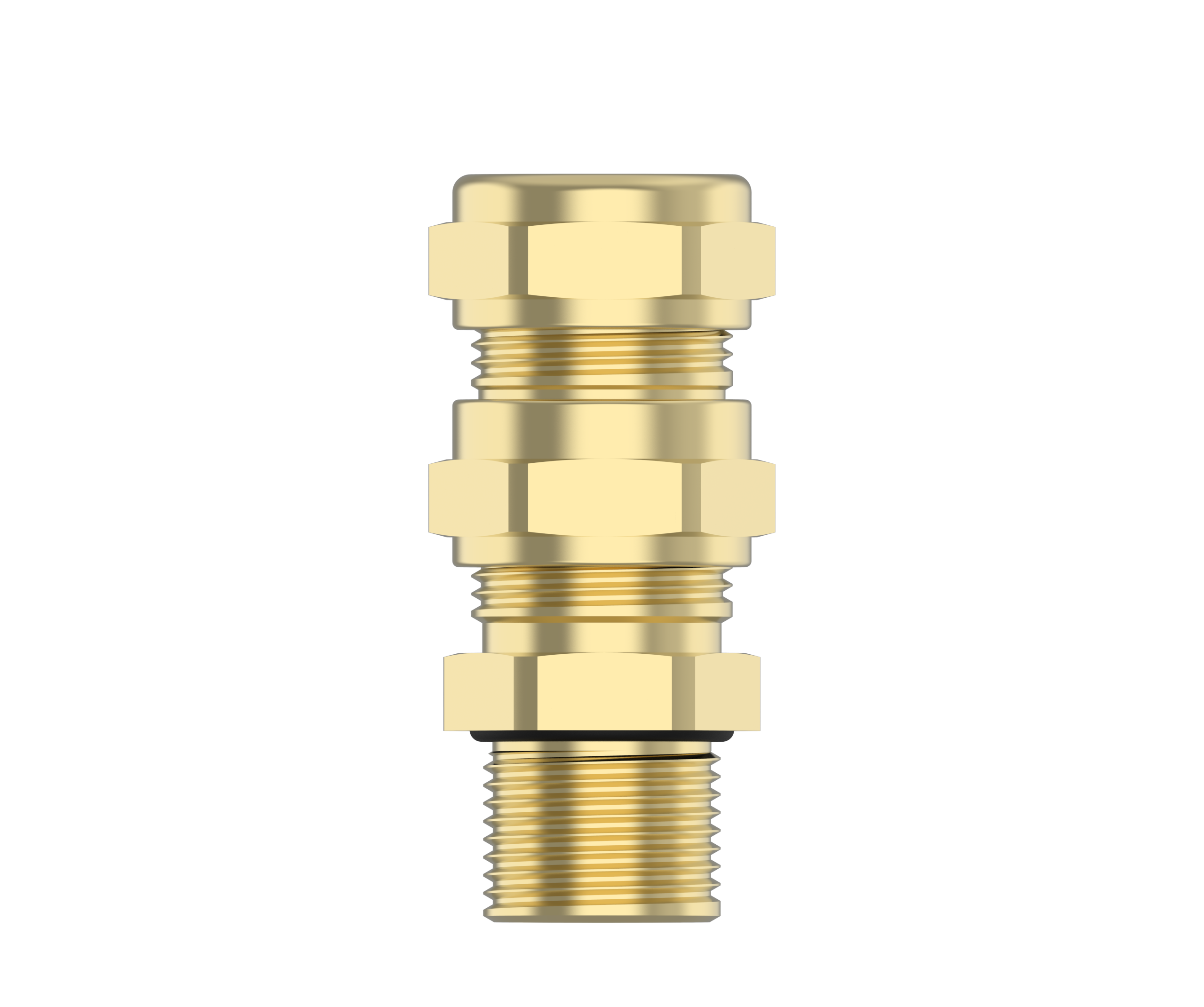

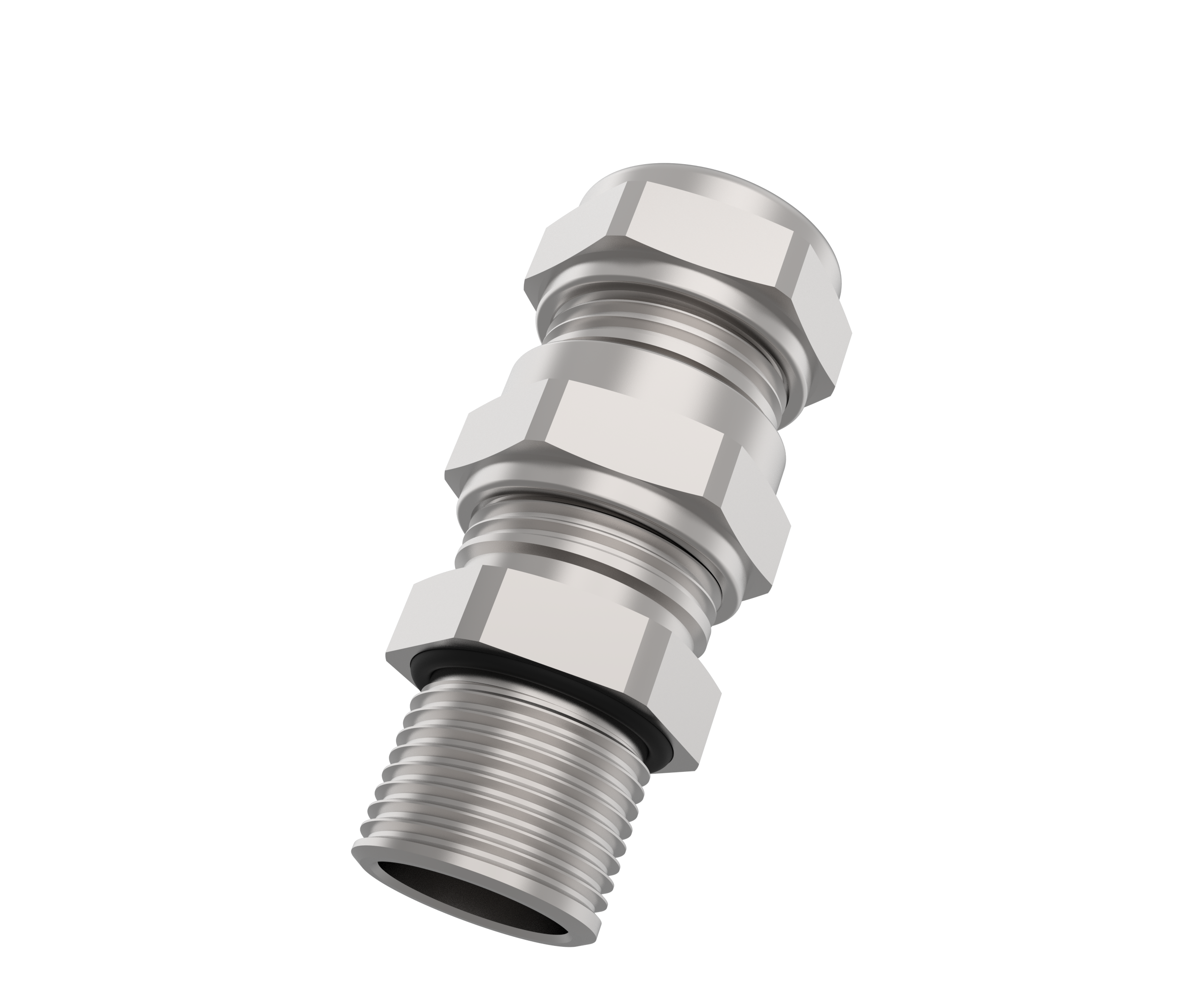

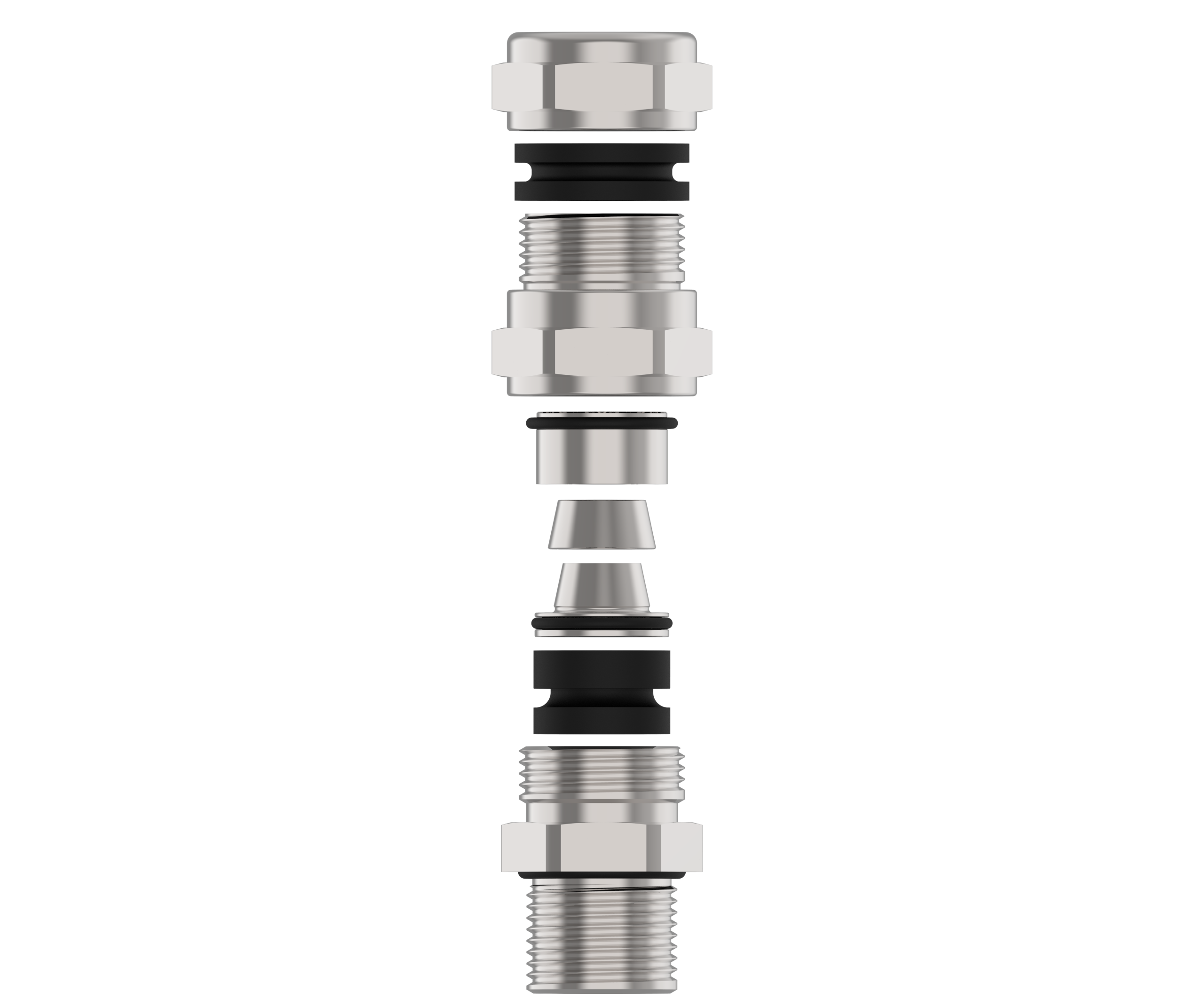

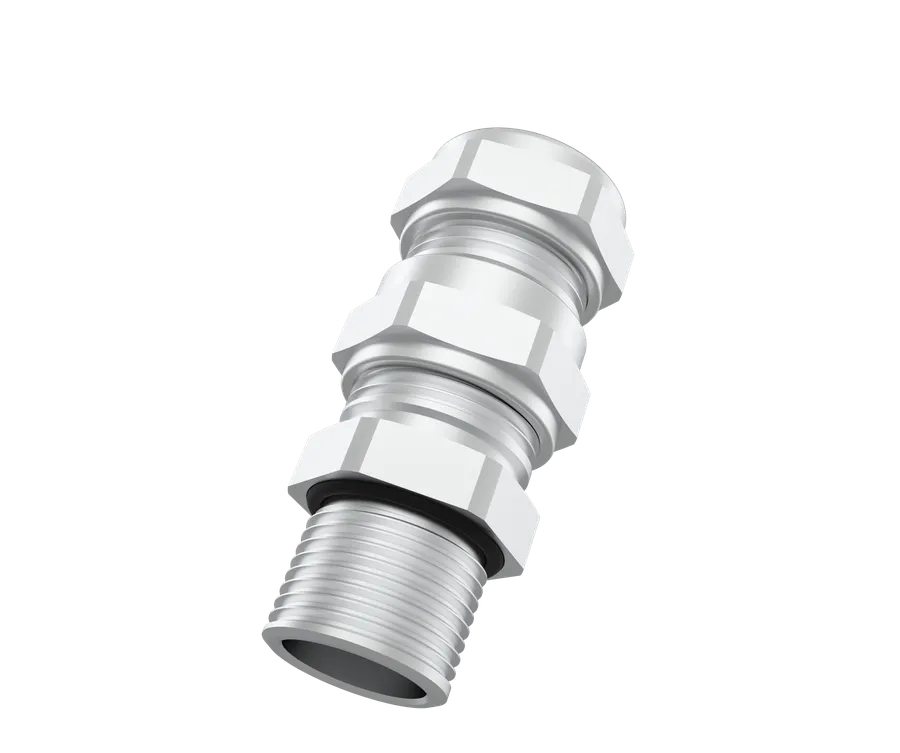

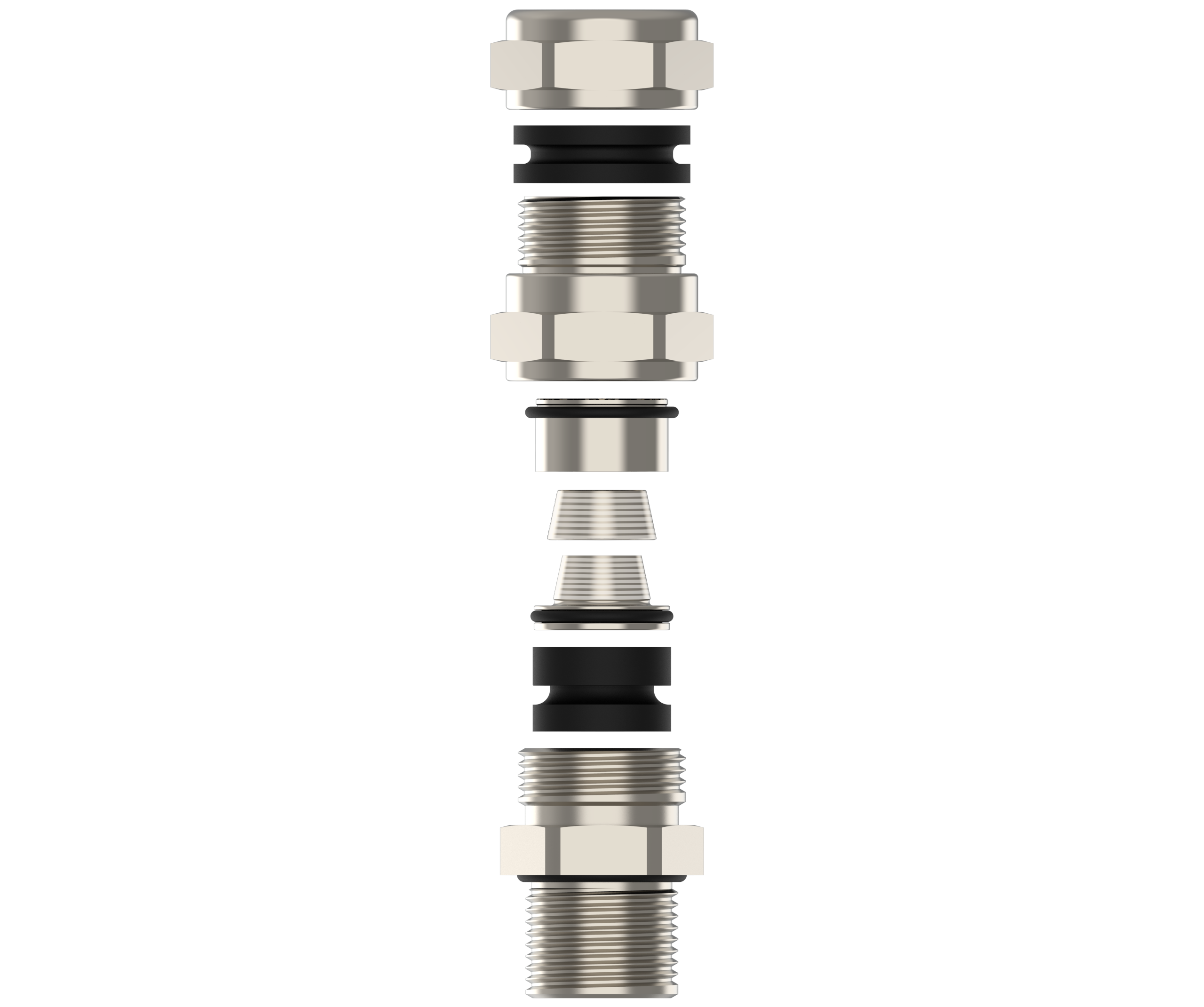

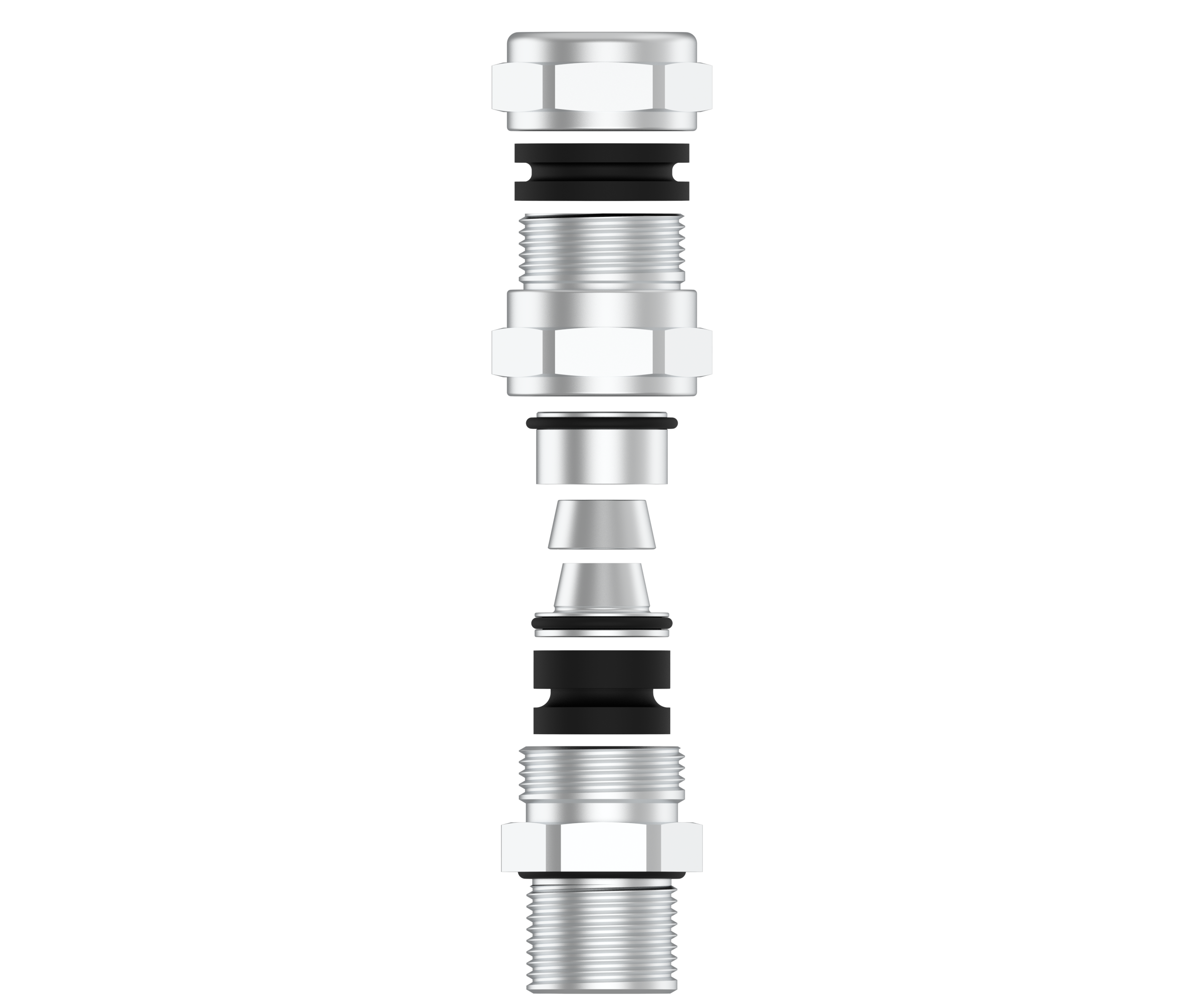

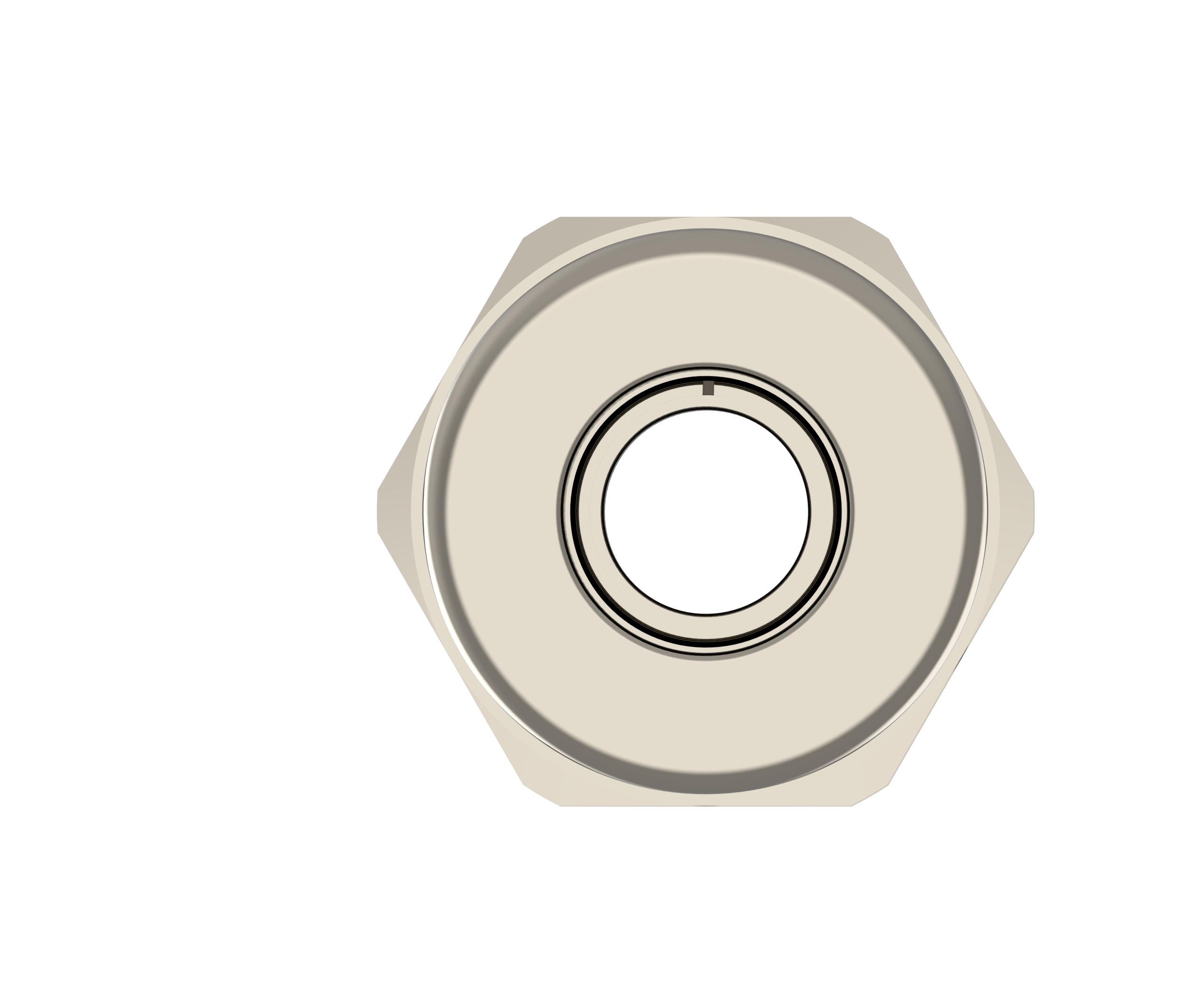

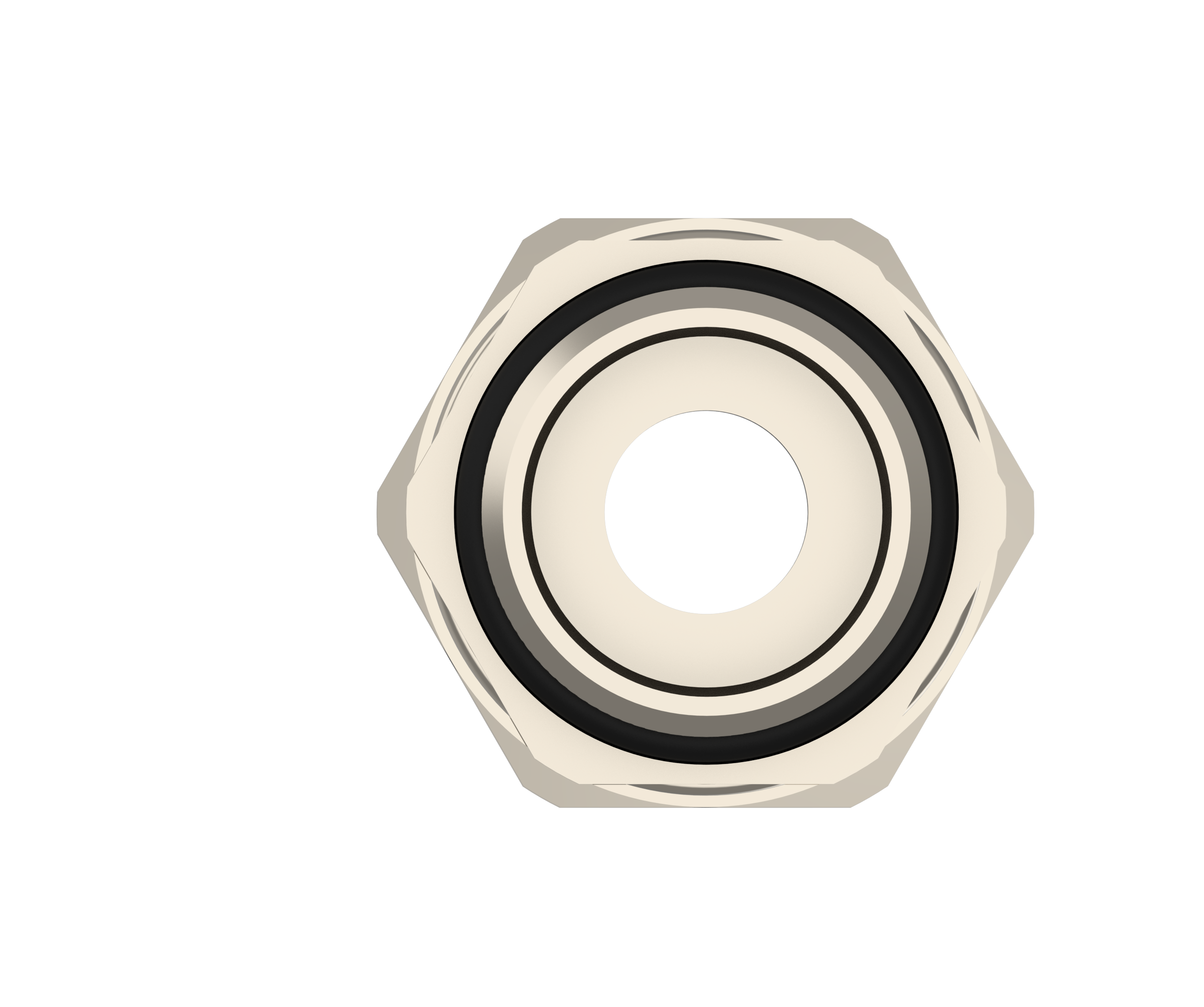

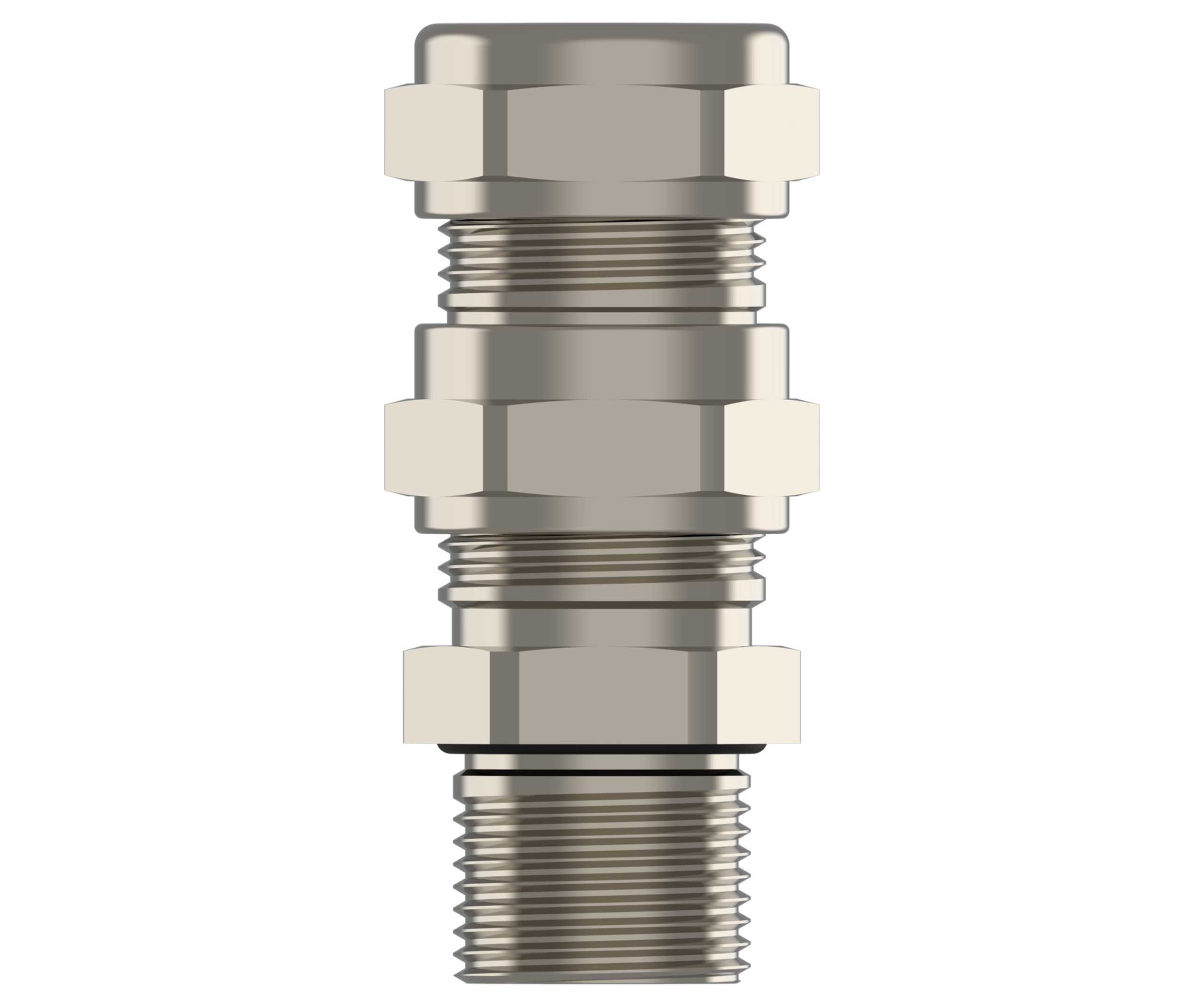

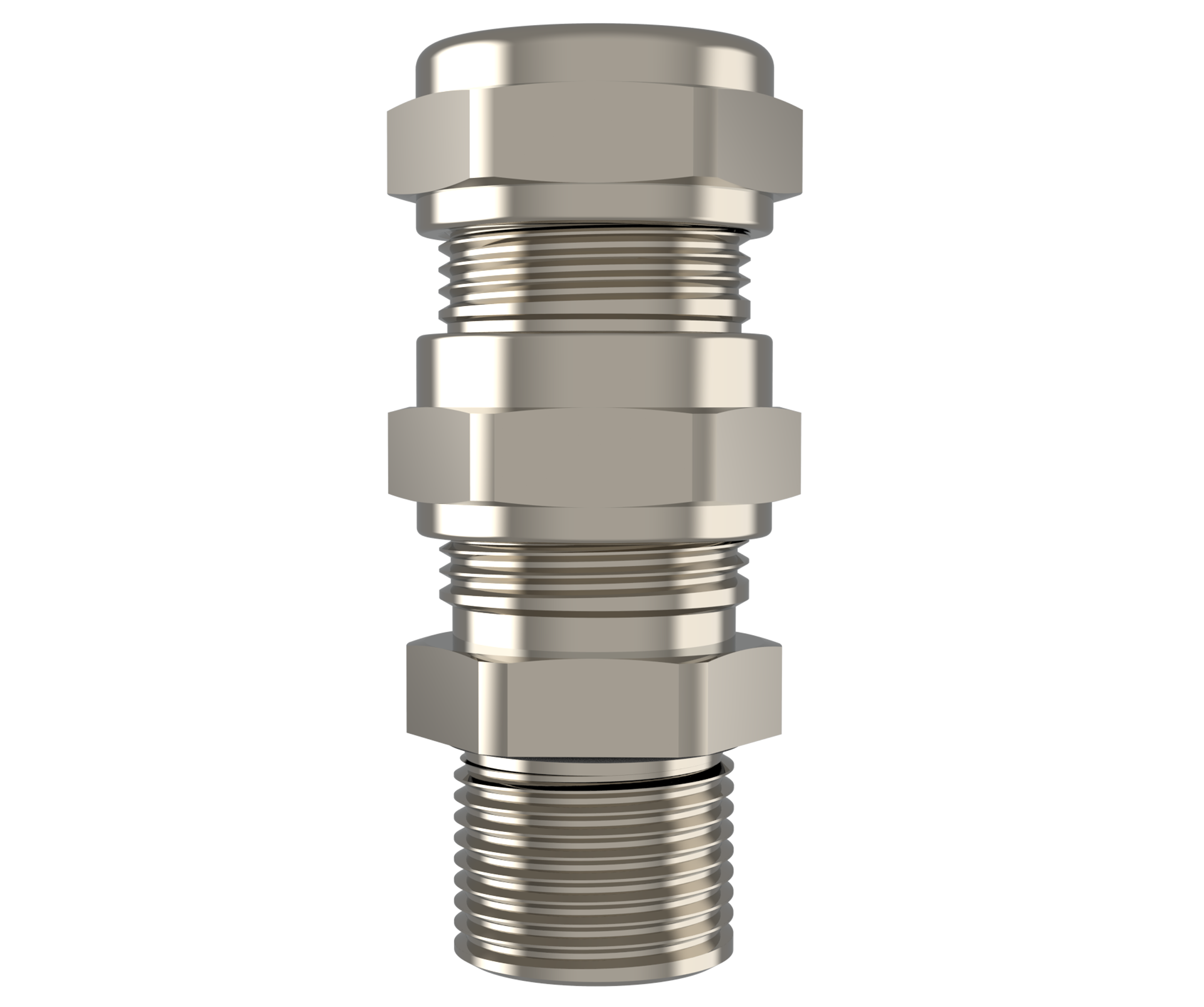

○Ex-kabelnippel med dobbel-kompresjonsprinsipp for armerte kabler (SWA og AWA), med eksplosjonssikker tetning på indre kabelkappe og IP-/kabelsikrings-tetning på ytre kappe. ATEX- og IECEx-sertifisert i henhold til Ex eb, Ex db og Ex tb.

Spesifikasjoner

Gjengestørrelse	Gjengelengde	Nøkkelvidde	Armour Wire Ø	Diameter	Maks høyde 'H'	Outer Cable Ø	SW 1	max.	min.	max. Inch	min. İnch	Inner Cable Ø	Shield Wire Ø	min - max inch	Varenummer	BIMED Kode	3D File
M12x1,5	15	26/26/22	0,70 - 1,20	29	50.5	6,0 - 12,0	26	7.5	3	0.295	0.118	3,0 - 7,5	0,2 - 0,5	0,118 - 0,295	—	KBAU0SLM	—
M16x1,5	16	26/26/22	0,70 - 1,20	29	49.5	6,0 - 12,0	26	8.5	3	0.335	0.118	3,0 - 8,5	0,2 - 0,5	0,118 - 0,335	—	KBAU01SM	—
M16x1,5	16	29/29/25	0,70 - 1,25	31.5	52	8,5 - 16,0	29	12	6	0.472	0.236	6,0 - 12,0	0,2 - 0,5	0,236 - 0,472	—	KBAU01M	—
M20x1,5	16	26/26/24	0,70 - 1,20	29	50	6,0 - 12,0	26	8.5	3	0.335	0.118	3,0 - 8,5	0,2 - 0,5	0,118 - 0,335	—	KBAU1SM	Get File
M20x1,5	16	29/29/25	0,70 - 1,25	31.5	51.5	8,5 - 16,0	29	12	6	0.472	0.236	6,0 - 12,0	0,2 - 0,5	0,236 - 0,472	—	KBAU1M	—
M20x1,5	16	32/30/28	0,90 - 1,30	35	54	12,0 - 20,0	32	14.5	8.5	0.571	0.335	8,5 - 14,5	0,2 - 0,5	0,335 - 0,571	—	KBAU1LM	—
M25x1,5	18	26/26/29	0,70 - 1,20	31.5	50	6,0 - 12,0	26	8.5	3	0.335	0.118	3,0 - 8,5	0,2 - 0,5	0,118 - 0,335	—	KBAU2XSM	—
M25x1,5	18	29/29/29	0,70 - 1,25	31.5	52.5	8,5 - 16,0	29	12	6	0.472	0.236	6,0 - 12,0	0,2 - 0,5	0,236 - 0,472	—	KBAU2SM	—
M25x1,5	18	34/34/32	0,70 - 1,20	37	56.5	12,0 - 21,0	34	16	8.5	0.63	0.335	8,5 - 16,0	0,5 - 0,7	0,335 - 0,63	—	KBAU2M	Get File
M25x1,5	18	40/40/36	1,30 - 1,70	44	63	16,0 - 26,0	40	20	12	0.787	0.472	12,0 - 20,0	0,2 - 0,5	0,472 - 0,787	—	KBAU2LM	—
M32x1,5	18	29/29/36	0,70 - 1,25	39.8	52.5	8,5 - 16,0	29	12	6	0.472	0.236	6,0 - 12,0	0,2 - 0,5	0,236 - 0,472	—	KBAU3XSM	—
M32x1,5	18	40/40/40	1,30 - 1,70	44	64	16,0 - 26,0	40	20	12	0.787	0.472	12,0 - 20,0	0,2 - 0,5	0,472 - 0,787	—	KBAU3SM	—
M32x1,5	18	52/52/48	1,20 - 1,80	57	81	20,0 - 33,0	52	26	15	1.024	0.591	15,0 - 26,0	0,2 - 0,8	0,591 - 1,024	—	KBAU3M	—
M40x1,5	18	40/40/45	1,30 - 1,70	50	64	16,0 - 26,0	40	20	12	0.787	0.472	12,0 - 20,0	0,2 - 0,5	0,472 - 0,787	—	KBAU4XSM	—
M40x1,5	18	52/52/48	1,20 - 1,80	57	81	20,0 - 33,0	52	26	15	1.024	0.591	15,0 - 26,0	0,2 - 0,8	0,591 - 1,024	—	KBAU4SM	—
M40x1,5	18	60/60/55	1,60 - 2,20	66	92	29,0 - 41,0	60	32	20	1.26	0.787	20,0 - 32,0	0,2 - 0,8	0,787 - 1,26	—	KBAU4M	—
M50x1,5	18	52/52/54	1,20 - 1,80	60	81	20,0 - 33,0	52	26	15	1.024	0.591	15,0 - 26,0	0,2 - 0,8	0,591 - 1,024	—	KBAU5XSM	—
M50x1,5	18	60/60/55	1,60 - 2,20	66	92	29,0 - 41,0	60	32	20	1.26	0.787	20,0 - 32,0	0,2 - 0,8	0,787 - 1,26	—	KBAU5XMM	—
M50x1,5	18	75/70/60	2,00 - 2,80	83	100	33,0 - 48,0	75	35	22	1.378	0.866	22,0 - 35,0	0,2 - 1,0	0,866 - 1,378	—	KBAU5SM	—
M50x1,5	18	74/70/70	1,80 - 2,80	81.8	104.5	36,0 - 52,0	74	41	27	1.614	1.063	27,0 - 41,0	0,3 - 1,4	1,063 - 1,614	—	KBAU5M	—
M63x1,5	20	75/70/68	2,00 - 2,80	83	100	33,0 - 48,0	75	35	22	1.378	0.866	22,0 - 35,0	0,2 - 1,0	0,866 - 1,378	—	KBAU6XSM	—
M63x1,5	20	74/70/70	1,80 - 2,80	81.8	104.5	36,0 - 52,0	74	41	27	1.614	1.063	27,0 - 41,0	0,3 - 1,4	1,063 - 1,614	—	KBAU6XMM	—
M63x1,5	20	80/80/75	1,80 - 2,80	89.5	109.5	43,0 - 57,0	80	45	35	1.772	1.378	35,0 - 45,0	0,3 - 1,0	1,378 - 1,772	—	KBAU6SM	—
M63x1,5	20	85/85/85	1,80 - 2,80	94	111.5	47,0 - 60,0	85	52	40	2.047	1.575	40,0 - 52,0	0,6 - 1,5	1,575 - 2,047	—	KBAU6M	—
M75x1,5	20	80/80/85	1,80 - 2,80	94	109.5	43,0 - 57,0	80	45	35	1.772	1.378	35,0 - 45,0	0,3 - 1,0	1,378 - 1,772	—	KBAU7XSM	—
M75x1,5	20	85/85/85	1,80 - 2,80	94	111.5	47,0 - 60,0	85	52	40	2.047	1.575	40,0 - 52,0	0,6 - 1,5	1,575 - 2,047	—	KBAU7SM	—
M75x1,5	20	100/95/90	1,00 - 2,30	110.5	127.5	54,0 - 70,0	100	60	45	2.362	1.772	45,0 - 60,0	0,2 - 1,2	1,772 - 2,362	—	KBAU7M	—
M90x1,5	20	85/85/100	1,80 - 2,80	110.5	111.5	47,0 - 60,0	85	52	40	2.047	1.575	40,0 - 52,0	0,6 - 1,5	1,575 - 2,047	—	KBAU8XSM	—
M90x1,5	20	100/95/95	1,00 - 2,30	110.5	127.5	54,0 - 70,0	100	60	45	2.362	1.772	45,0 - 60,0	0,2 - 1,2	1,772 - 2,362	—	KBAU8SM	—
M90x2,0	20	120/120/120	1,5 - 4,4	134	159.5	78,0 - 90,0	120	82	70	3.228	2.756	70,0 - 82,0	0,2 - 2,4	2,756 - 3,228	—	KBAU8LMLT	—
M90x1,5	20	115/115/110	1,00 - 3,50	127	158	63,0 - 80,0	115	72	60	2.835	2.362	60,0 - 72,0	0,2 - 1,9	2,362 - 2,835	—	KBAU8M	—
M100x2,0	20	135/135/135	1,2 - 4,0	150	169	88,0 - 100,0	135	92	80	3.622	3.15	80,0 - 92,0	0,2 - 2,2	3,15 - 3,622	—	KBAU9SMLT	—
M110x1,5	20	100/95/120	1,00 - 2,30	128	127.5	54,0 - 70,0	100	60	45	2.362	1.772	45,0 - 60,0	0,2 - 1,2	1,772 - 2,362	—	KBAU10SM	—
M110x1,5	20	115/115/120	1,00 - 3,50	128	158	63,0 - 80,0	115	72	60	2.835	2.362	60,0 - 72,0	0,2 - 1,9	2,362 - 2,835	—	KBAU10M	—
M110x2,0	20	145/145/145	2,1 - 5,4	162	180	98,0 - 110,0	145	101	90	3.976	3.543	90,0 - 101,0	0,2 - 3,1	3,543 - 3,976	—	KBAU10LMLT	—
M130x2,0	24	160/160/160	2,0 - 5,4	176	202	109,0 - 123,0	160	115	100	4.528	3.937	100,0 - 115,0	0,2 - 3,0	3,937 - 4,528	—	KBAU13MLT	—
