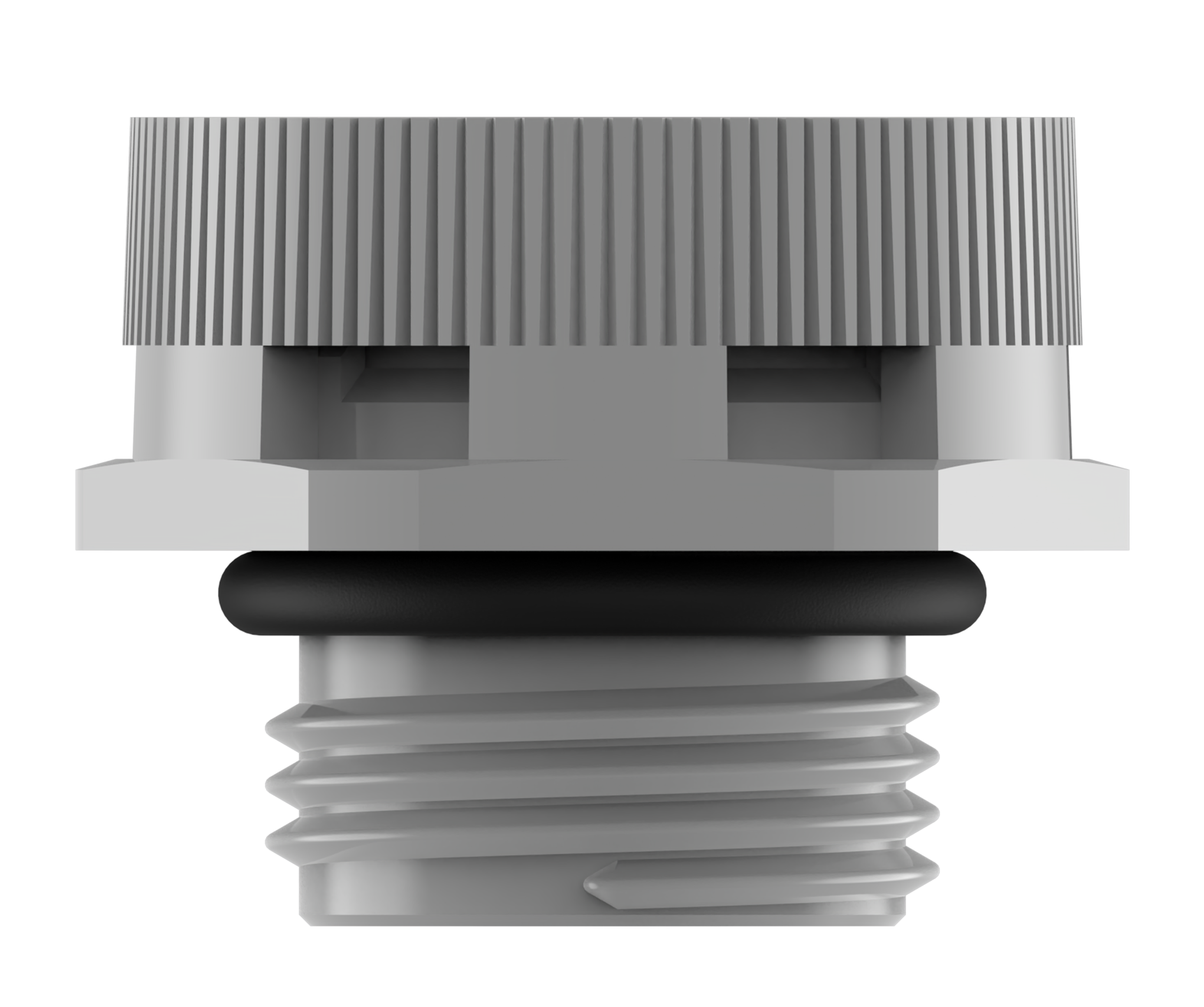

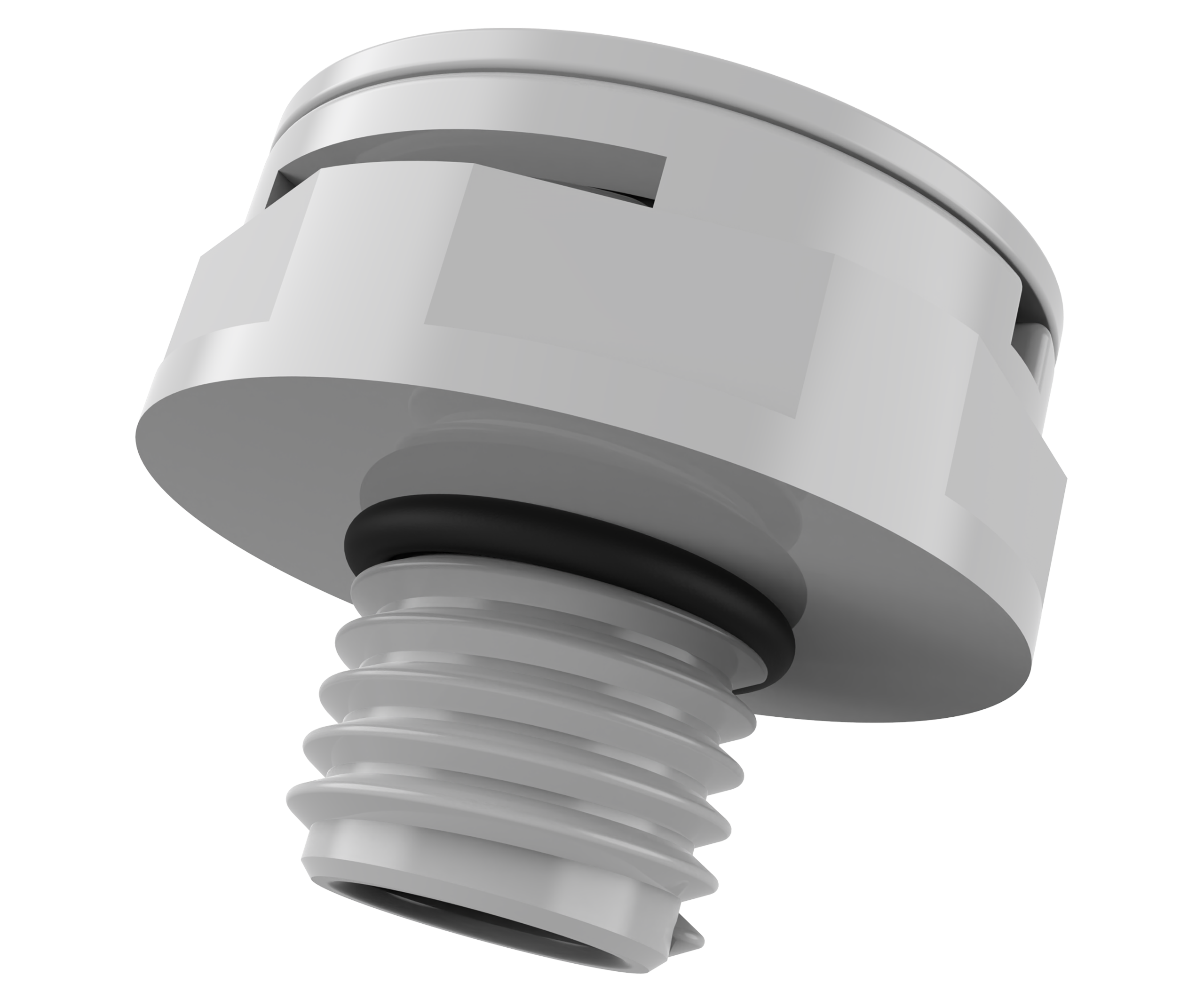

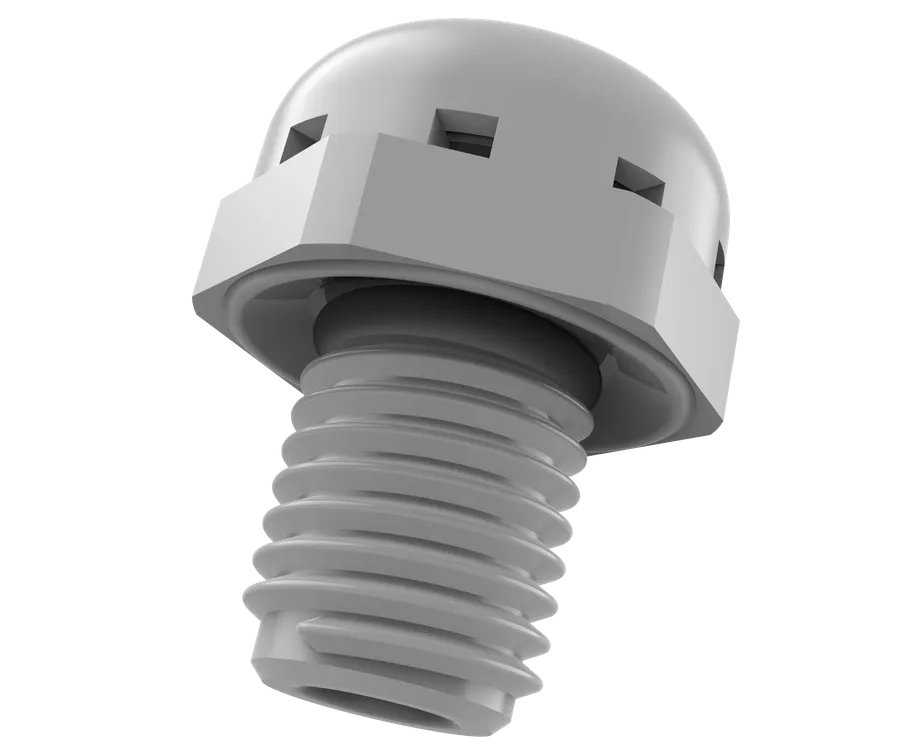

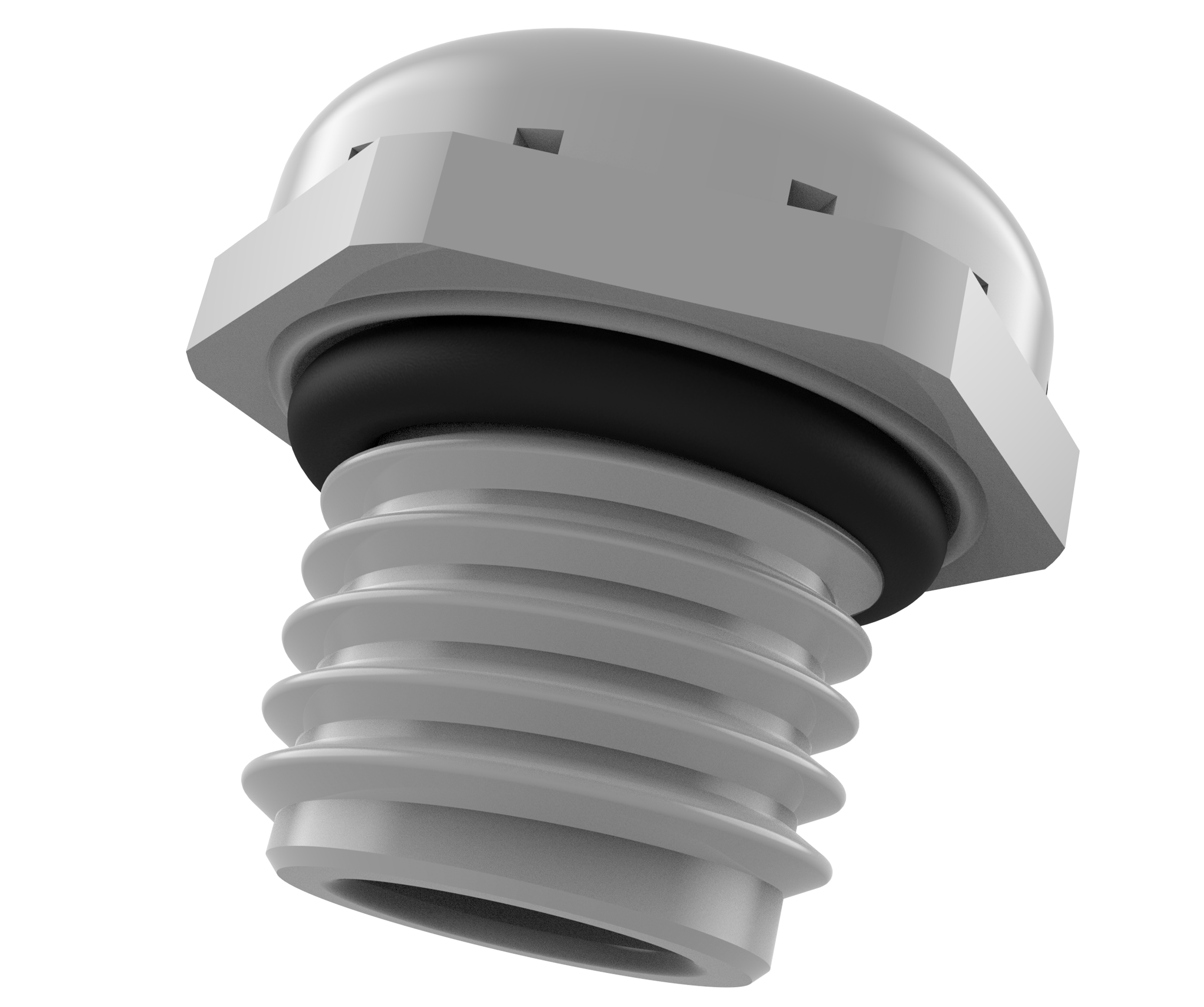

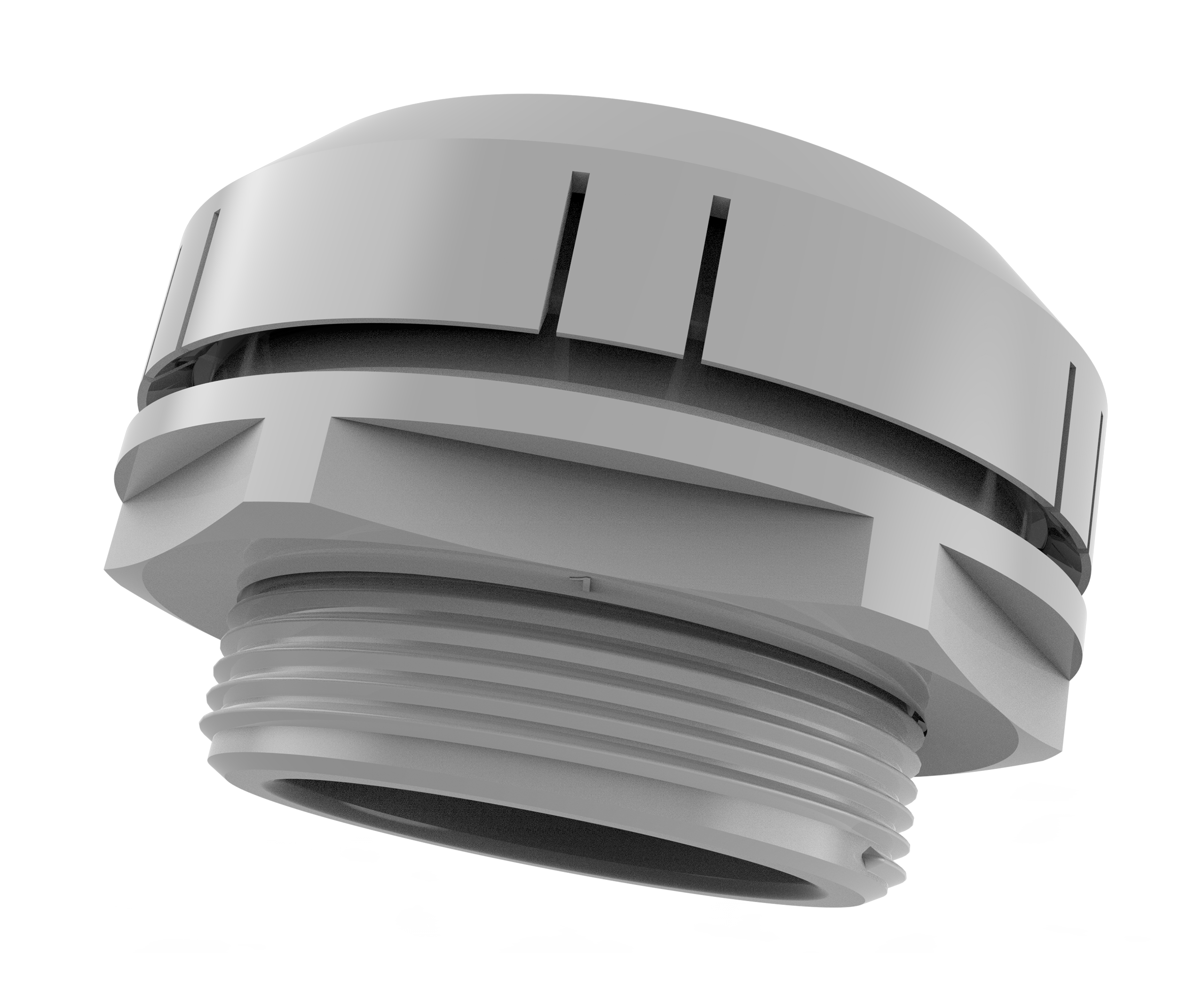

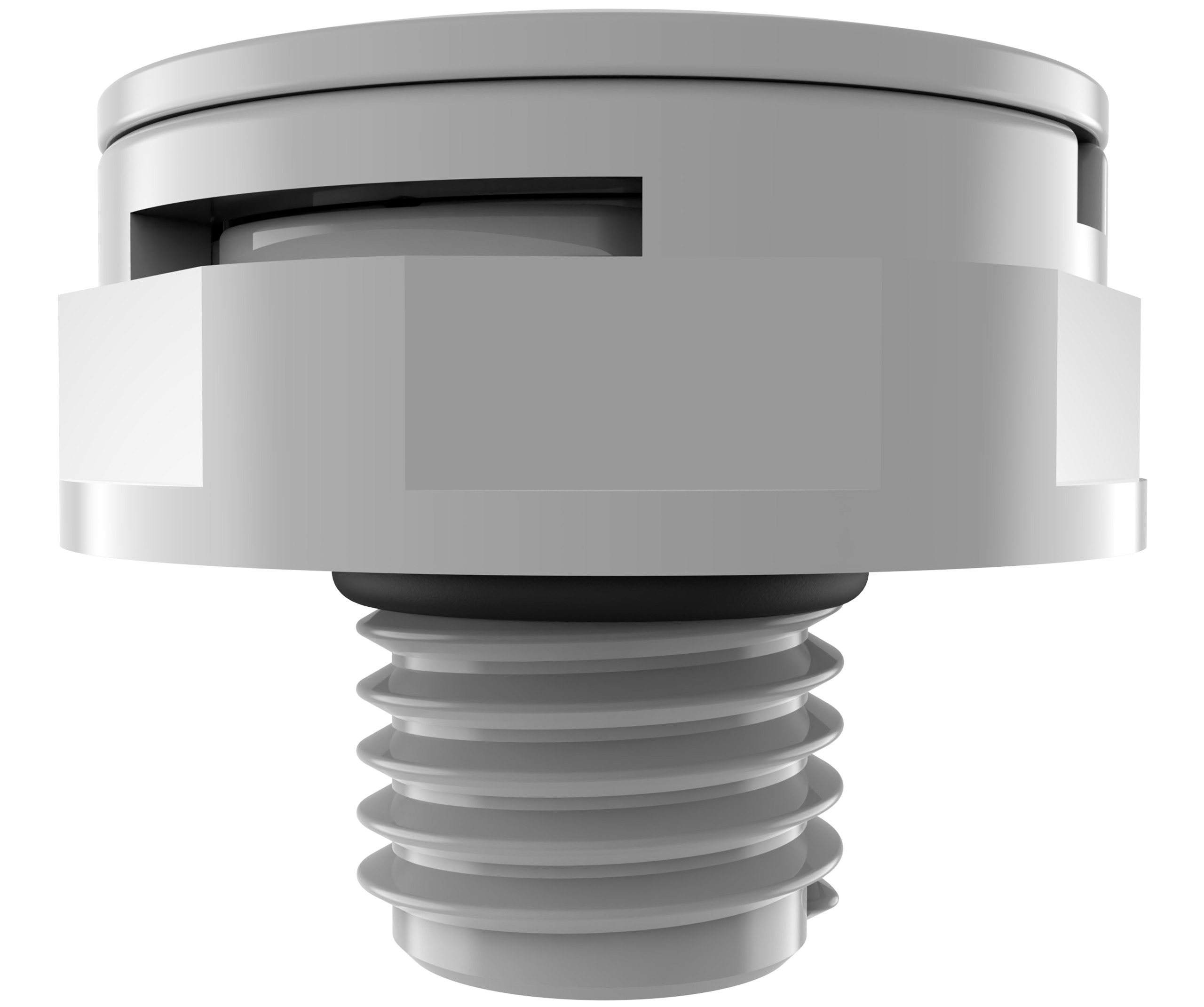

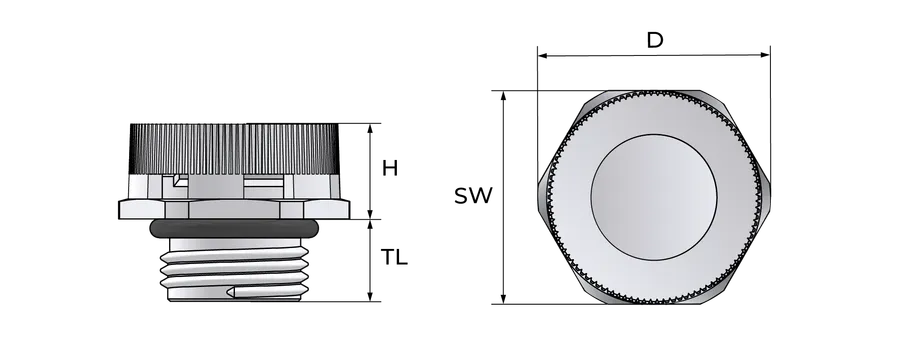

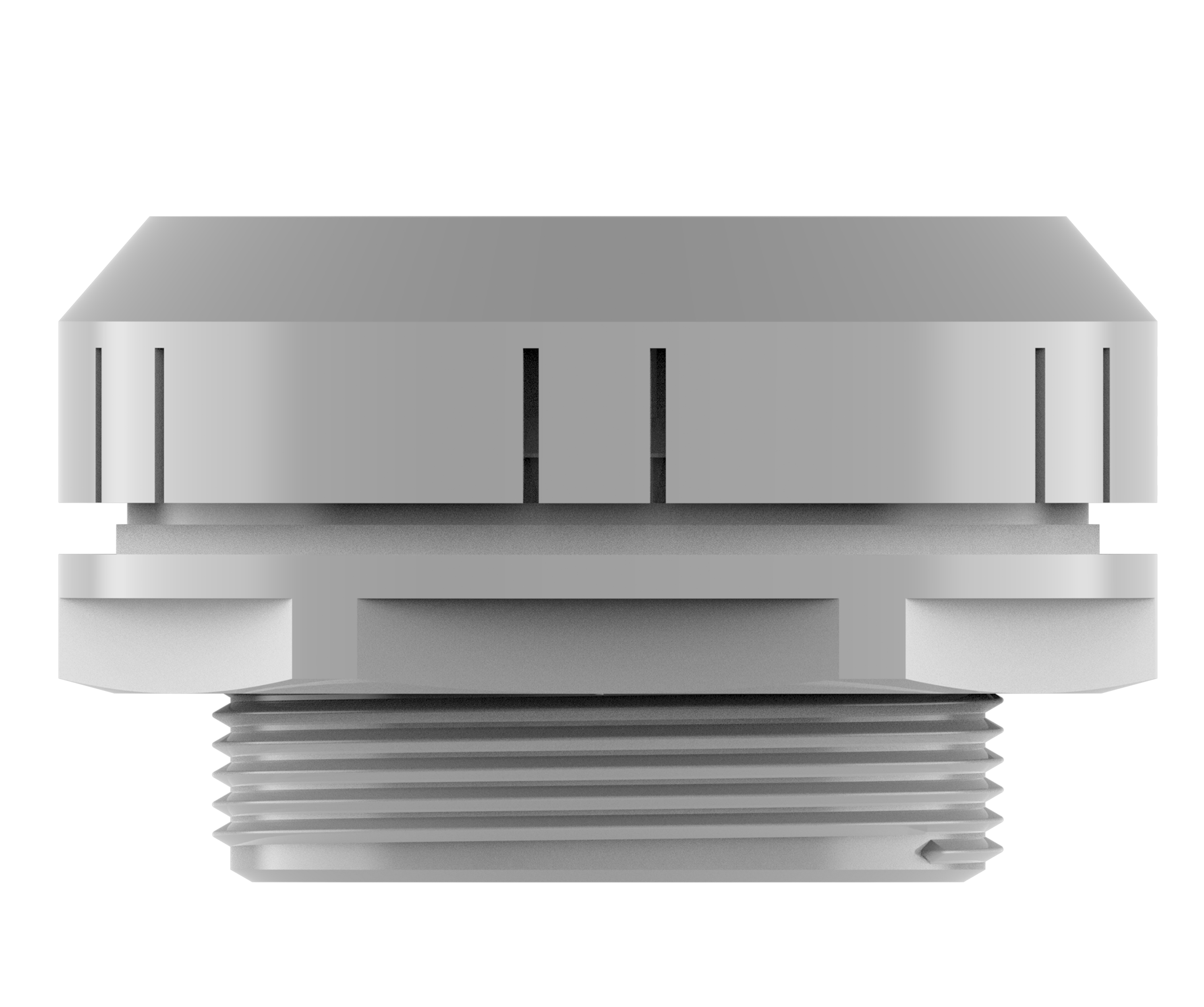

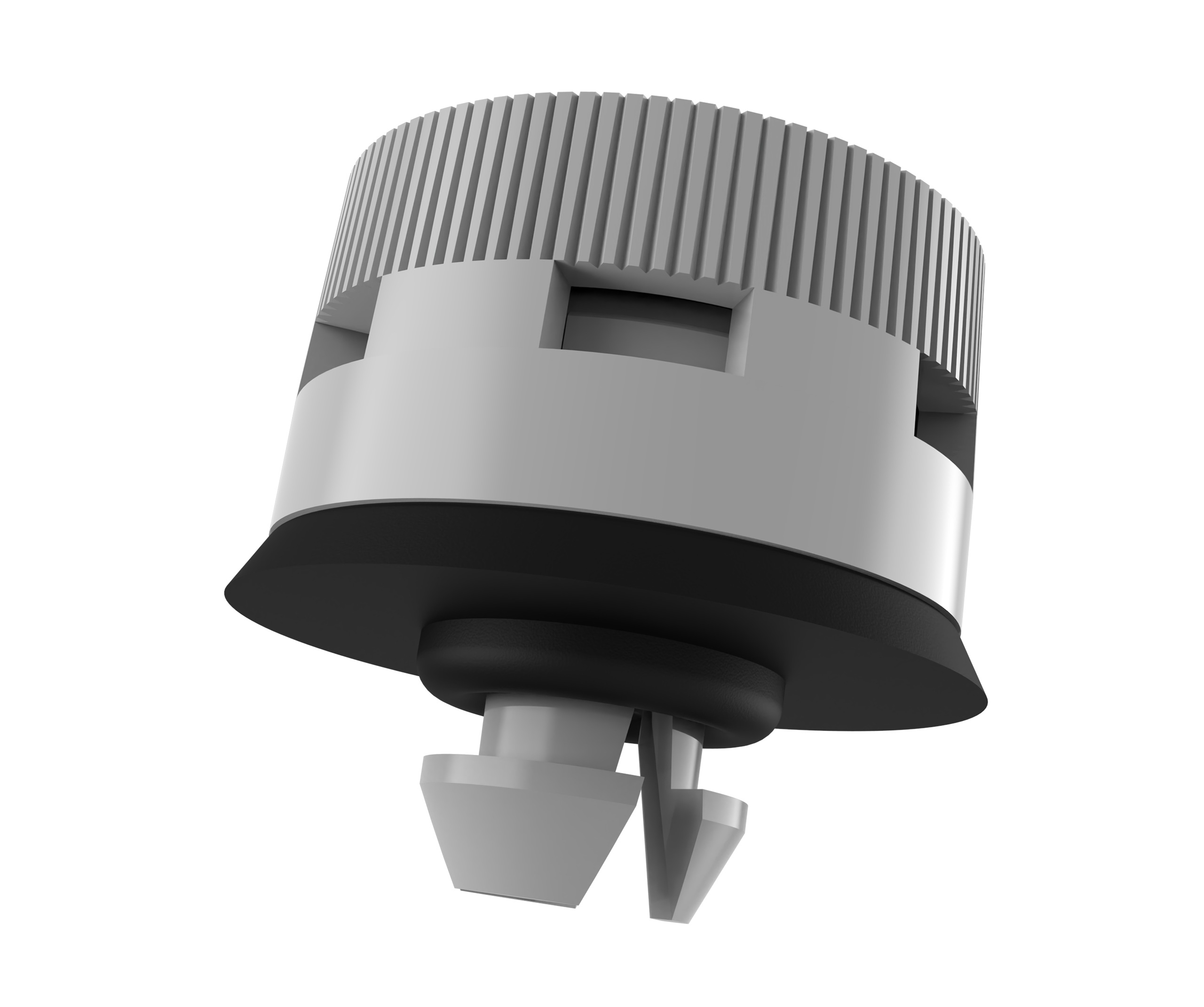

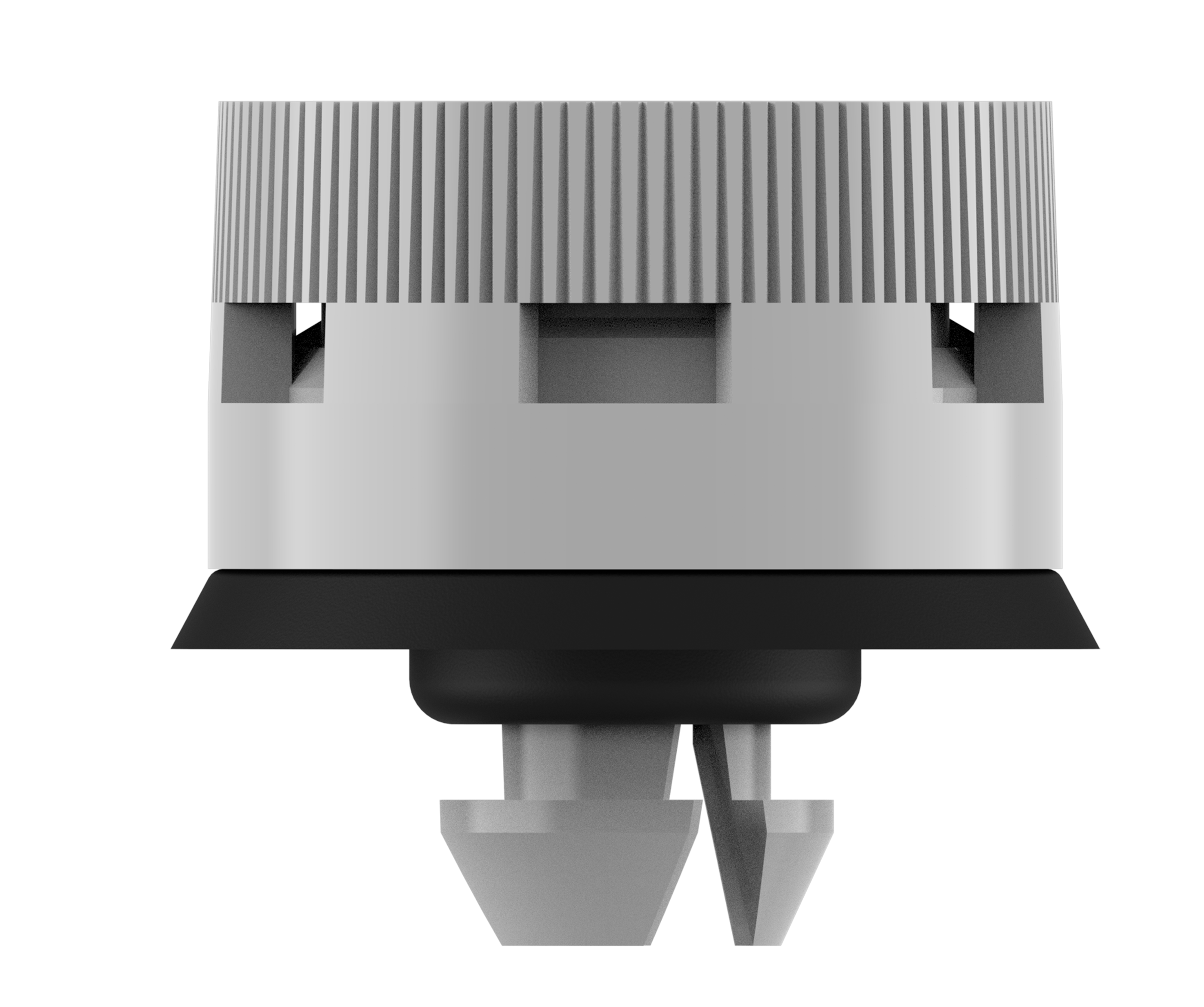

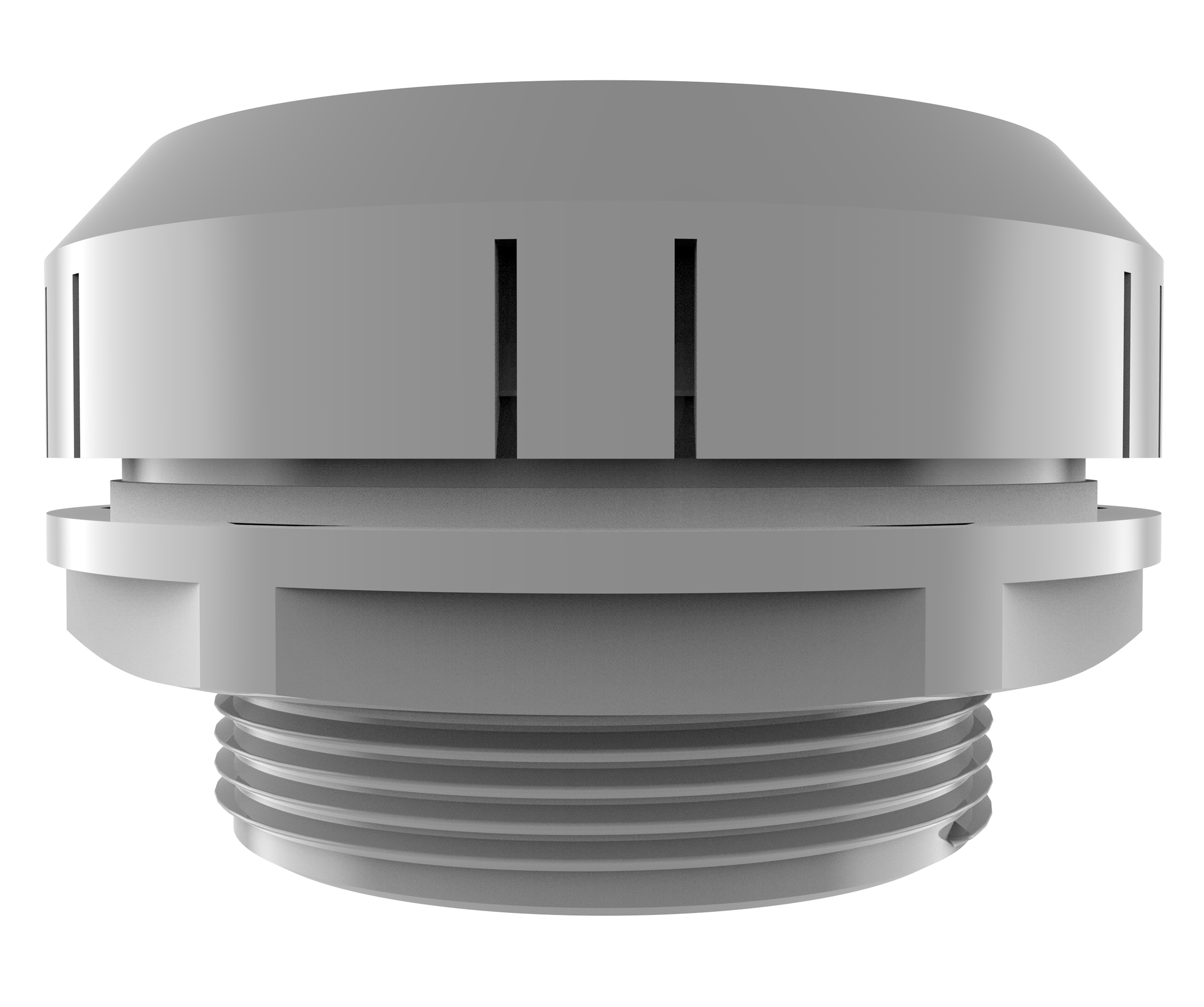

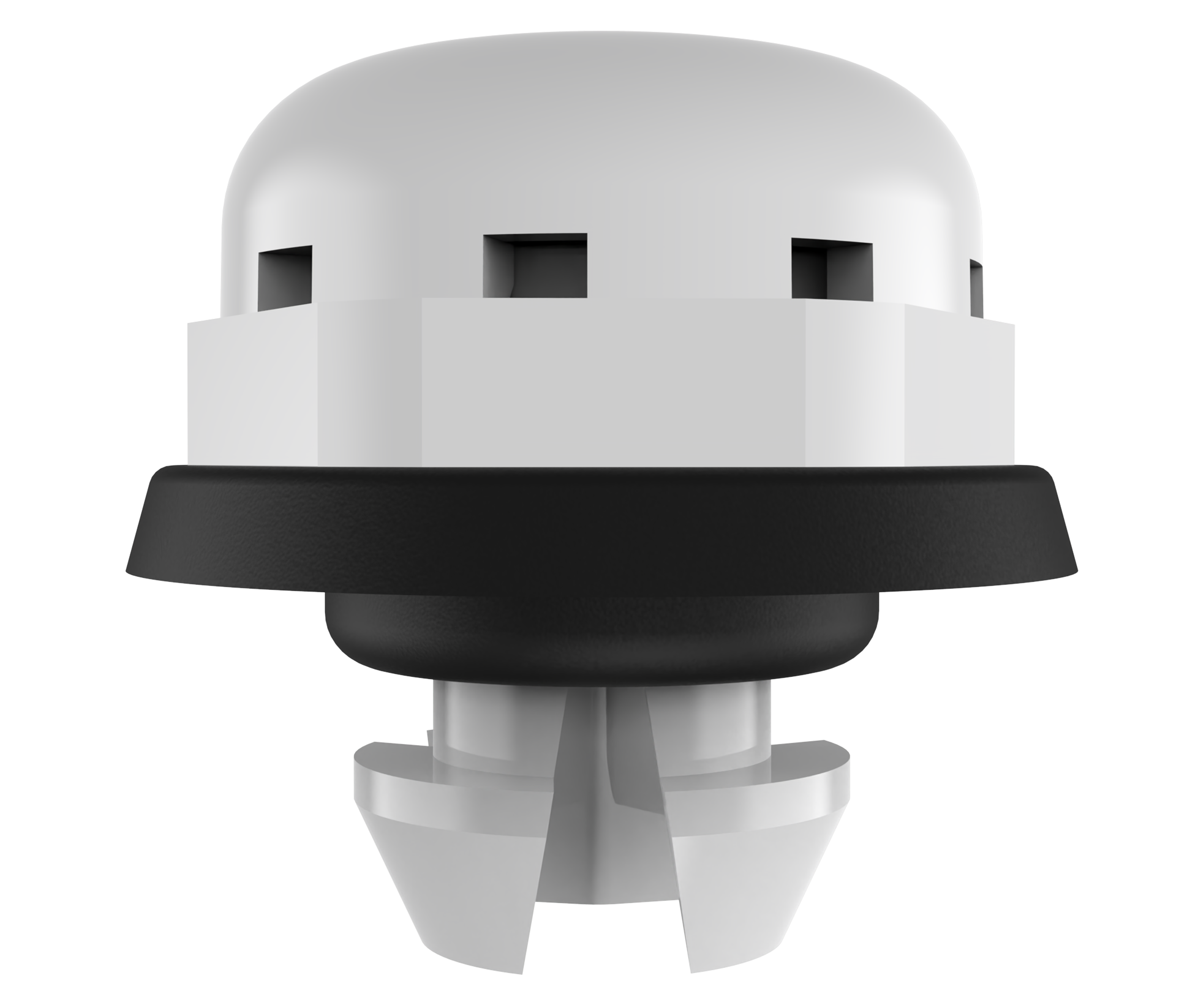

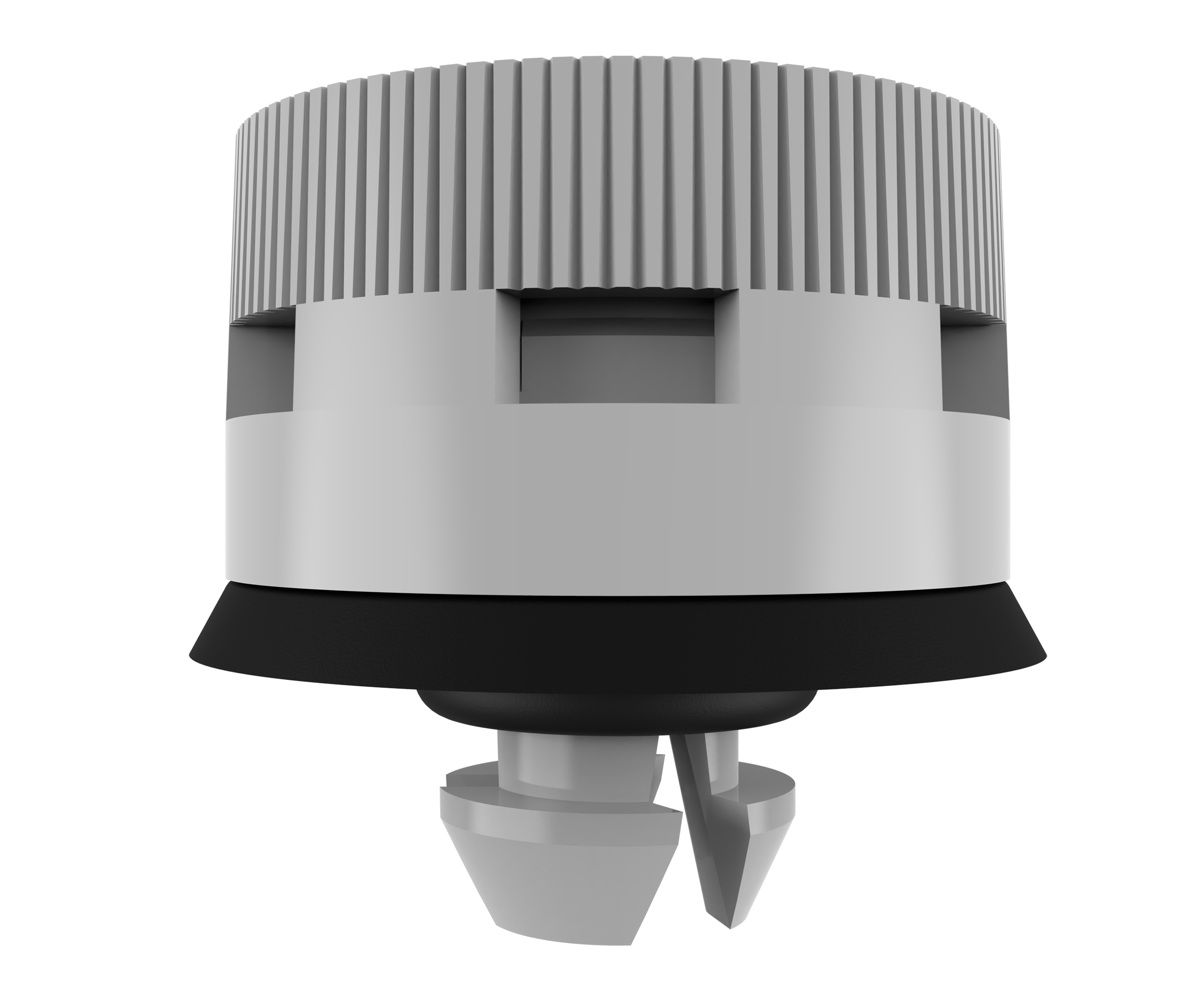

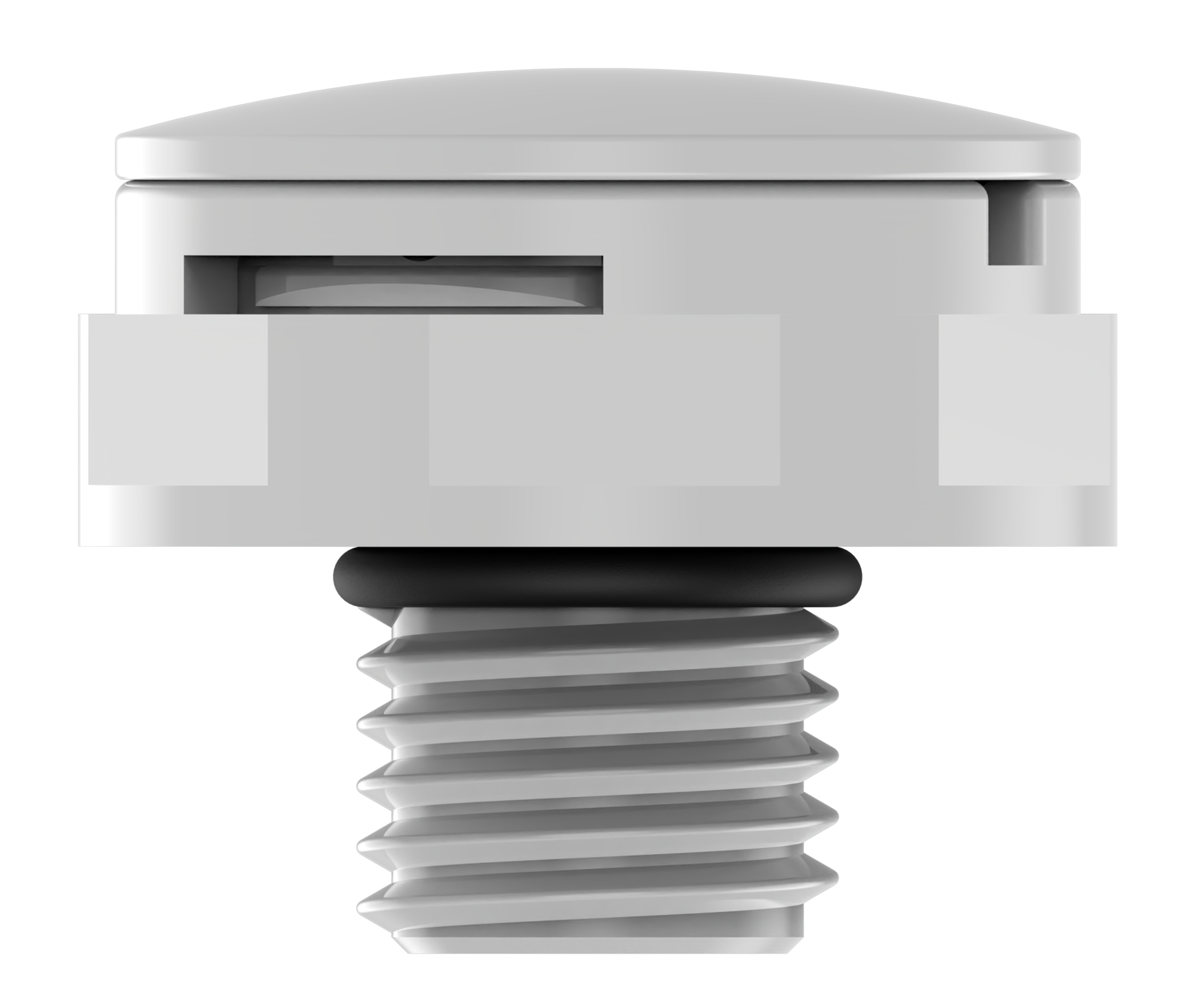

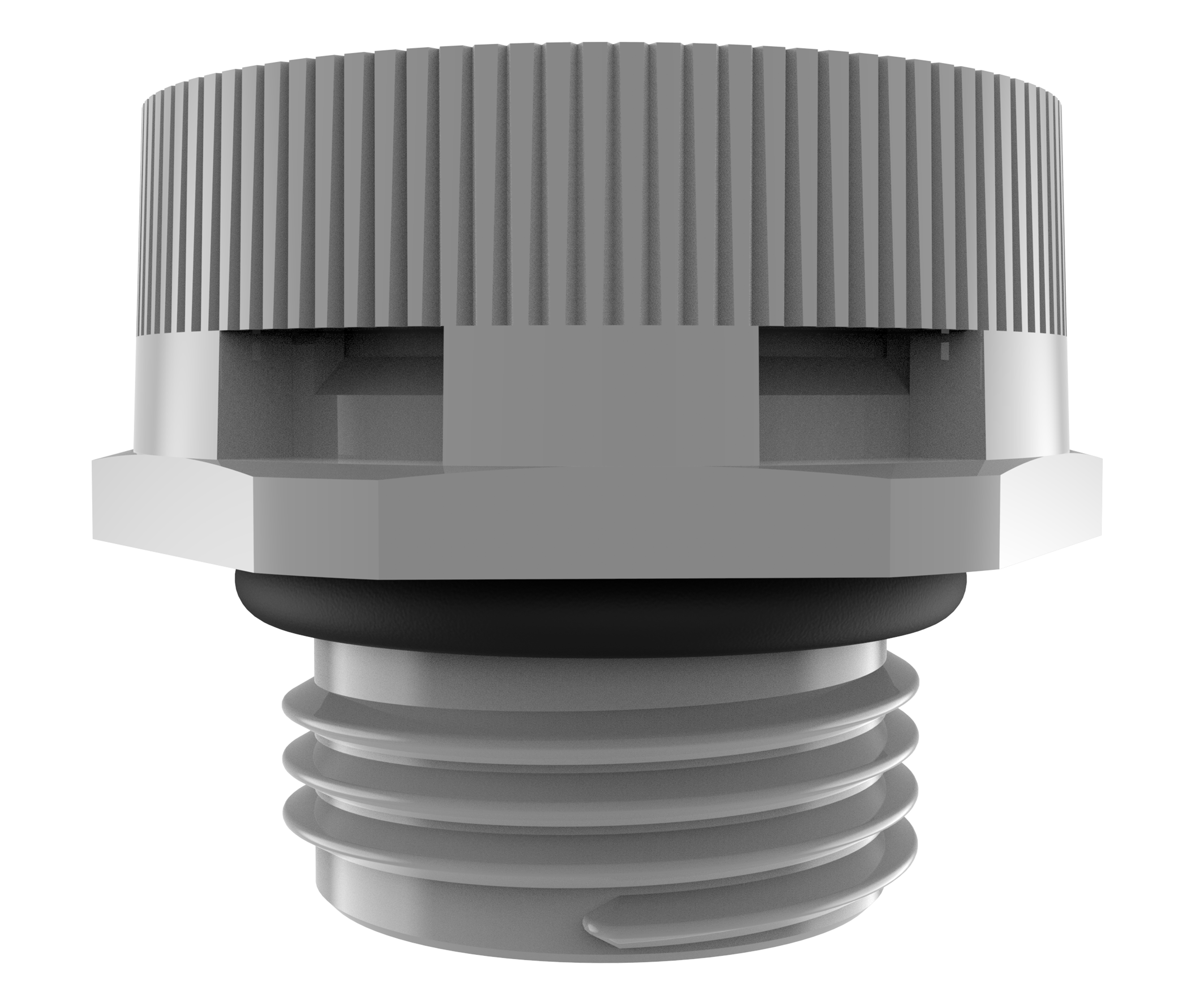

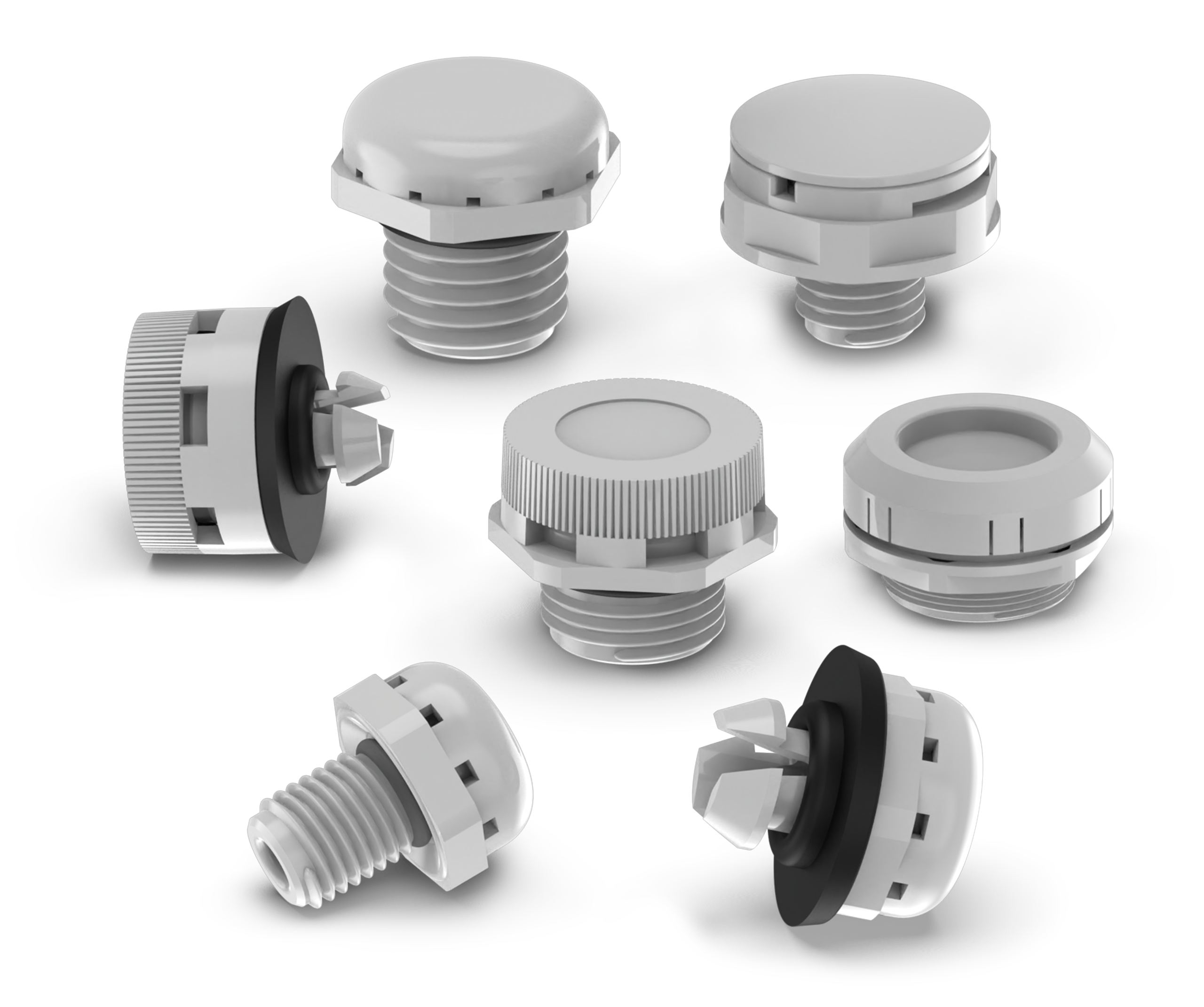

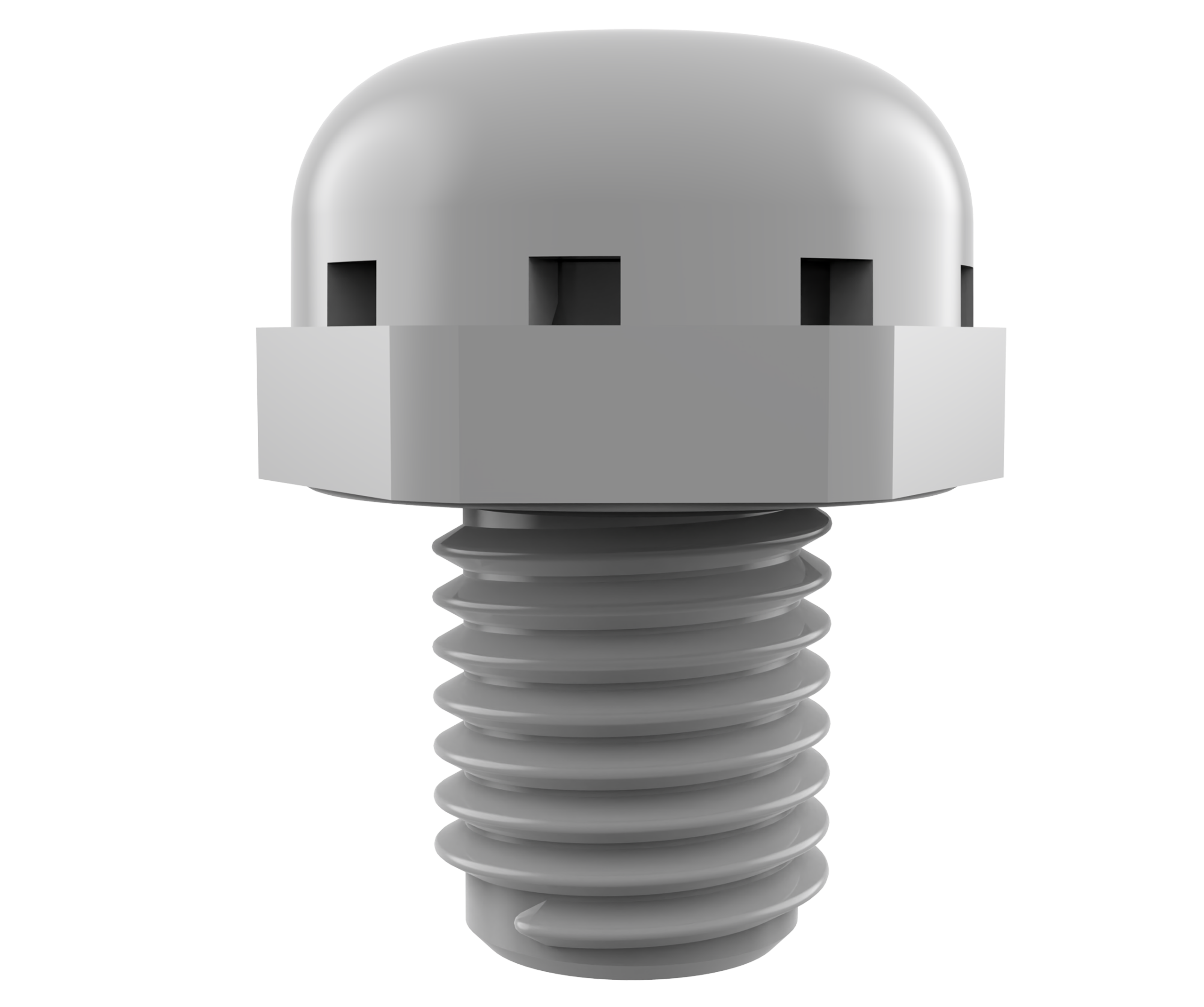

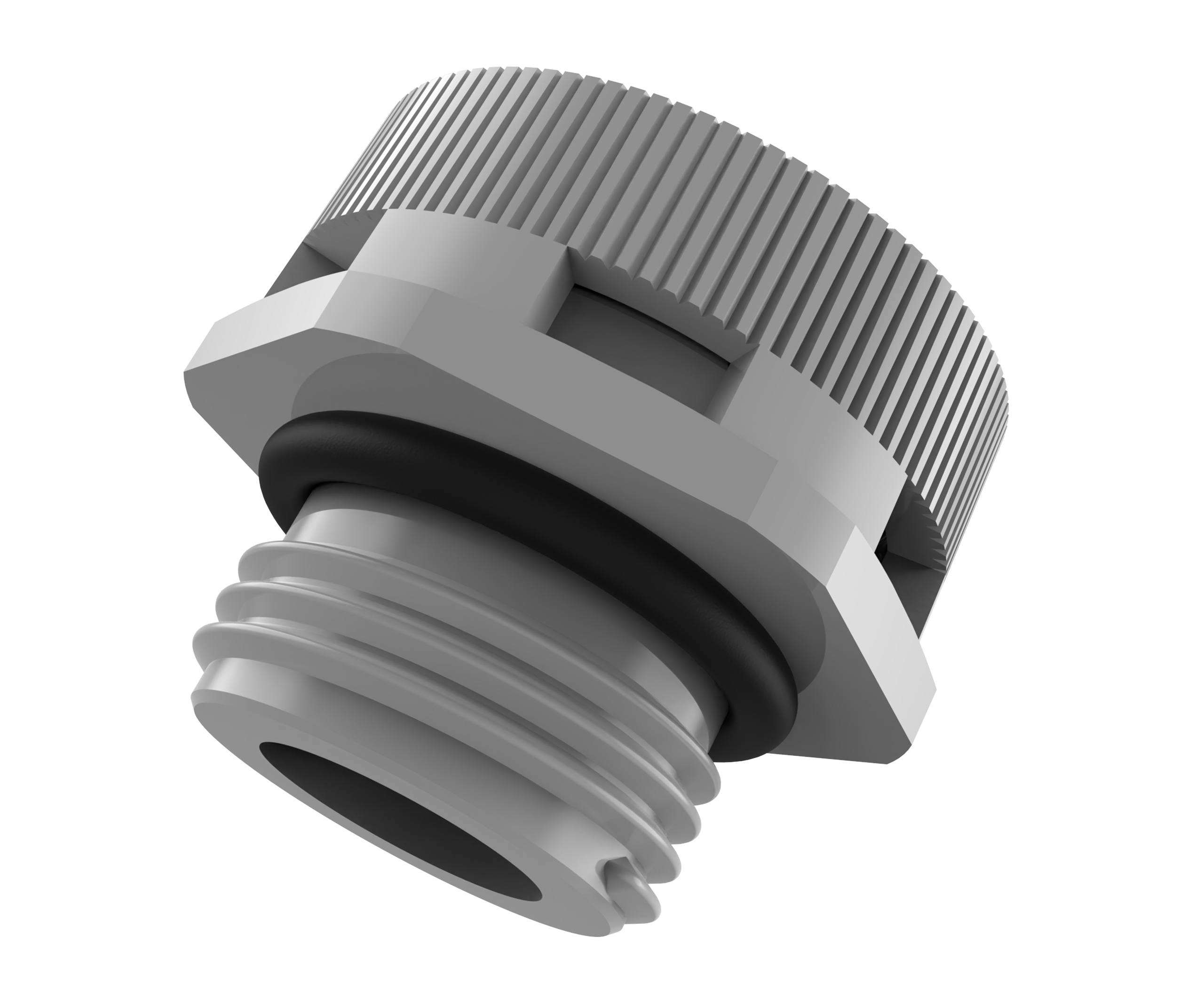

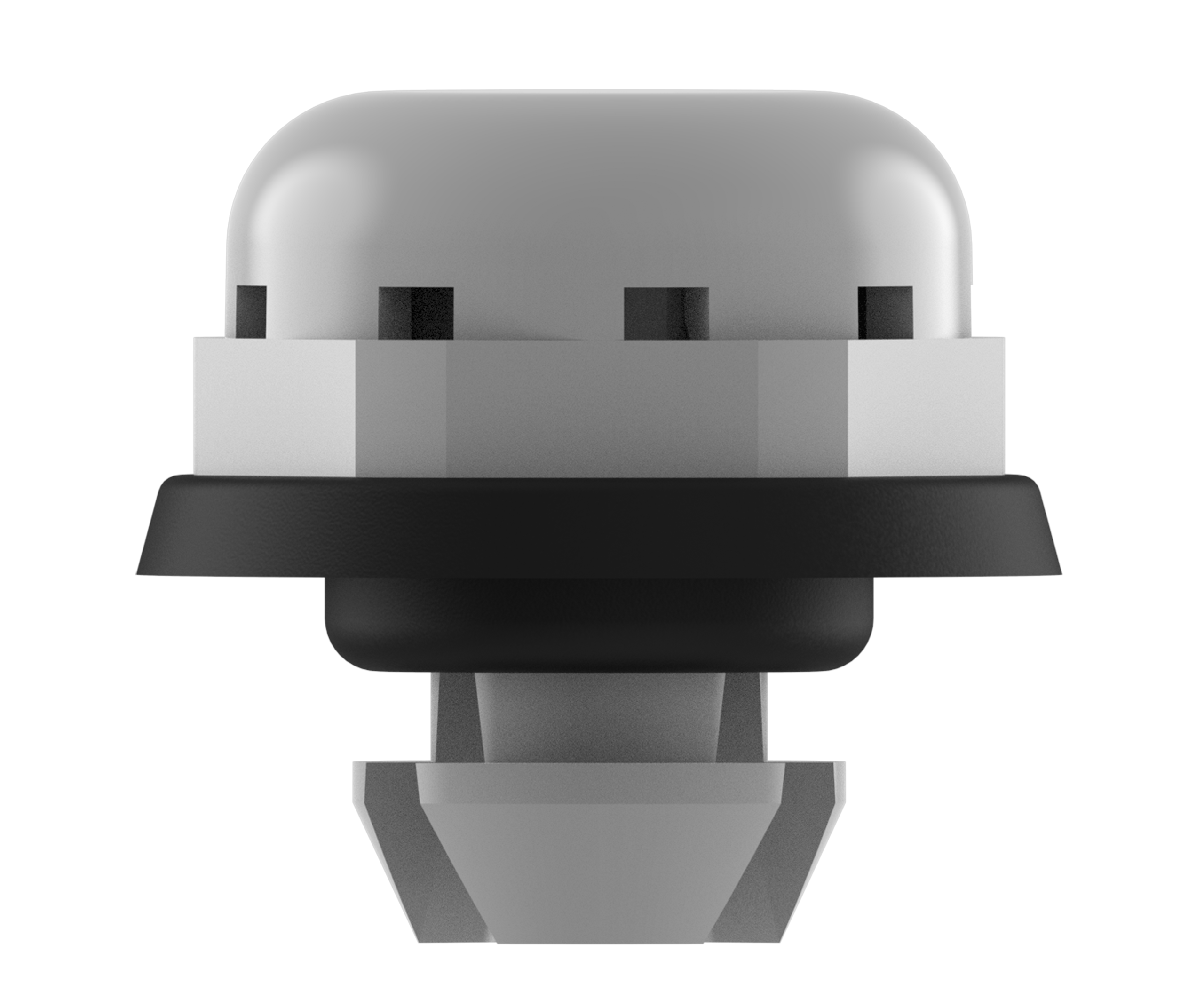

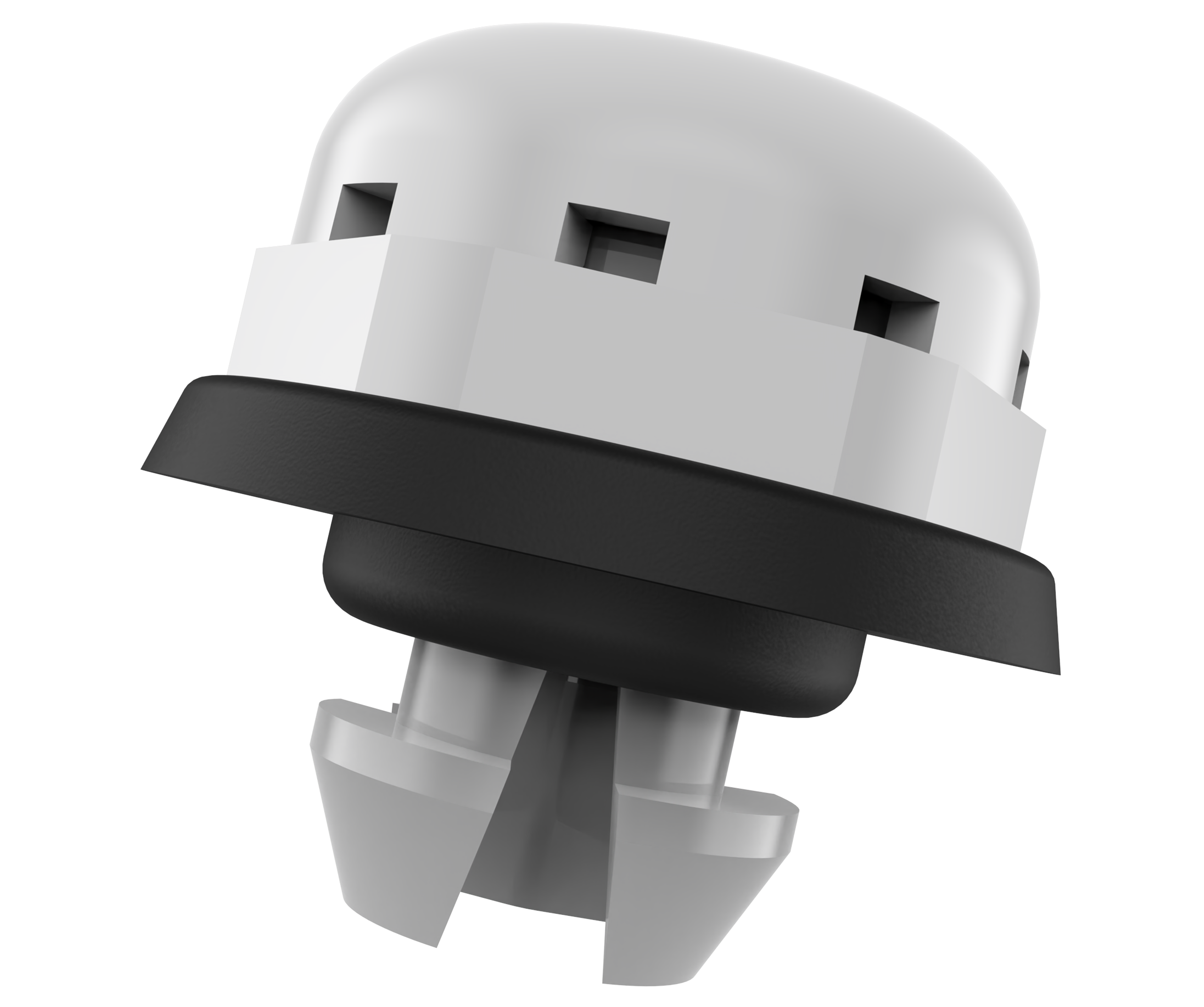

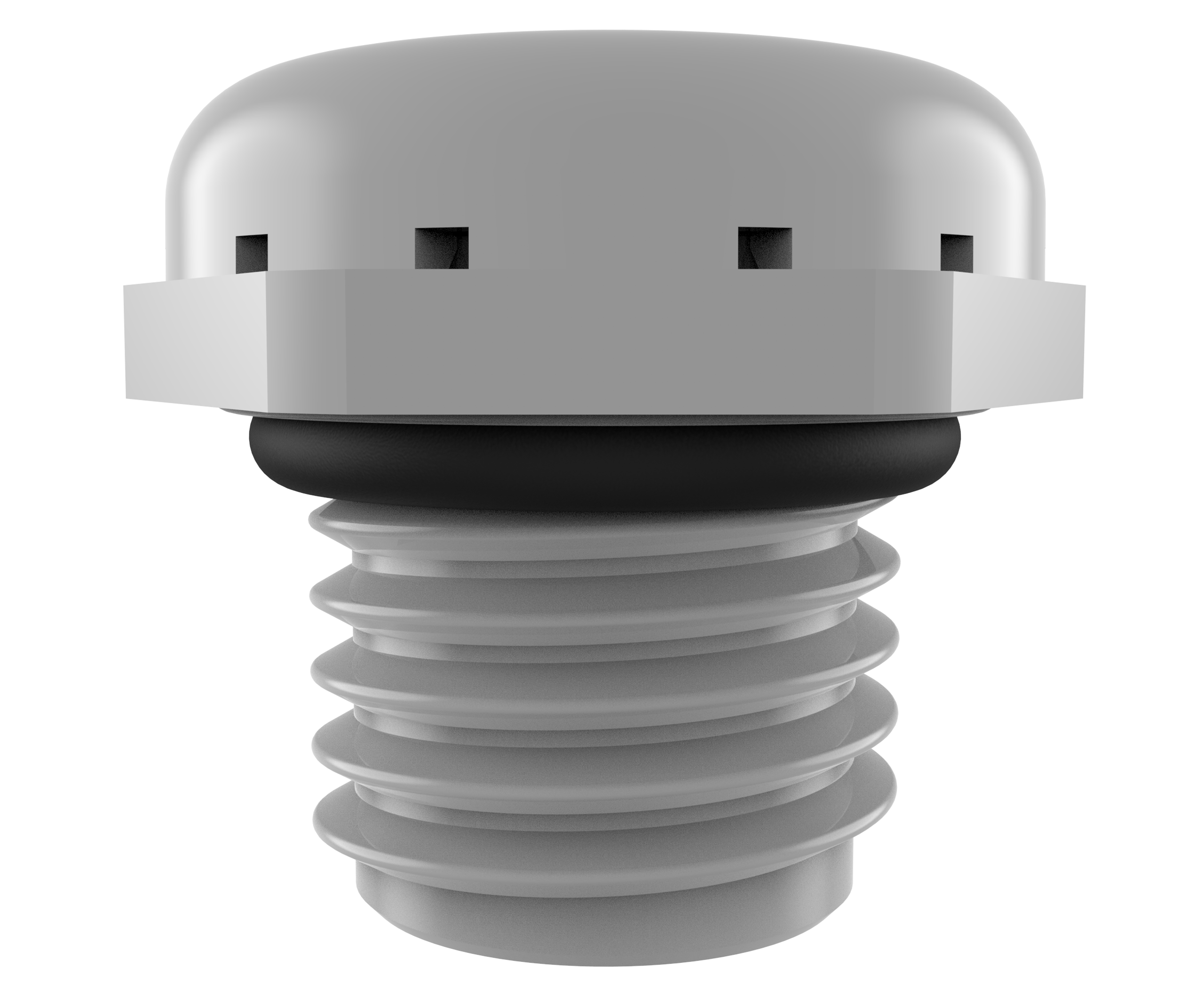

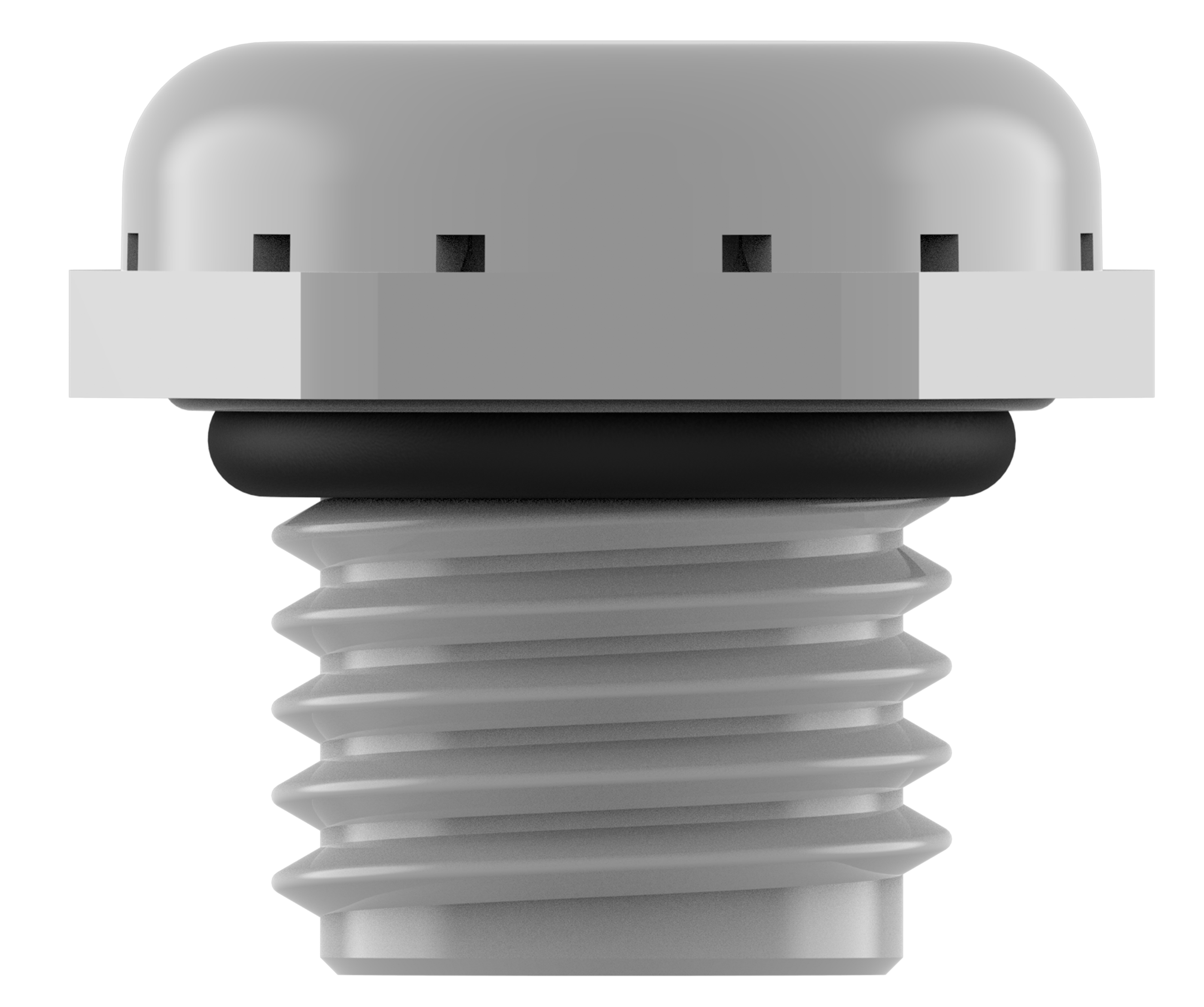

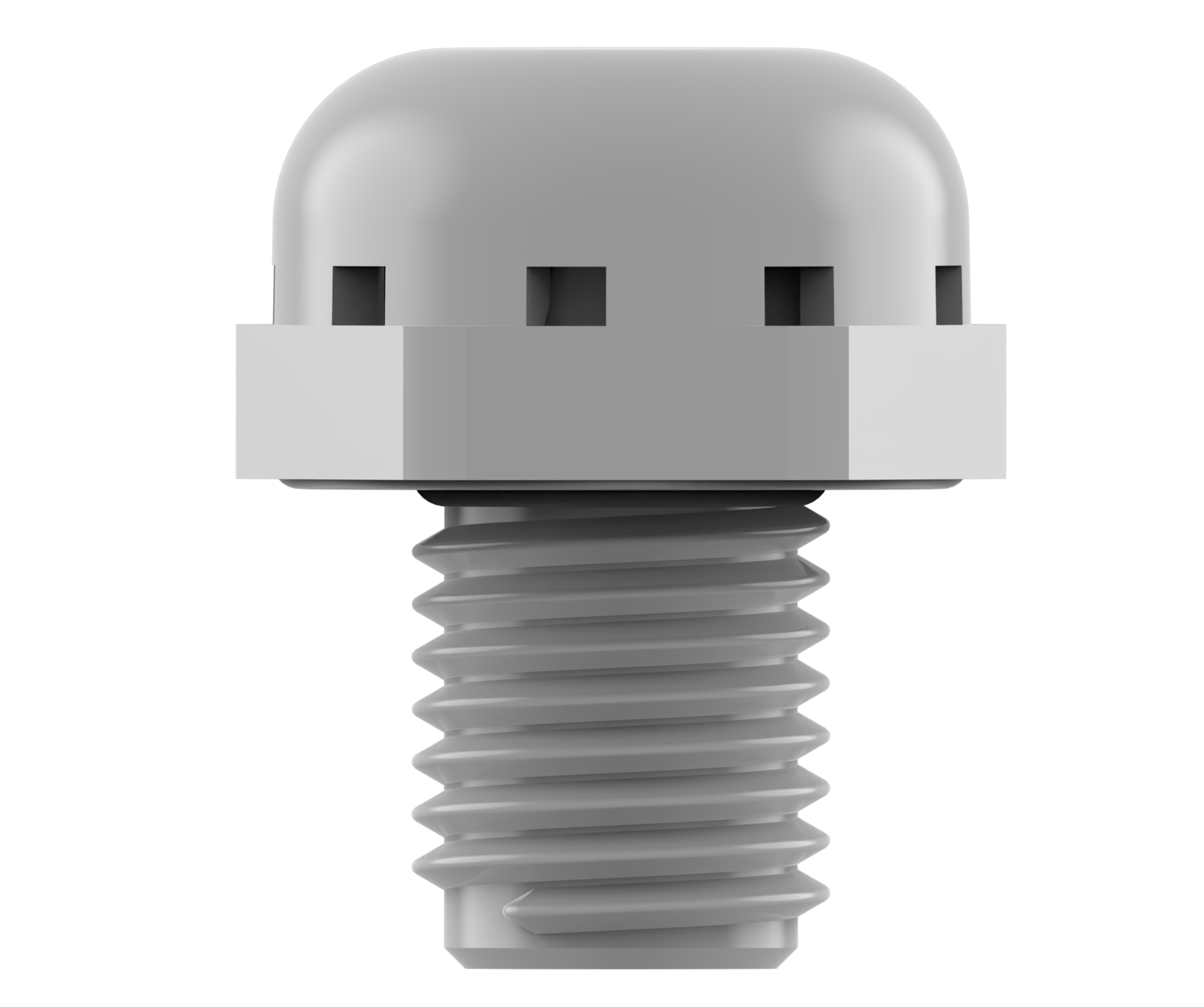

Ventilasjonsplugg, plast
○Balanserer trykkforskjeller mellom innsiden og utsiden av kapslingen og hindrer kondensdannelse
○Membranen er hydrofob og olefob.
Spesifikasjoner

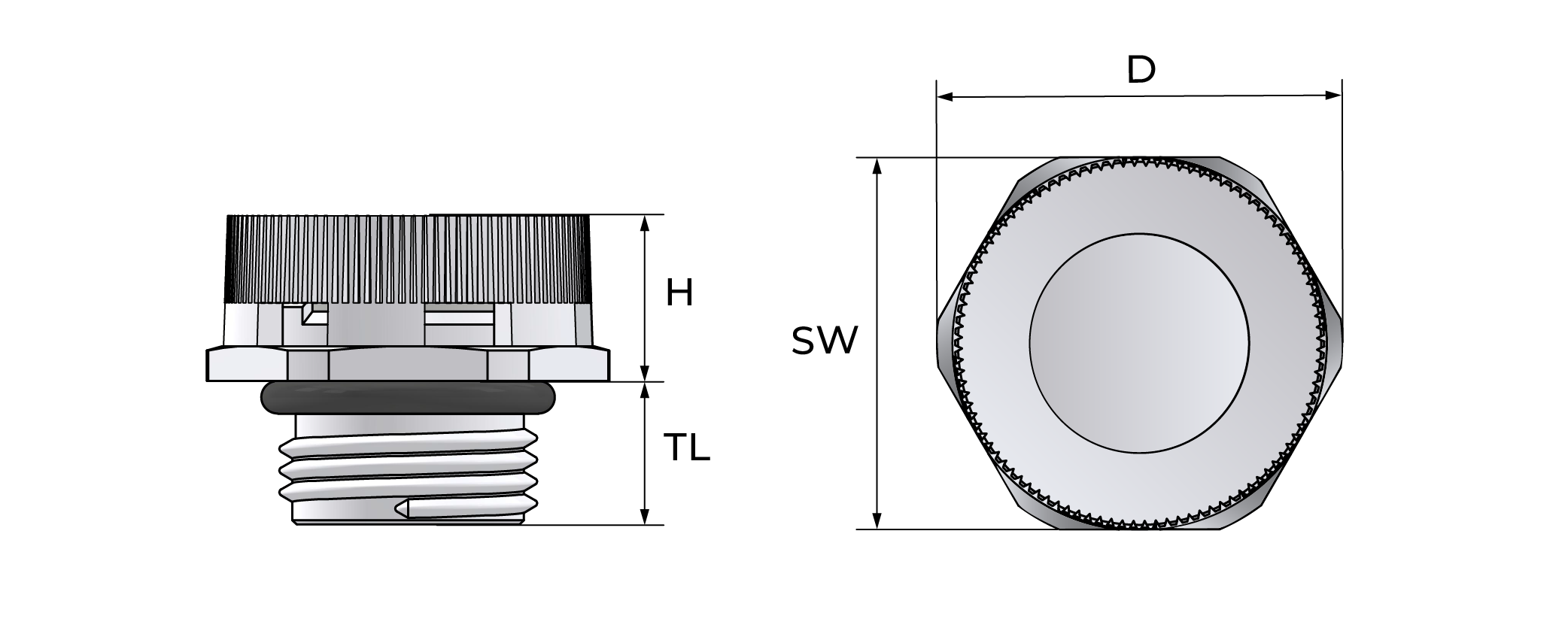

| Gjengestørrelse | Gjengelengde | Diameter | Nøkkelvidde | Height 'H' | Design Type | Air Flow Rate (l/h) | Water Intrusion Pressure (mbar) | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M6x0,75 | 10 | 11 | 10 | 6.15 | D | 8 | 0.5 | — | MBVPG-11 | — | |
| M8x1,0 | 10 | 13 | 12 | 6.15 | D | 15 | 0.5 | — | MBVPG-12 | — | |
| M12x1,0 | 6.6 | 18.5 | 17 | 7.6 | A | 16 | 0.9 | — | SBVPA-11 | — | |
| M12x1,0 | 6.6 | 18.5 | 17 | 7.6 | A | 25 | 0.5 | — | MBVPA-11 | — | |
| M12x1,0 | 6.6 | 18.5 | 17 | 7.6 | A | 120 | 0.2 | — | HBVPA-11 | — | |
| M12x1,0 | 6.6 | 18.5 | 17 | 7.6 | A | 300 | 0.1 | — | UHBVPA-11 | — | |
| M12x1,5 | 10 | 18.8 | 17 | 6.15 | D | 25 | 0.5 | — | MBVPG -13 | — | |
| M12x1,5 | 6 | 18.5 | 17 | 7.6 | A | 16 | 0.9 | — | SBVPB-11 | — | |
| M12x1,5 | 10 | 18.5 | 17 | 7.6 | A | 16 | 0.9 | — | SBVPB-11L | — | |
| M12x1,5 | 6 | 18.5 | 17 | 7.6 | A | 25 | 0.5 | — | MBVPB-11 | — | |
| M12x1,5 | 10 | 18.5 | 17 | 7.6 | A | 25 | 0.5 | — | MBVPB-11L | — | |
| M12x1,5 | 10 | 26 | 24 | 11.7 | E | 42 | 0.9 | — | SBVPD-11 | — | |
| M12x1,5 | 10 | 26 | 24 | 11.7 | E | 120 | 0.5 | — | MBVPD-11 | — | |
| M12x1,5 | 6 | 18.5 | 17 | 7.6 | A | 120 | 0.2 | — | HBVPB-11 | — | |
| M12x1,5 | 10 | 18.5 | 17 | 7.6 | A | 120 | 0.2 | — | HBVPB-11L | — | |
| M12x1,5 | 6 | 18.5 | 17 | 7.6 | A | 300 | 0.1 | — | UHBVPB-11 | — | |
| M12x1,5 | 10 | 18.5 | 17 | 7.6 | A | 300 | 0.1 | — | UHBVPB-11L | — | |
| M12x1,5 | 10 | 26 | 24 | 11.7 | E | 450 | 0.2 | — | HBVPD-11 | — | |
| M12x1,5 | 10 | 26 | 24 | 11.7 | E | 750 | 0.1 | — | UHBVPD-11 | — | |
| M16x1,5 | 10 | 26 | 24 | 11.7 | E | 42 | 0.9 | — | SBVPF-11 | — | |
| M16x1,5 | 10 | 26 | 24 | 11.7 | E | 120 | 0.5 | — | MBVPF-11 | — | |
| M16x1,5 | 10 | 26 | 24 | 11.7 | E | 450 | 0.2 | — | HBVPF-11 | — | |
| M16x1,5 | 10 | 26 | 24 | 11.7 | E | 750 | 0.1 | — | UHBVPF-11 | — | |
| M20x1,5 | 10 | 26 | 24 | 11.7 | E | 42 | 0.9 | — | SBVPE-11 | — | |
| M20x1,5 | 10 | 26 | 24 | 11.7 | E | 120 | 0.5 | — | MBVPE-11 | — | |
| M20x1,5 | 10 | 26 | 24 | 11.7 | E | 450 | 0.2 | — | HBVPE-11 | — | |
| M20x1,5 | 10 | 26 | 24 | 11.7 | E | 750 | 0.1 | — | UHBVPE-11 | — | |
| M40x1,5 | 18 | 55.3 | - | 15.5 | F | 120 | 0.9 | — | SBVPX-18S | — | |
| M40x1,5 | 18 | 55.3 | - | 15.5 | F | 375 | 0.5 | — | MBVPX-18S | — | |
| M40x1,5 | 18 | 55.3 | - | 15.5 | F | 1350 | 0.2 | — | HBVPX-18S | — | |
| M40x1,5 | 18 | 55.3 | - | 15.5 | F | 2200 | 0.1 | — | UHBVPX-18S | — |
