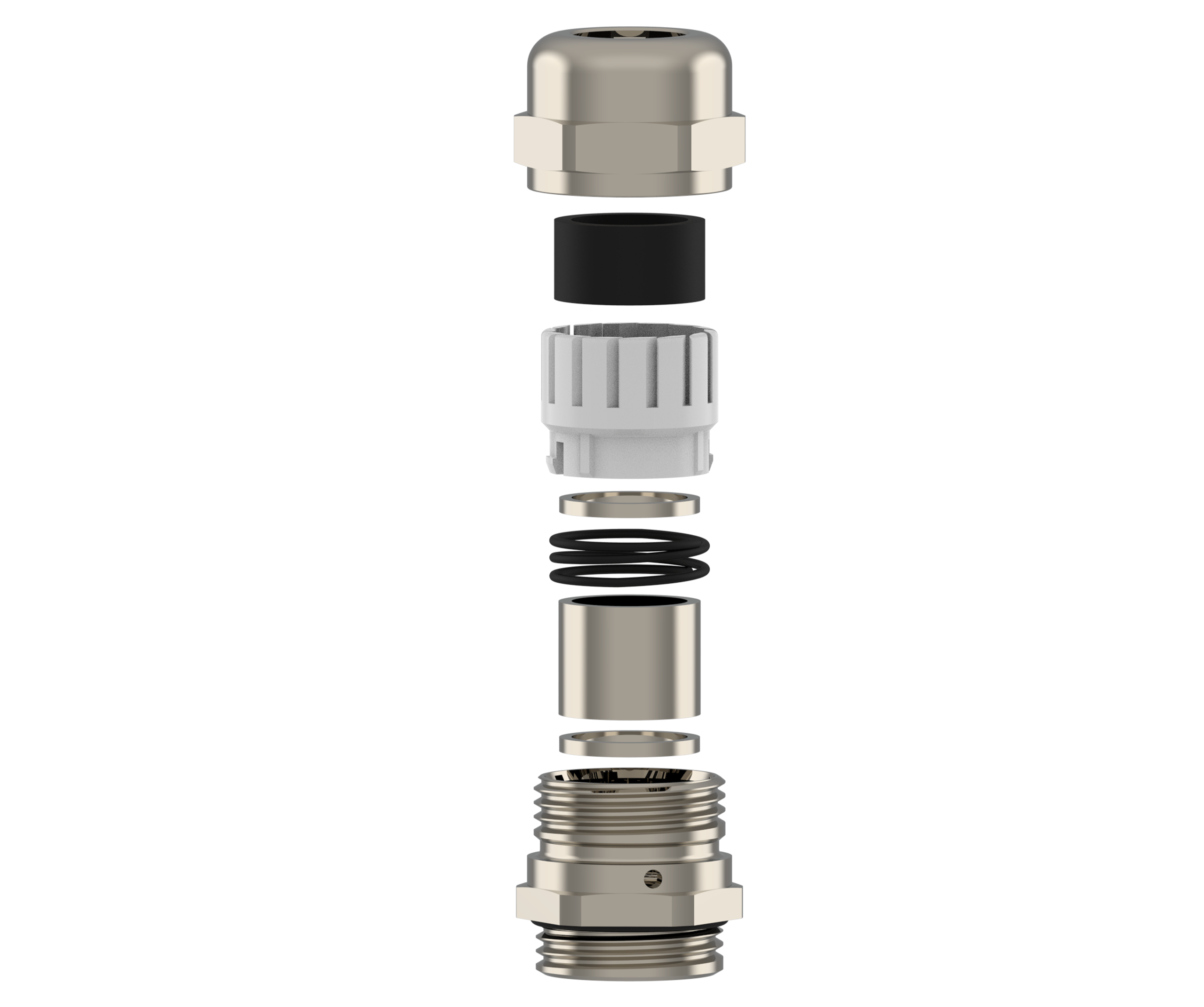

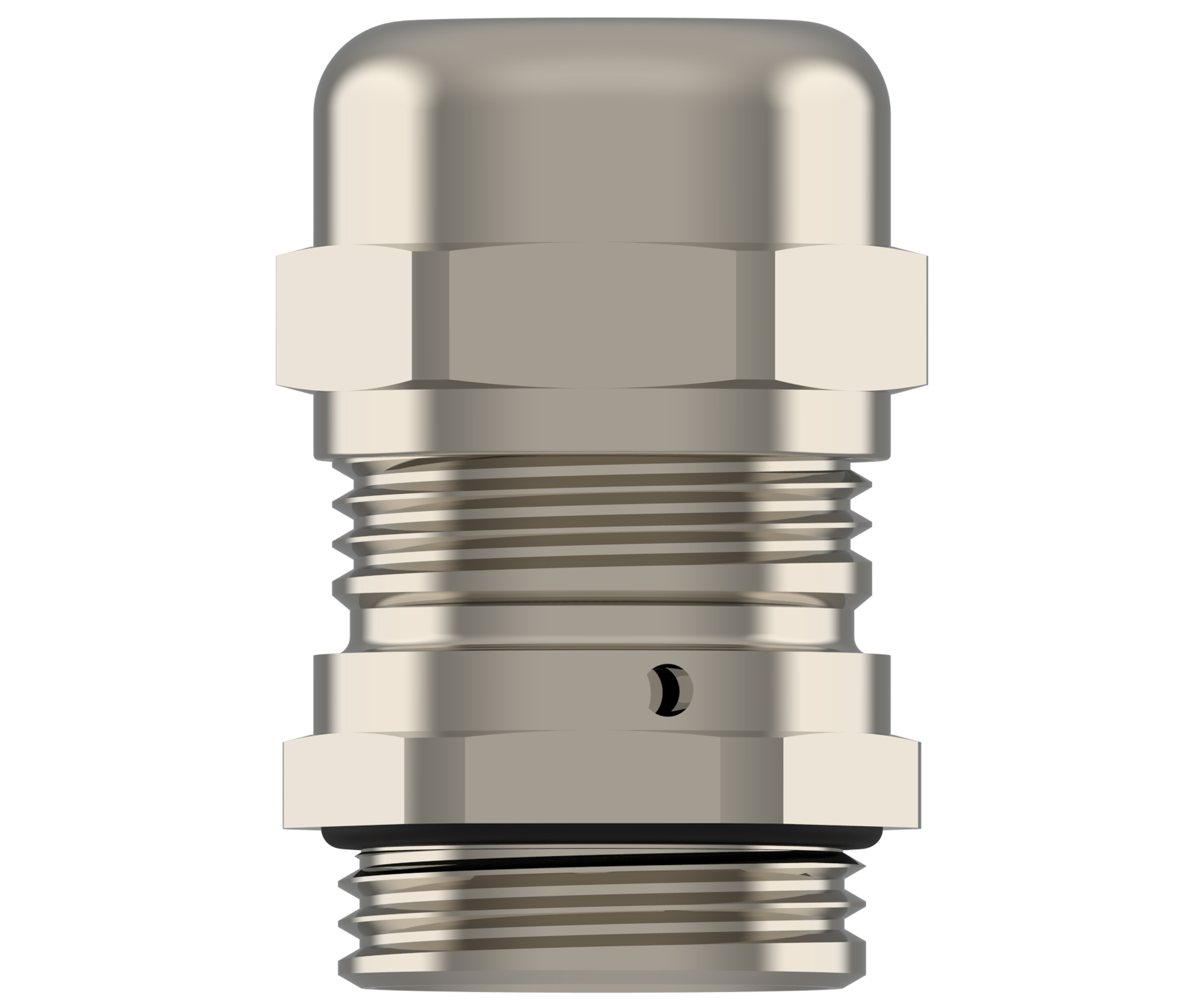

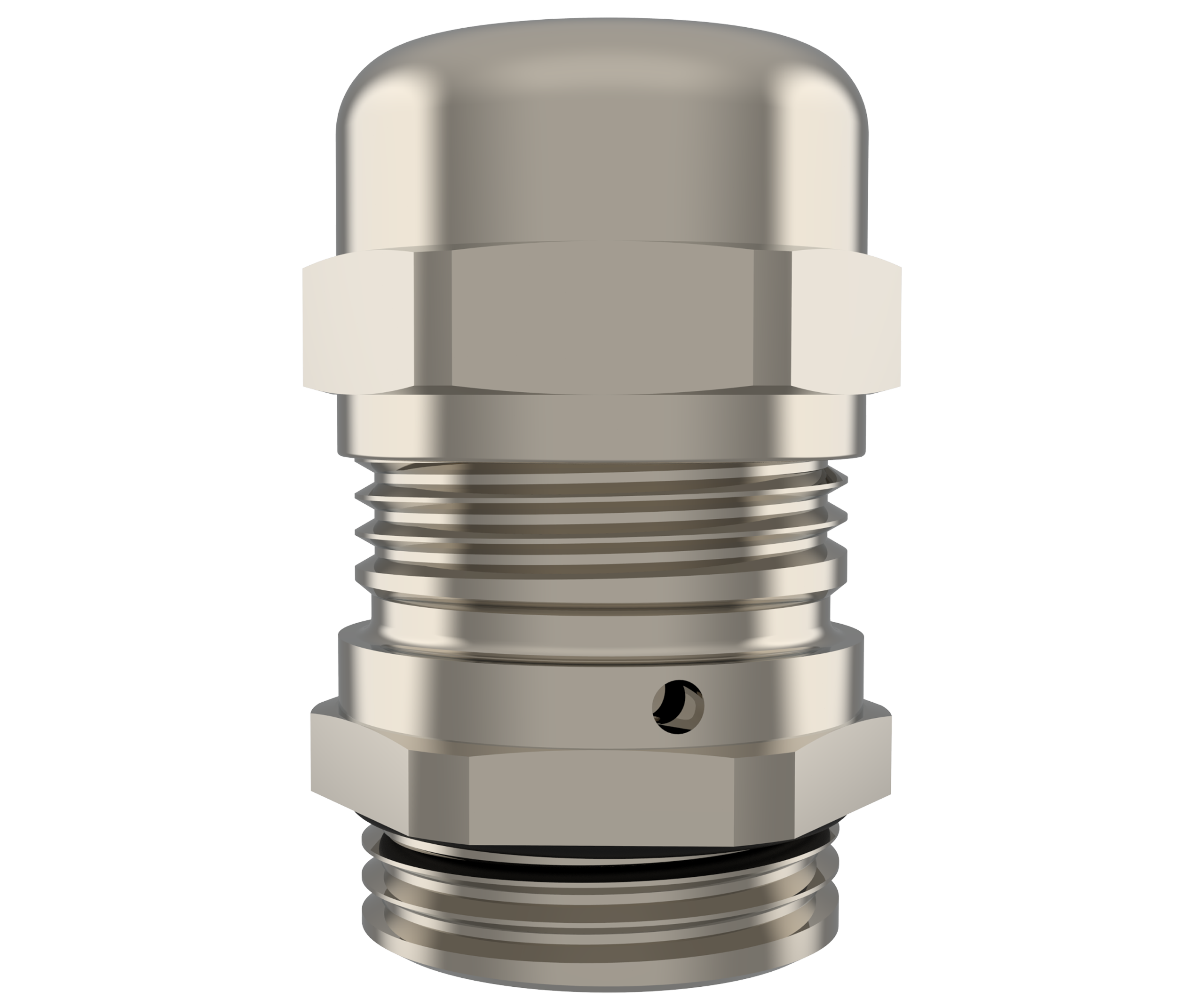

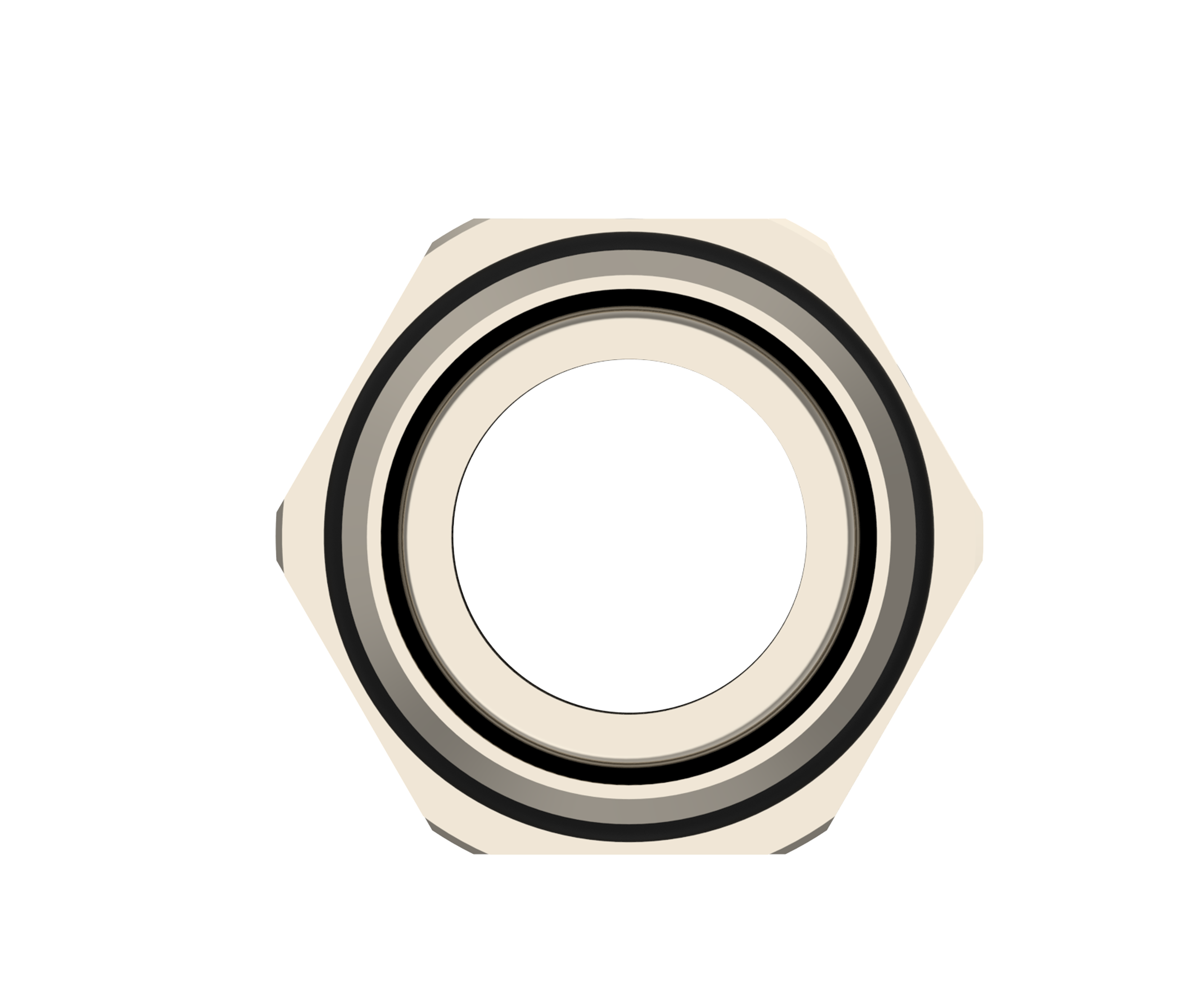

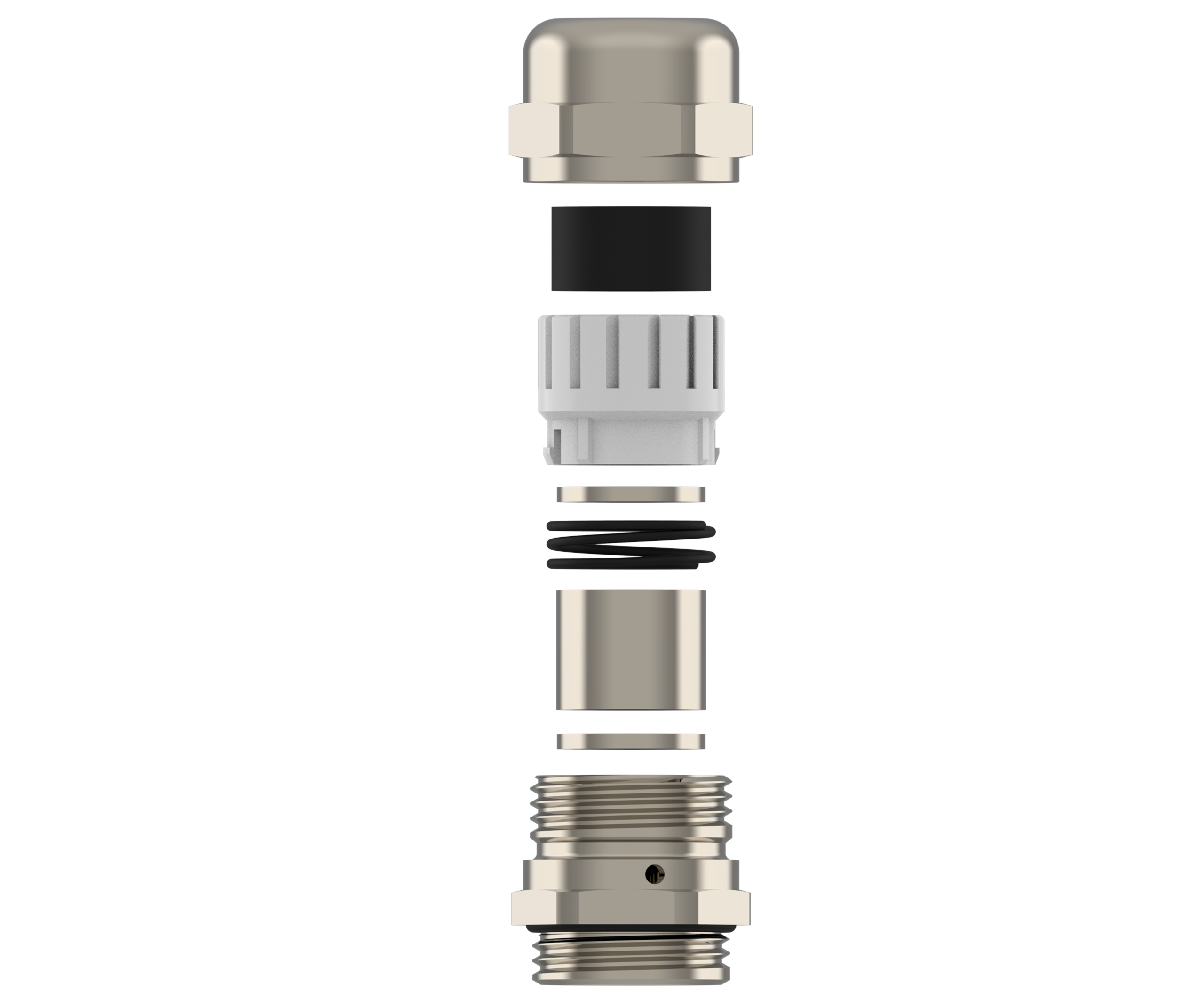

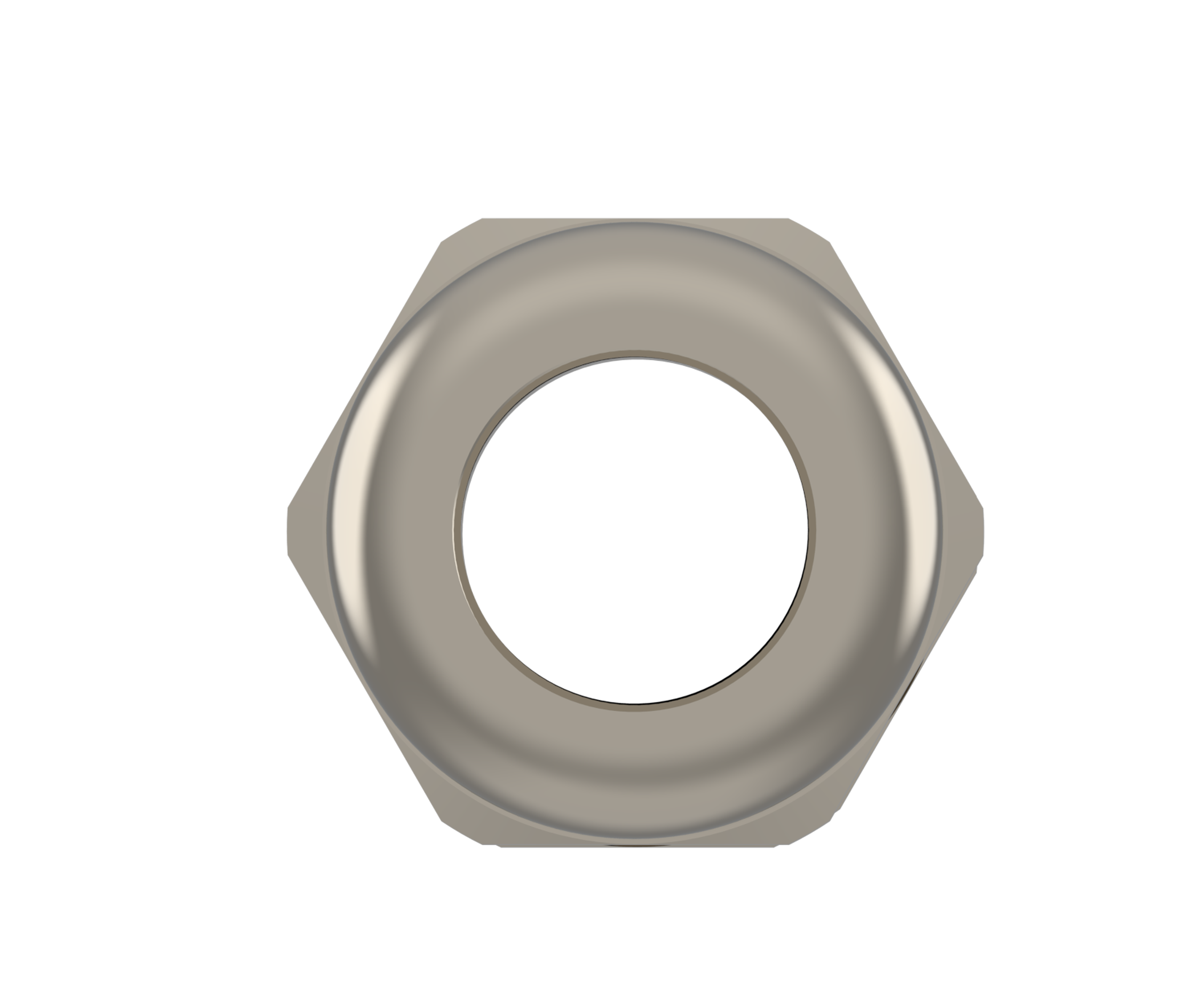

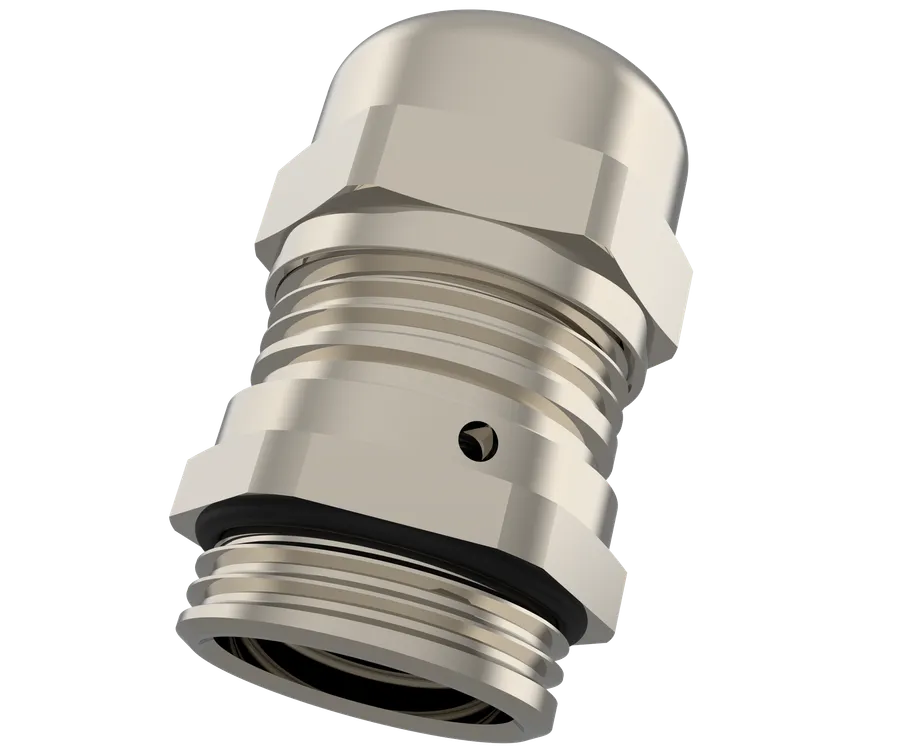

Ventilasjons kabelnippel, metall
○Kabelnippel i metall som kombinerer kabelinnføring og trykkavstemming i ett produkt
○Hindrer kondensskade ved å balansere trykkforskjeller; membranen er hydrofob og olefob.

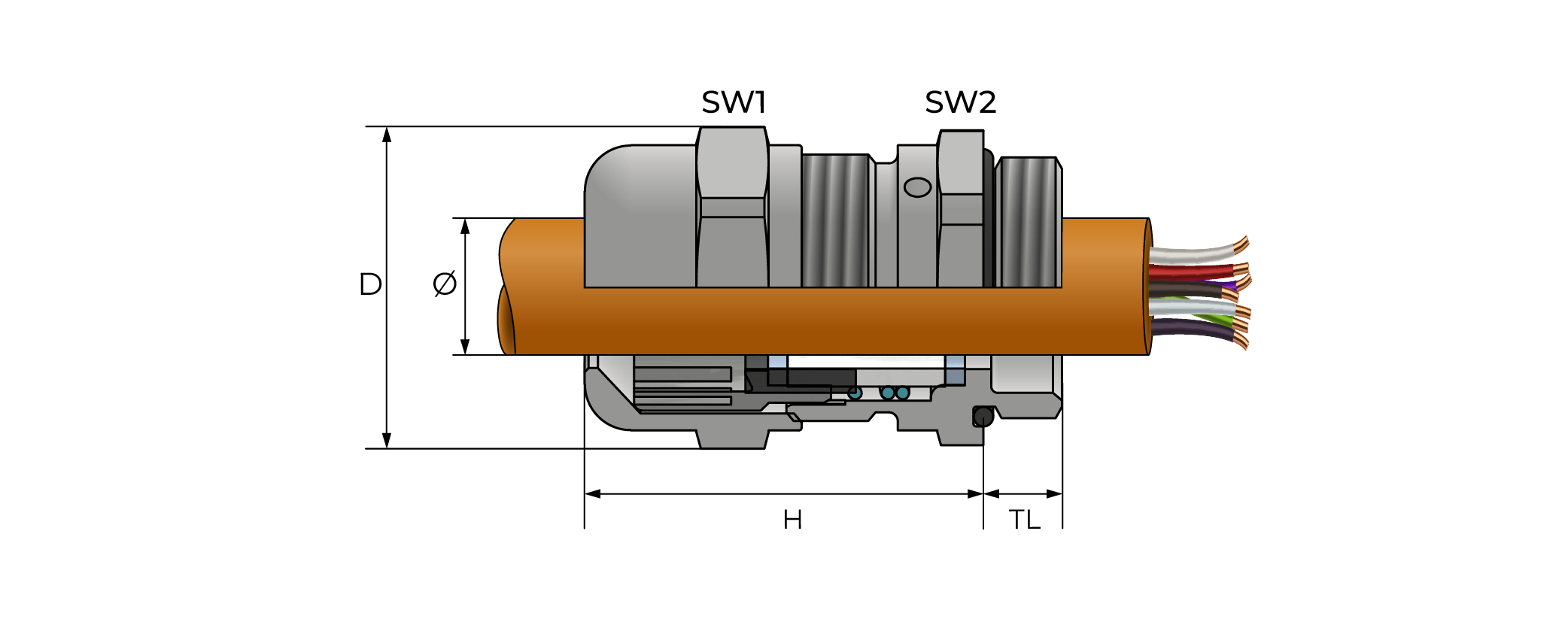

Spesifikasjoner
| Gjengestørrelse | Klemområdet | Gjengelengde | Nøkkelvidde | Diameter | Maks høyde 'H' | Air Flow Rate (l/h) | Water Intrusion Pressure (mbar) | Varenummer | BIMED Kode | 3D File |
|---|---|---|---|---|---|---|---|---|---|---|
| PG 7 | 2,0 - 6,0 | 8 | 17/17 | 18.8 | 32.5 | 25 | 0.1 | — | BSBCVG-01R | Get File |
| PG 7 | 4,0 - 7,0 | 8 | 17/17 | 18.8 | 32.5 | 25 | 0.1 | — | BSBCVG-01 | Get File |
| PG 9 | 2,0 - 6,0 | 8 | 17/17 | 18.8 | 29 | 25 | 0.1 | — | BSBCVG-02R | Get File |
| PG 9 | 4,0 - 7,0 | 8 | 17/17 | 18.8 | 29 | 25 | 0.1 | — | BSBCVG-02 | Get File |
| PG 11 | 5,0 - 9,0 | 8 | 20/20 | 22 | 36 | 35 | 0.1 | — | BSBCVG-03 | Get File |
| PG 11 | 3,0 - 7,0 | 8 | 20/20 | 22 | 36 | 35 | 0.1 | — | BSBCVG-03R | Get File |
| PG 13,5 | 5,0 - 9,0 | 9 | 22/22 | 24.5 | 32.5 | 50 | 0.1 | — | BSBCVG-04R | Get File |
| PG 13,5 | 6,0 - 11,0 | 9 | 22/22 | 24.5 | 32.5 | 50 | 0.1 | — | BSBCVG-04 | Get File |
