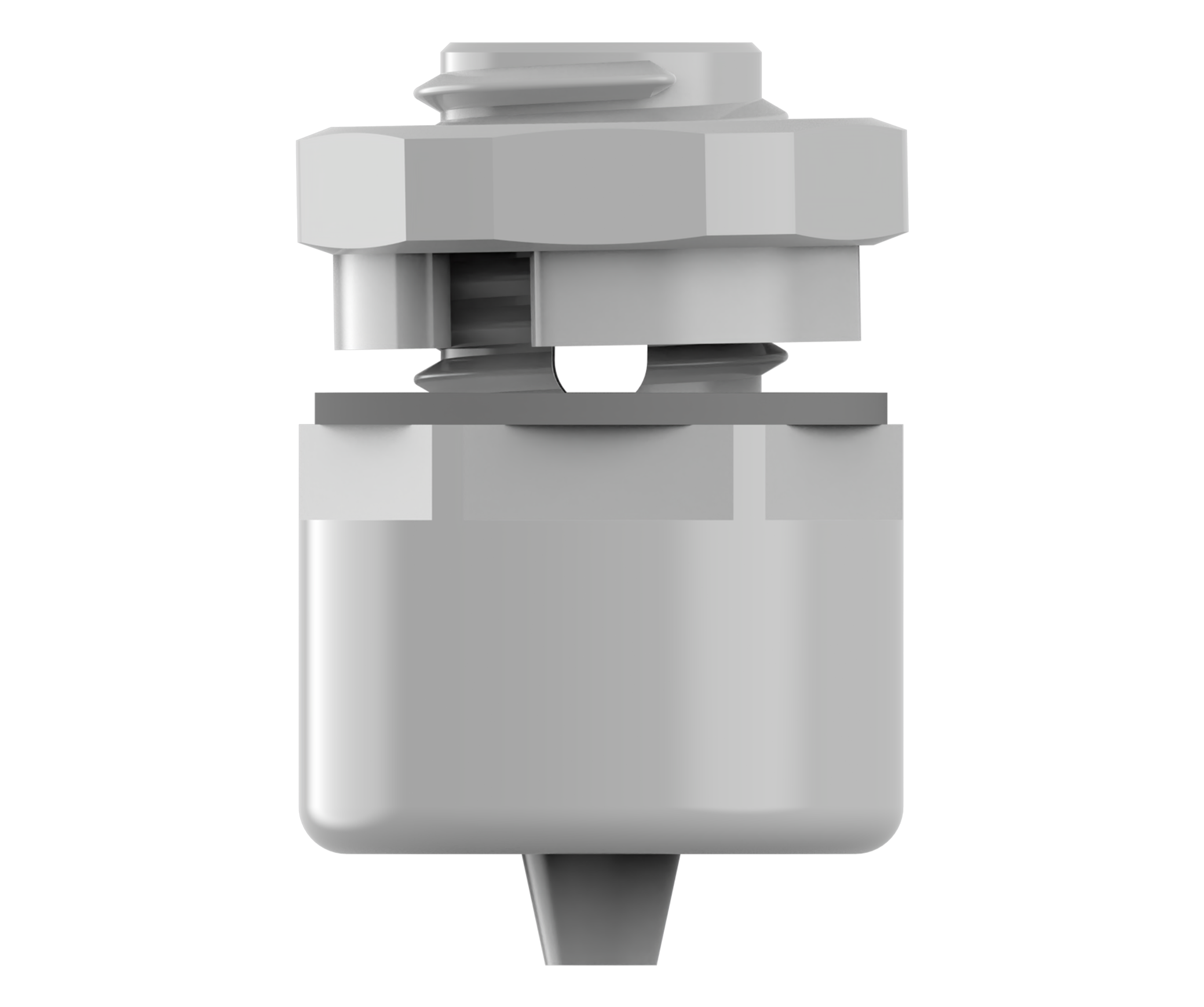

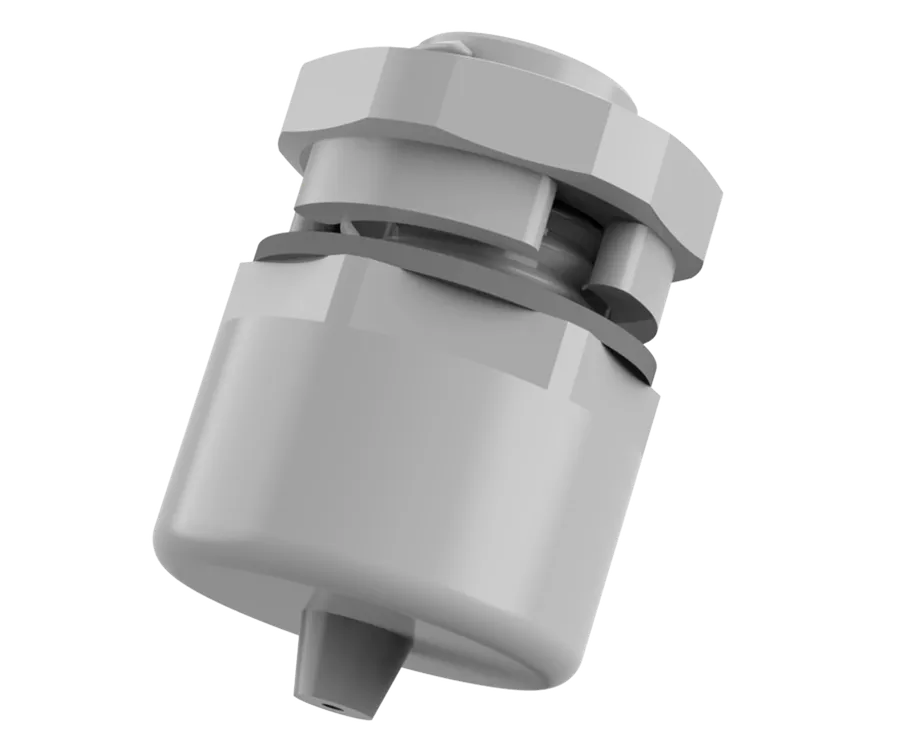

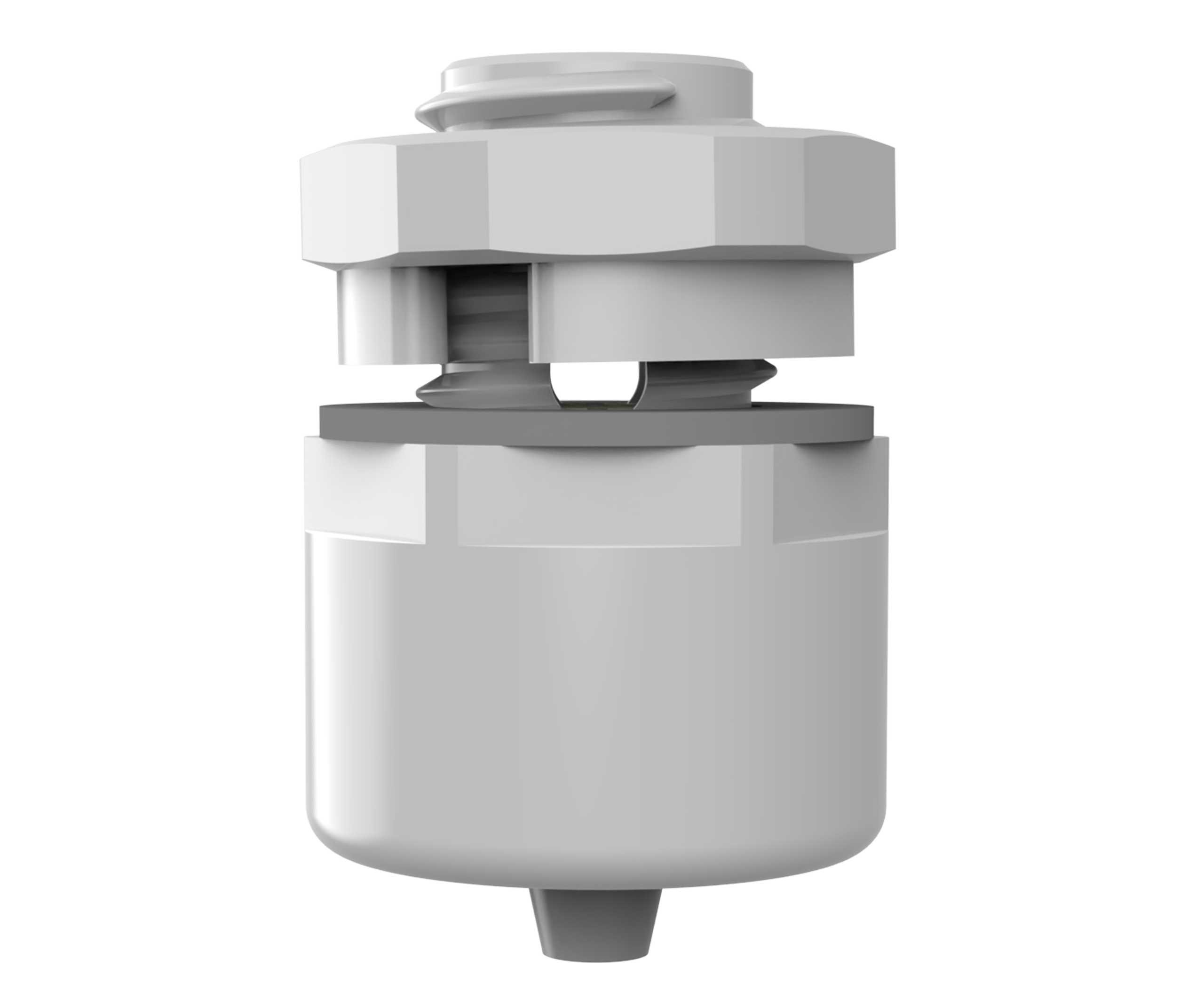

Dreneringsplugg, plast
○Drenerer kondensvann fra kapslingen og hindrer skade på elektrisk/elektronisk utstyr
○Lar luften i kapslingen bytte seg ut med omgivelsesatmosfæren.
Spesifikasjoner
Metric - mm

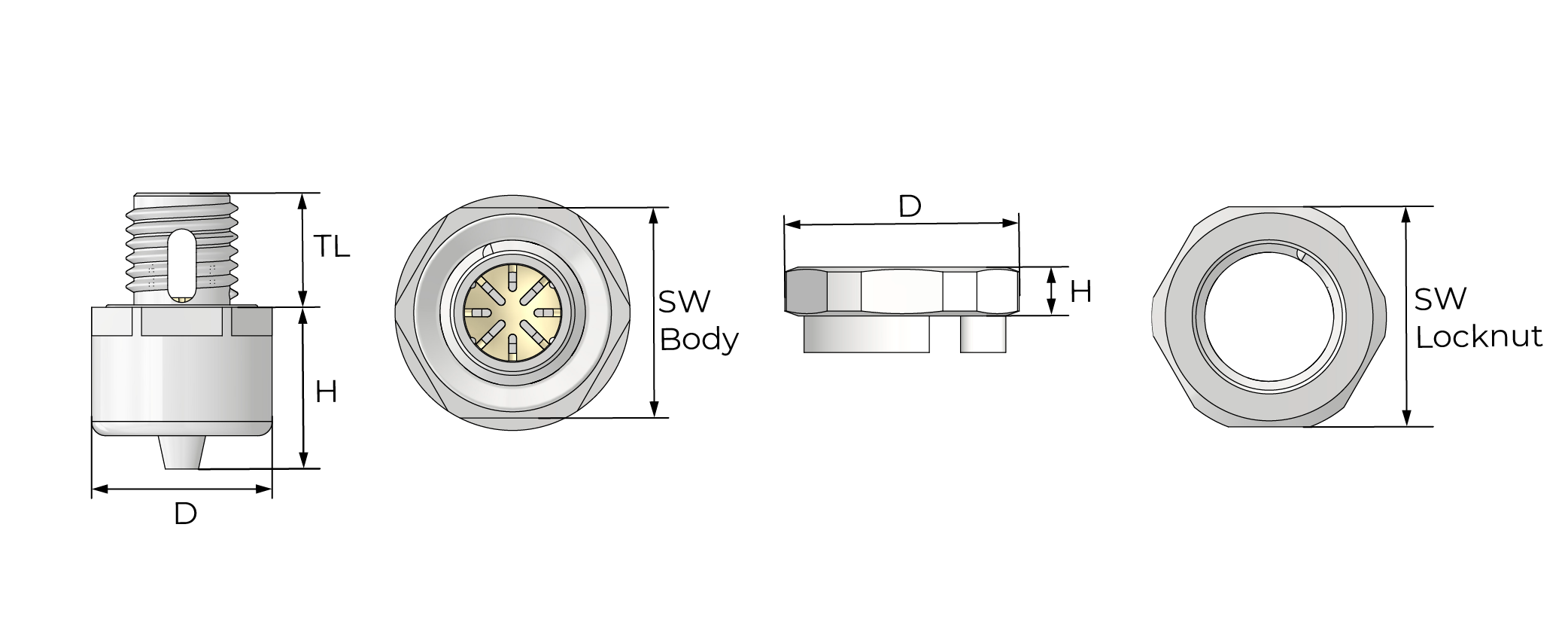

| Gjengestørrelse | Gjengelengde | Diameter | Height 'H' | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|
| M12x1,5 | 12 | 19 | 17 | — | BPDRP-11 | — |
mm
| Gjengestørrelse | Gjengelengde | Diameter | Nøkkelvidde | Height 'H' | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 12 | 19.2 | 18 | 7 | — | BMDL-1S | — |
