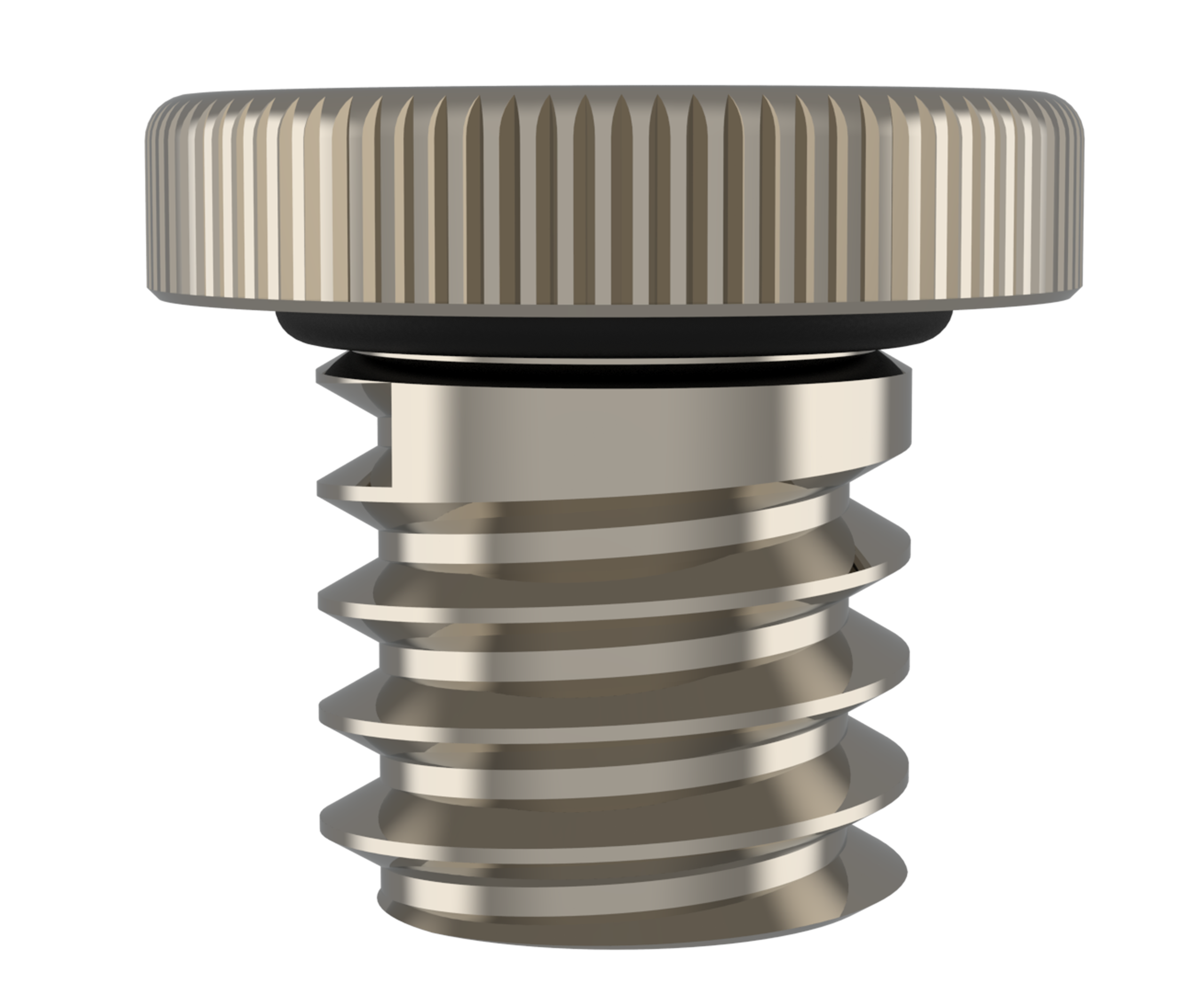

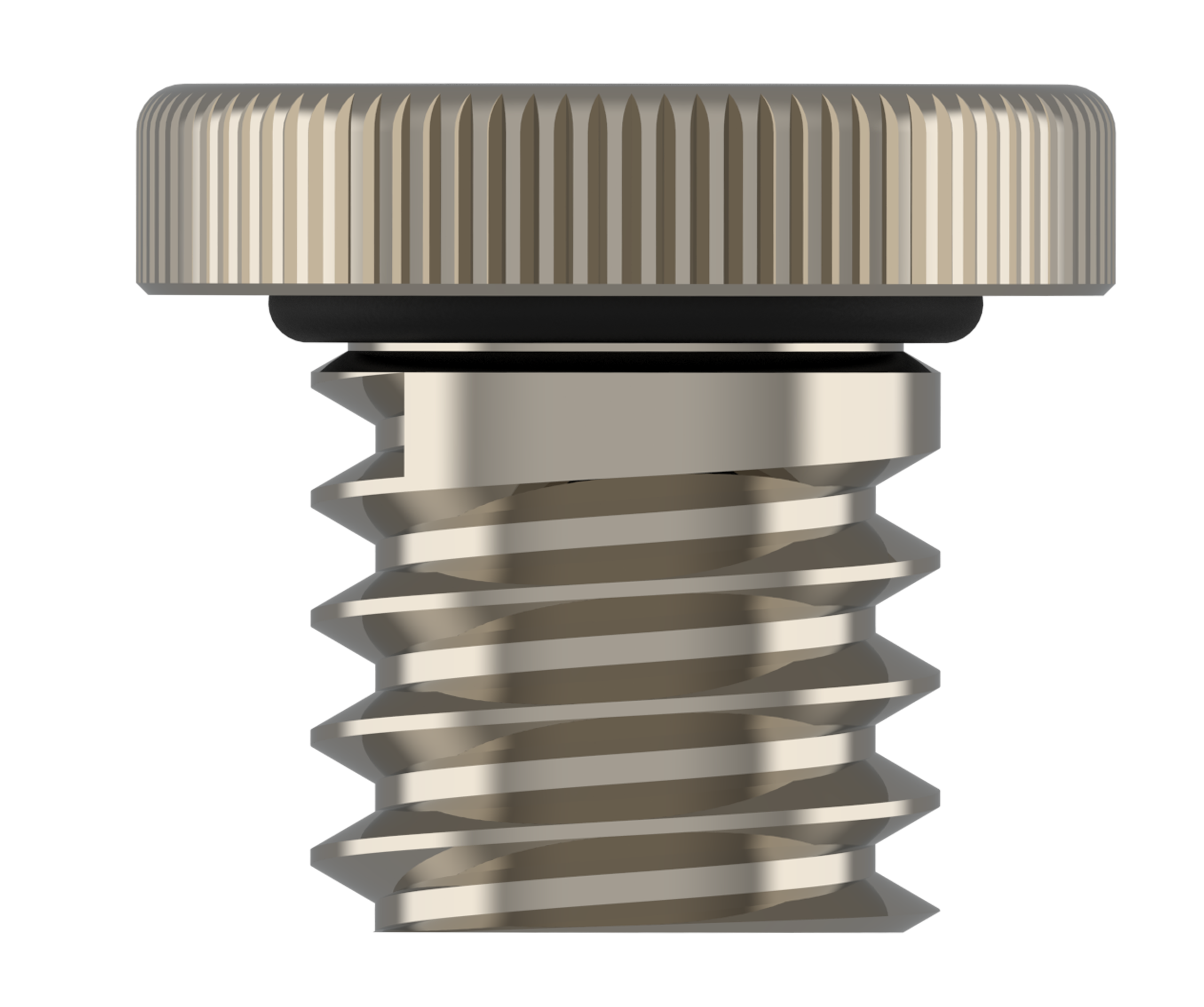

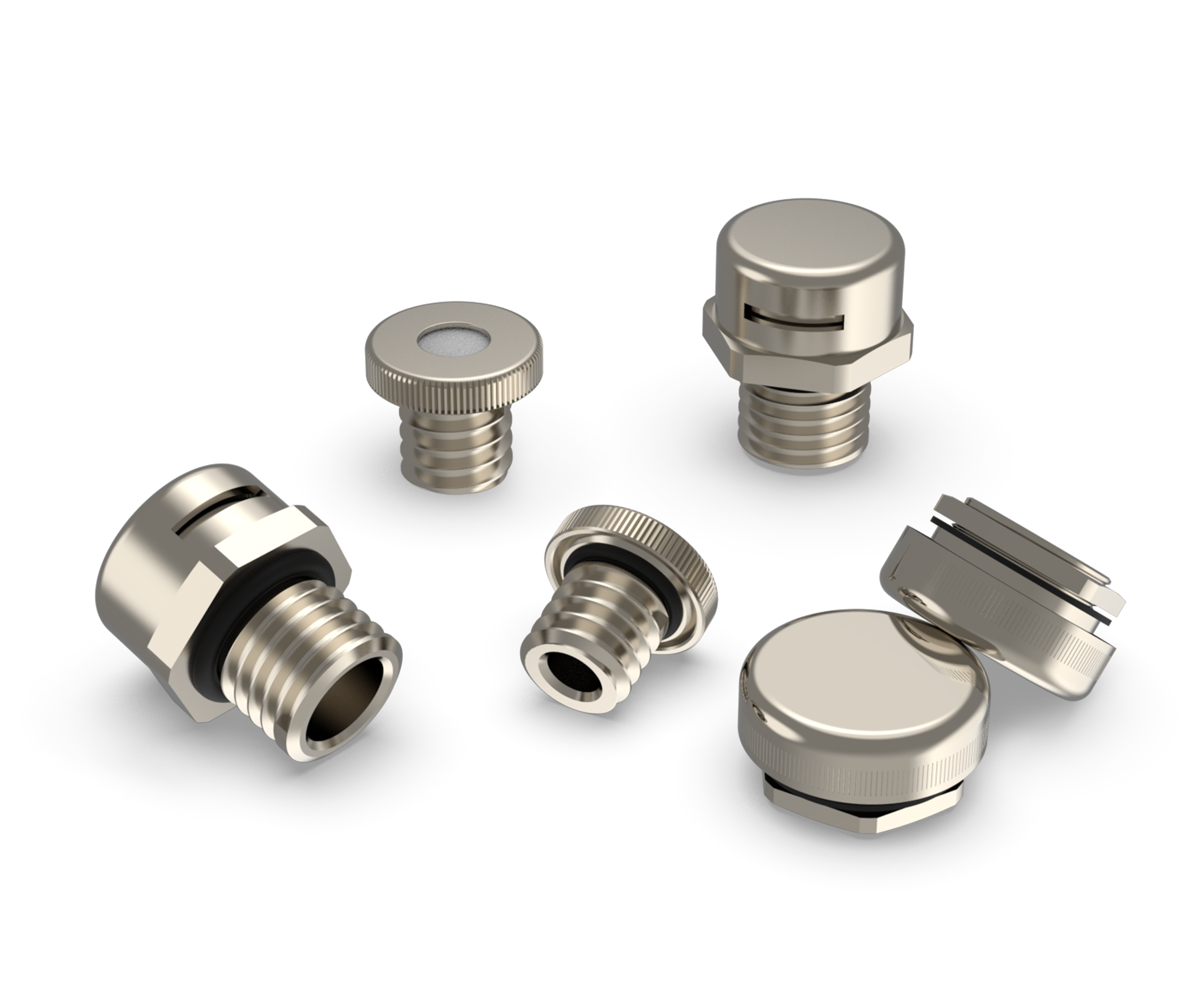

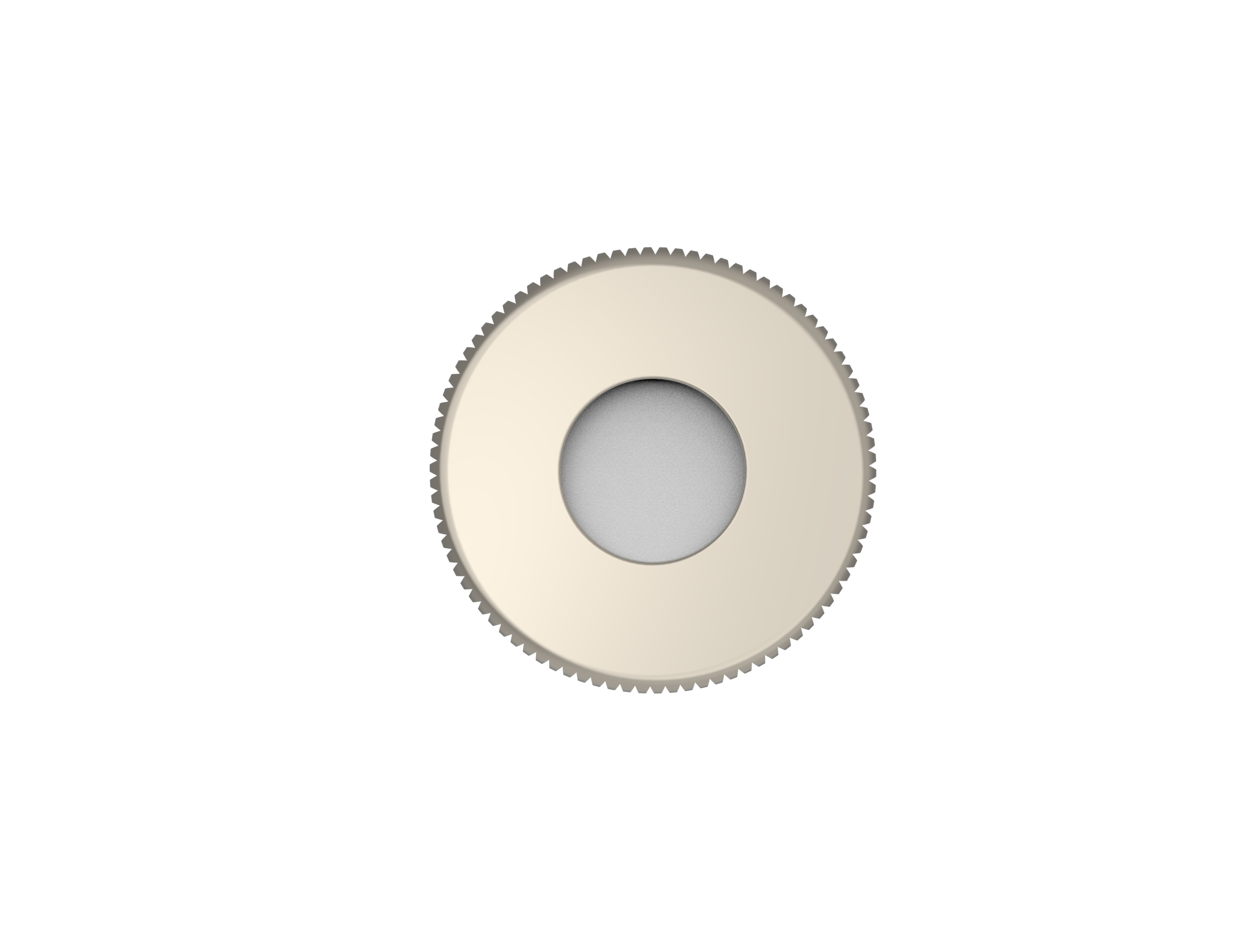

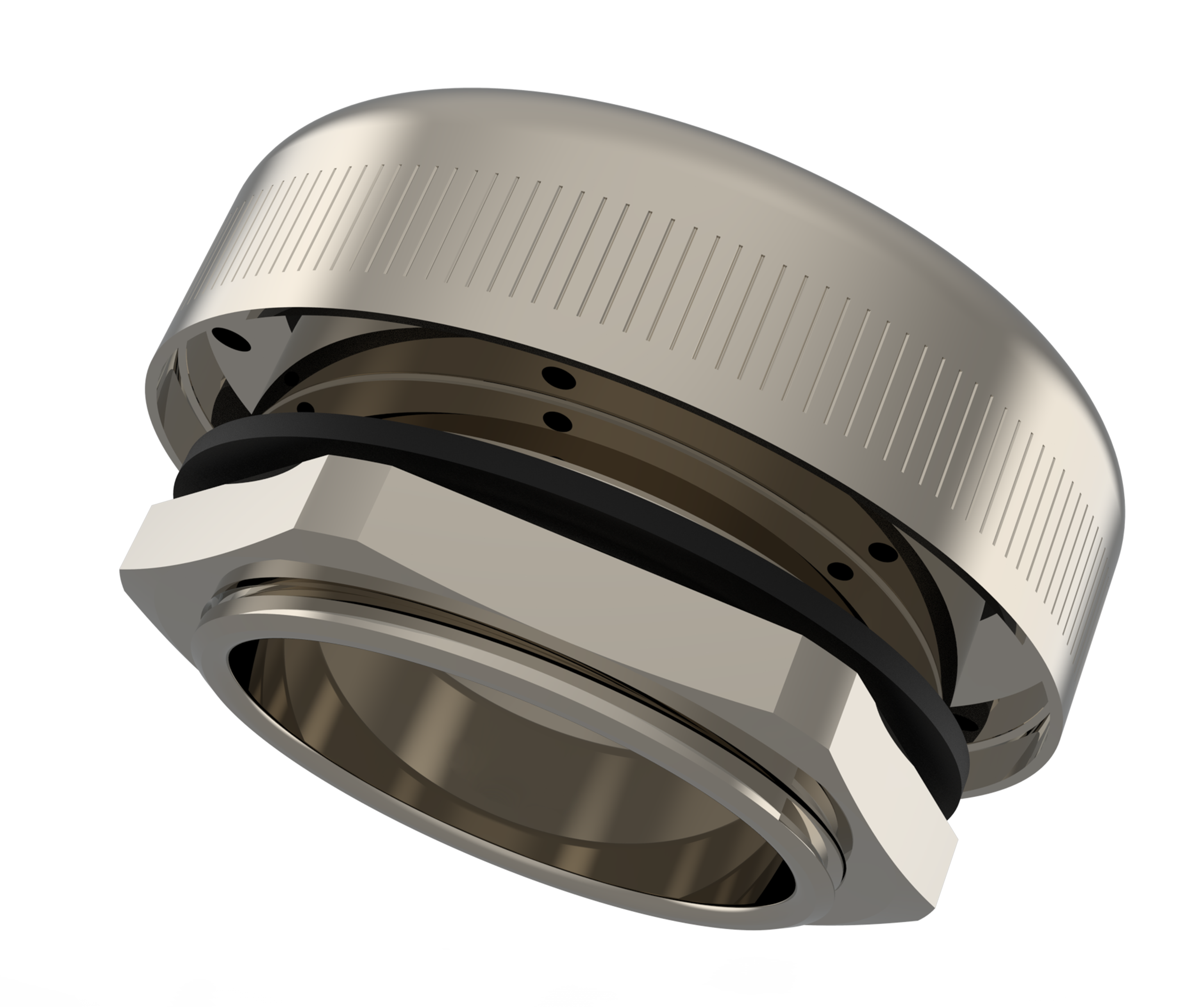

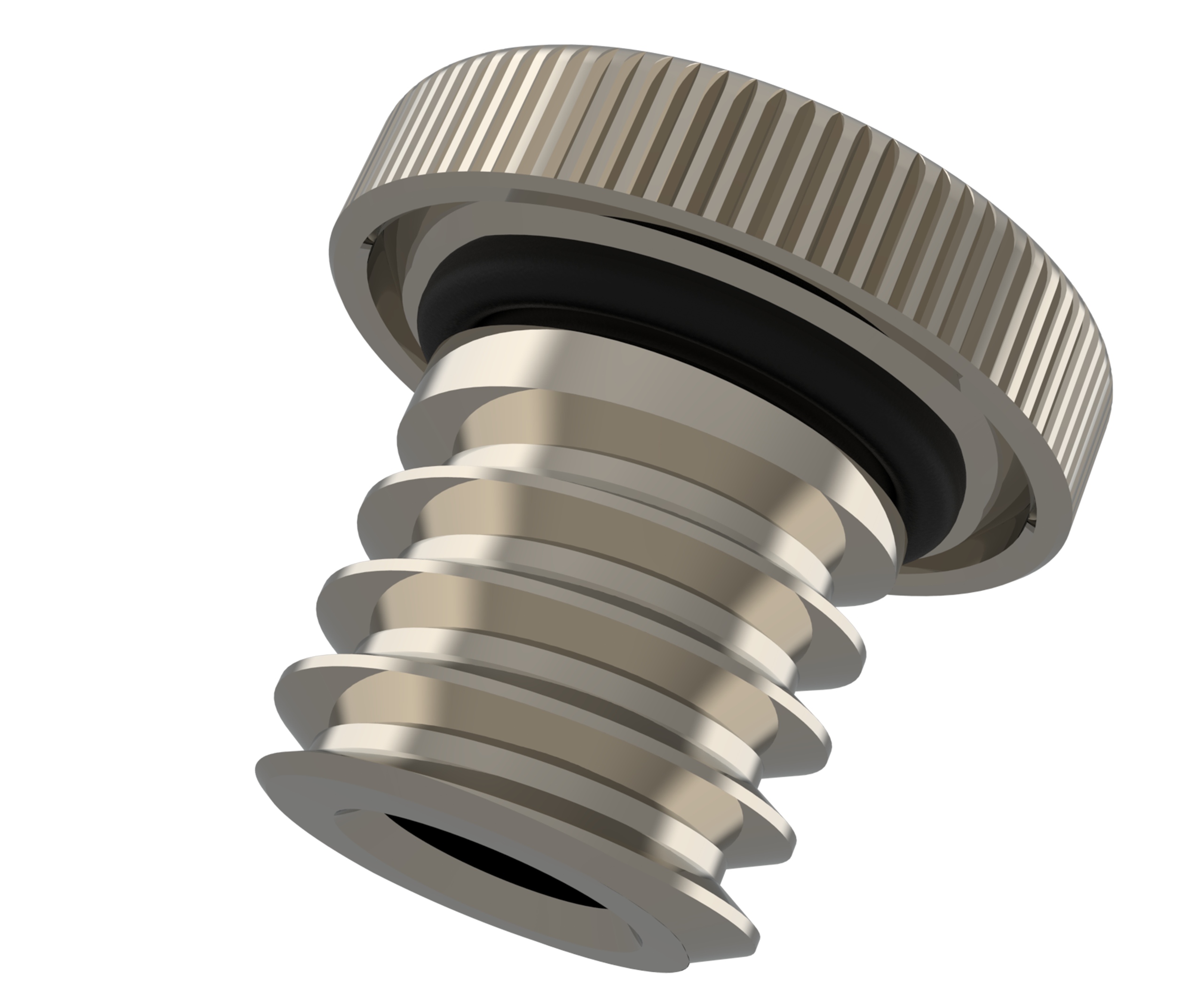

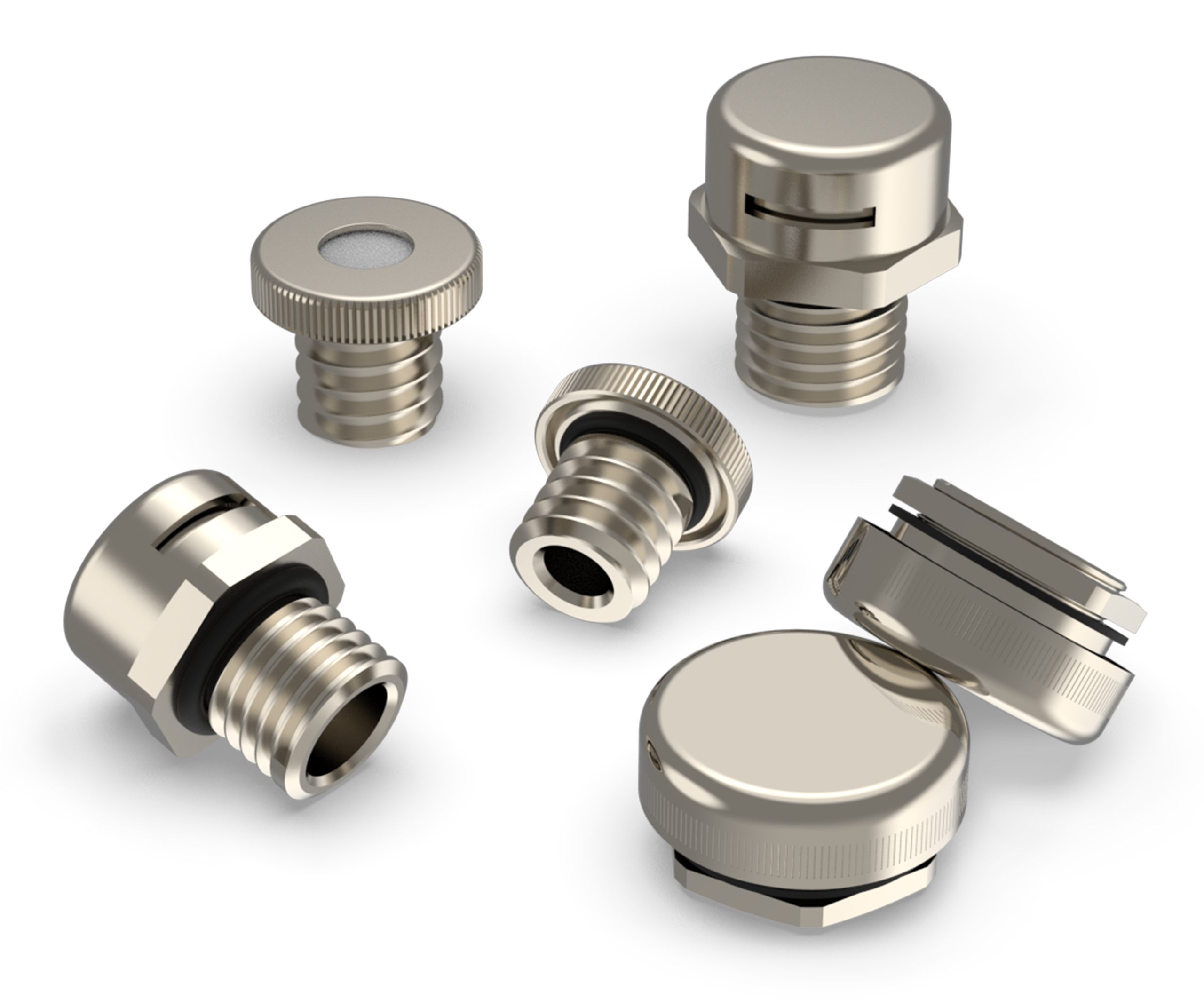

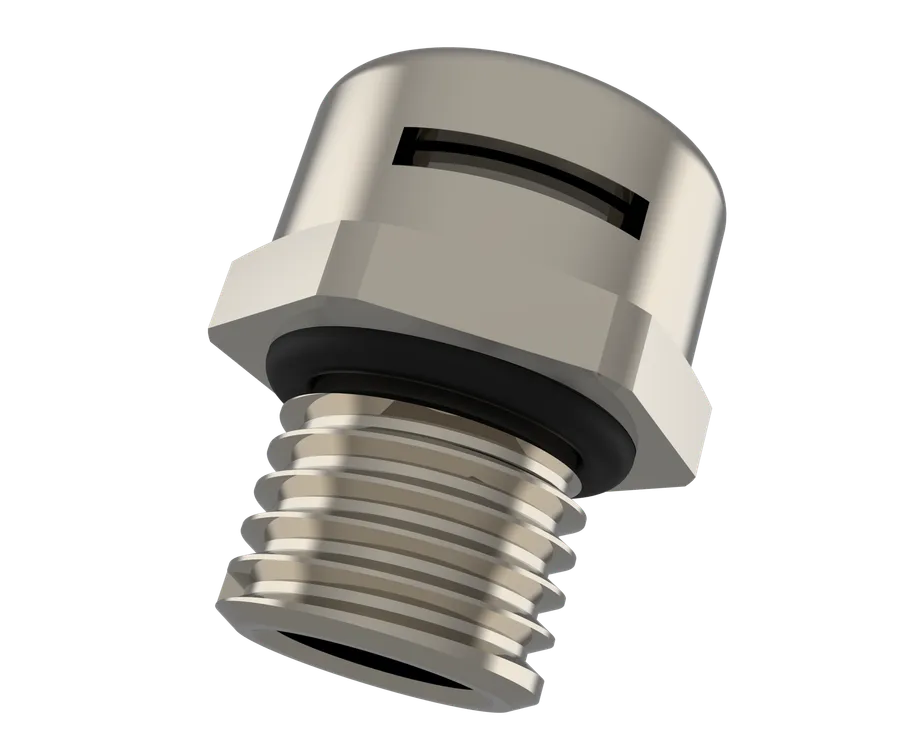

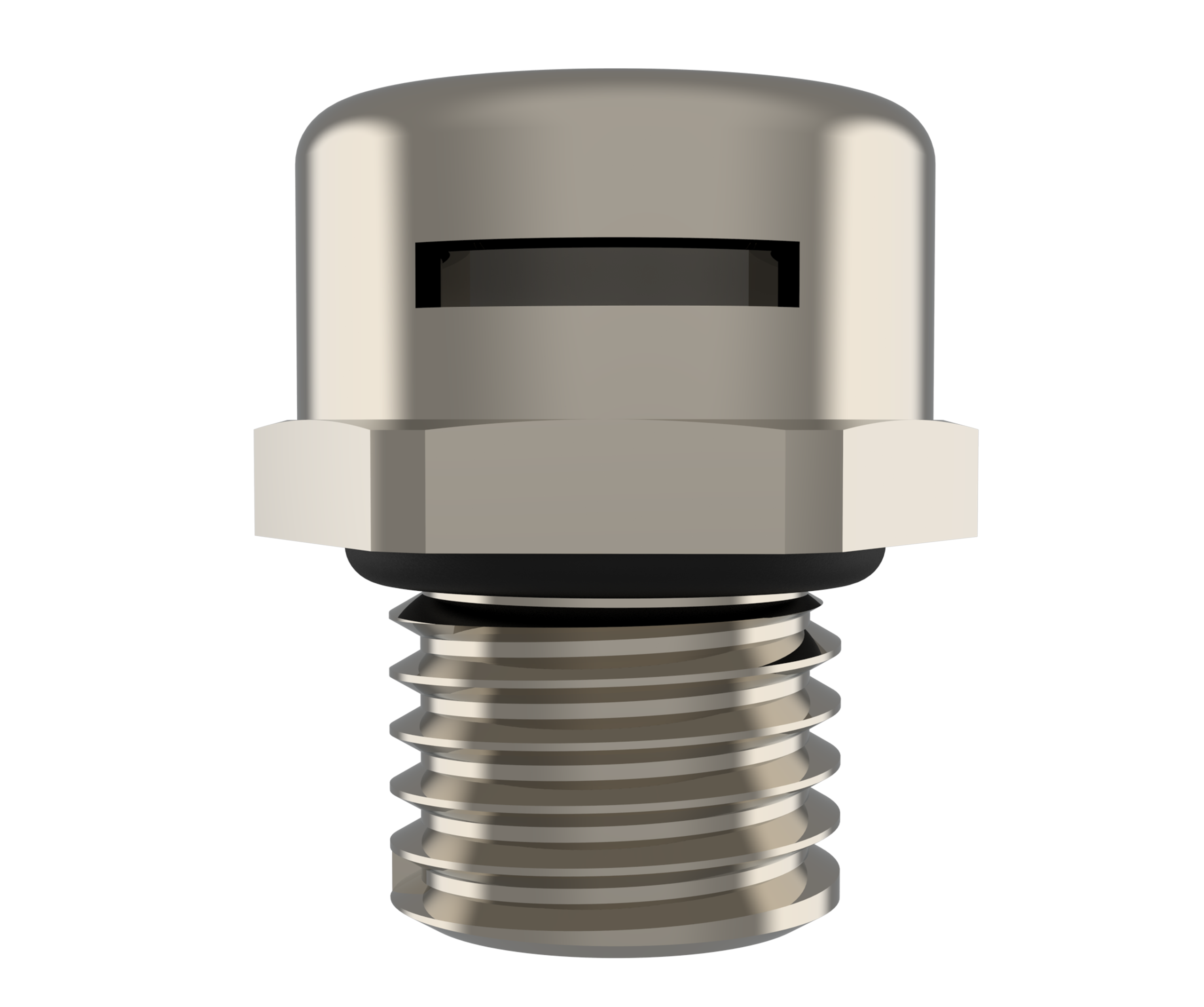

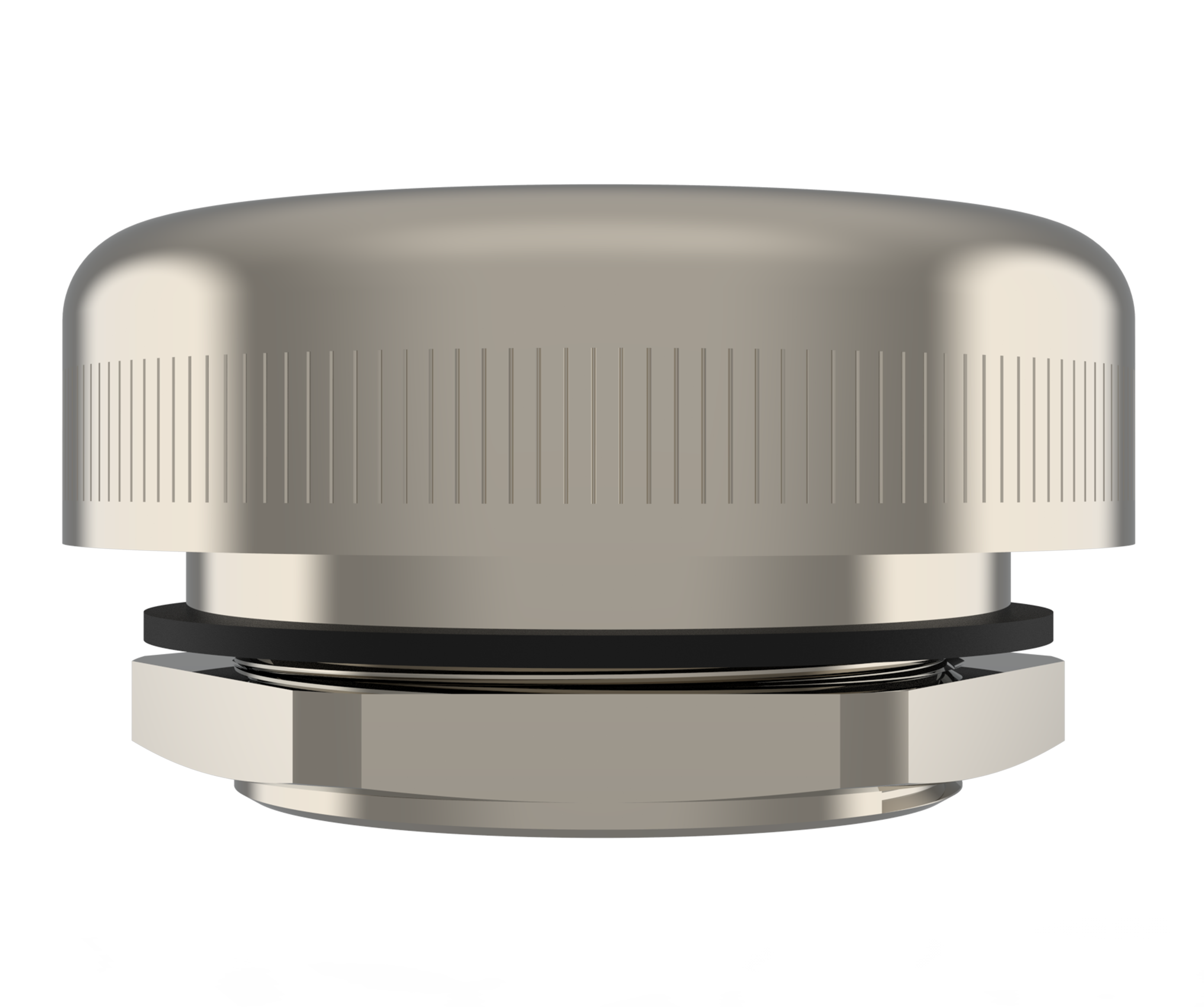

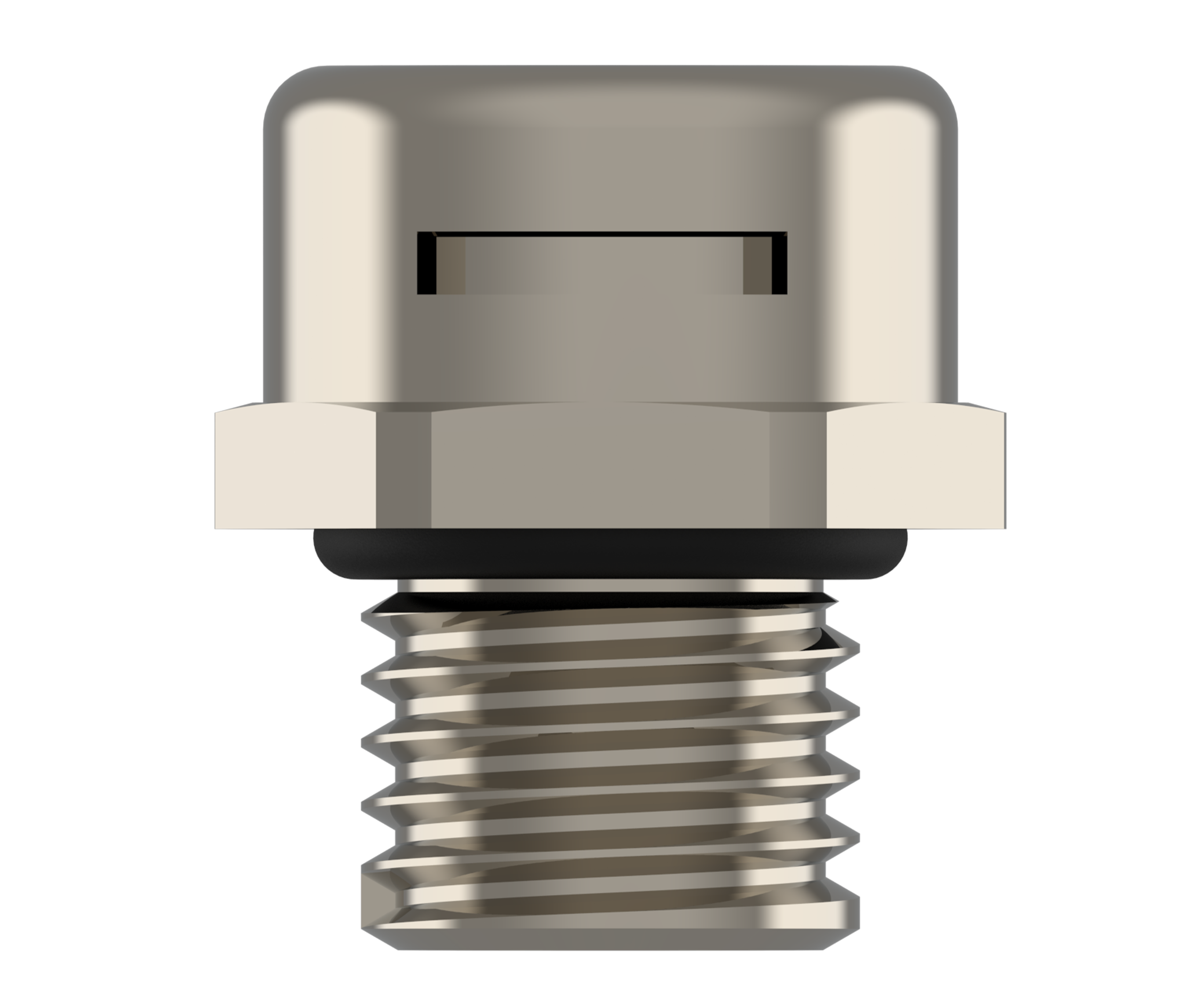

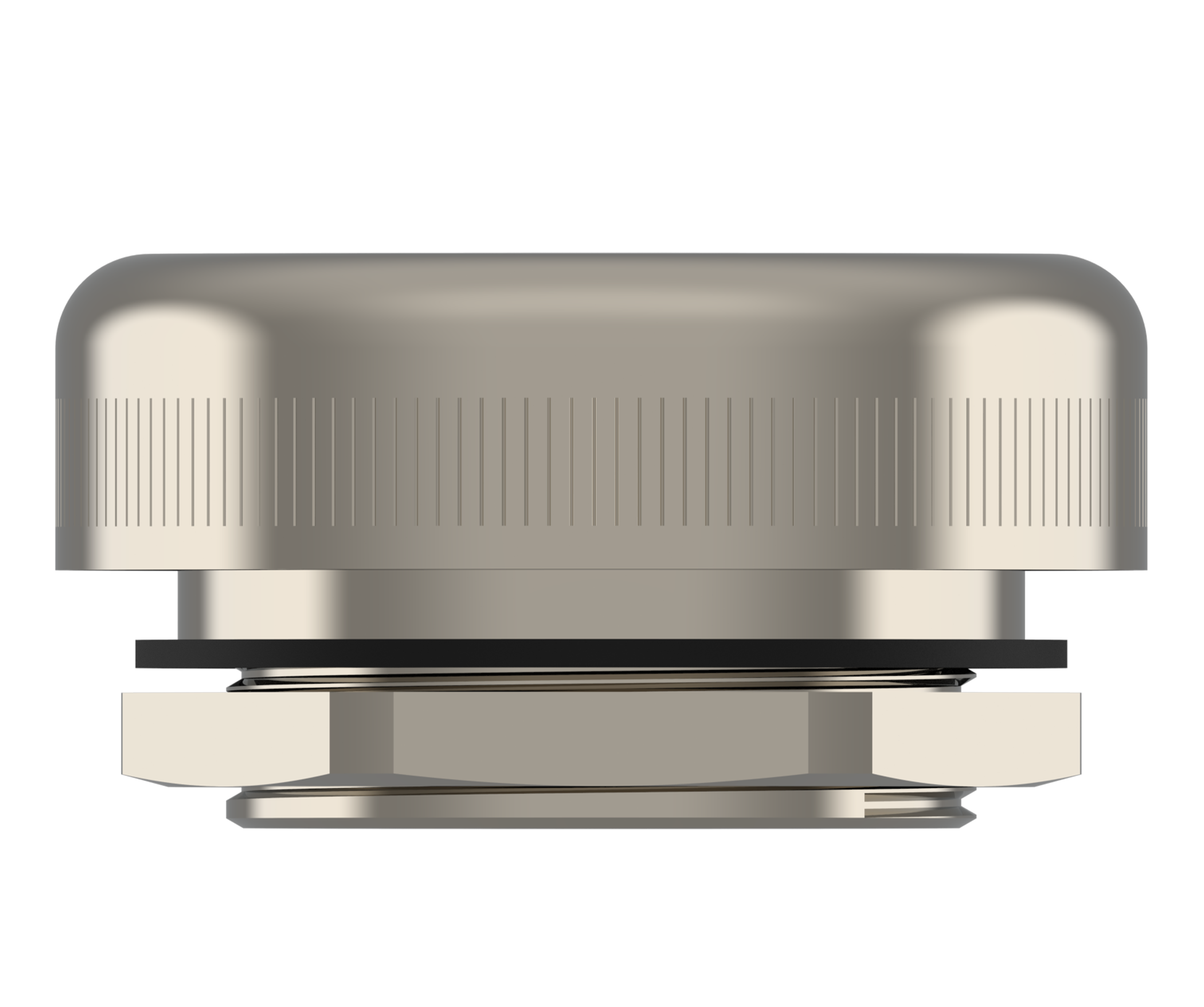

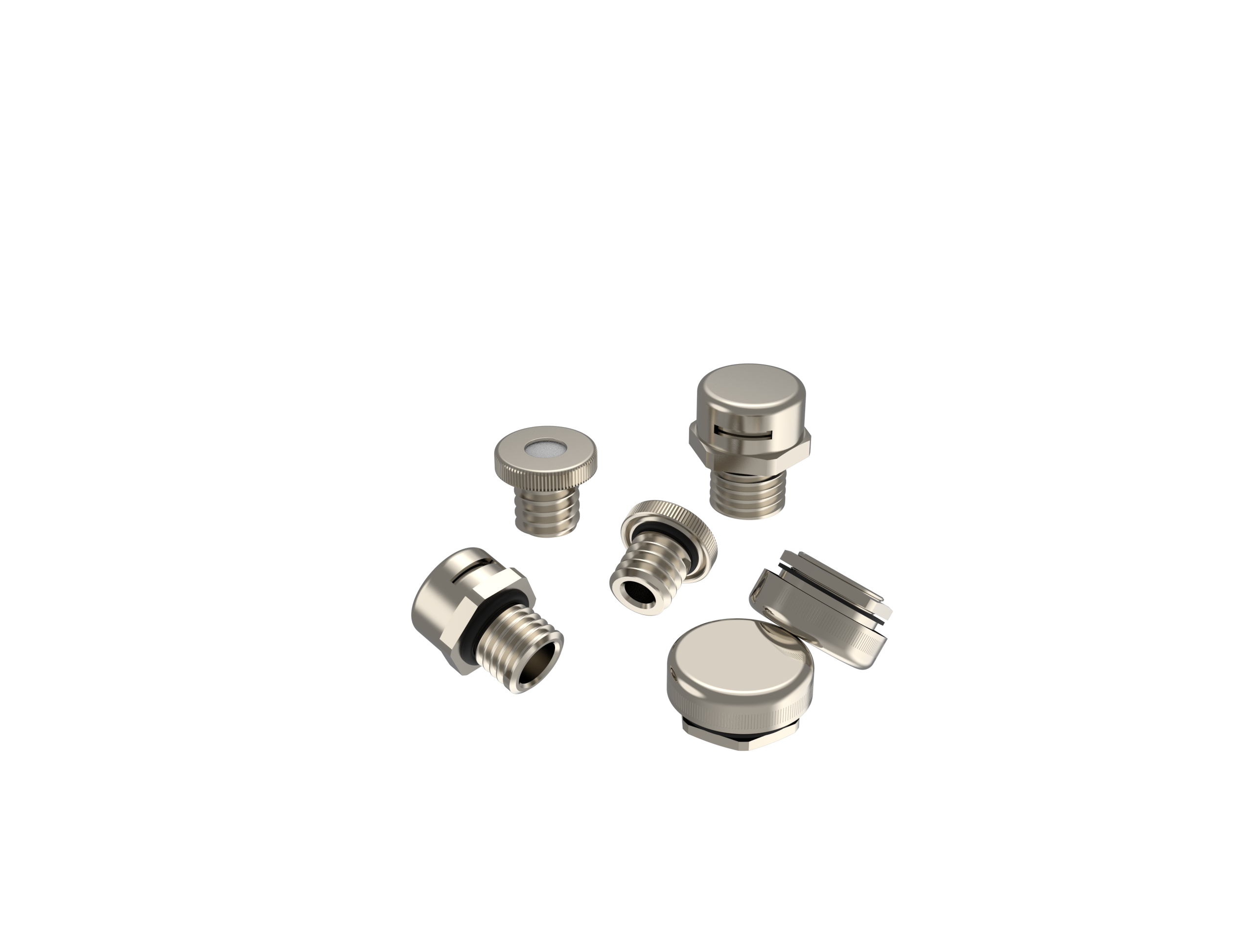

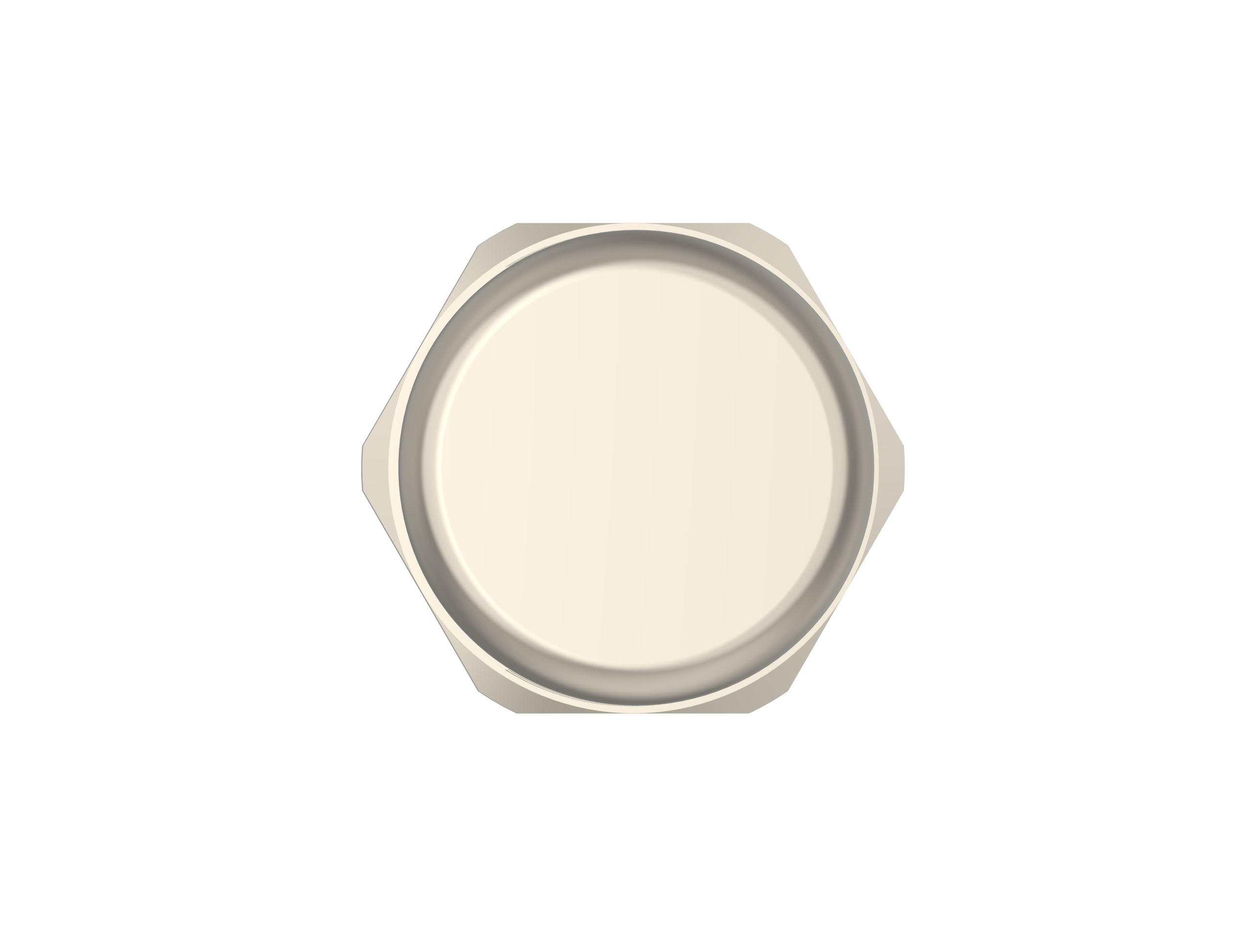

Ventilasjonsplugg, metall
○Balanserer trykkforskjeller mellom innsiden og utsiden av kapslingen og hindrer kondensskade
○Membranen er hydrofob og olefob; egnet for krevende industrielle miljøer.
Spesifikasjoner

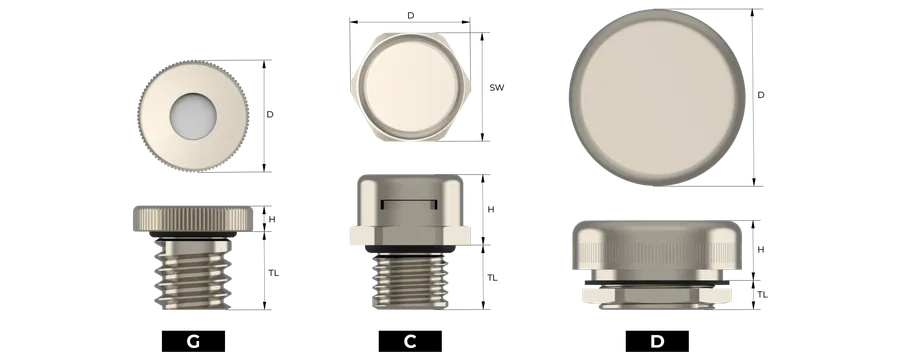

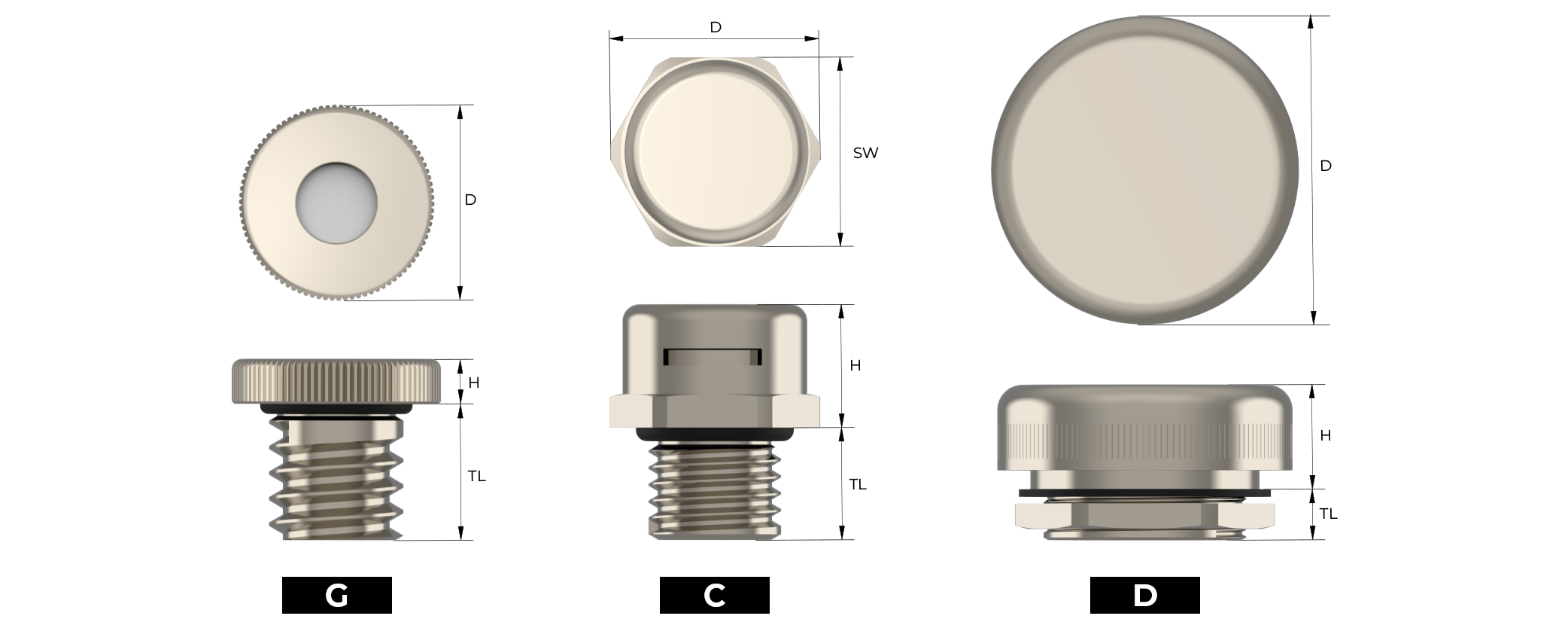

| Gjengestørrelse | Gjengelengde | Diameter | Nøkkelvidde | Height 'H' | Design Type | Air Flow Rate (l/h) | Water Intrusion Pressure | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M4x0,7 | 3.1 | 12.3 | - | 2.7 | G | 4 | 0.9 | — | SBAVP-01 | — | |
| M4x0,7 | 3.1 | 12.3 | - | 2.7 | G | 7 | 0.5 | — | MBAVP-01 | — | |
| M4x0,7 | 3.1 | 12.3 | - | 2.7 | G | 35 | 0.2 | — | HBAVP-01 | Get File | |
| M4x0,7 | 3.1 | 12.3 | - | 2.7 | G | 100 | 0.1 | — | UHBAVP-01 | — | |
| M8x0,75 | 8 | 12.3 | - | 2.7 | G | 4 | 0.9 | — | SBAVP-02 | — | |
| M8x0,75 | 8 | 12.3 | - | 2.7 | G | 7 | 0.5 | — | MBAVP-02 | — | |
| M8x0,75 | 8 | 12.3 | - | 2.7 | G | 35 | 0.2 | — | HBAVP-02 | — | |
| M8x0,75 | 8 | 12.3 | - | 2.7 | G | 100 | 0.1 | — | UHBAVP-02 | Get File |
