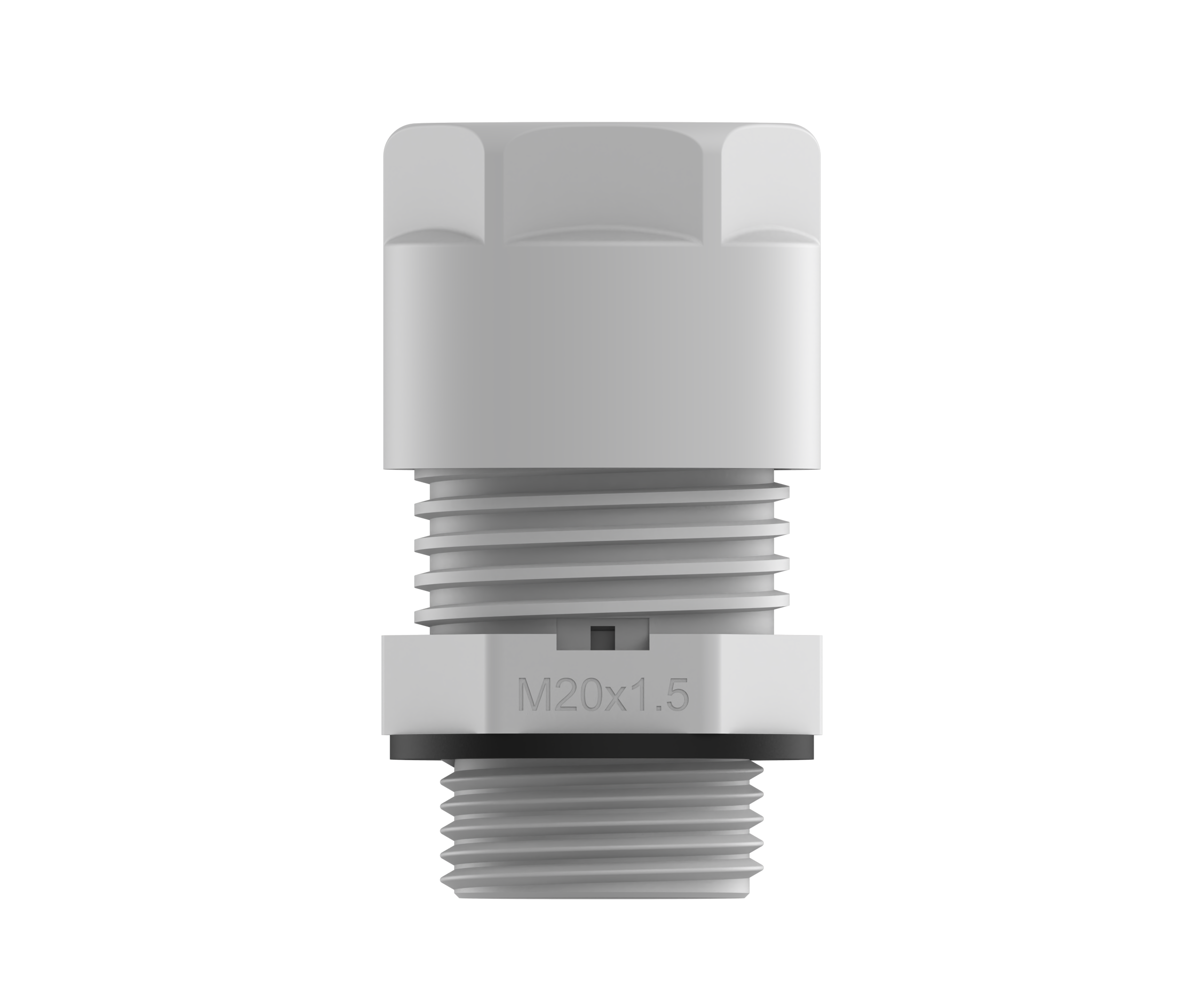

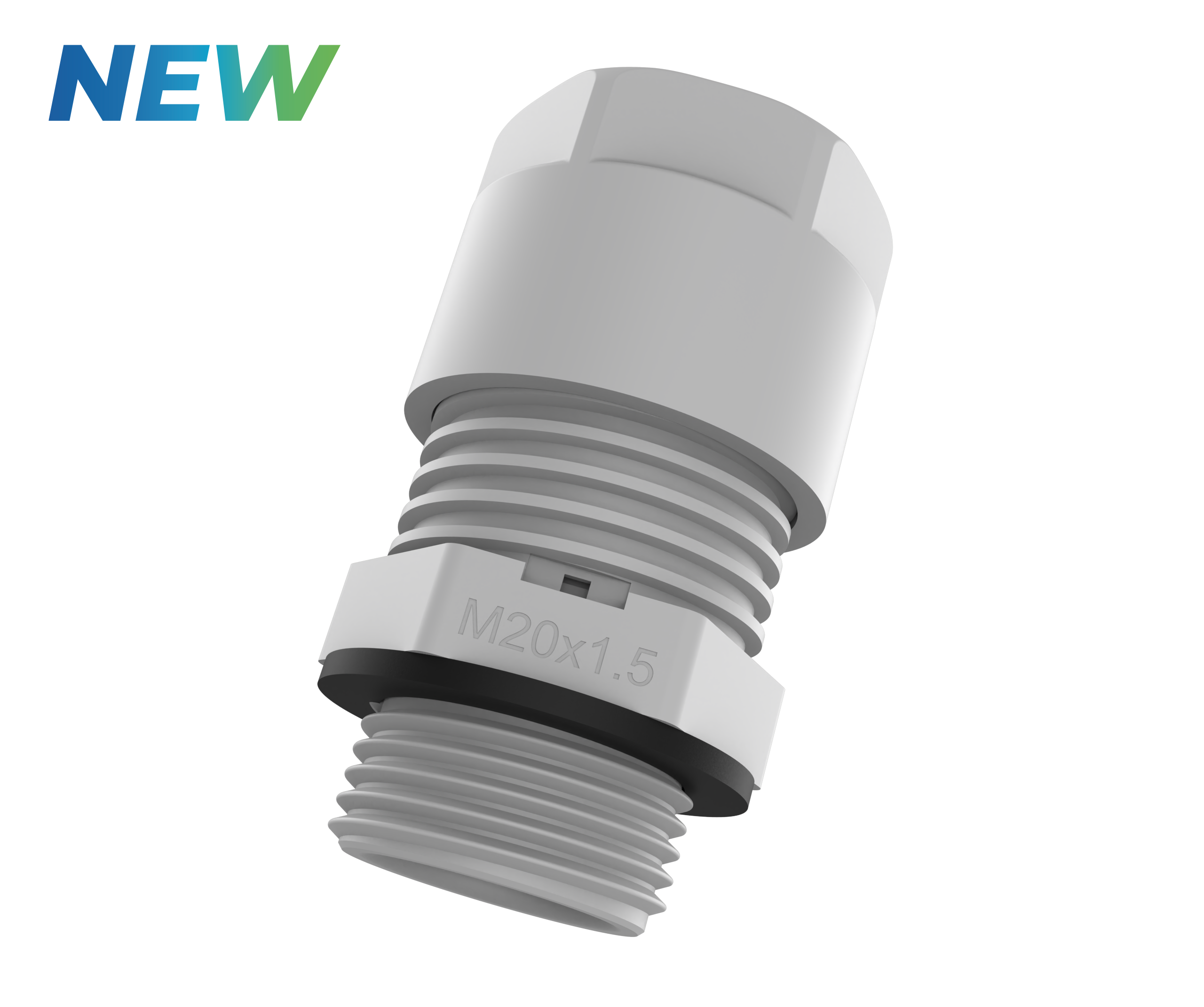

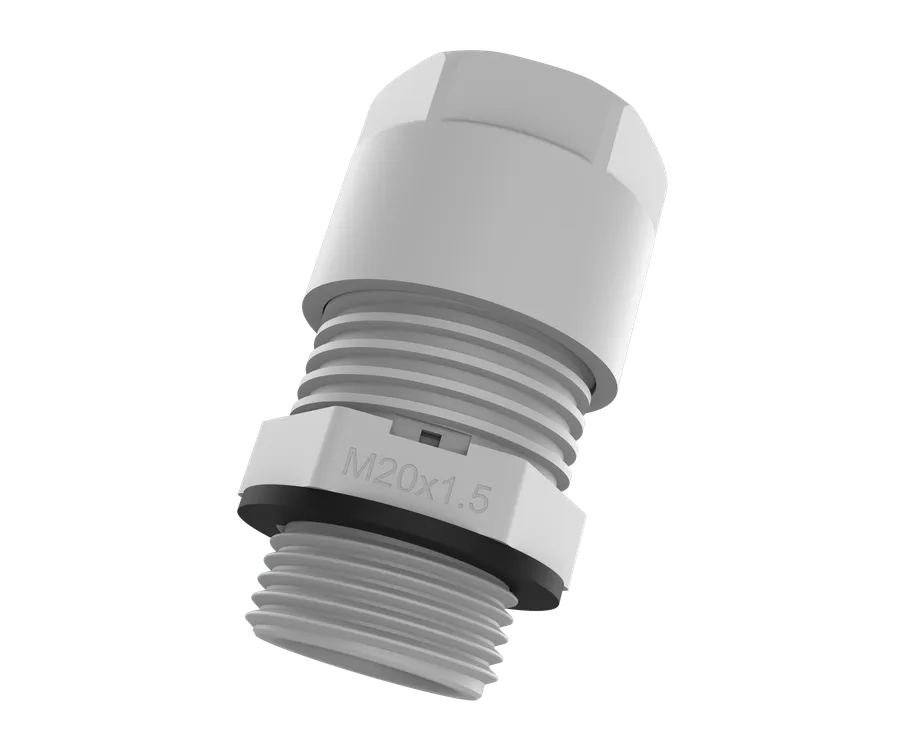

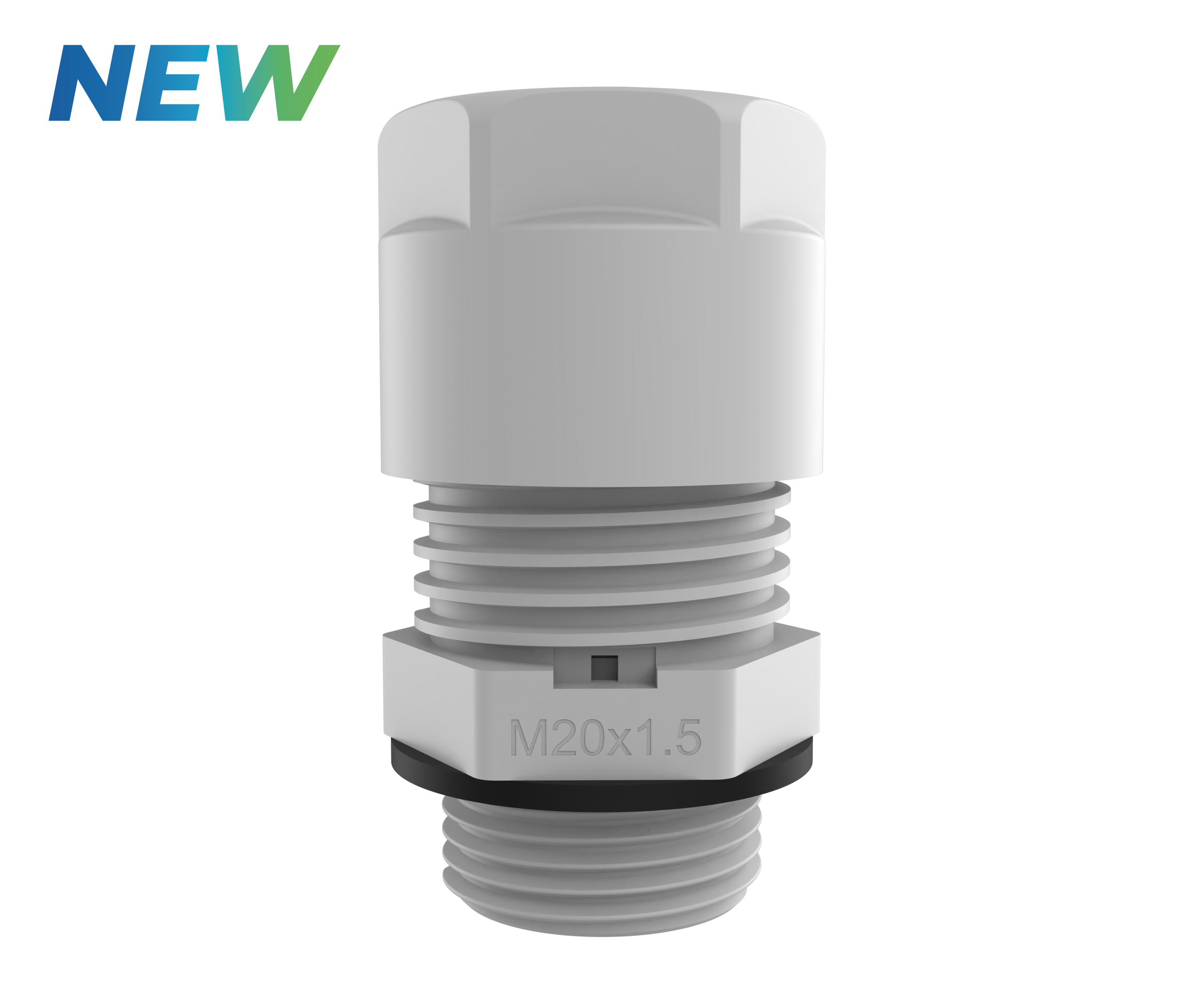

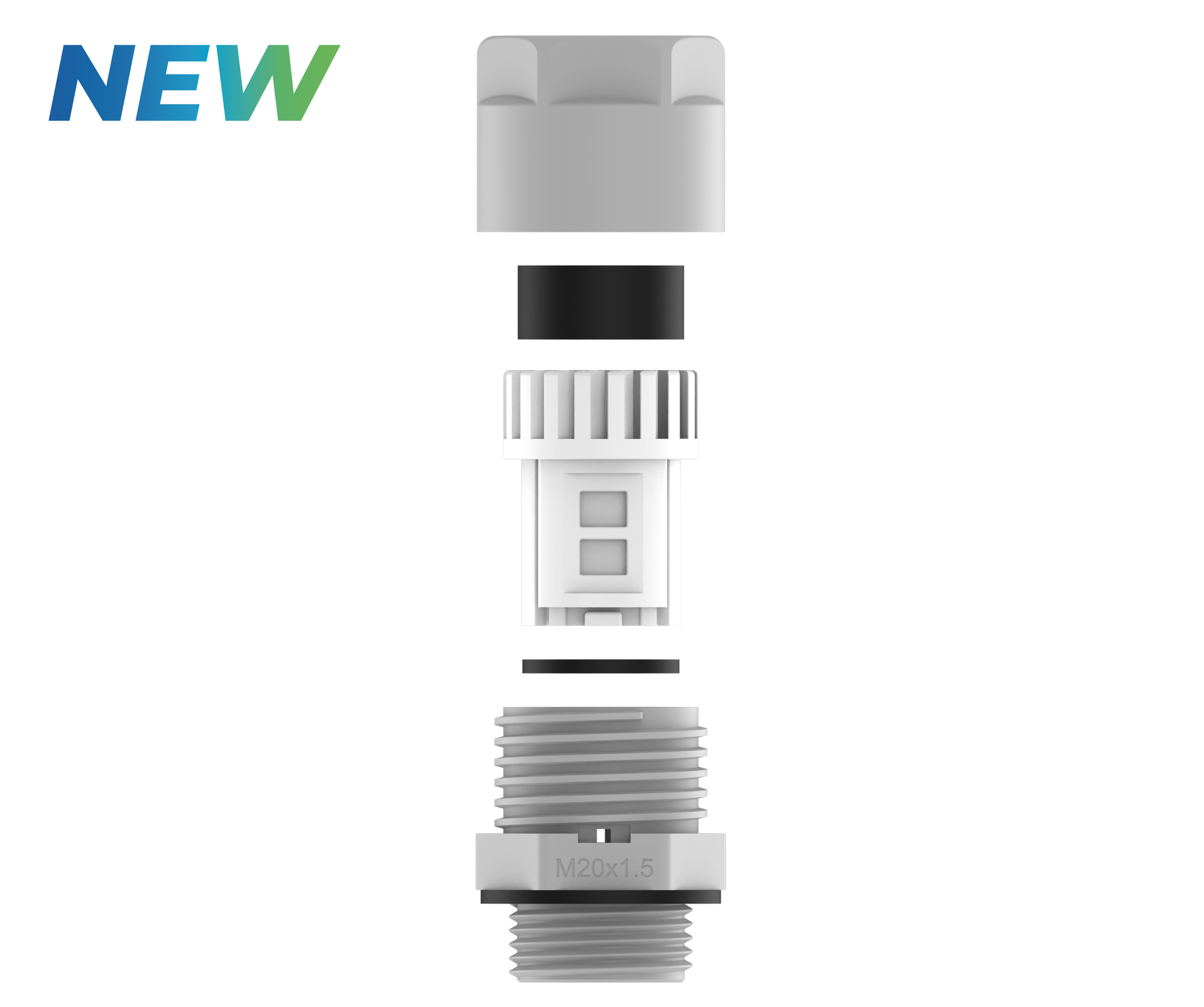

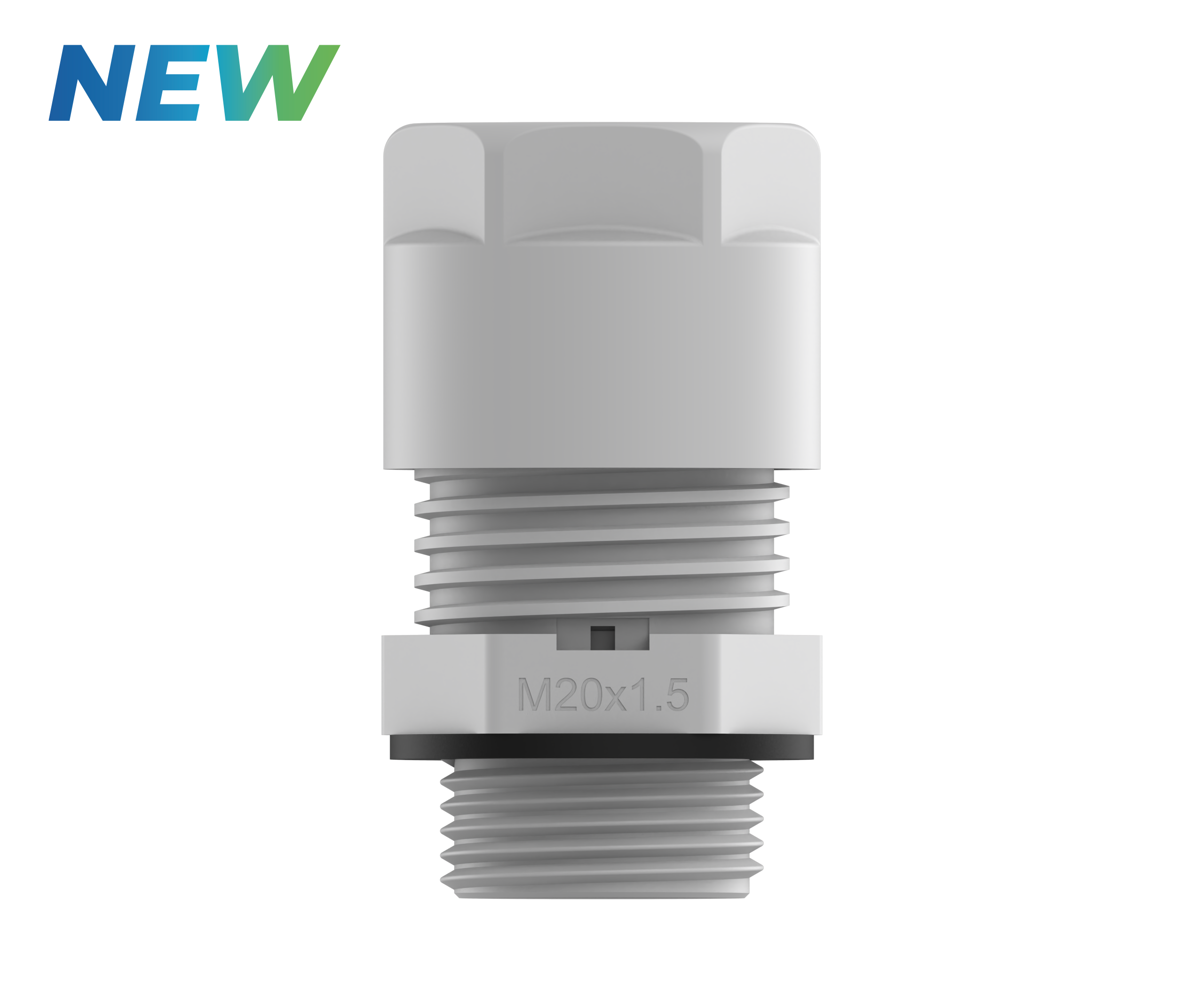

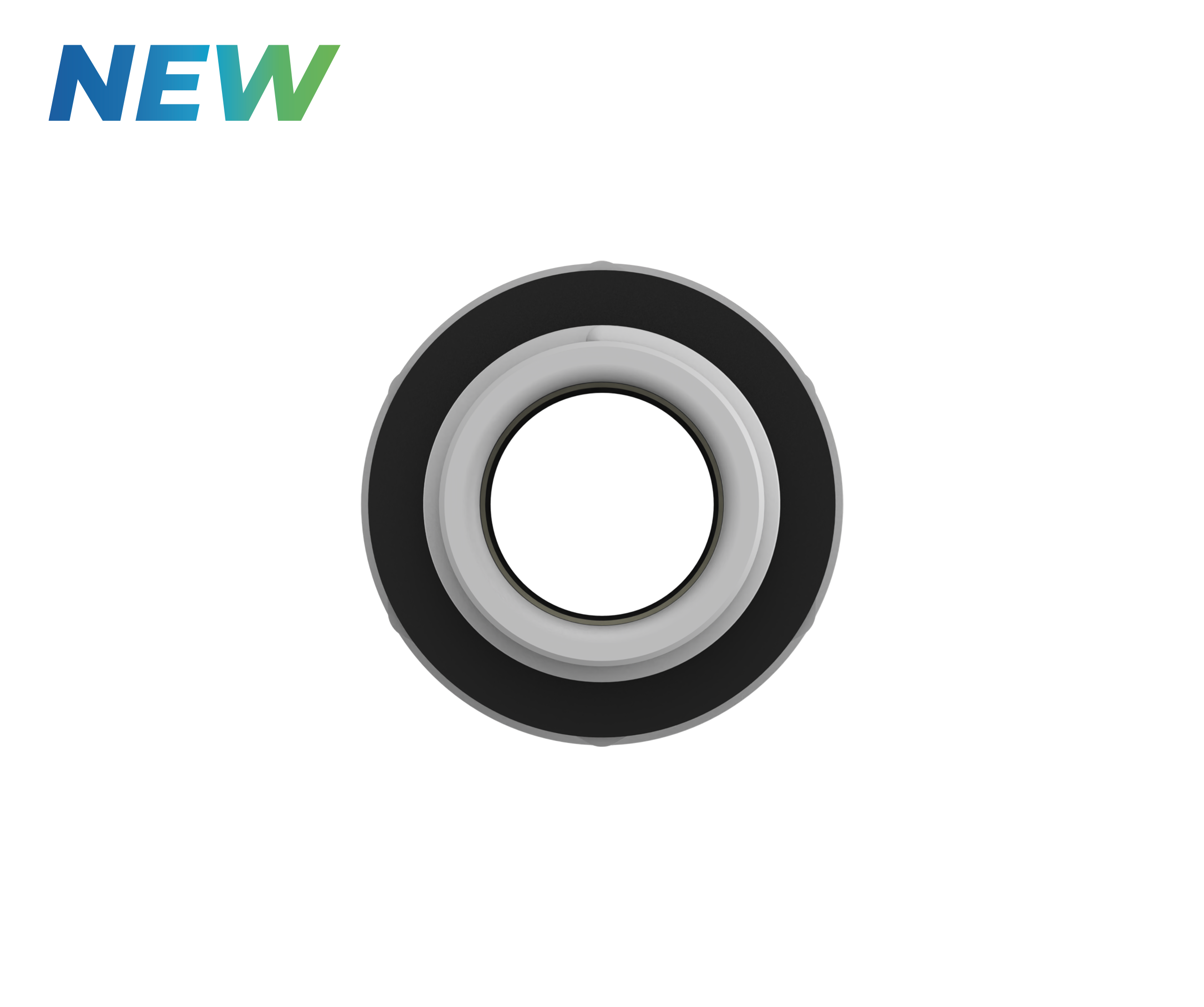

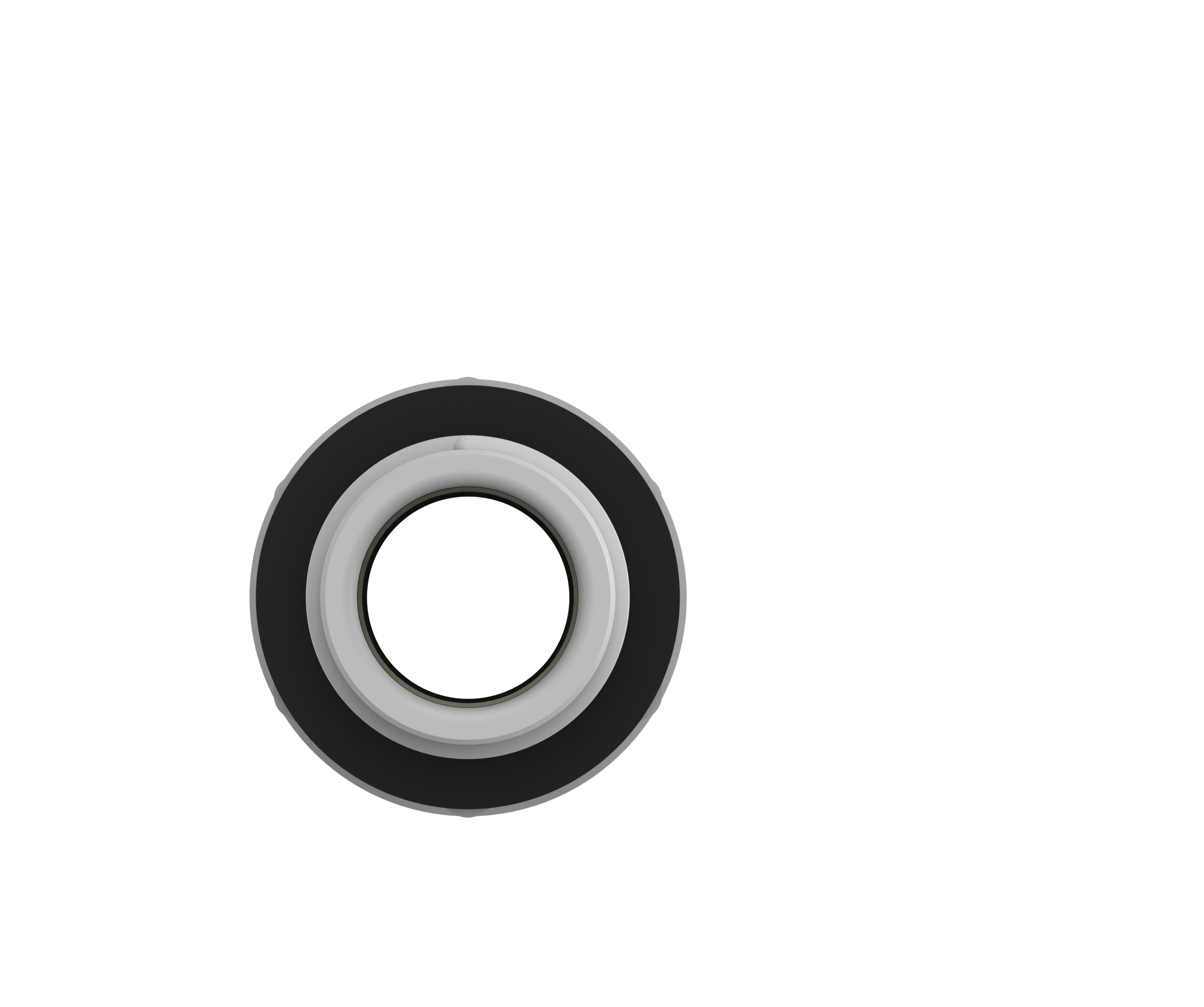

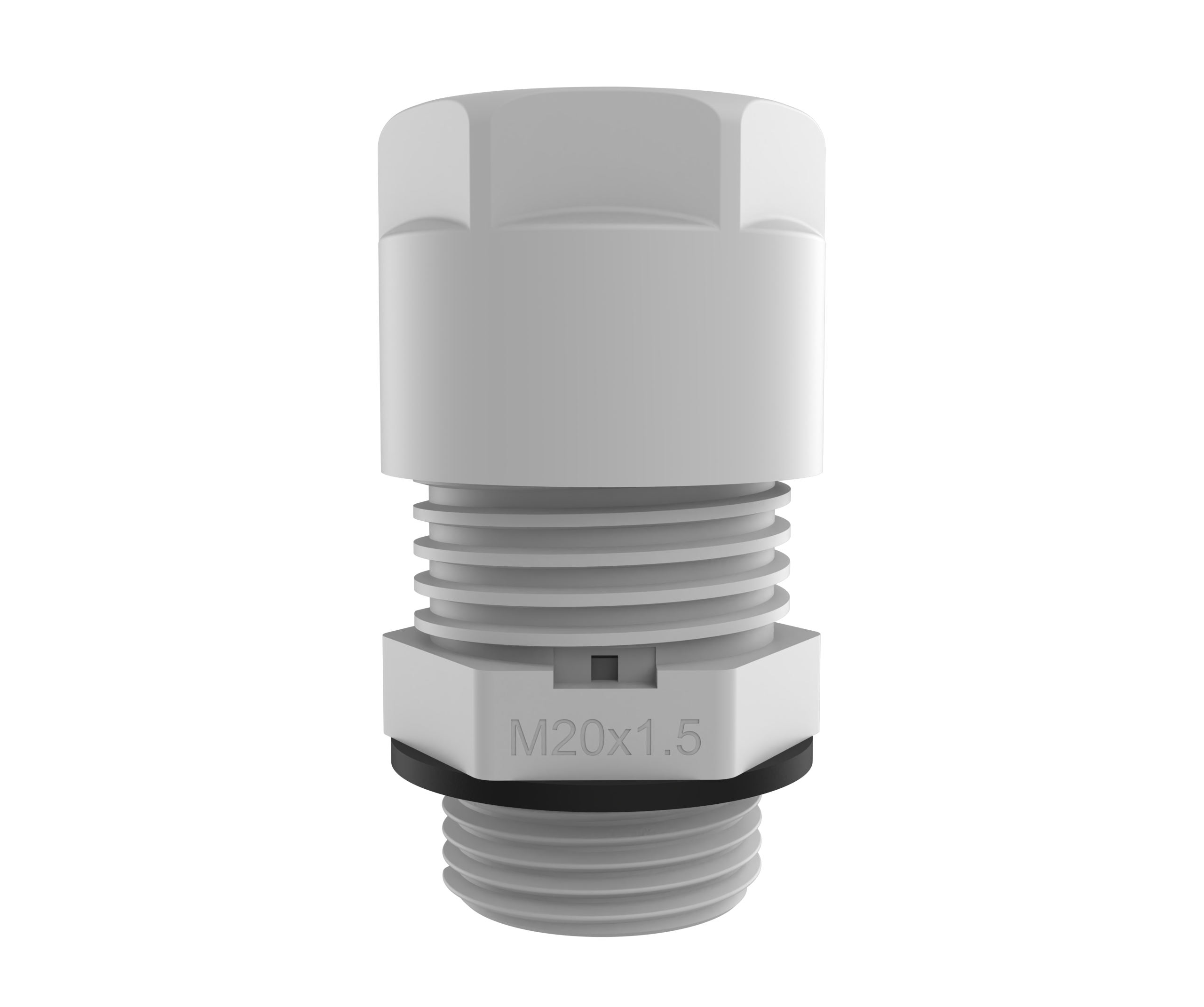

Ventilasjons kabelnippel, plast
○Kabelnippel i plast som kombinerer kabelinnføring og trykkavstemming i ett produkt
○Hindrer kondensskade; membranen er hydrofob og olefob
○Enkel montering: installer kabelnippel – før inn kabel – stram kappe.

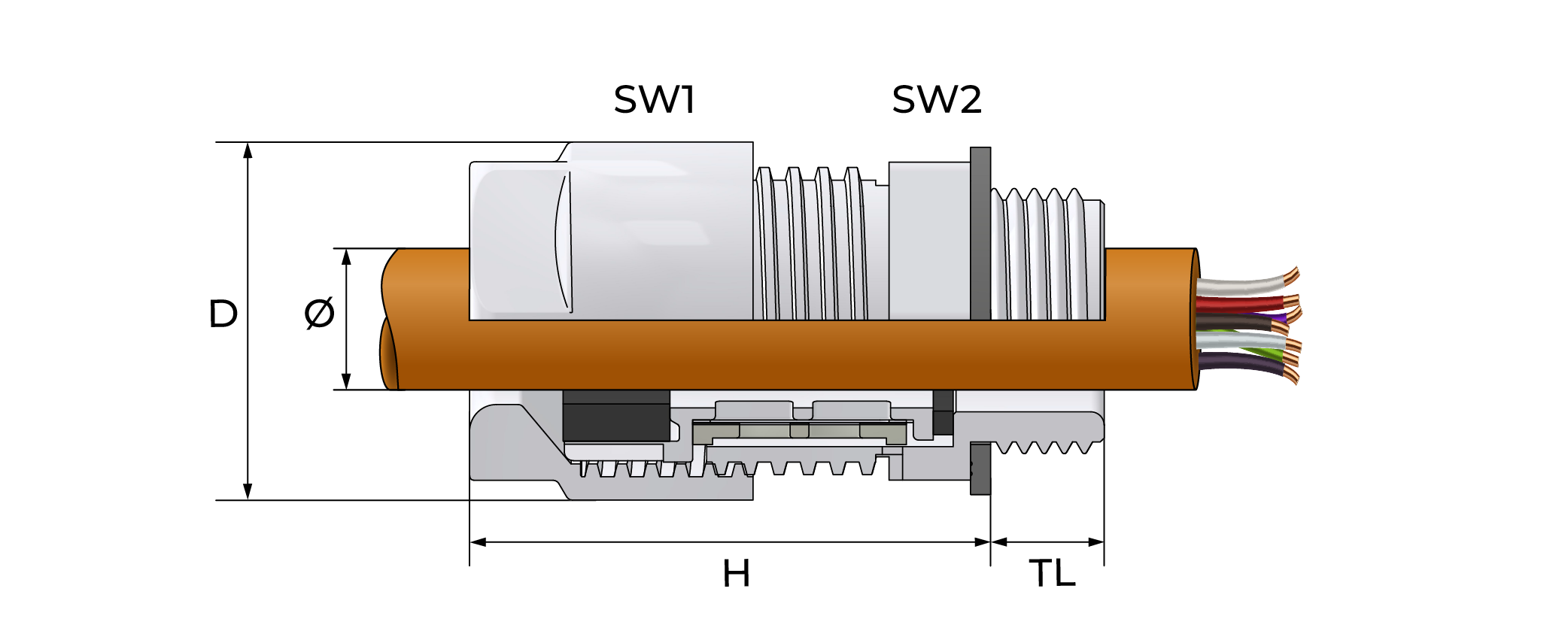

Spesifikasjoner
| Gjengestørrelse | Gjengelengde | D | H | SW Cap | SW Body | Range Outer | Air Flow Rate (l/h) | Water Intrusion Bar | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M12x1.5 | 8 | 21.5 | 31 | 19 | 19 | 4,0 - 8,0 | 70 | 0.2 | — | HBMVG-1S | — | |
| M12x1.5 | 8 | 21.5 | 31 | 19 | 19 | 4,0 - 8,0 | 70 | 0.2 | — | HBMVG-0S | — | |
| M12x1.5 | 8 | 21.5 | 31 | 19 | 19 | 4,0 - 8,0 | 70 | 0.2 | — | HBMVG-2S | — | |
| M16x1.5 | 10 | 21.5 | 31 | 19 | 19 | 4,0 - 8,0 | 70 | 0.2 | — | HBMVG-11 | — | |
| M16x1.5 | 10 | 21.5 | 31 | 19 | 19 | 4,0 - 8,0 | 70 | 0.2 | — | HBMVG-01 | — | |
| M16x1.5 | 10 | 21.5 | 31 | 19 | 19 | 4,0 - 8,0 | 70 | 0.2 | — | HBMVG-21 | — | |
| M20x1.5 | 10 | 27 | 37.5 | 24 | 24 | 6,0 - 12,0 | 120 | 0.2 | — | HBMVG-12 | — | |
| M20x1.5 | 10 | 27 | 37.5 | 24 | 24 | 6,0 - 12,0 | 120 | 0.2 | — | HBMVG-02 | — | |
| M20x1.5 | 10 | 27 | 37.5 | 24 | 24 | 6,0 - 12,0 | 120 | 0.2 | — | HBMVG-22 | — | |
| M25x1.5 | 10 | 32.5 | 43.5 | 29 | 29 | 11,0 - 17,0 | 120 | 0.2 | — | HBMVG-13 | — | |
| M25x1.5 | 10 | 32.5 | 43.5 | 29 | 29 | 11,0 - 17,0 | 120 | 0.2 | — | HBMVG-03 | — | |
| M25x1.5 | 10 | 32.5 | 43.5 | 29 | 29 | 11,0 - 17,0 | 120 | 0.2 | — | HBMVG-23 | — |
