VELA

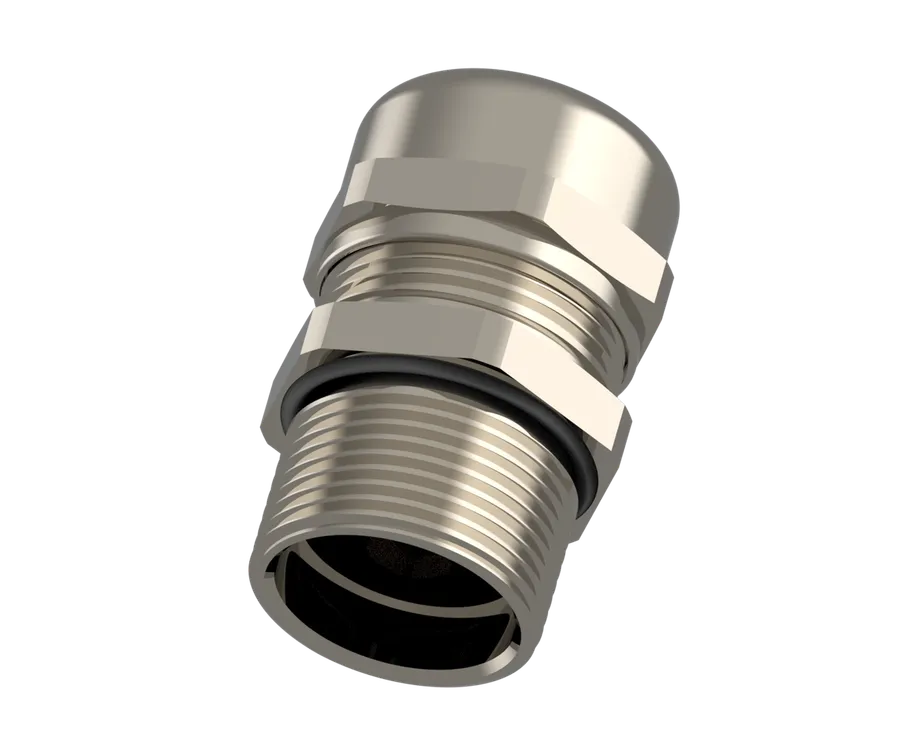

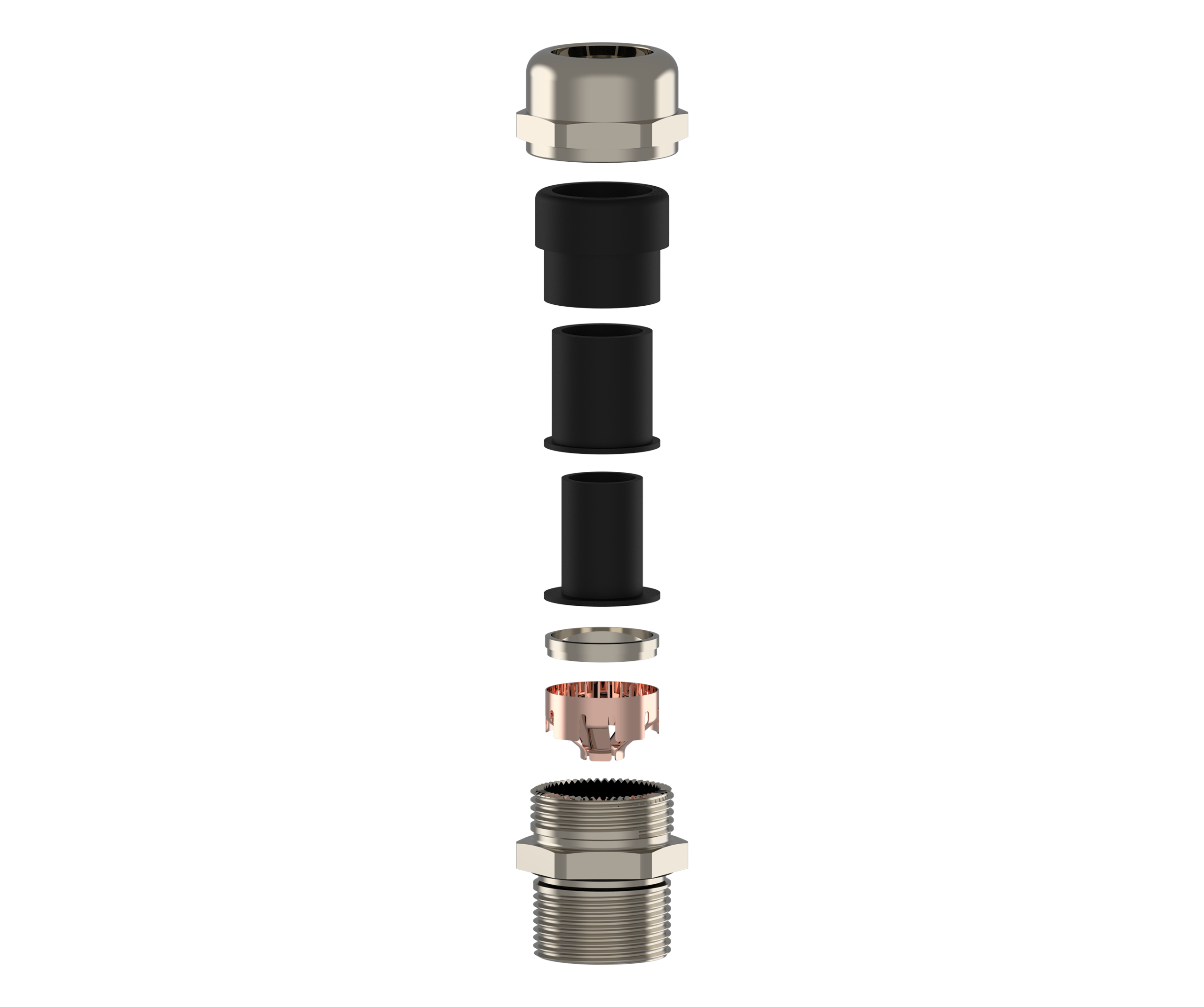

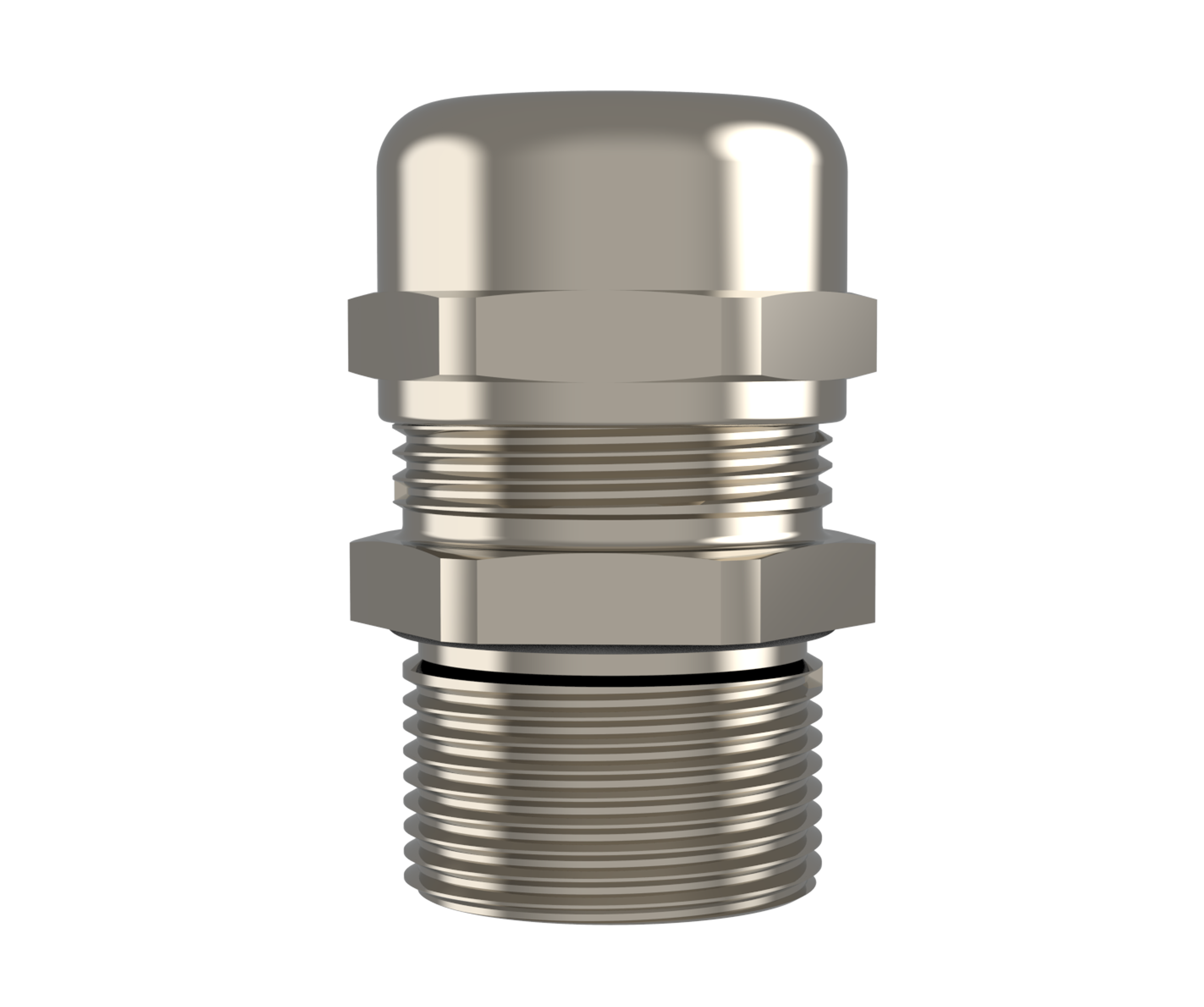

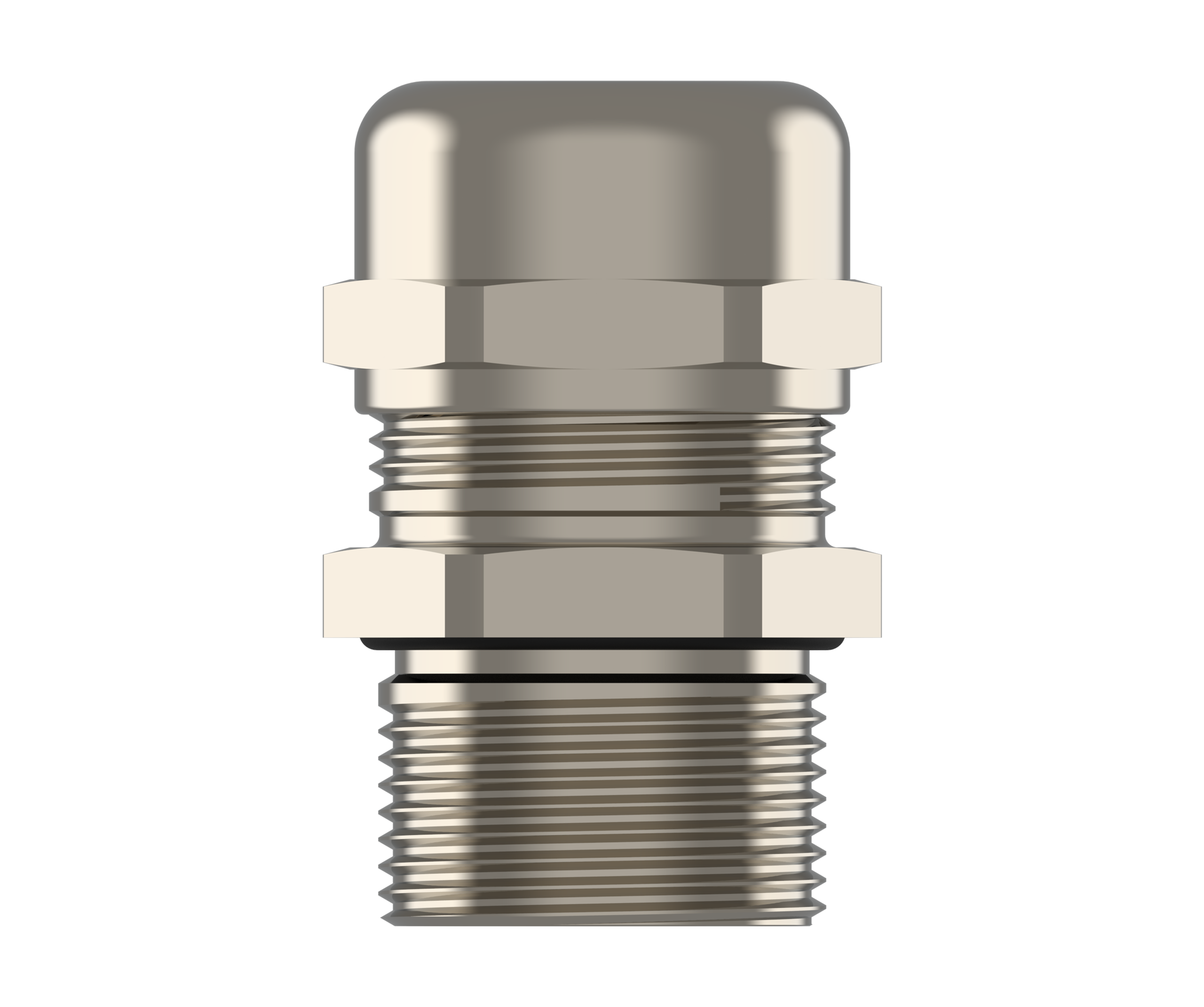

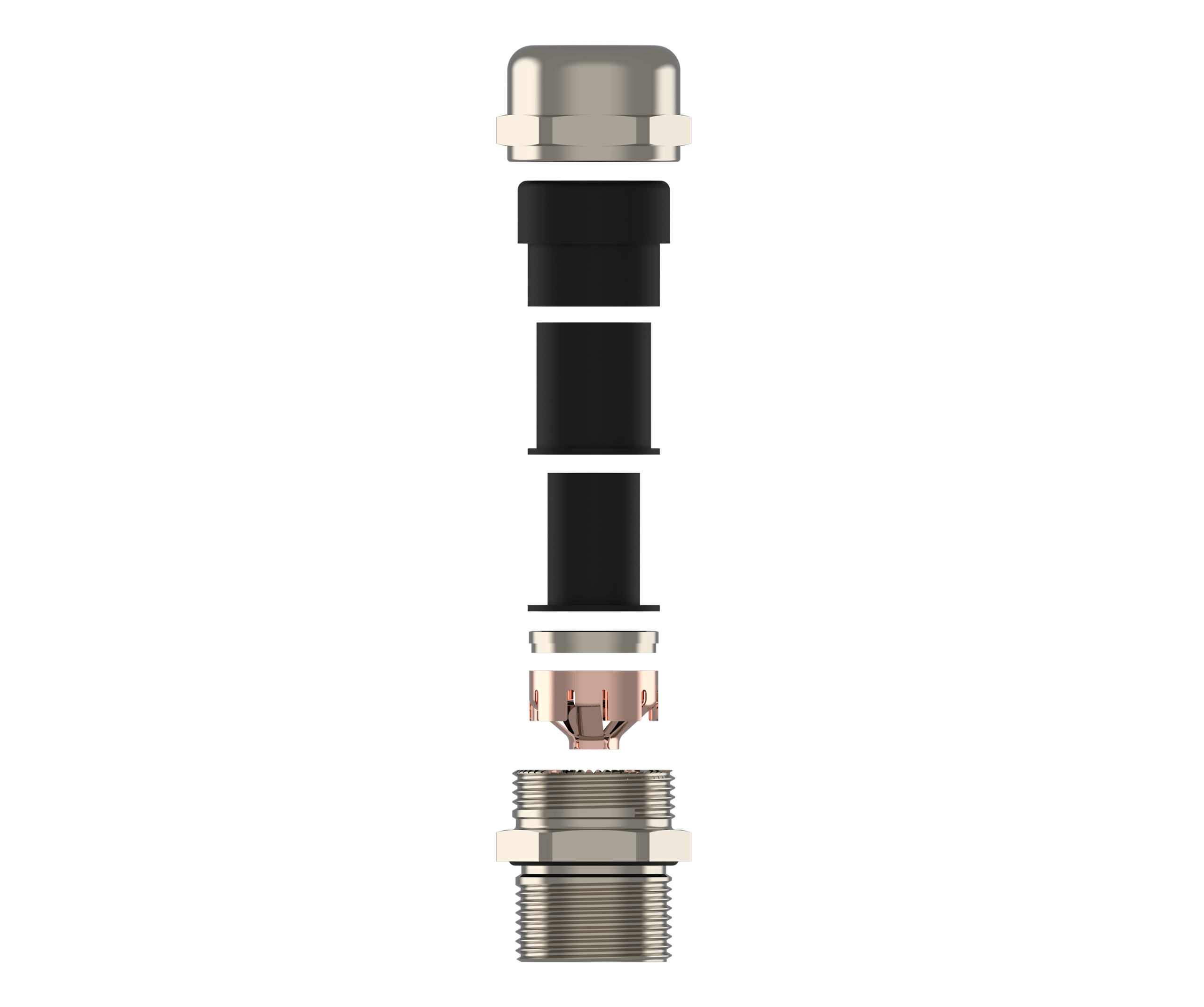

○Ex-kabelnippel av enkelt-kompresjonstype med EMC-jordingsfjær for Gruppe II og III, med modulær innsatskonstruksjon i 1, 2 eller 3 trinn. ATEX- og IECEx-sertifisert i henhold til Ex eb, Ex db og Ex tb.
Spesifikasjoner

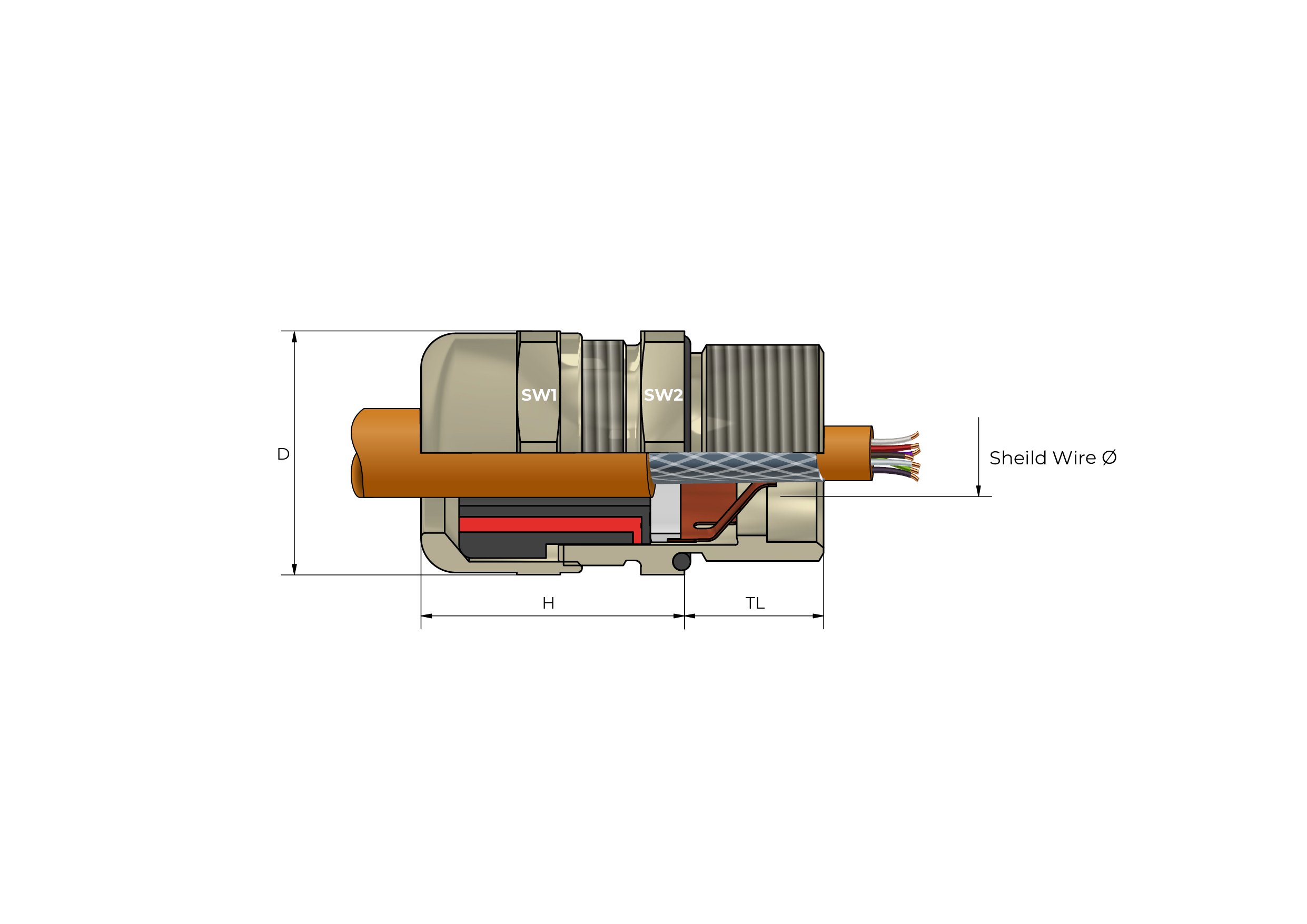

| Gjengestørrelse | Klemområdet | Nøkkelvidde | Diameter | Maks høyde 'H' | Ex-e TL | Ex-d/e TL | Seal Type | Shield Wire Ø | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M8x1,25 | 2,0 - 4,0 | 11/11 | 12 | 18 | 5 | - | Single | 1,5 - 3,5 | — | EBU0XSM | — | |
| M16x1,5 | 4,0 - 8,0 | 20/20 | 22 | 30.5 | 9 | 16 | Double | 2,5 - 5,0 | — | EBS01SM | — | |
| M16x1,5 | 4,0 - 8,0 | 22/22 | 24.5 | 30.5 | 9 | 16 | Double | 2,5 - 5,0 | — | EBS01M | — | |
| M20x1,5 | 4,0 - 12,0 | 22/22 | 24.5 | 28.5 | 9 | 18 | Triple | 2,5 - 10,0 | — | EBS1M | — | |
| M25x1,5 | 10,0 - 18,0 | 28/28 | 31 | 32 | 9 | 16 | Triple | 8,0 - 14,0 | — | EBS2M | Get File | |
| M32x1,5 | 14,0 - 24,0 | 35/35 | 39 | 35 | 9 | 19 | Triple | 12,0 - 20,0 | — | EBS3M | — | |
| M40x1,5 | 22,0 - 32,0 | 45/45 | 49.5 | 42.5 | 9 | 20 | Triple | 18,0 - 28,0 | — | EBS4M | — | |
| M50x1,5 | 26,0 - 35,0 | 50/55 | 61 | 45 | 9 | 20 | Triple | 22,0 - 31,0 | — | EBS5M | — | |
| M63x1,5 | 35,0 - 45,0 | 64/68 | 75 | 45 | 9 | 20 | Triple | 31,0 - 41,0 | — | EBS6M | — | |
| M75x1,5 | 46,0 - 62,0 | 80/80 | 89 | 52.5 | 9 | 20 | Triple | 42,0 - 58,0 | — | EBS7M | — | |
| M90x1,5 | 60,0 - 75,0 | 95/95 | 105 | 57 | 9 | 20 | Triple | 56,0 - 71,0 | — | EBS8M | — | |
| M100x1,5 | 75,0 - 85,0 | 105/105 | 117 | 56 | 9 | 20 | Triple | 71,0 - 81,0 | — | EBS10M | — | |
| M110x1,5 | 85,0 - 95,0 | 115/115 | 128 | 58 | 9 | 20 | Triple | 81,0 - 91,0 | — | EBS11M | — |
