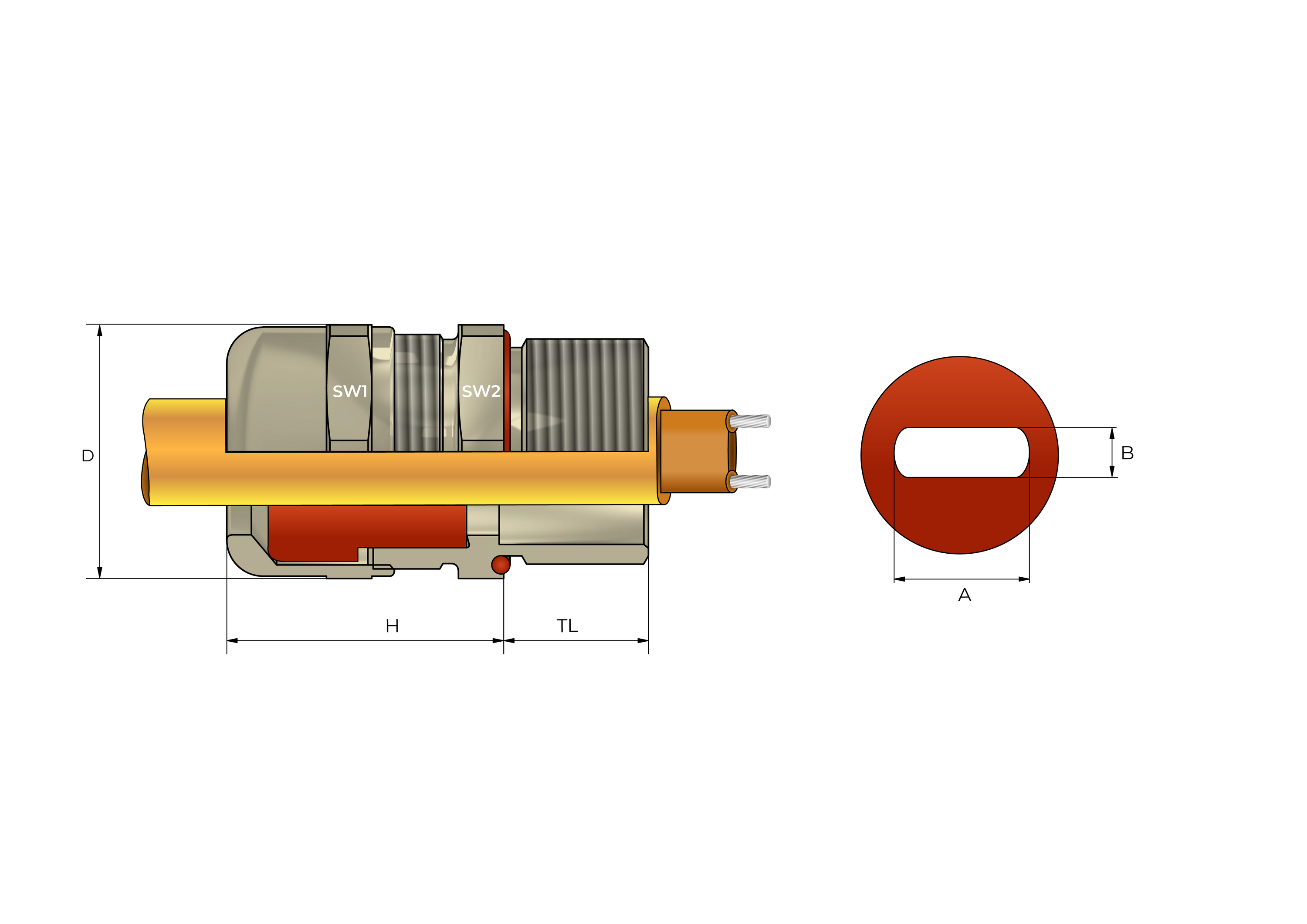

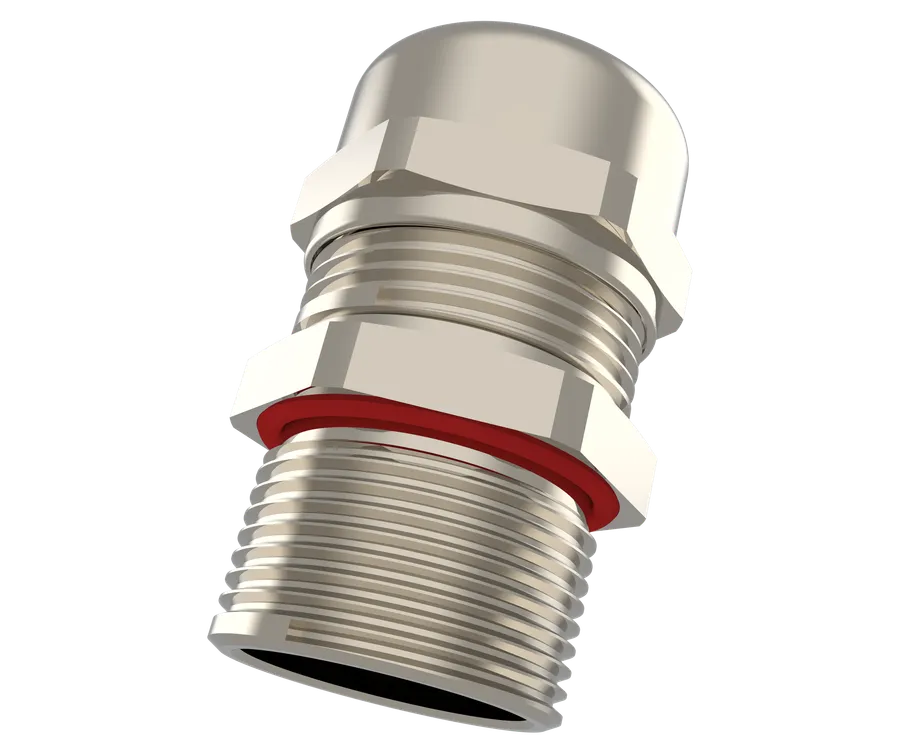

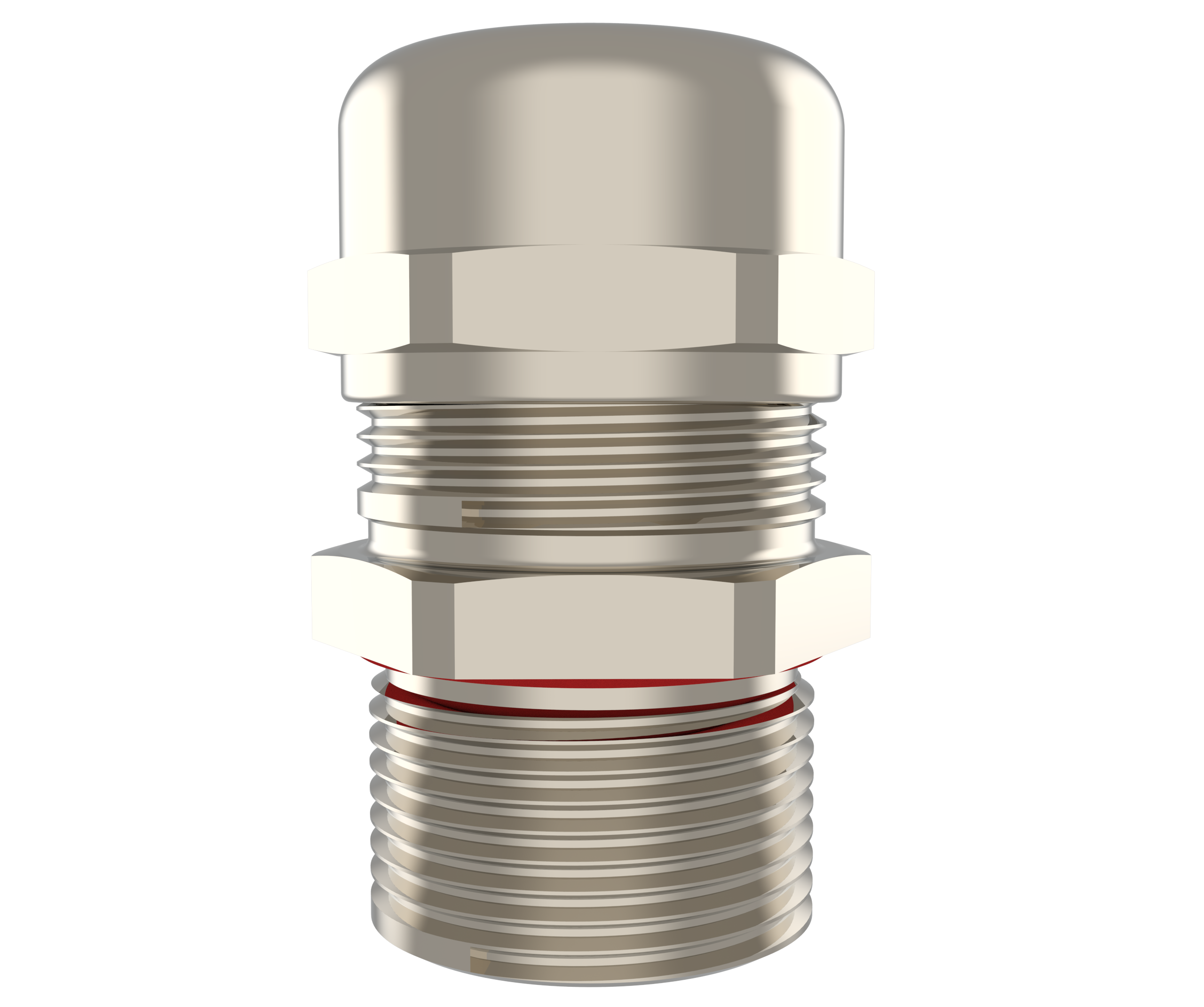

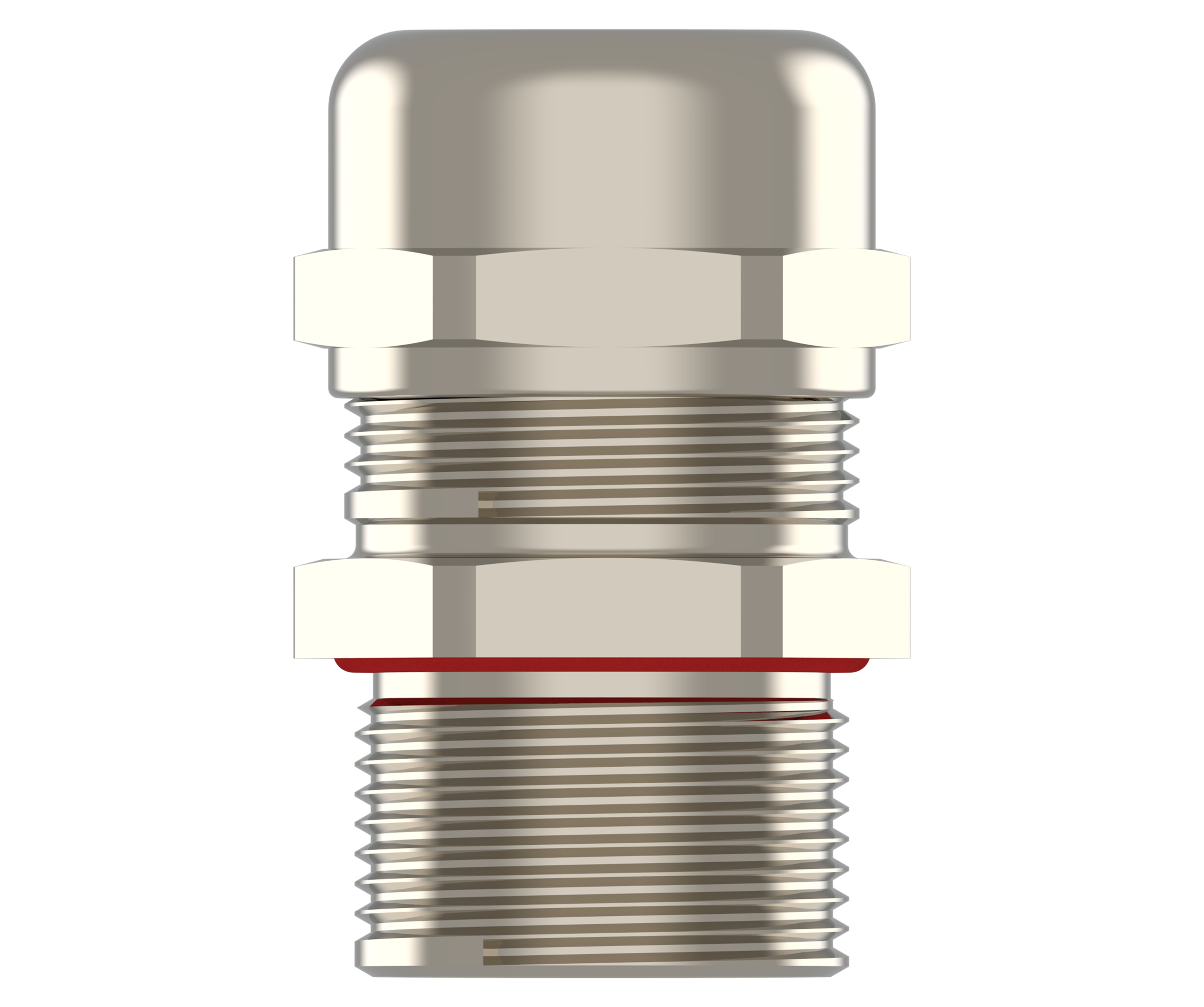

OCTANS FLAT

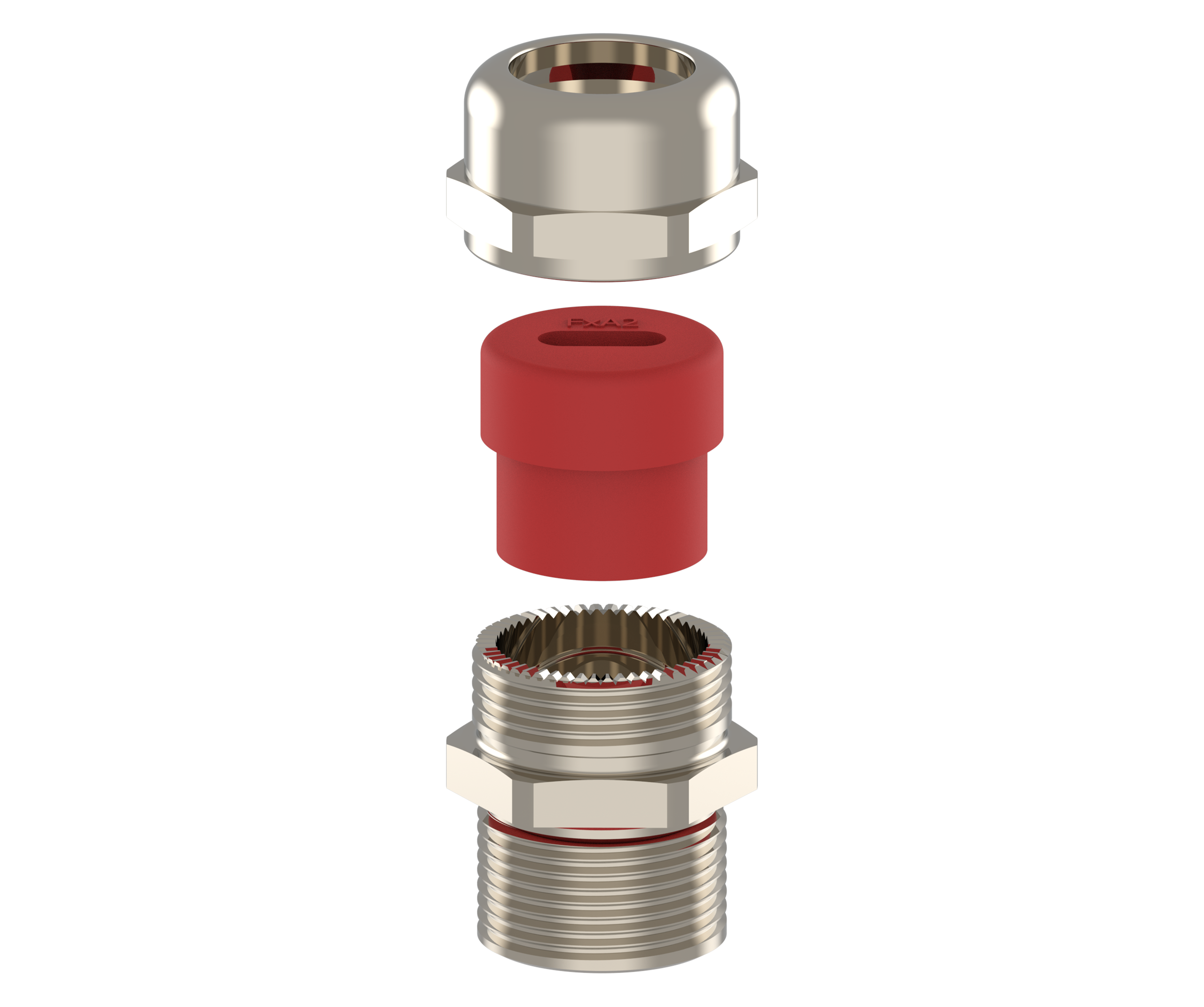

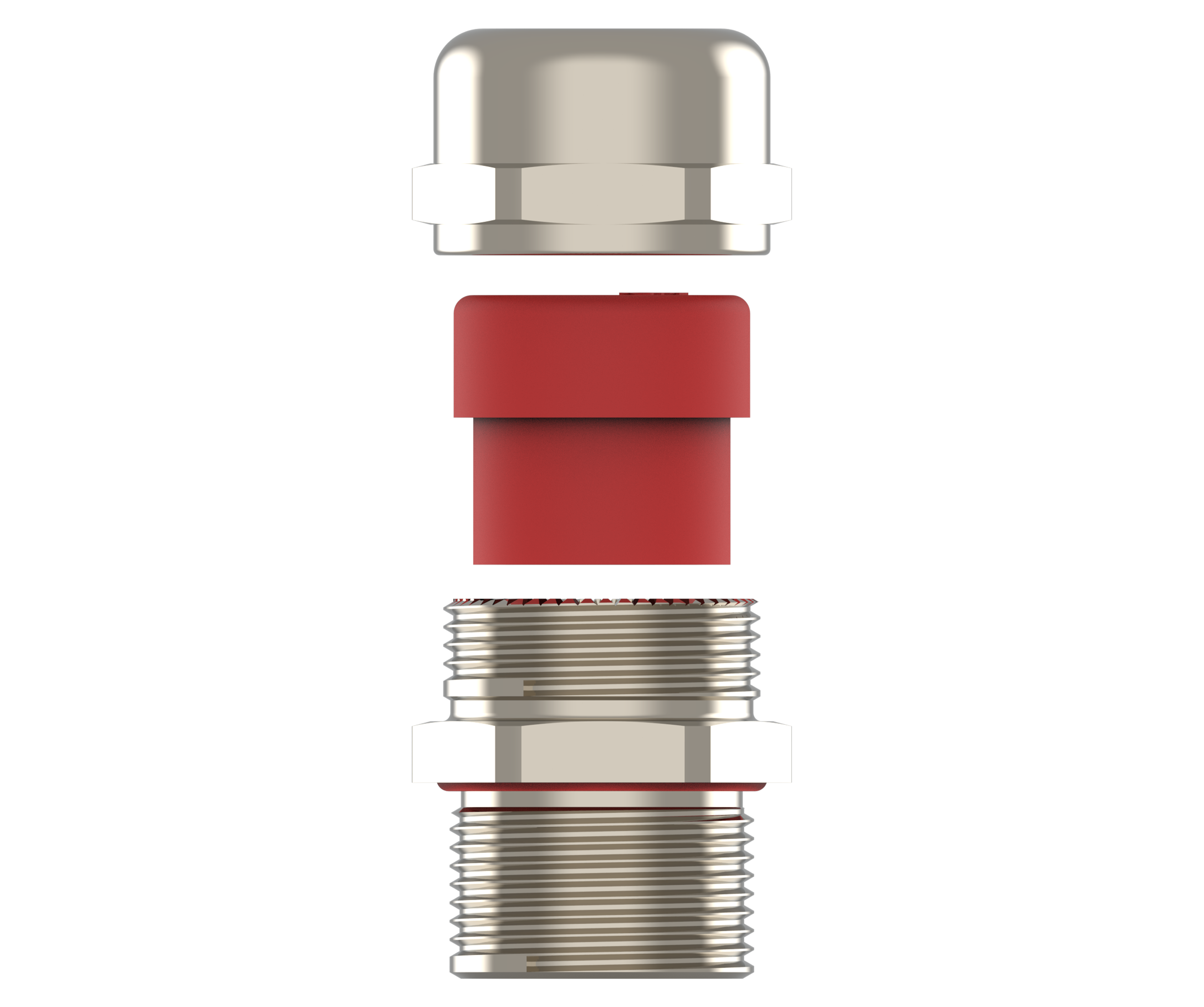

○Ex-kabelnippel av enkelt-kompresjonstype for flate kabler i Gruppe II og III, med modulær innsatskonstruksjon i 1, 2 eller 3 trinn for optimal tetning ved lavt tiltrekkingsmoment. ATEX- og IECEx-sertifisert i henhold til Ex eb, Ex db og Ex tb.
Spesifikasjoner
| Gjengestørrelse | Gjengelengde | Nøkkelvidde | Armour Wire Ø | Diameter | Maks høyde 'H' | Flat Hole "A" | Flat Hole "B" | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M20X1,5 | 16 | 22/22 | 0,8 - 1,25 | 24.5 | 29 | 12.2 | 5 | — | EBU1M(FxA1) | — | |
| M20X1,5 | 16 | 22/22 | 0,8 - 1,25 | 24.5 | 29 | 11.7 | 5.5 | — | EBU1M(FxC1) | — | |
| M20X1,5 | 16 | 22/22 | 0,8 - 1,25 | 24.5 | 29 | 8.5 | 6 | — | EBU1M(FxB1) | — | |
| M20X1,5 | 16 | 22/22 | 0,8 - 1,25 | 24.5 | 29 | 12.2 | 6 | — | EBU1M(FxD1) | — | |
| M20X1,5 | 16 | 22/22 | 0,8 - 1,25 | 24.5 | 29 | 10.8 | 6.3 | — | EBU1M(FxE1) | — | |
| M20X1,5 | 16 | 22/22 | 0,8 - 1,25 | 24.5 | 29 | 12.7 | 6.7 | — | EBU1M(FxG1) | — | |
| M25X1,5 | 16 | 28/28 | 0,8 - 1,25 | 31 | 32.5 | 12.8 | 5 | — | EBU2M(FxA2) | Get File | |
| M25X1,5 | 16 | 28/28 | 0,8 - 1,25 | 31 | 32.5 | 10.7 | 5.5 | — | EBU2M(FxH2) | — | |
| M25X1,5 | 16 | 28/28 | 1,25 - 1,6 | 31 | 32.5 | 11.7 | 5.5 | — | EBU2M(FxC2) | — | |
| M25X1,5 | 16 | 28/28 | 0,8 - 1,25 | 31 | 32.5 | 8.5 | 6 | — | EBU2M(FxB2) | — | |
| M25X1,5 | 16 | 28/28 | 1,25 - 1,6 | 31 | 32.5 | 14 | 6 | — | EBU2M(FxD2) | — | |
| M25X1,5 | 16 | 28/28 | 1,6 - 2,0 | 31 | 32.5 | 13.3 | 7.3 | — | EBU2M(FxF2) | — | |
| M25X1,5 | 16 | 28/28 | 1,25 - 1,6 | 31 | 32.5 | 15.3 | 6.8 | — | EBU2M(FxG2) | — | |
| M25X1,5 | 16 | 28/28 | 1,6 - 2,0 | 31 | 32.5 | 12.3 | 9.1 | — | EBU2M(FxE2) | — |
