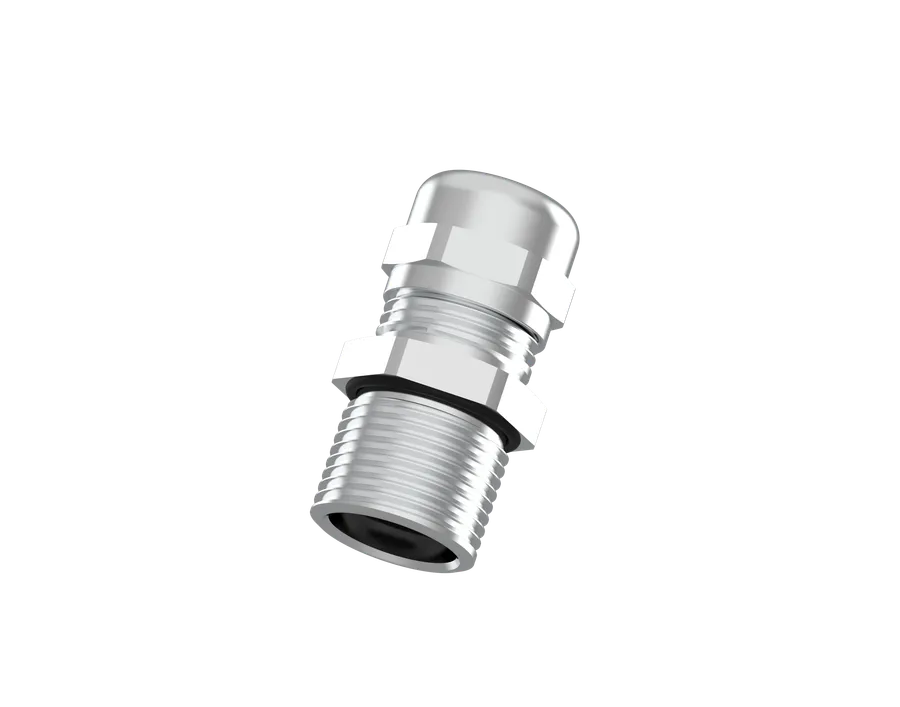

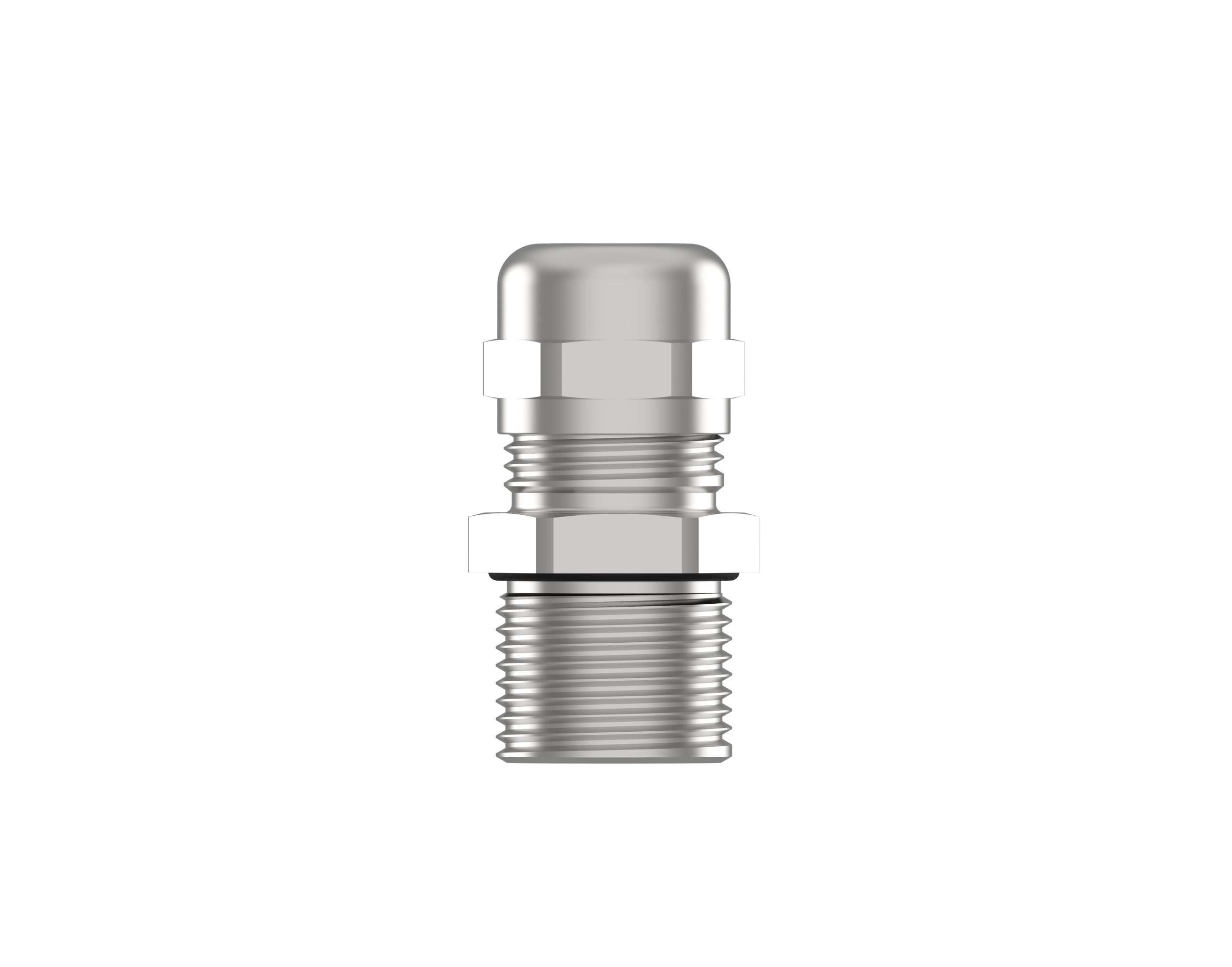

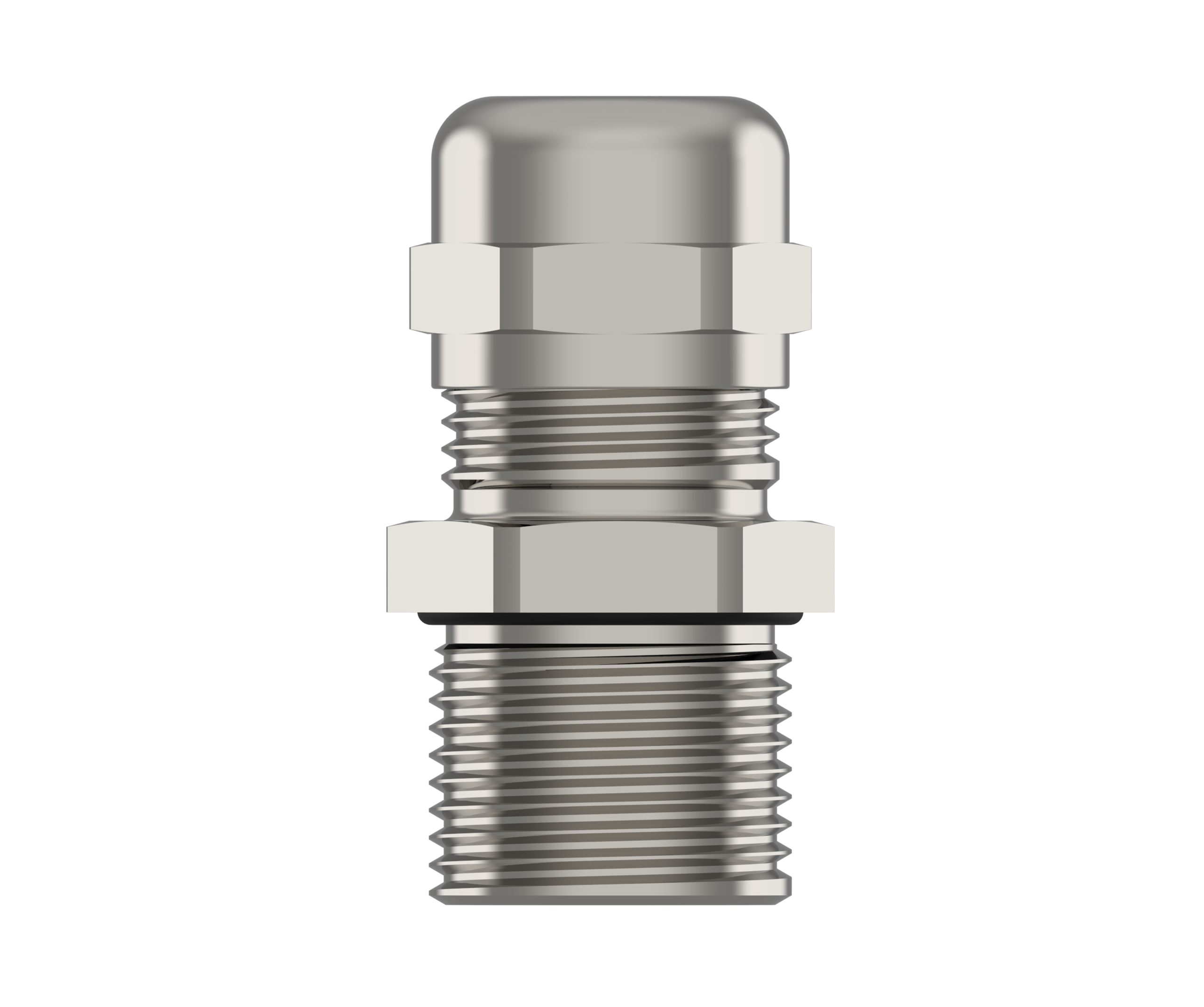

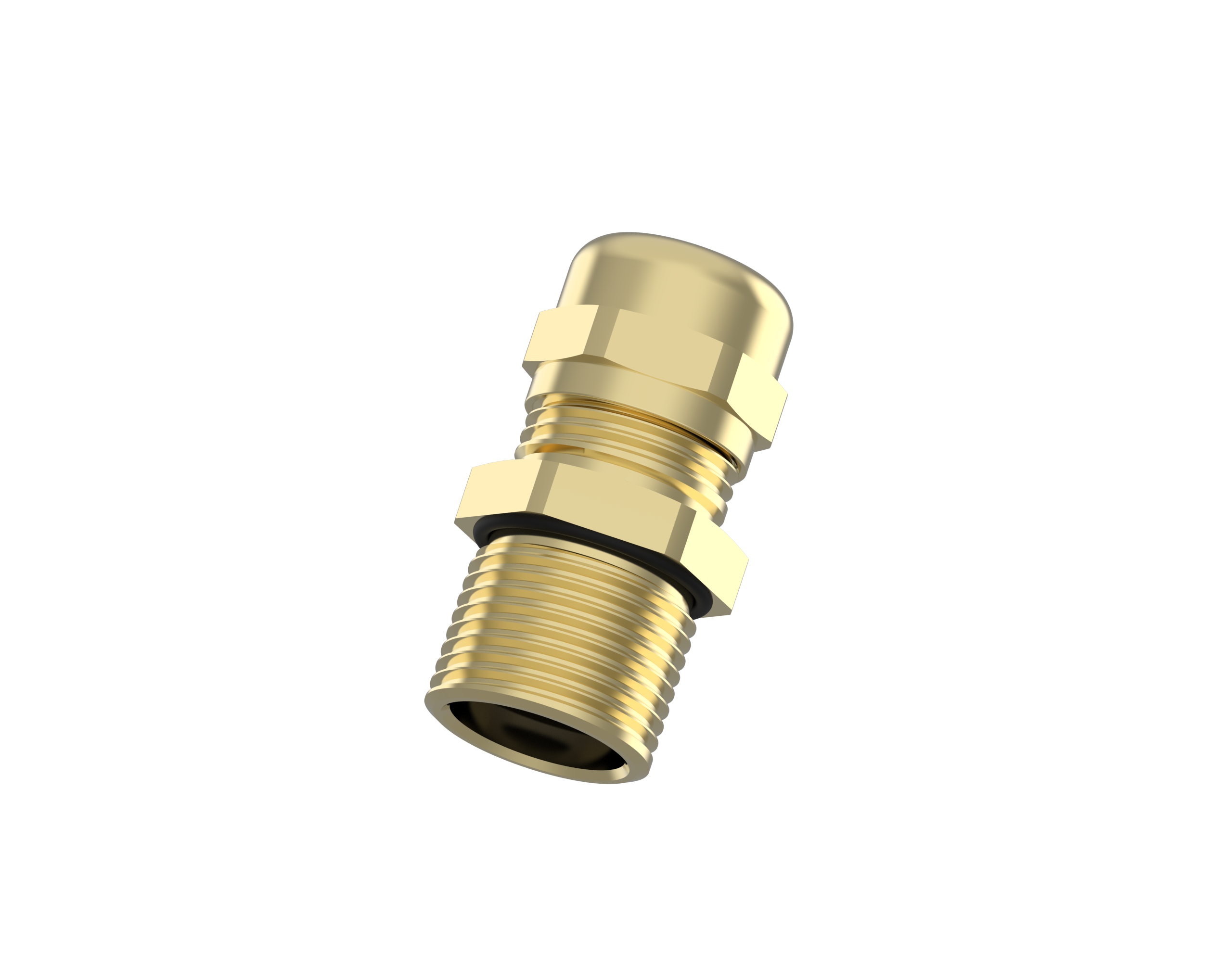

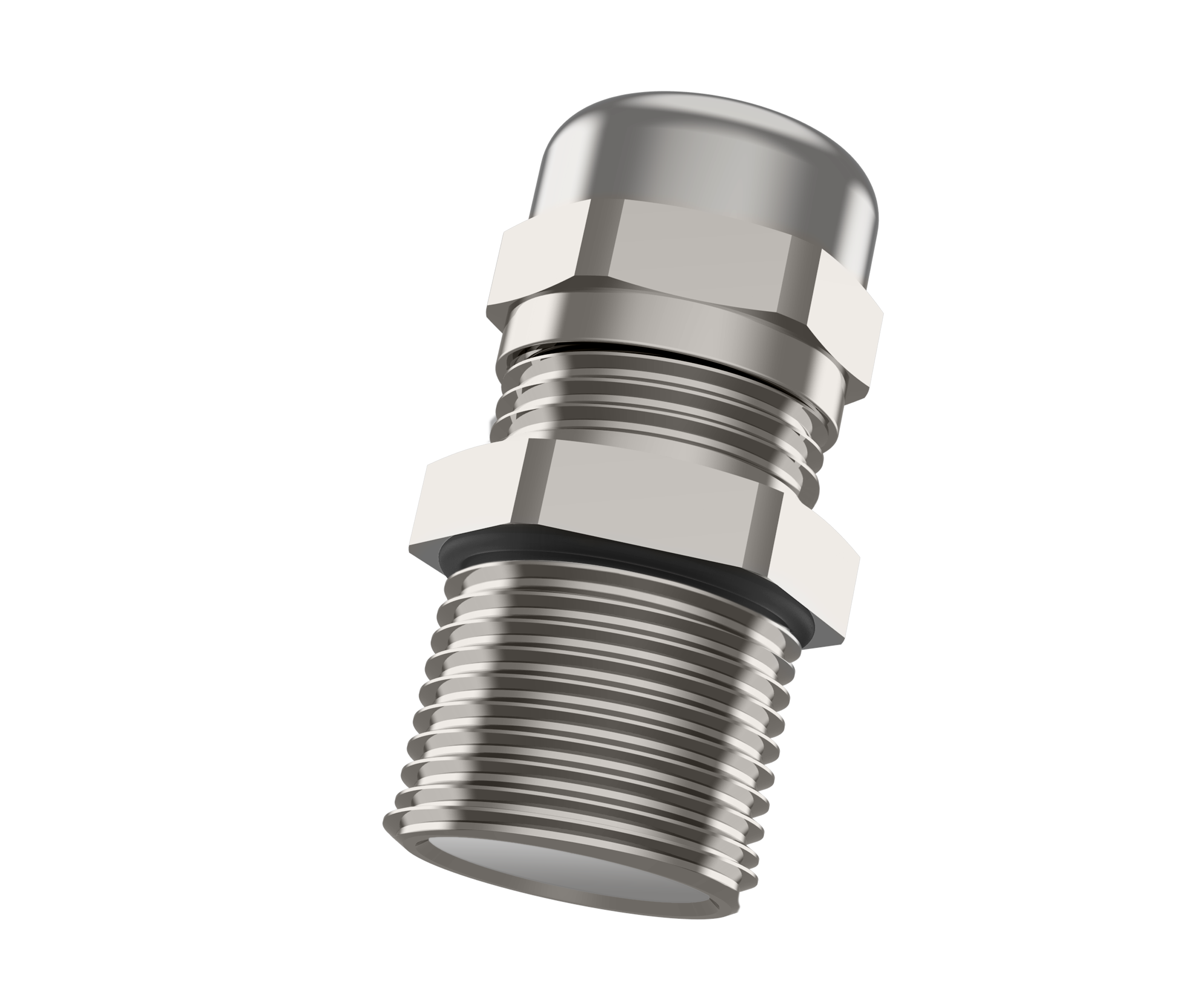

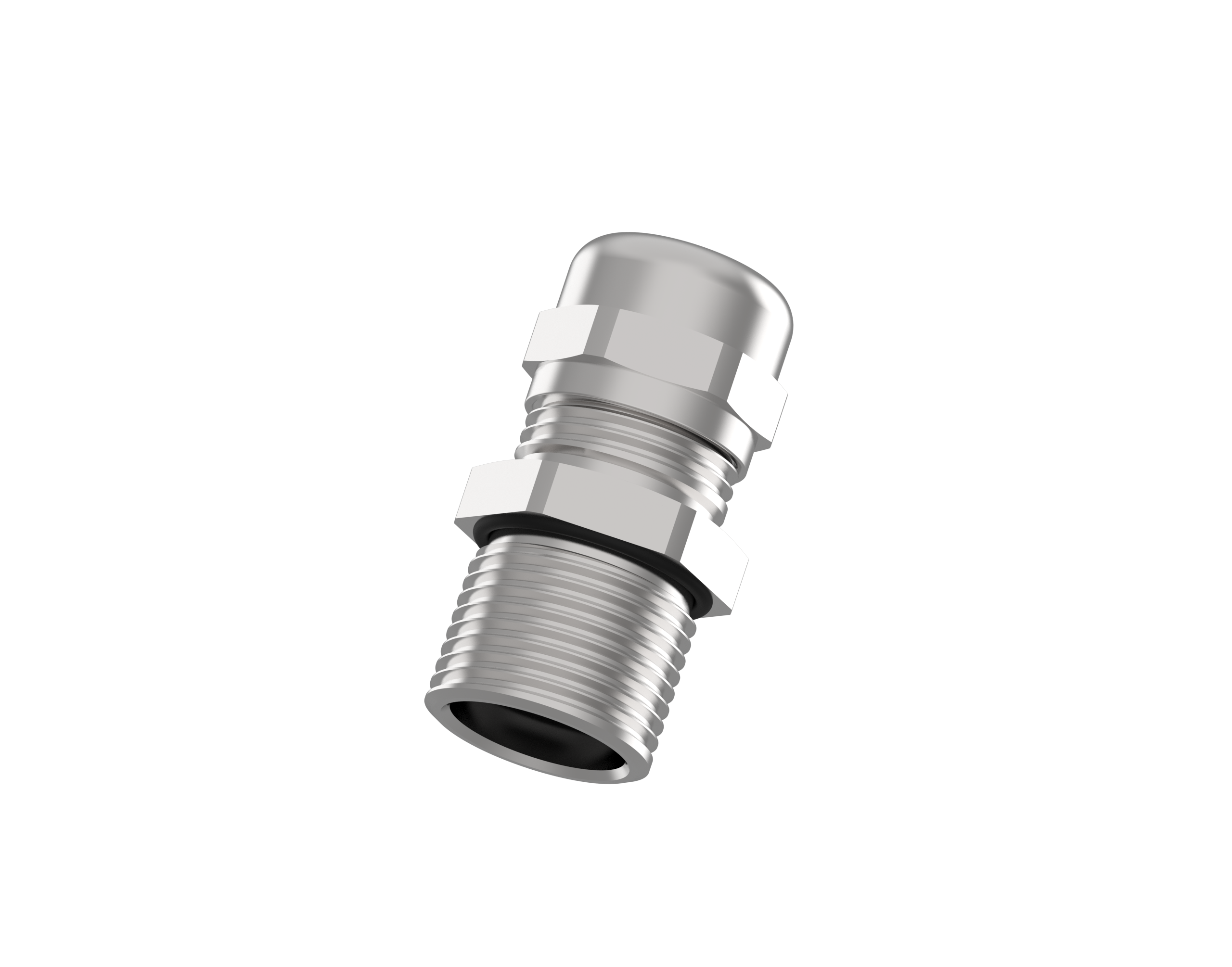

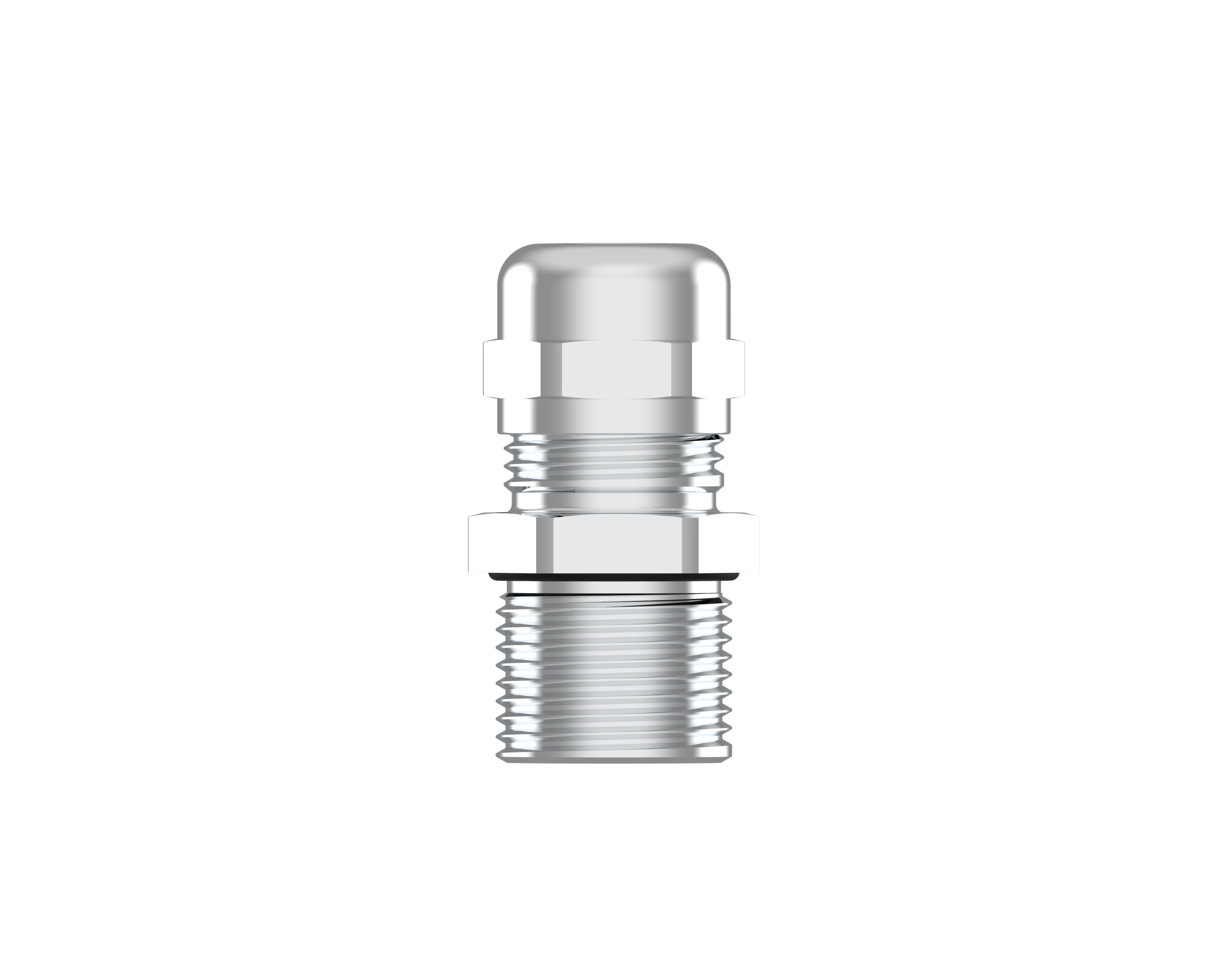

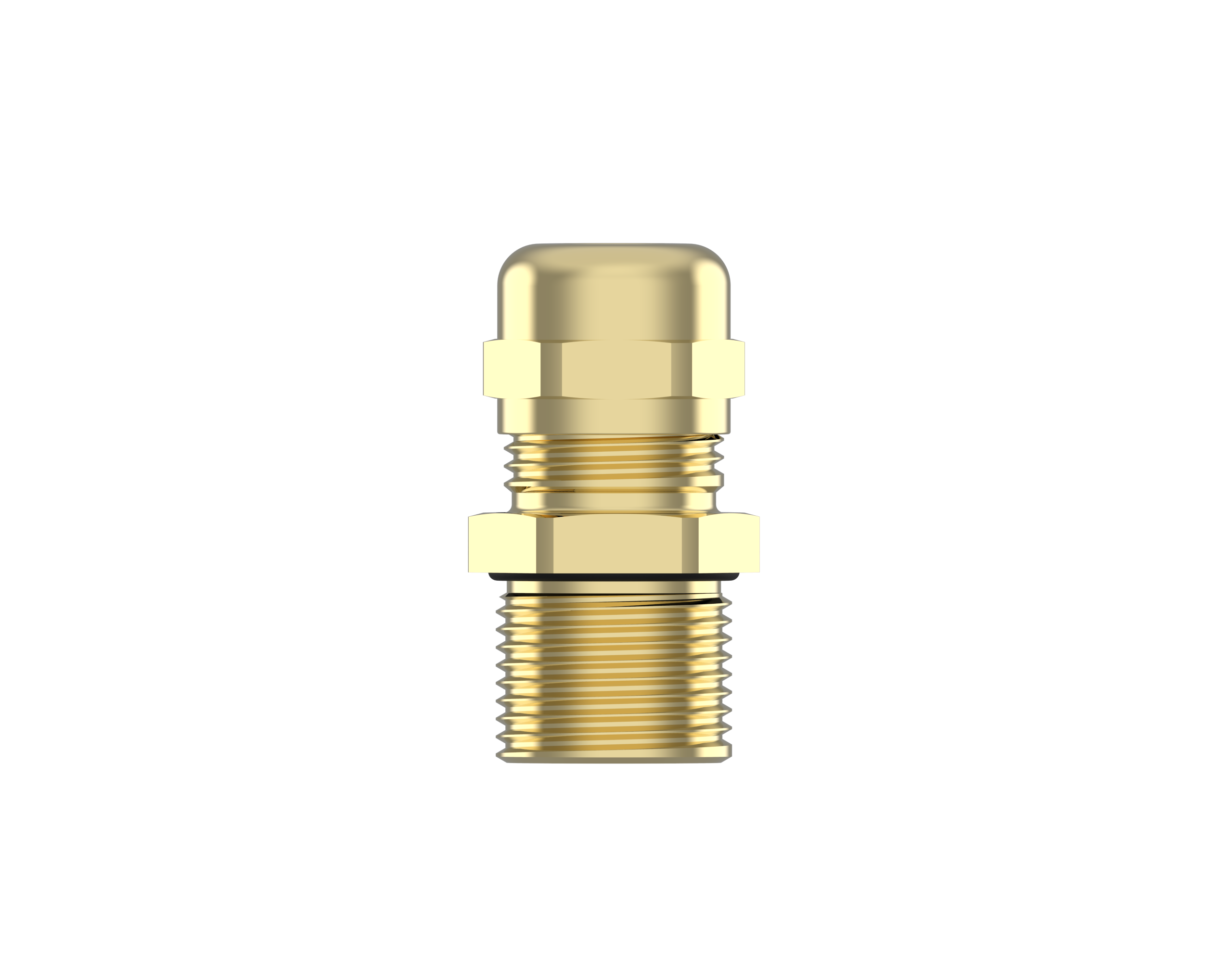

OCTANS

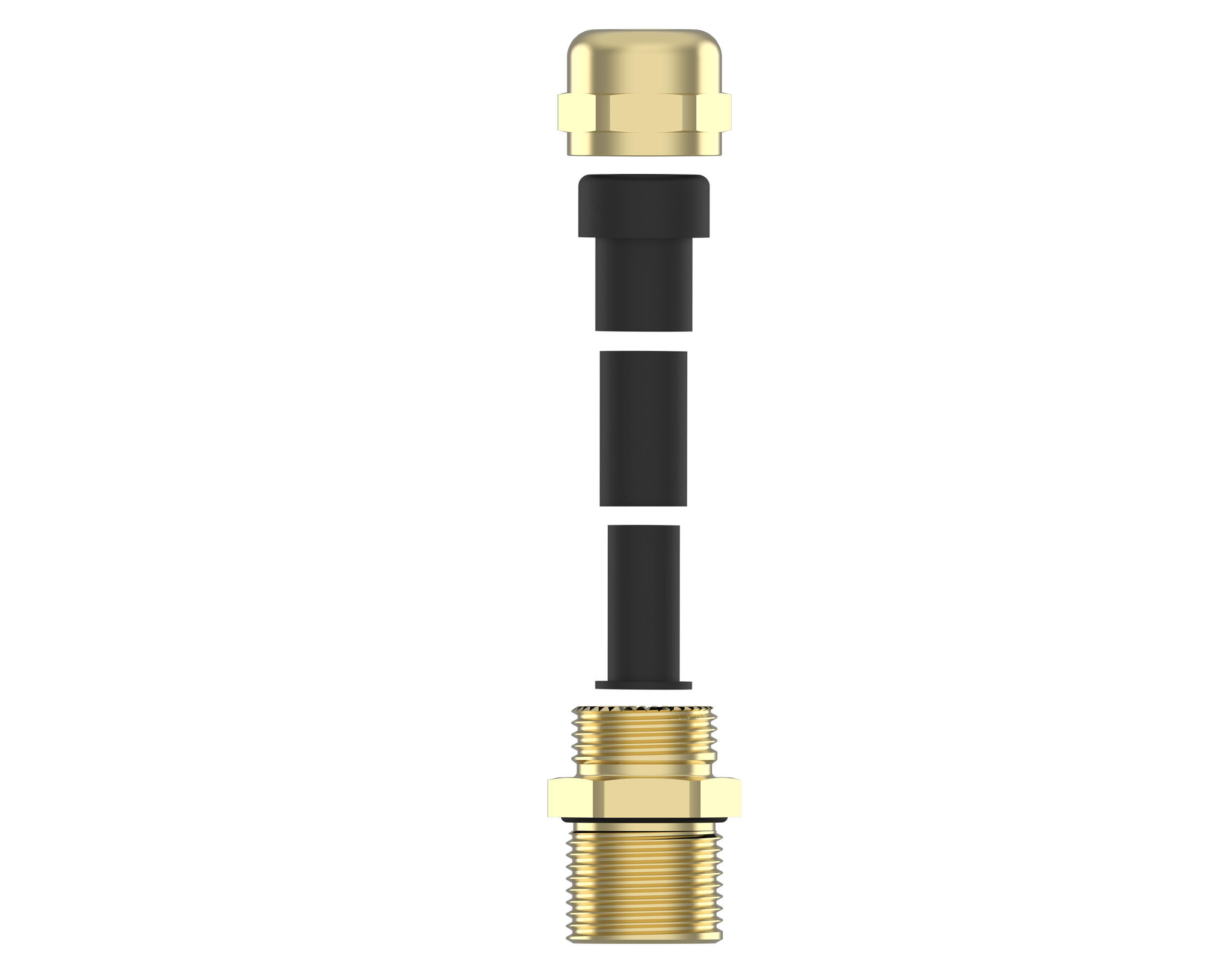

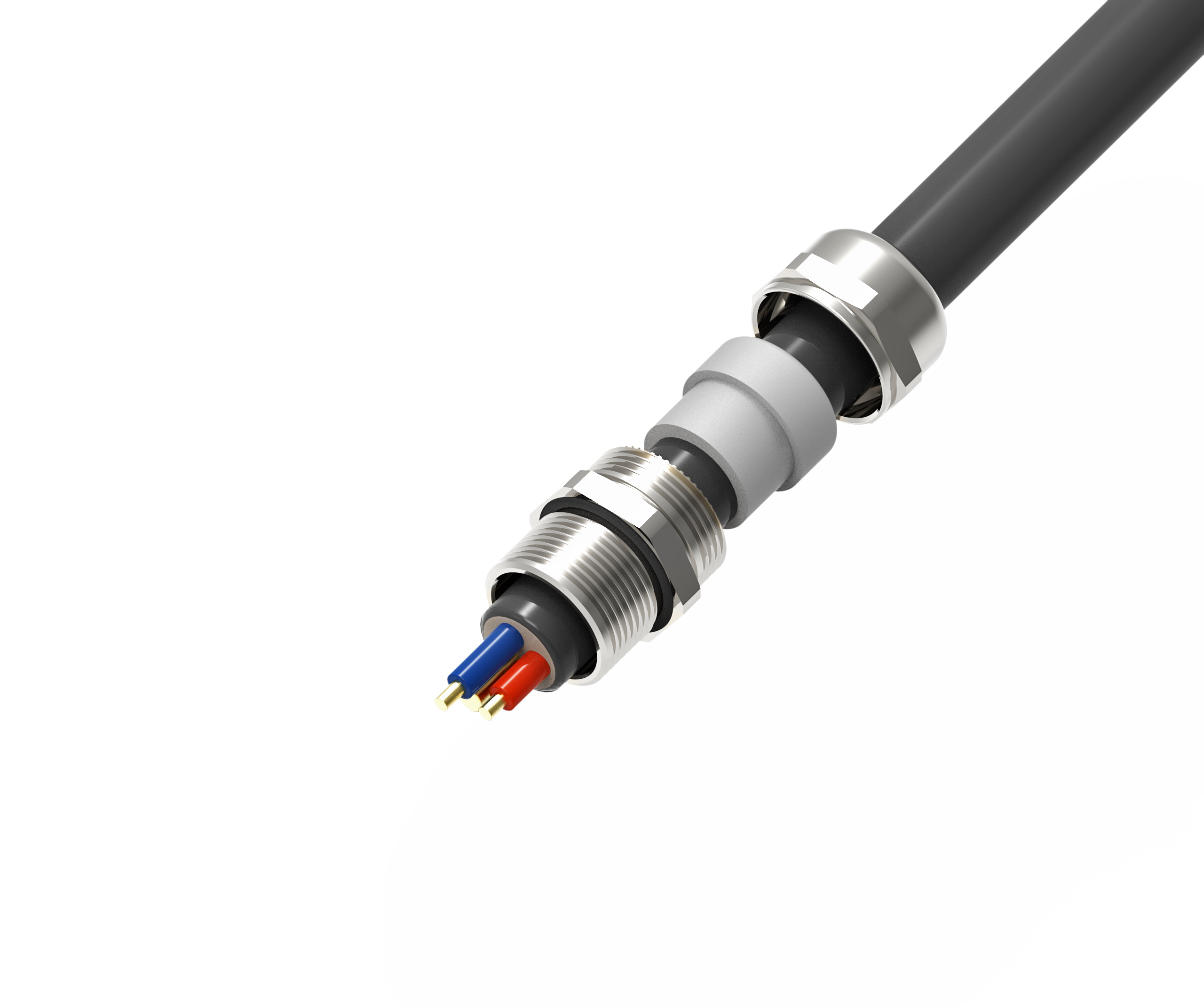

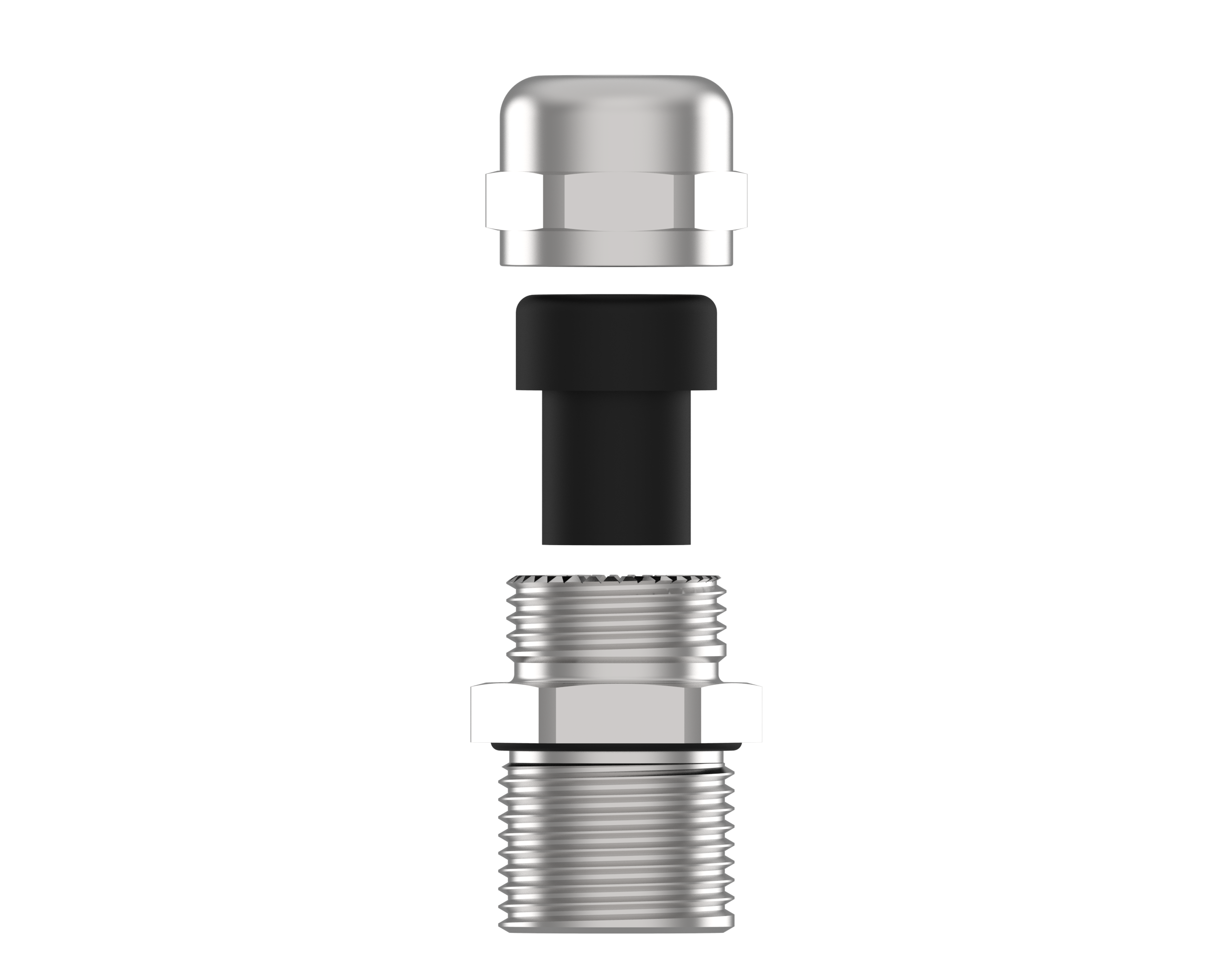

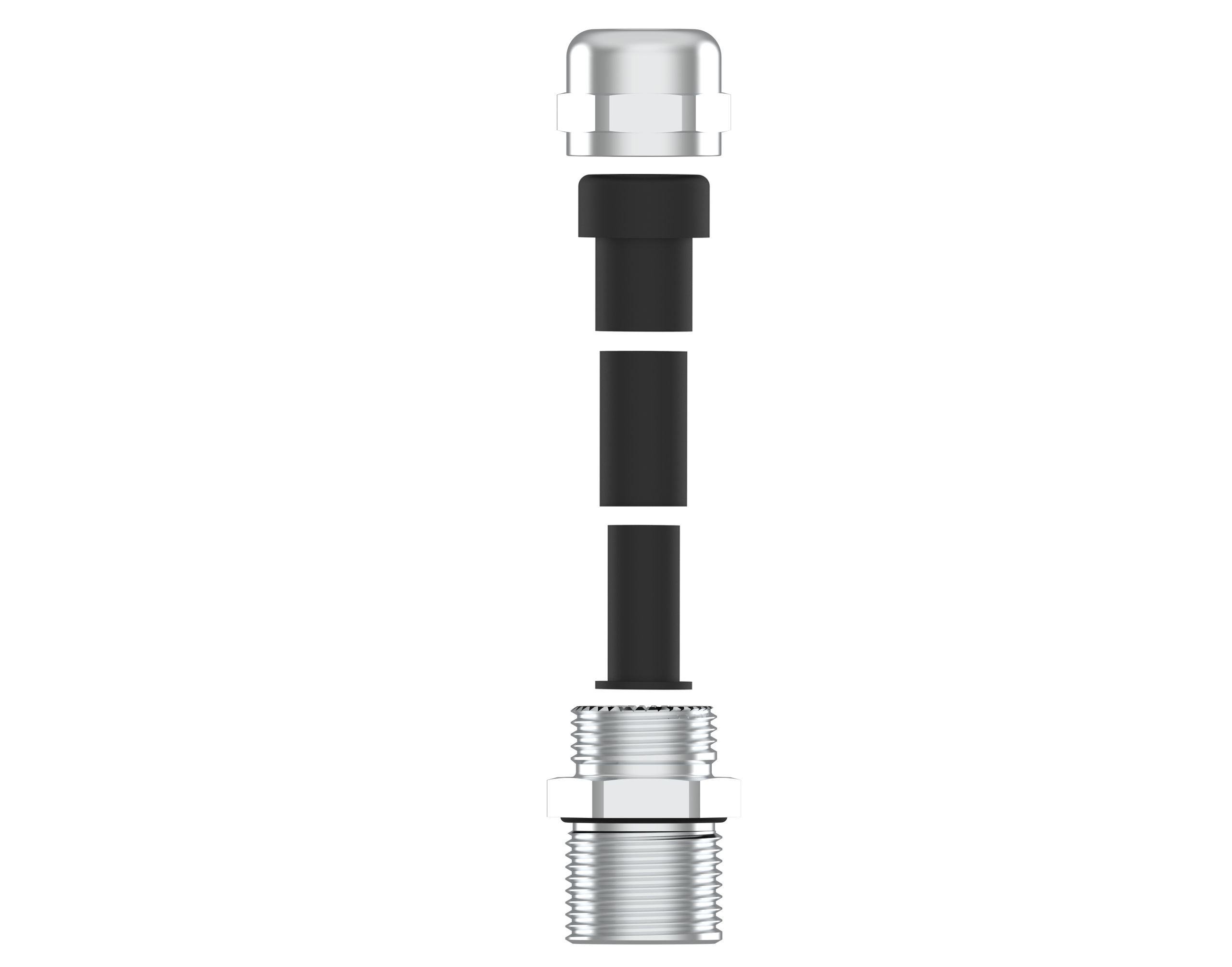

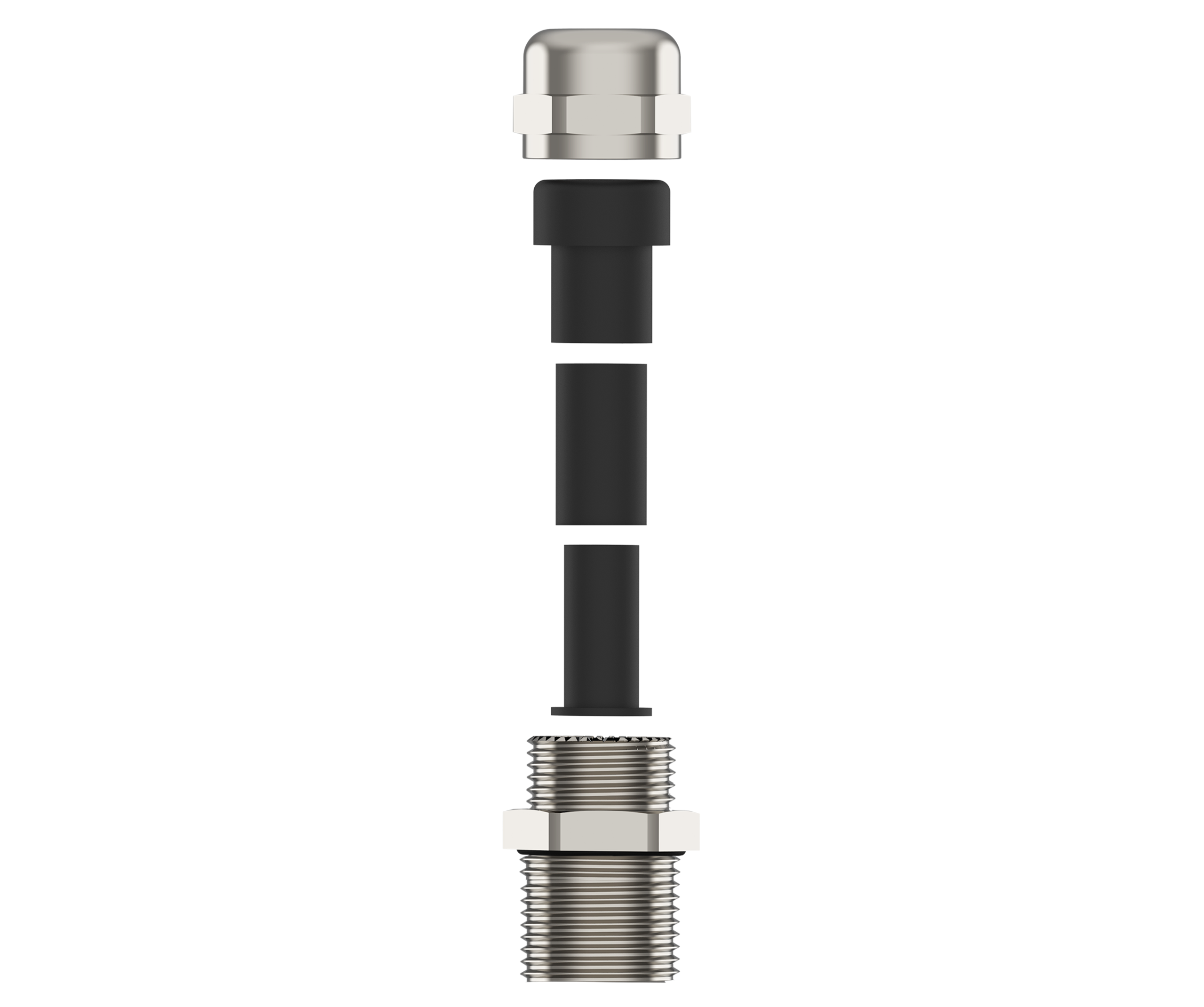

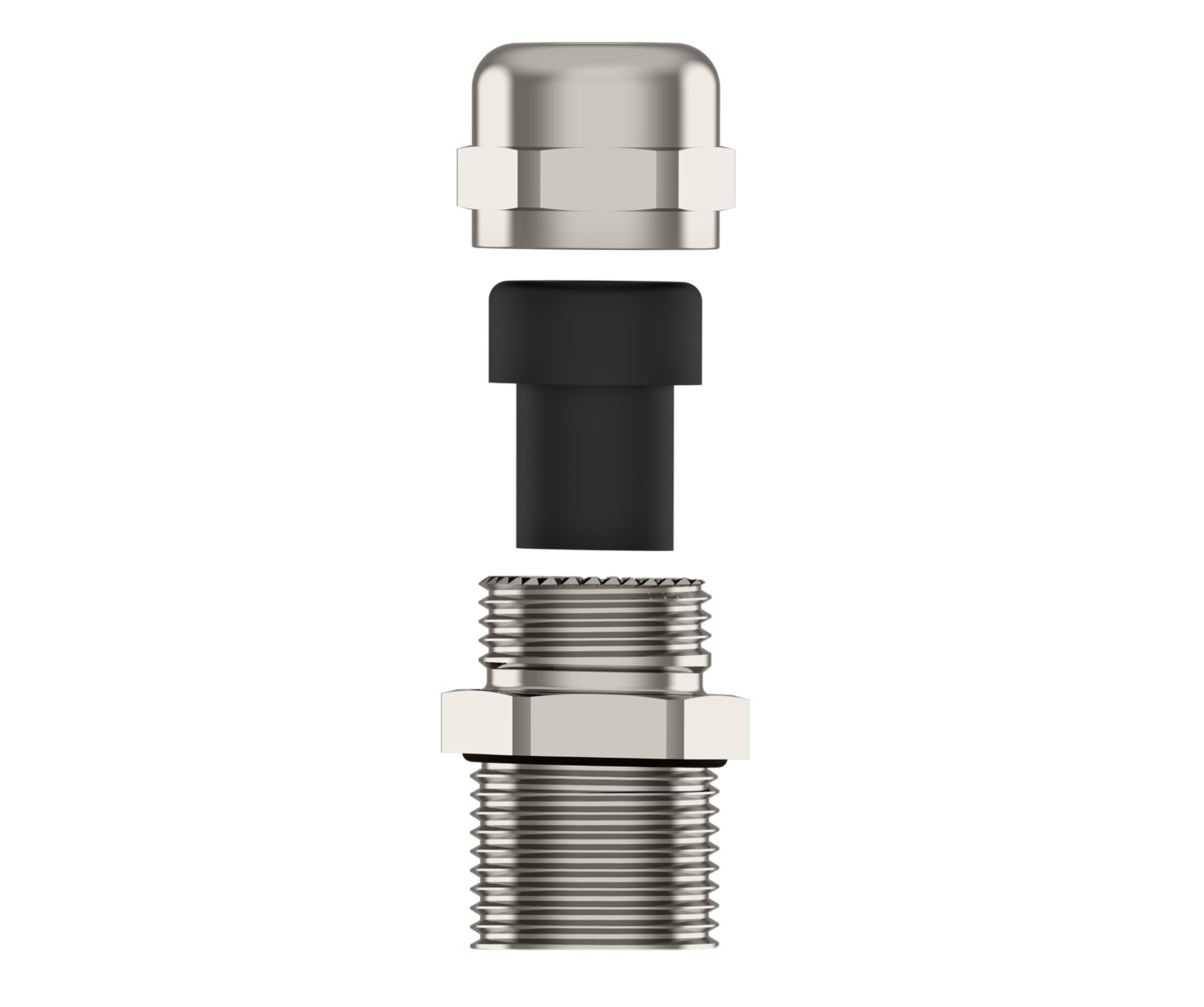

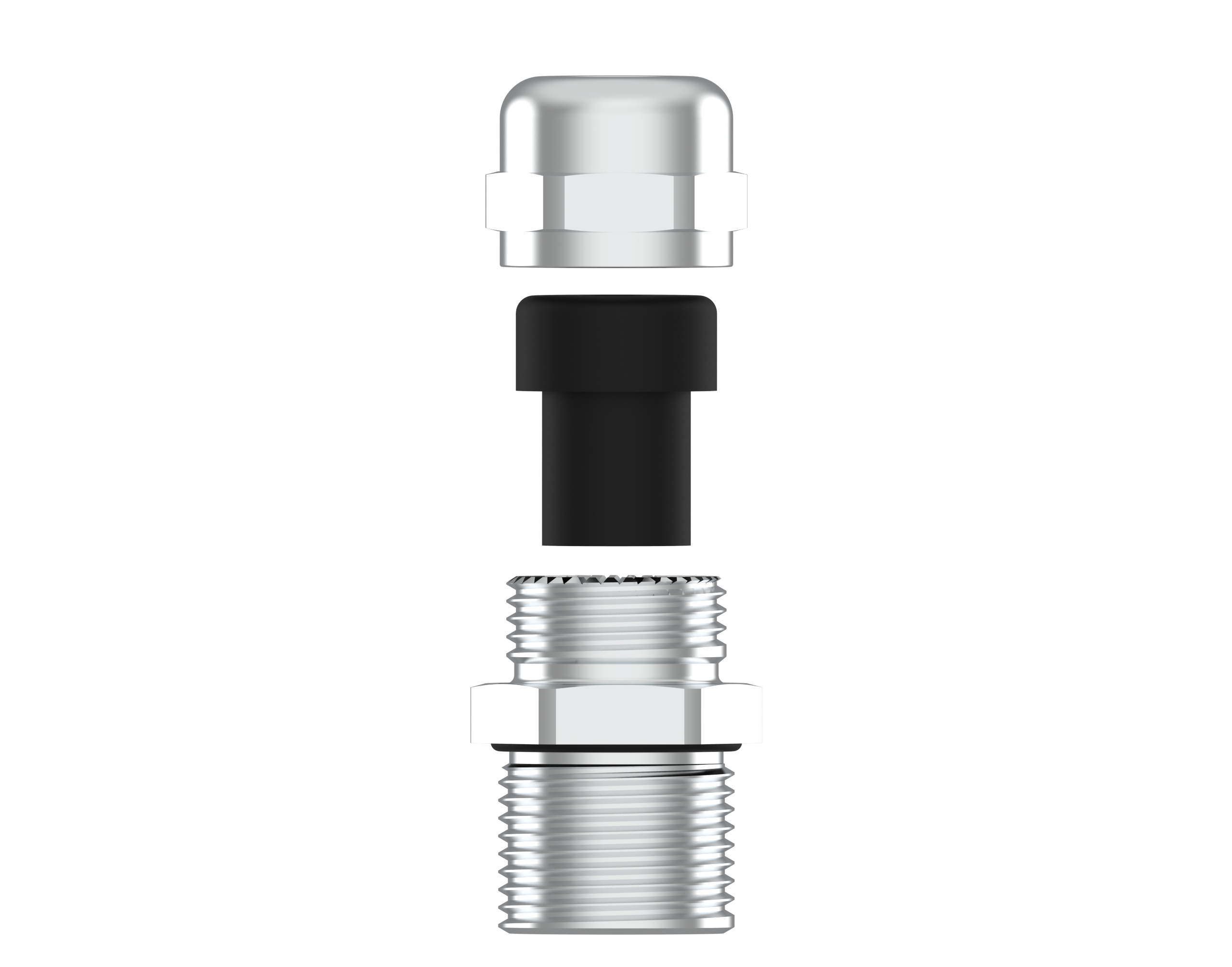

○Ex-kabelnippel av enkelt-kompresjonstype (stuffing-type) for Gruppe II og III, med modulær innsatskonstruksjon i 1, 2 eller 3 trinn for optimal tetning ved lavt tiltrekkingsmoment. ATEX- og IECEx-sertifisert i henhold til Ex eb, Ex db og Ex tb.
Spesifikasjoner

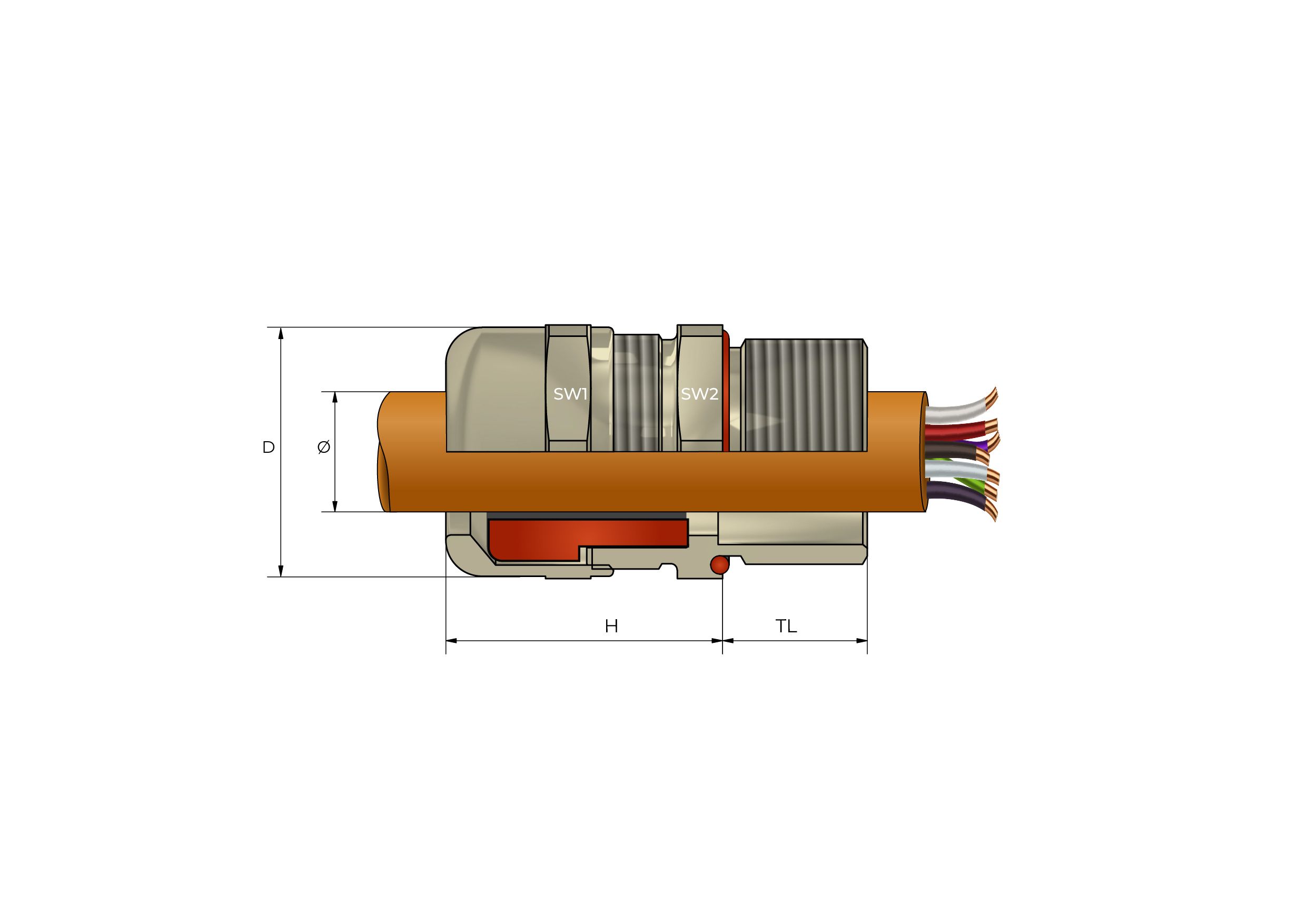

| Gjengestørrelse | Nøkkelvidde | Diameter | Maks høyde 'H' | Ex-e TL | Seal Type | Ex -d/e TL | Inner Cable Ø | Varenummer | BIMED Kode | 3D File |
|---|---|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 20/20 | 22 | 29 | 9 | Double | 16 | 3,0 - 8,0 | — | EBU0M | — |
| M12x1,5 | 22/22 | 24.5 | 33 | 9 | Triple | 16 | 4,0 - 8,0 | — | EBU0SM | — |
| M16x1,5 | 20/20 | 22 | 29 | 9 | Double | 16 | 3,0 - 9,0 | — | EBU01SM | Get File |
| M16x1,5 | 22/22 | 24.5 | 33 | 9 | Triple | 16 | 4,0 - 12,0 | — | EBU01M | — |
| M20x1,5 | 20/22 | 24.5 | 29 | 9 | Double | 16 | 3,0 - 9,0 | — | EBU1SM | Get File |
| M20x1,5 | 22/22 | 24.5 | 29 | 9 | Triple | 16 | 4,0 - 12,0 | — | EBU1M | Get File |
| M20x1,5 | 28/28 | 31 | 32 | 9 | Triple | 16 | 10,0 - 16,0 | — | EBU12M | Get File |
| M25x1,5 | 22/28 | 31 | 29 | 9 | Triple | 16 | 4,0 - 12,0 | — | EBU2SM | Get File |
| M25x1,5 | 28/28 | 31 | 32.5 | 9 | Triple | 16 | 10,0 - 18,0 | — | EBU2M | — |
| M25x1,5 | 35/35 | 39 | 36 | 9 | Triple | 16 | 14,0 - 20,0 | — | EBU23M | — |
| M32x1,5 | 28/35 | 39 | 32.5 | 9 | Triple | 16 | 10,0 - 18,0 | — | EBU3SM | — |
| M32x1,5 | 35/35 | 39 | 35 | 9 | Triple | 16 | 14,0 - 24,0 | — | EBU3M | — |
| M32x1,5 | 45/45 | 49.5 | 42.5 | 9 | Triple | 16 | 22,0 - 28,0 | — | EBU34M | — |
| M40x1,5 | 35/45 | 49.5 | 35 | 9 | Triple | 18 | 14,0 - 24,0 | — | EBU4SM | — |
| M40x1,5 | 45/45 | 49.5 | 42.5 | 9 | Triple | 18 | 22,0 - 32,0 | — | EBU4M | — |
| M40x1,5 | 50/50 | 56 | 45.5 | 9 | Triple | 18 | 26,0 - 34,0 | — | EBU45M | — |
| M50x1,5 | 45/55 | 61 | 42.5 | 9 | Triple | 18 | 22,0 - 32,0 | — | EBU5SM | — |
| M50x1,5 | 50/55 | 61 | 45.5 | 9 | Triple | 18 | 26,0 - 35,0 | — | EBU5M | — |
| M50x1,5 | 64/64 | 70 | 45 | 9 | Triple | 18 | 35,0 - 44,0 | — | EBU56M | — |
| M63x1,5 | 50/68 | 75 | 45.5 | 9 | Triple | 18 | 26,0 - 35,0 | — | EBU6SM | — |
| M63x1,5 | 64/68 | 75 | 45 | 9 | Triple | 18 | 35,0 - 45,0 | — | EBU6M | — |
| M63x1,5 | 80/75 | 89 | 54 | 9 | Triple | 18 | 46,0 - 56,0 | — | EBU67M | — |
| M75x1,5 | 64/80 | 89 | 45 | 9 | Triple | 20 | 35,0 - 45,0 | — | EBU7SM | — |
| M75x1,5 | 80/80 | 89 | 54 | 9 | Triple | 20 | 46,0 - 62,0 | — | EBU7M | — |
| M75x1,5 | 95/95 | 105 | 57 | 9 | Triple | 20 | 60,0 - 69,0 | — | EBU78M | — |
| M90x1,5 | 80/95 | 105 | 53.5 | 9 | Triple | 20 | 46,0 - 62,0 | — | EBU8SM | — |
| M90x1,5 | 95/95 | 105 | 57 | 9 | Triple | 20 | 60,0 - 75,0 | — | EBU8M | — |
| M90x1,5 | 105/105 | 117 | 56 | 9 | Triple | 20 | 75,0 - 82,0 | — | EBU810M | — |
| M100x1,5 | 95/105 | 117 | 57 | 9 | Triple | 20 | 60,0 - 75,0 | — | EBU10SM | — |
| M100x1,5 | 105/105 | 117 | 56 | 9 | Triple | 20 | 75,0 - 85,0 | — | EBU10M | — |
| M110x1,5 | 115/115 | 128 | 58 | 9 | Triple | 20 | 85,0 - 95,0 | — | EBU11M | — |
| M115x2,0 | 105/130 | 144 | 56 | 9 | Triple | 24 | 75,0 - 85,0 | — | EBU115XSM | — |
| M115x2,0 | 115/130 | 144 | 58 | 9 | Triple | 24 | 85,0 - 95,0 | — | EBU115SM | — |
| M115x2,0 | 130/130 | 144 | 64.5 | 9 | Triple | 24 | 95,0 - 105,0 | — | EBU115M | — |
| M130x2,0 | 140/140 | 154 | 67.5 | 9 | Triple | 24 | 105,0 - 115,0 | — | EBU13M | — |
