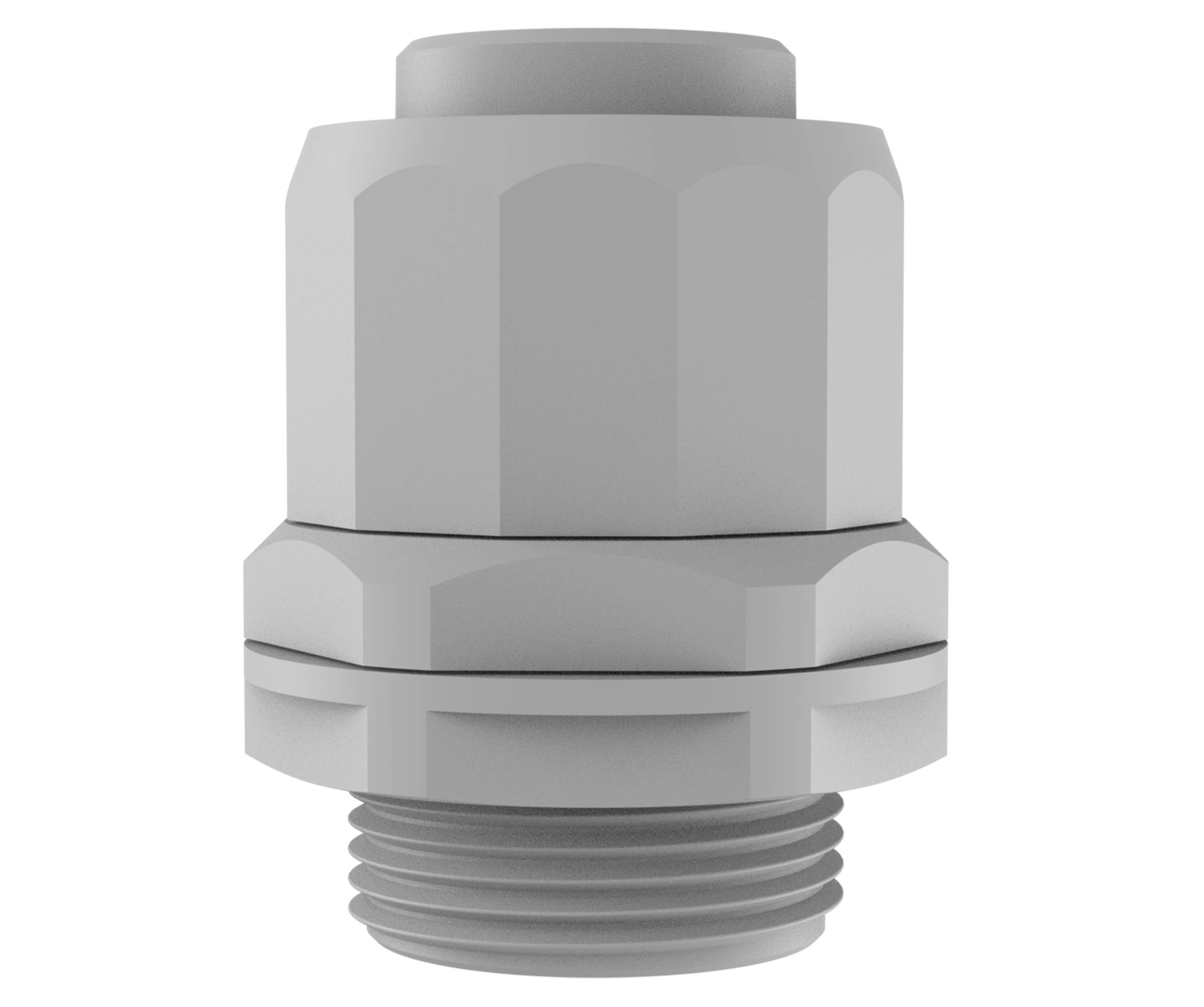

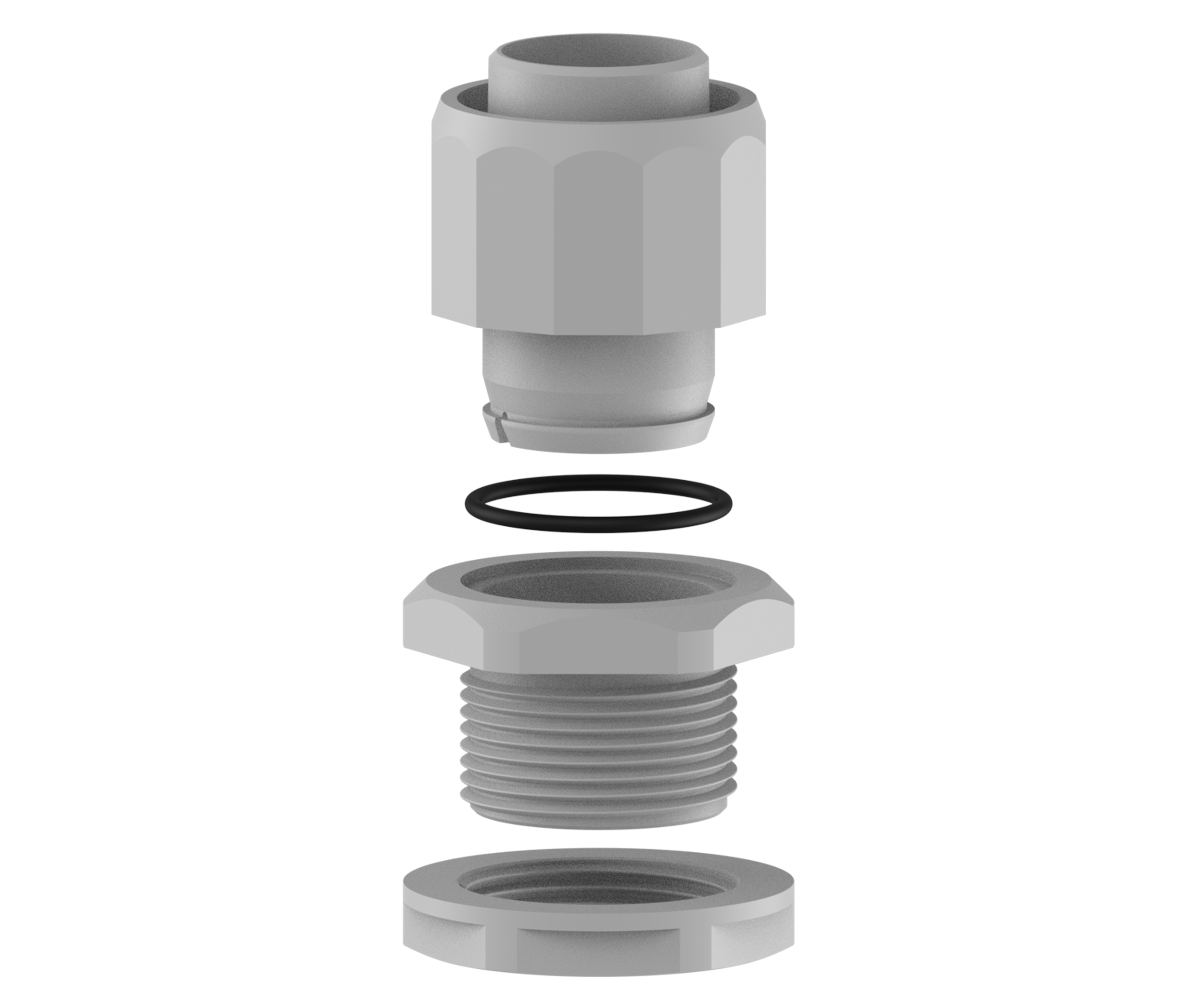

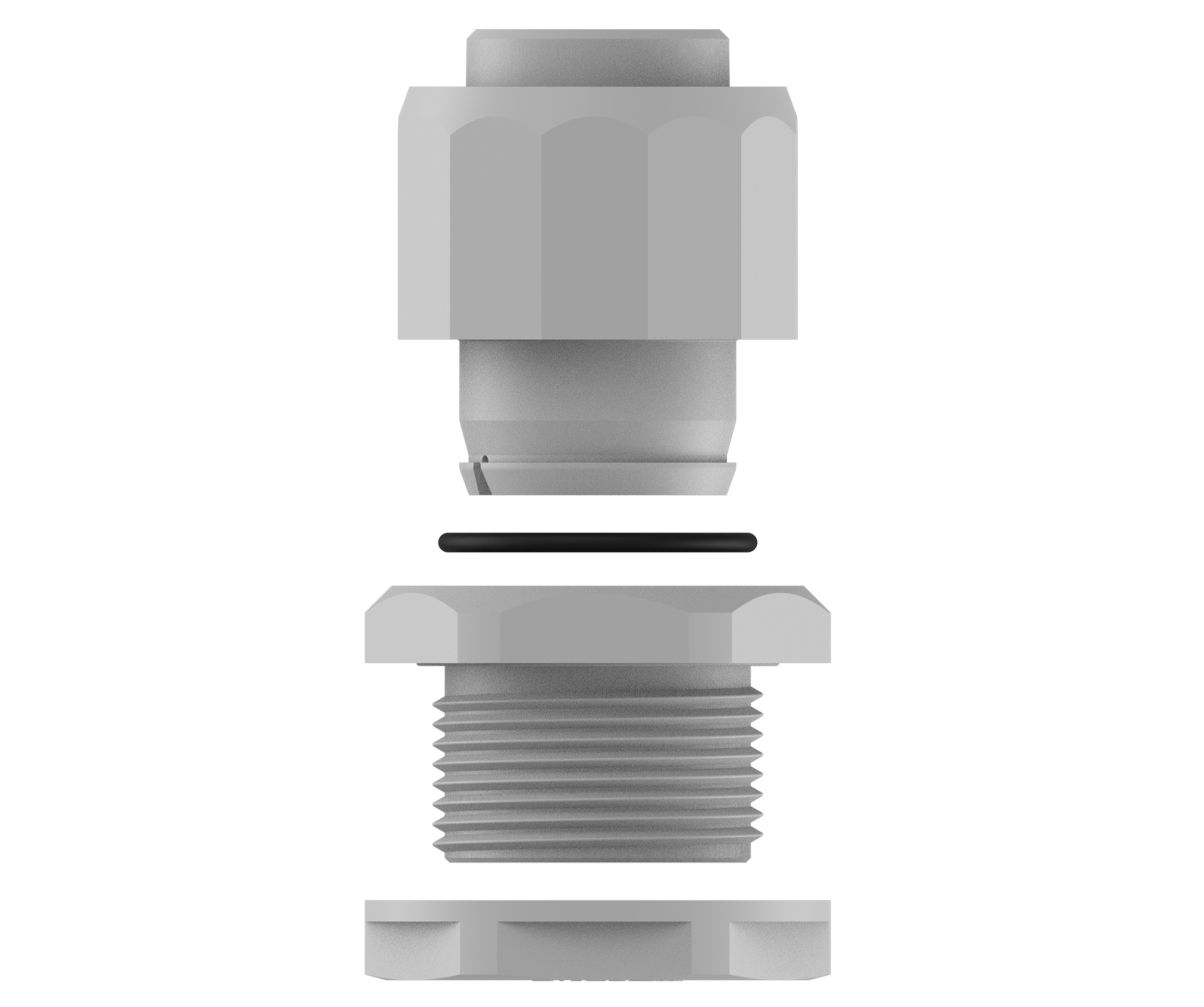

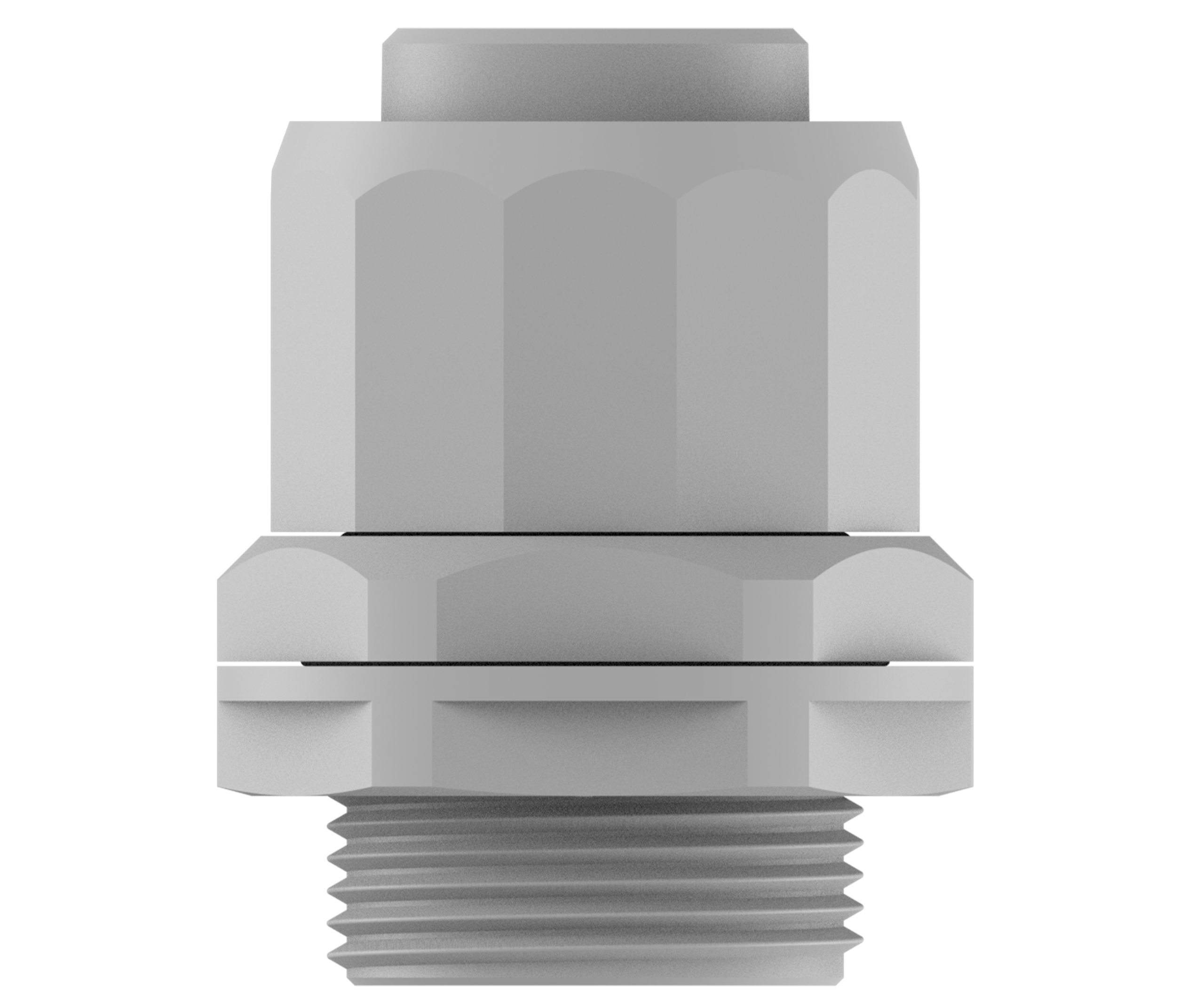

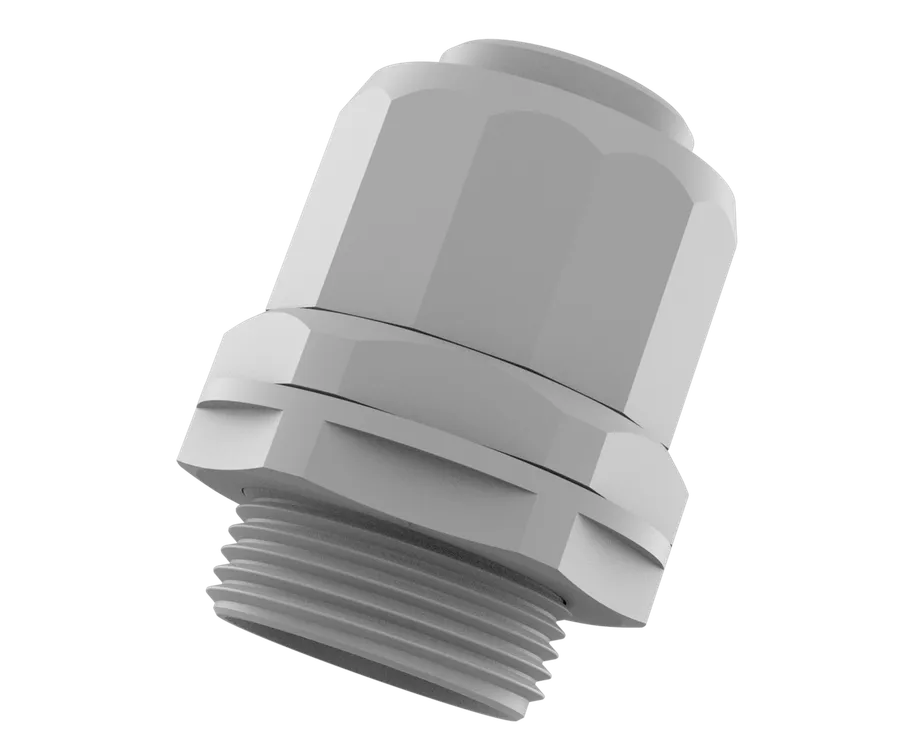

Svingkobling
○Halogenfri svingbar kobling for fleksible spiralkonduitrør. Én side med standard metrisk gjenge og spesialgjenge for konduitspiral på den andre
○Avgir ikke giftige gasser ved brann.
Spesifikasjoner
| Gjengestørrelse | Gjengelengde | Diameter | H | L | S | Ød1 | Ød2 | Ød3 | SW1/2 | Varenummer | BIMED Kode | 3D File |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M16 | 15.0 | 24 | 16.0 | 40.5 | 4.5 | X | 11.8 | 10.0 | 21/22 | — | BCFSM-01 | — |
| M20 | 15.0 | 30 | 17.8 | 44.15 | 6.2 | 21.4 | 15.8 | 13.2 | 26/27 | — | BCFSM-02 | — |
| M25 | 15.0 | 35 | 19.2 | 44.3 | 5.8 | 25.4 | 19.7 | 17.5 | 30/32 | — | BCFSM-03 | — |
| M32 | 15.0 | 42 | 19.3 | 48.1 | 7.8 | 31.3 | 24.7 | 23.2 | 35/38 | — | BCFSM-04 | — |
| M40 | 18.0 | 51 | 20.6 | 54.1 | 8.5 | 38.8 | 31.6 | 30.1 | 43/46 | — | BCFSM-05 | — |
| M50 | 18.0 | 61 | 30.1 | 56.6 | 8.5 | 47.5 | 39.5 | 38.0 | 52/55 | — | BCFSM-06 | — |
