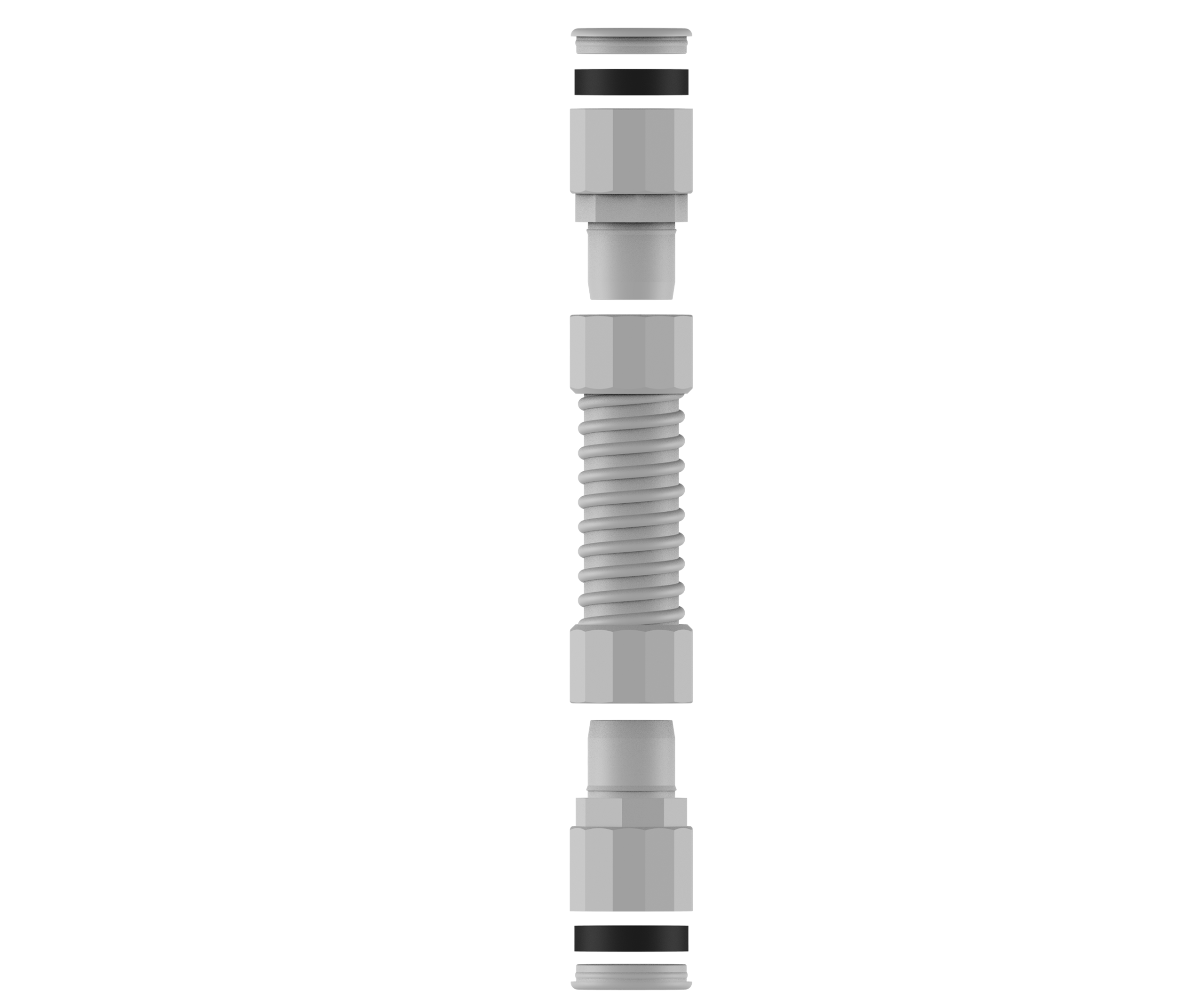

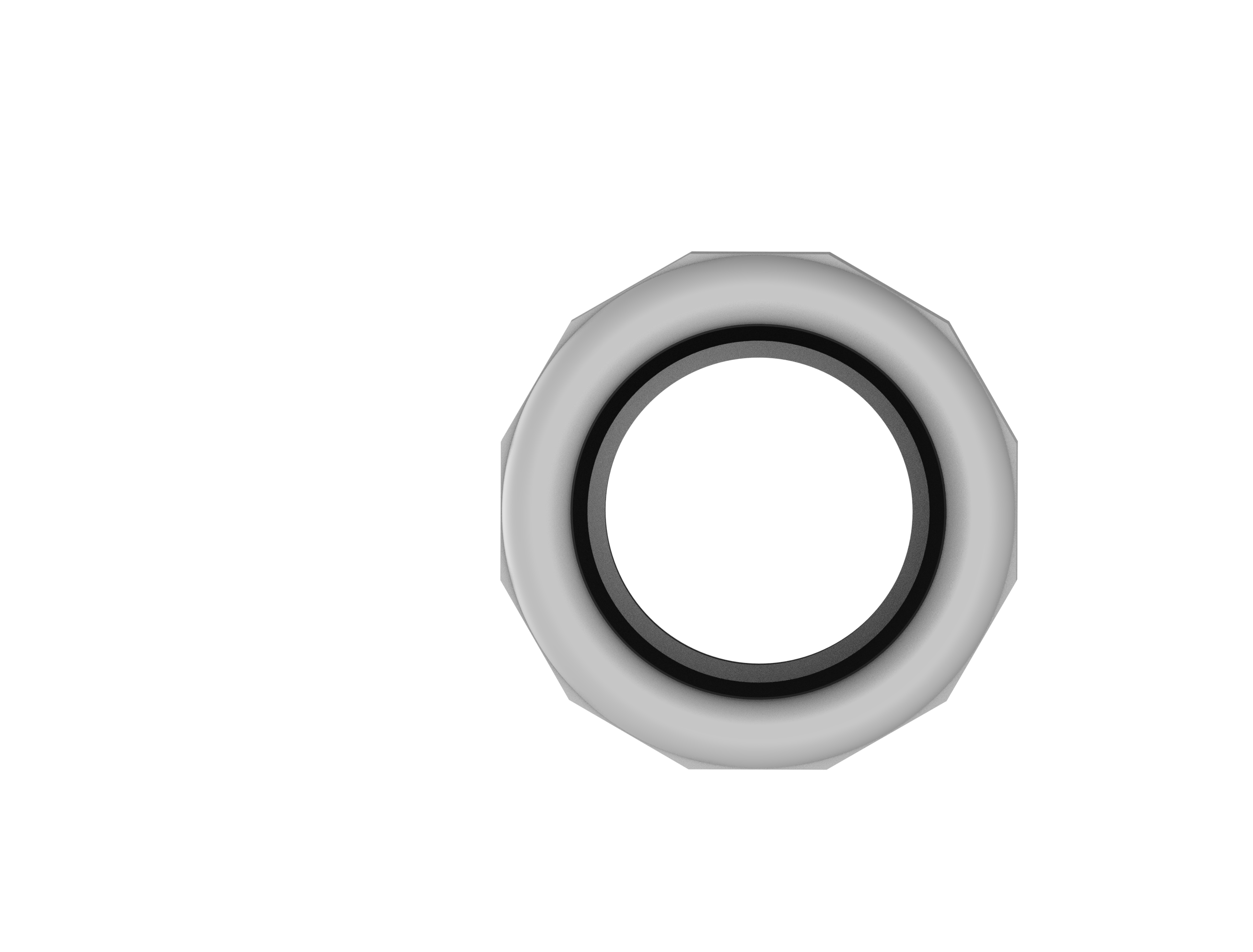

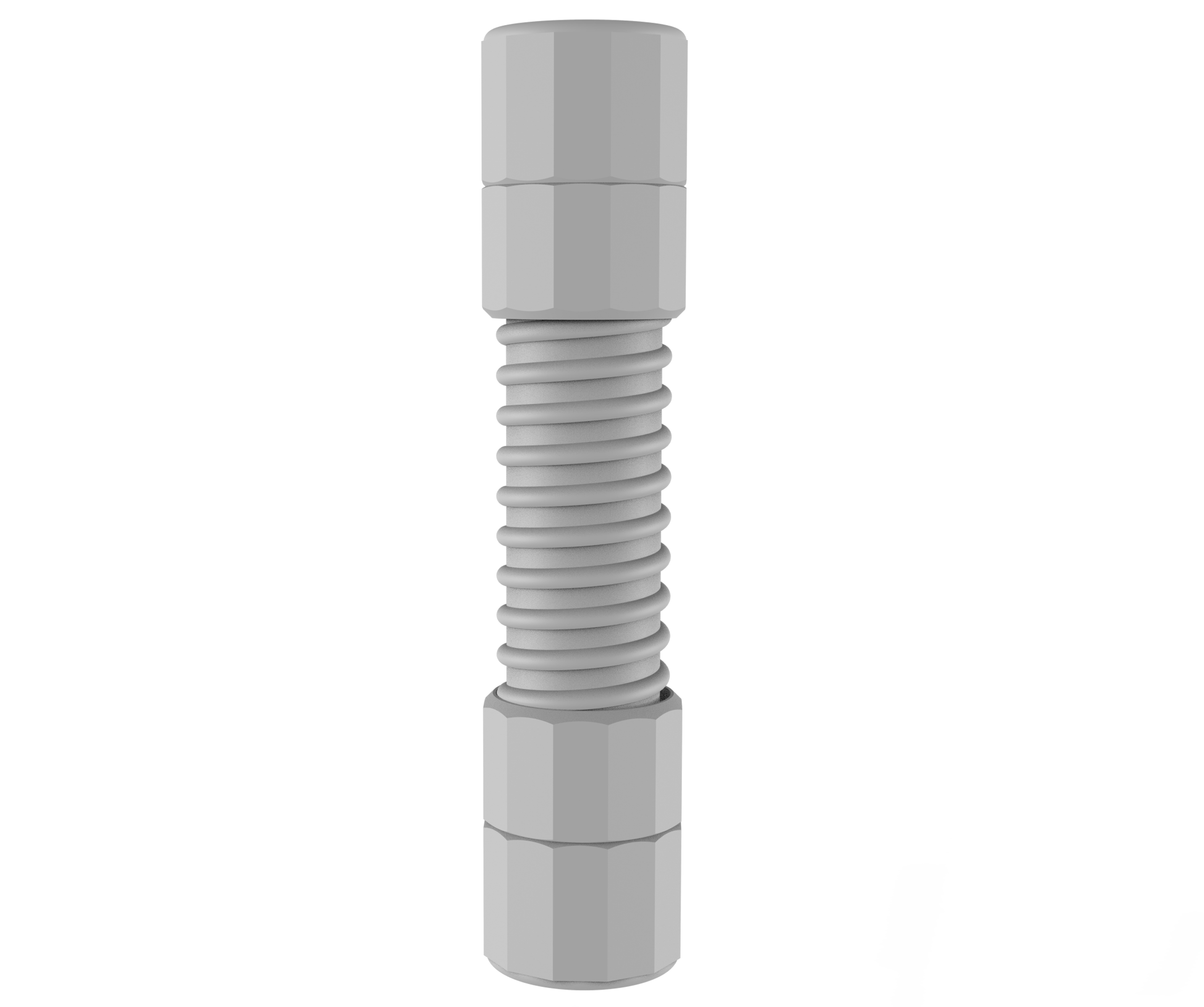

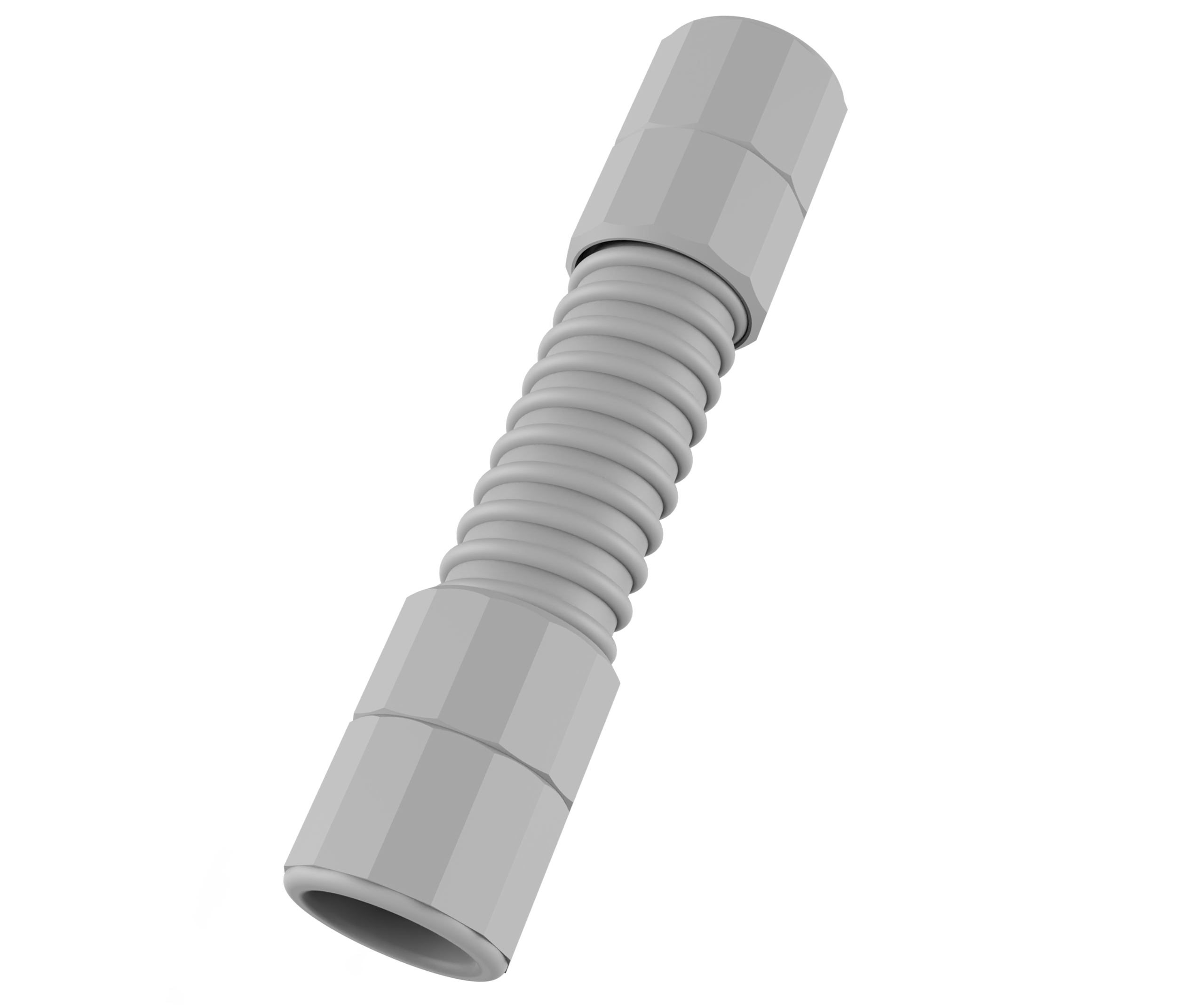

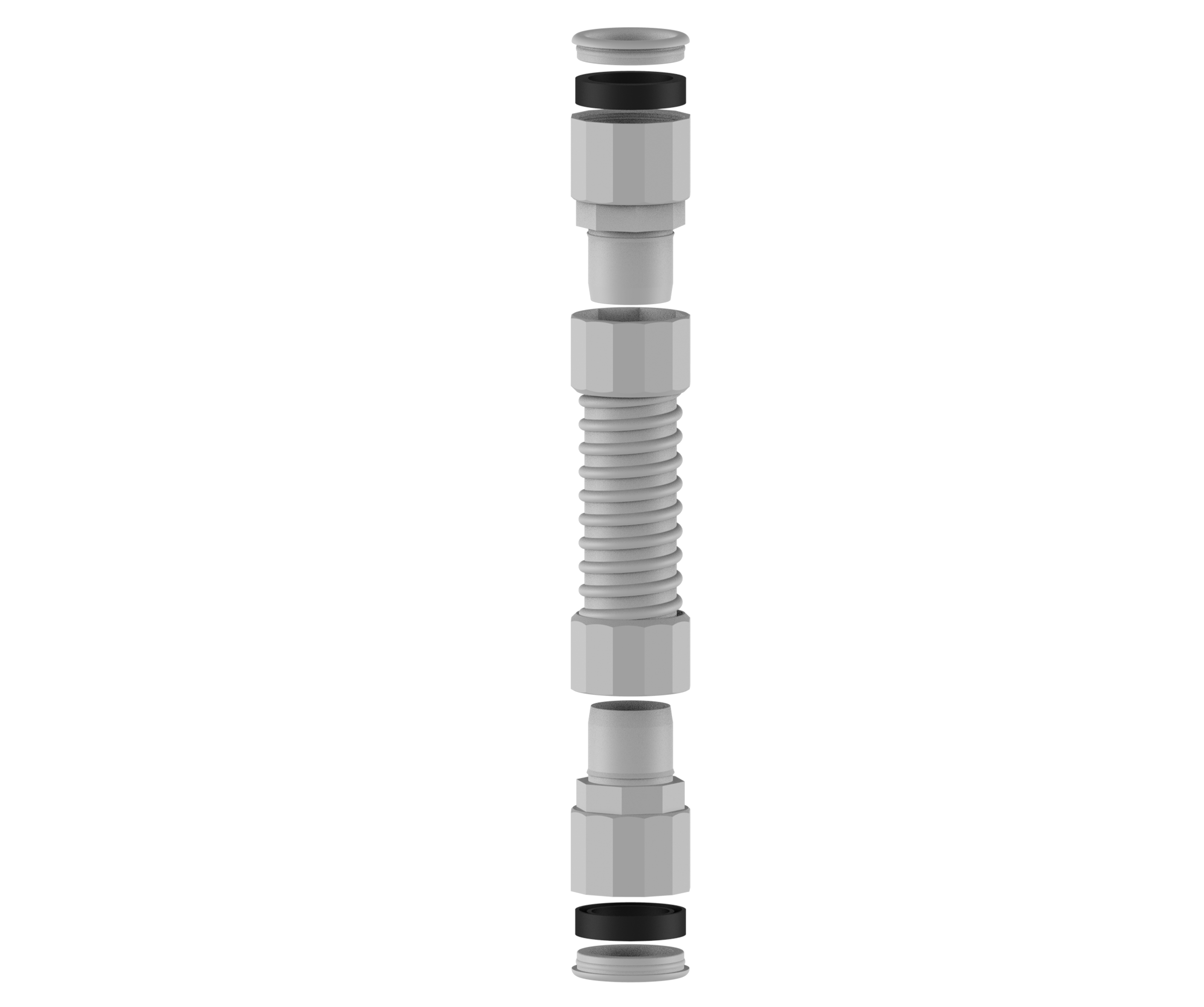

Fleksible koblinger
○Halogenfri kobling for alle typer kurver i elektriske installasjoner, kombinert av to konduitkoblinger og et fleksibelt konduitrør
○Avgir ikke giftige gasser ved brann.
Spesifikasjoner

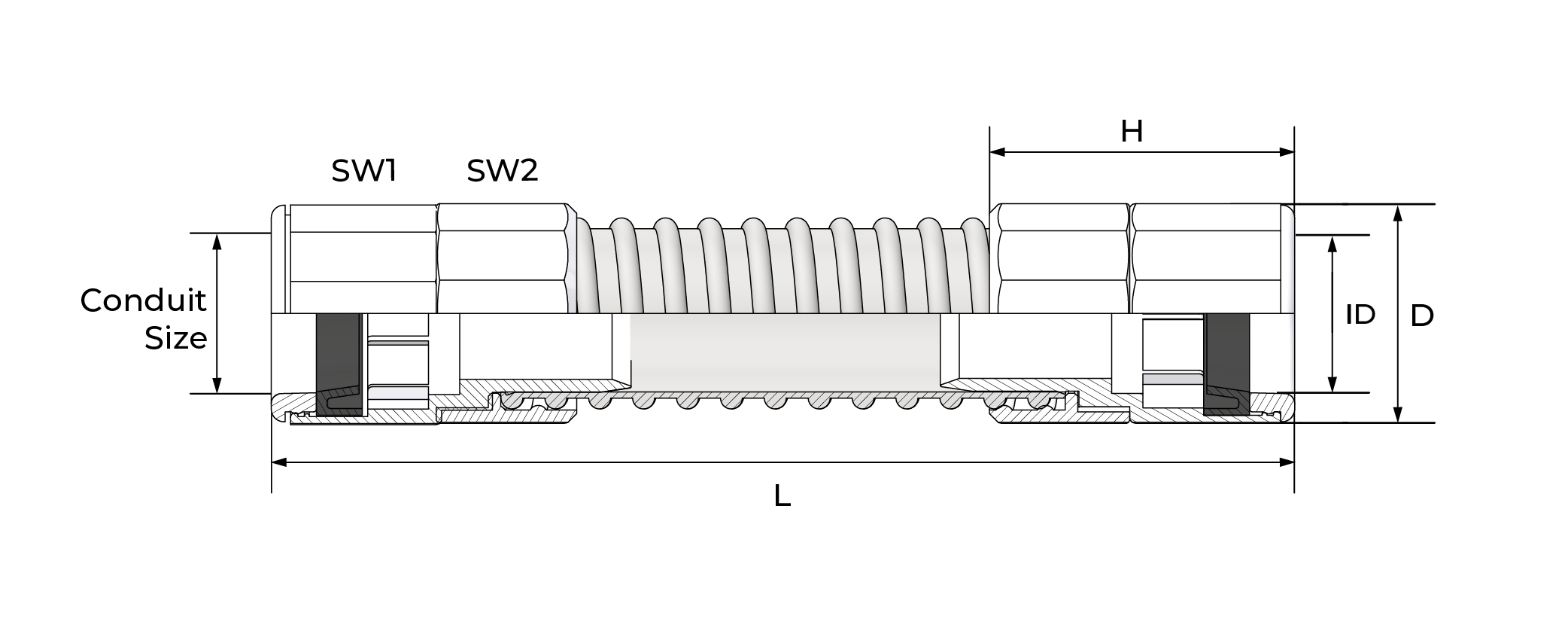

| Gjengestørrelse | Diameter | Nøkkelvidde | Height 'H' | Length "L" | Conduit Size | Inner Ø 'ID' | Varenummer | BIMED Kode | 3D File |
|---|---|---|---|---|---|---|---|---|---|
| M16 | 26.4 | 26 | 49 | 210 | 16 | 16.5 | — | BRC90F-01 | — |
| M20 | 31.3 | 30 | 47.7 | 240 | 20 | 20.4 | — | BRC90F-02 | — |
| M25 | 36 | 35 | 49 | 290 | 25 | 25.3 | — | BRC90F-03 | Get File |
| M32 | 43.4 | 42 | 48.7 | 400 | 32 | 32.2 | — | BRC90F-04 | — |
| M40 | 52 | 50 | 61.5 | 420 | 40 | 40.5 | — | BRC90F-05 | — |
| M50 | 63.3 | 62 | 61.5 | 440 | 50 | 50.5 | — | BRC90F-06 | — |
